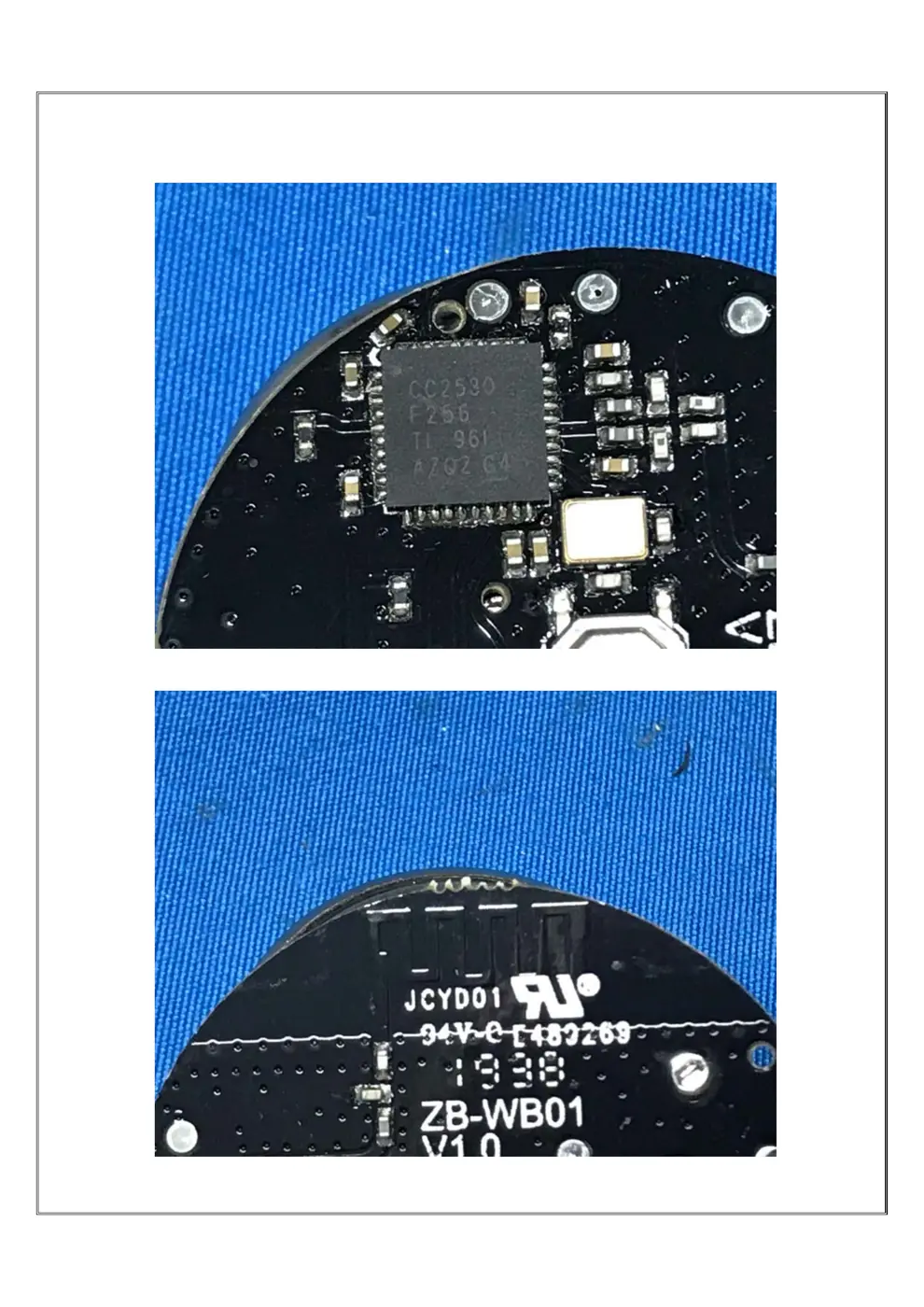

01 Reset & Teardown (FCC ID 2APN5SNZB-01)

SNZB-01
User manual V 1.0
Wireless Switch
中文-------1-6 English-------7-12
eWeLink
eWeLink

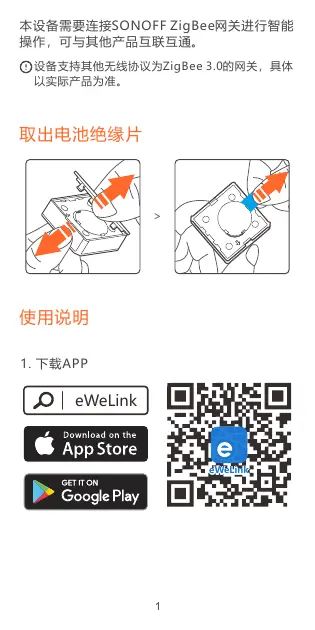

1. 下载APP
>
1
>
CR2450
3V
ZBBridge
 添加。
2

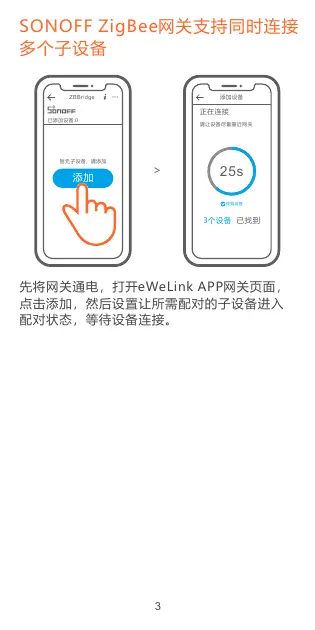

SONOFF ZigBee网关支持同时连接
ZBBridge
25s
>
3
4
CR2450
3V
产品型号: SNZB-01
电池型号: CR2450
无线连接: ZigBee (IEEE 802.15.4)
工作温度: -10-40℃
工作湿度:10-90%RH(无冷凝)
产品规格: 43x43x16mm
5
CR2450
3V
6

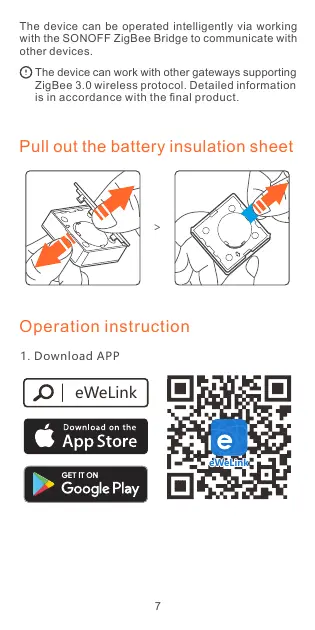

Operation instruction
Pull out the battery insulation sheet
eWeLink
eWeLink
1. Download APP
The device can be operated intelligently via working
with the SONOFF ZigBee Bridge to communicate with
other devices.
The device can work with other gateways supporting
ZigBee 3.0 wireless protocol. Detailed information
is in accordance with the final product.
>
7

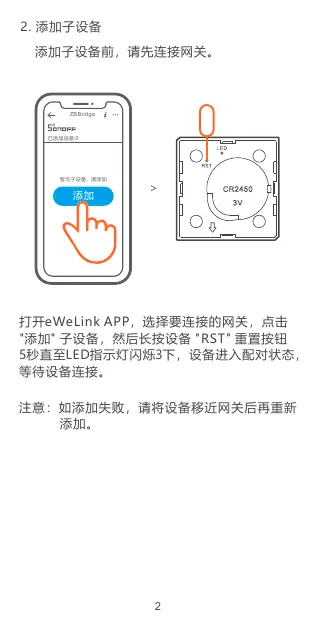

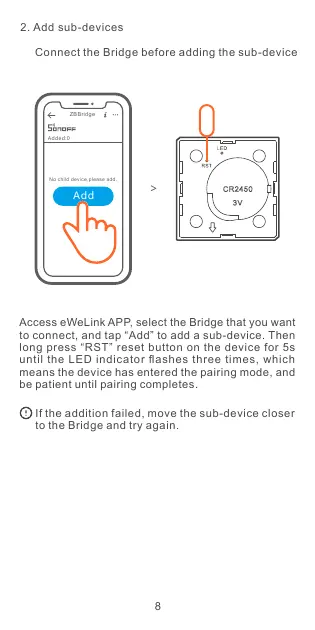

2. Add sub-devices
> CR2450
3V
ZBBridge
Added:0
No child device,please add.
Add
Connect the Bridge before adding the sub-device
Access eWeLink APP, select the Bridge that you want
to connect, and tap “Add” to add a sub-device. Then
long press “RST” reset button on the device for 5s
until the LED indicator flashes three times, which
means the device has entered the pairing mode, and
be patient until pairing completes.
If the addition failed, move the sub-device closer
to the Bridge and try again.
8
SONOFF ZigBee Bridge supports
connecting multiple sub-devices at
the same time.
Connecting
Keep the device close
enough to the hub.
25s>
Power the Bridge on, access the Bridge page in the
eWeLink APP, and tap “Add”. Then set the sub-device
to be pair to the pairing mode, and be patient until the
pairing completes.
ZBBridge
Added:0
No child device,please add.
Add
Add Device
Looking for device
3 devices Found
9

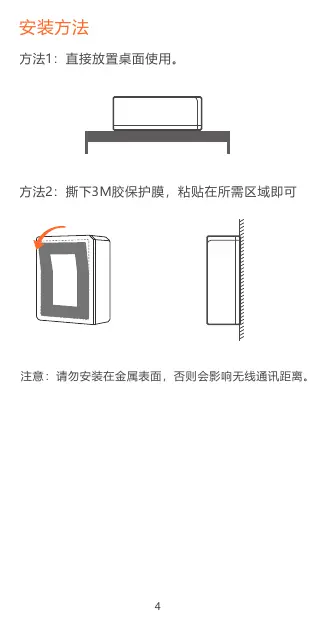

Installation methods
1. Placed on the desktop for use.
2. Tear off the protective film of the 3M adhesive and
 stick the device on the desired area.
Do not install on the metal surface, otherwise it
will affect the wireless communication distance.
10

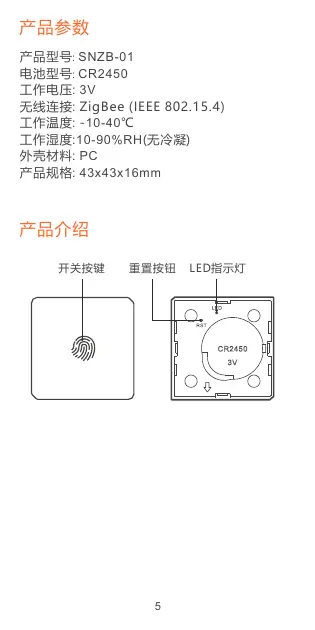

Product Introduction
CR2450
3V
Manual switch
Reset button LED indicator
Specifications
Model: SNZB-01
: CR2450Battery model
: 3VWorking voltage
: ZigBee (IEEE 802.15.4)Wireless connection
: -10-40℃Working temperature
Working humidity: 10-90%RH (non-condensing)
Material: PC
Dimension: 43x43x16mm
11

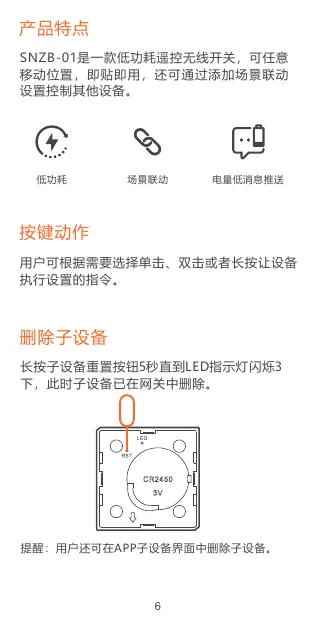

Delete sub-devices
Long press the reset button on the sub-device for 5s
until the LED indicator flashes three times. In this
case, the sub-device is deleted from the Bridge
successfully.
Features
SNZB-01 is a ZigBee low-energy wireless switch that
allows you to move to any place. Peel and stick.
Connect it with the Bridge and you can create a smart
scene to trigger other devices.
Low-energy Low battery notification Smart scenes
Button action instruction
You can select to click once, click twice or long press
the wireless switch to control the connected device
for various functions.
Users can delete sub-devices directly from the
sub-device page on APP.
CR2450
3V
12
MADE IN CHINA
Shenzhen Sonoff Technologies Co., Ltd.
1001, BLDG8, Lianhua Industrial Park, shenzhen, GD,
China
ZIP code: 518000 Website: sonoff.tech
