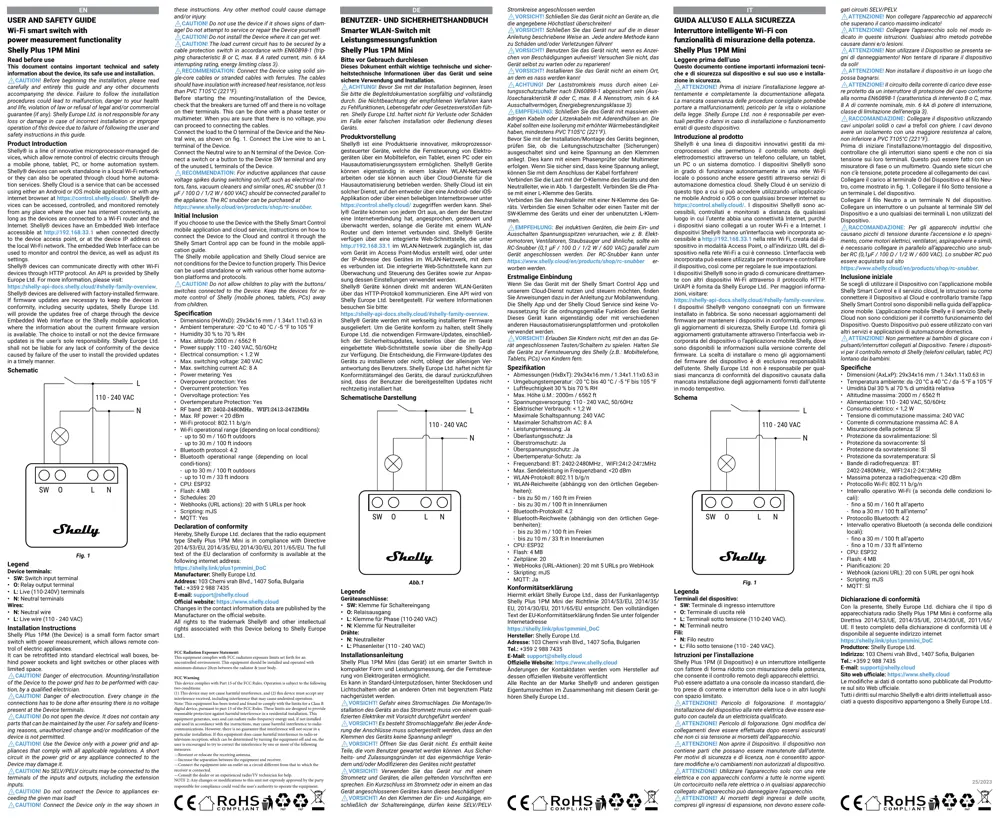

USER AND SAFETY GUIDE
Wi-Fi smart switch with
power measurement functionality
Shelly Plus 1PM Mini
Read before use
This document contains important technical and safety
information about the device, its safe use and installation.
⚠CAUTION! Before beginning the installation, please read
carefully and entirely this guide and any other documents
accompanying the device. Failure to follow the installation
procedures could lead to malfunction, danger to your health
and life, violation of law or refusal of legal and/or commercial
guarantee (if any). Shelly Europe Ltd. is not responsible for any
loss or damage in case of incorrect installation or improper
operation of this device due to failure of following the user and
safety instructions in this guide.
Product Introduction
Shelly® is a line of innovative microprocessor-managed de -
vices, which allow remote control of electric circuits through
a mobile
phone, tablet, PC, or home automation system.
Shelly® devices can work standalone in a local Wi-Fi network
or they can also be operated through cloud home automa -
tion services. Shelly Cloud is a service that can be accessed
using either an Android or iO
S mobile application or with any
internet browser at https:/ /control.shelly.cloud/. Shelly® de-
vices can be accessed, controlled, and monitored remotely
from any place where the user has int
ernet connectivity, as
long as the devices are connected to a Wi-Fi router and the
Internet. Shelly® devices have an Embedded Web Interface
accessible at http:/ /192.168.33.1 when connected directly
to the device access point, or at the device IP address on
the local Wi-Fi network. The embedded Web Interface can be
used to monitor and control the device, as well as adjust its
settings.
Shelly® devices can communicate directly with other Wi-Fi
devices through HTTP protocol. An API is provided by Shelly
Europe Ltd. For more information, please visit:
https:/ /shelly-api-docs.shelly.cloud/#shelly-family-overview.
Shelly® devices are delivered with factory-installed firmware.
If firmware updates are necessary to keep the devices in
conformity, including security updates, Shelly Europe Ltd.
will provide the updates free of charge through the device
Embedded Web Interface or the Shelly mobile application,
where the information about the current firmware version
is available. The choice to install or not the device firmware
updates is the user’s sole responsibility. Shelly Europe Ltd.
shall not be liable for any lack of conformity of the device
caused by failure of the user to install the provided updates
in a timely manner.
Schematic
L
SW OL N
N
110 - 240 VAC
Fig. 1
Legend
Device terminals:
•
SW: Sw
itch input terminal
• O: Rela
y output terminal
• L: Liv
e (110-240V) terminals
• N: Neutral
terminals
Wires:
•
N: Neutral
wire
• L: Liv
e wire (110 - 240 VAC)
Installation Instructions
Shelly Plus 1PM (the Device) is a small form factor smart
switch with power measurement, which al...
