AXY3L Reset & Teardown (FCC ID 2ANDL-AXY3L)

Before you buy the Tuya Global AXY3L, check what's inside.

This device is a Tuya-developed low-power embedded module (AXY3L) supporting both Wi-Fi 6 and Bluetooth 5.1 connectivity. It is designed for integration into smart devices, featuring an Andes D10 MCU and ample flash memory for custom applications.

⚠️ NOTE: Ensure correct battery polarity when replacing.

Quick Specs

Manufacturer: Tuya Global
Model: AXY3L
Protocol: WiFi
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: ECR6600-TS2D
Flashable: ❌ No
Info: Proprietary Tuya module, typically not designed for flashing custom firmware like Tasmota or ESPHome.

User Manual

Scanned pages from the official user manual:

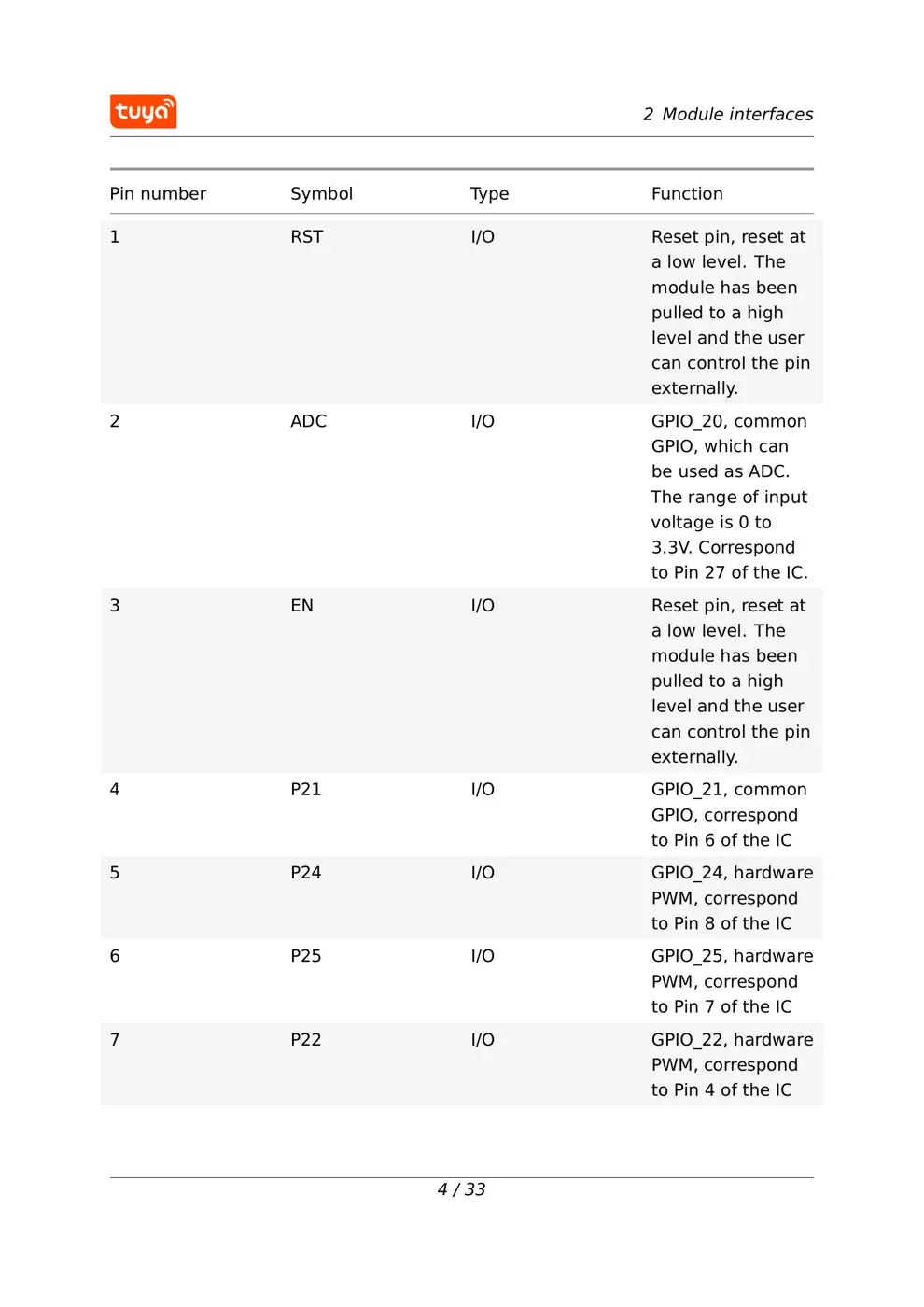

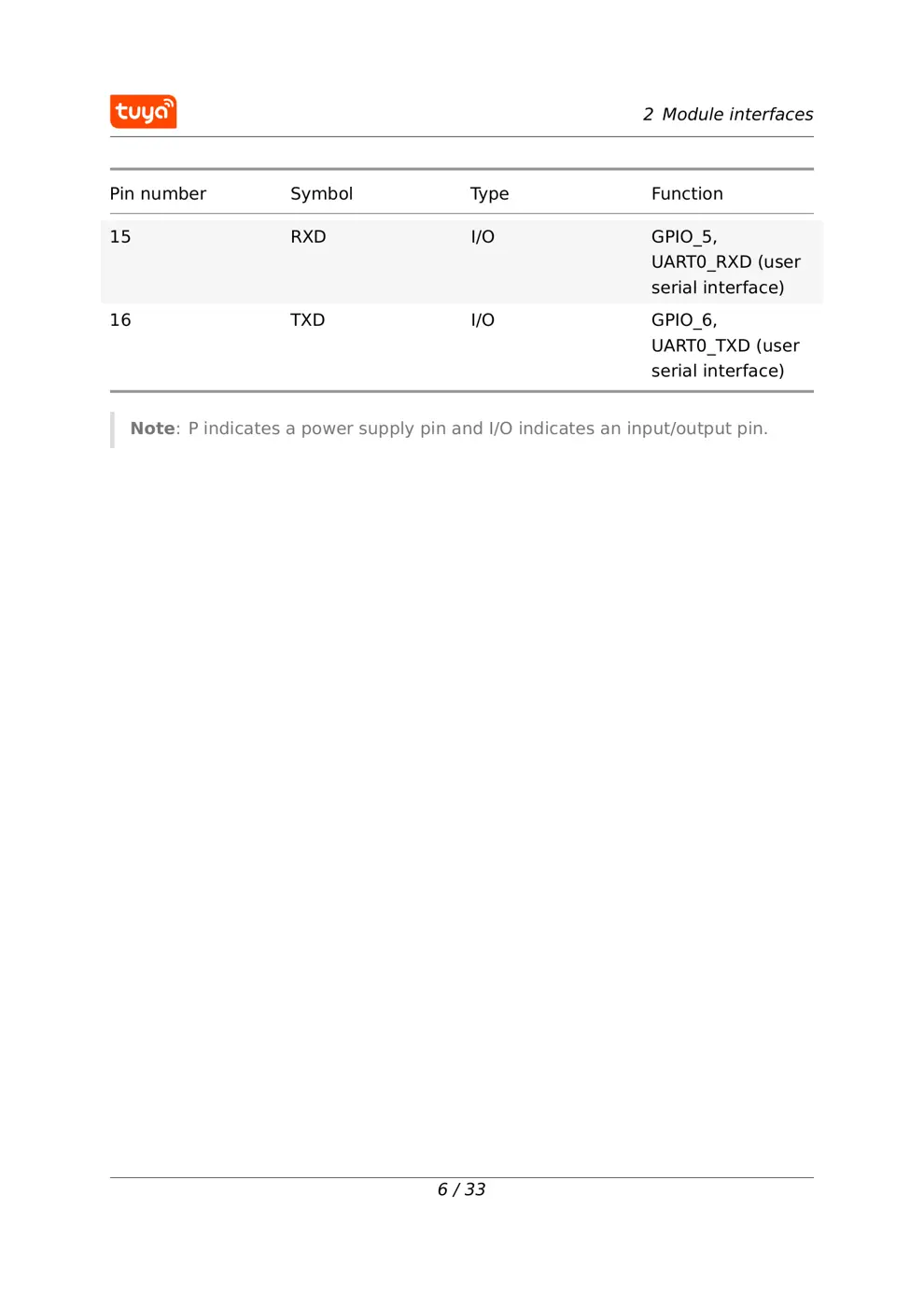

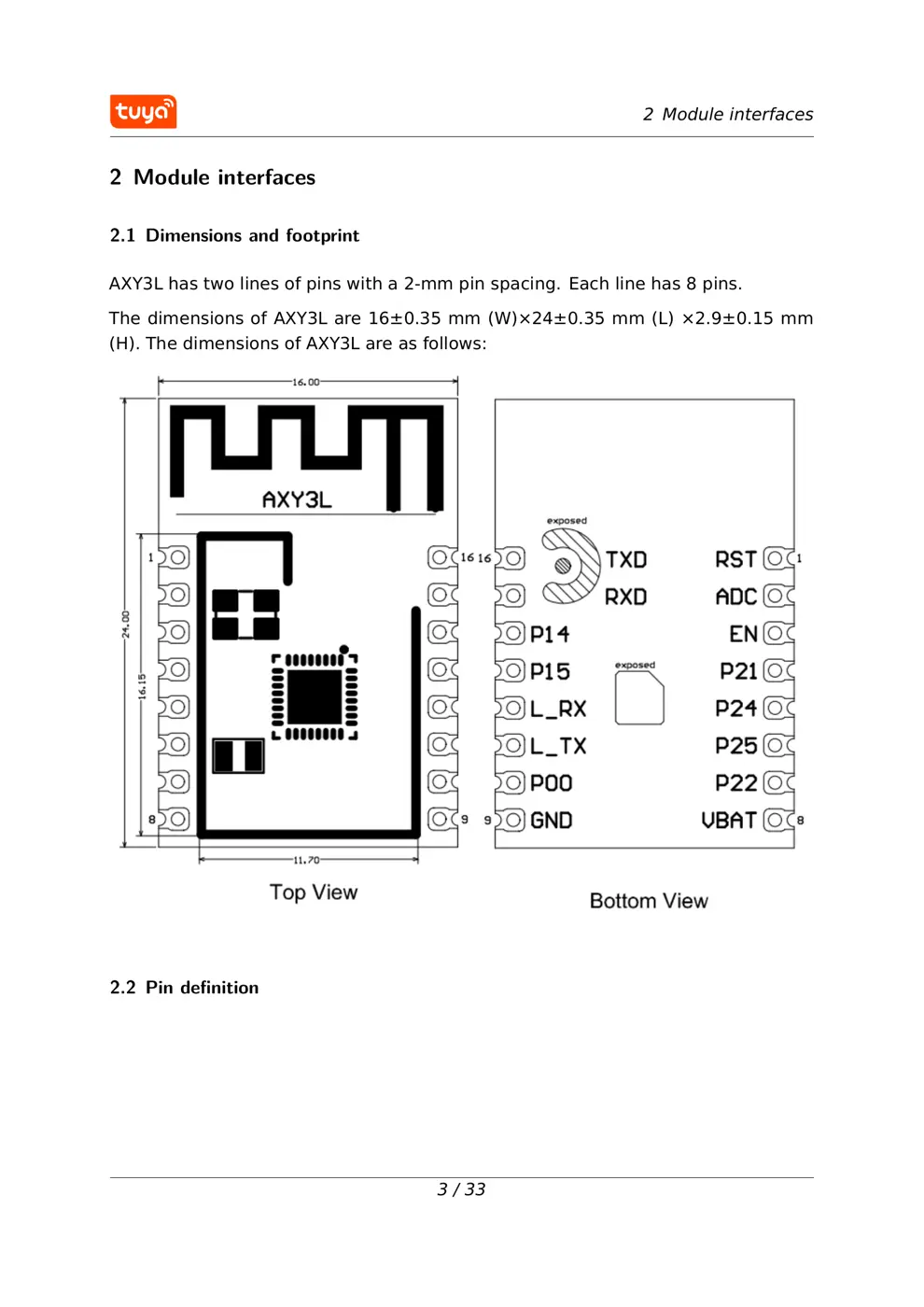

AXY3L Manual

External Photos

Photos of the device exterior:

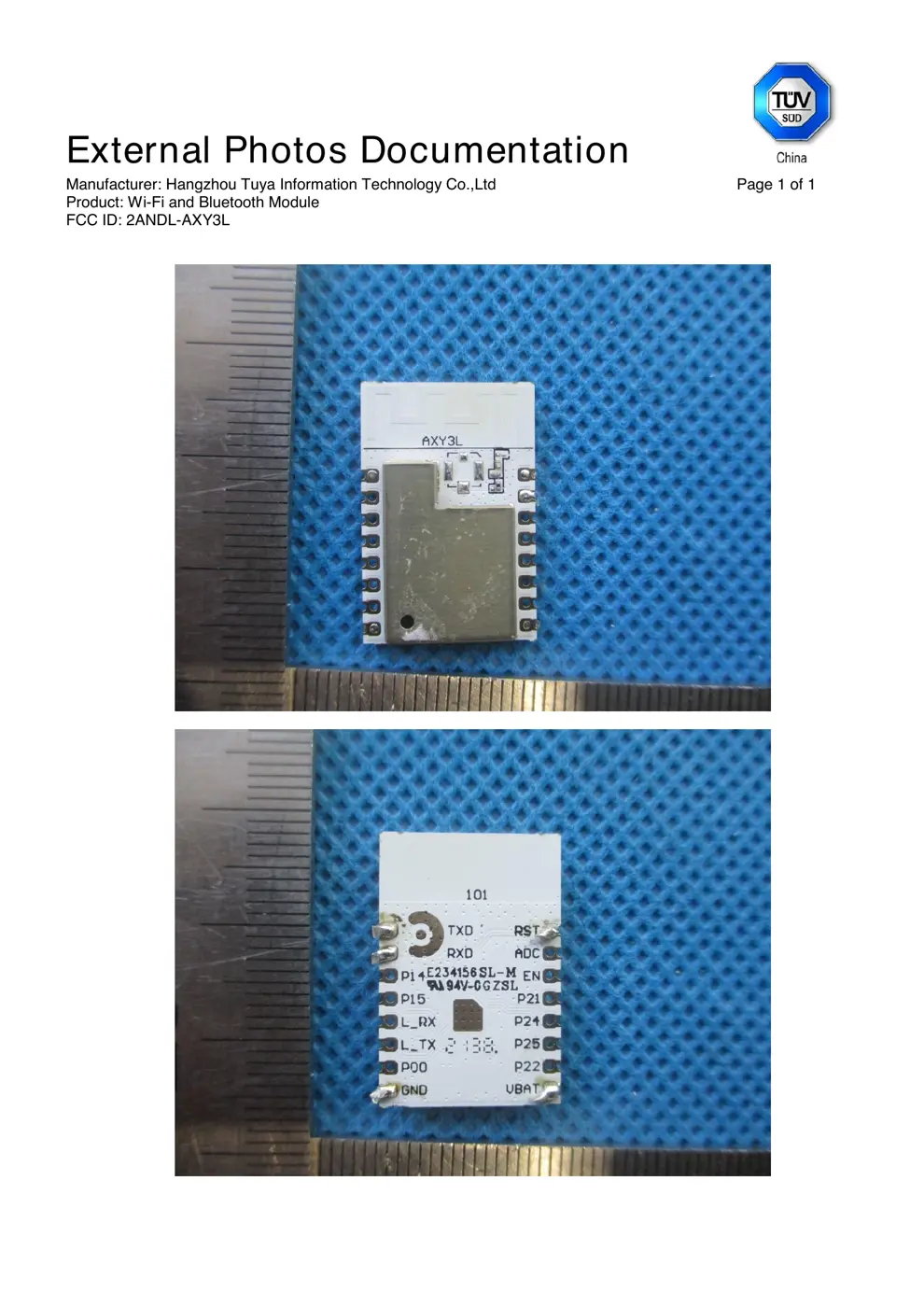

AXY3L Exterior

Internal Photos

Teardown photos showing the PCB and components:

AXY3L PCB

Verdict

The AXY3L is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

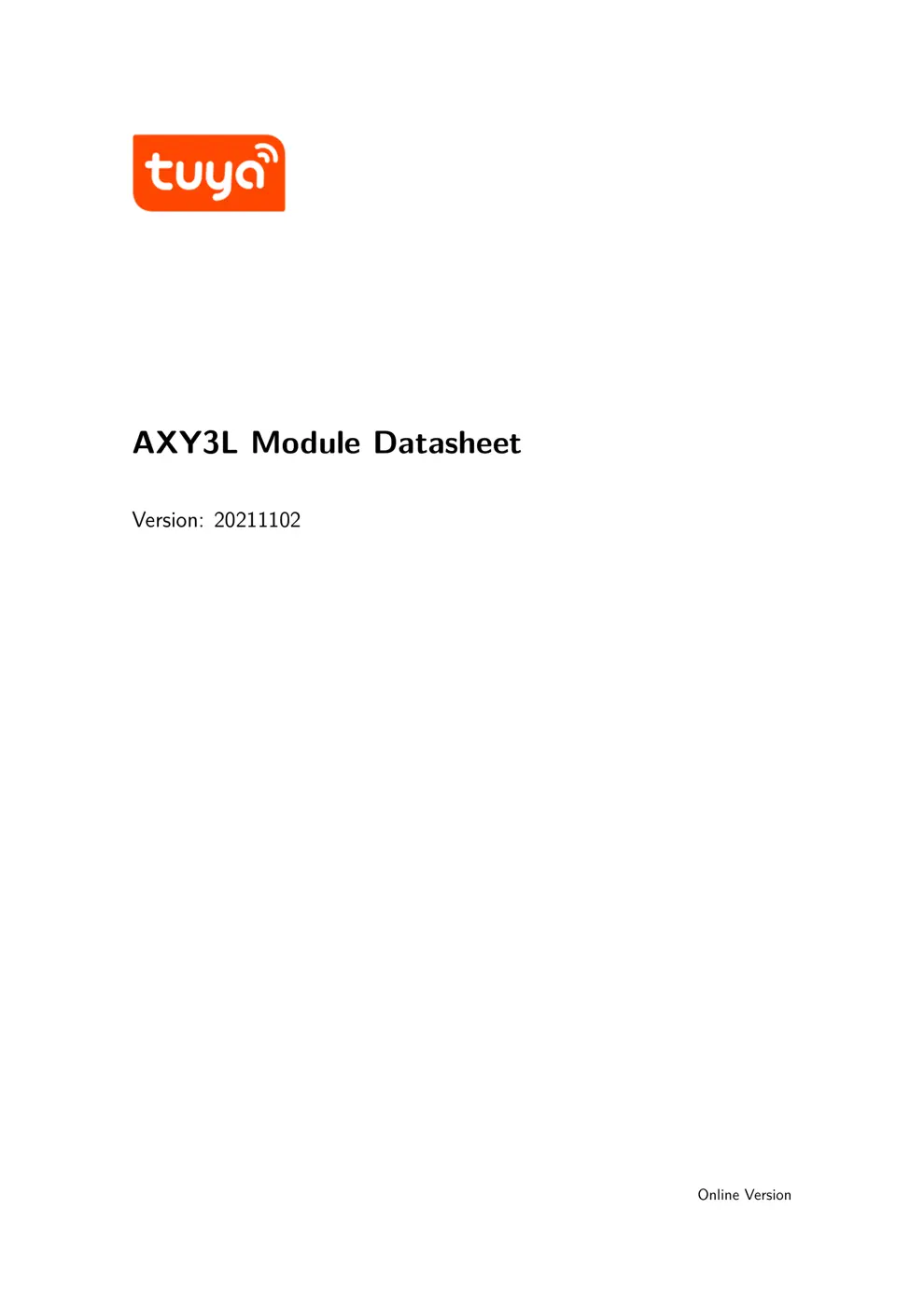

AXY3L Module Datasheet
Version: 20211102
Online Version

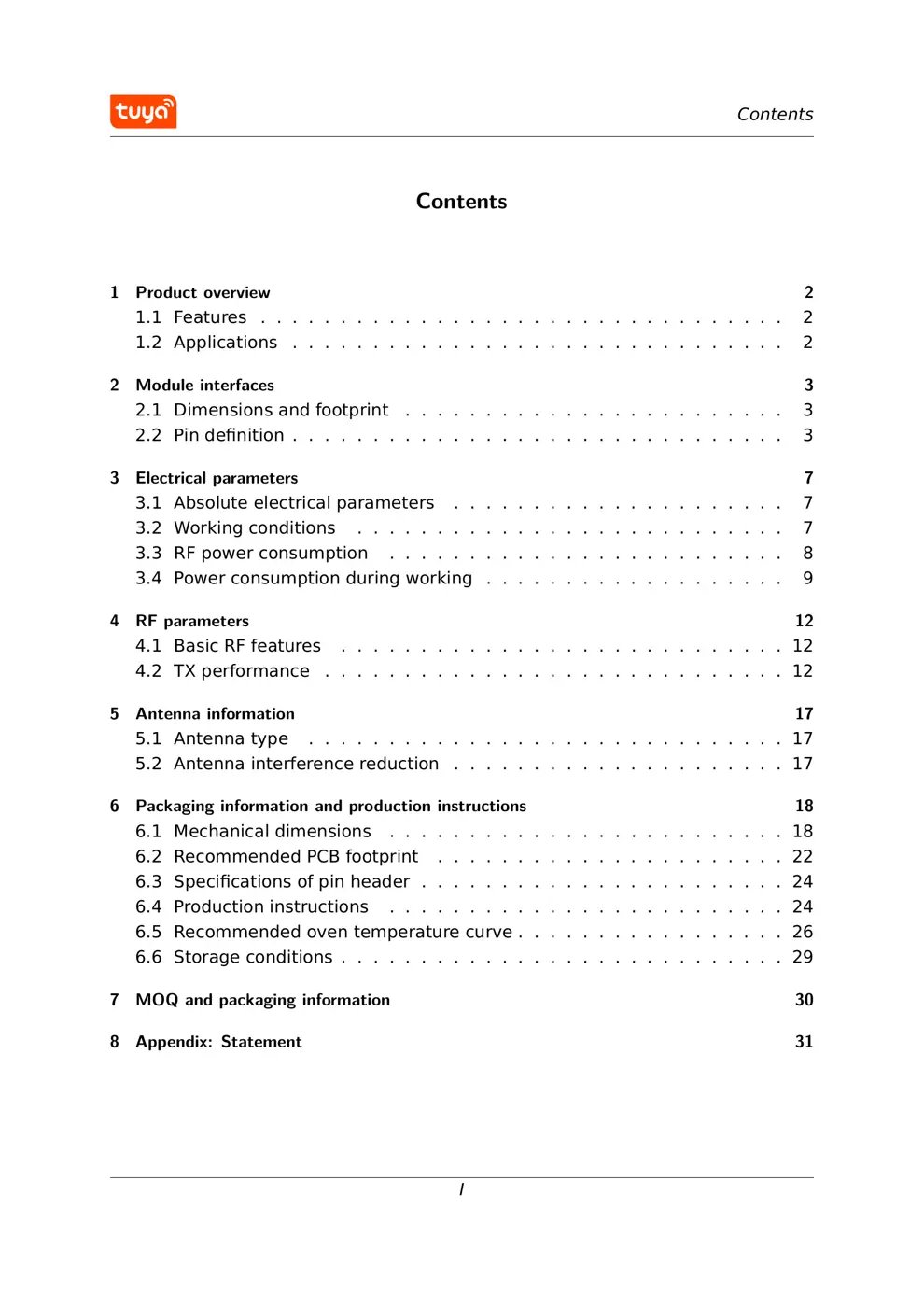

Contents
Contents
1 Product overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3
2.1 Dimensions and footprint . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Electrical parameters 7
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 7
3.2 Working conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 RF power consumption . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Power consumption during working . . . . . . . . . . . . . . . . . . . 9
4 RF parameters 12
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 TX performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Antenna information 17
5.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2 Antenna interference reduction . . . . . . . . . . . . . . . . . . . . . 17
6 Packaging information and production instructions 18
6.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.2 Recommended PCB footprint . . . . . . . . . . . . . . . . . . . . . . 22
6.3 Specifications of pin header . . . . . . . . . . . . . . . . . . . . . . . 24
6.4 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.5 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 26
6.6 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7 MOQ and packaging information 30
8 Appendix: Statement 31
I
Contents

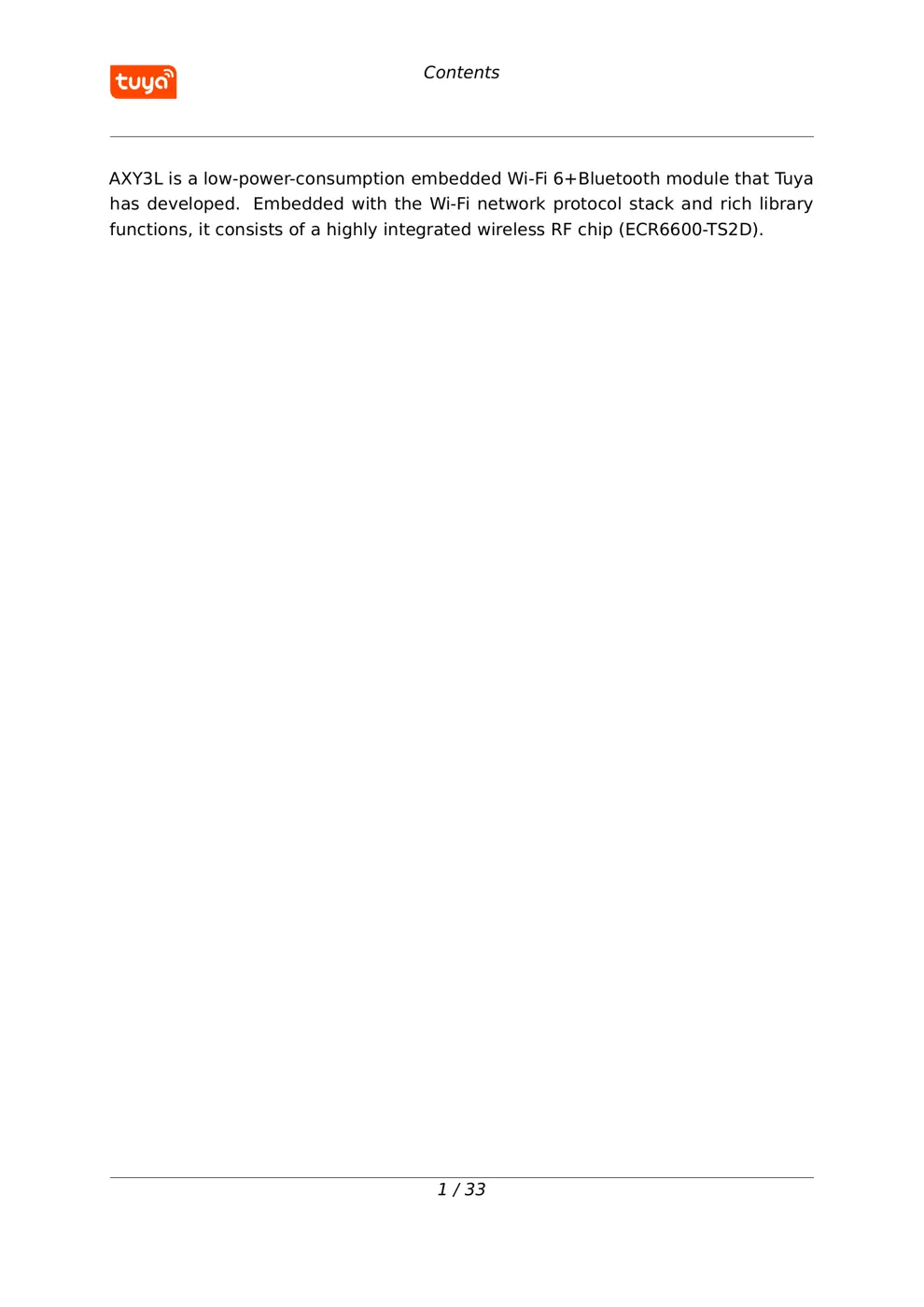

AXY3L is a low-power-consumption embedded Wi-Fi 6+Bluetooth module that T uya
has developed. Embedded with the Wi-Fi network protocol stack and rich library
functions, it consists of a highly integrated wireless RF chip (ECR6600-TS2D).
1 / 33

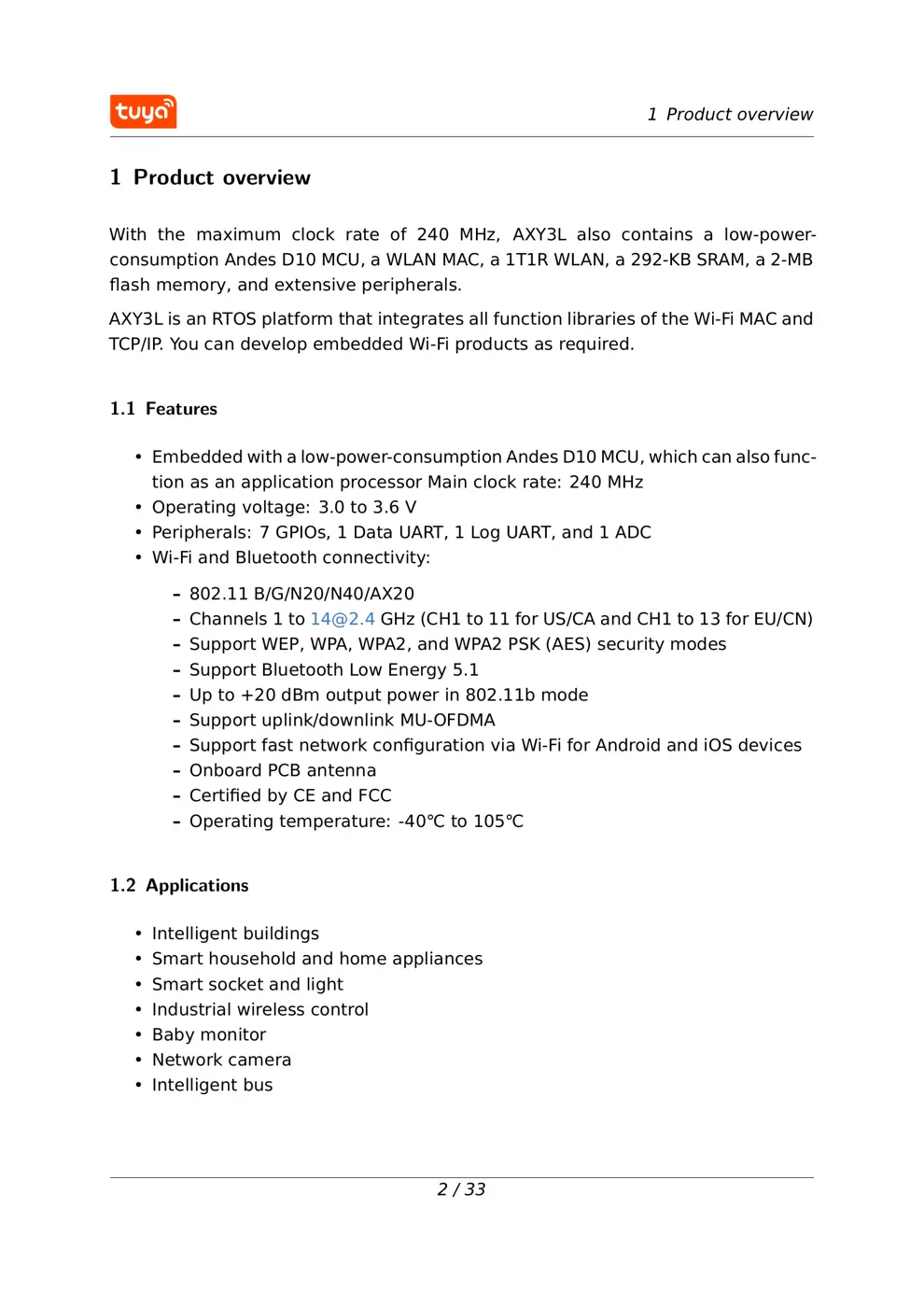

1 Product overview
1 Product overview
With the maximum clock rate of 240 MHz, AXY3L also contains a low-power-
consumption Andes D10 MCU, a WLAN MAC, a 1T1R WLAN, a 292-KB SRAM, a 2-MB
flash memory, and extensive peripherals.
AXY3L is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and
TCP/IP . Y ou can develop embedded Wi-Fi products as required.
1.1 Features
• Embedded with a low-power-consumption Andes D10 MCU, which can also func-
tion as an application processor Main clock rate: 240 MHz
• Operating voltage: 3.0 to 3.6 V
• Peripherals: 7 GPIOs, 1 Data UART, 1 Log UART, and 1 ADC
• Wi-Fi and Bluetooth connectivity:
– 802.11 B/G/N20/N40/AX20
– Channels 1 to [email protected] GHz (CH1 to 11 for US/CA and CH1 to 13 for EU/CN)
– Support WEP, WPA, WPA2, and WPA2 PSK (AES) security modes
– Support Bluetooth Low Energy 5.1
– Up to +20 dBm output power in 802.11b mode
– Support uplink/downlink MU-OFDMA
– Support fast network configuration via Wi-Fi for Android and iOS devices
– Onboard ...
