AXY3S Reset & Teardown (FCC ID 2ANDL-AXY3S)
Factory reset and internal photos for Tuya Global AXY3S. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global AXY3S, check what's inside.
This device is a Tuya AXY3S module featuring WiFi and Bluetooth 5.1 connectivity, powered by an Andes D10 MCU and ECR6600-TS2D RF chip. It is designed for embedded applications requiring low power consumption and is typically integrated into smart home devices controlled via the Smart Life app.
⚠️ NOTE: Ensure correct battery polarity and voltage when powering the device.
Quick Specs
- Manufacturer: Tuya Global
- Model: AXY3S
- Protocol: WiFi/Bluetooth
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: ECR6600-TS2D
- Flashable: ❌ No
- Info: Tuya modules often have locked bootloaders or proprietary firmware that is difficult to replace with custom firmware like Tasmota or ESPHome.
User Manual
Scanned pages from the official user manual:
External Photos
Photos of the device exterior:
Internal Photos
Teardown photos showing the PCB and components:
Verdict
The AXY3S is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)

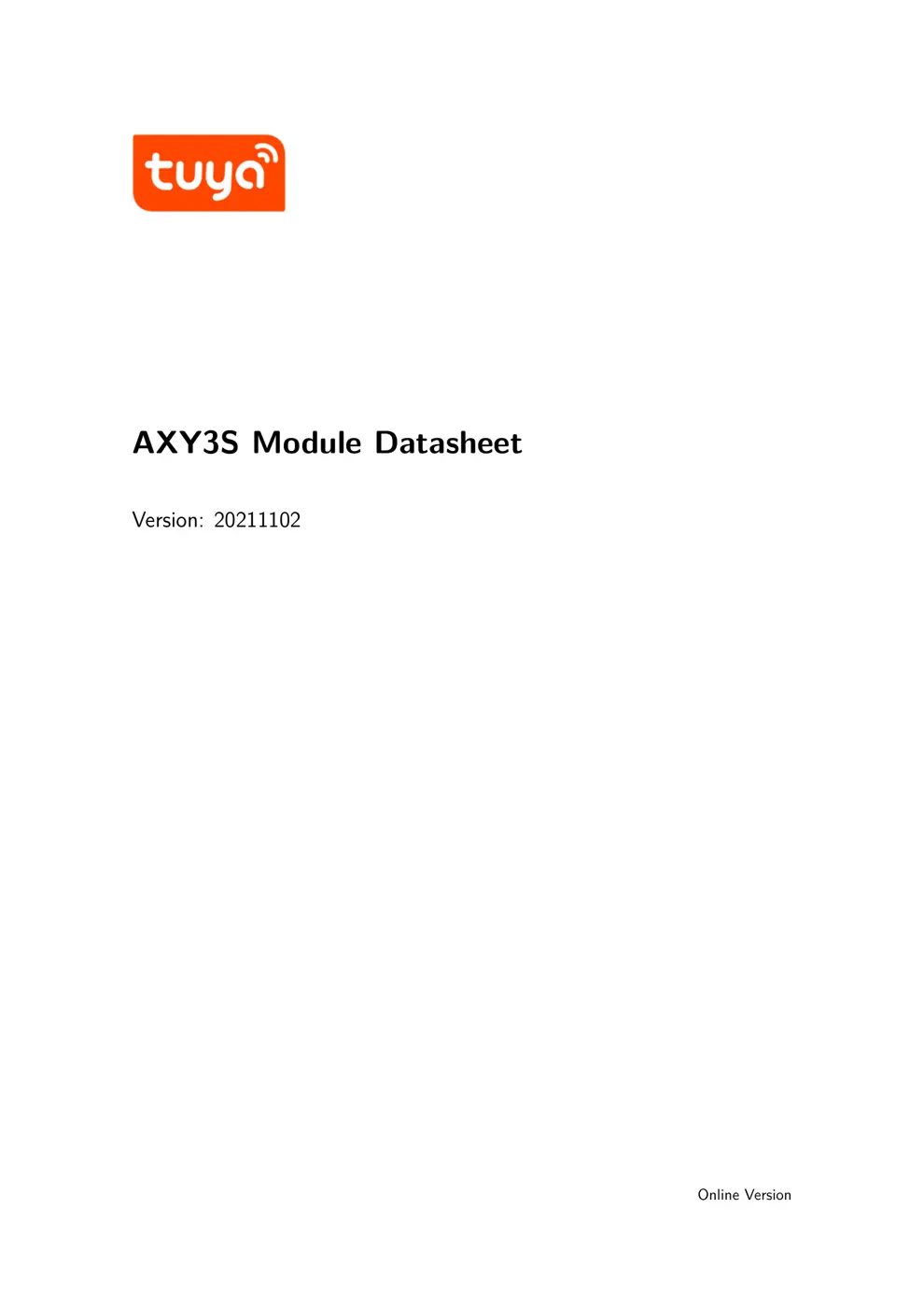

AXY3S Module Datasheet
Version: 20211102
Online Version

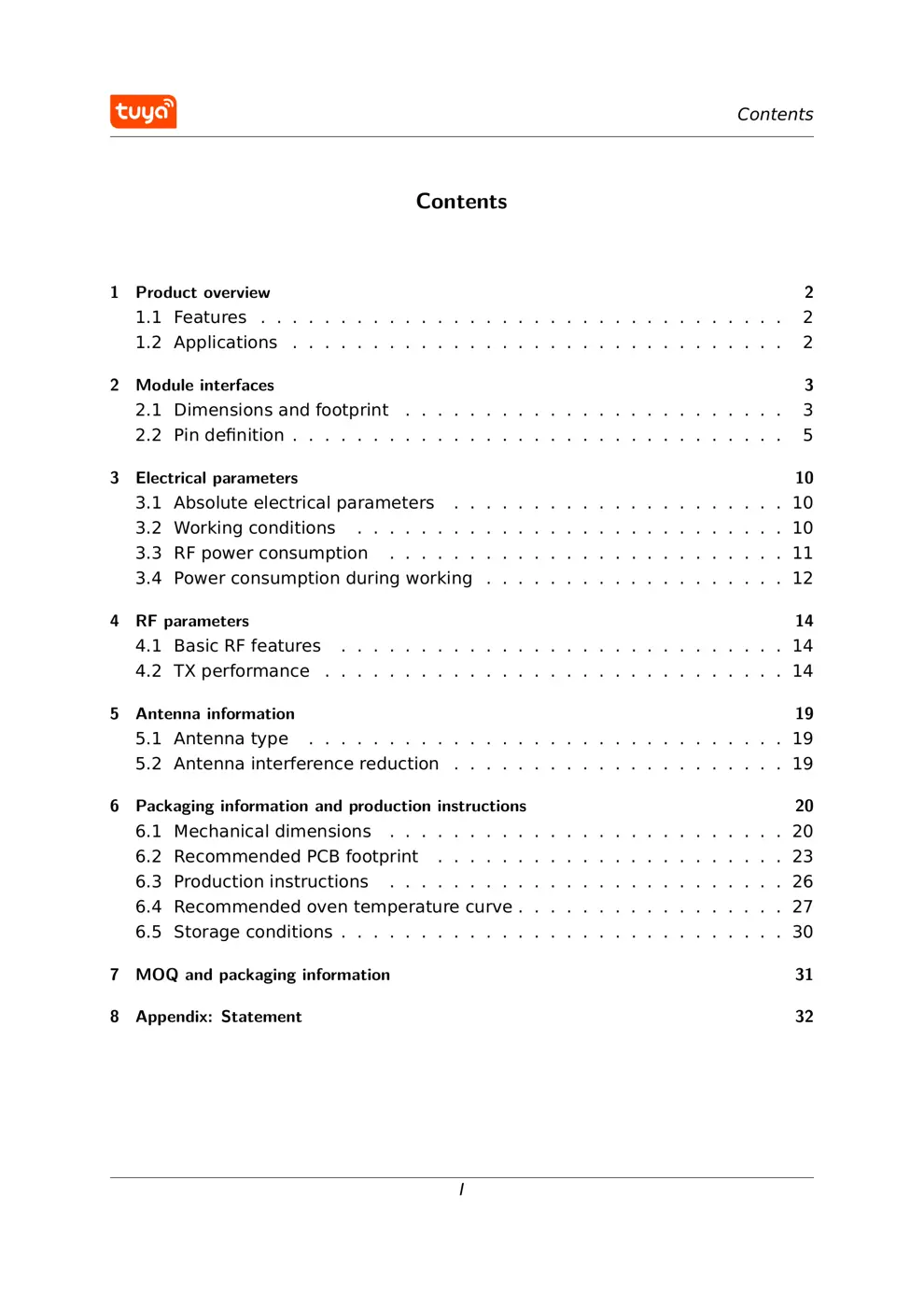

Contents
Contents
1 Product overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3
2.1 Dimensions and footprint . . . . . . . . . . . . . . . . . . . . . . . . 3

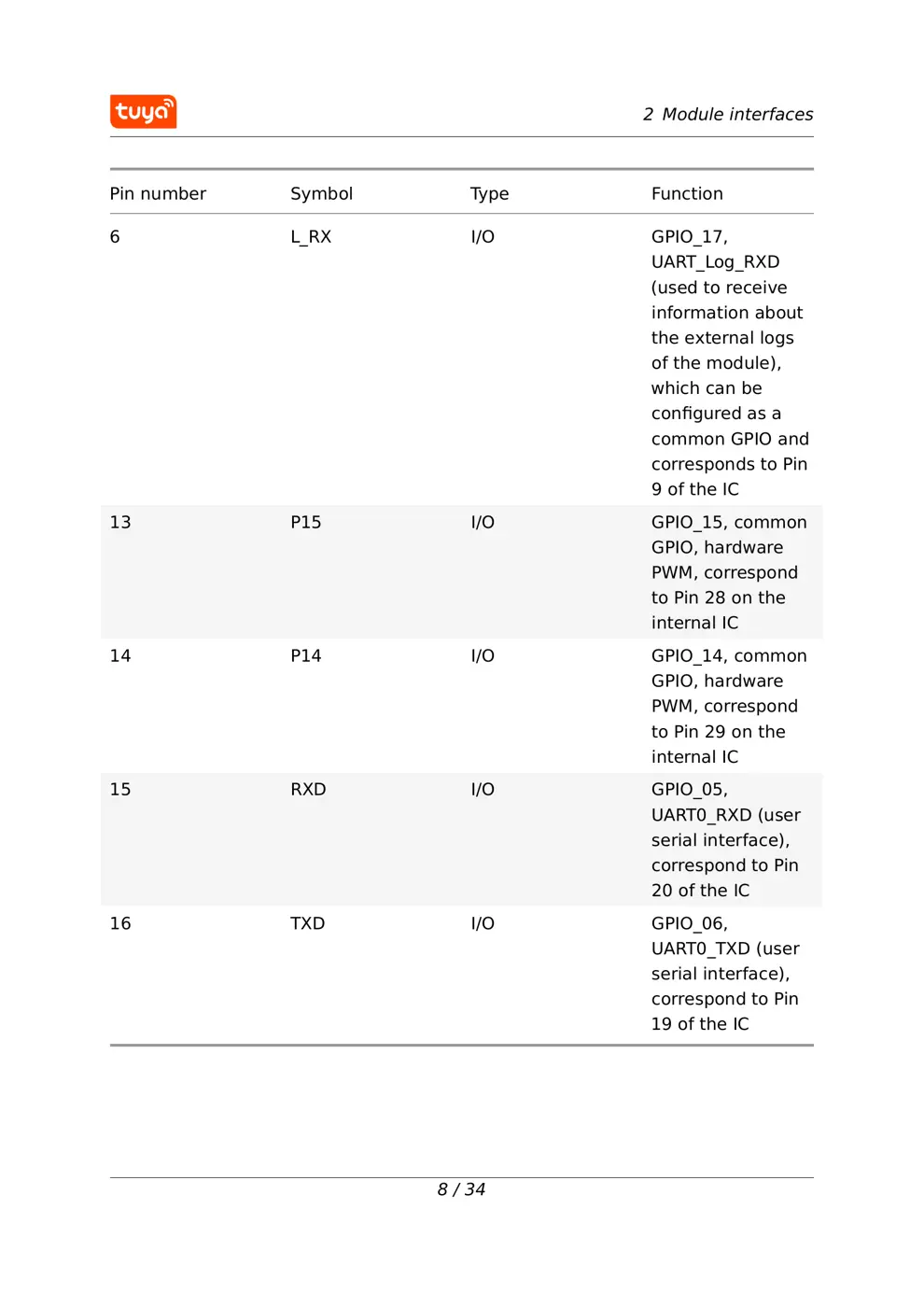

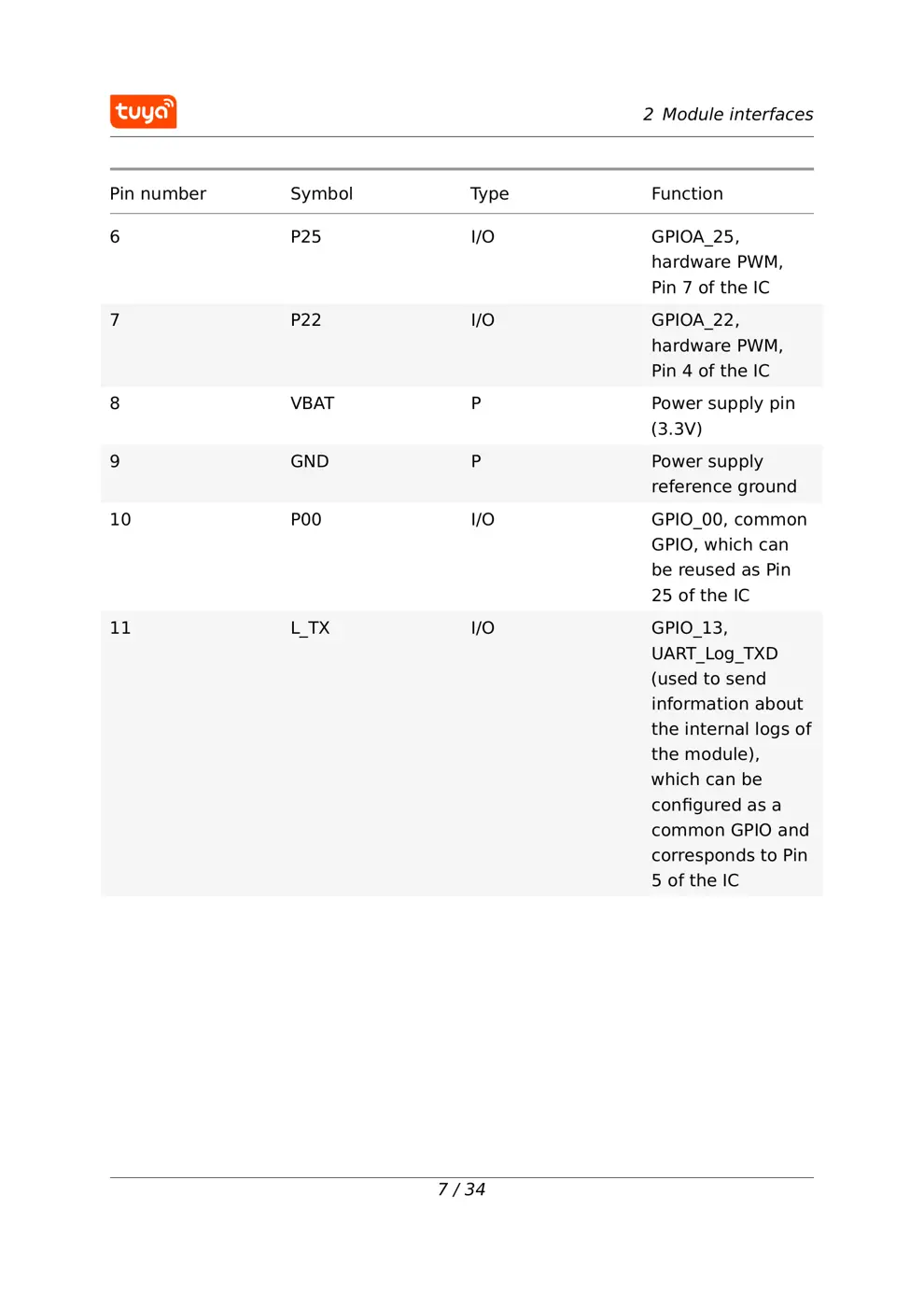

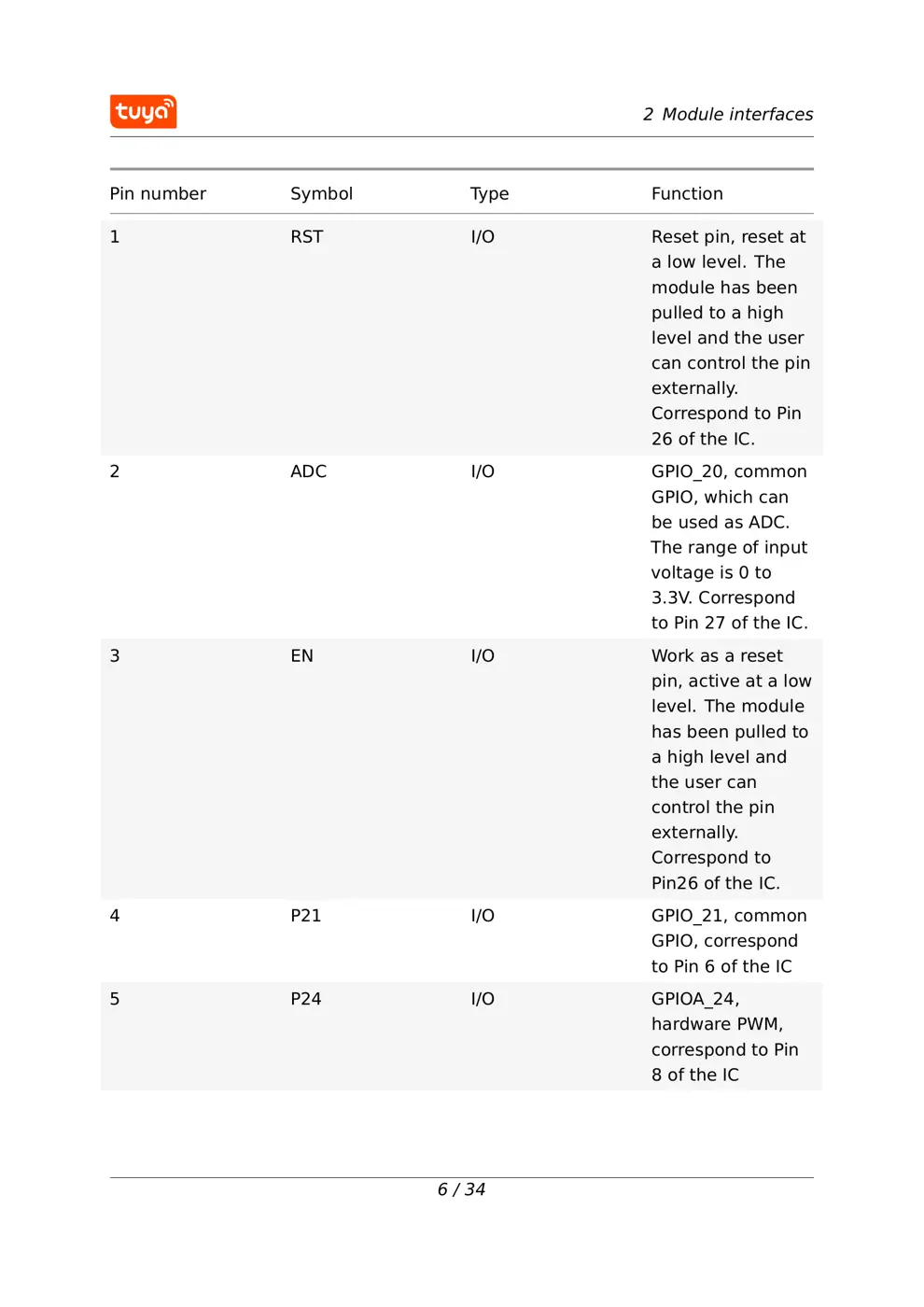

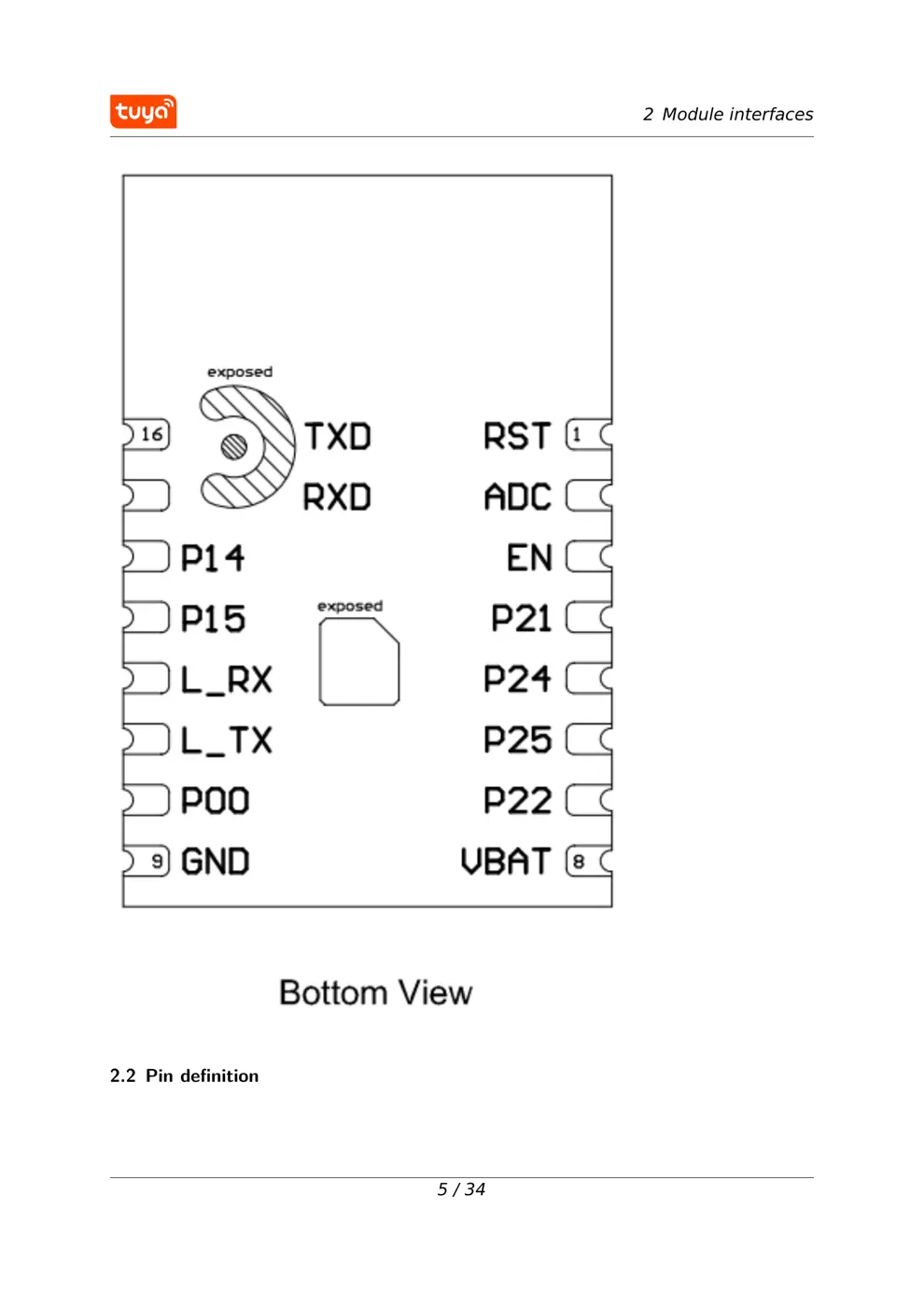

2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Electrical parameters 10
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 10
3.2 Working conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 RF power consumption . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 Power consumption during working . . . . . . . . . . . . . . . . . . . 12
4 RF parameters 14
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 TX performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Antenna information 19
5.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Antenna interference reduction . . . . . . . . . . . . . . . . . . . . . 19
6 Packaging information and production instructions 20
6.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.2 Recommended PCB footprint . . . . . . . . . . . . . . . . . . . . . . 23
6.3 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.4 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 27
6.5 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7 MOQ and packaging information 31
8 Appendix: Statement 32
I
Contents

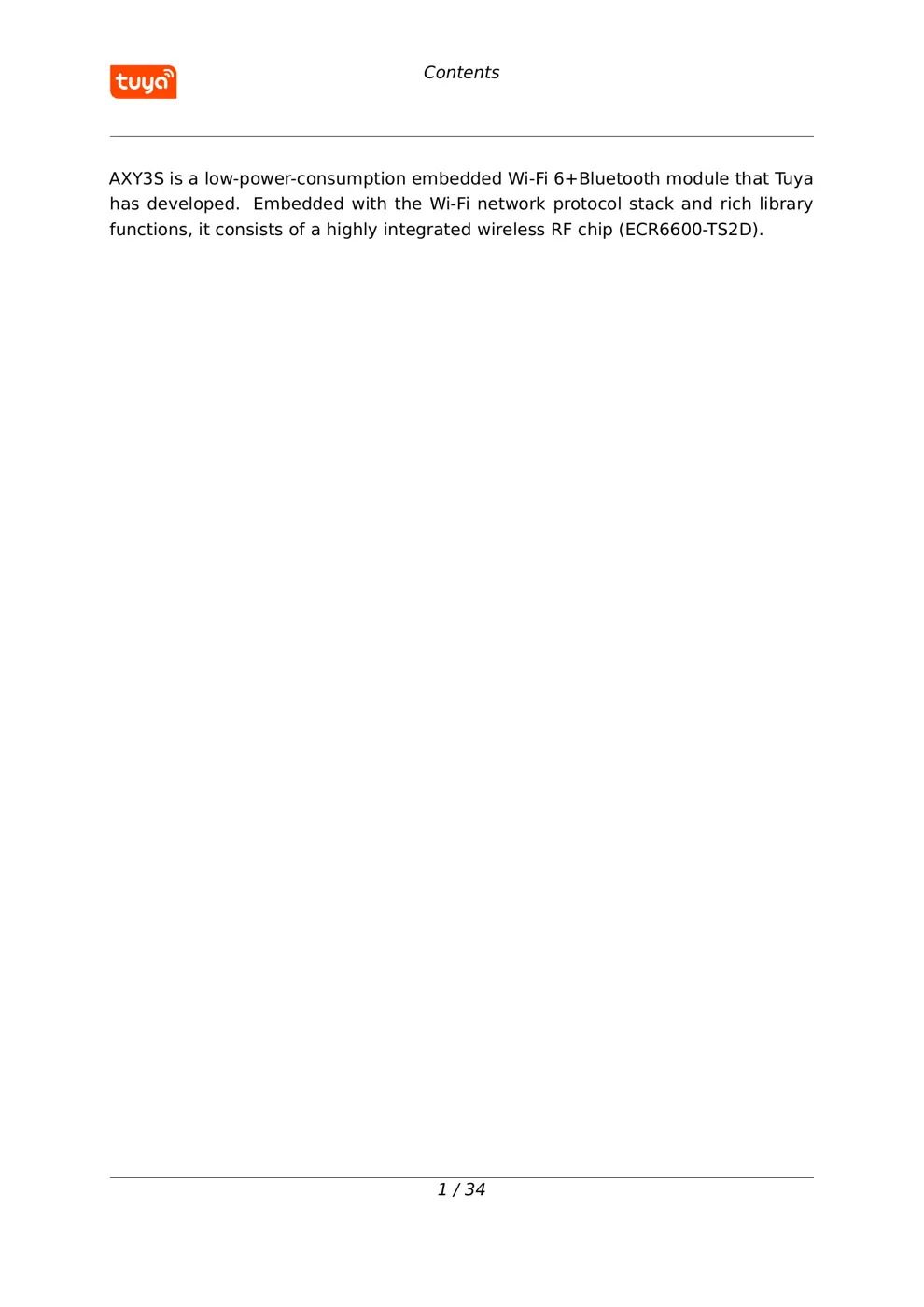

AXY3S is a low-power-consumption embedded Wi-Fi 6+Bluetooth module that T uya
has developed. Embedded with the Wi-Fi network protocol stack and rich library
functions, it consists of a highly integrated wireless RF chip (ECR6600-TS2D).
1 / 34
1 Product overview
1 Product overview
With the maximum clock rate of 240 MHz, AXY3S also contains a low-power-
consumption Andes D10 MCU, a WLAN MAC, a 1T1R WLAN, a 292-KB SRAM, a 2-MB
flash memory, and extensive peripherals.
AXY3S is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and
TCP/IP . Y ou can develop embedded Wi-Fi products as required.

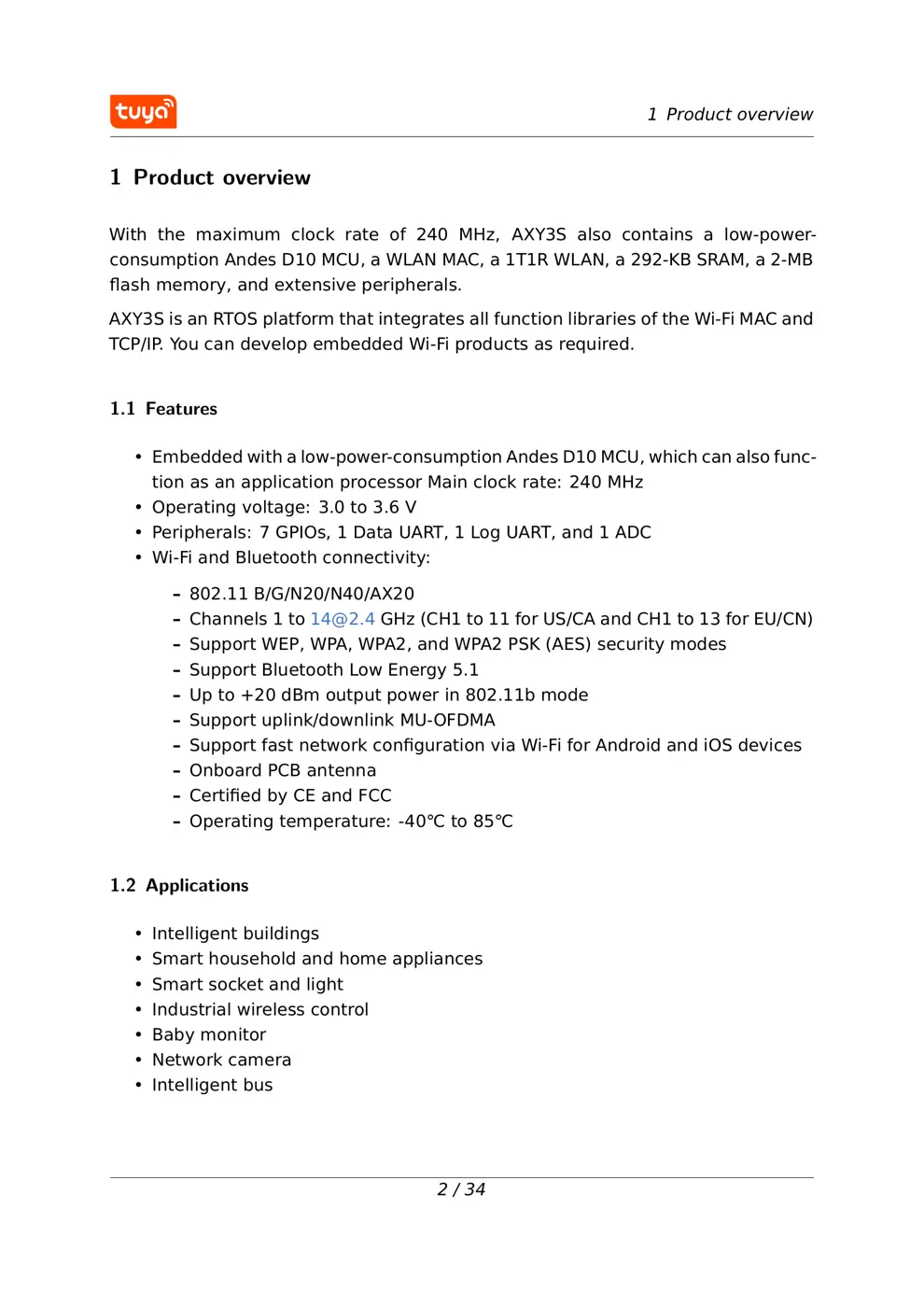

1.1 Features
• Embedded with a low-power-consumption Andes D10 MCU, which can also func-
tion as an application processor Main clock rate: 240 MHz
• Operating voltage: 3.0 to 3.6 V
• Peripherals: 7 GPIOs, 1 Data UART, 1 Log UART, and 1 ADC
• Wi-Fi and Bluetooth connectivity:
– 802.11 B/G/N20/N40/AX20
– Channels 1 to [email protected] GHz (CH1 to 11 for US/CA and CH1 to 13 for EU/CN)
– Support WEP, WPA, WPA2, and WPA2 PSK (AES) security modes
– Support Bluetooth Low Energy 5.1
– Up to +20 dBm output power in 802.11b mode
– Support uplink/downlink MU-OFDMA
– Support fast network configuration via Wi-Fi for Android and iOS devices
– Onboard PCB antenna
– Certified by CE and FCC
– Operating temperature: -40℃ to 85℃
1....
