CLL02D Reset & Teardown (FCC ID 2AKIT-CLL02D)

Before you buy the Aqara (Lumi United) CLL02D, check what's inside.

The Aqara Smart Ceiling Light T1M (CL-L02D) is a mains-powered smart ceiling light featuring adjustable white light and a customizable RGB gradient ring. It integrates with the Aqara ecosystem and home automation systems via Zigbee.

⚠️ NOTE: Ensure all electrical connections are made by a qualified electrician and the power is disconnected before installation.

Quick Specs

Manufacturer: Aqara (Lumi United)
Model: CLL02D
Protocol: Zigbee
Chipset: Zigbee SoC
Ecosystem: Aqara Zigbee
App: Aqara Home

🔧 Geek Corner (Flashing Info)

Chipset: Unknown (Likely an NRF series or similar for Zigbee)
Flashable: ❌ No
Info: Device is a mains-powered light fixture, not designed for firmware flashing. Proprietary Zigbee SoC likely prevents easy flashing.

User Manual

Scanned pages from the official user manual:

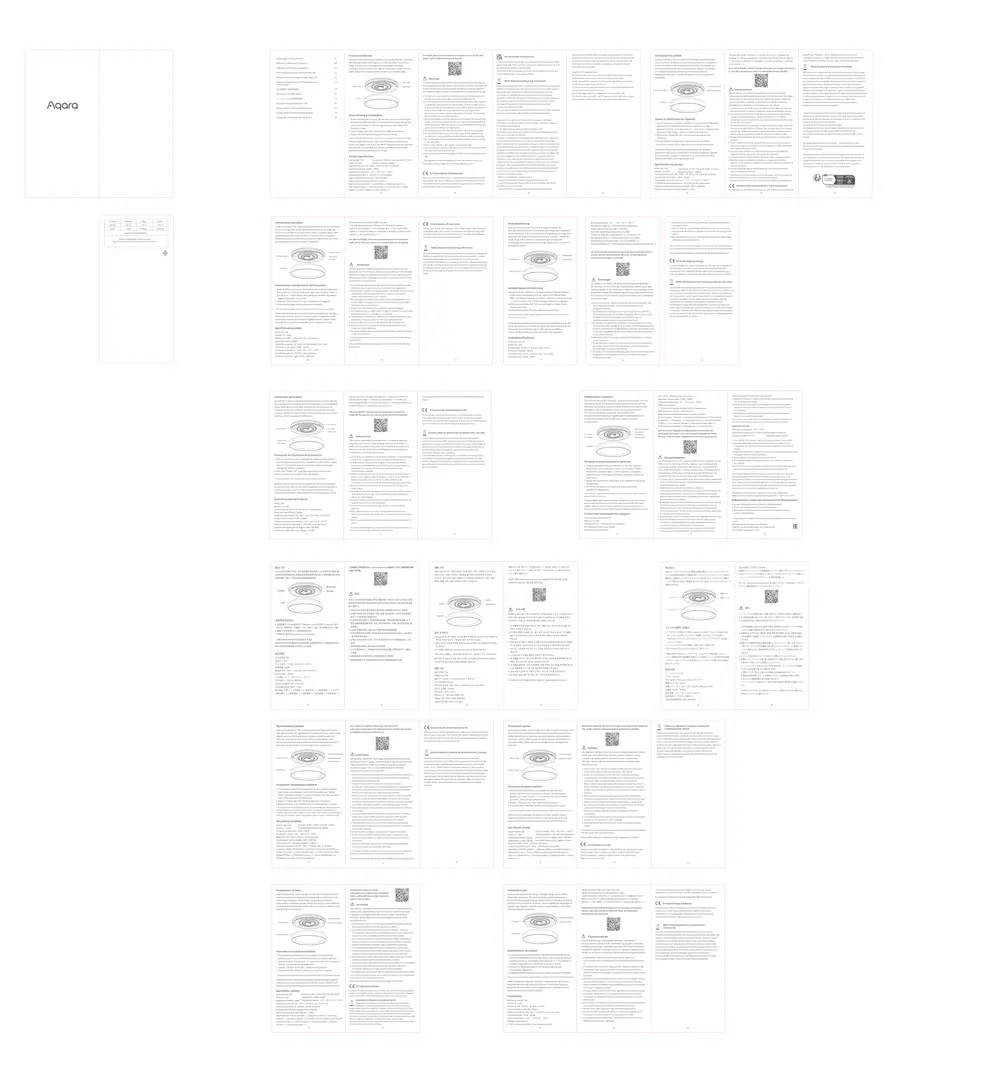

CLL02D Manual

External Photos

Photos of the device exterior:

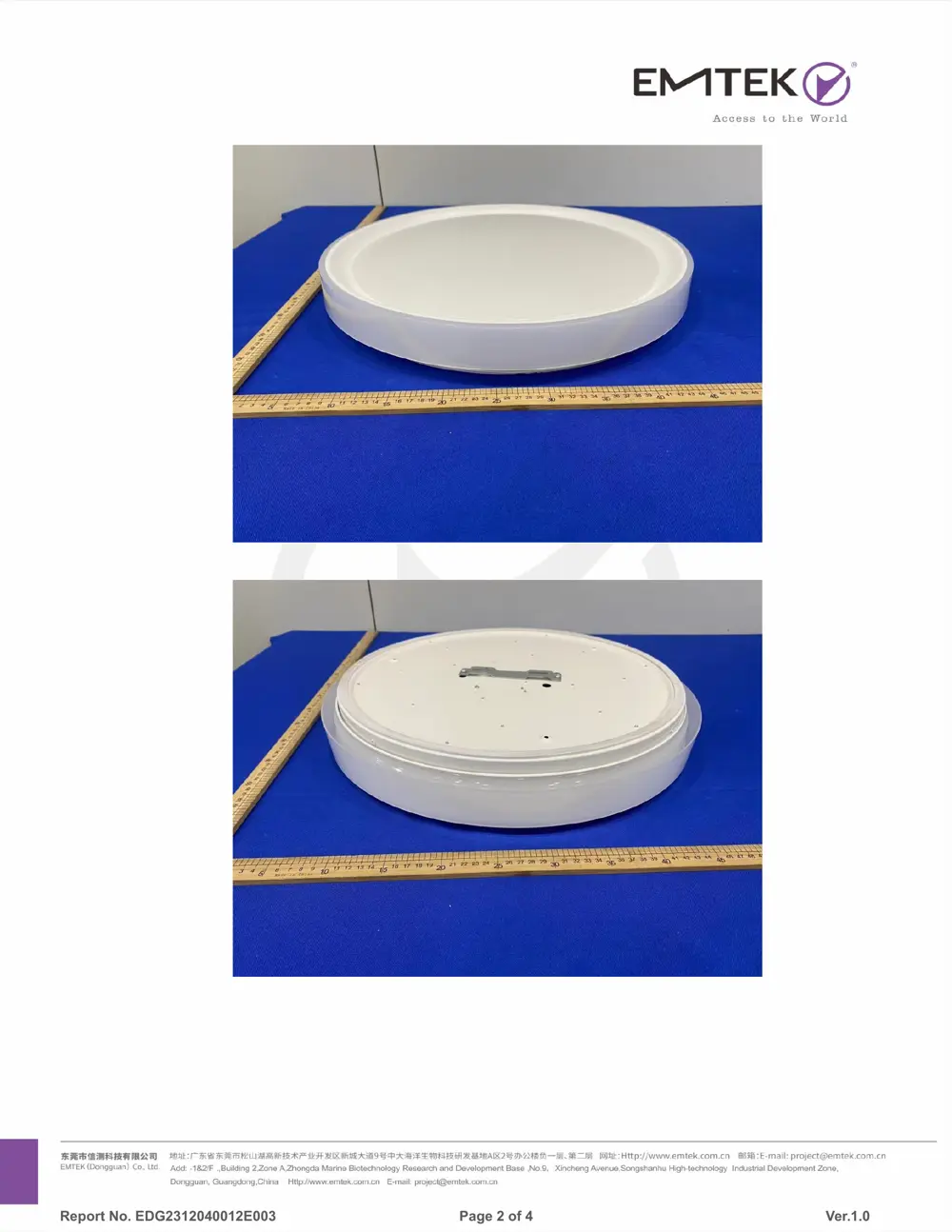

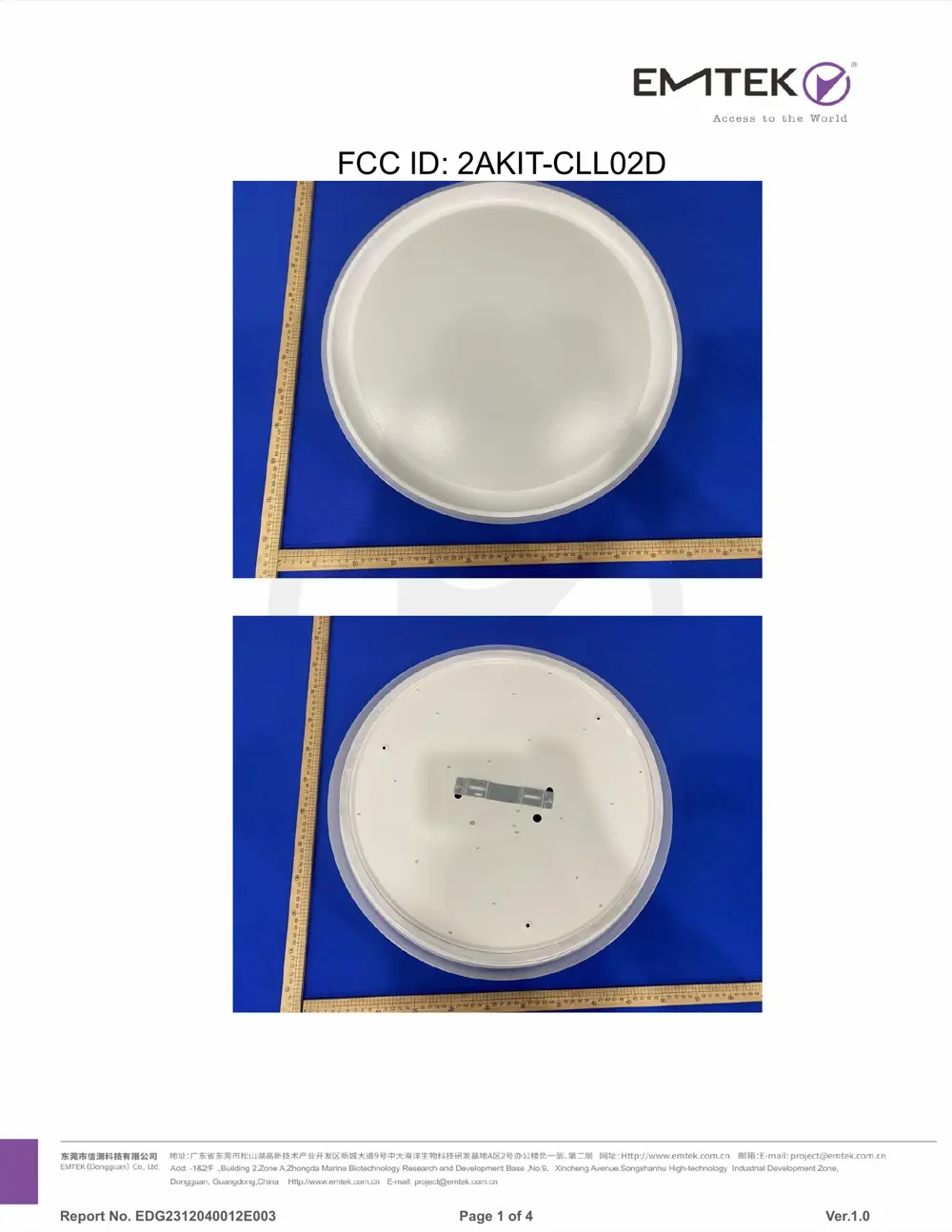

CLL02D Exterior

Internal Photos

Teardown photos showing the PCB and components:

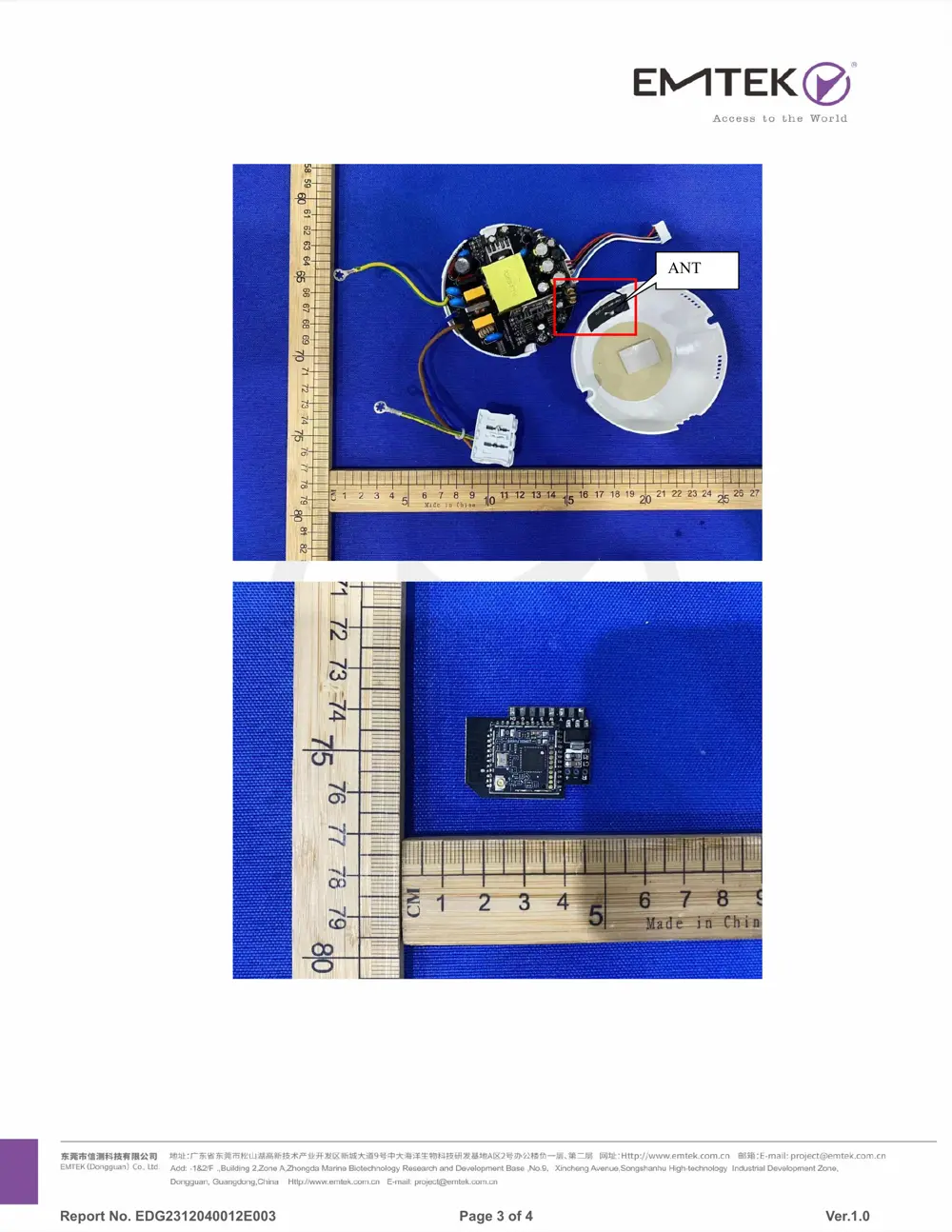

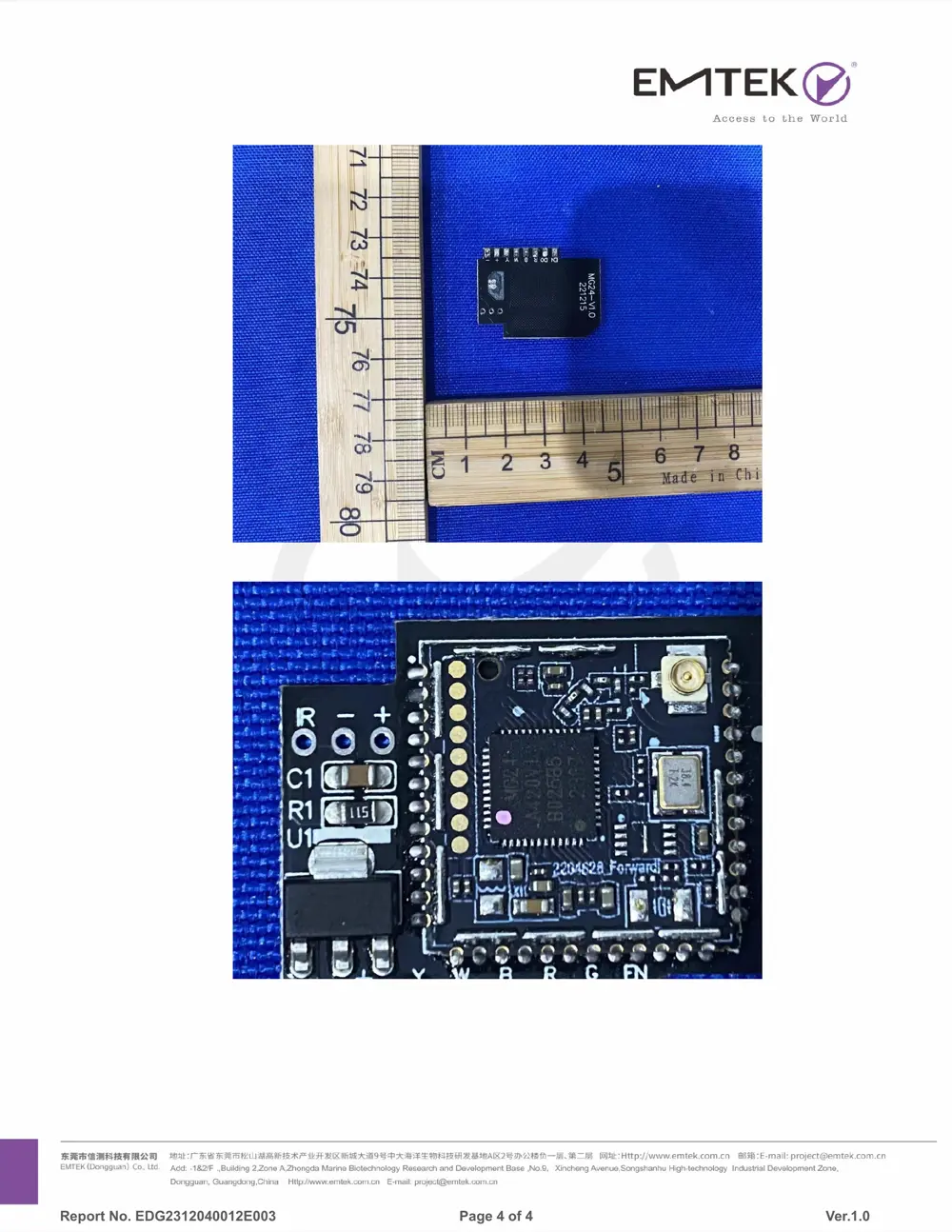

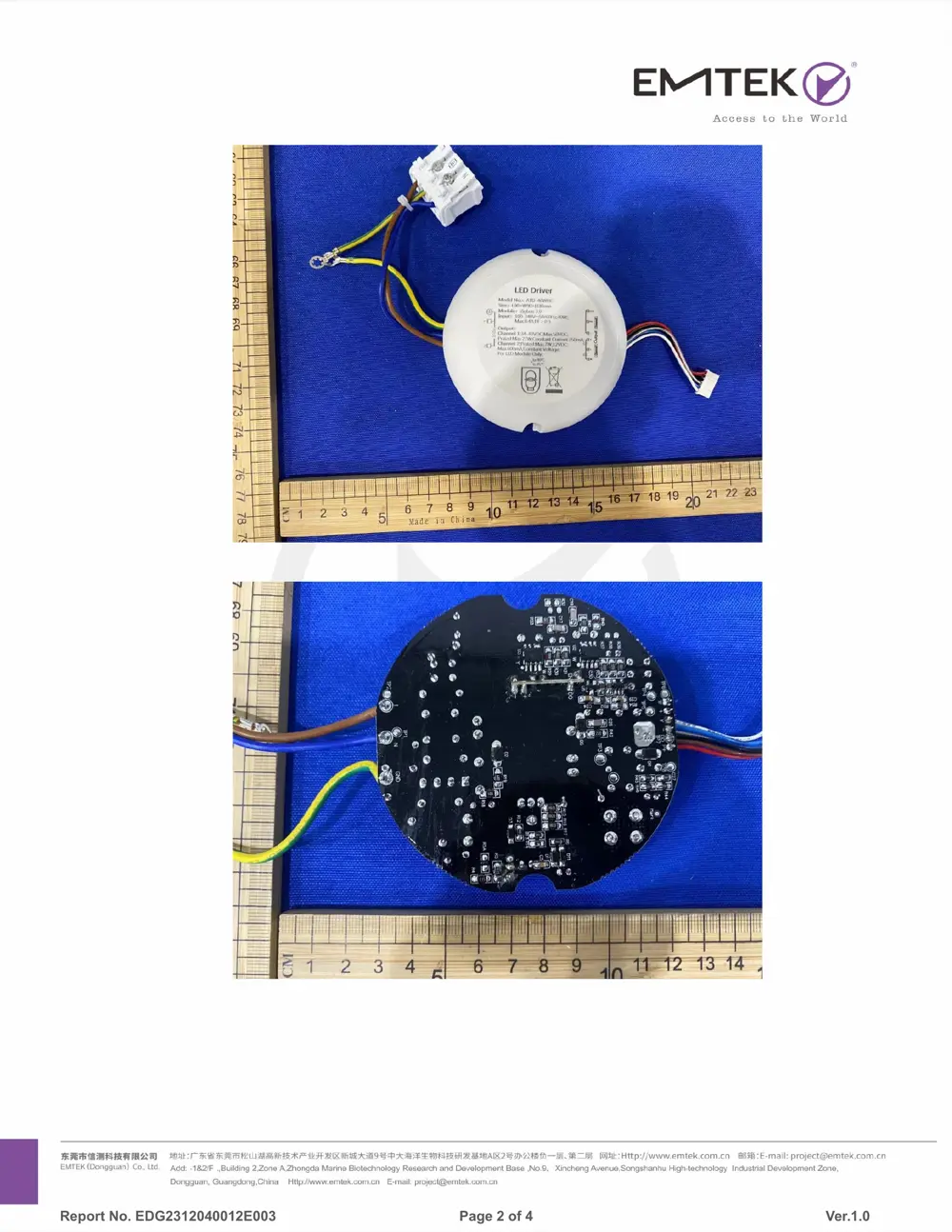

CLL02D PCB

Verdict

The CLL02D is a Zigbee device from the Aqara Zigbee ecosystem.

📄 Click to view full text manual (SEO)

Product Introduction
The Aqara Smart Ceiling Light redefines everyday illumination, seamlessly
blending high-quality white light and a colorful gradient ring into your
lifestyle. Its low idle consumption and compatibility with home
automation systems position this light as a future-proof addition to any
space, designed for longevity and to enhance your everyday living.
Product Specifications
Ceiling Light T1M
Model: CL-L02D
Device Binding & Initialization
1. Before activating the accessory, please make sure you have the Aqara
Home downloaded and Aqara hub installed. Please open the app, "tap
Home"and then tap"+"in the top right corner to enter"Add Device
(Accessory)"page.
2. Select"Ceiling Light T1M" , and add it according to instructions.
3. Please visit www.aqara.com/support for more details.
* If the connection fails, please move the accessory closer to the Hub and try again.
Eﬀective Distance Verification after Device Binding: Locate the power
switch, and toggle the switch on and oﬀ for 3 consecutive times. When the
hub gives the sound prompt, the eﬀective communication has been
established between the device and the hub.
Cover
Main Light
Side Light
Base Plate
Hereby, [Lumi United Technology Co., Ltd] declares that the radio equipment
type [Ceiling Light T1M, CL-L02D] is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following
internet address:https://www.aqara.com/DoC/
Hereby, [Lumi United Technology Co., Ltd] declares that the radio equipment
type [Ceiling Light T1M, CL-L02D] is in compliance with Directive 2017 (SI 2017
No. 1206, as amended by SI 2019 No. 696).
The full text of the UK declaration of conformity is available at the following
internet address:http://www.aqara.com/DoC/.
EU Declaration of Conformity
UK Declaration of Conformity
All products bearing this symbol are waste electrical and electronic equipment
(WEEE as in directive 2012/19/EU) which should not be mixed with unsorted
household waste. Instead, you should protect human health and the
environment by handing over your waste equipment to a designated
collection point for the recycling of waste electrical and electronic equipment,
appointed by the government or local authorities. Correct disposal and
recycling will help prevent potential negative consequences to the
environment and human health.
Please contact the installer or local authorities for more information about the
location as well as terms and conditions of such collection points.
WEEE Disposal and Recycling Information
Introduzione al prodotto
Il "Aqara Plafoniera T1M" è una lampada intelligente con funzioni avanzate.
La luce principale oﬀre una gamma di temperature di colore regolabili,
mentre la luce ambiente ausiliaria RGB circonda la luce principale e oﬀre
personalizzazioni dinamiche e statiche. Entrambe le luci, principale e
ausiliaria, supportano il controllo simultaneo o indipendente, così come il
controllo co...
