CRG1 Reset & Teardown (FCC ID 2ANDL-CRG1)

Before you buy the Tuya Global CRG1, check what's inside.

The CRG1 is a low-power embedded module from Tuya, integrating WiFi and Bluetooth connectivity. It features a KM4 microcontroller and is designed for integration into smart devices requiring wireless communication and potential voice control capabilities.

⚠️ NOTE: Ensure correct battery polarity when installing. This module is not mains powered.

Quick Specs

Manufacturer: Tuya Global
Model: CRG1
Protocol: WiFi
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: W701P-VA2-CG
Flashable: ❌ No
Info: While it uses a W701P chip, Tuya modules are often locked down and not designed for custom firmware flashing. Specific documentation for flashing this particular module is not readily available and it's unlikely to be straightforward.

User Manual

Scanned pages from the official user manual:

CRG1 Manual

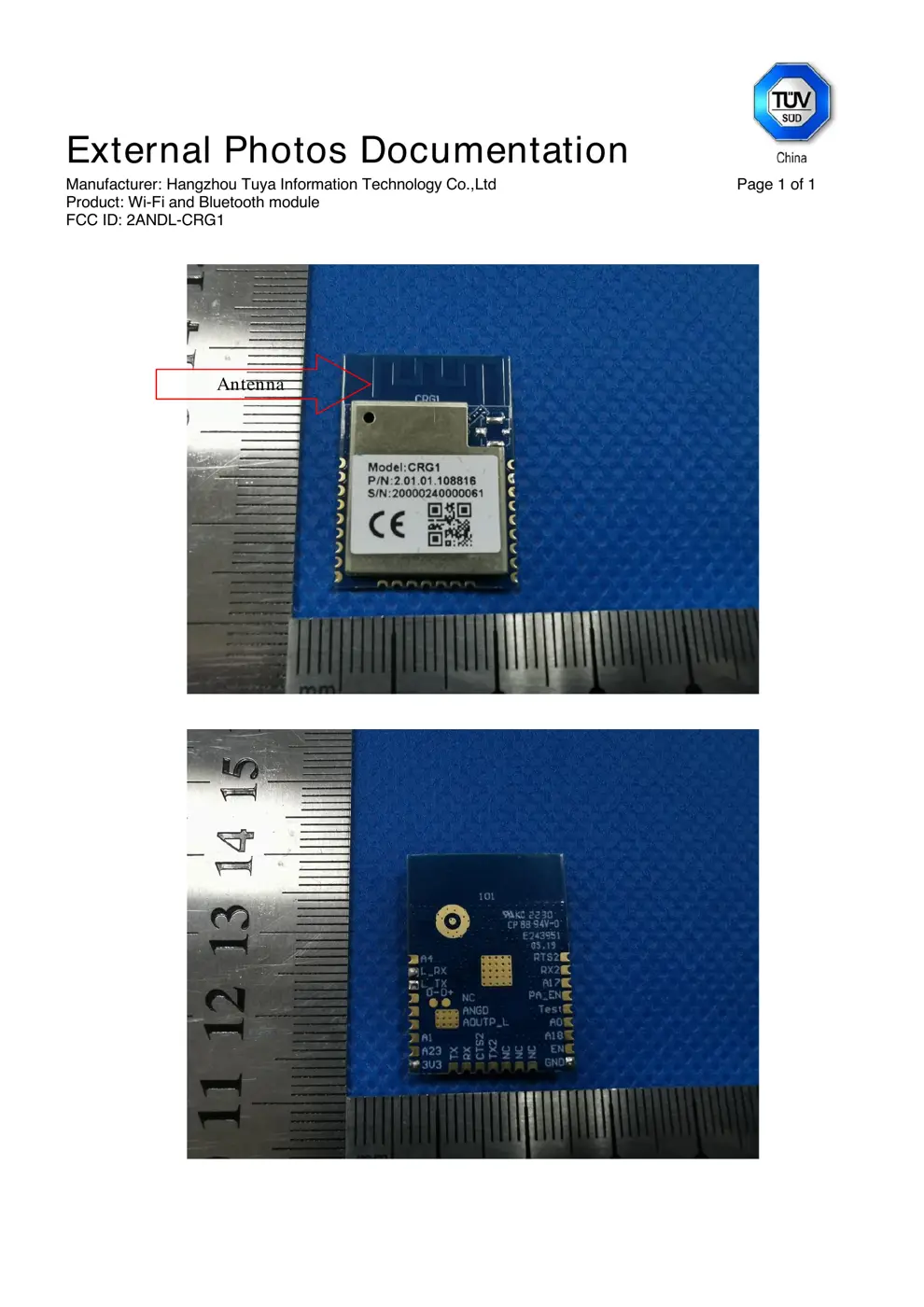

External Photos

Photos of the device exterior:

CRG1 Exterior

Internal Photos

Teardown photos showing the PCB and components:

CRG1 PCB

Verdict

The CRG1 is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

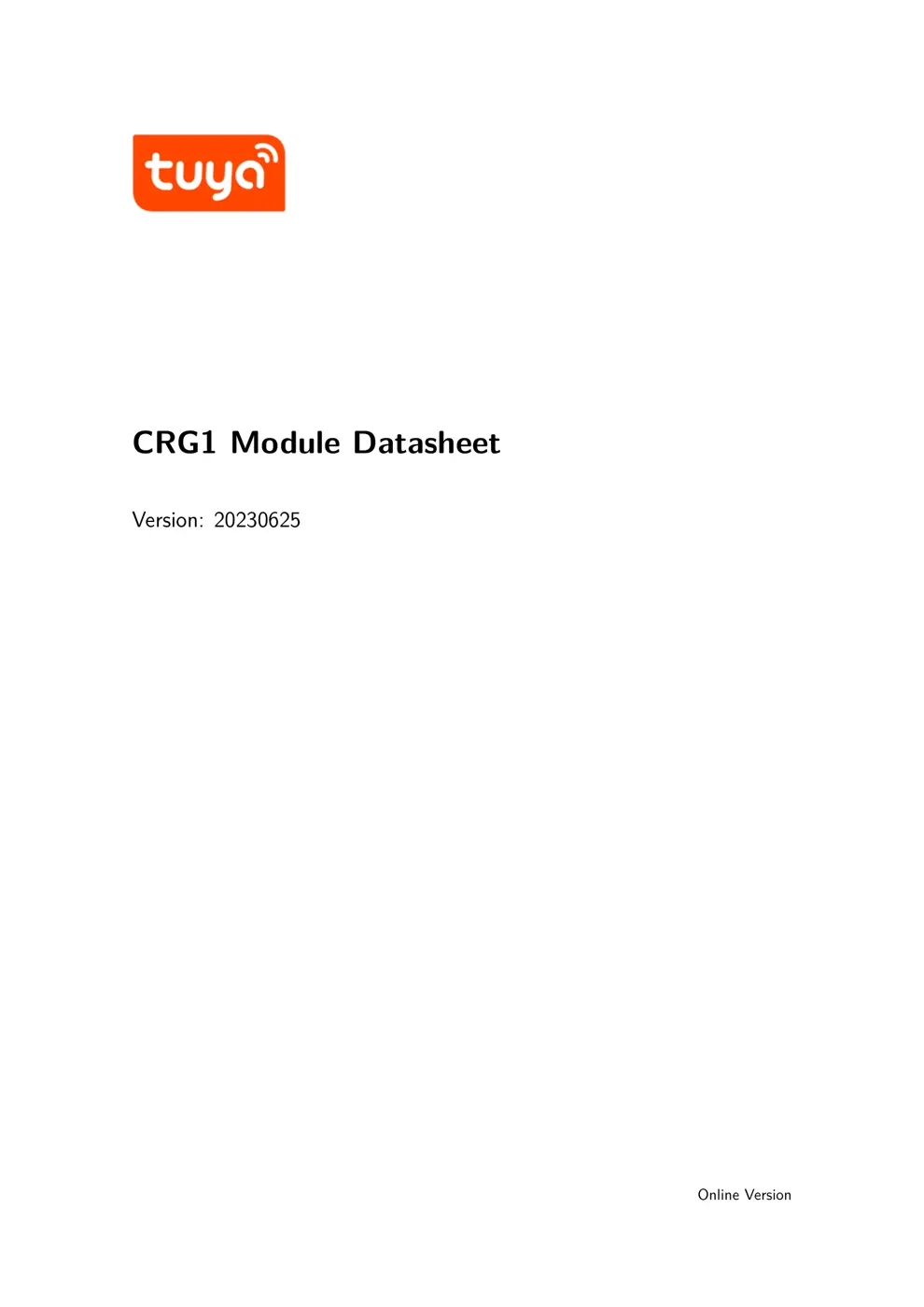

CRG1 Module Datasheet
Version: 20230625
Online Version
Contents
Contents
1 Overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3

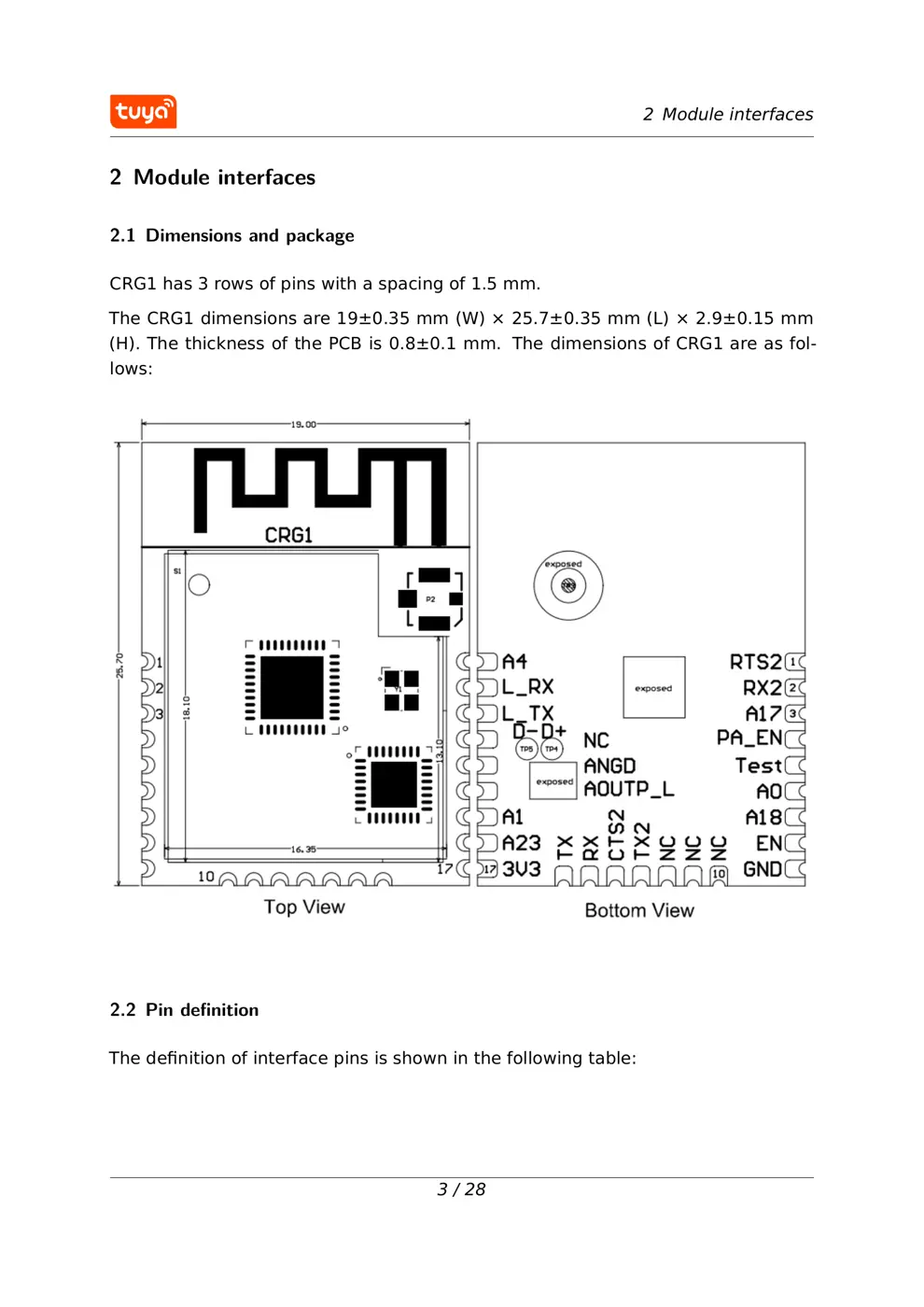

2.1 Dimensions and package . . . . . . . . . . . . . . . . . . . . . . . . 3

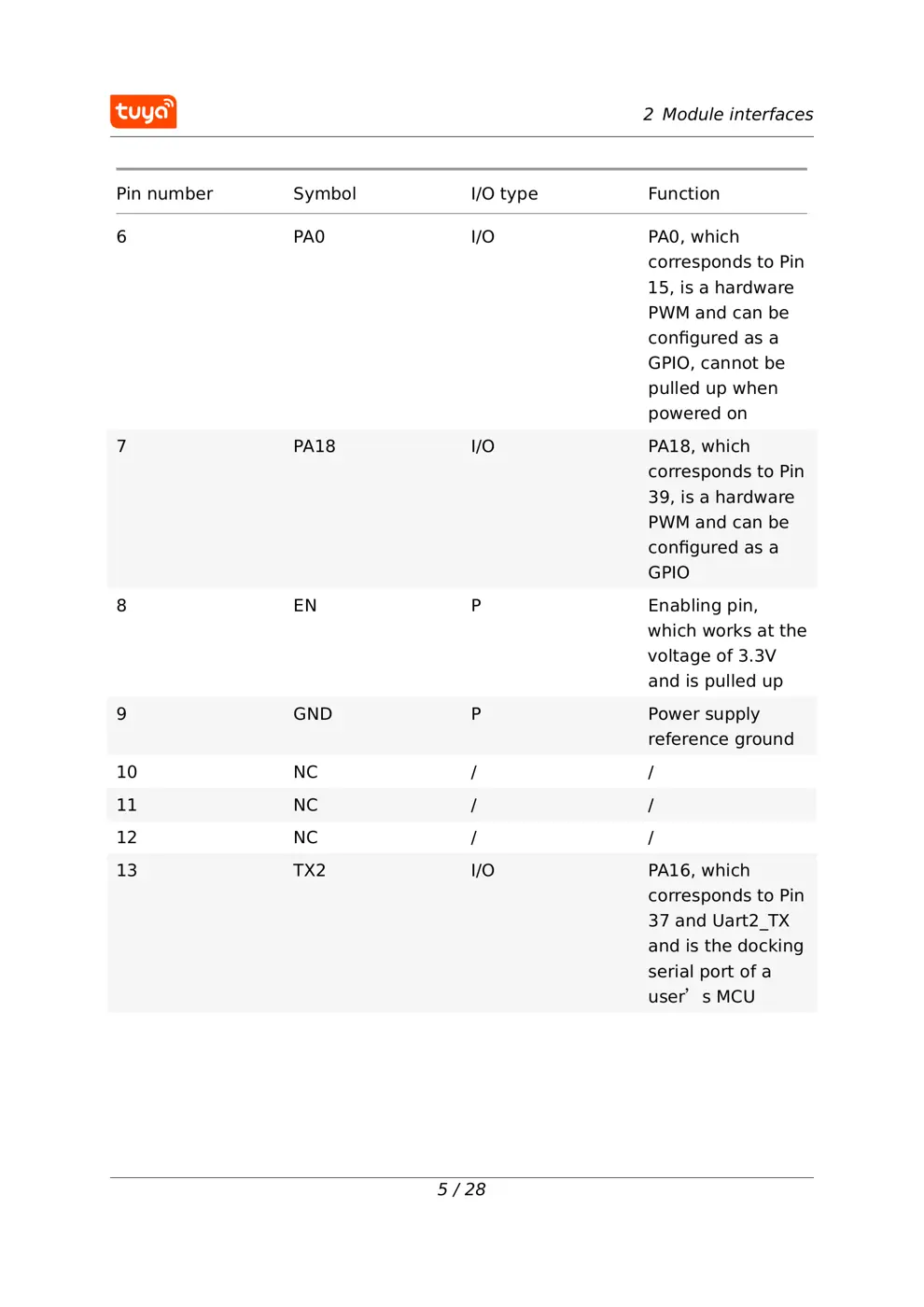

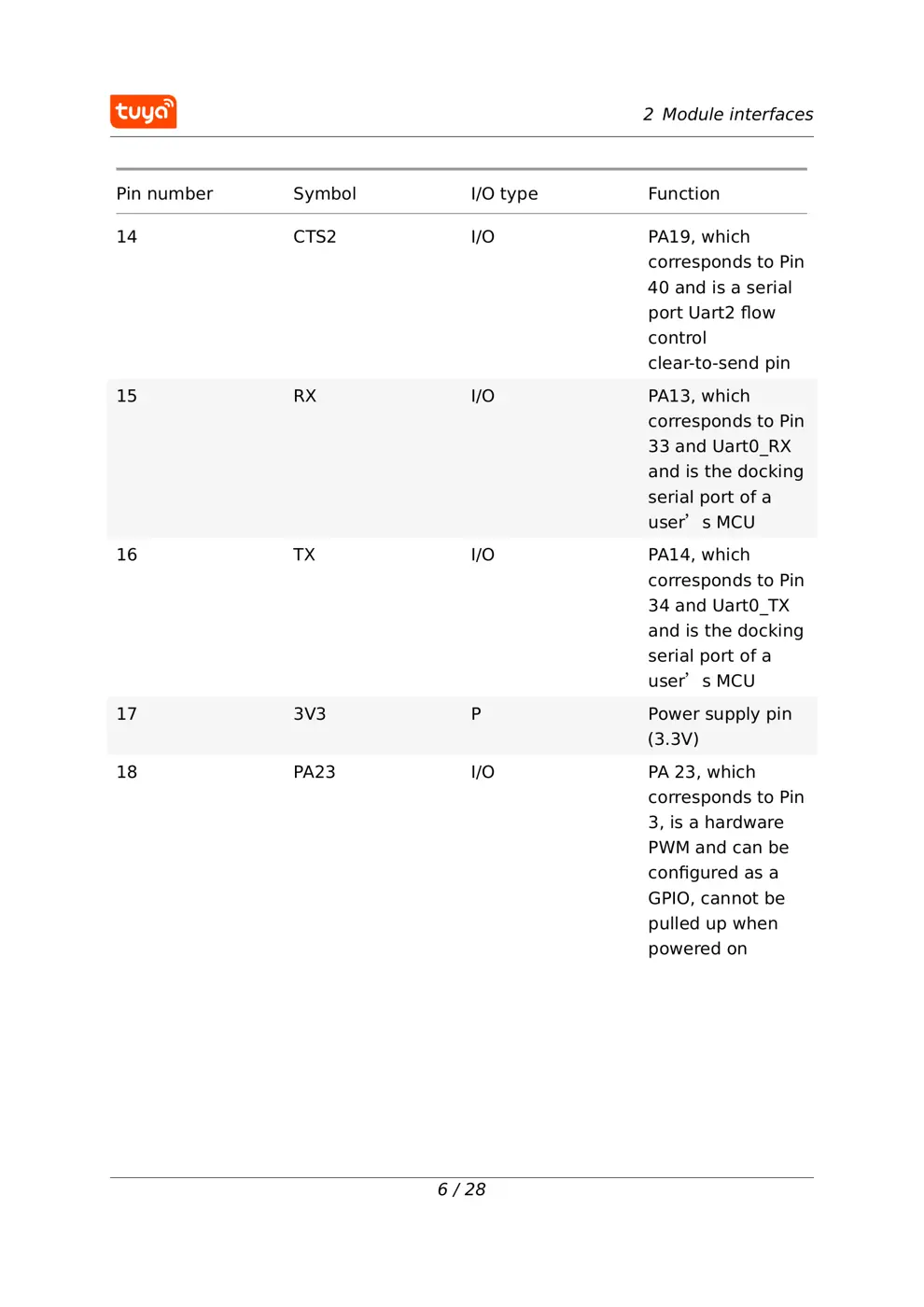

2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

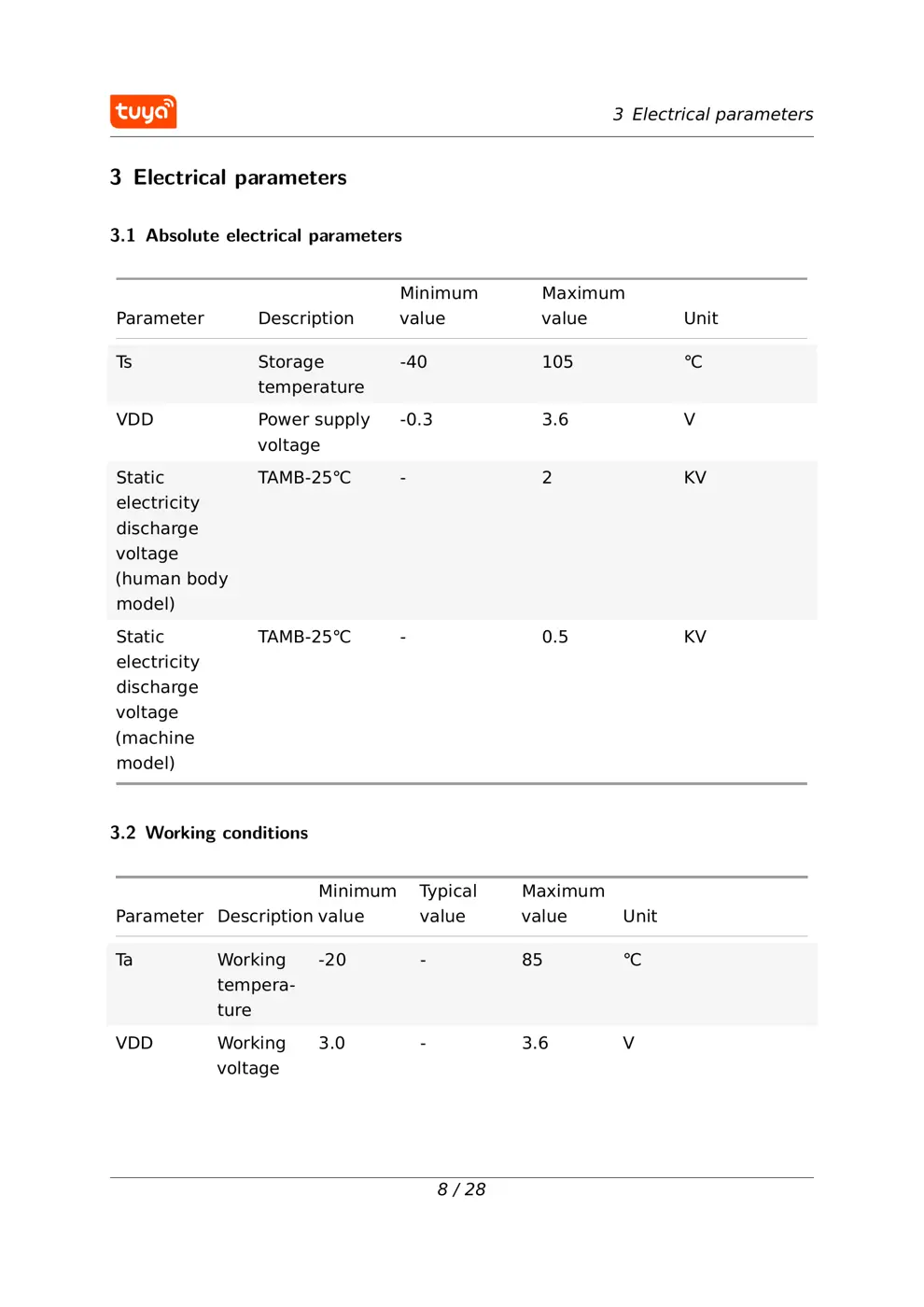

3 Electrical parameters 8
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 8
3.2 Working conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 RF power consumption . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Working power consumption . . . . . . . . . . . . . . . . . . . . . . . 10
4 RF parameters 12
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 TX performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Antenna information 15
5.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2 Antenna interference reduction . . . . . . . . . . . . . . . . . . . . . 15
6 Packaging information and production instructions 16
6.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2 Recommended PCB footprint . . . . . . . . . . . . . . . . . . . . . . 19
6.3 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.4 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 22
6.5 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7 MOQ and packaging information 25
8 Appendix: Statement 26
I
Contents

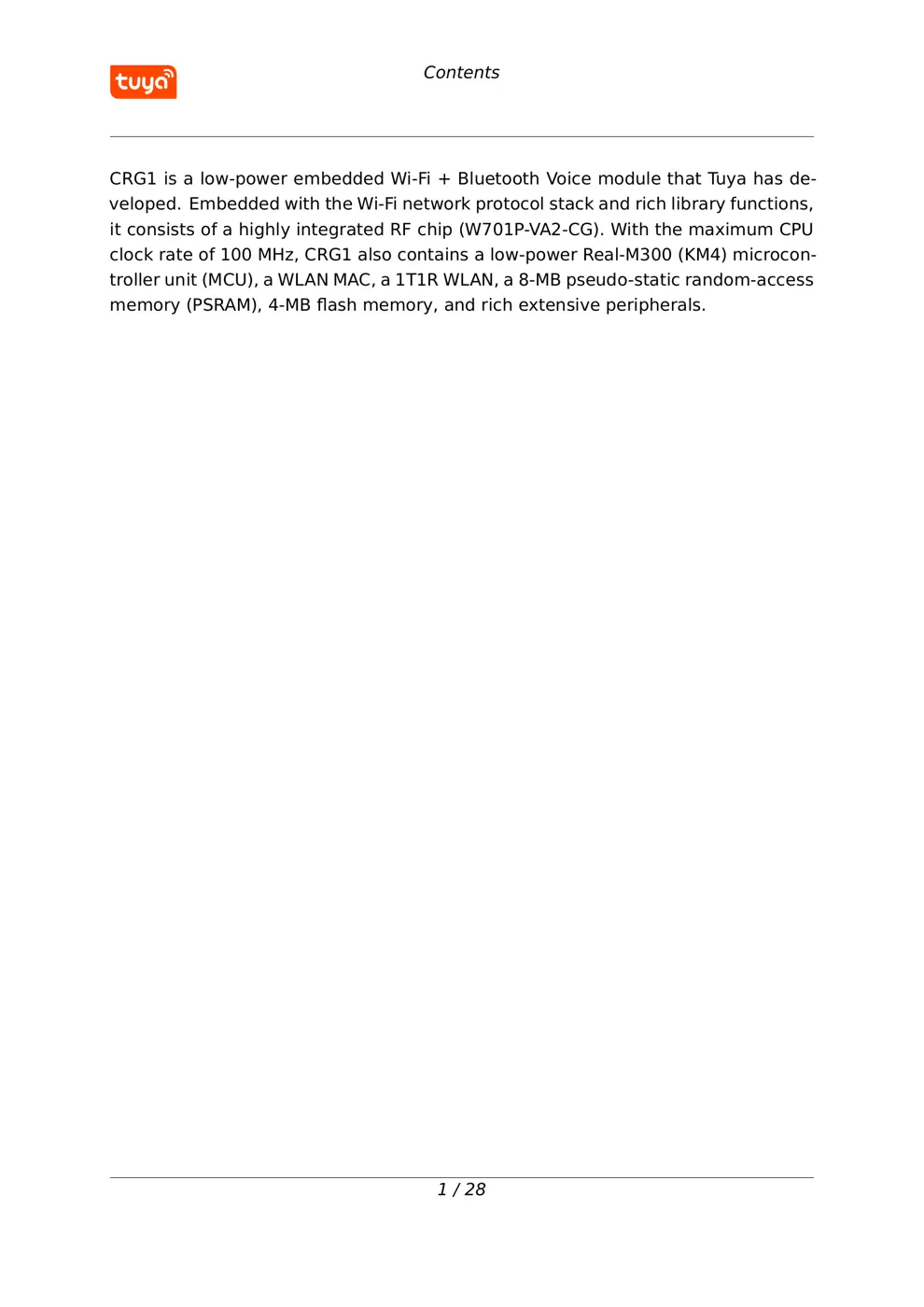

CRG1 is a low-power embedded Wi-Fi + Bluetooth Voice module that T uya has de-
veloped. Embedded with the Wi-Fi network protocol stack and rich library functions,
it consists of a highly integrated RF chip (W701P-VA2-CG). With the maximum CPU
clock rate of 100 MHz, CRG1 also contains a low-power Real-M300 (KM4) microcon-
troller unit (MCU), a WLAN MAC, a 1T1R WLAN, a 8-MB pseudo-static random-access
memory (PSRAM), 4-MB flash memory, and rich extensive peripherals.
1 / 28

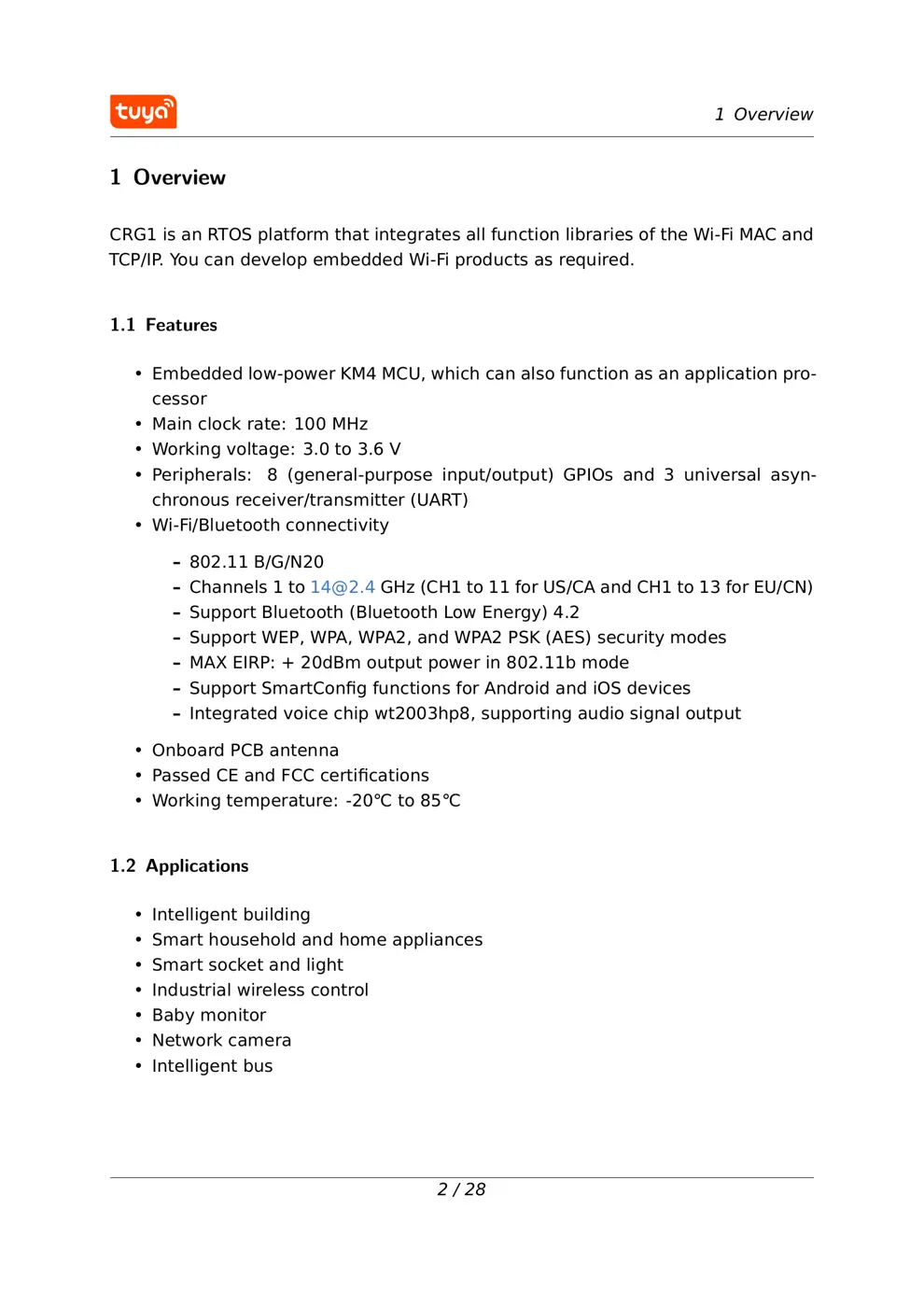

1 Overview
1 Overview
CRG1 is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and
TCP/IP . Y ou can develop embedded Wi-Fi products as required.
1.1 Features
• Embedded low-power KM4 MCU, which can also function as an application pro-
cessor
• Main clock rate: 100 MHz
• Working voltage: 3.0 to 3.6 V
• Peripherals: 8 (general-purpose input/output) GPIOs and 3 universal asyn-
chronous receiver/transmitter (UART)
• Wi-Fi/Bluetooth connectivity
– 802.11 B/G/N20
– Channels 1 to [email protected] GHz (CH1 to 11 for US/CA and CH1 to 13 for EU/CN)
– Support Bluetooth (Bluetooth Low Energy) 4.2
– Support WEP, WPA, WPA2, and WPA2 PSK (AES) security modes
– MAX EIRP: + 20dBm output power in 802.11b mode
– Support SmartConfig functions for Android and iOS devices
– Integrated voice chip wt2003hp8, supporting audio signal output
• Onboard PCB antenna
• P...
