G Reset & Teardown (FCC ID 2ANDL-BT3L-G)

Before you buy the Tuya Global G, check what's inside.

This device is a Tuya BT3L-G embedded Bluetooth Low Energy (BLE) module. It's designed for integration into low-power smart home devices like LED lights and sensors, leveraging BLE 5.0 for connectivity.

⚠️ NOTE: Ensure correct battery polarity and voltage range (1.8V to 3.6V) for operation.

Quick Specs

Manufacturer: Tuya Global
Model: G
Protocol: WiFi
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: TLSR8250F512GT32
Flashable: ❌ No
Info: The TLSR8250F512GT32 chipset is a proprietary Tuya chip not typically supported by common flashing firmware like Tasmota or ESPHome.

User Manual

Scanned pages from the official user manual:

G Manual

External Photos

Photos of the device exterior:

G Exterior

Internal Photos

Teardown photos showing the PCB and components:

G PCB

Verdict

The G is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

BT3L-G Datasheet
1

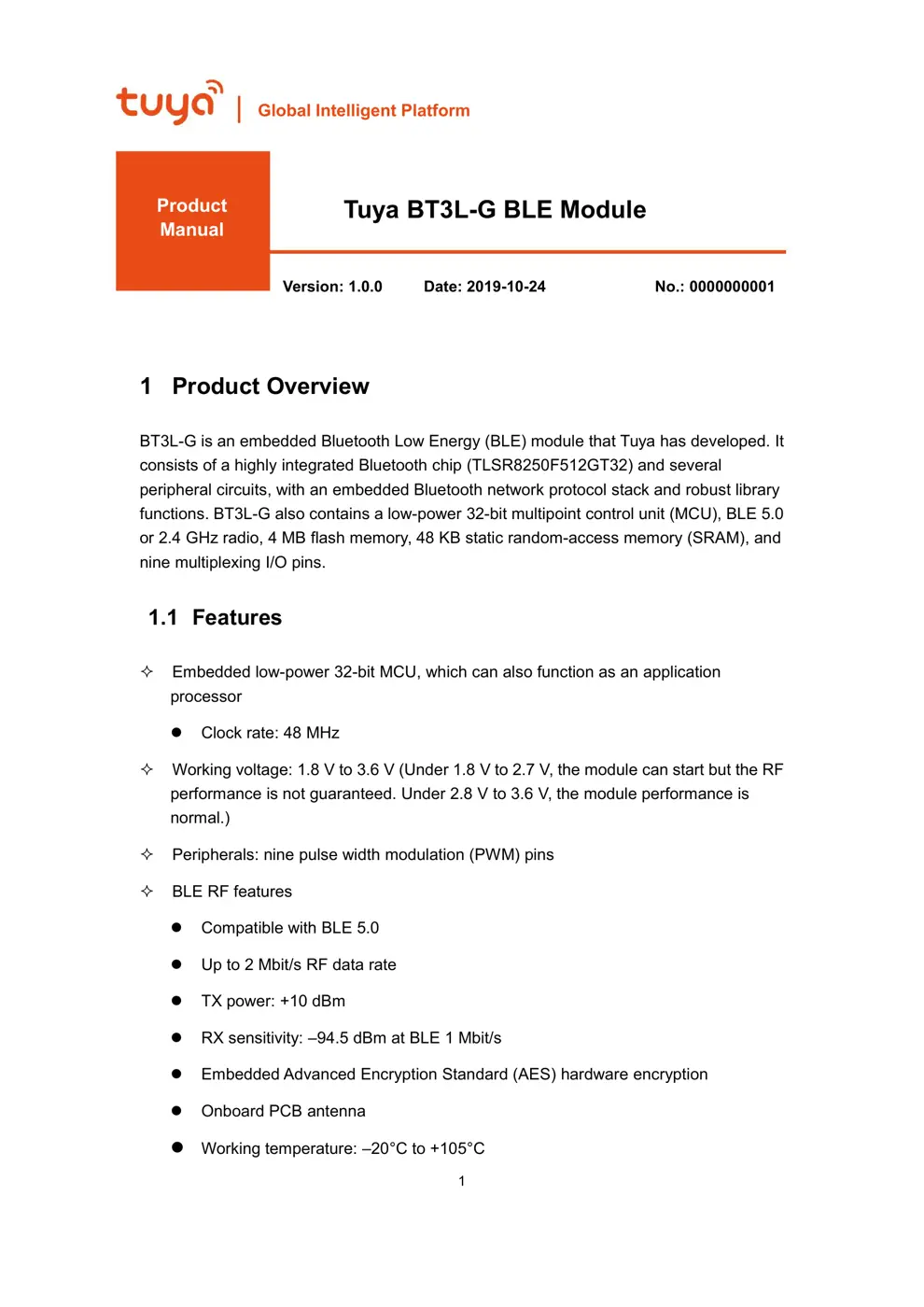

1 Product Overview
BT3L-G is an embedded Bluetooth Low Energy (BLE) module that Tuya has developed. It
consists of a highly integrated Bluetooth chip (TLSR8250F512GT32) and several
peripheral circuits, with an embedded Bluetooth network protocol stack and robust library
functions. BT3L-G also contains a low-power 32-bit multipoint control unit (MCU), BLE 5.0
or 2.4 GHz radio, 4 MB flash memory, 48 KB static random-access memory (SRAM), and
nine multiplexing I/O pins.
1.1 Features
 Embedded low-power 32-bit MCU, which can also function as an application
processor
 Clock rate: 48 MHz
 Working voltage: 1.8 V to 3.6 V (Under 1.8 V to 2.7 V, the module can start but the RF
performance is not guaranteed. Under 2.8 V to 3.6 V, the module performance is
normal.)
 Peripherals: nine pulse width modulation (PWM) pins
 BLE RF features
 Compatible with BLE 5.0
 Up to 2 Mbit/s RF data rate
 TX power: +10 dBm
 RX sensitivity: –94.5 dBm at BLE 1 Mbit/s
 Embedded Advanced Encryption Standard (AES) hardware encryption
 Onboard PCB antenna
 Working temperature: –20°C to +105°C
Tuya BT3L-G BLE Module
Date: 2019-10-24 No.: 0000000001
Product
Manual
Global Intelligent Platform
Version: 1.0.0
BT3L-G Datasheet
2

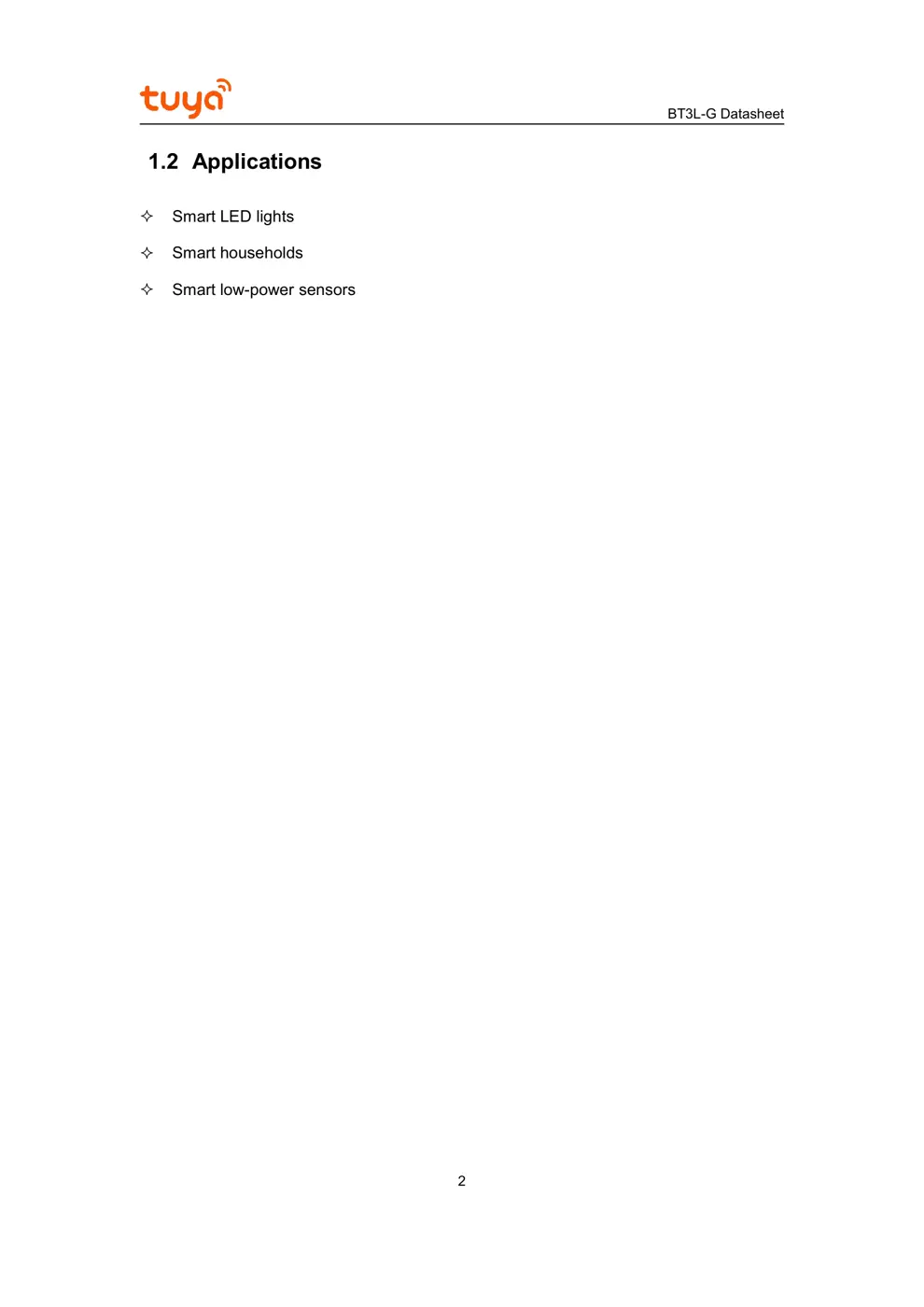

1.2 Applications
 Smart LED lights
 Smart households
 Smart low-power sensors
BT3L-G Datasheet
3

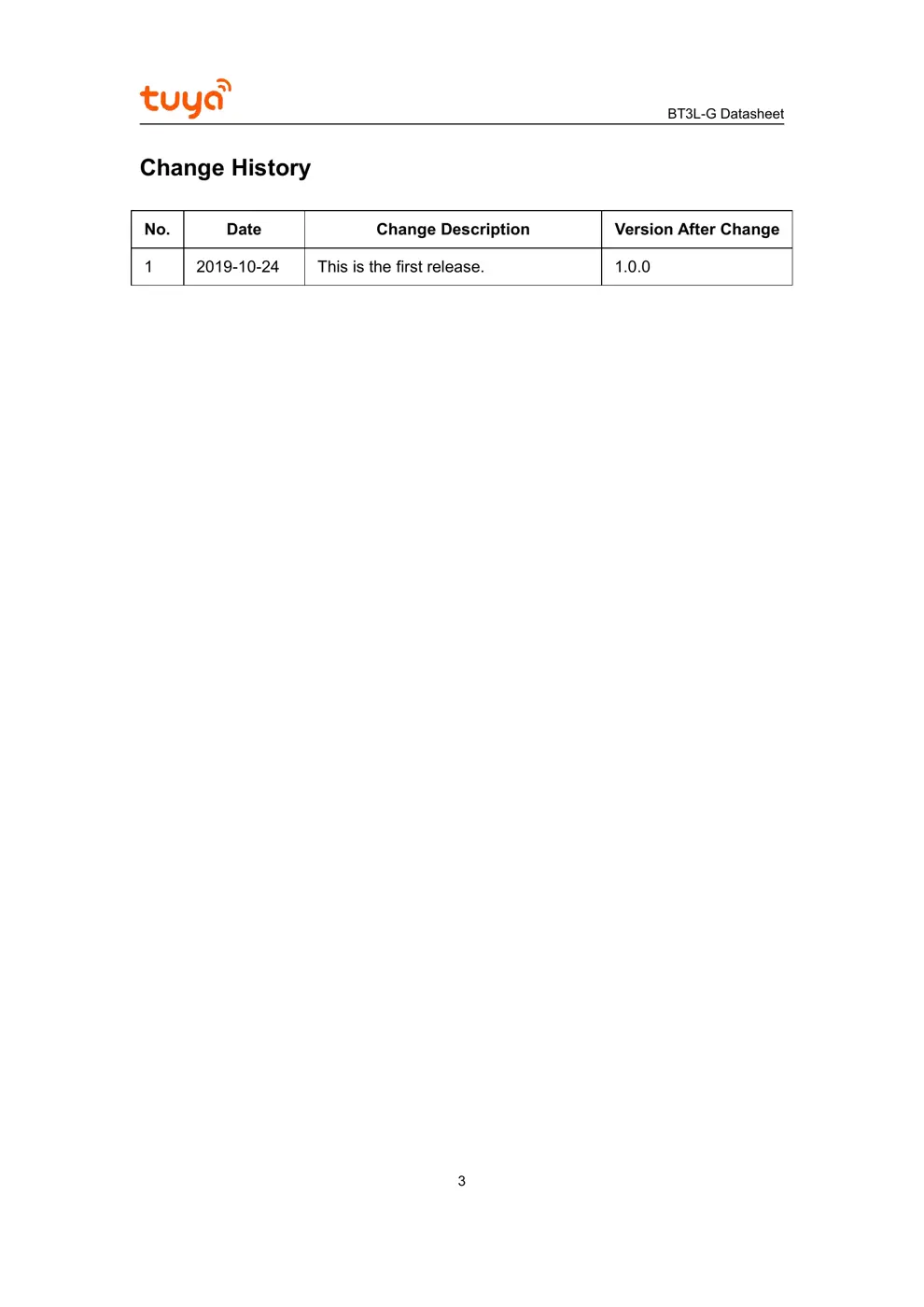

Change History
No. Date Change Description Version After Change
1 2019-10-24 This is the first release. 1.0.0
BT3L-G Datasheet
4

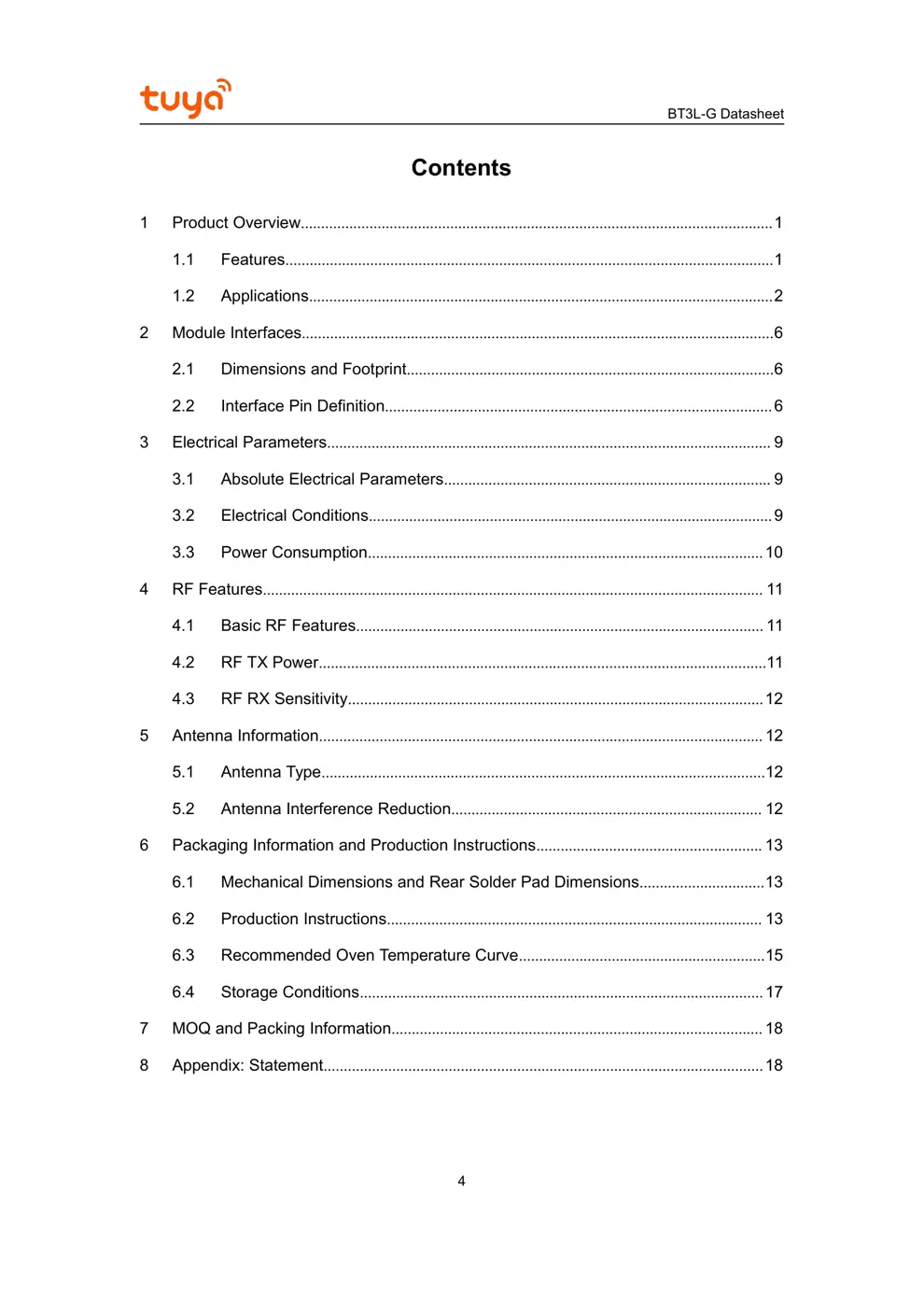

Contents
1 Product Overview.....................................................................................................................1
1.1 Features.........................................................................................................................1
1.2 Applications...................................................................................................................2
2 Module Interfaces.....................................................................................................................6

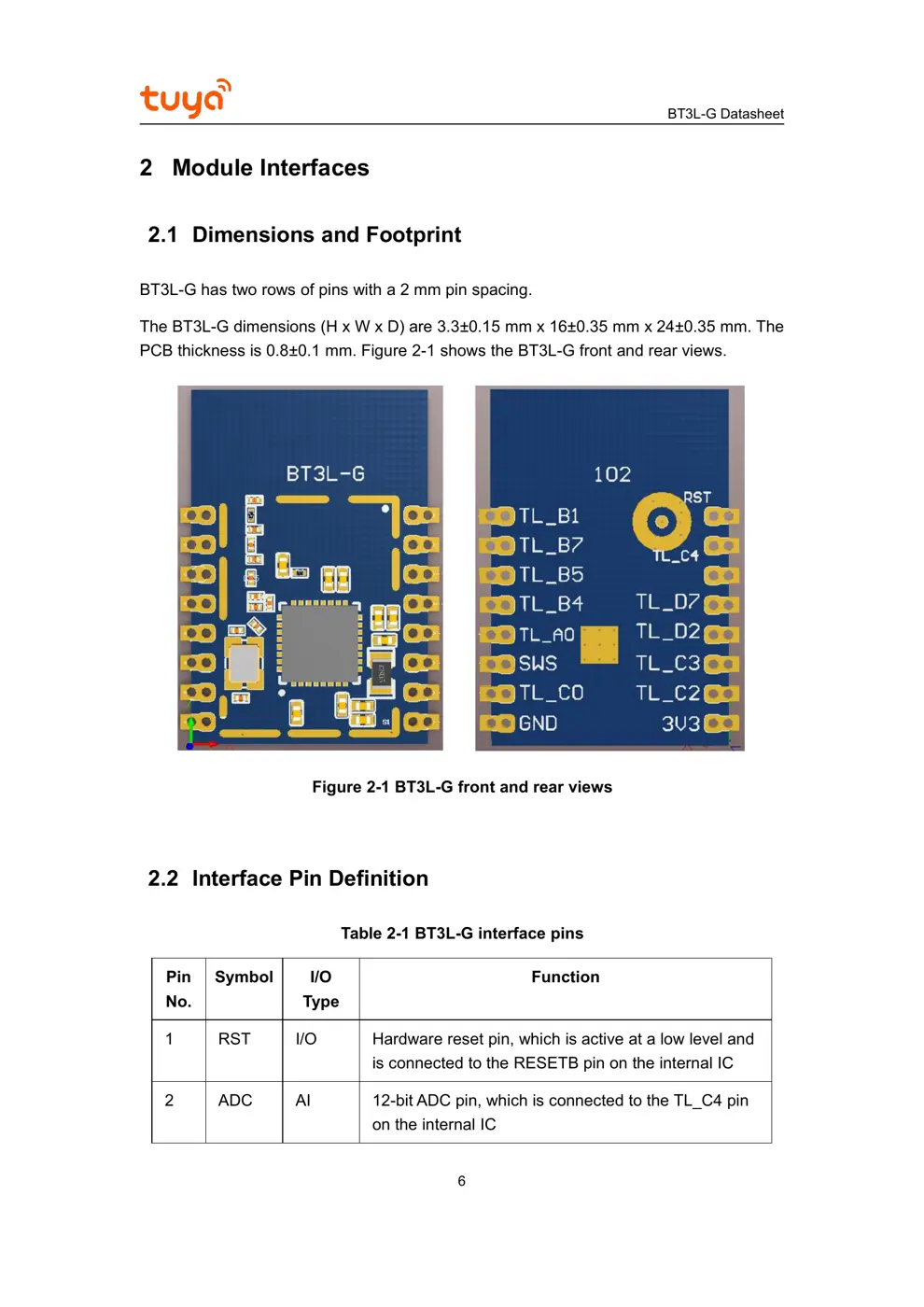

2.1 Dimensions and Footprint...........................................................................................6
2.2 Interface Pin Definition................................................................................................ 6
3 Electrical Parameters.............................................................................................................. 9
3.1 Absolute Electrical Parameters................................................................................. 9
3.2 Electrical Conditions.................................................................................................... 9
3.3 Power Consumption.................................................................................................. 10
4 RF Features............................................................................................................................ 11
4.1 Basic RF Features...................................................................................
