M Reset & Teardown (FCC ID 2ANDL-BF6H-M)

Before you buy the Tuya Global M, check what's inside.

This device is a low-power embedded Bluetooth audio module based on the FR8016HA chipset, designed for integration into various Tuya Smart Life ecosystem products. It supports Bluetooth 5.0 and is powered by a battery.

⚠️ NOTE: Ensure correct battery polarity and voltage range.

Quick Specs

Manufacturer: Tuya Global
Model: M
Protocol: WiFi
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: FR8016HA
Flashable: ❌ No
Info: Proprietary Tuya module, not designed for flashing with custom firmware like Tasmota or ESPHome.

User Manual

Scanned pages from the official user manual:

M Manual

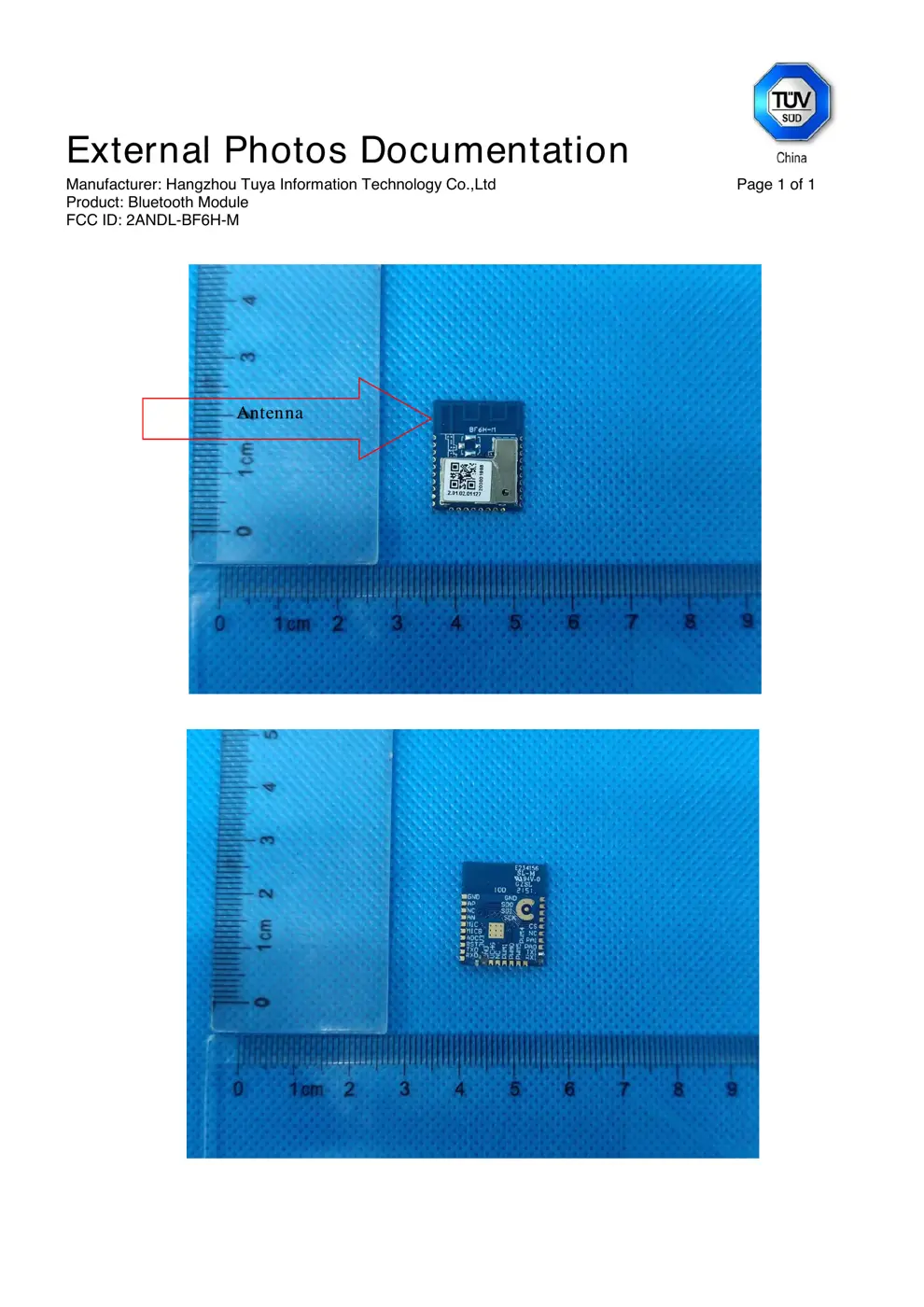

External Photos

Photos of the device exterior:

M Exterior

Internal Photos

Teardown photos showing the PCB and components:

M PCB

Verdict

The M is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

BF6H-M Module Datasheet
Version: 20220301
Online Version

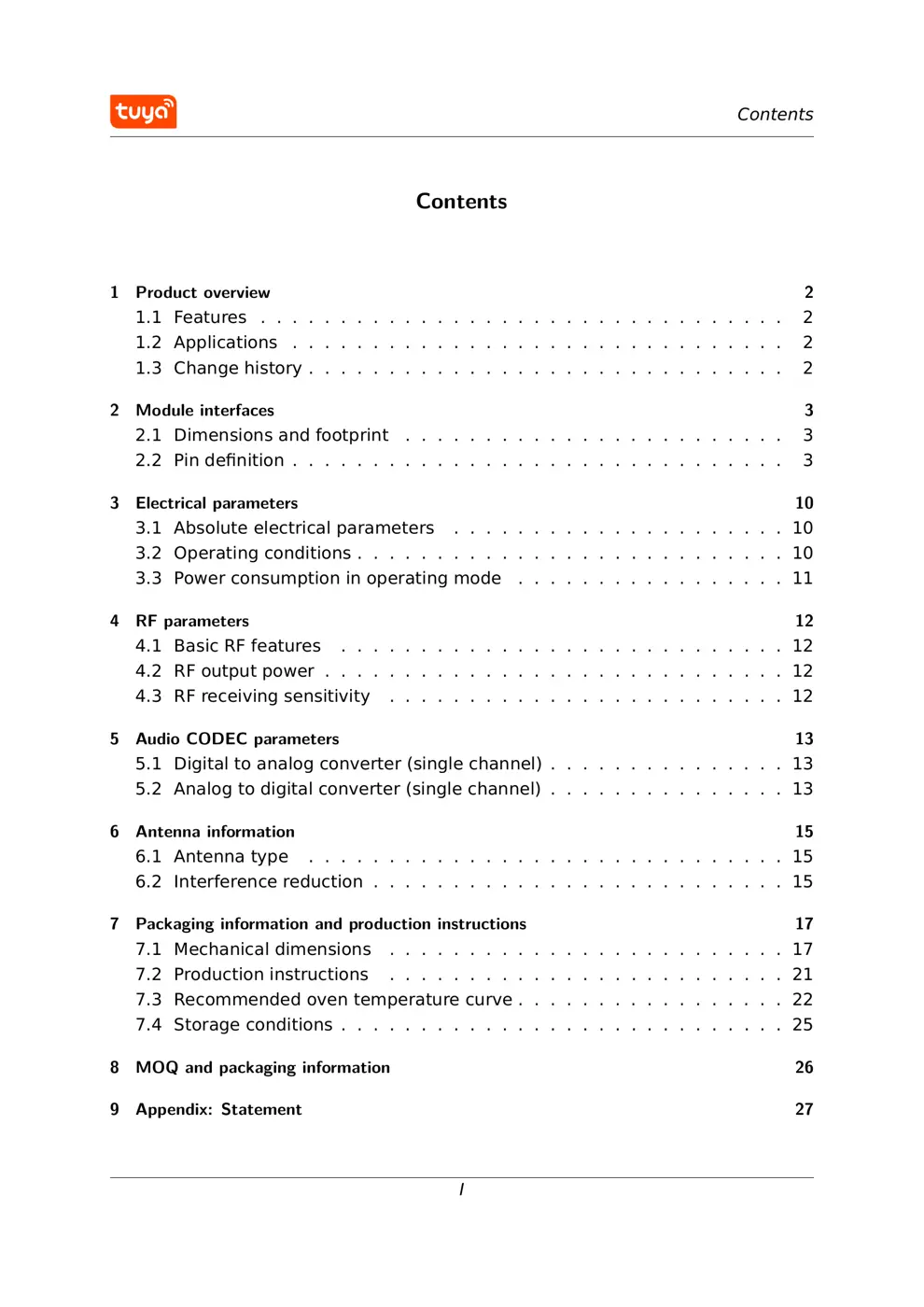

Contents
Contents
1 Product overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Change history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3
2.1 Dimensions and footprint . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Electrical parameters 10
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 10
3.2 Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 Power consumption in operating mode . . . . . . . . . . . . . . . . . 11
4 RF parameters 12
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 RF output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 RF receiving sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Audio CODEC parameters 13
5.1 Digital to analog converter (single channel) . . . . . . . . . . . . . . . 13
5.2 Analog to digital converter (single channel) . . . . . . . . . . . . . . . 13
6 Antenna information 15
6.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2 Interference reduction . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Packaging information and production instructions 17
7.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.3 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 22
7.4 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8 MOQ and packaging information 26
9 Appendix: Statement 27
I
Contents
BF6H-M is a low-power embedded Bluetooth audio module that T uya has developed.
It mainly consists of a highly integrated Bluetooth chip (FR8016HA) and a few pe-
ripheral circuits with the Bluetooth communication protocol stack and rich library
functions inside. Based on the support of the Bluetooth intelligent firmware and
protocol stack of the Freqchip, BF6H-M is completely compatible with the Bluetooth
protocol V5.0 Meanwhile, users can develop various application programs on the ba-
sis of the ARM Cortex M3 in the 32-bit high-performance single-chip microcomputer.
In the BF6H-M, audio CODEC, PMU (charger for lithium battery LDO), SPI flashROM
with the XIP mode, IIC, UART, GPIO, ADC, and PWM are integrated into one chip, to
use less power and offer stable connection.
1 / 29
1 Product overview
1 Product overview
BF6H-M includes an ARM Cortex M3 32-bit processor, a Bluetooth 5.0/2.4G radio, a
150-KB ROM, a 48-KB SRAM, 15 reusable I/O ports, and a 16-bit single-channel audio
CODEC.
1.1 Features
• ARM Cortex M3 32-bit processor
• Operating voltage: 1.8 to 4.3V
• Peripherals: 4 PWMs, 1 ADC, 3 GPIOs, 2 UART s, ...
