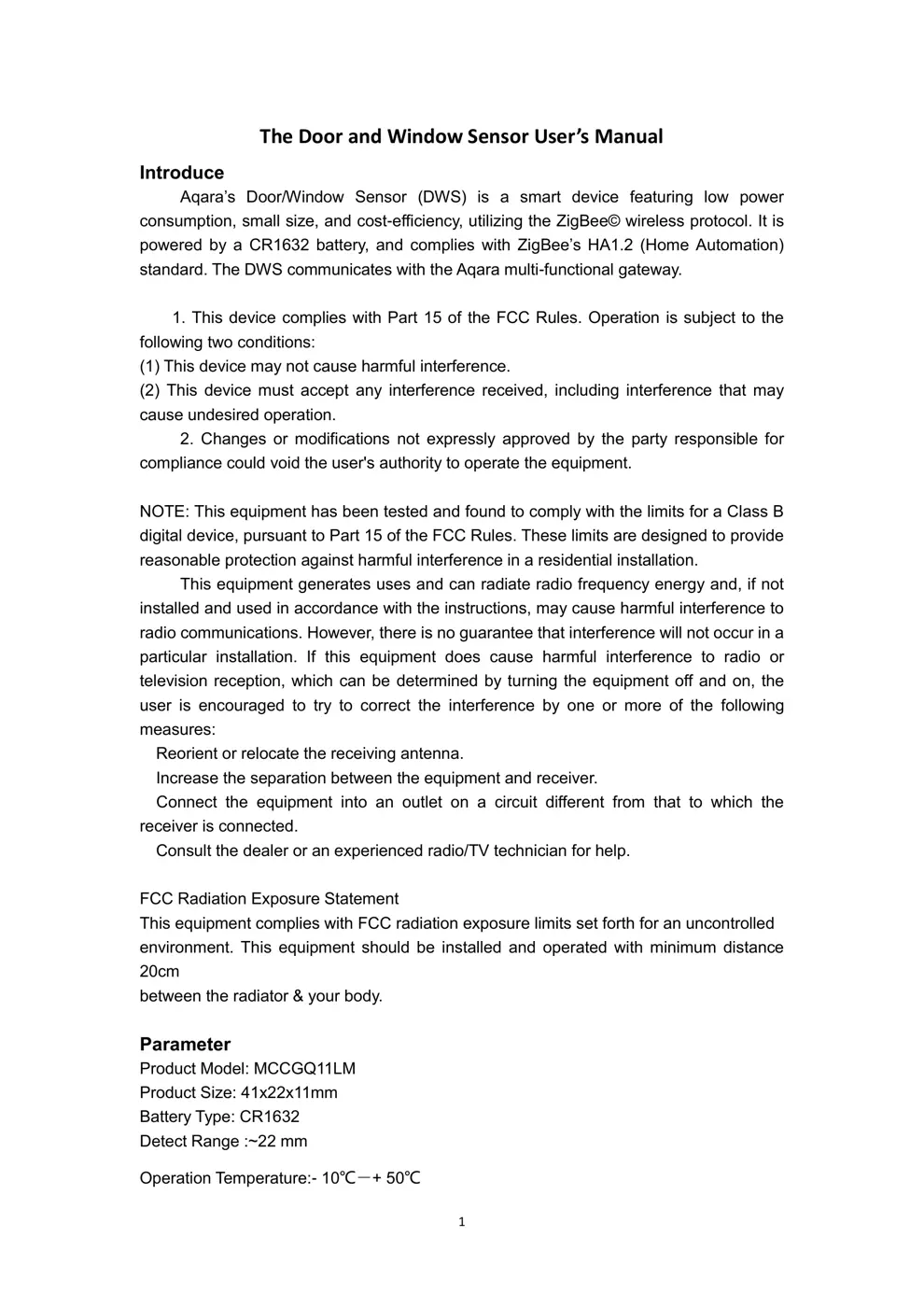

The Door and Window Sensor User’s Manual
Introduce
 Aqara’s Door/Window Sensor (DWS) is a smart device featuring low power
consumption, small size, and cost -efficiency, utilizing the ZigBee© wireless protocol. It is
powered by a CR1632 battery, and complies with ZigBee’s HA1.2 (Home Automation)
standard. The DWS communicates with the Aqara multi-functional gateway.

 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
 2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
 This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm
between the radiator & your body.

Parameter
Product Model: MCCGQ11LM
Product Size: 41x22x11mm

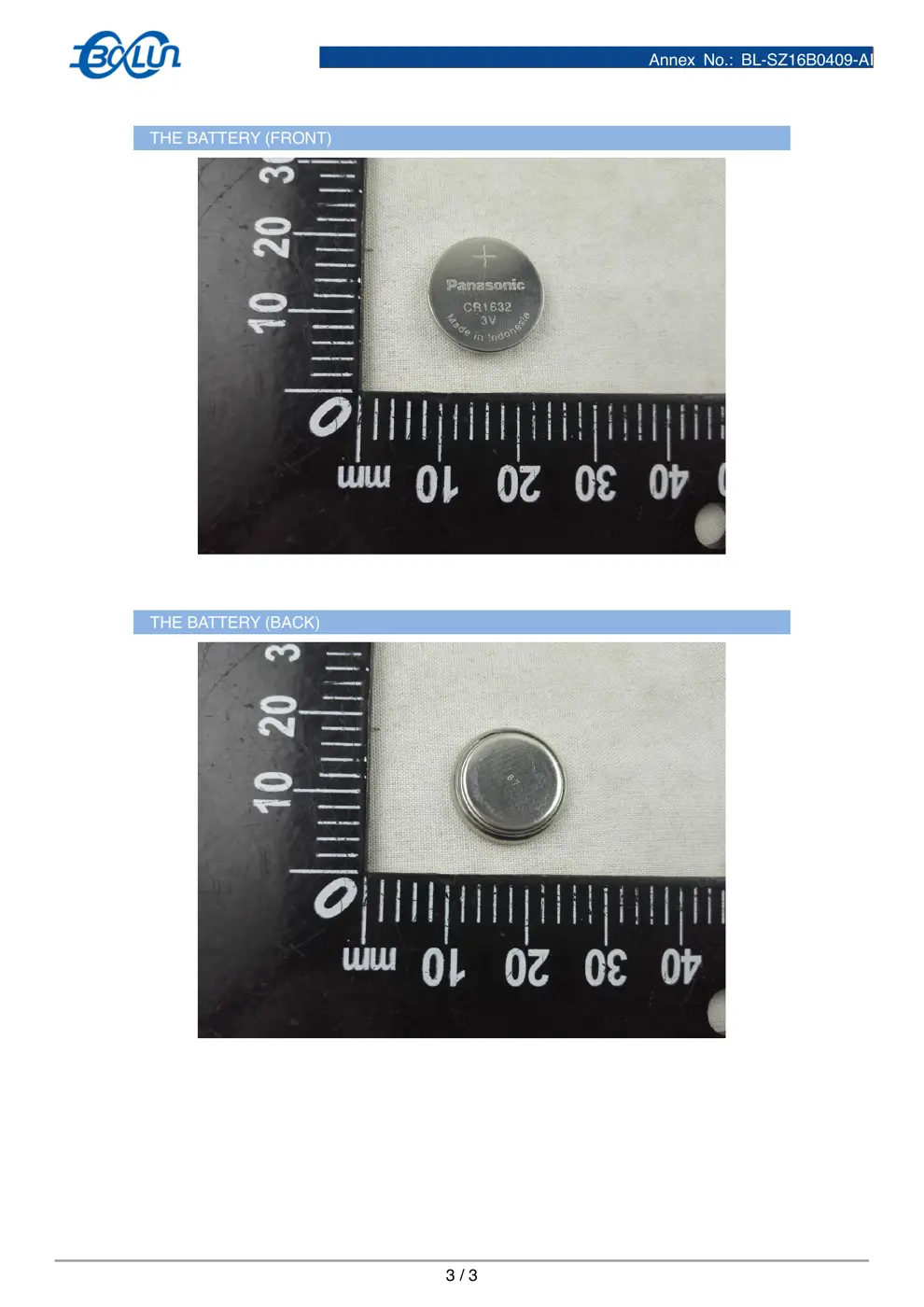

Battery Type: CR1632
Detect Range :~22 mm
Operation Temperature:- 10℃－+ 50℃
 2
Operation Humidity: 0－95% RH，No Condensation
Execution standard: Q/QLML003－2015

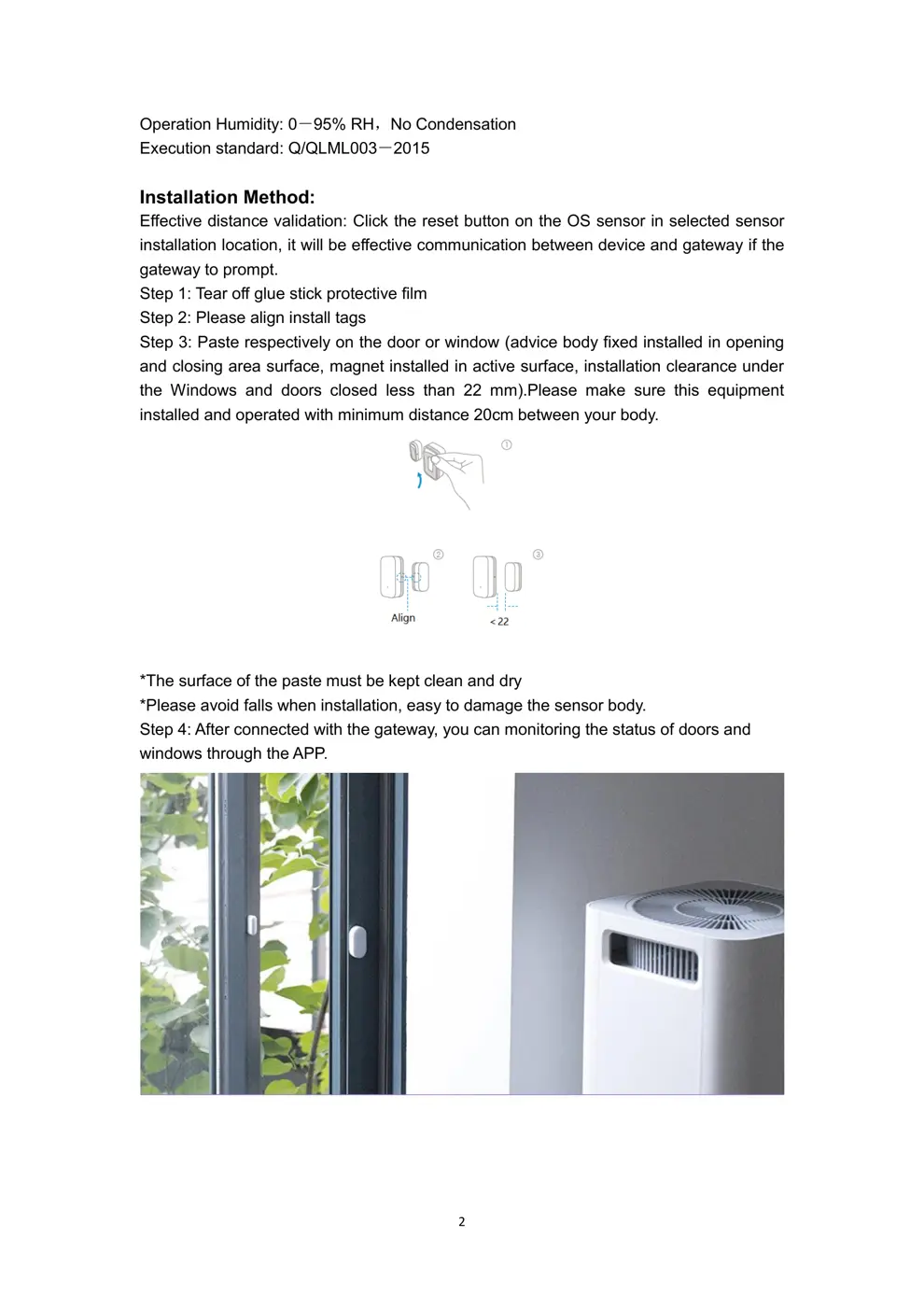

Installation Method:
Effective distance validation: Click the reset button on the OS sensor in selected sensor
installation location, it will be effective communication between device and gateway if the
gateway to prompt.
Step 1: Tear off glue stick protective film
Step 2: Please align install tags
Step 3: Paste respectively on the door or window (advice body fixed installed in opening
and closing area surface, magnet installed in active surface, installation clearance under
the Windows and doors closed less than 22 m m).Please make sure this equipment
installed and operated with minimum distance 20cm ...
