MDWBRCU1 Reset & Teardown (FCC ID 2ANDL-MDWBRCU1)

Before you buy the Tuya Global MDWBRCU1, check what's inside.

The MDWBRCU1 is a versatile WiFi and Bluetooth LE combo adapter board from Tuya, utilizing the RTL8720CF chipset. It's designed for integration into smart home and appliance products, requiring a 5V power input.

⚠️ NOTE: Ensure correct 5V power input and proper connection to the intended circuit; this board is not a standalone device.

Quick Specs

Manufacturer: Tuya Global
Model: MDWBRCU1
Protocol: WiFi
Chipset: Realtek RTL8720
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: RTL8720CF
Flashable: ❌ No
Info: Datasheet explicitly states 'Not Flashable' and uses a proprietary Tuya chipset which is generally not supported for flashing custom firmware.

User Manual

Scanned pages from the official user manual:

MDWBRCU1 Manual

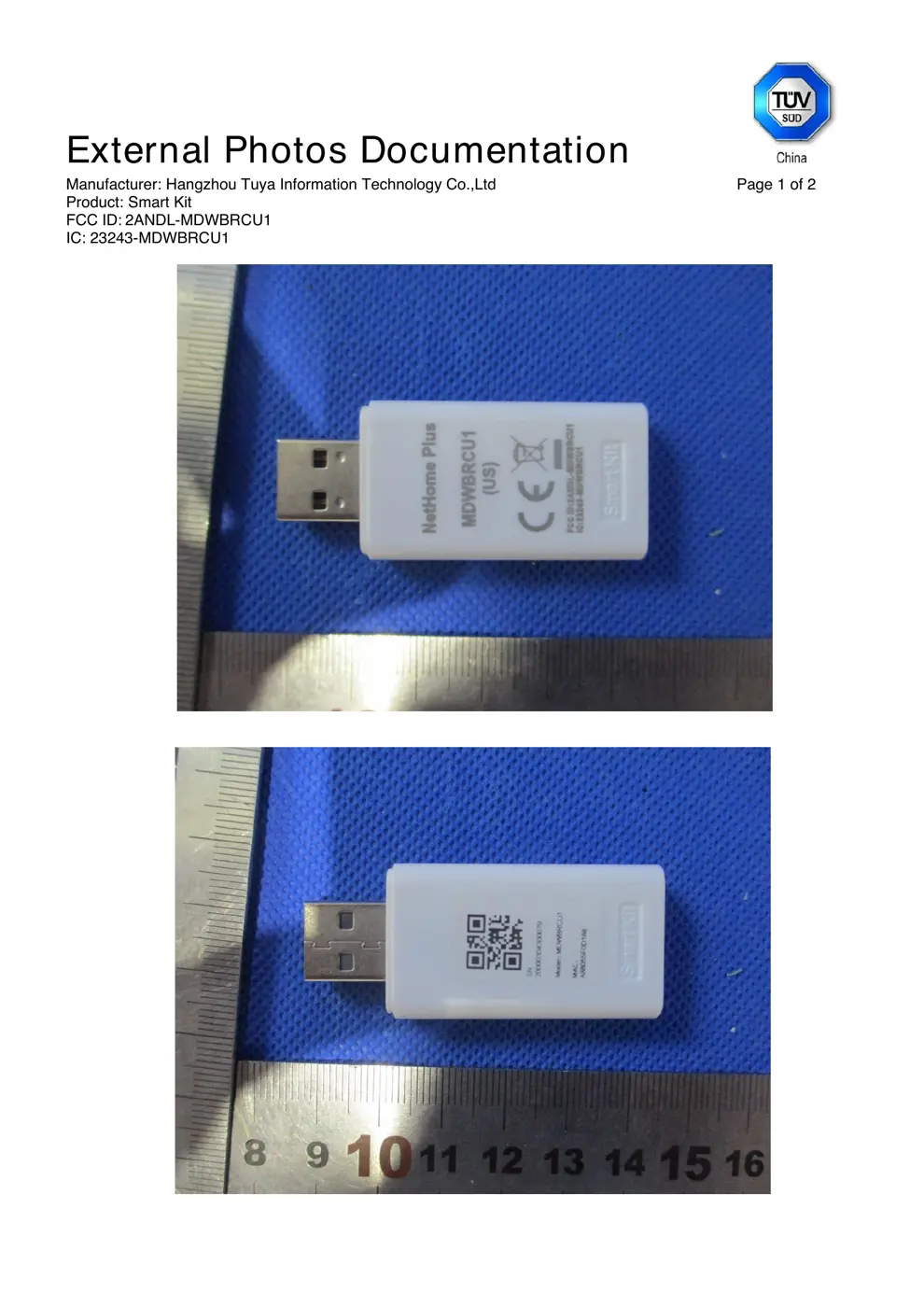

External Photos

Photos of the device exterior:

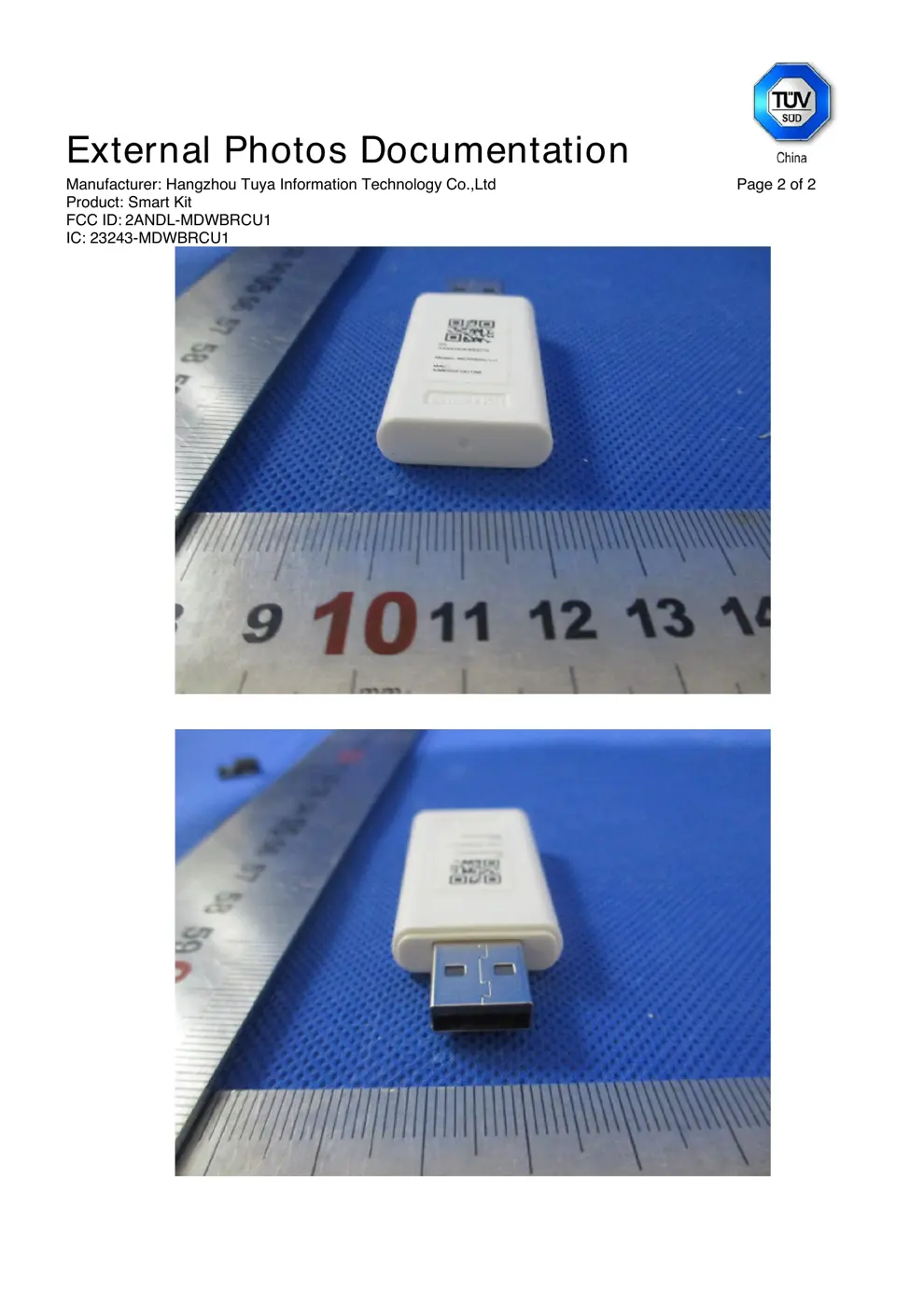

MDWBRCU1 Exterior

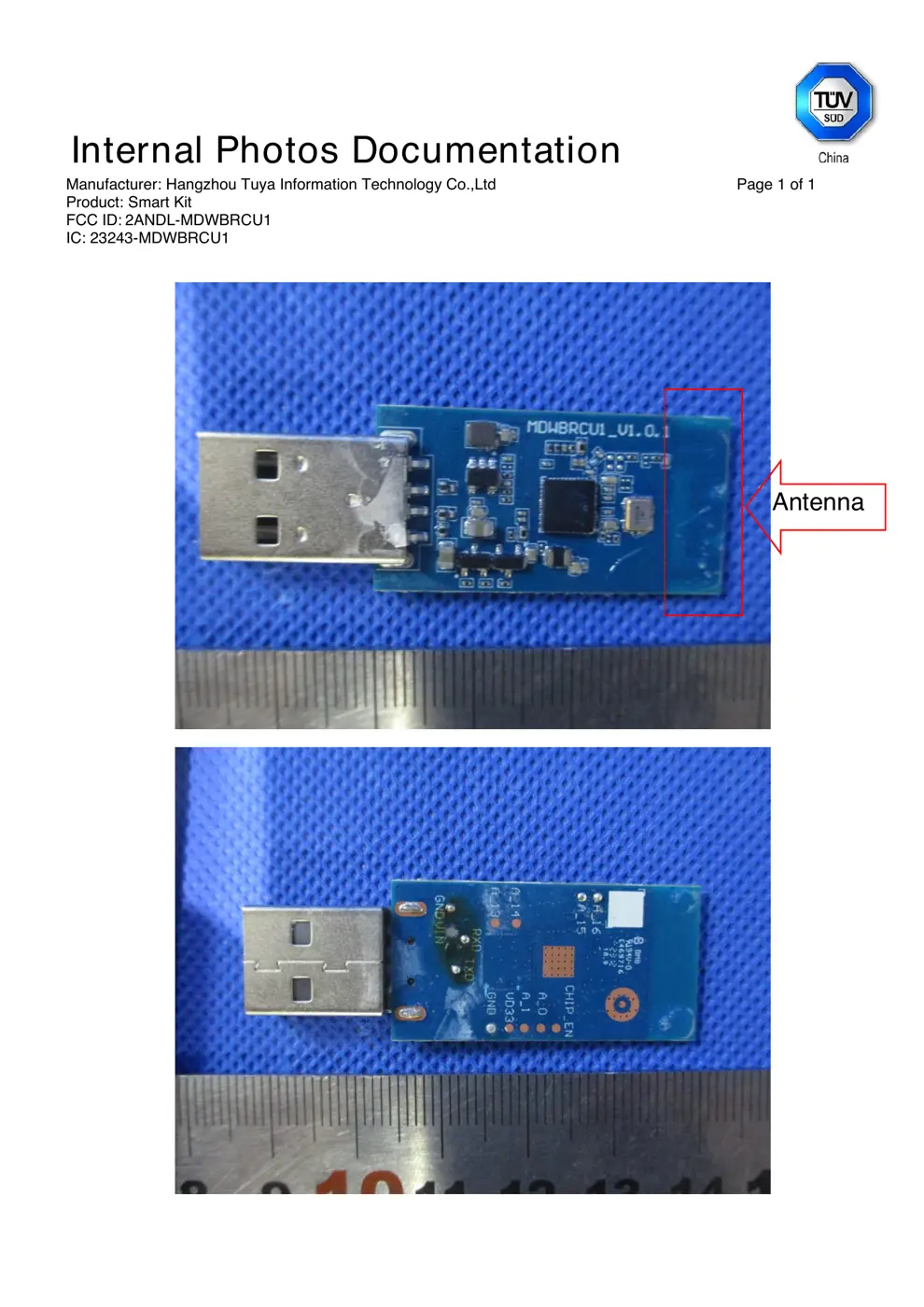

Internal Photos

Teardown photos showing the PCB and components:

MDWBRCU1 PCB

Verdict

The MDWBRCU1 is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

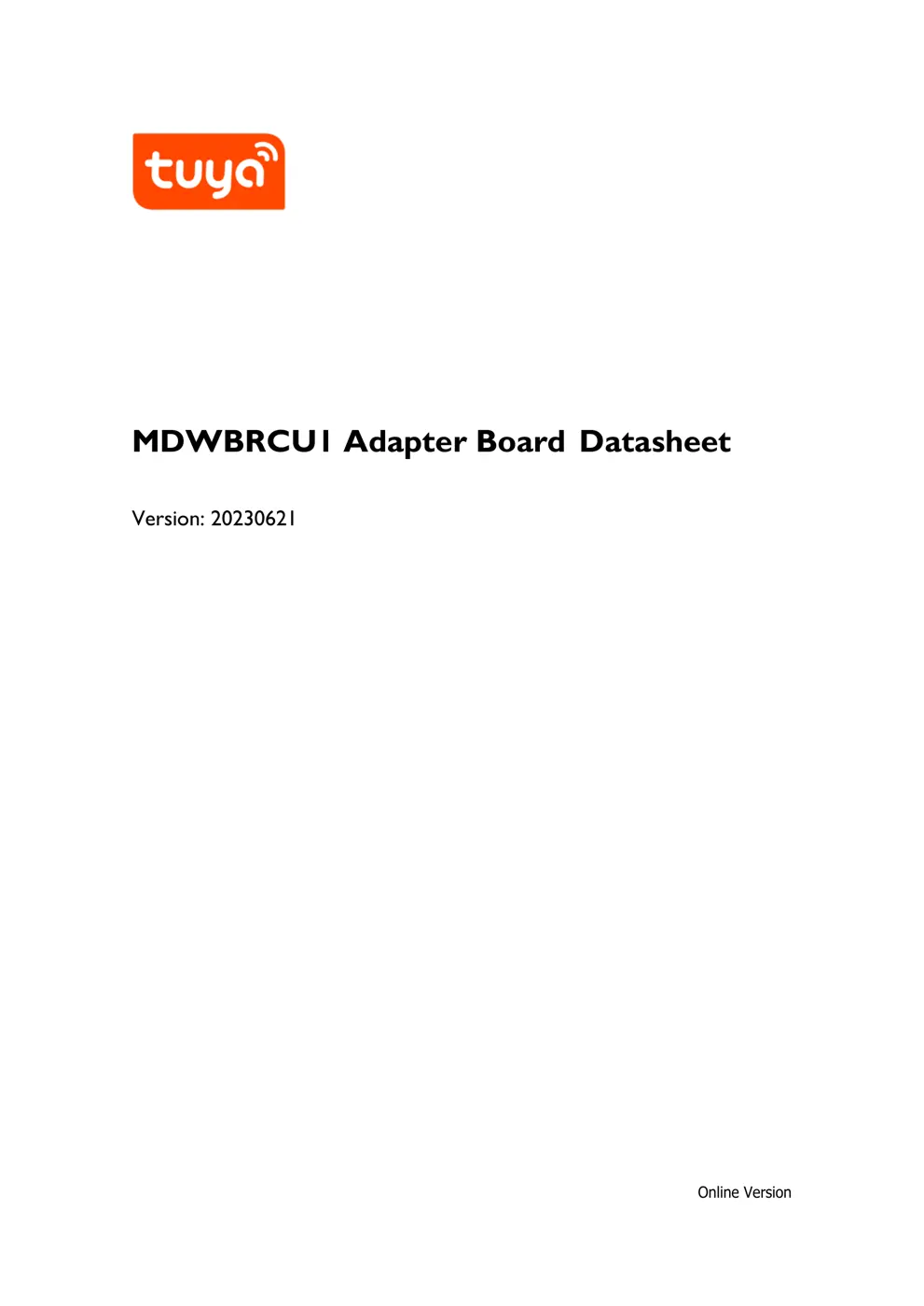

MDWBRCU1 Adapter Board Datasheet

Version: 20230621

Online Version

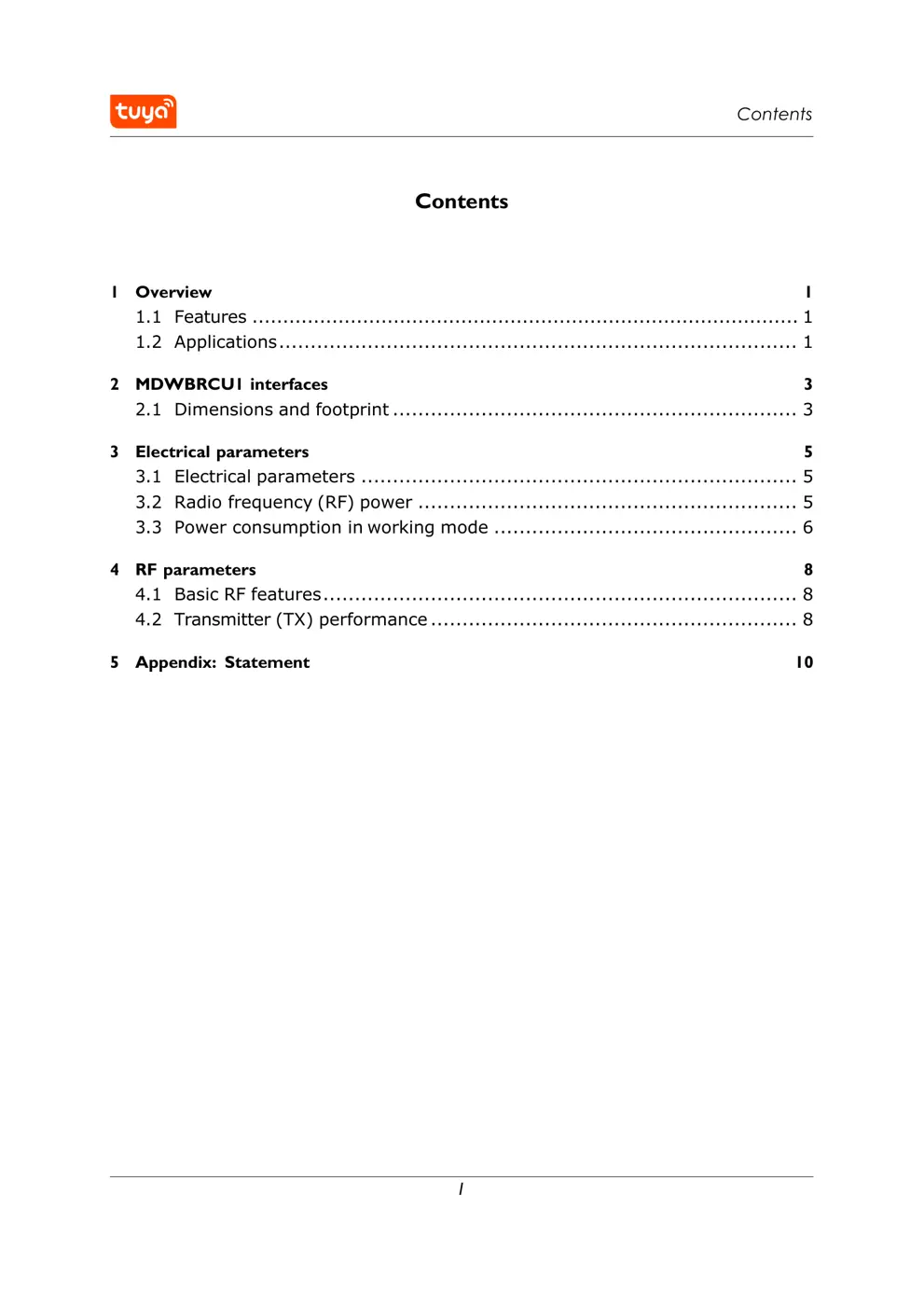

Contents
I

Contents
1 Overview 1
1.1 Features ......................................................................................... 1
1.2 Applications ................................ ................................ .................. 1
2 MDWBRCU1 interfaces 3
2.1 Dimensions and footprint ................................ ................................ 3
3 Electrical parameters 5
3.1 Electrical parameters ................................ ................................ ..... 5
3.2 Radio frequency (RF) power ................................ ............................ 5
3.3 Power consumption in working mode ................................ ................ 6
4 RF parameters 8
4.1 Basic RF features ................................ ................................ ........... 8
4.2 Transmitter (TX) performance ................................ .......................... 8
5 Appendix: Statement 10
1 Overview
1 / 12

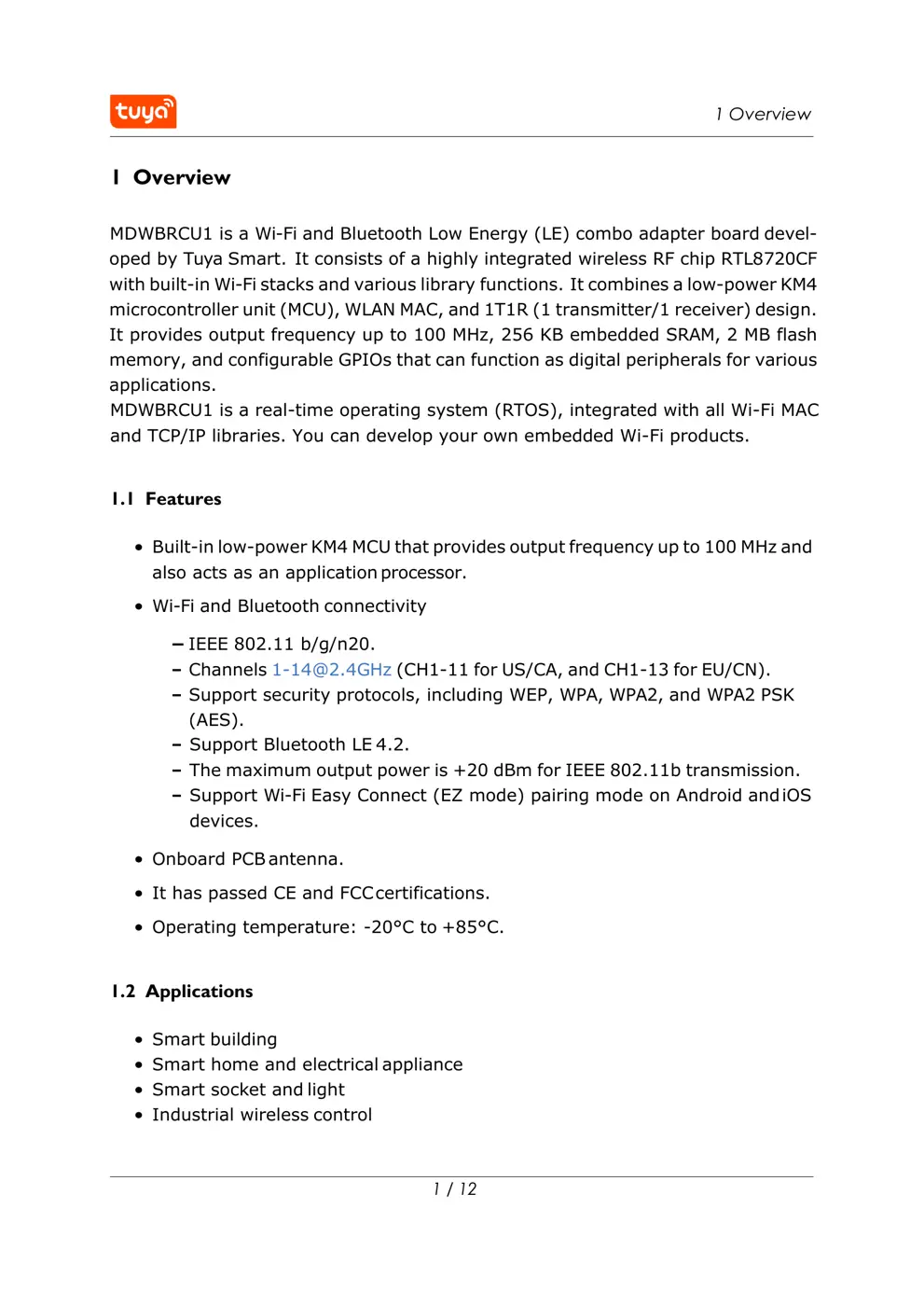

1 Overview

MDWBRCU1 is a Wi-Fi and Bluetooth Low Energy (LE) combo adapter board devel-
oped by Tuya Smart. It consists of a highly integrated wireless RF chip RTL8720CF
with built-in Wi-Fi stacks and various library functions. It combines a low-power KM4
microcontroller unit (MCU), WLAN MAC, and 1T1R (1 transmitter/1 receiver) design.
It provides output frequency up to 100 MHz, 256 KB embedded SRAM, 2 MB flash
memory, and configurable GPIOs that can function as digital peripherals for various
applications.
MDWBRCU1 is a real-time operating system (RTOS), integrated with all Wi-Fi MAC
and TCP/IP libraries. You can develop your own embedded Wi-Fi products.

1.1 Features

• Built-in low-power KM4 MCU that provides output frequency up to 100 MHz and
also acts as an application processor.
• Wi-Fi and Bluetooth connectivity

– IEEE 802.11 b/g/n20.
– Channels [email protected] (CH1-11 for US/CA, and CH1-13 for EU/CN).
– Support security protocols, including WEP, WPA, WPA2, and WPA2 PSK
(AES).
– Support Bluetooth LE 4.2.
– The maximum output power is +20 dBm for IEEE 802.11b transmission.
– Support Wi-Fi Easy Connect (EZ mode) pairing mode on Android and iOS
devices.
• Onboard PCB antenna.
• It has passed CE and FCC certifications.
• Operating temperature: -20° C to +85° C.

1.2 Applications

• Smart building
• Smart home and electrical appliance
• Smart socket and light
• Industrial wireless control
1 Overview
2 / 12

• Baby monitor
• IP camera
• Smart bus

 It needs to be connected to a specific circuit to use, and it will not work when
connected to a computer.
3 / 12

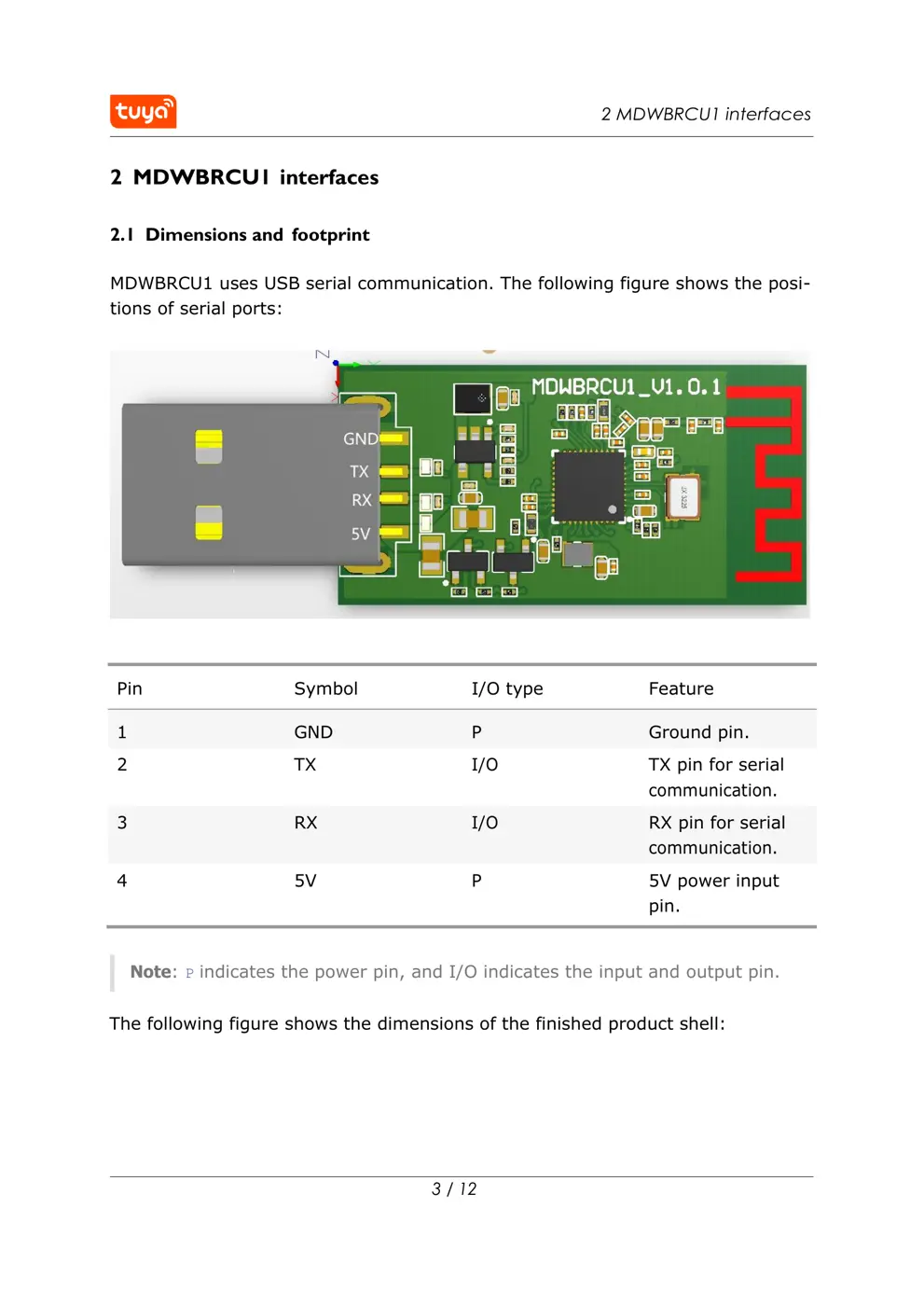

2 MDWBRCU1 interfaces

2 MDWBRCU1 interfaces

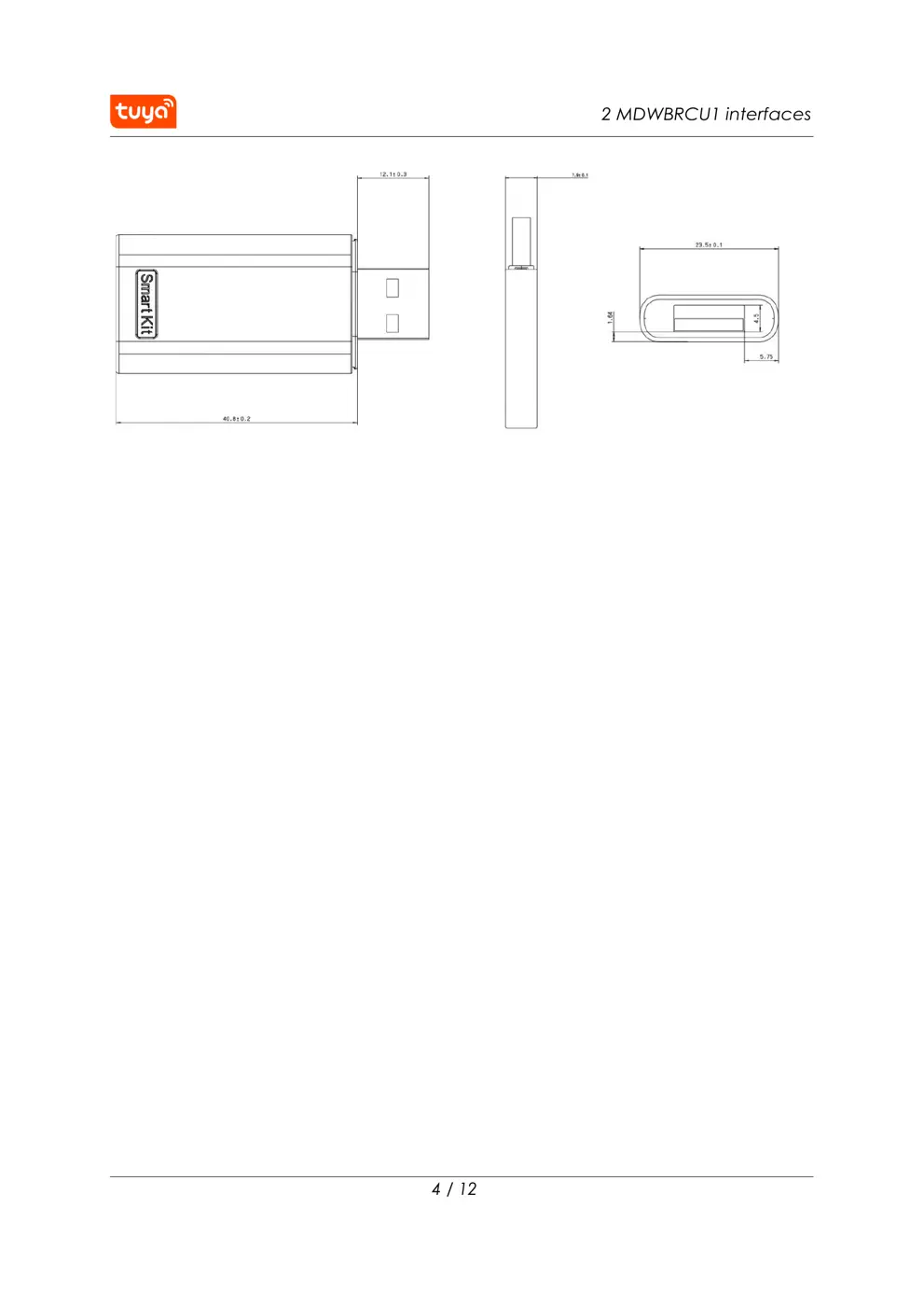

2.1 Dimensions and footprint

MDWBRCU1 uses USB serial communication. The following figure shows the posi-
tions of serial ports:

Pin Symbol I/O type Feature

1 GND P Ground pin.
2 TX I/O TX pin for serial
communication.
3 RX I/O RX pin for serial
communication.
4 5V P 5V power input
pin.
