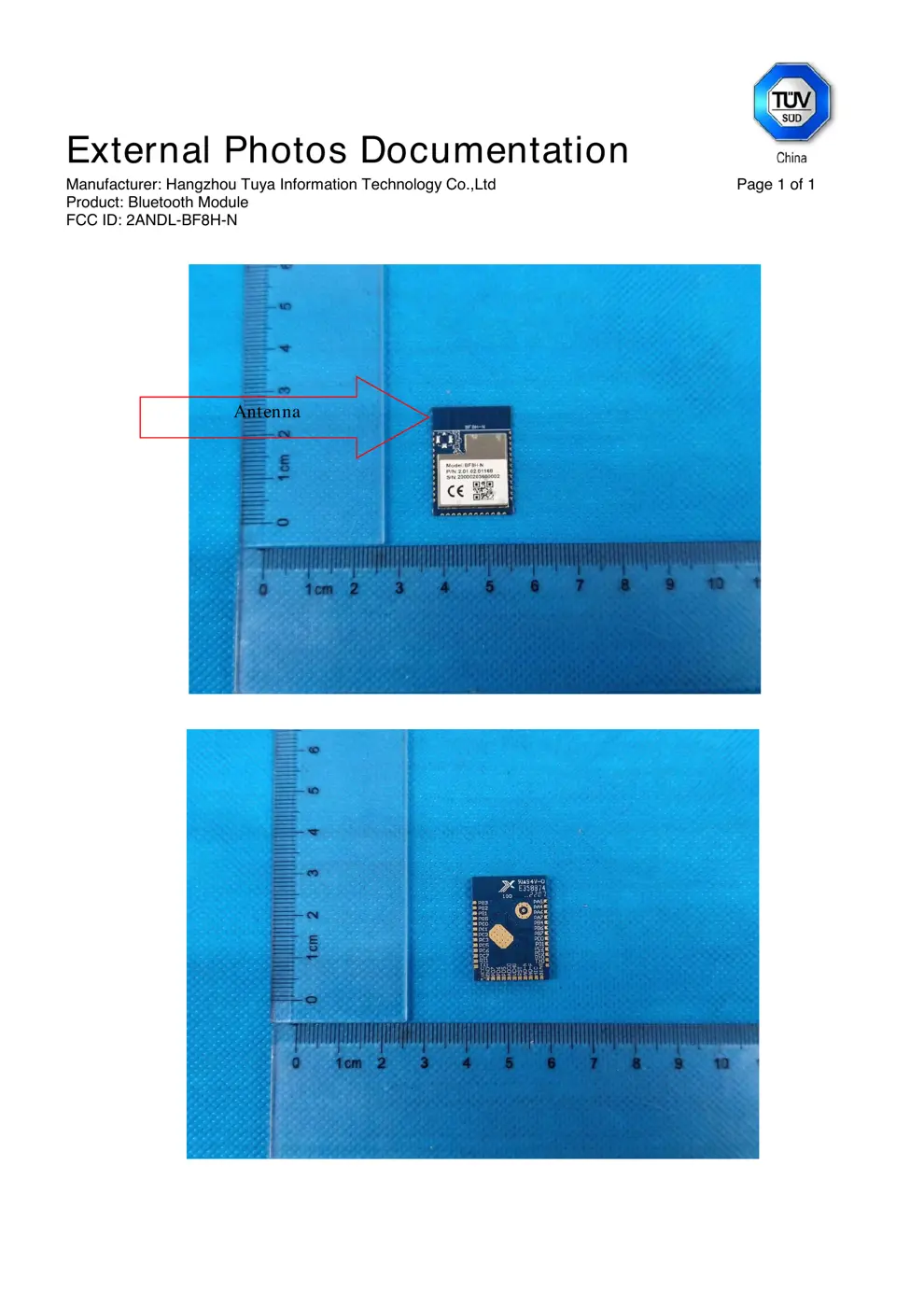

N Reset & Teardown (FCC ID 2ANDL-8BF8H-N)

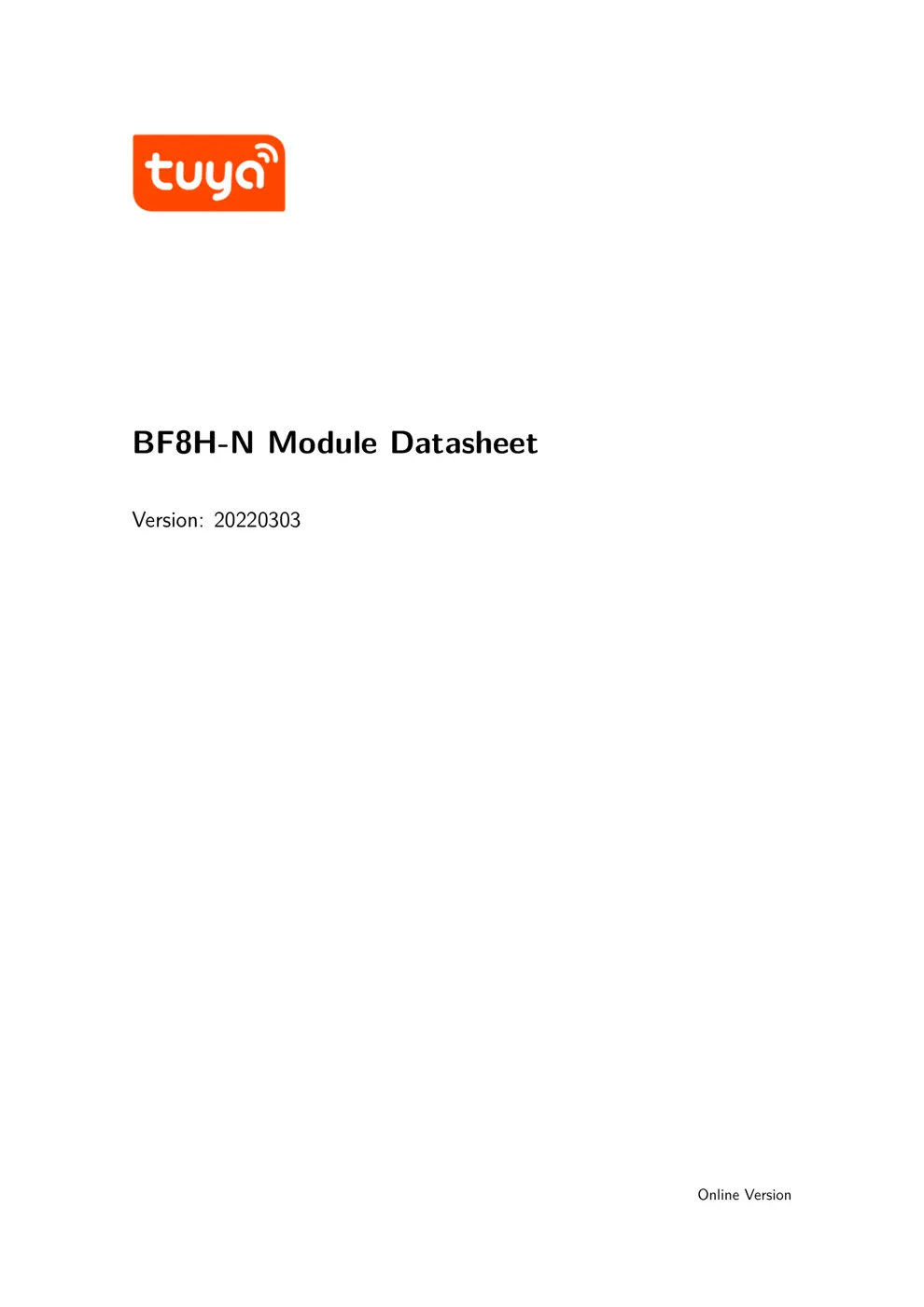

BF8H-N Module Datasheet
Version: 20220303
Online Version

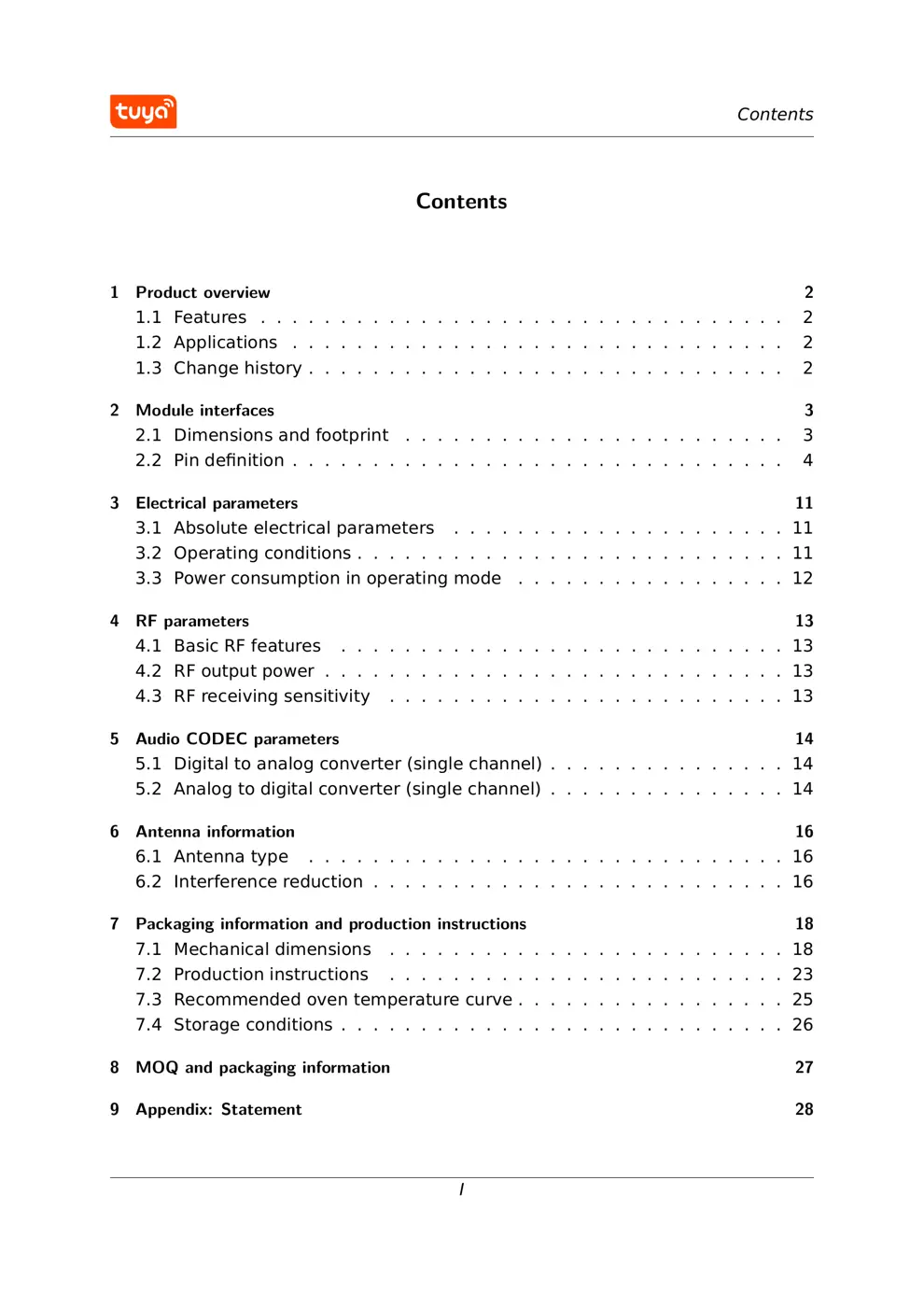

Contents
Contents
1 Product overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Change history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3

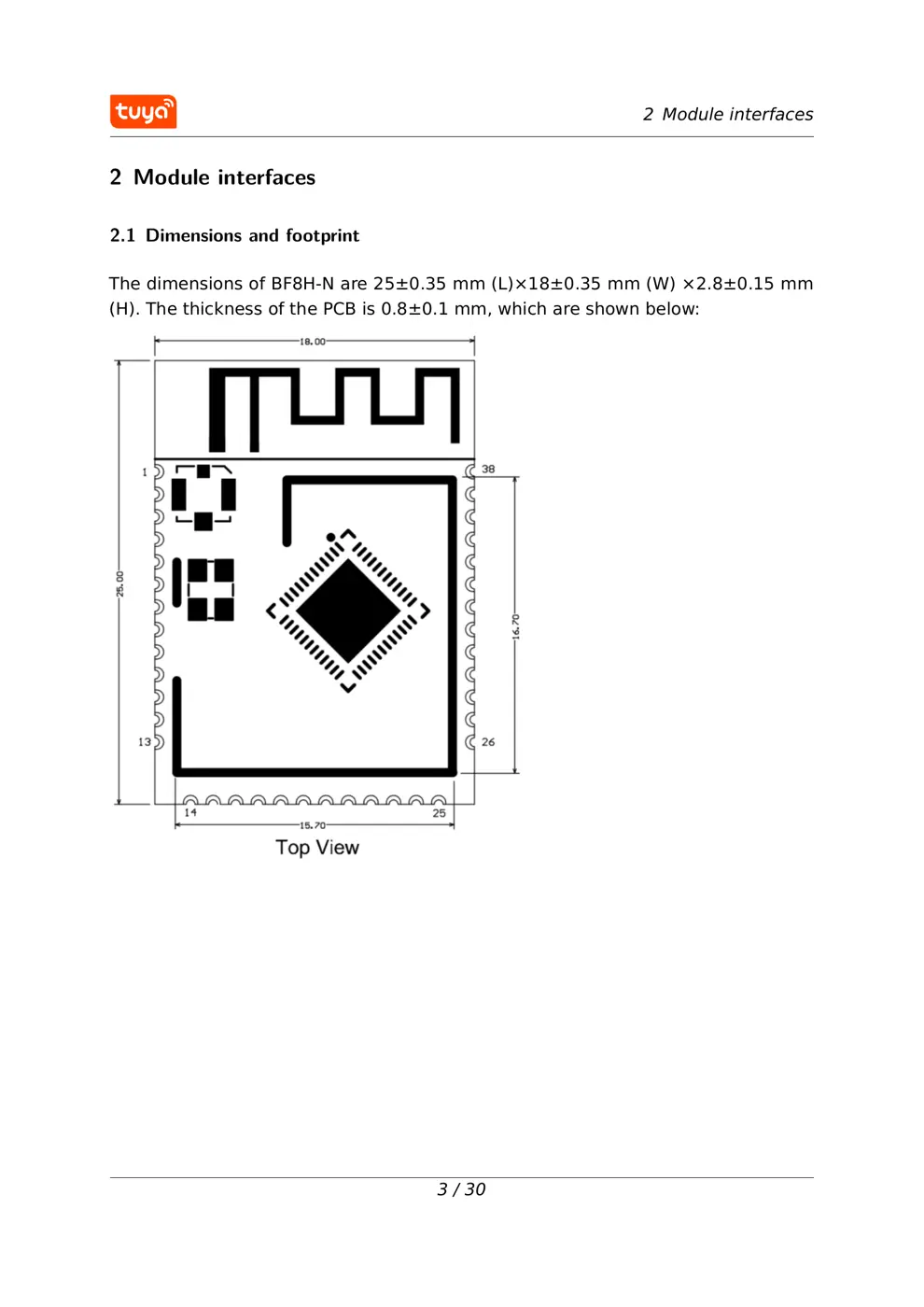

2.1 Dimensions and footprint . . . . . . . . . . . . . . . . . . . . . . . . 3

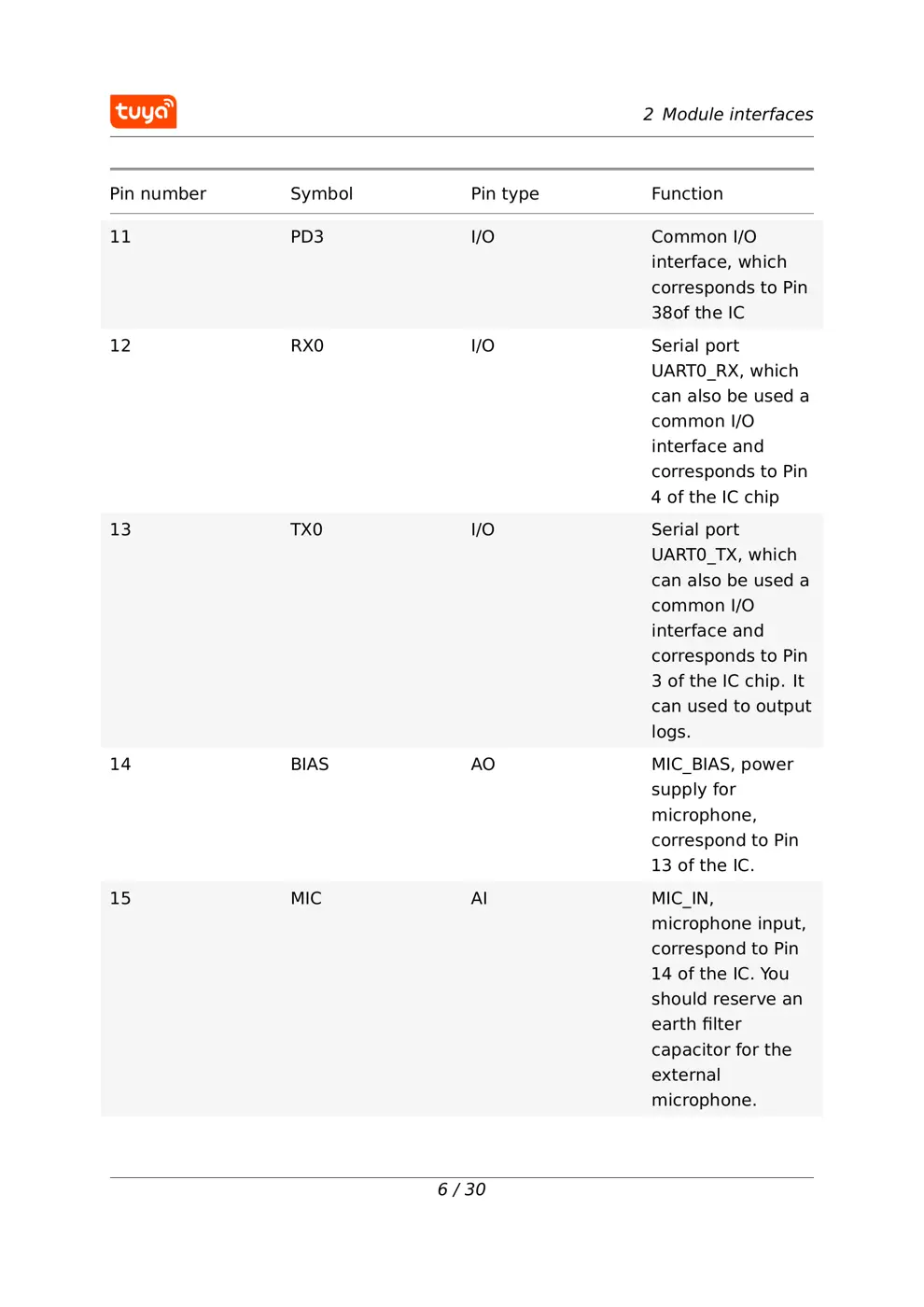

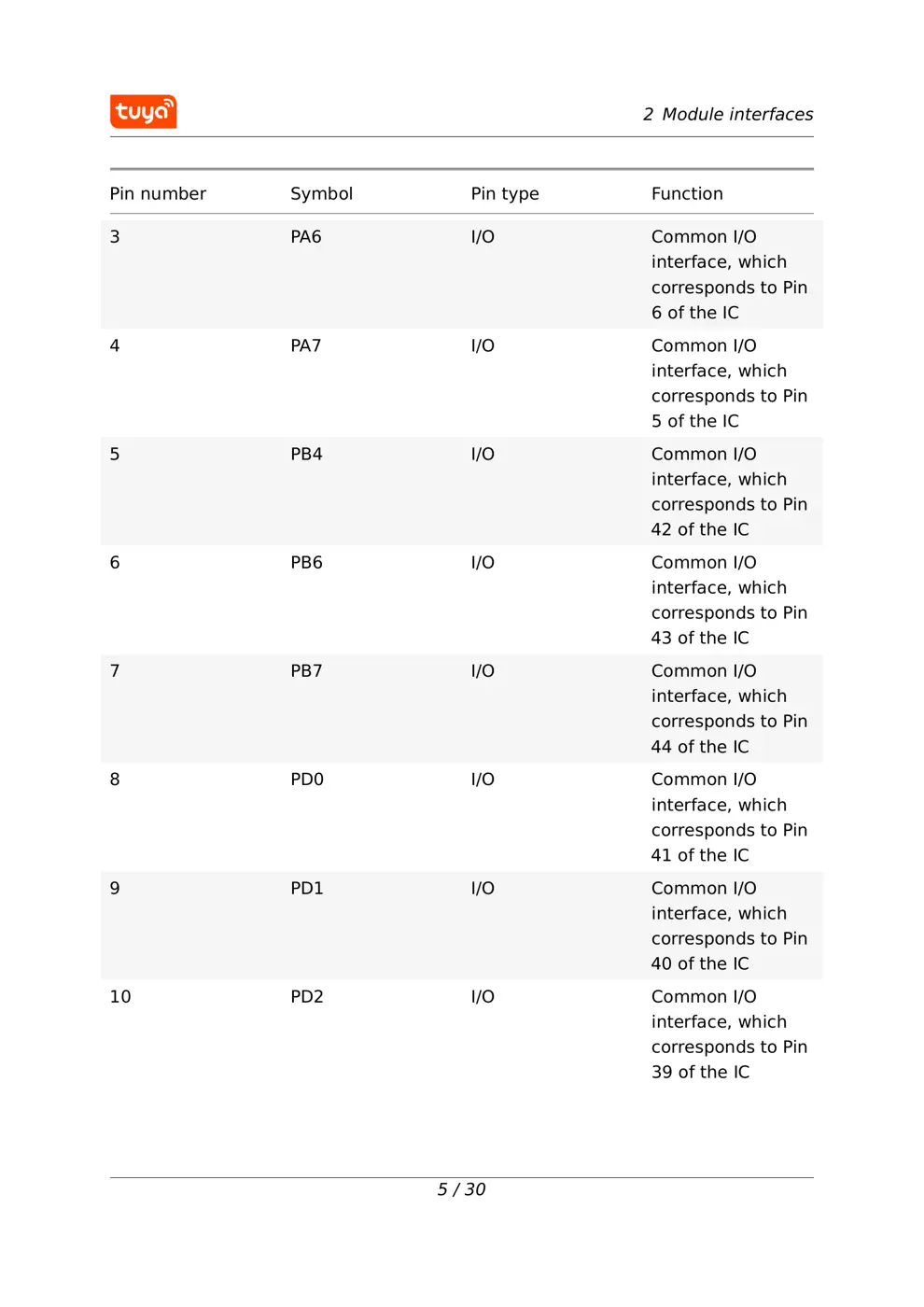

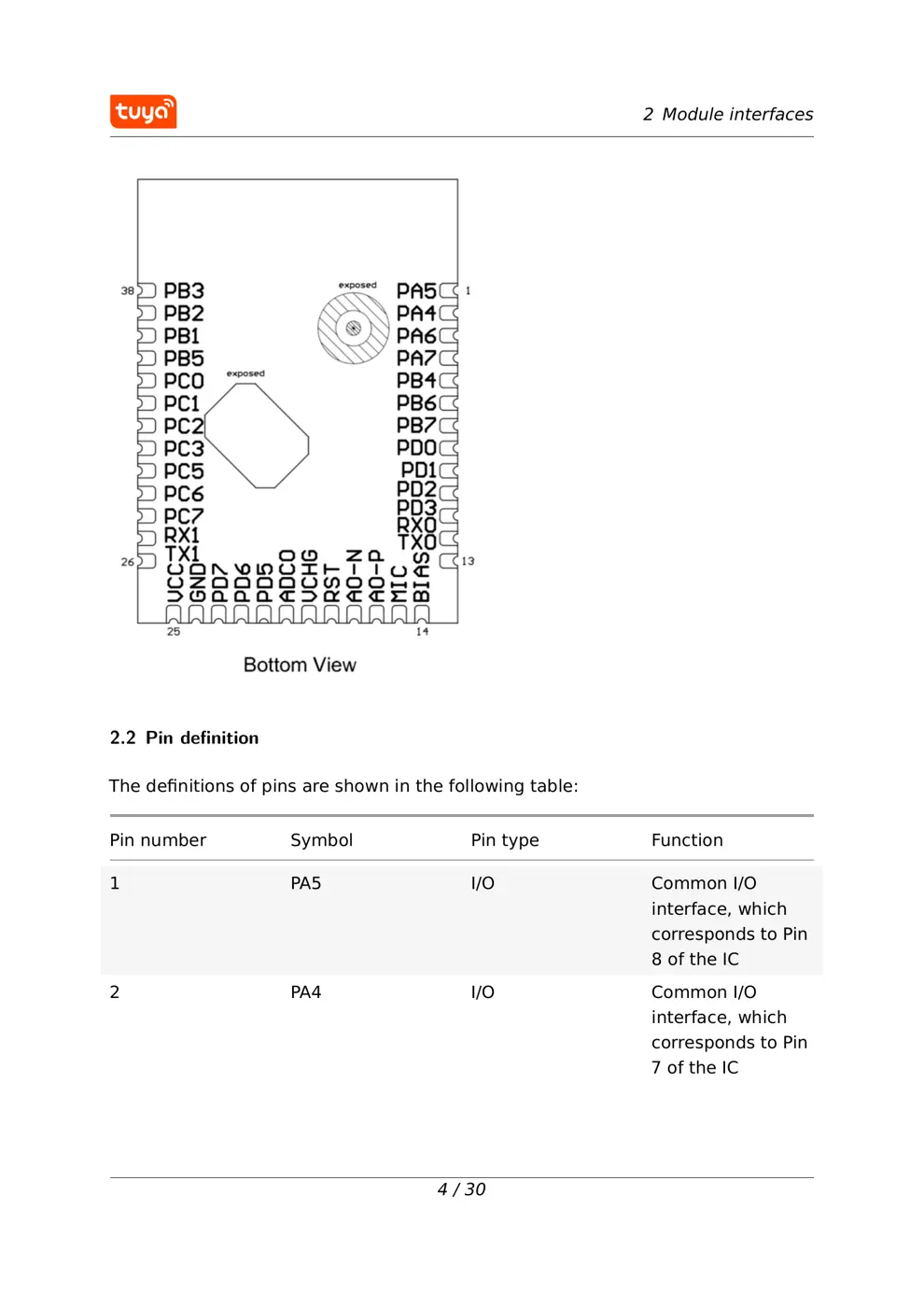

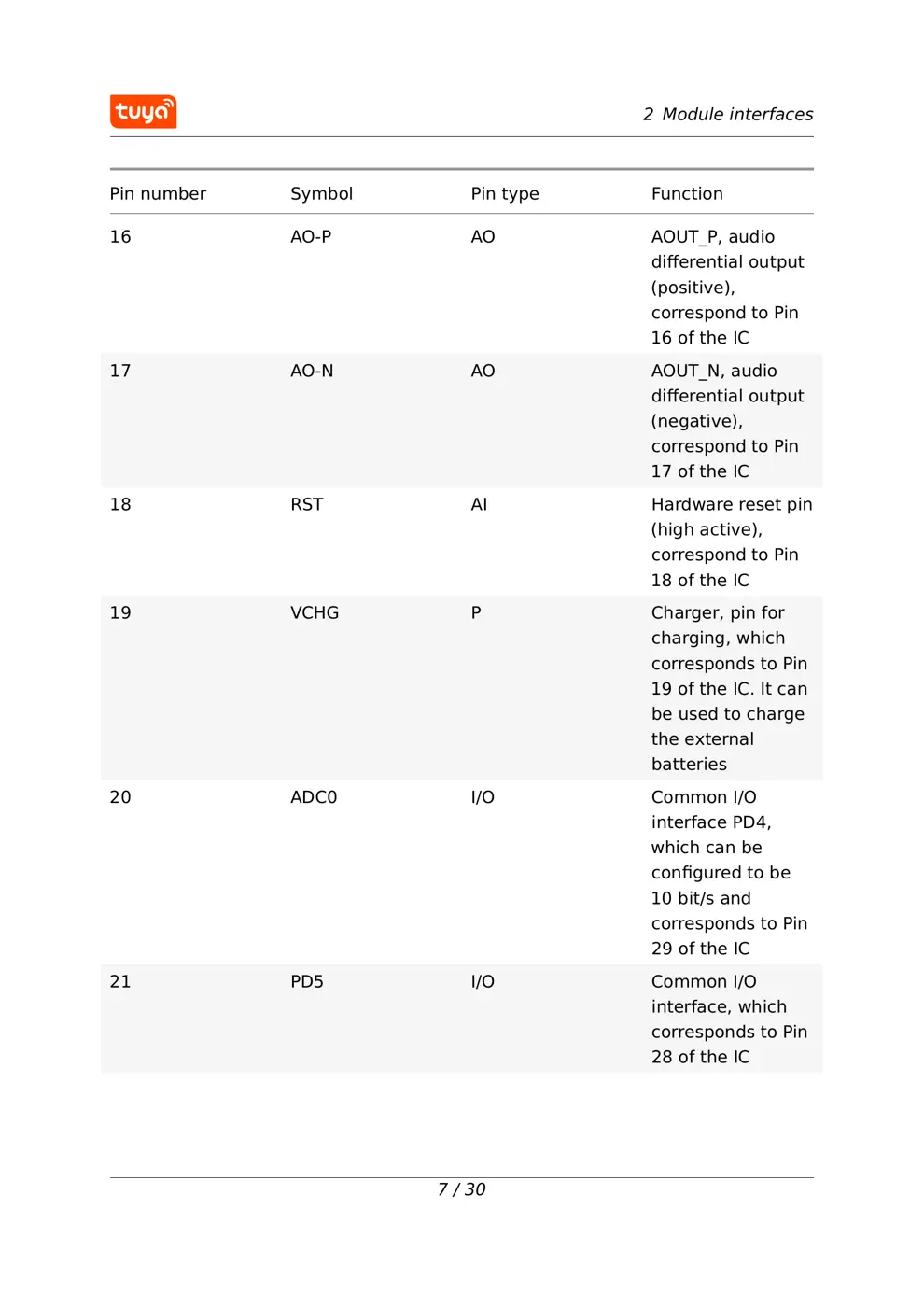

2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Electrical parameters 11
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 11
3.2 Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Power consumption in operating mode . . . . . . . . . . . . . . . . . 12
4 RF parameters 13
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 RF output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3 RF receiving sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Audio CODEC parameters 14
5.1 Digital to analog converter (single channel) . . . . . . . . . . . . . . . 14
5.2 Analog to digital converter (single channel) . . . . . . . . . . . . . . . 14
6 Antenna information 16
6.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2 Interference reduction . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Packaging information and production instructions 18
7.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.2 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.3 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 25
7.4 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 MOQ and packaging information 27
9 Appendix: Statement 28
I
Contents

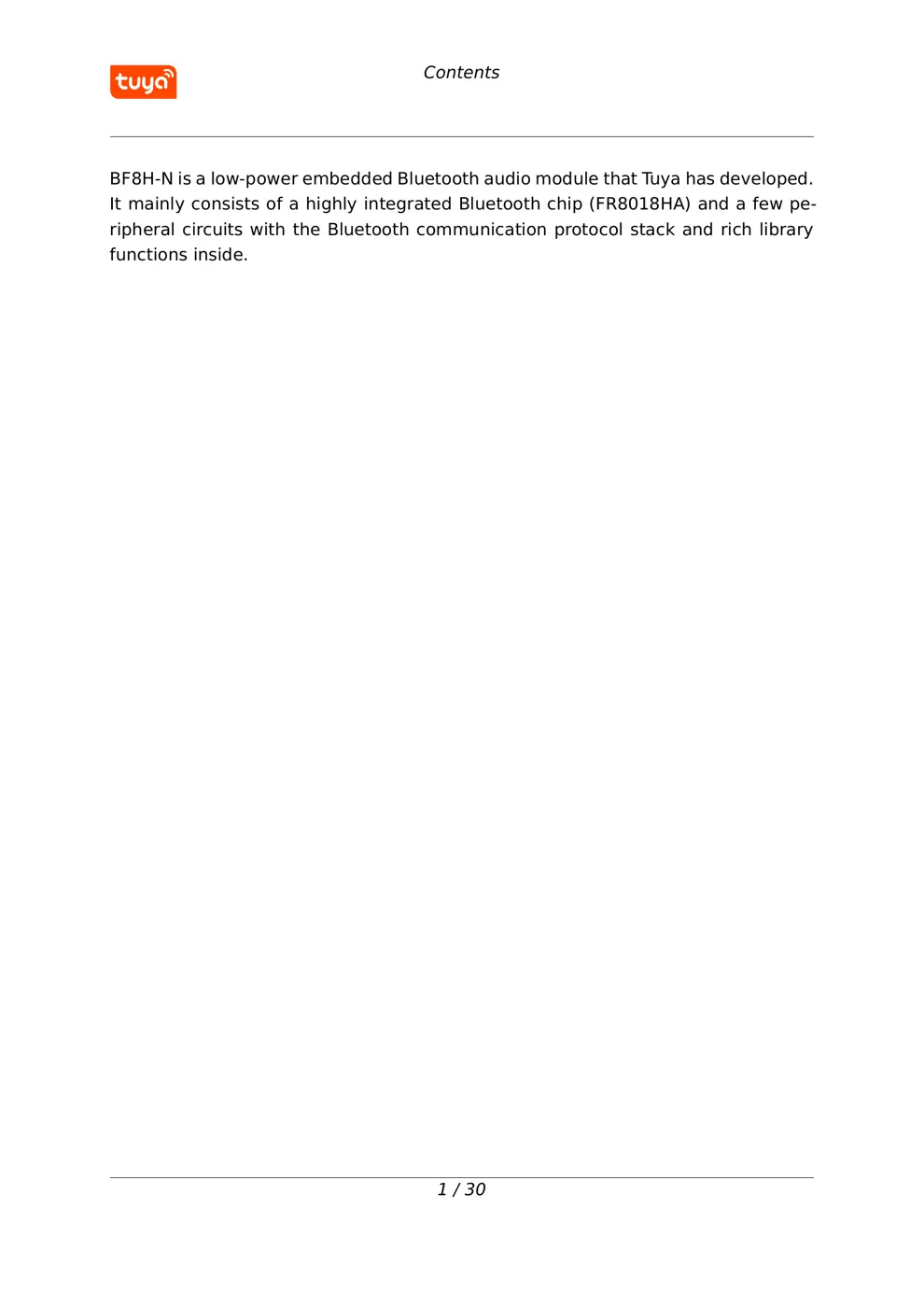

BF8H-N is a low-power embedded Bluetooth audio module that T uya has developed.
It mainly consists of a highly integrated Bluetooth chip (FR8018HA) and a few pe-
ripheral circuits with the Bluetooth communication protocol stack and rich library
functions inside.
1 / 30
1 Product overview
1 Product overview
BF8H-N includes an ARM Cortex M3 32-bit processor, a Bluetooth LE 5.0/2.4G radio,
a 512-KB flash memory, a 48-KB SRAM, 30 reusable I/O ports, charging management
for a lithium battery, and a 16-bit single-channel audio CODEC.
1.1 Features
• 32-bit processor with the ARM Cortex M3 inside
• Operating voltage: 1.8 to 4.3V . If the voltage is between 1.8 and 2.4V, the
module can start, but the optimal RF performance cannot be ensured. If the
voltage is between 2.5 and 3.6V, the overall performance will be normal.
• Peripherals: 6 PWMs, 4 ADCs, 30 GPIOs, 2 UART s, 1 SPI, 1 MIC, and 1 speaker
• Support Li-Ion/Li-Polymer battery, programmable charging current, current up
to 200mA for fast charging
• Bluetooth RF features:
– Bluetooth LE 5.0
– The RF data rate can be up to 2 Mbps.
– T ransmit power: +4 dBm
– Recei...
