P Reset & Teardown (FCC ID 2ACDZ-BL3329-P)
Factory reset and internal photos for Broadlink P. Broadlink smart plug.
January 15, 2026
•
1 min read
Before you buy the Broadlink P, check what's inside.
This device is a BroadLink BL3329-P, a Wi-Fi module designed for integration into smart home devices. It utilizes the Broadlink App for control and connectivity.
⚠️ NOTE: Installation of this module may involve mains voltage. Ensure power is disconnected before any wiring or installation work.
Quick Specs
- Manufacturer: Broadlink
- Model: P
- Protocol: WiFi
- Chipset: Broadlink WiFi
- Ecosystem: Broadlink
- App: Broadlink App
🔧 Geek Corner (Flashing Info)
- Chipset: BL3329-P
- Flashable: ❌ No
- Info: Proprietary Broadlink module, likely not designed for third-party firmware flashing.

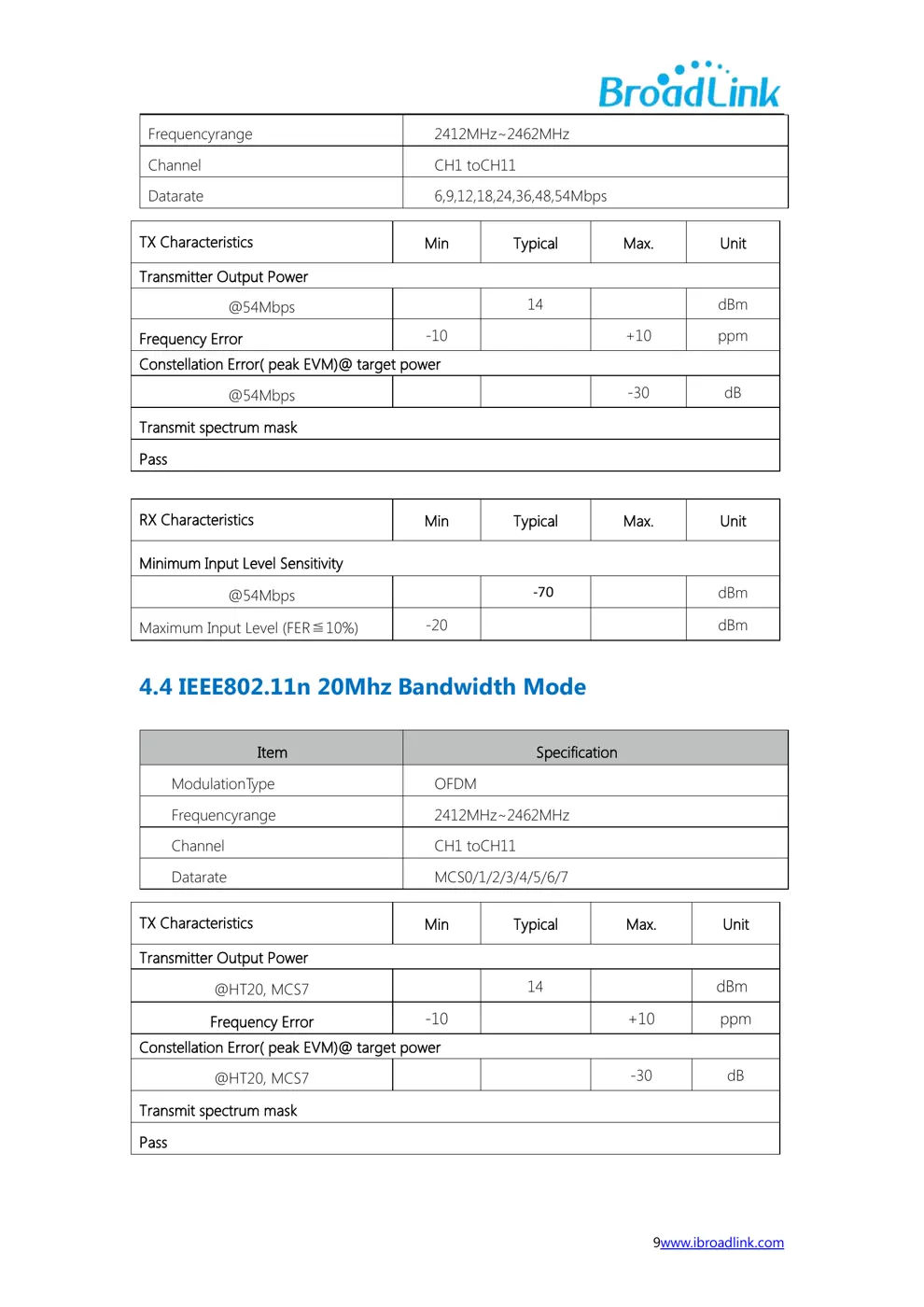

User Manual
Scanned pages from the official user manual:
External Photos
Photos of the device exterior:
Verdict
The P is a WiFi device from the Broadlink ecosystem.
📄 Click to view full text manual (SEO)

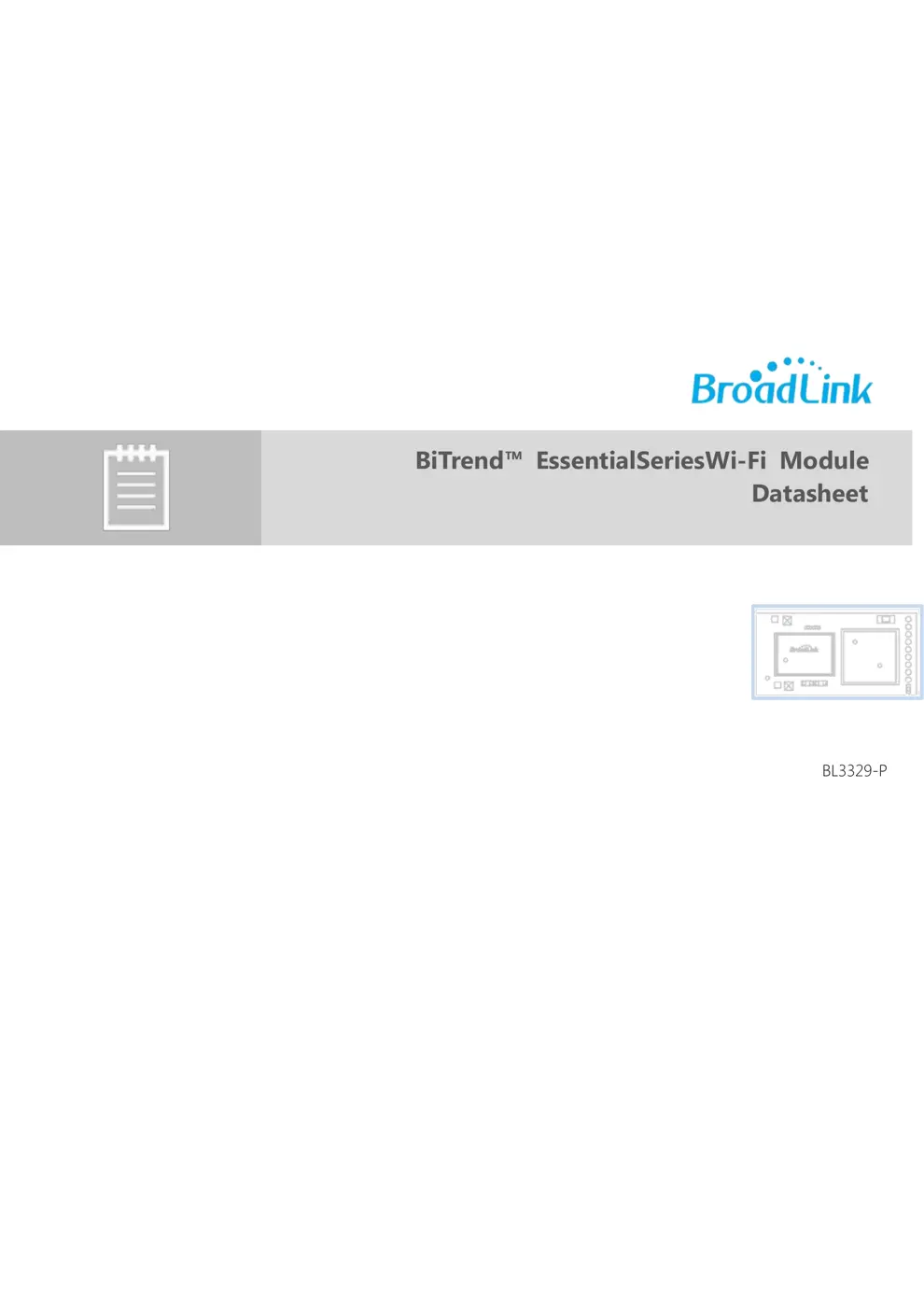

BiTrend™ EssentialSeriesWi-Fi Module
Datasheet
BL3329-P
1www.ibroadlink.com
Hangzhou Gubei Electronics Technology Co., Ltd.

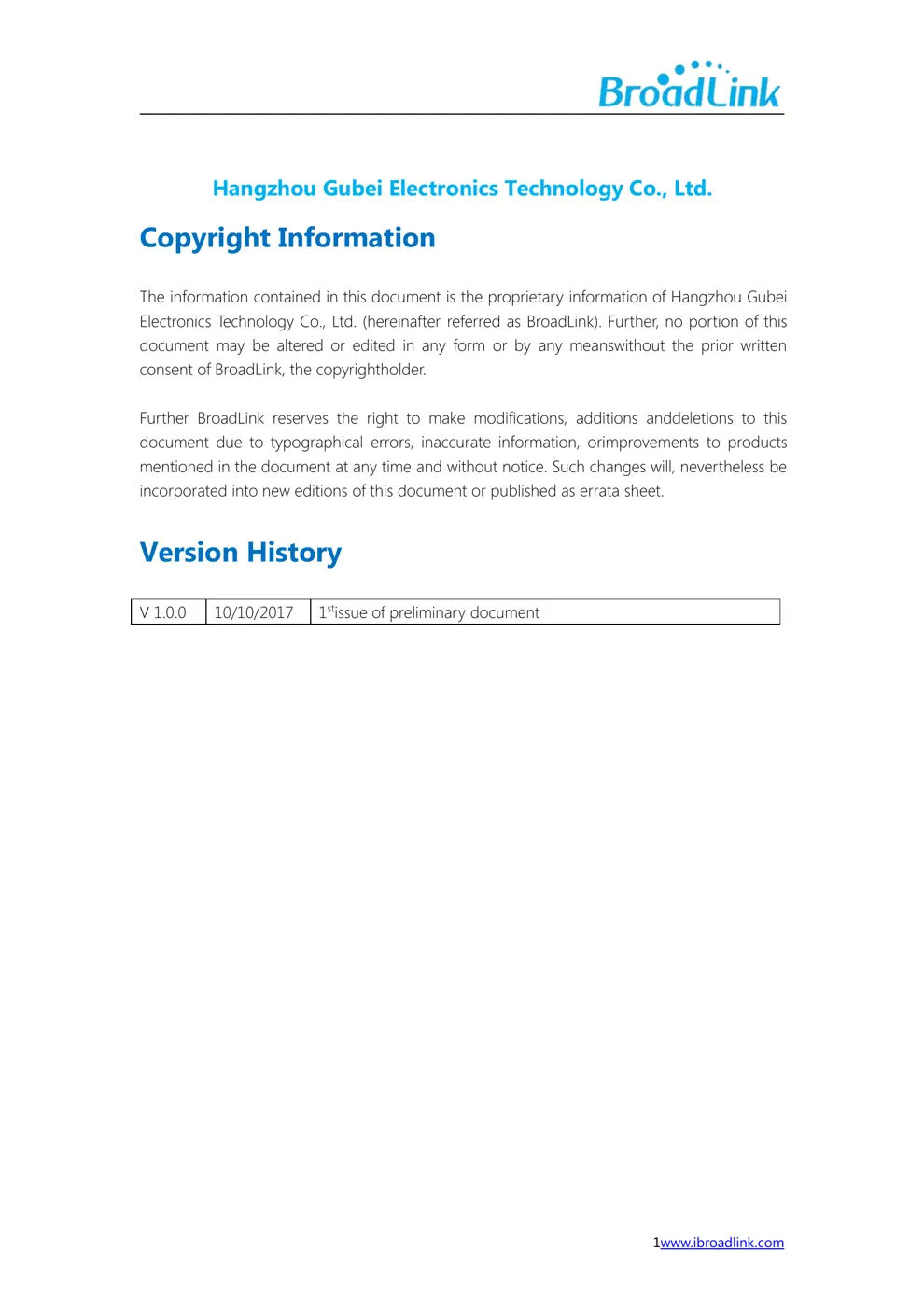

Copyright Information
The information contained in this document is the proprietary information of Hangzhou Gubei
Electronics T echnology Co., Ltd. (hereinafter referred as BroadLink). Further, no portion of this
document may be altered or edited in any form or by any meanswithout the prior written
consent of BroadLink, the copyrightholder .
Further BroadLink reserves the right to make modifications, additions anddeletions to this
document due to typographical errors, inaccurate information, orimprovements to products
mentioned in the document at any time and without notice. Such changes will, nevertheless be
incorporated into new editions of this document or published as errata sheet.
Version History
V 1.0.0 10/10/2017 1stissue of preliminary document
2www.ibroadlink.com
Table of Contents

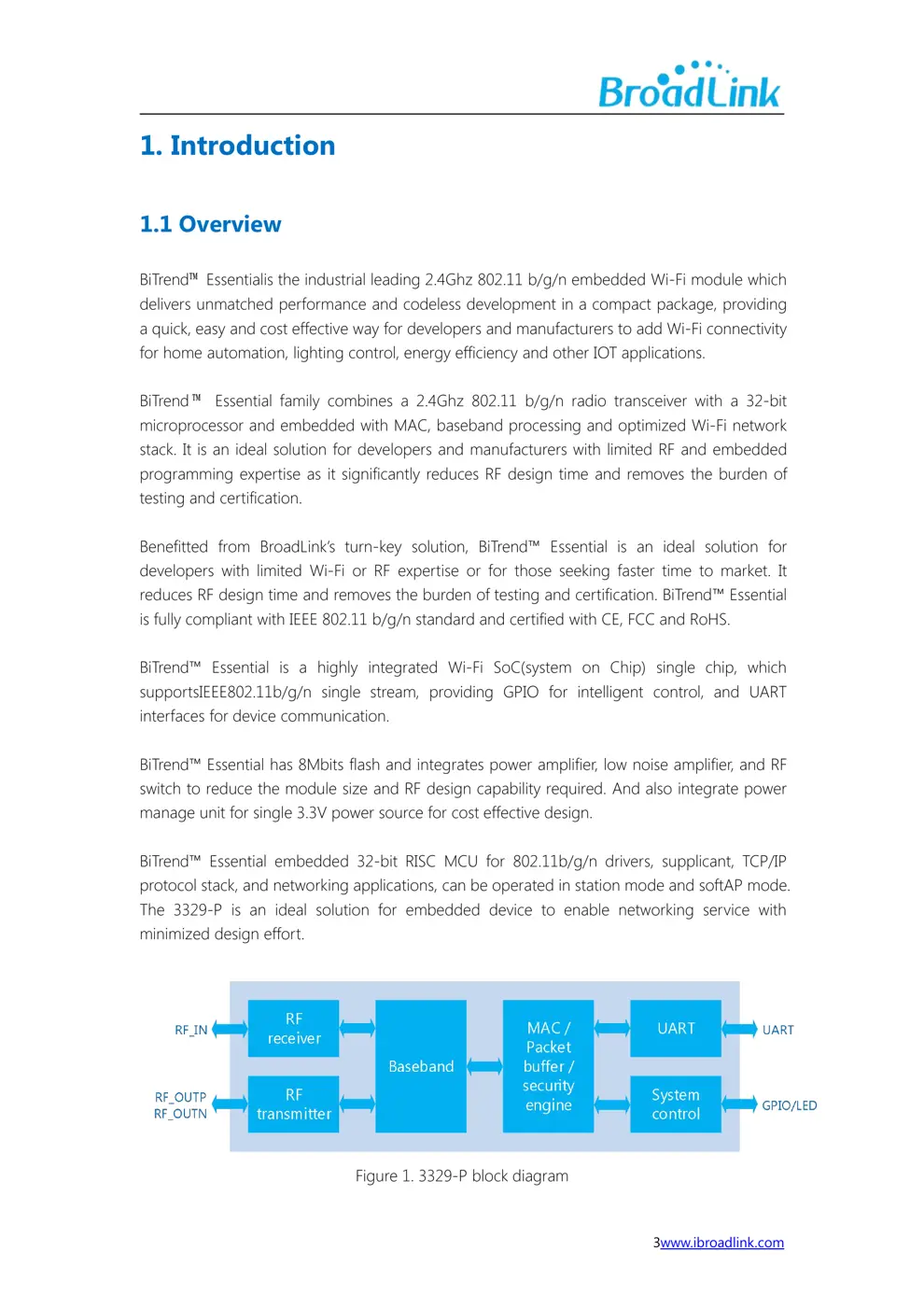

1. Introduction...................................................................................................................................3
1.1 Overview ..............................................................................................................................3

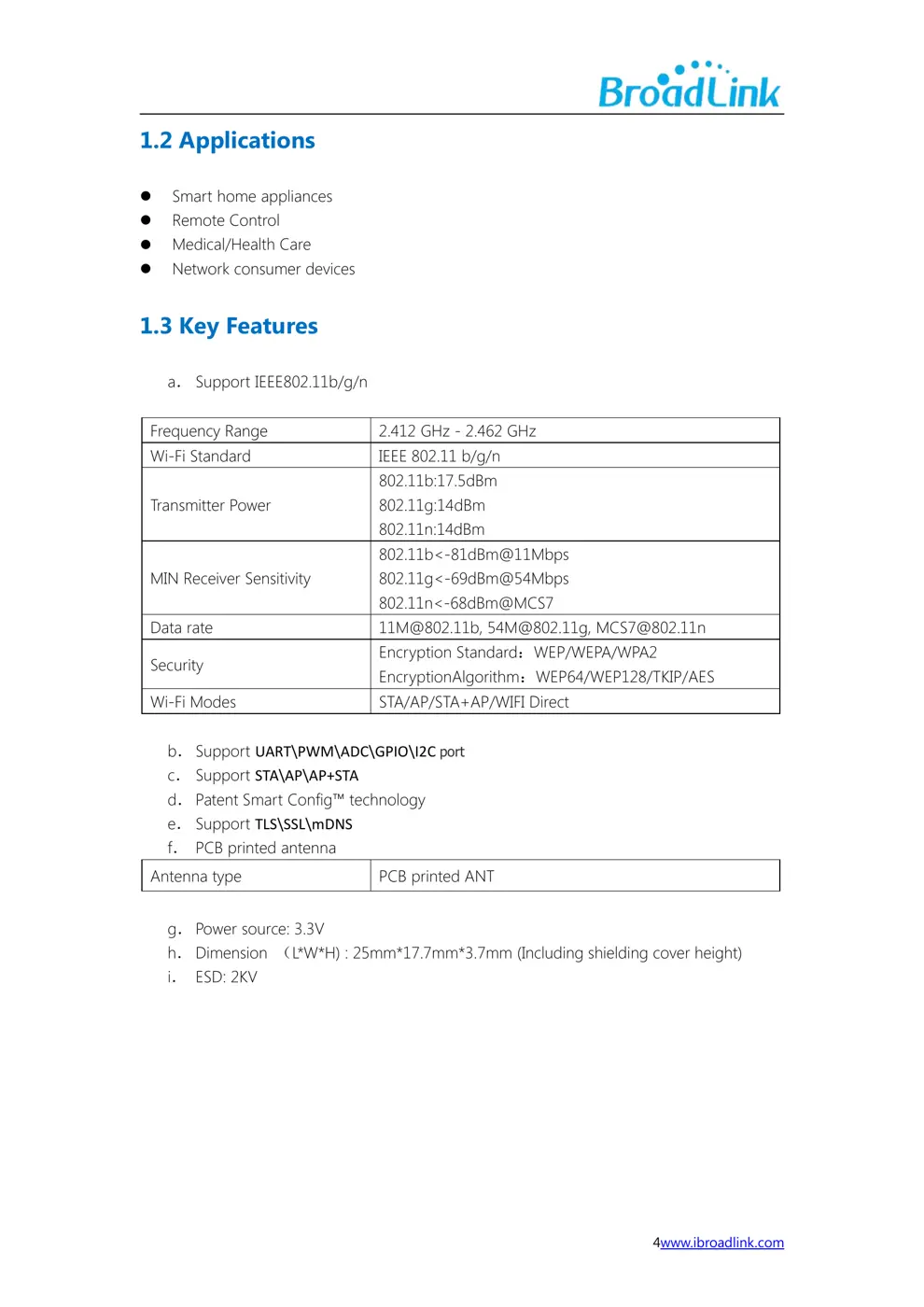

1.2 Applications.........................................................................................................................4
1.3 Key Features ........................................................................................................................4
2. Product Overview ......................................................................................................................... 5

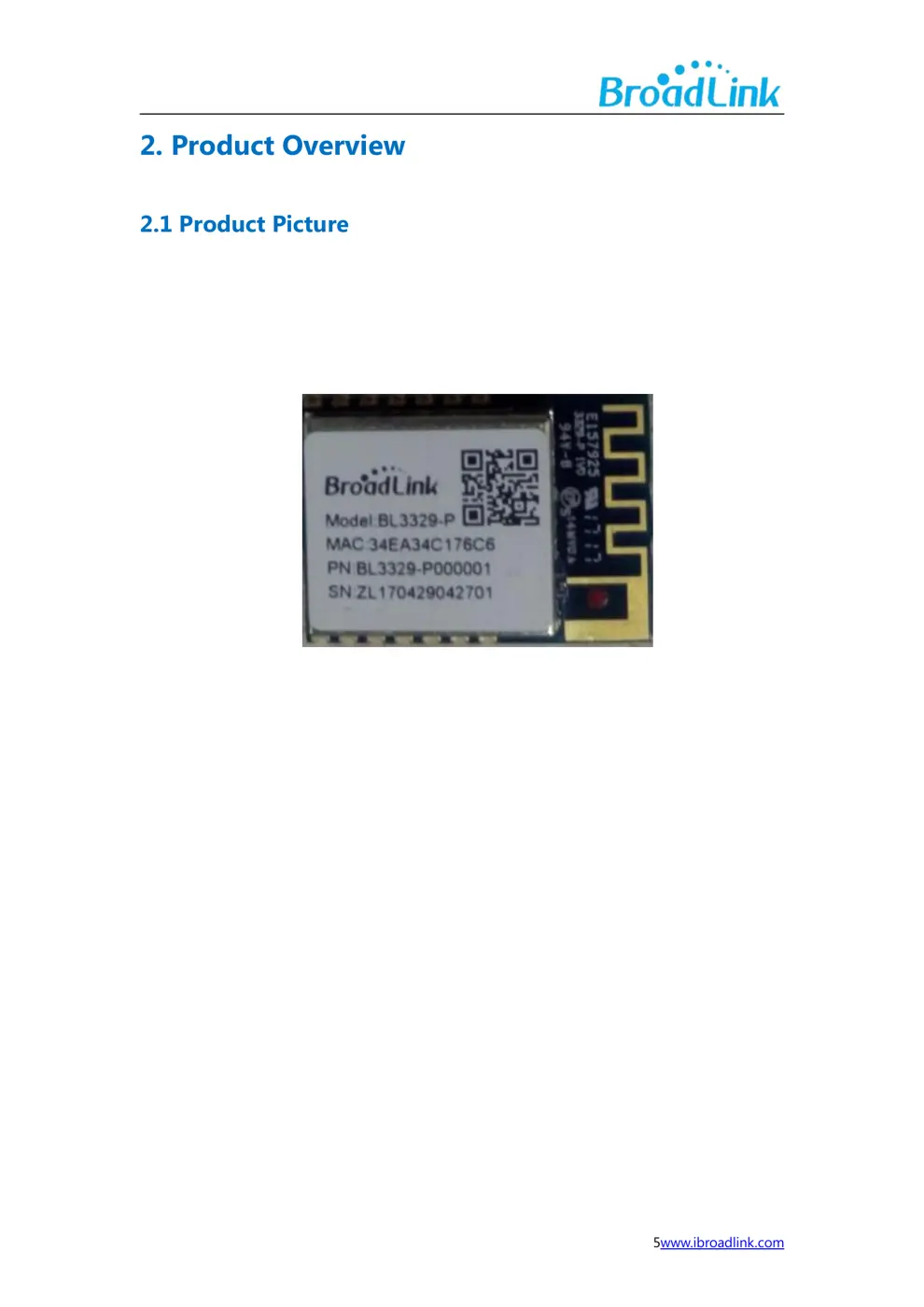

2.1 Product Picture ....................................................................................................................5

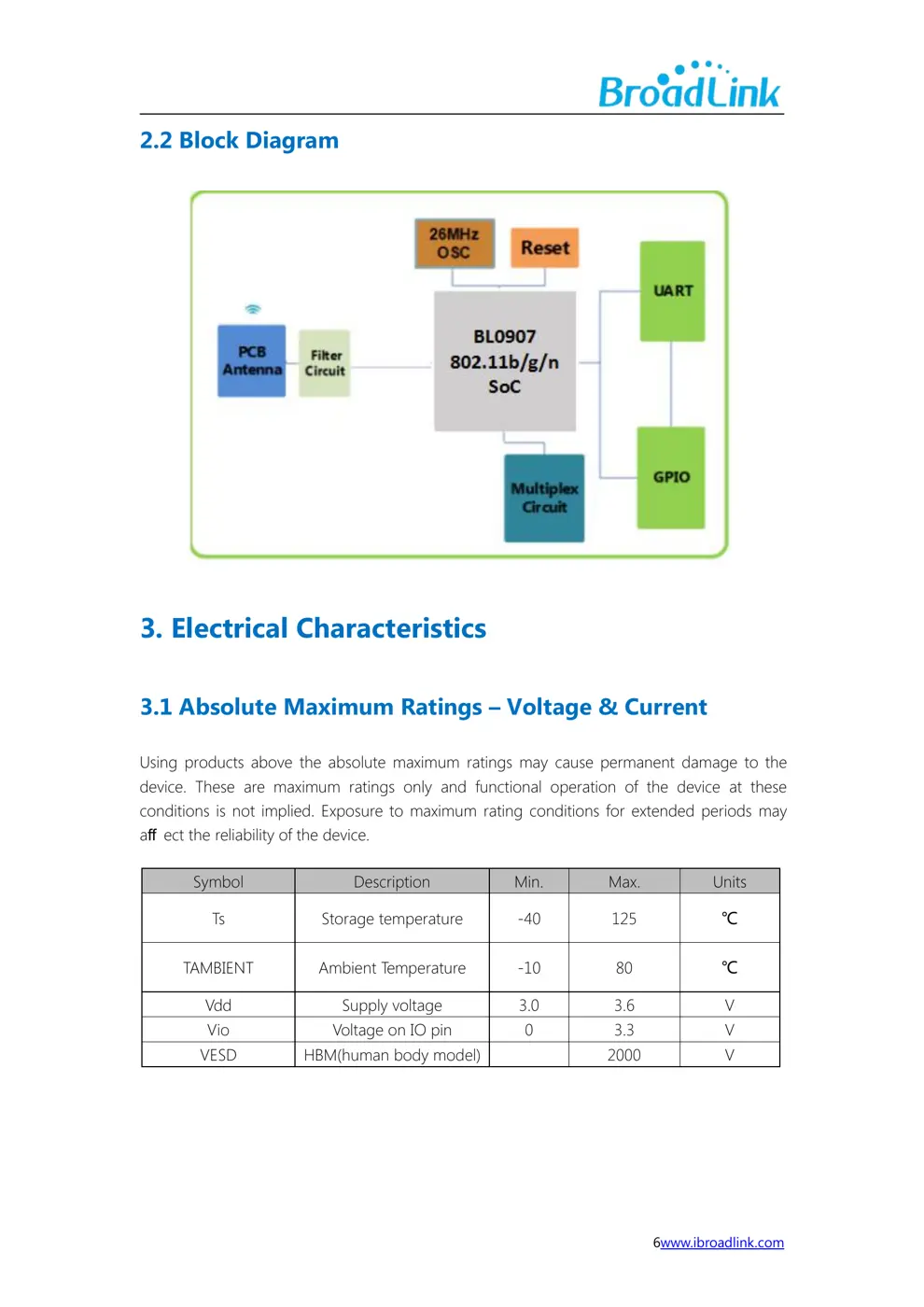

2.2 Block Diagram .....................................................................................................................6
3. Electrical Characteristics ...............................................................................................................6
3.1 Absolute Maximum Ratings – Voltage & Current ......................................................... 6

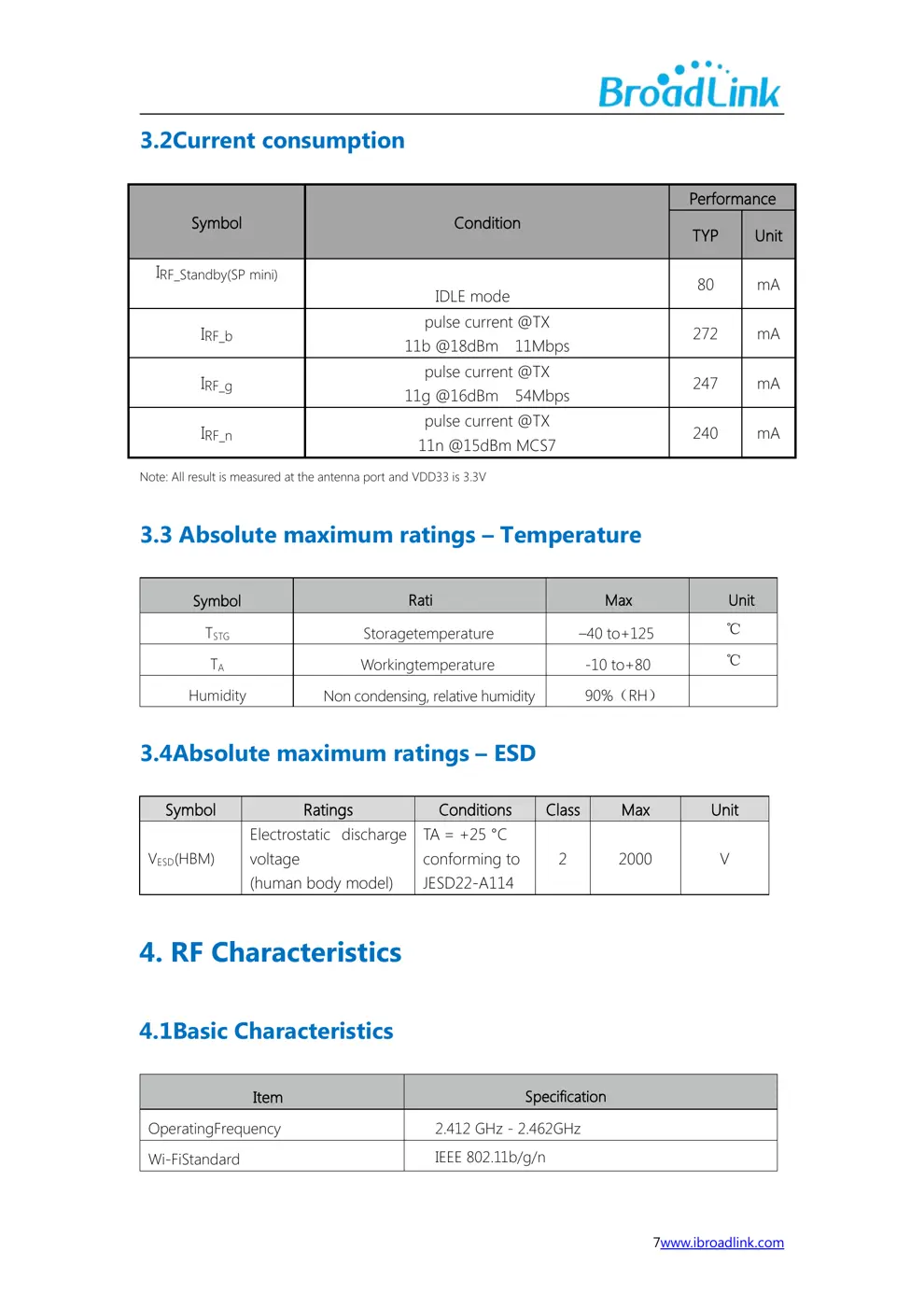

3.2Current consumption ..........................................................................................................7
3.3 Absolute maximum ratings – Temperature .................................................................... 7
3.4Absolute maximum ratings – ESD .....................................................................................7
4. RF Characteristics ..........................................................................................................................7
4.1Basic Characteristics ............................................................................................................7

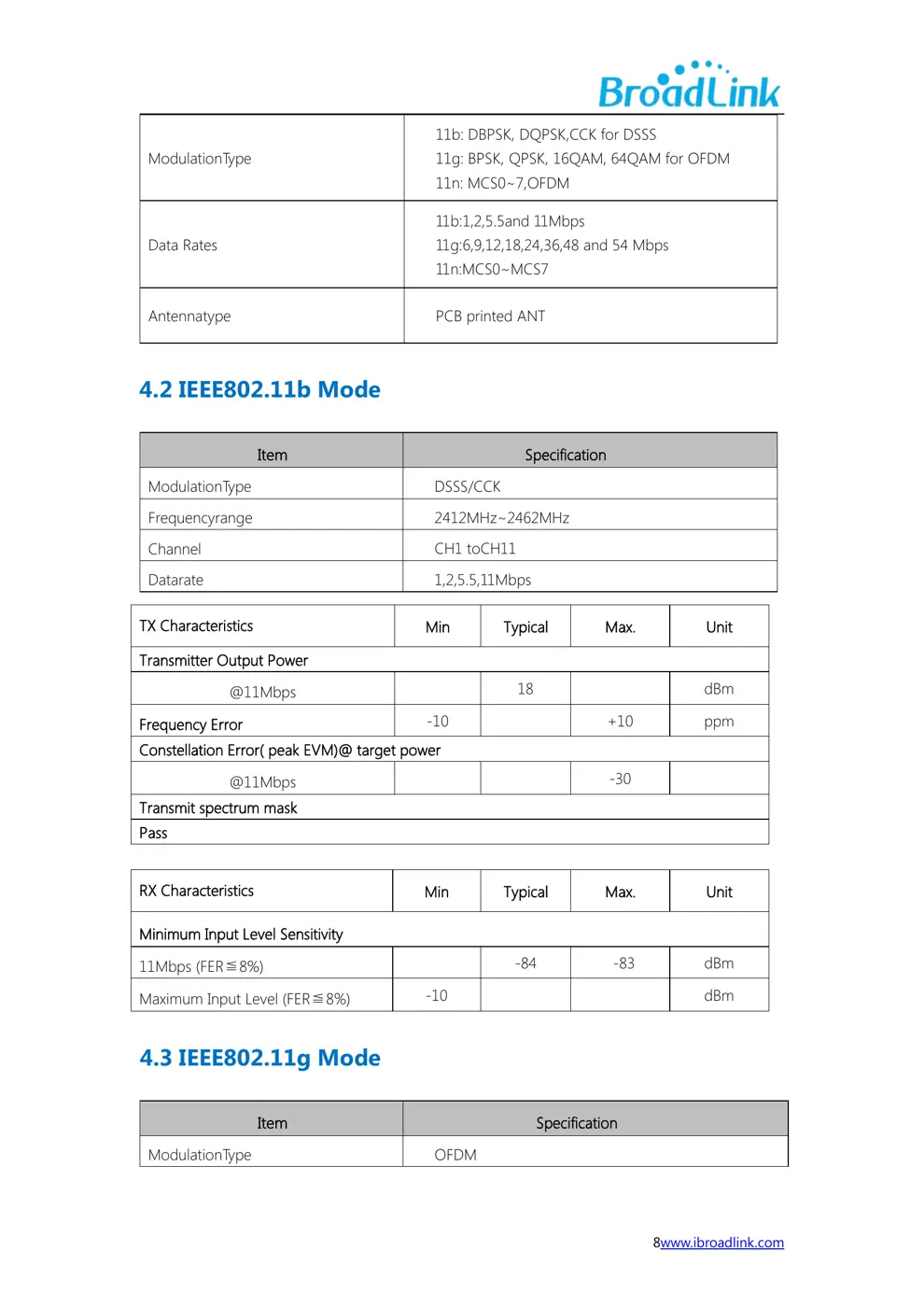

4.2 IEEE802.11b Mode ..............................................................................................................8
4.3 IEEE802.11g Mode .......................................
