SBSL Reset & Teardown (FCC ID 2ACDZ-3301-SBSL)
Factory reset and internal photos for Broadlink SBSL. Broadlink smart plug.
January 15, 2026
•
1 min read
Before you buy the Broadlink SBSL, check what's inside.
The Broadlink SBSL is a Wi-Fi enabled smart module designed for integration into electrical systems, likely for controlling lights or appliances. It operates on standard mains voltage and is intended for permanent installation.
⚠️ NOTE: Disconnect Mains power before installation or servicing.
Quick Specs
- Manufacturer: Broadlink
- Model: SBSL
- Protocol: WiFi
- Chipset: Broadlink WiFi
- Ecosystem: Broadlink
- App: Broadlink App
🔧 Geek Corner (Flashing Info)
- Chipset: Unknown
- Flashable: ❌ No
- Info: Proprietary Broadlink firmware, not designed for user flashing.
User Manual

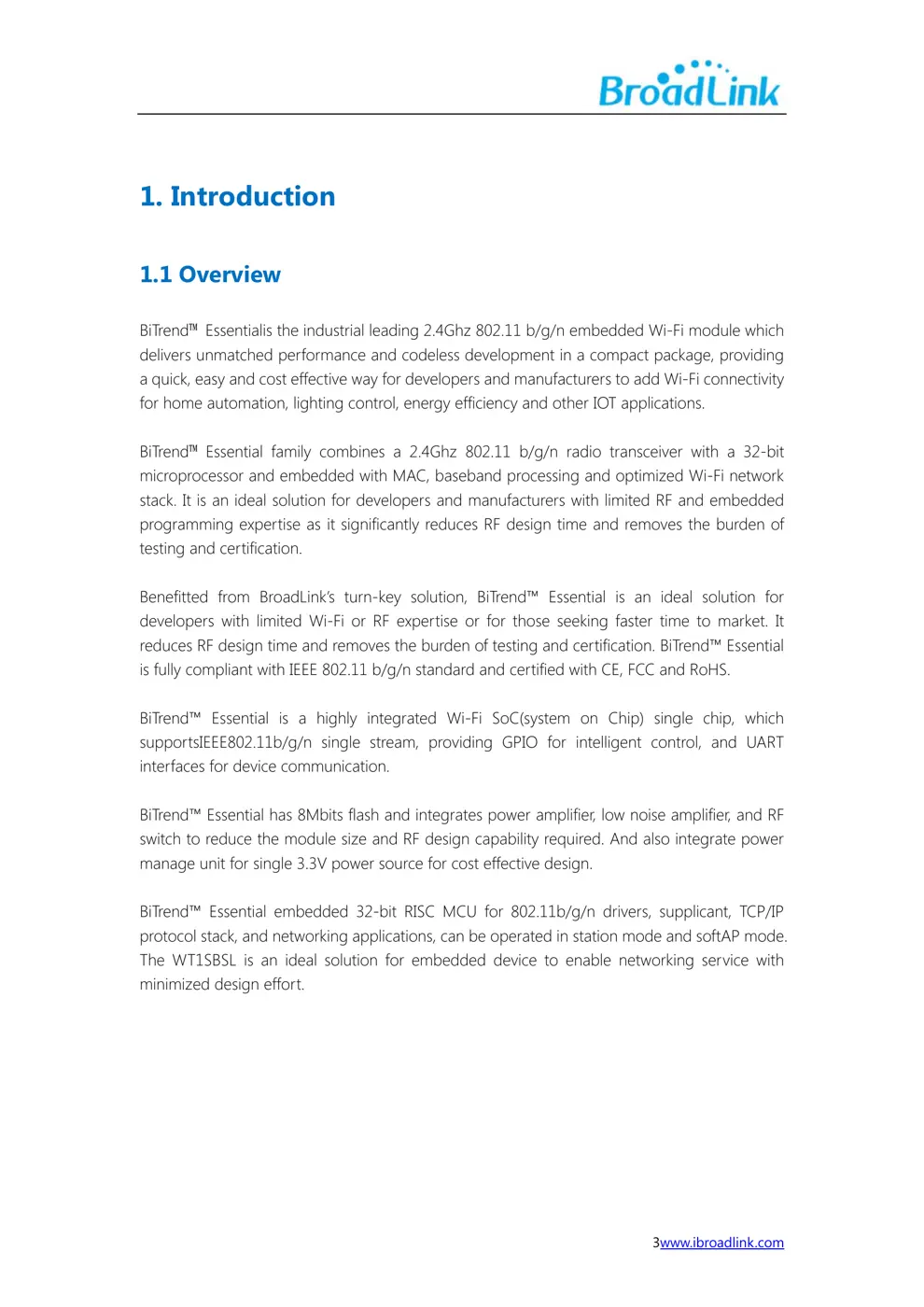

Scanned pages from the official user manual:
External Photos
Photos of the device exterior:
Internal Photos

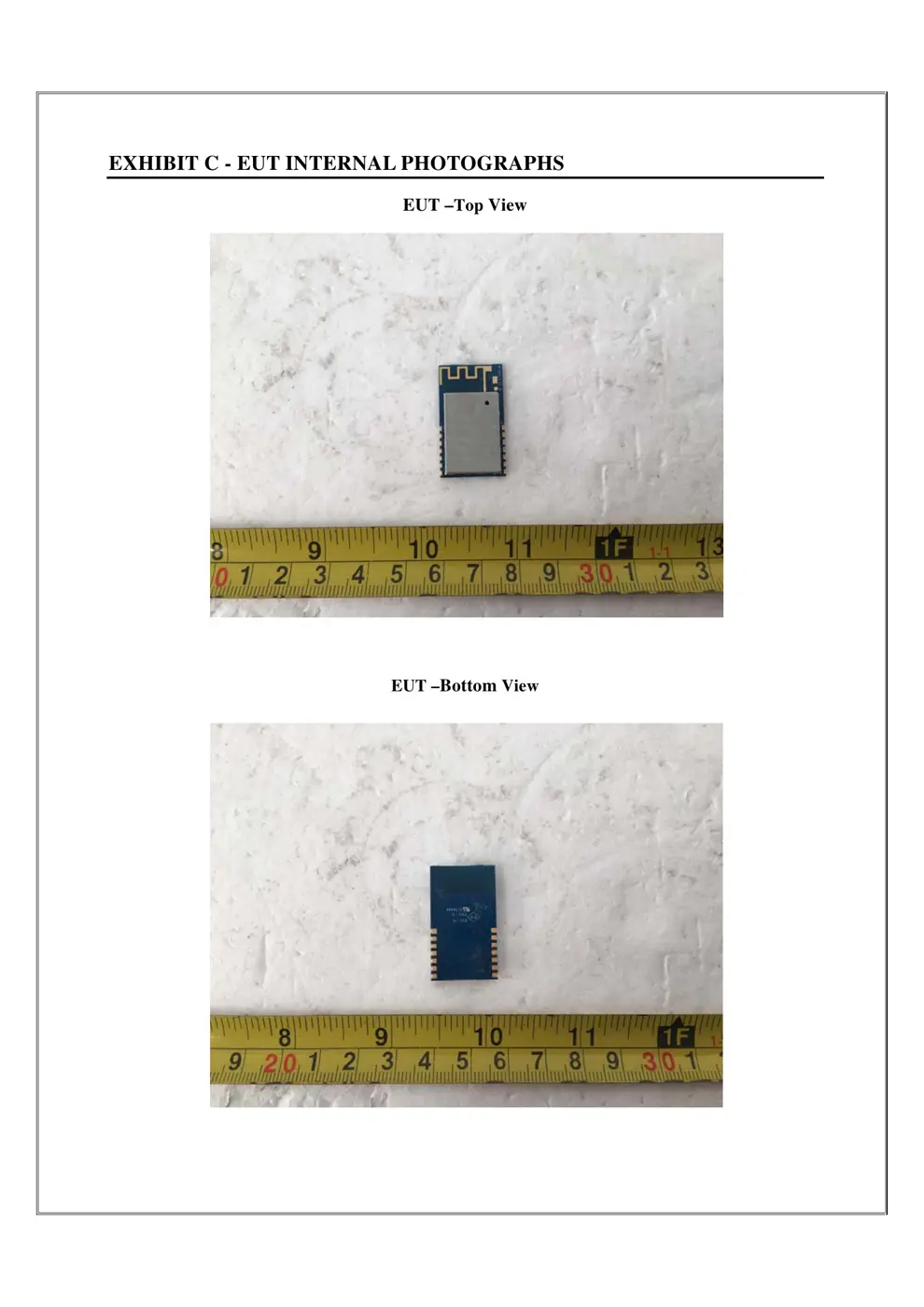

Teardown photos showing the PCB and components:
Verdict
The SBSL is a WiFi device from the Broadlink ecosystem.
📄 Click to view full text manual (SEO)

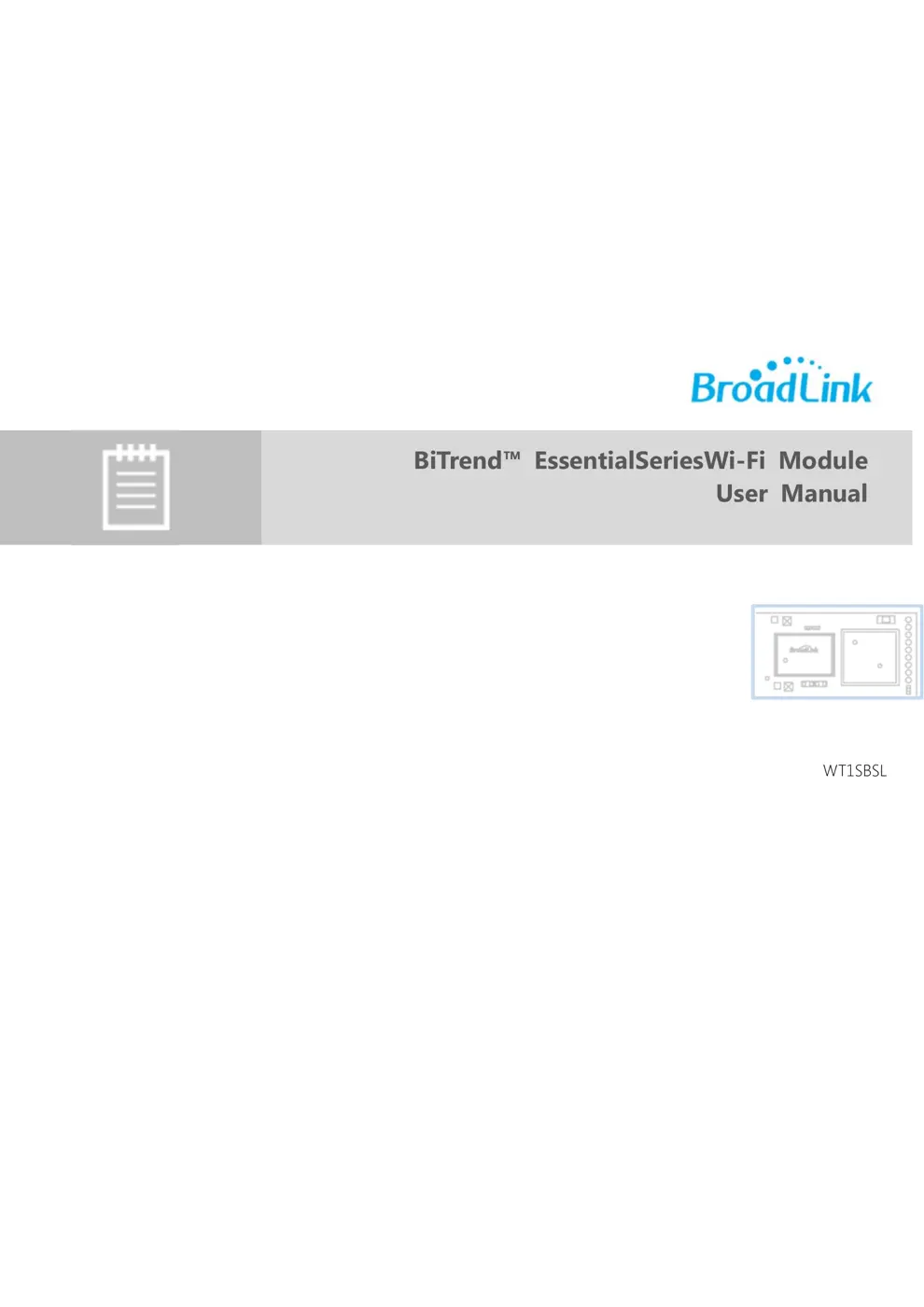

BiTrend™ EssentialSeriesWi-Fi Module
User Manual
WT1SBSL
1www.ibroadlink.com
Hangzhou Gubei Electronics Technology Co., Ltd.

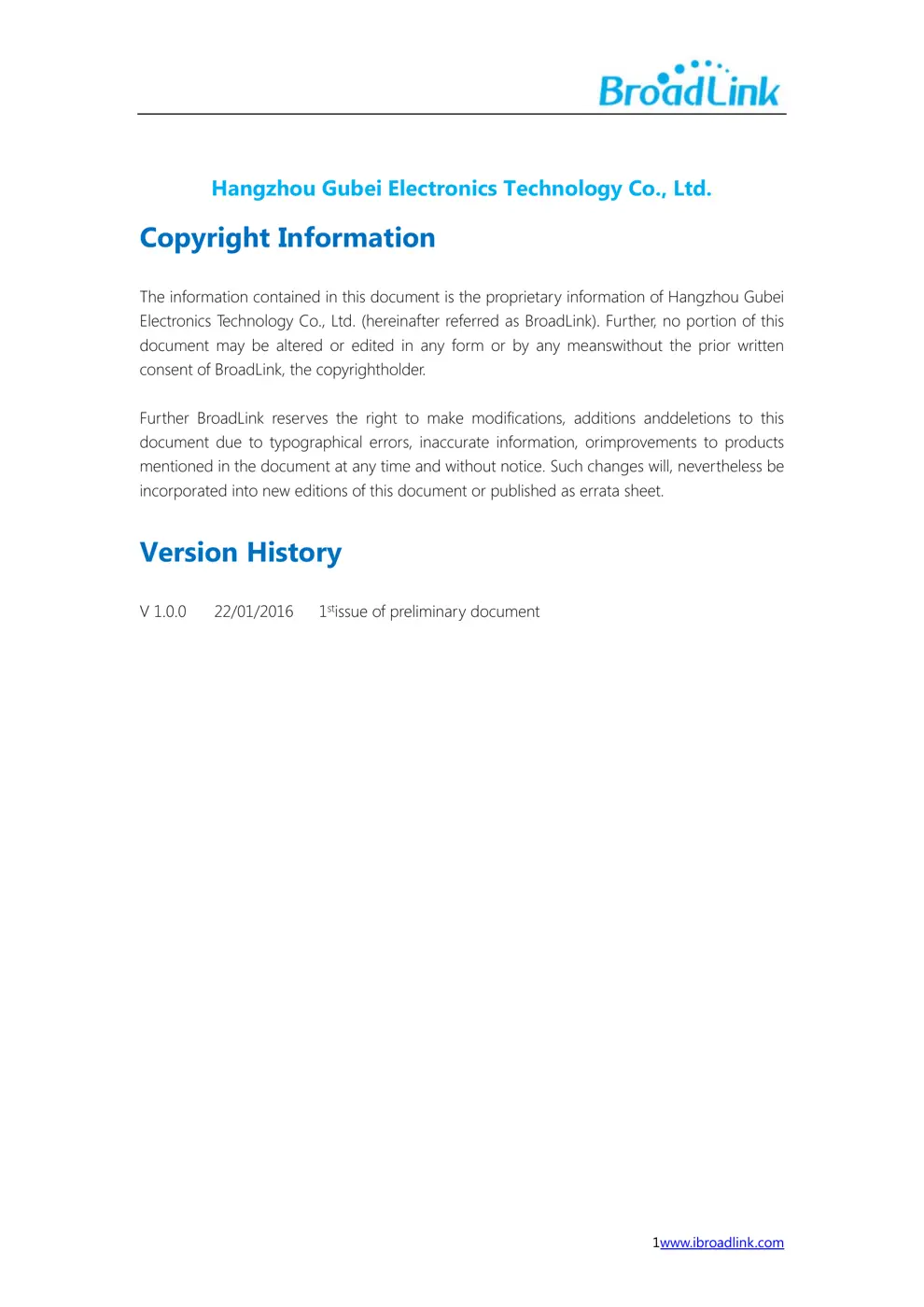

Copyright Information
The information contained in this document is the proprietary information of Hangzhou Gubei
Electronics T echnology Co., Ltd. (hereinafter referred as BroadLink). Further, no portion of this
d o c u m e n t m a y b e a l t e r e d o r e d i t e d i n a n y f o r m o r b y a n y m e a n s w i t h o u t t h e p r i o r w r i t t e n
consent of BroadLink, the copyrightholder.
Further BroadLink reserves the right to make modifications, additions anddeletions to this
document due to typographical errors, inaccura te information, orimprovements to products
mentioned in the document at any time and without notice. Such changes will, nevertheless be
incorporated into new editions of this document or published as errata sheet.
Version History
V 1.0.0 22/01/2016 1
stissue of preliminary document
2www.ibroadlink.com
Table of Contents
1. Introduction.................................................................................................................................3
1.1 Overview............................................................................................................................3
1.2 Applications.......................................................................................................................4

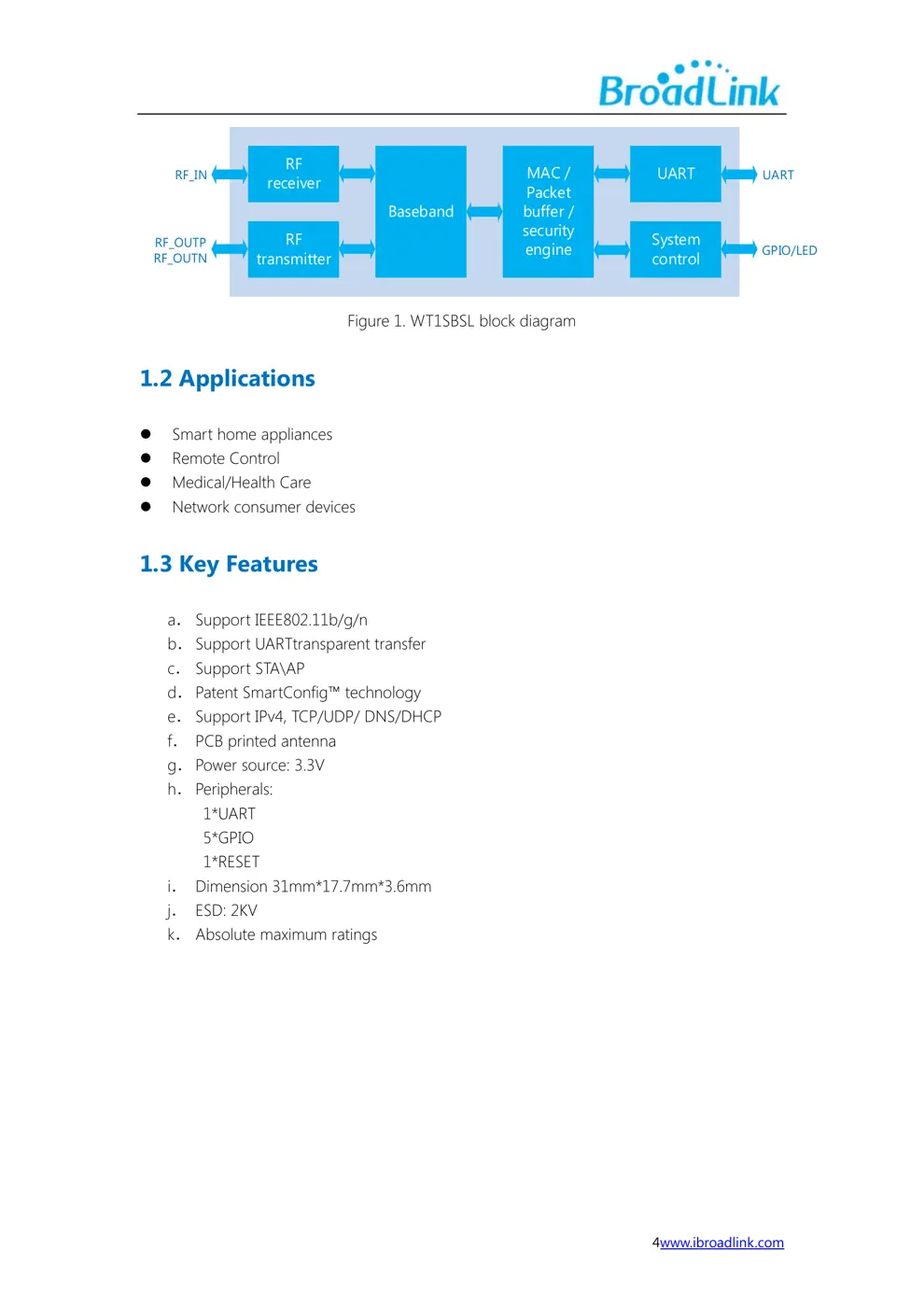

1.3 Key Features......................................................................................................................4
2. Product Overview.......................................................................................................................5

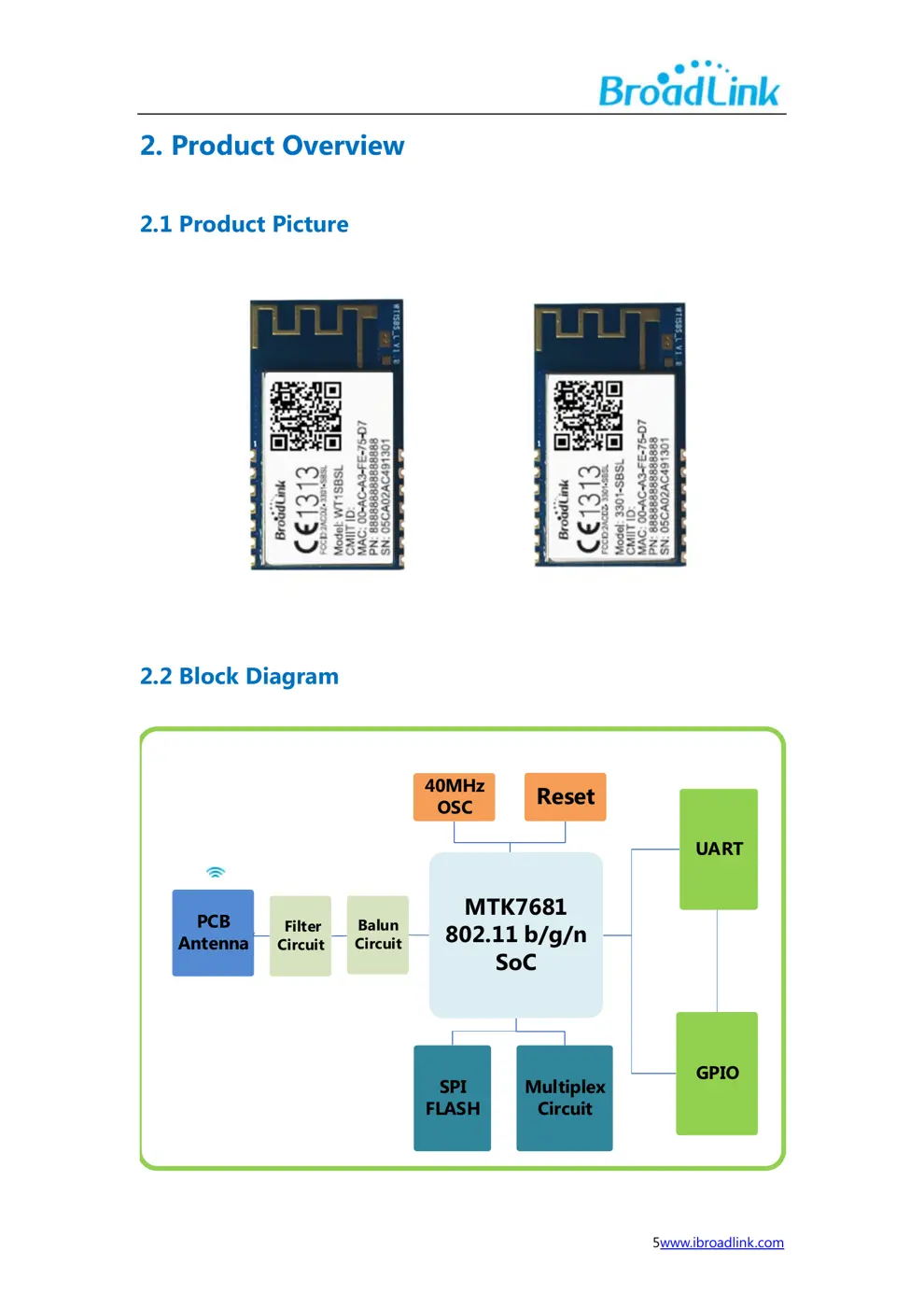

2.1 Product Picture.................................................................................................................5
2.2 Block Diagram...................................................................................................................5
3. Electrical Characteristics.............................................................................................................6

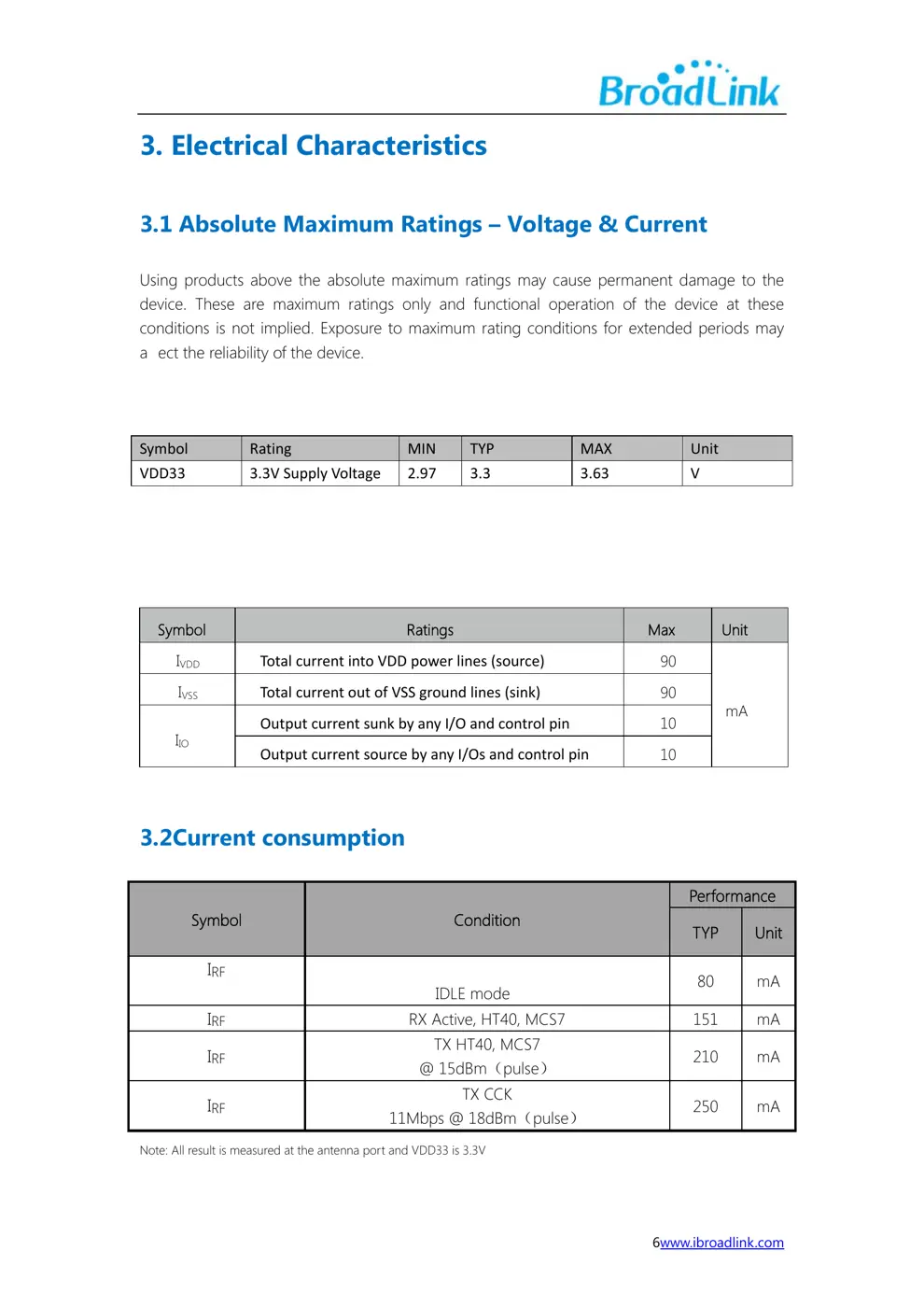

3.1 Absolute Maximum Ratings – Voltage & Current........................................................6
3.2Current consumption........................................................................................................6
3.3 Absolute maximum ratings – Temperature...................................................................7
3.4Absolute maximum ratings – ESD...................................................................................7

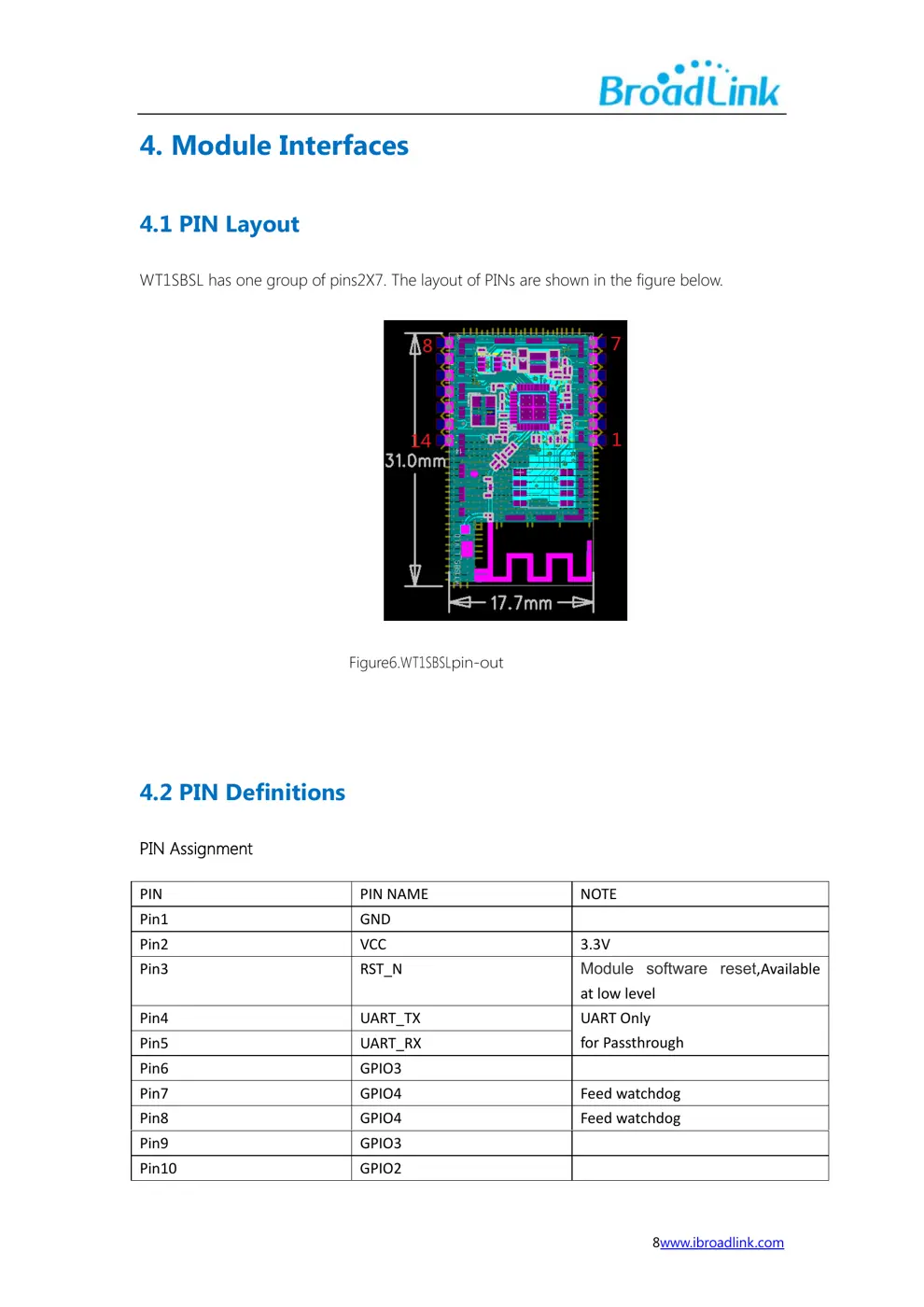

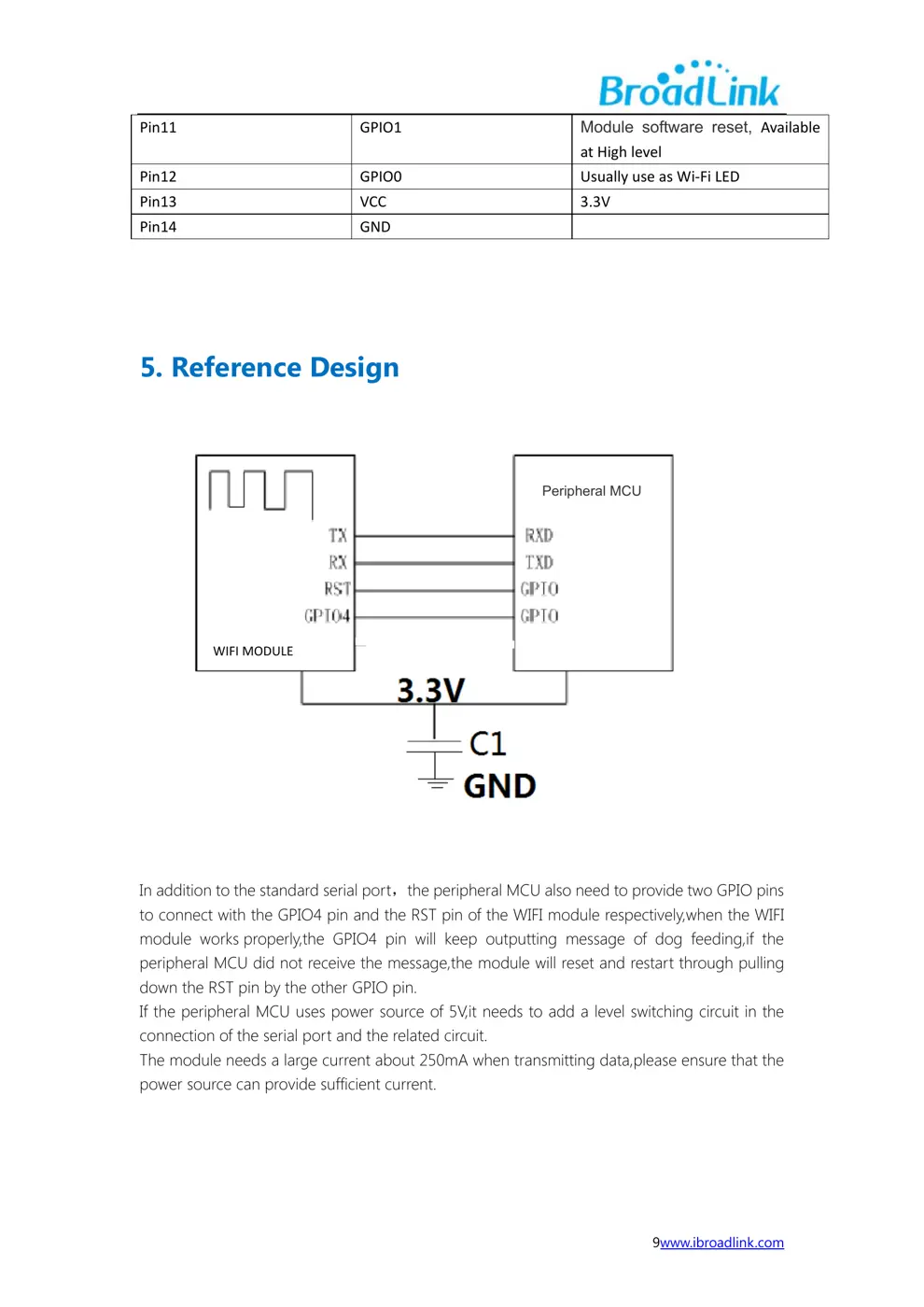

4. Module Interfaces.......................................................................................................................8
4.1 PIN Layout.........................................................................................................................8
4.2 PIN Definitions..................................................................................................................8
5. Referen...
