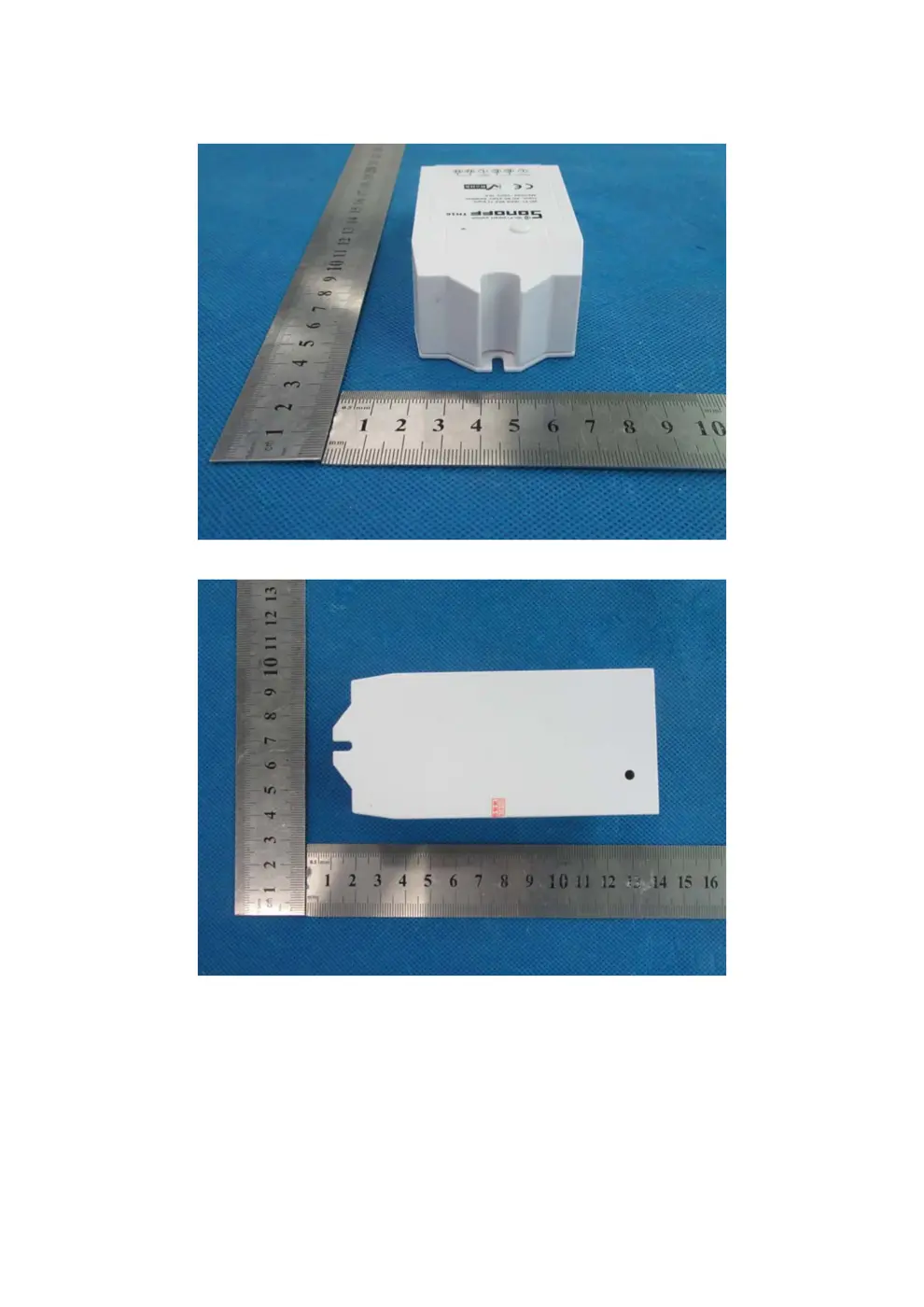

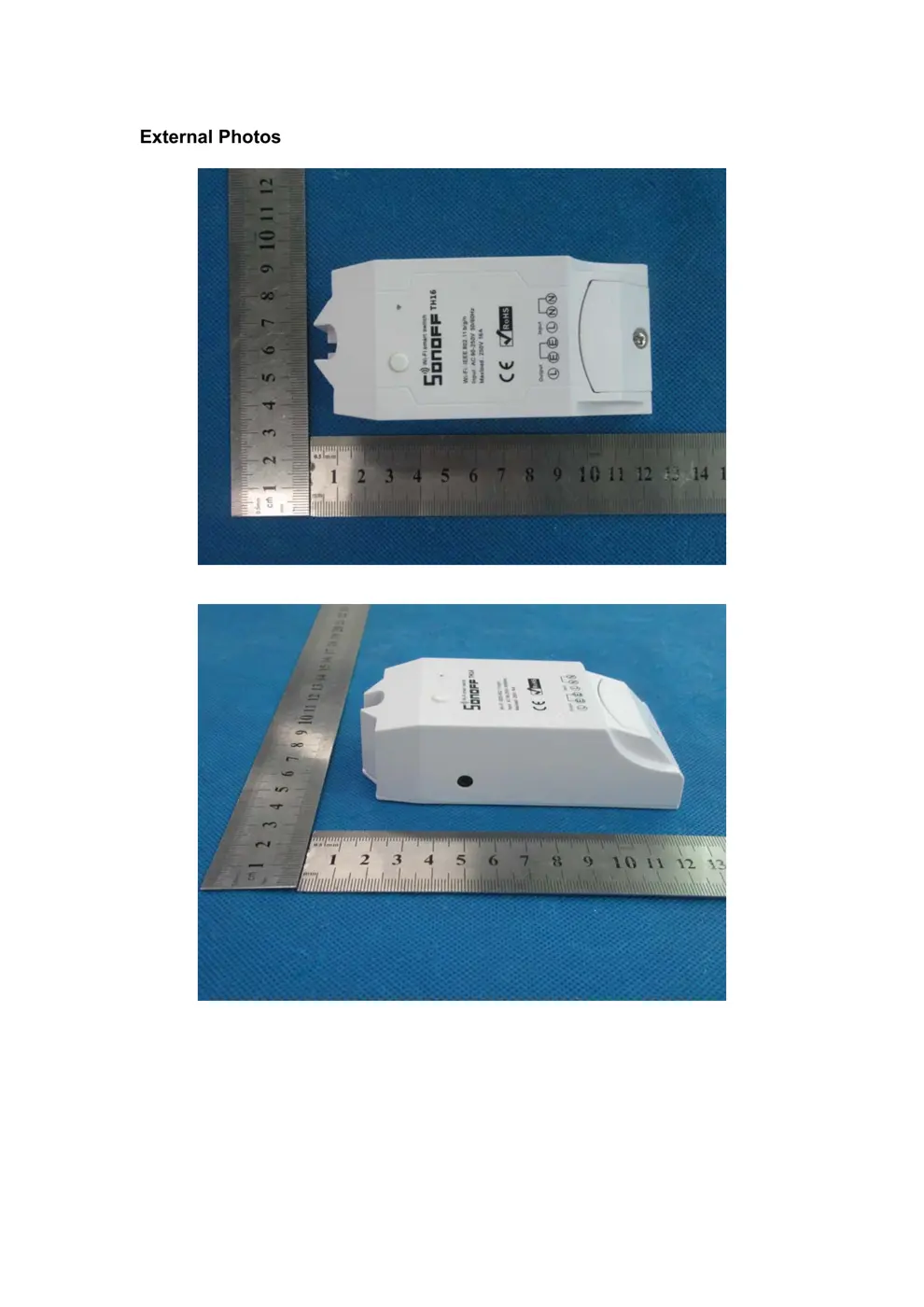

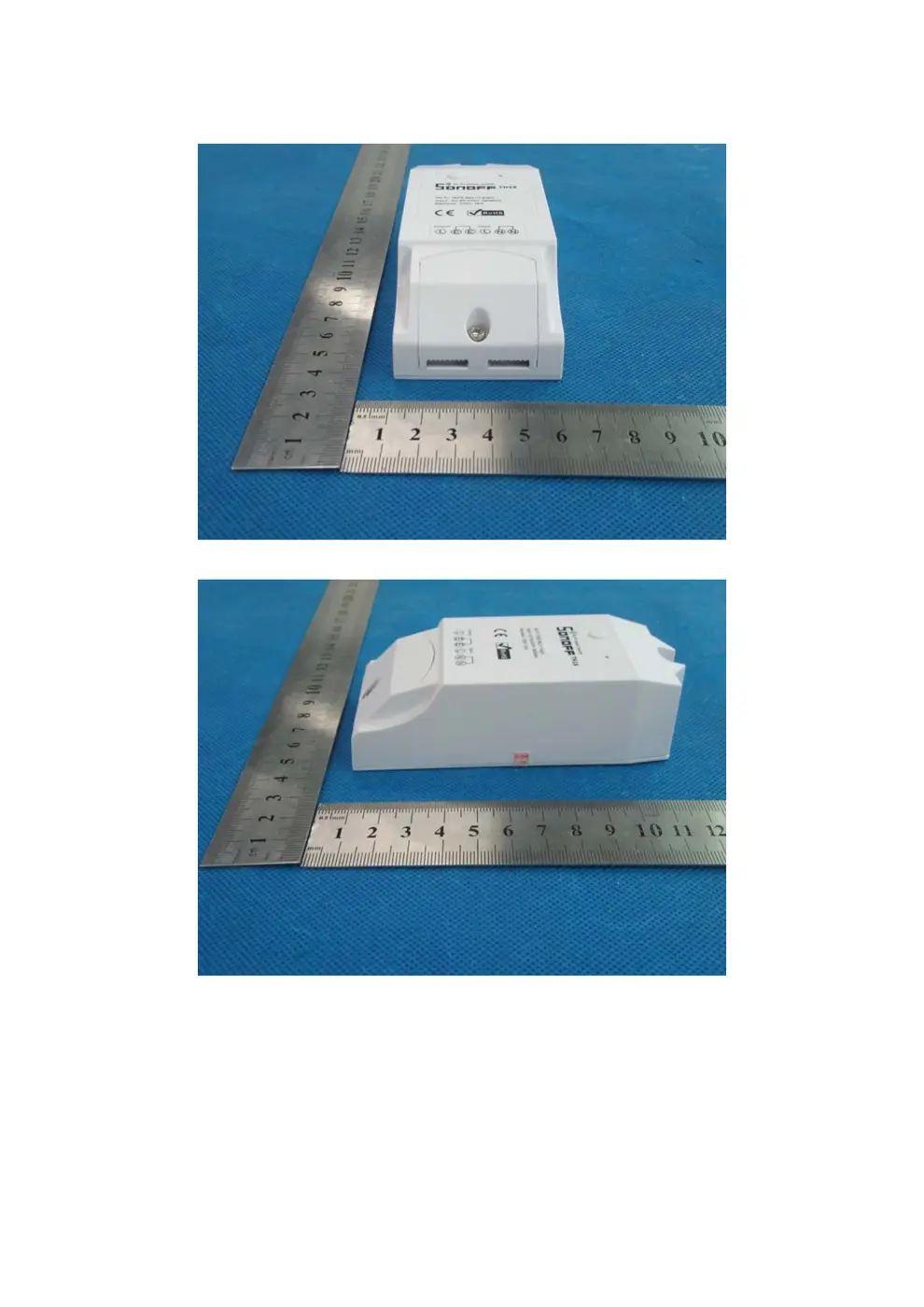

SONOFF Reset & Teardown (FCC ID 2AE2JSONOFF)

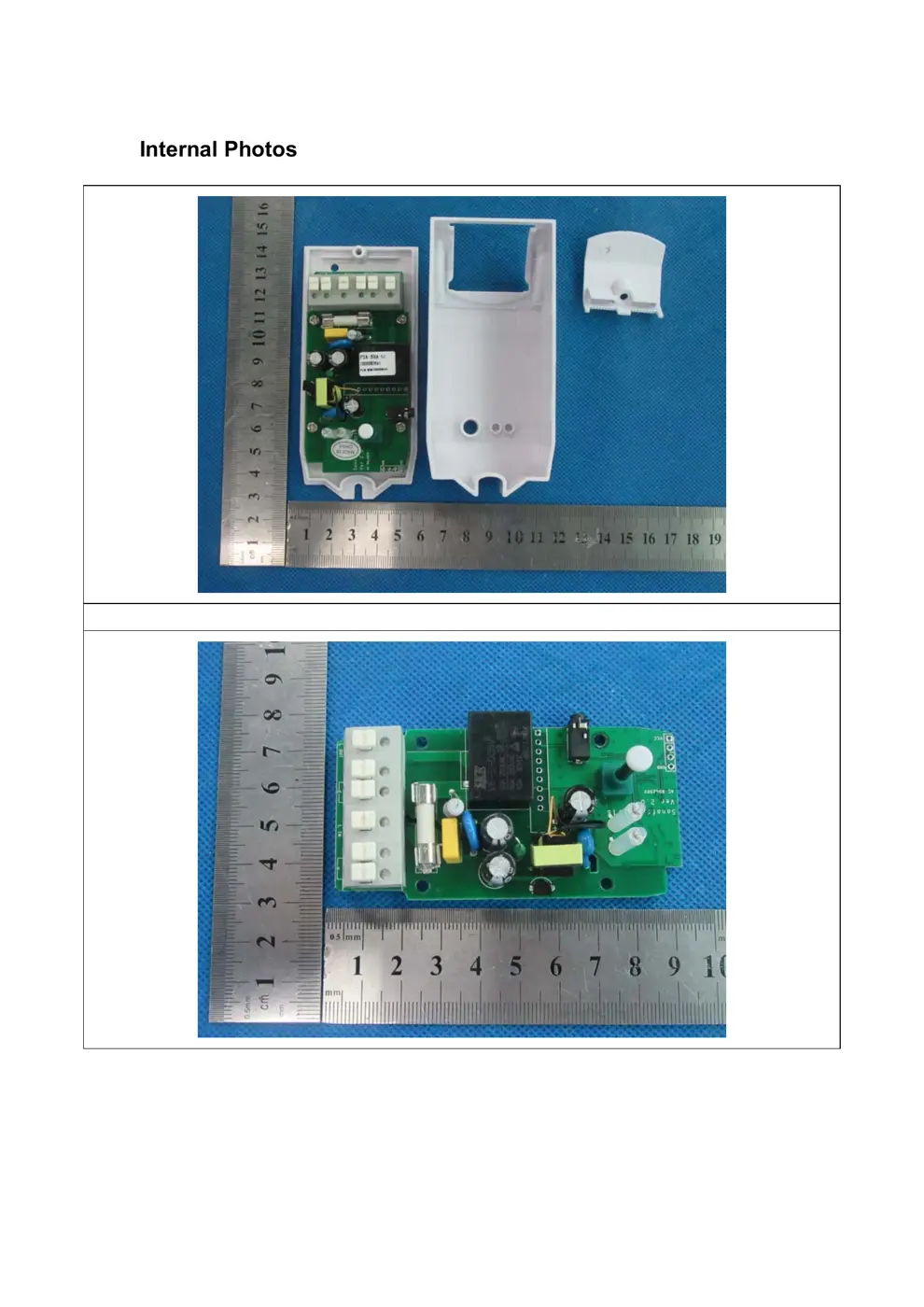

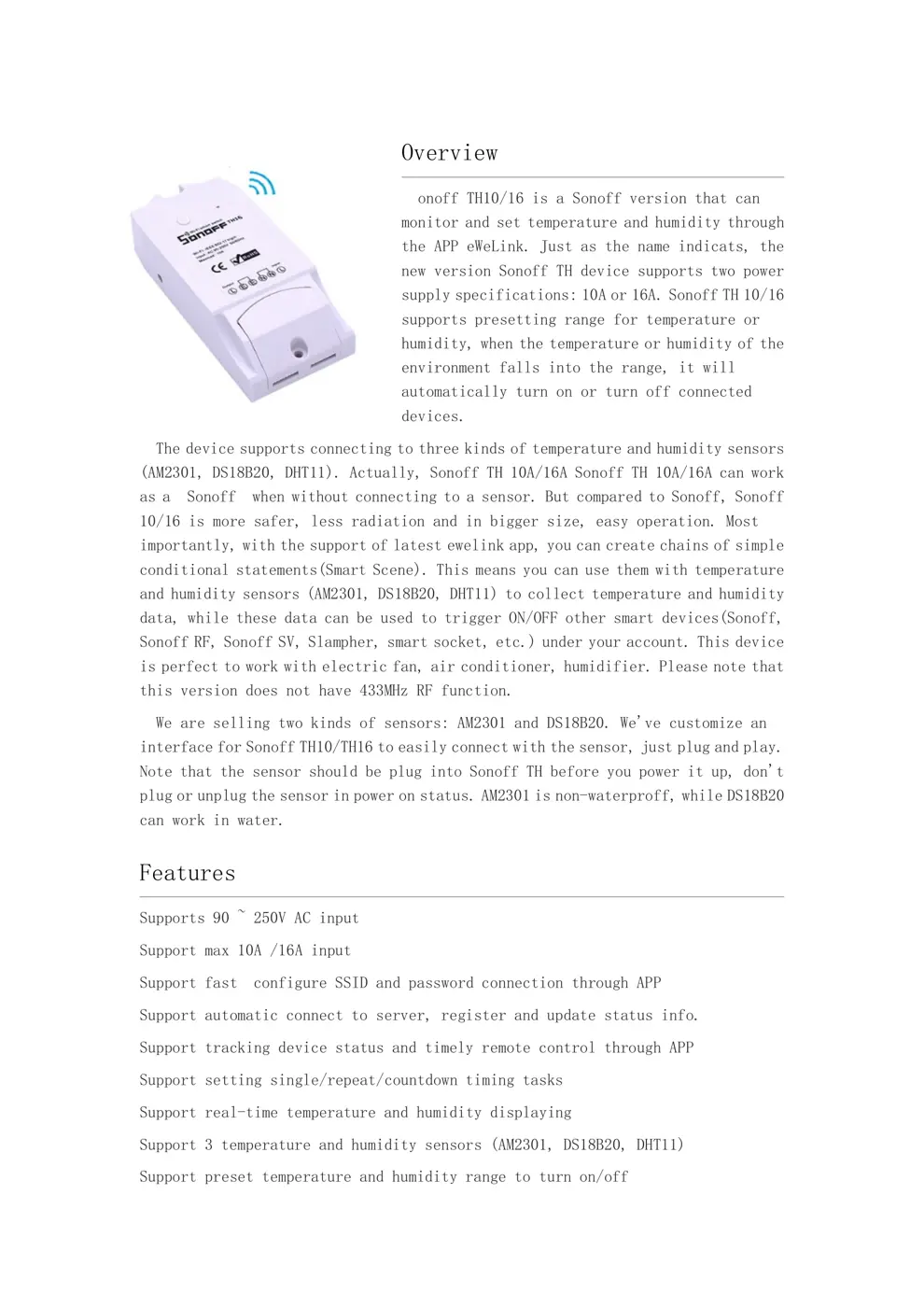

Overviewonoff TH10/16 is a Sonoff version that canmonitor and set temperature and humidity throughthe APP eWeLink. Just as the name indicats, thenew version Sonoff TH device supports two powersupply specifications: 10A or 16A. Sonoff TH 10/16supports presetting range for temperature orhumidity, when the temperature or humidity of theenvironment falls into the range, it willautomatically turn on or turn off connecteddevices.The device supports connecting to three kinds of temperature and humidity sensors(AM2301, DS18B20, DHT11). Actually, Sonoff TH 10A/16A Sonoff TH 10A/16A can workas a Sonoff when without connecting to a sensor. But compared to Sonoff, Sonoff10/16 is more safer, less radiation and in bigger size, easy operation. Mostimportantly, with the support of latest ewelink app, you can create chains of simpleconditional statements(Smart Scene). This means you can use them with temperatureand humidity sensors (AM2301, DS18B20, DHT11) to collect temperature and humiditydata, while these data can be used to trigger ON/OFF other smart devices(Sonoff,Sonoff RF, Sonoff SV, Slampher, smart socket, etc.) under your account. This deviceis perfect to work with electric fan, air conditioner, humidifier. Please note thatthis version does not have 433MHz RF function.We are selling two kinds of sensors: AM2301 and DS18B20. We've customize aninterface for Sonoff TH10/TH16 to easily connect with the sensor, just plug and play.Note that the sensor should be plug into Sonoff TH before you power it up, don'tplug or unplug the sensor in power on status. AM2301 is non-waterproff, while DS18B20can work in water.
FeaturesSupports 90 ~ 250V AC inputSupport max 10A /16A inputSupport fast configure SSID and password connection through APPSupport automatic connect to server, register and update status info.Support tracking device status and timely remote control through APPSupport setting single/repeat/countdown timing tasksSupport real-time temperature and humidity displayingSupport 3 temperature and humidity sensors (AM2301, DS18B20, DHT11)Support preset temperature and humidity range to turn on/off

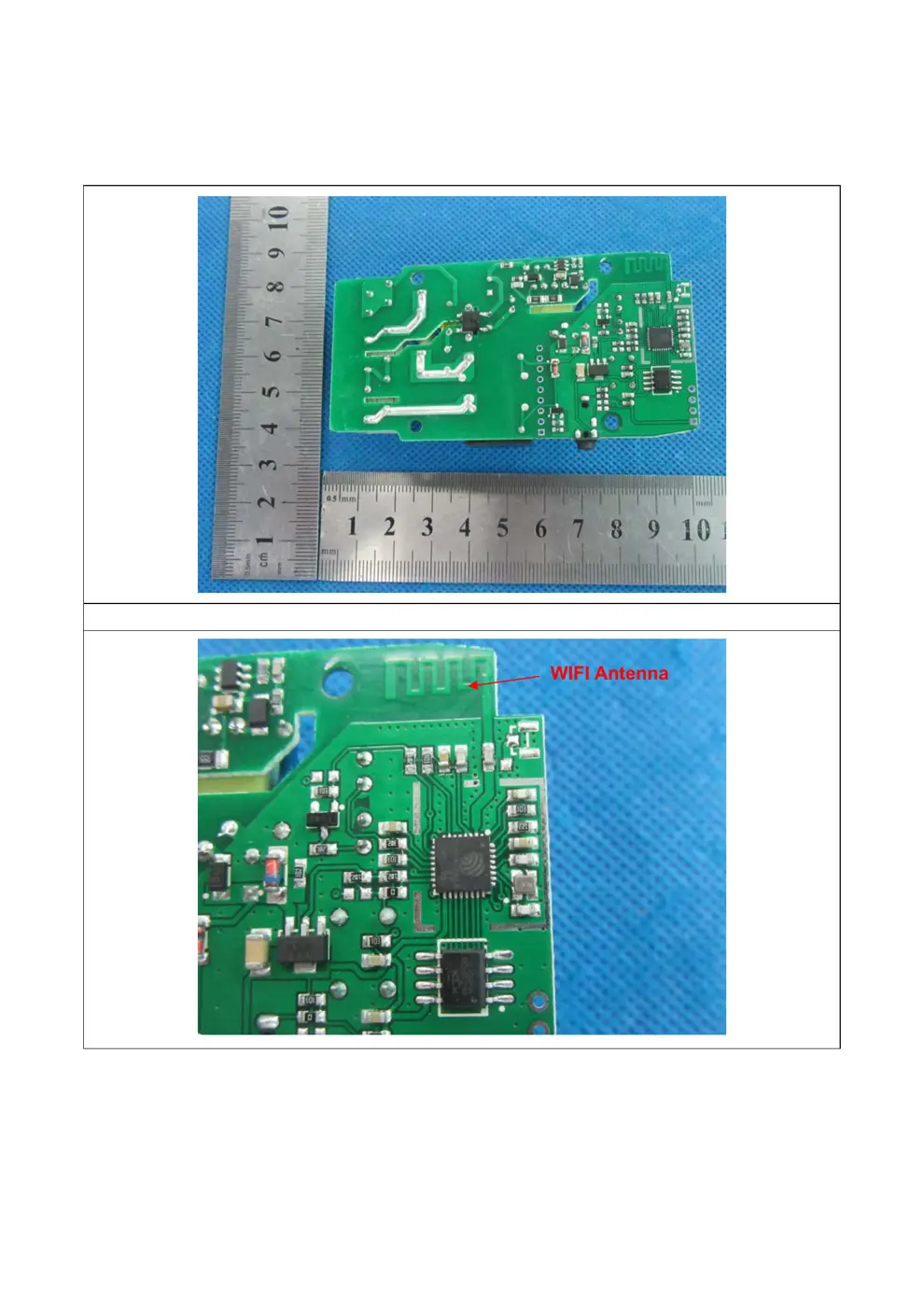

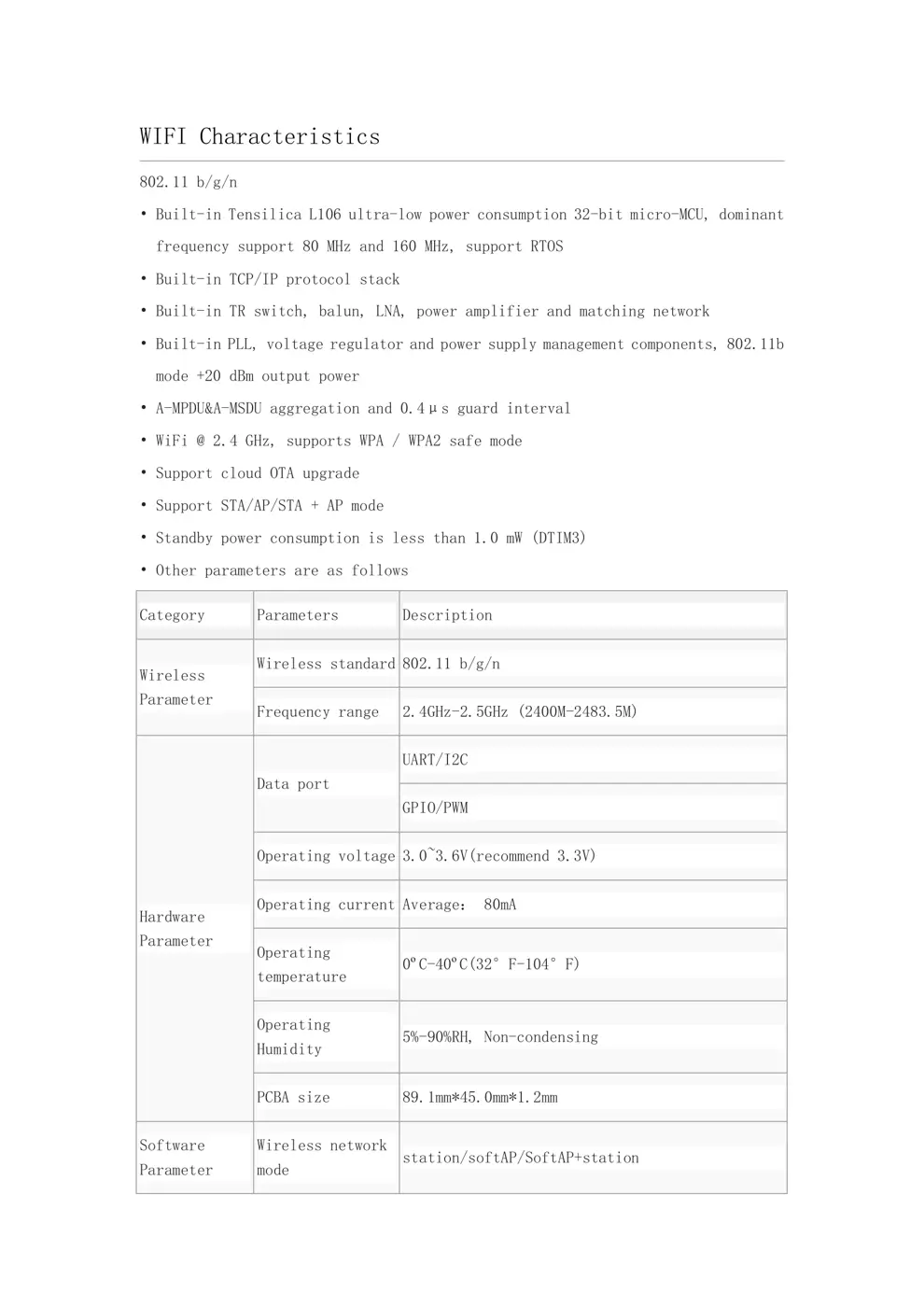

WIFI Characteristics802.11 b/g/n• Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominantfrequency support 80 MHz and 160 MHz, support RTOS• Built-in TCP/IP protocol stack• Built-in TR switch, balun, LNA, power amplifier and matching network• Built-in PLL, voltage regulator and power supply management components, 802.11bmode +20 dBm output power• A-MPDU&A-MSDU aggregation and 0.4μs guard interval• WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode• Support cloud OTA upgrade• Support STA/AP/STA + AP mode• Standby power consumption is less than 1.0 mW (DTIM3)• Other parameters are as followsCategoryParametersDescription
WirelessParameterWireless standard802.11 b/g/nFrequency range2.4GHz-2.5GHz (2400M-2483.5M)
HardwareParameter
Data portUART/I2CGPIO/PWMOperating voltage3.0~3.6V(recommend 3.3V)Operating currentAverage： 80mAOperatingtemperature0ºC-40ºC(32...
