TYBT5 Reset & Teardown (FCC ID 2ANDL-TYBT5)

TYBT5 user manual
Tuya Smart BLE Module

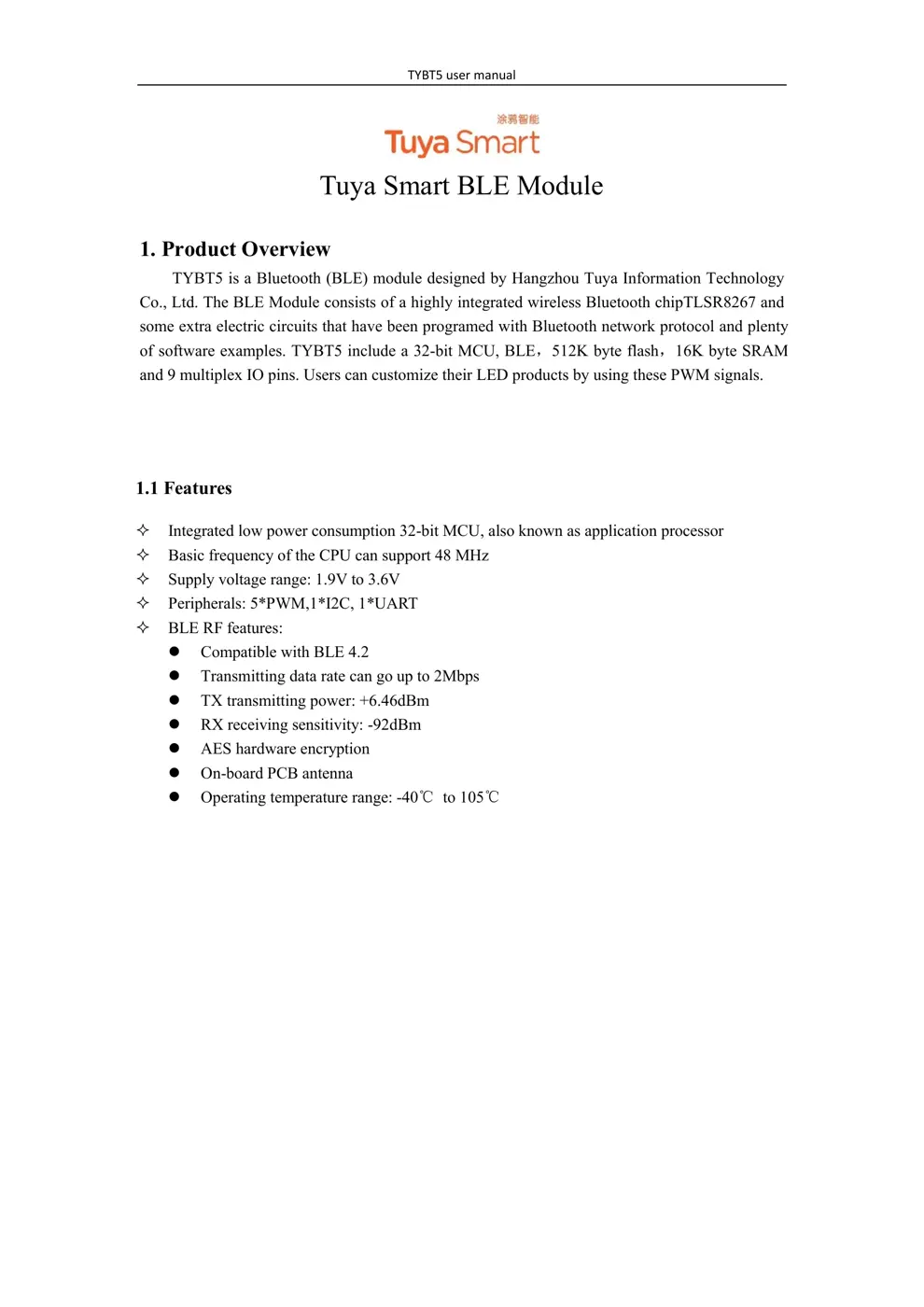

1. Product Overview
TYBT5 is a Bluetooth (BLE) module designed by Hangzhou Tuya Information Technology
Co., Ltd. The BLE Module consists of a highly integrated wireless Bluetooth chipTLSR826 7 and
some extra electric circuits that have been programed with Bluetooth network protocol and plenty
of software examples. TYBT5 include a 32-bit MCU, BLE，512K byte flash，16K byte SRAM
and 9 multiplex IO pins. Users can customize their LED products by using these PWM signals.
1.1 Features
 Integrated low power consumption 32-bit MCU, also known as application processor
 Basic frequency of the CPU can supp ort 48 MHz
 Supply voltage range: 1.9V to 3.6V
 Peripherals: 5*PWM,1*I2C, 1*UART

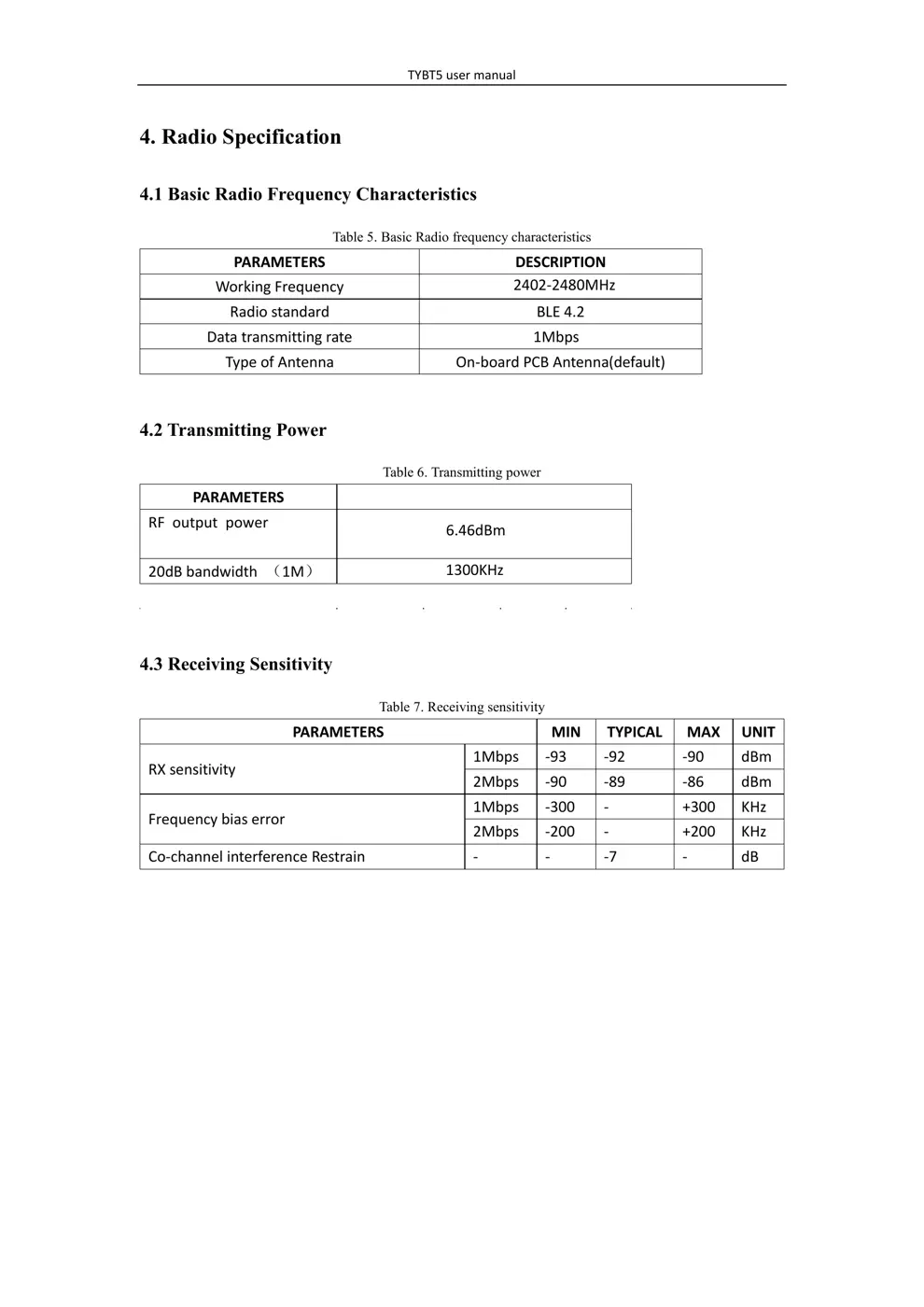

 BLE RF features:
⚫ Compatible with BLE 4.2
Transmitting data rate can go up to 2Mbps
TX transmitting power: +6.46dBm
RX recei
ving sensitivity: -92dBm
AE
S hardware encryption

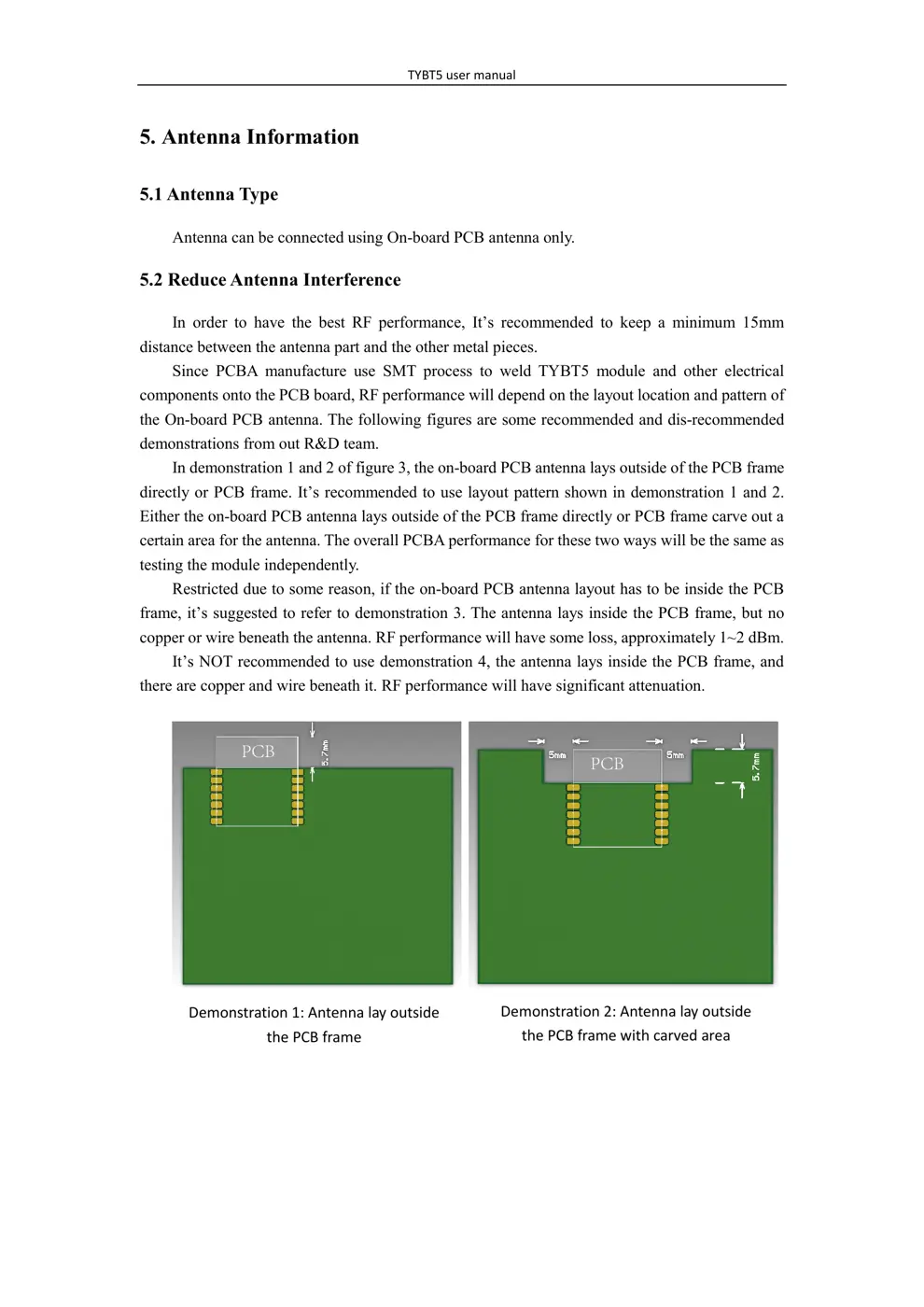

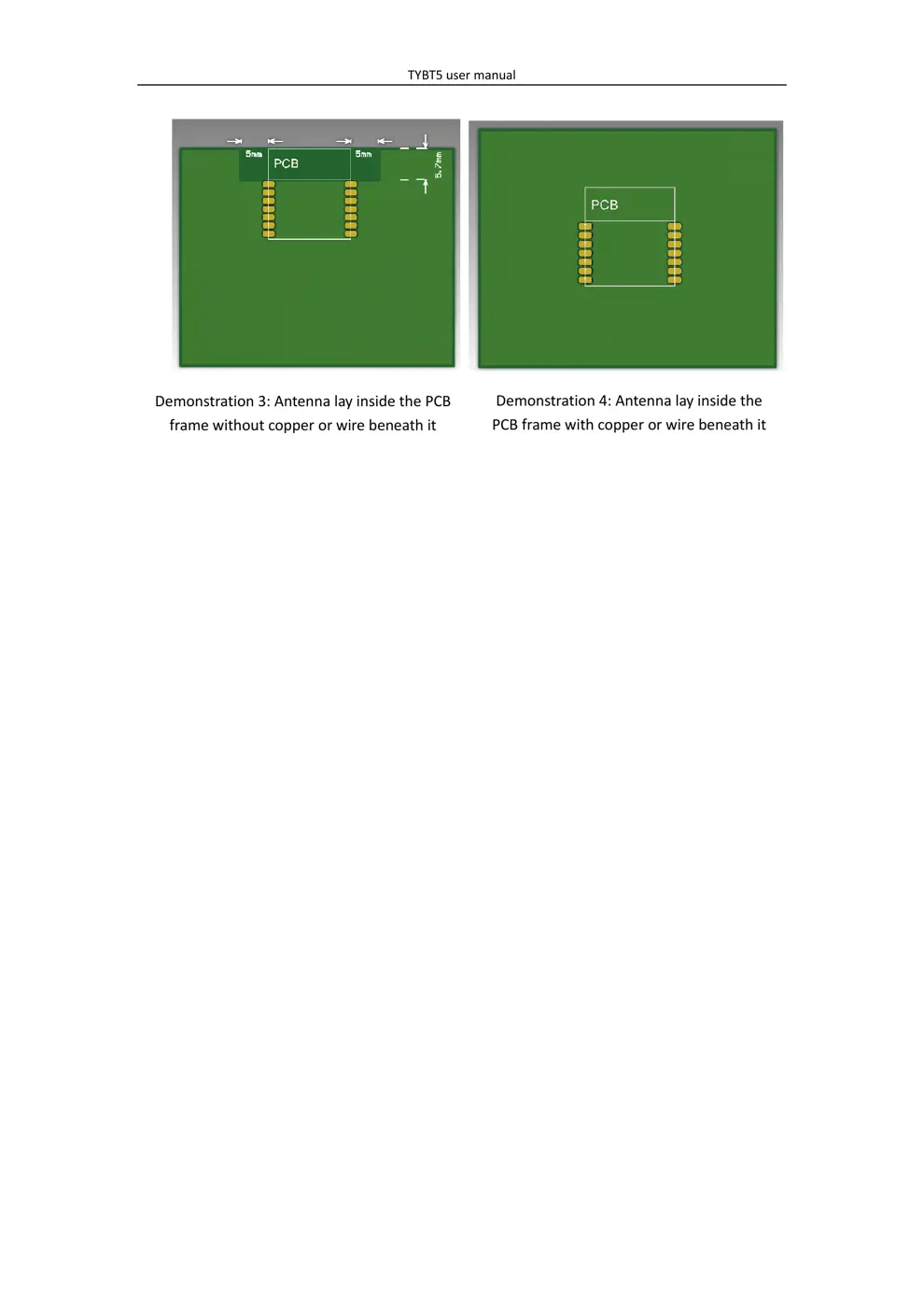

On-board PCB
antenna
Oper
ating temperature range: -40℃ to 105℃
Bytes
TYBT5 user manual

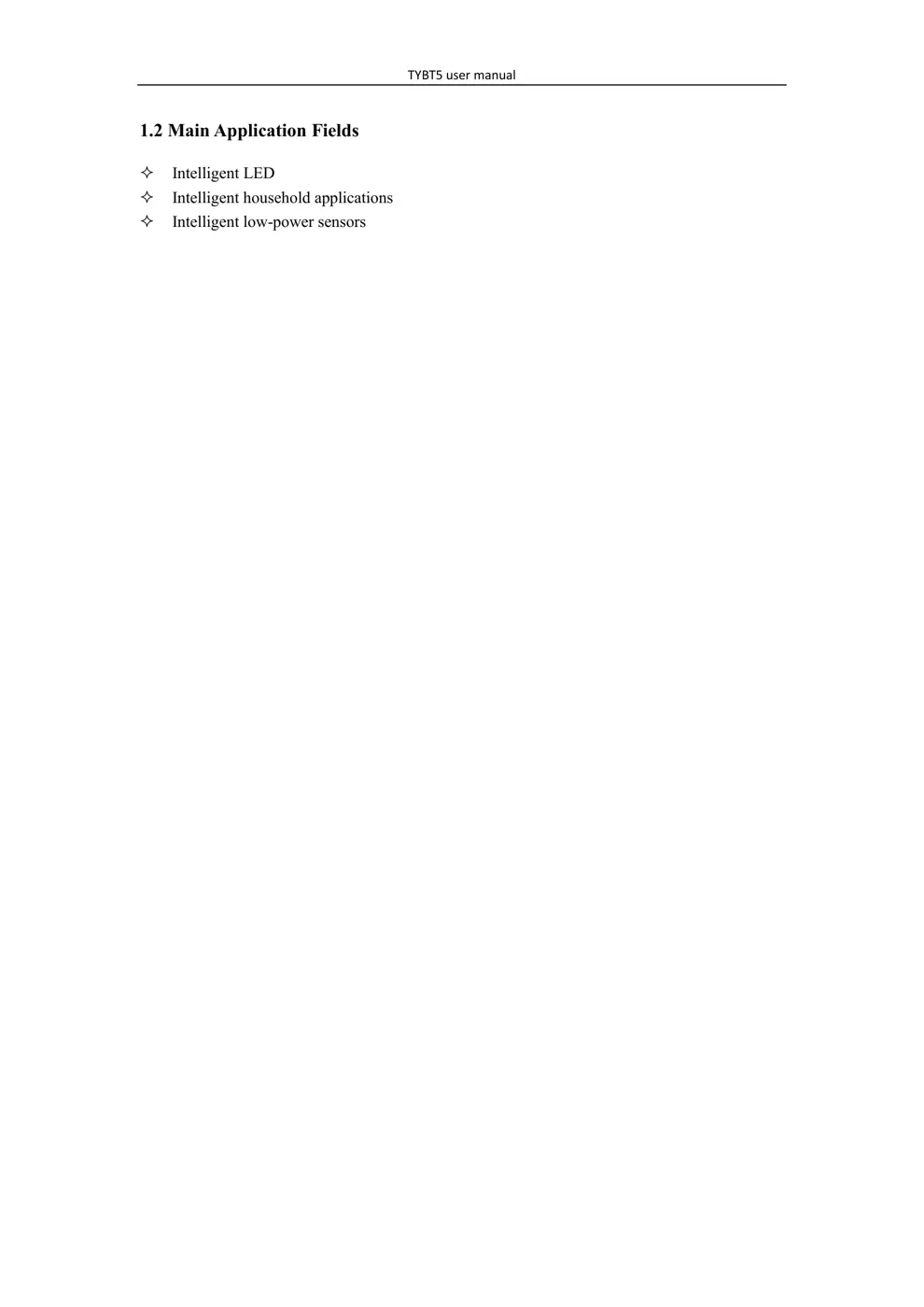

1.2 Main Application Fields
 Intelligent LED
 Intelligent household applications
 Intelligent low-power sensors
TYBT5 user manual
2. Dimensions and Footprint
2.1 Dimensions
TYBT5 have double sides of golden finger pins. The distance between each Pin is 2.0mm.
Size of TYBT5: 14.8mm(W)*20.4mm(L)*1.8mm(H).
Figure 2 shows the dimensions of TYBT5.

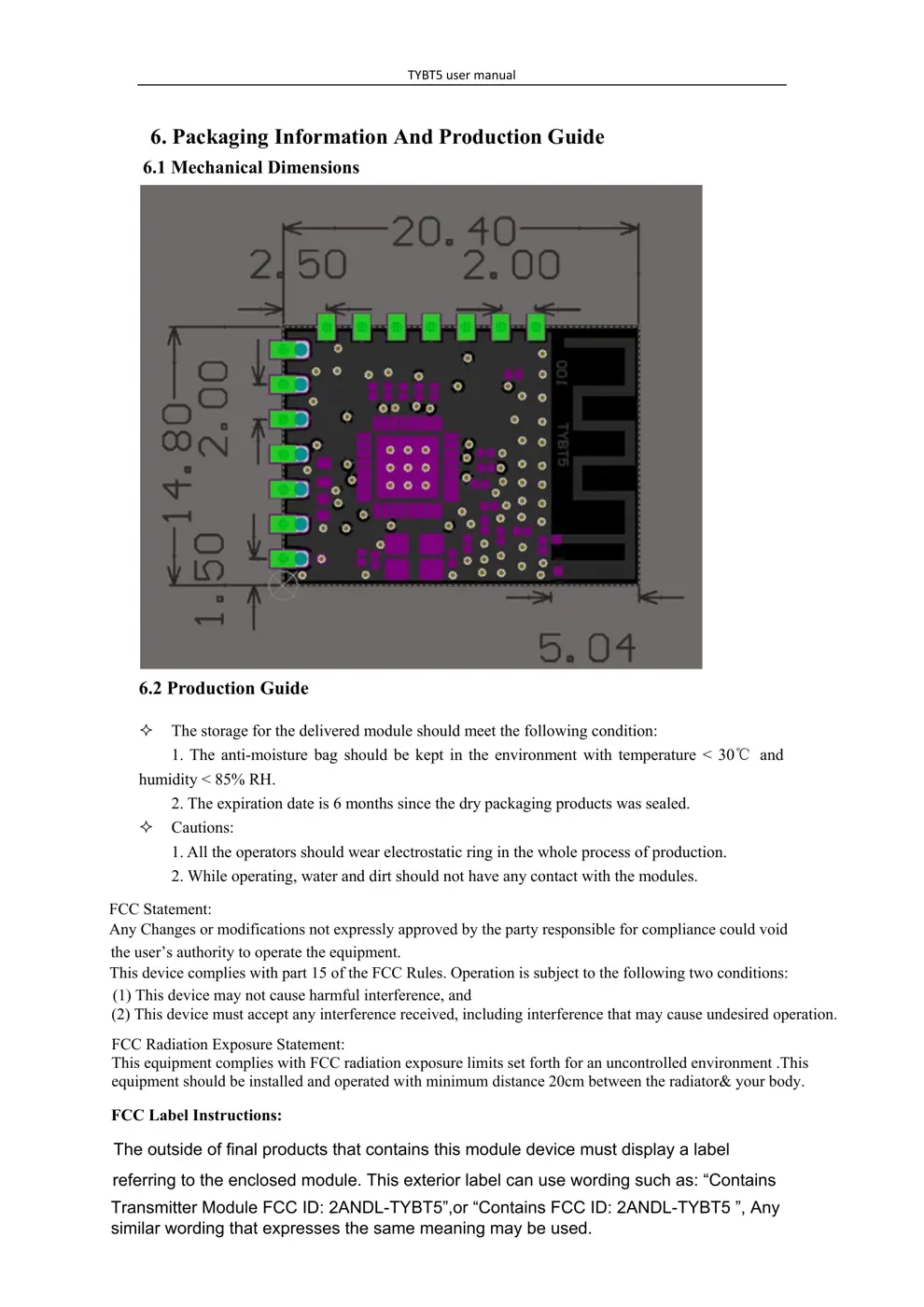

Figure 2. The dimensions of TYBT5
2.2 Pin Definition
Table 1 shows the general pin attributes of TYBT5
Table 1. The typical pin definition of TYBT5
PIN No. NAME I/O TYPE DESCRIPTION
1 PWM1 I/O PWM output pin, default for LED line
2 PWM0 I/O PWM output pin, default for LED line
3 I2C_SDA I/O I2C, data interface
4 I2C_SCL I/O I2C, clock interface
5 3.3V P Supply voltage
6 PB1 I/O PWM output pin, default for LED line
7 GND P Ground
0 SWS I/O Bluetooth chipset burning pin
00 PWM4 I/O PWM output pin, default for LED line
8 RX I/O UART RX
9 RST I Reset pin for the module
10 3.3V P Supply voltage for the module
11 TX I/O UART TX
12 PWM5 I/O PWM output pin, default for LED line
Note: P: Power supply pins; I/O: Digital input or output pins.
SWS is only for Bluetooth chipset burning.
If there’s any customization needed for PWM output, please contact our BD manager.

TYBT5 user manual

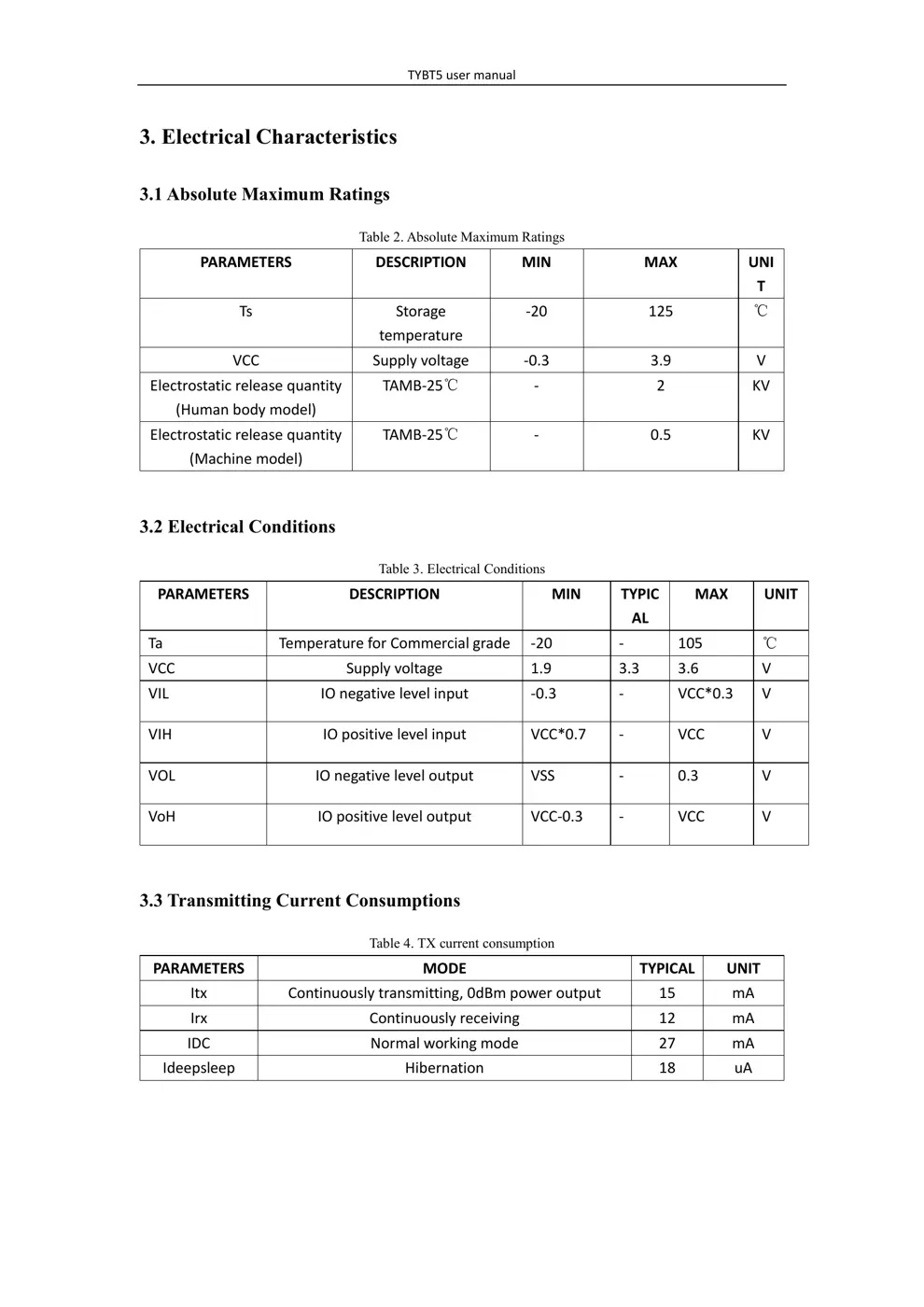

3. Electrical Characteristics
3.1 Absolute Maximum Ratings
Table 2. Absolute Maximum Ratings
PARAMETERS DESCRIPTION MIN MAX UNI
T
Ts Storage
temperature
-20 125 ℃
VCC Supply voltage -0.3 3.9 V
Electrostatic release quantity
(Human body model)
TAMB-25℃ - 2 KV
Electrostatic release quantity
(Machine model)
TAMB-25℃ - 0.5 KV
3.2 Electrical Conditions
Table 3. Electrical Conditions
PARAMETERS DESCRIPTION MIN TYPIC
AL
MAX UNIT
Ta Temperature for Commercial grade -20 - 105 ℃
VCC Supply voltage 1.9 3.3 3.6 V
VIL IO negative level input -0.3 - VCC*0.3 V
VIH IO positive level input VCC*0.7 - VCC V
VOL IO negative level output VSS - 0.3 V
VoH IO positive level output VCC-0.3 - VCC V
3.3 Transmitting Current Consu...
