TYLC6E Reset & Teardown (FCC ID 2ANDL-TYLC6E)
Factory reset and internal photos for Tuya Global TYLC6E. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global TYLC6E, check what's inside.
The Tuya TYLC6E is a compact, low-power Wi-Fi module based on the ESP8285 chipset. It is designed for integration into various smart home devices, offering 802.11b/g/n connectivity.
⚠️ NOTE: Ensure correct battery polarity when powering the module.
Quick Specs
- Manufacturer: Tuya Global
- Model: TYLC6E
- Protocol: WiFi
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: ESP8285
- Flashable: ✅ Yes
- Info: Uses ESP8285 chipset, which is known to be flashable with custom firmware like Tasmota or ESPHome.
User Manual
Scanned pages from the official user manual:

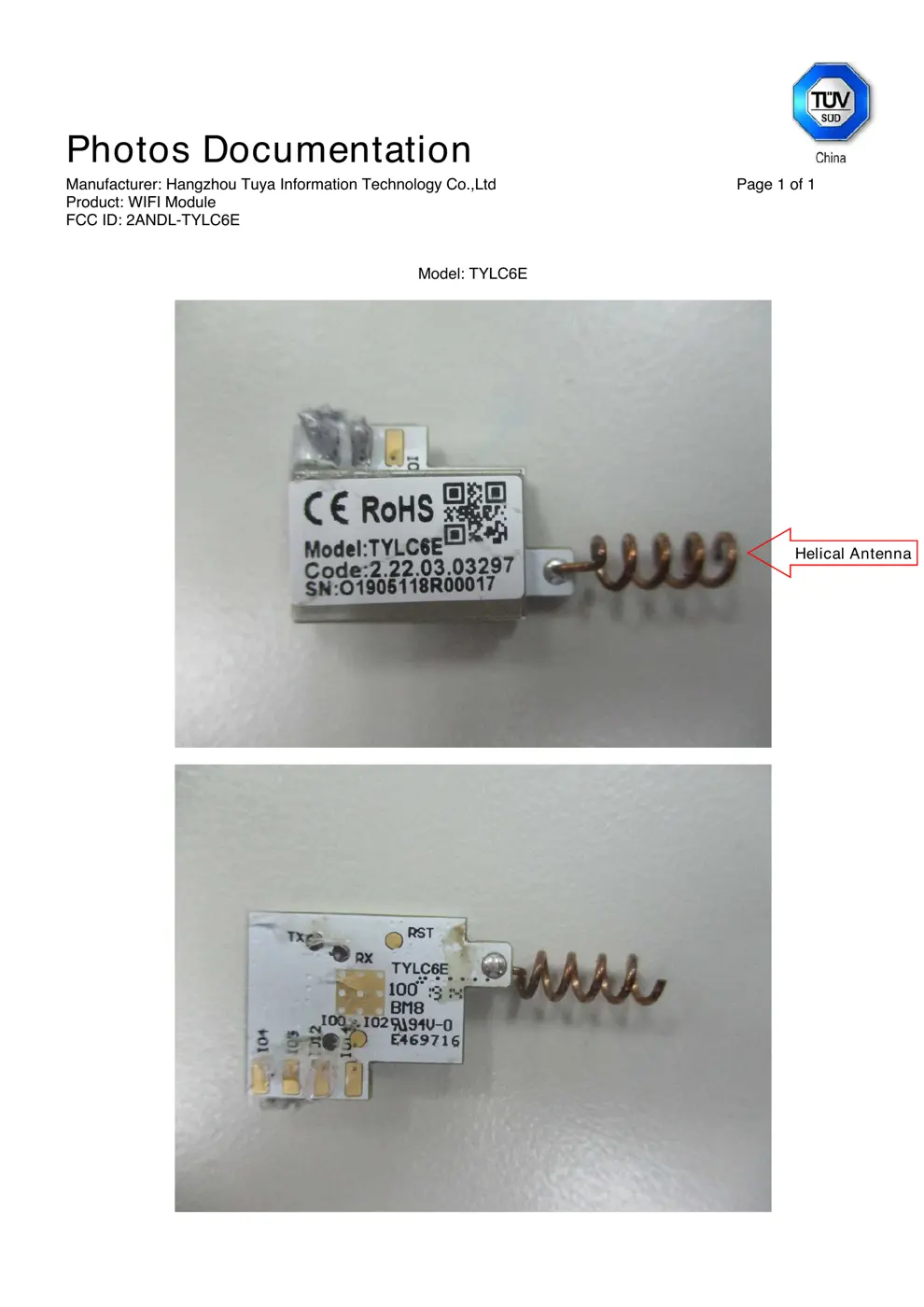

External Photos
Photos of the device exterior:
Internal Photos
Teardown photos showing the PCB and components:
Verdict
The TYLC6E is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
TYLC6E Datasheet
1

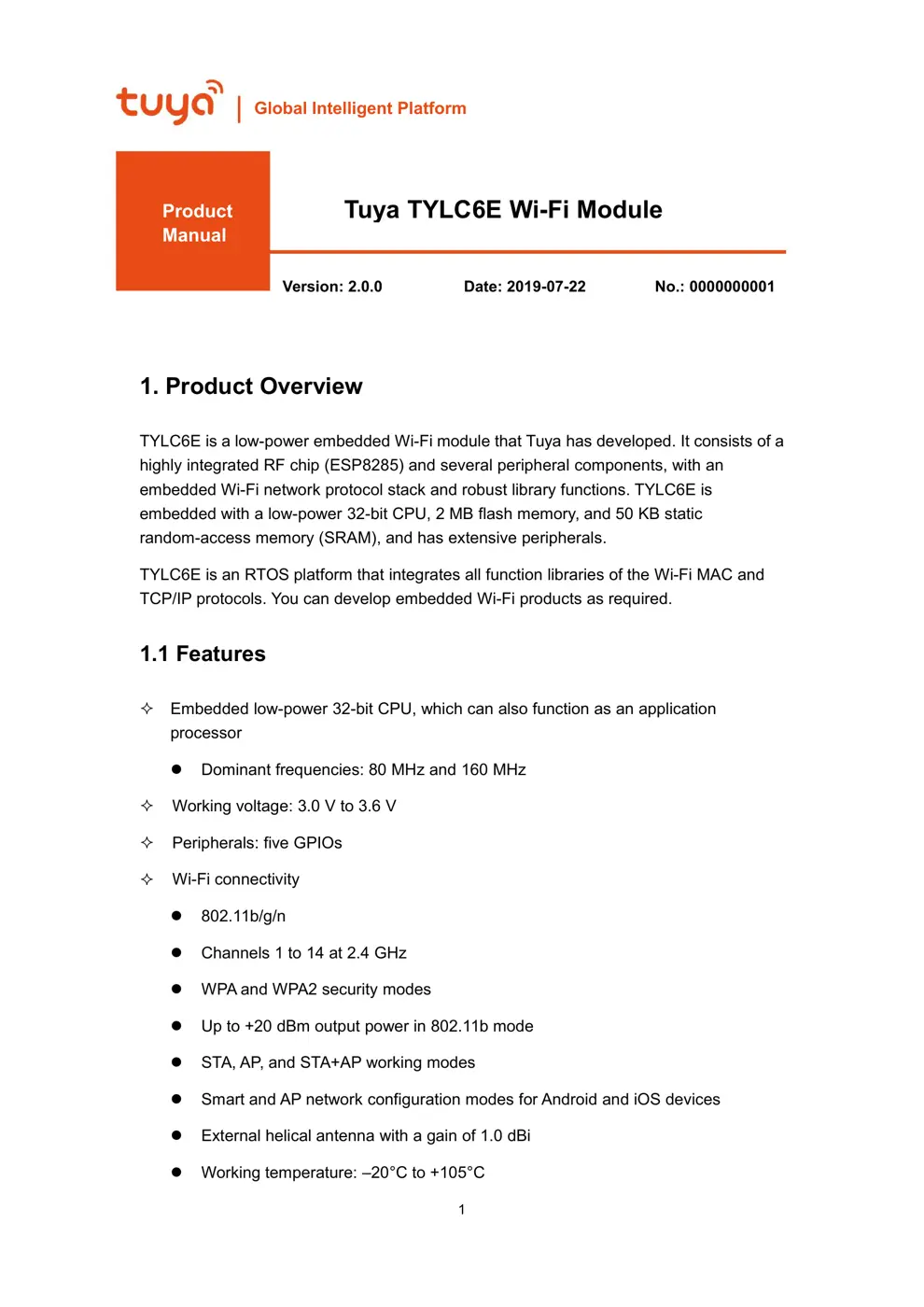

1. Product Overview
TYLC6E is a low-power embedded Wi-Fi module that Tuya has developed. It consists of a
highly integrated RF chip (ESP8285) and several peripheral components, with an
embedded Wi-Fi network protocol stack and robust library functions. TYLC6E is
embedded with a low-power 32-bit CPU, 2 MB flash memory, and 50 KB static
random-access memory (SRAM), and has extensive peripherals.
TYLC6E is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and
TCP/IP protocols. You can develop embedded Wi-Fi products as required.
1.1 Features
Embedded low-power 32-bit CPU, which can also function as an application
processor
Dominant frequencies: 80 MHz and 160 MHz
Working voltage: 3.0 V to 3.6 V
Peripherals: five GPIOs
Wi-Fi connectivity
802.11b/g/n
Channels 1 to 14 at 2.4 GHz
WPA and WPA2 security modes
Up to +20 dBm output power in 802.11b mode
STA, AP, and STA+AP working modes
Smart and AP network configuration modes for Android and iOS devices
External helical antenna with a gain of 1.0 dBi
Working temperature: –20°C to +105°C
Tuya TYLC6E Wi-Fi Module
Version: 2.0.0 Date: 2019-07-22 No.: 0000000001
Product
Manual
Global Intelligent Platform
TYLC6E Datasheet
2

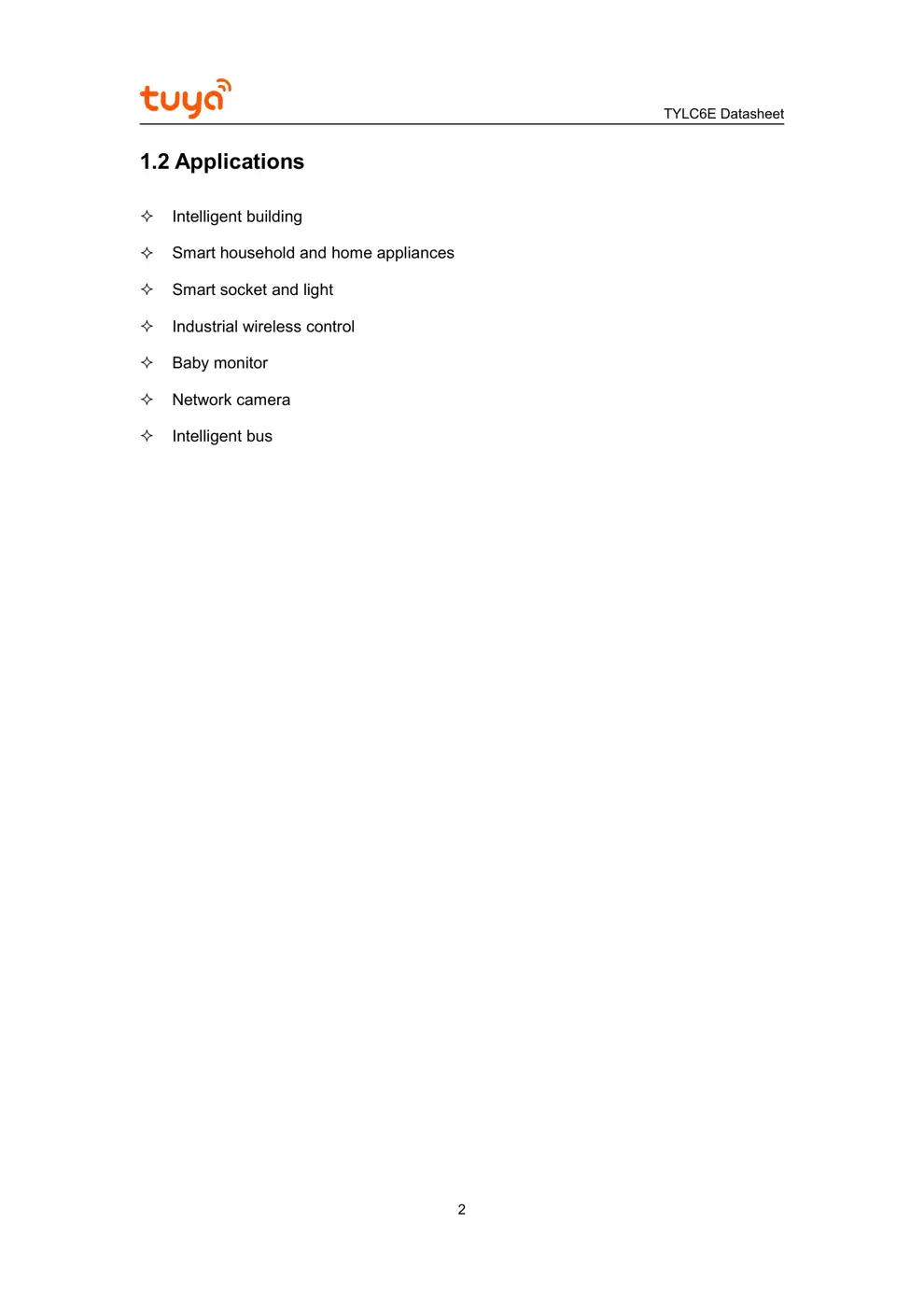

1.2 Applications
Intelligent building
Smart household and home appliances
Smart socket and light
Industrial wireless control
Baby monitor
Network camera
Intelligent bus
TYLC6E Datasheet
3

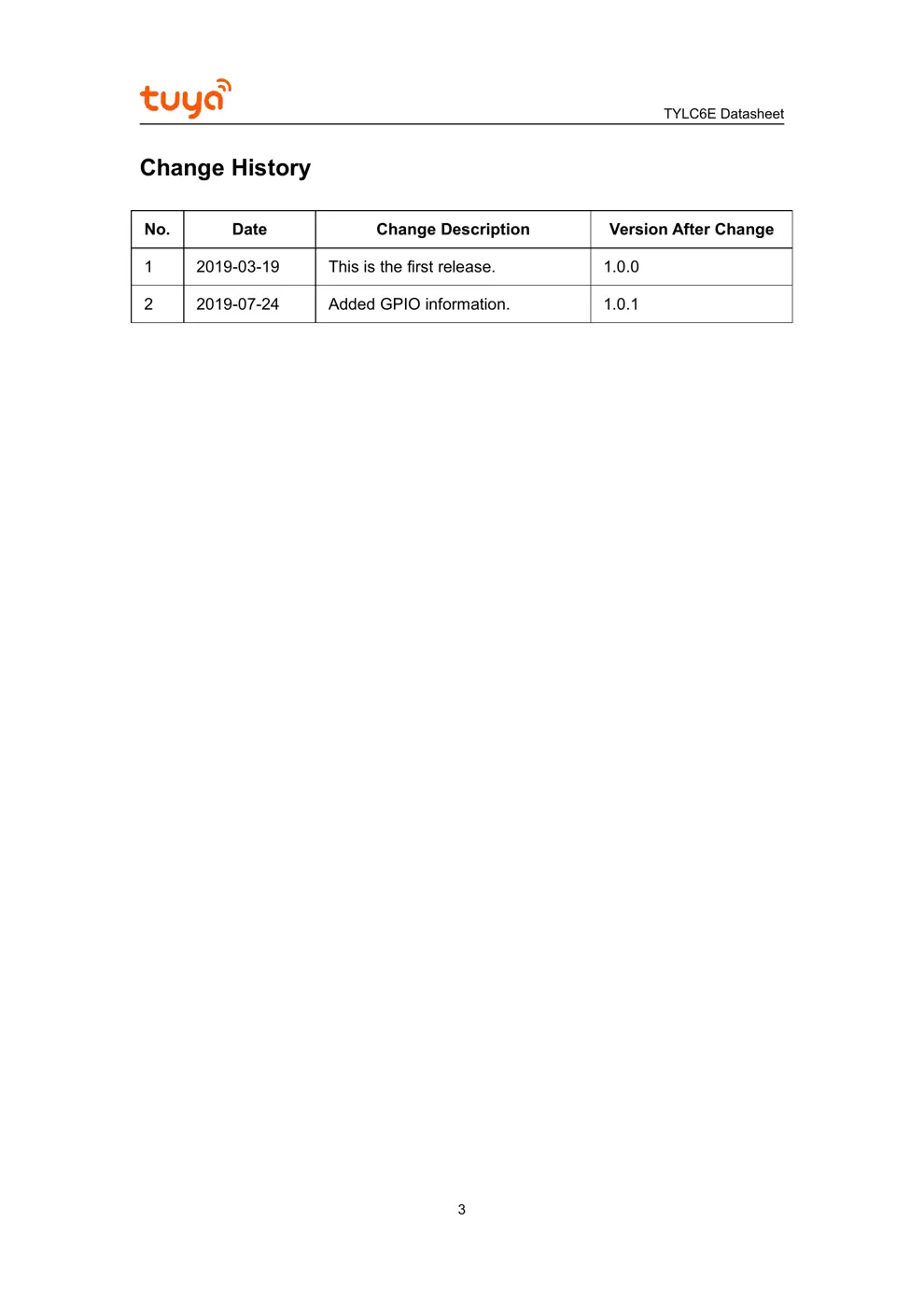

Change History
No. Date Change Description Version After Change
1 2019-03-19 This is the first release. 1.0.0
2 2019-07-24 Added GPIO information. 1.0.1
TYLC6E Datasheet
4
Contents
1. Product Overview........................................................................................................................ 1
1.1 Features.............................................................................................................................. 1
1.2 Applications........................................................................................................................ 2

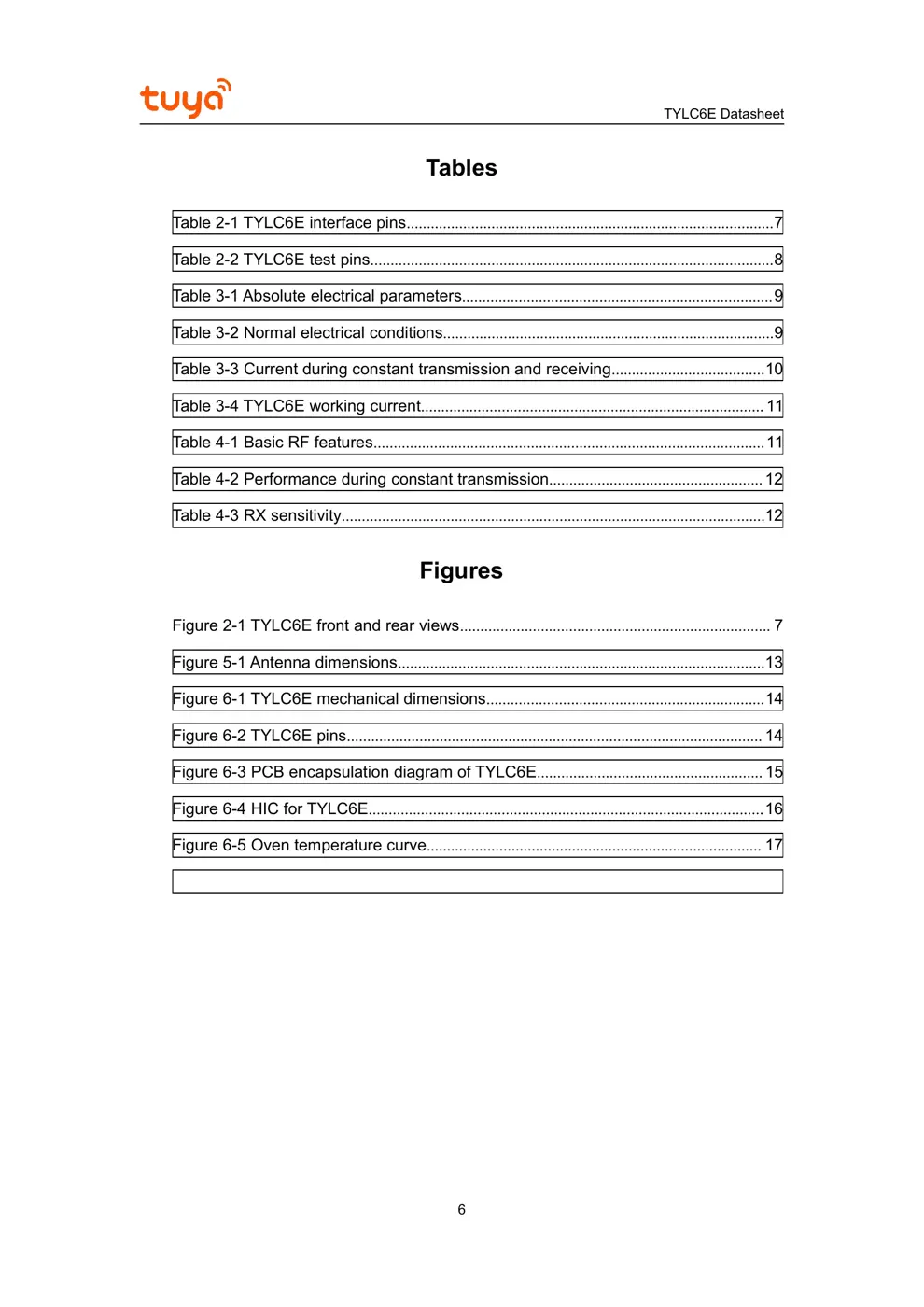

Tables......................................................................................................................................... 6
Figures....................................................................................................................................... 6
2. Module Interfaces........................................................................................................................ 7
2.1 Dimensions and Footprint................................................................................................ 7
2.2 Interface Pin Definition..................................................................................................... 7

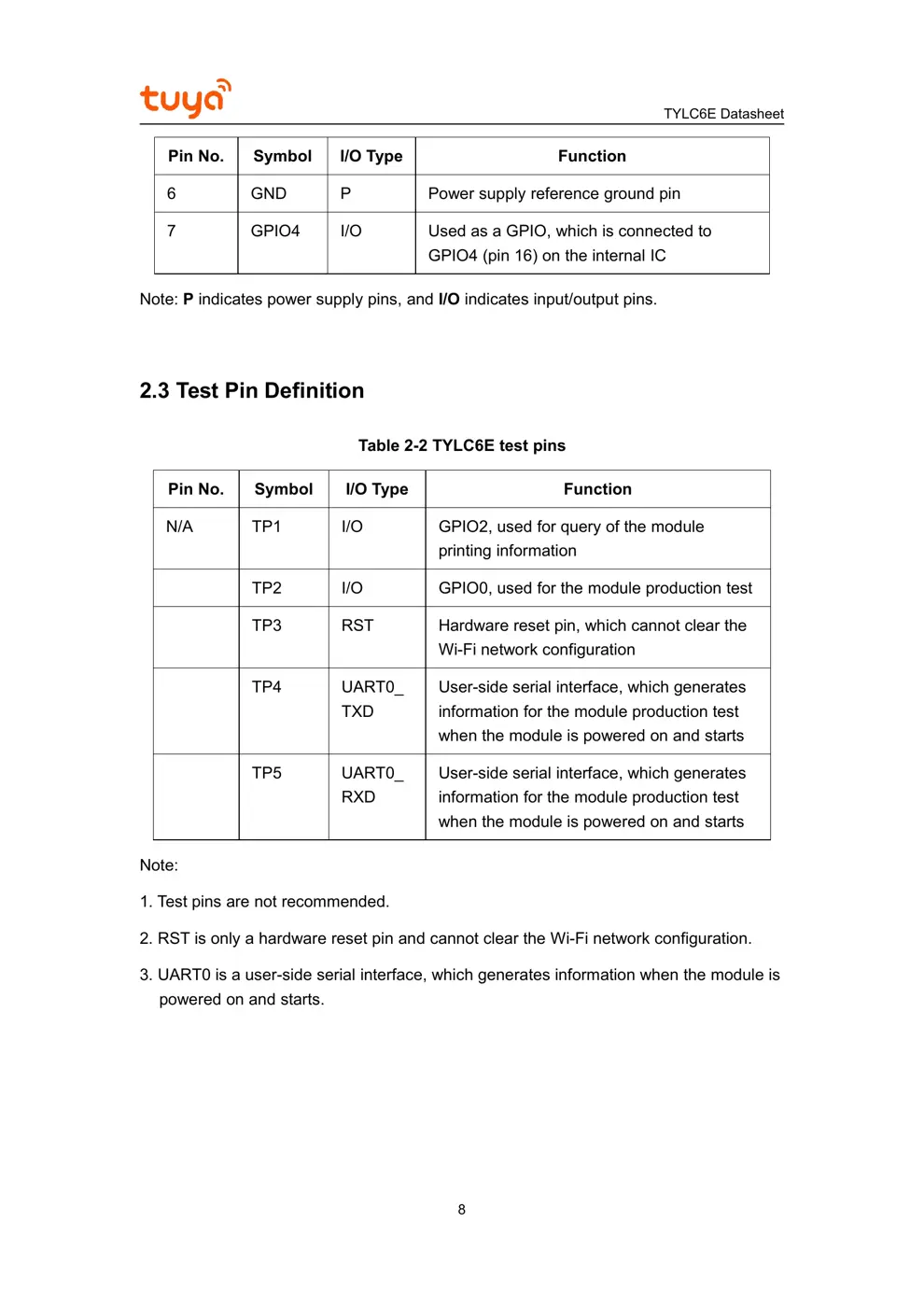

2.3 Test Pin Definition..............................................................................................................8

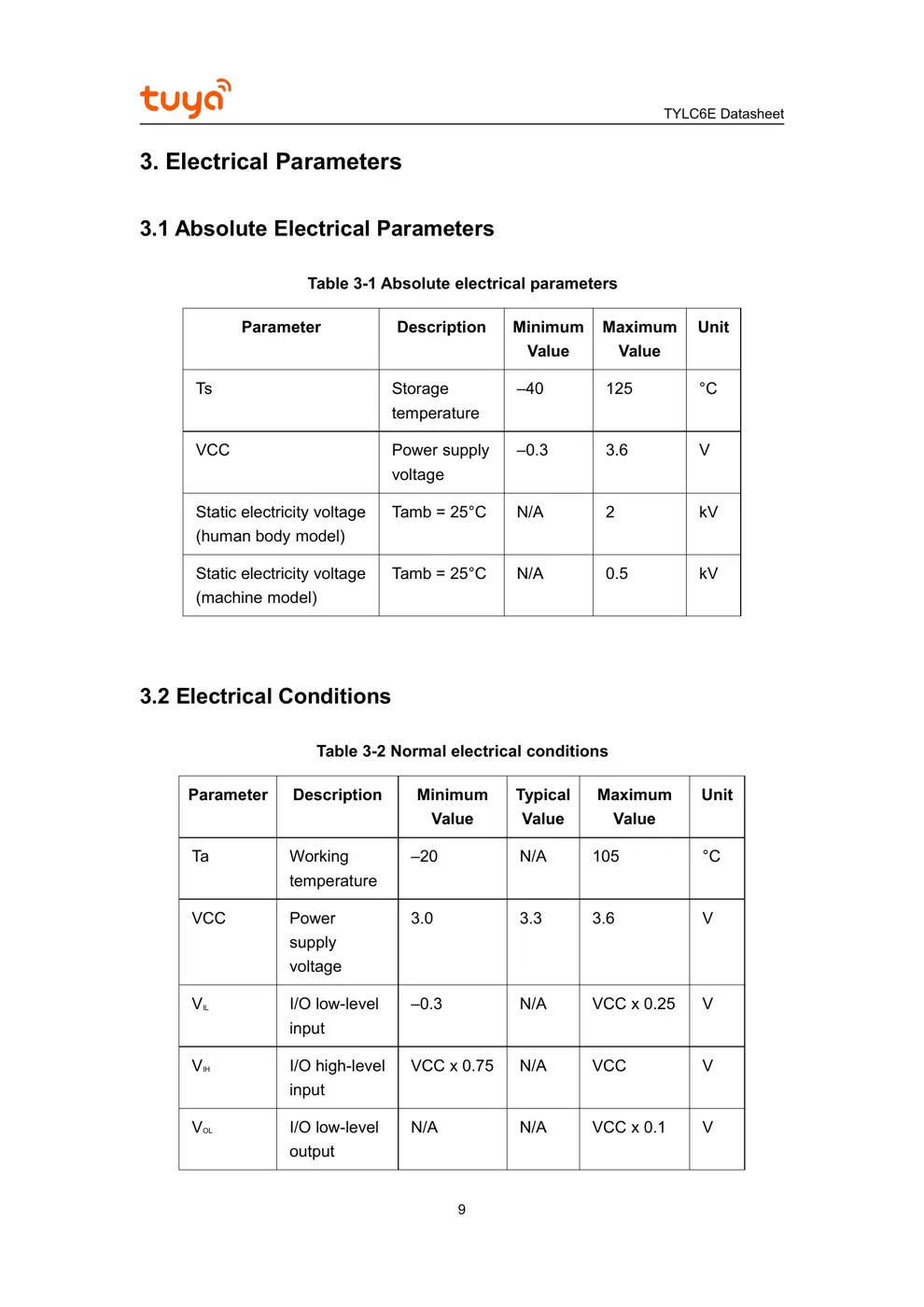

3. Electrical Parameters.................................................................................................................. 9
...
