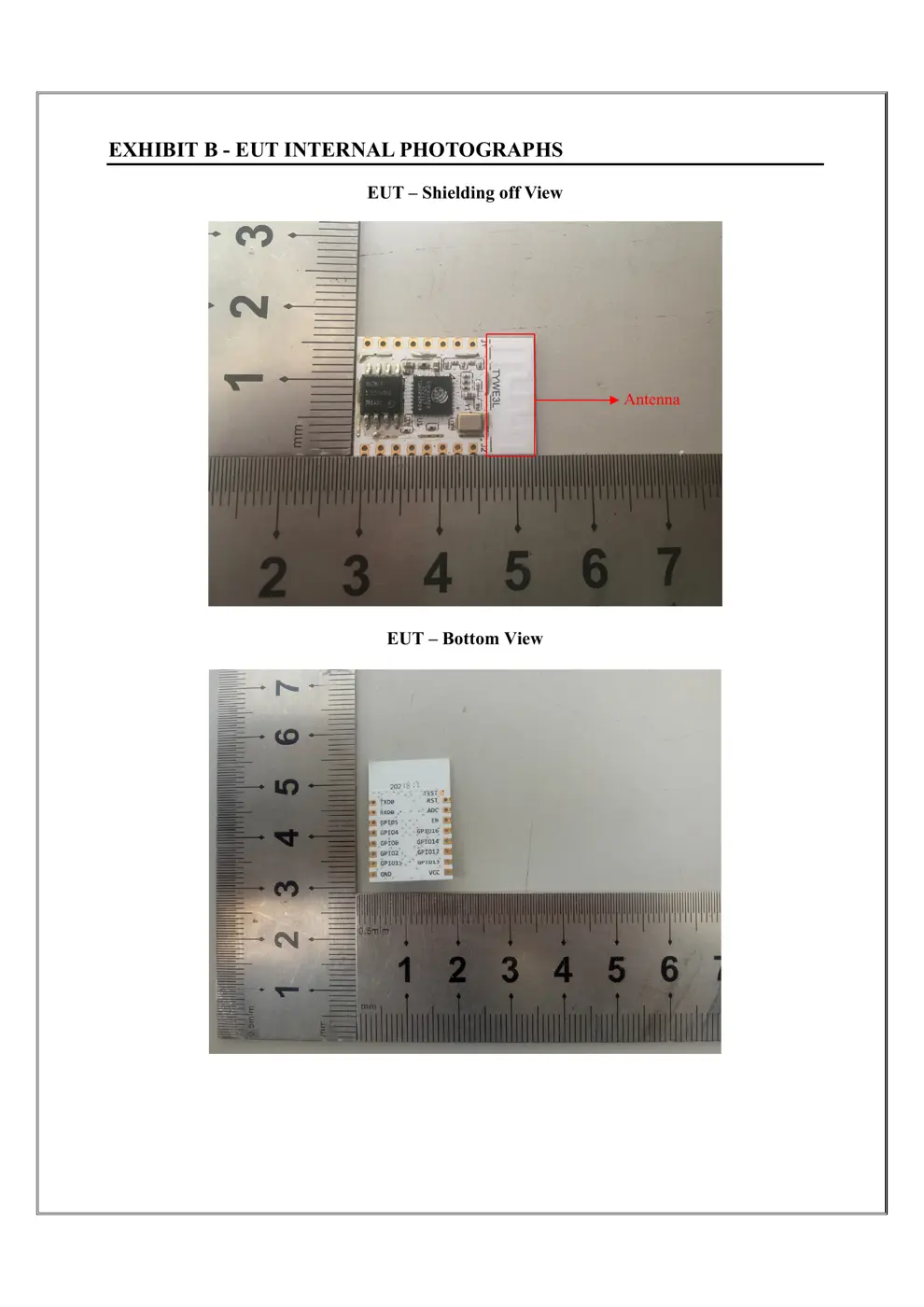

TYWE3L Reset & Teardown (FCC ID 2ANDL-TYWE3L)

TYWE3L DATASHEET
 Wi-Fi Module UserManual
1. Product Overview
TYWE3L is a low power consumption module with built-in Wi-Fi connectivity solution
designed by HangZhouTuya Information Technology Corporation. The Wi-Fi Module consists of
a highly integrated wireless radio chip ESP8266 and some extra component that has been
programed with Wi-Fi network protocol and plenty of software examples.TYWE3L include a 32-
bit CPU, 1M byte flash, 50k SRAM and various peripheral resources.
TYWE3L is a RTOS platform, embedded with all the Wi-Fi MAC and TCP/IP protocol
function examples, users can customize their Wi-Fi product by using these software examples.

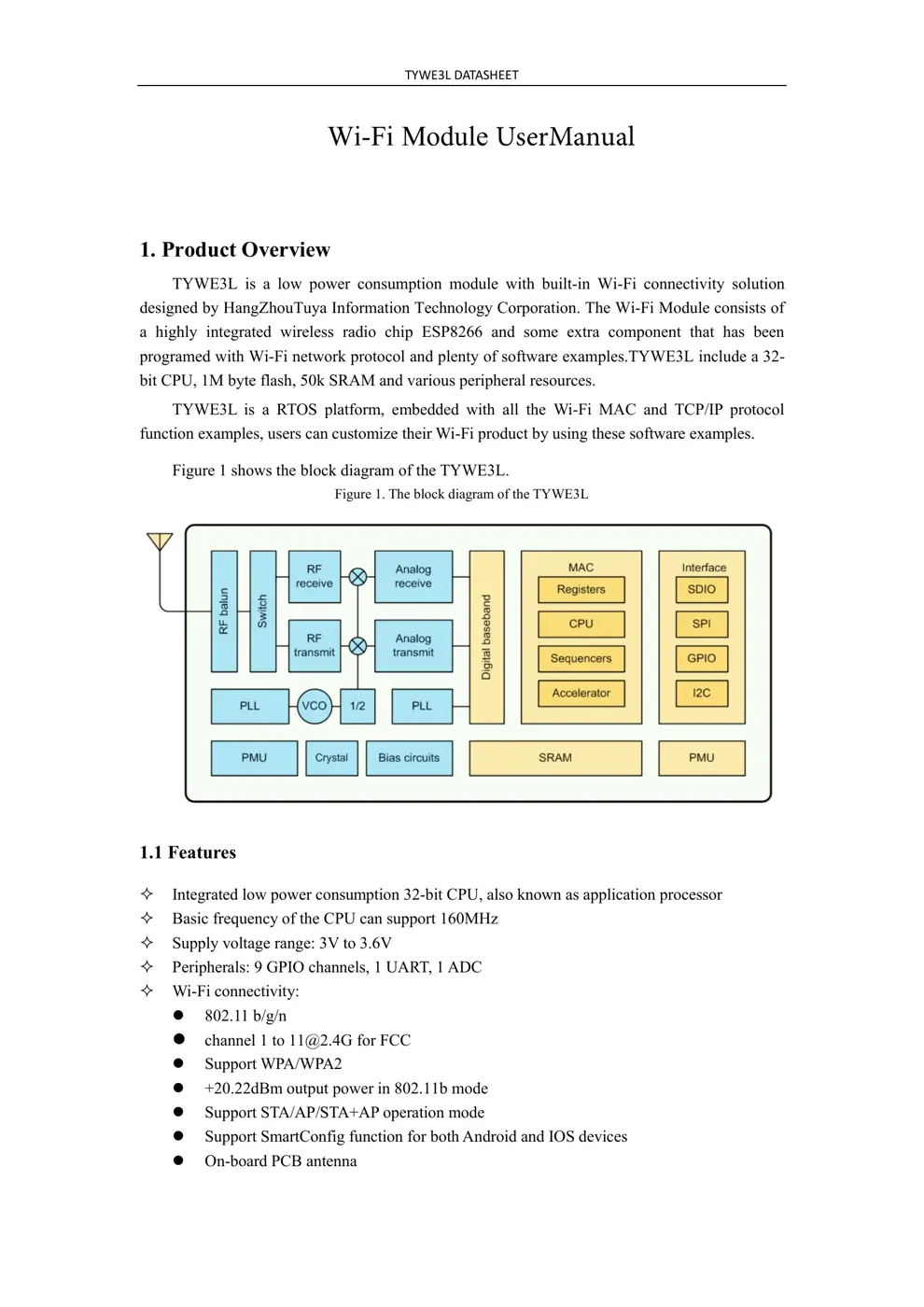

Figure 1 shows the block diagram of the TYWE3L.
Figure 1. The block diagram of the TYWE3L
1.1 Features
 Integrated low power consumption 32-bit CPU, also known as application processor
 Basic frequency of the CPU can support 160MHz

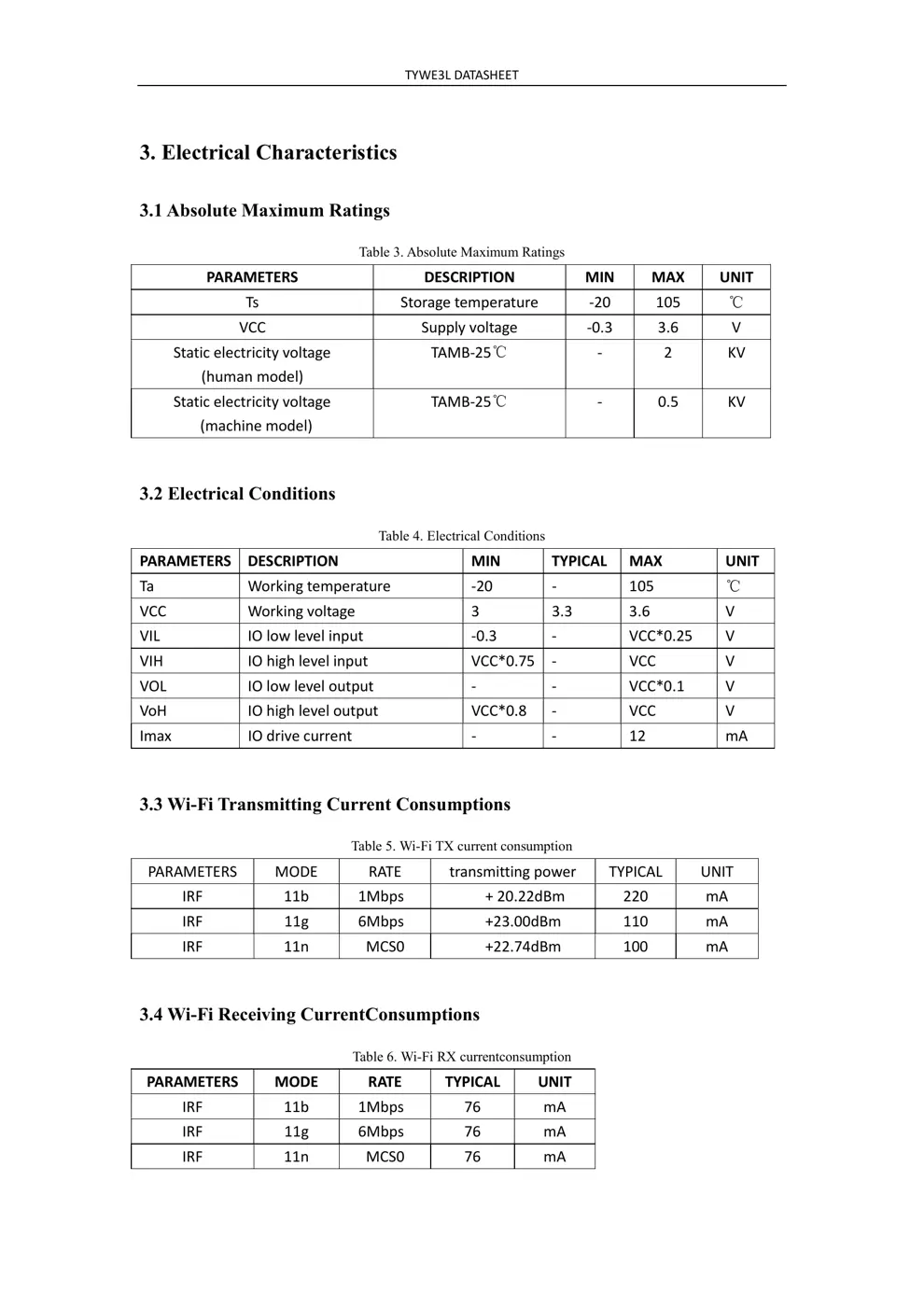

 Supply voltage range: 3V to 3.6V
 Peripherals: 9 GPIO channels, 1 UART, 1 ADC

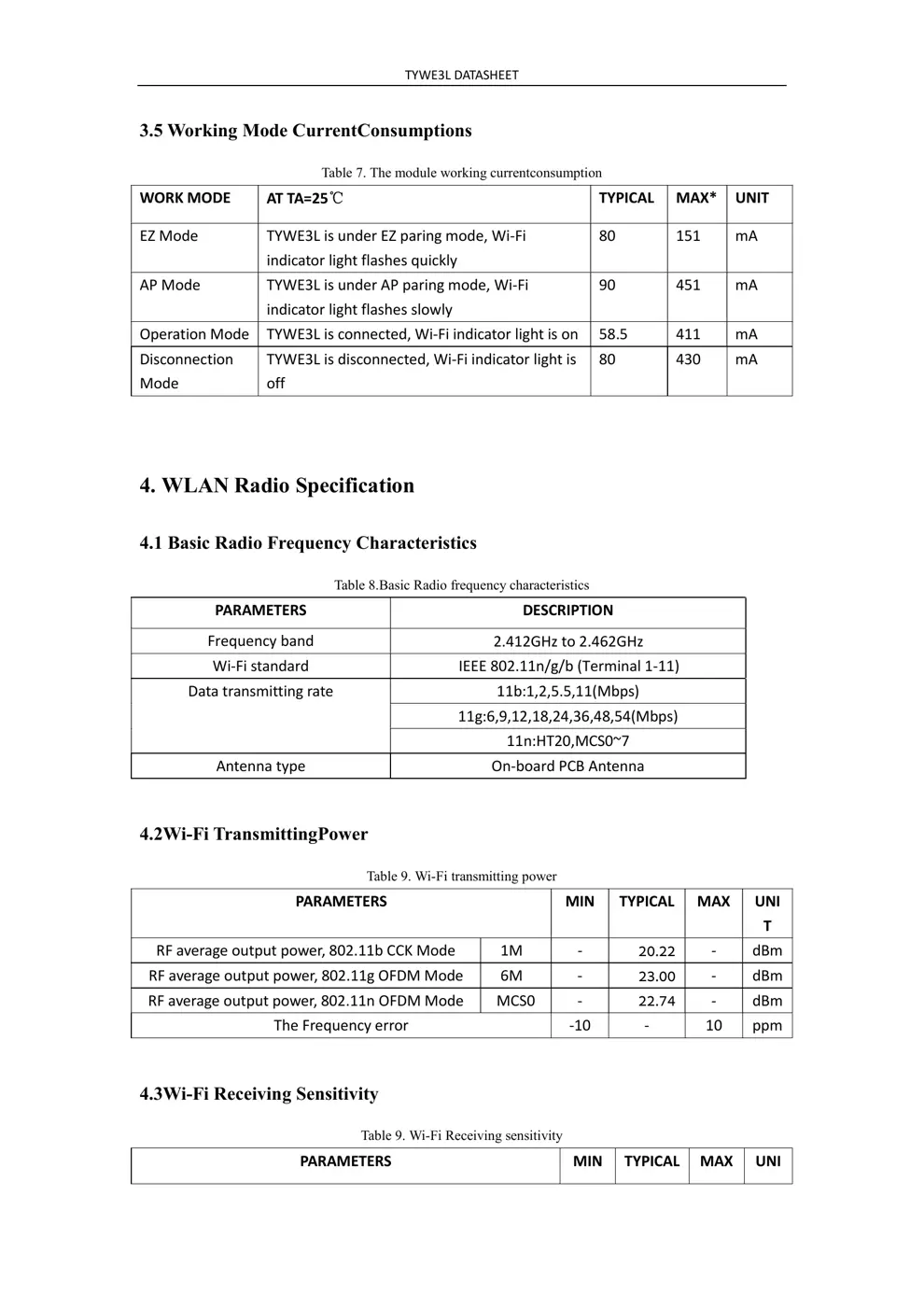

 Wi-Fi connectivity:

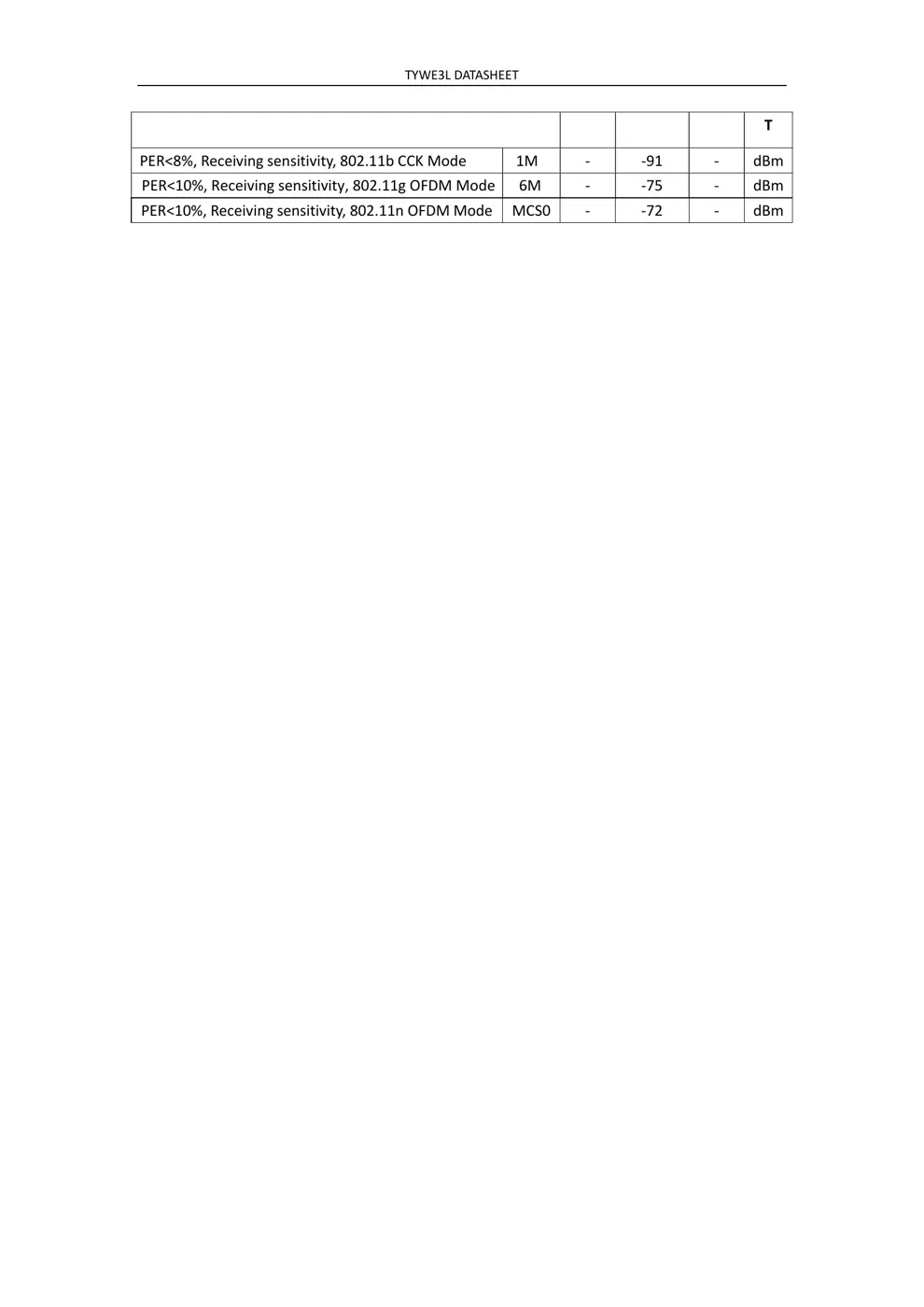

 802.11 b/g/n
 channel 1 to [email protected] for FCC
 Support WPA/WPA2
 +20.22dBm output power in 802.11b mode
 Support STA/AP/STA+AP operation mode
 Support SmartConfig function for both Android and IOS devices

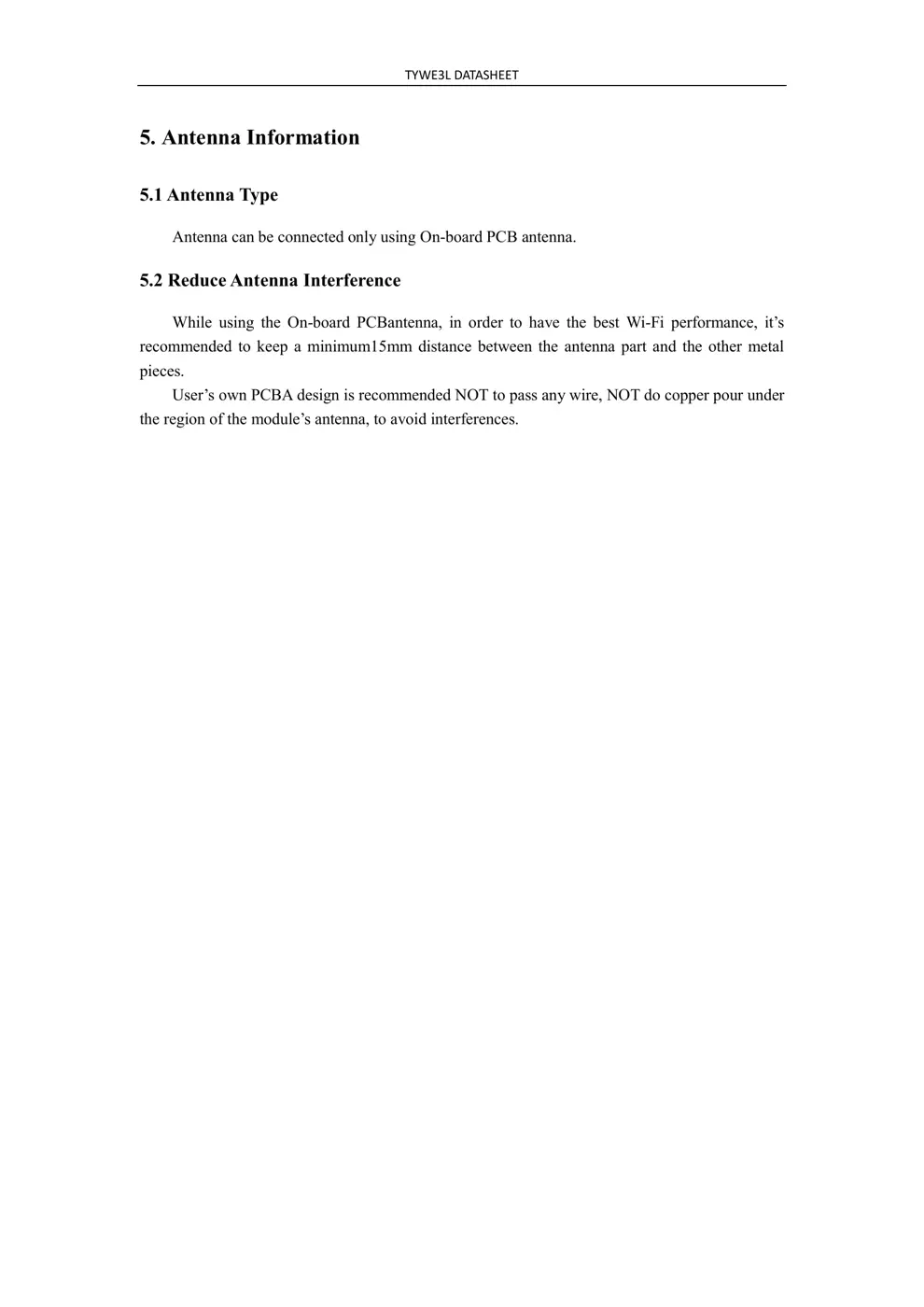

 On-board PCB antenna

TYWE3L DATASHEET
 Operating temperature range: -20℃ to 105 ℃
1.2 Main ApplicationFields
 Intelligent Building
 Intelligent home, Intelligent household applications
 Health care
 Industrial wireless control
 Baby monitor
 Webcam
 Intelligent bus

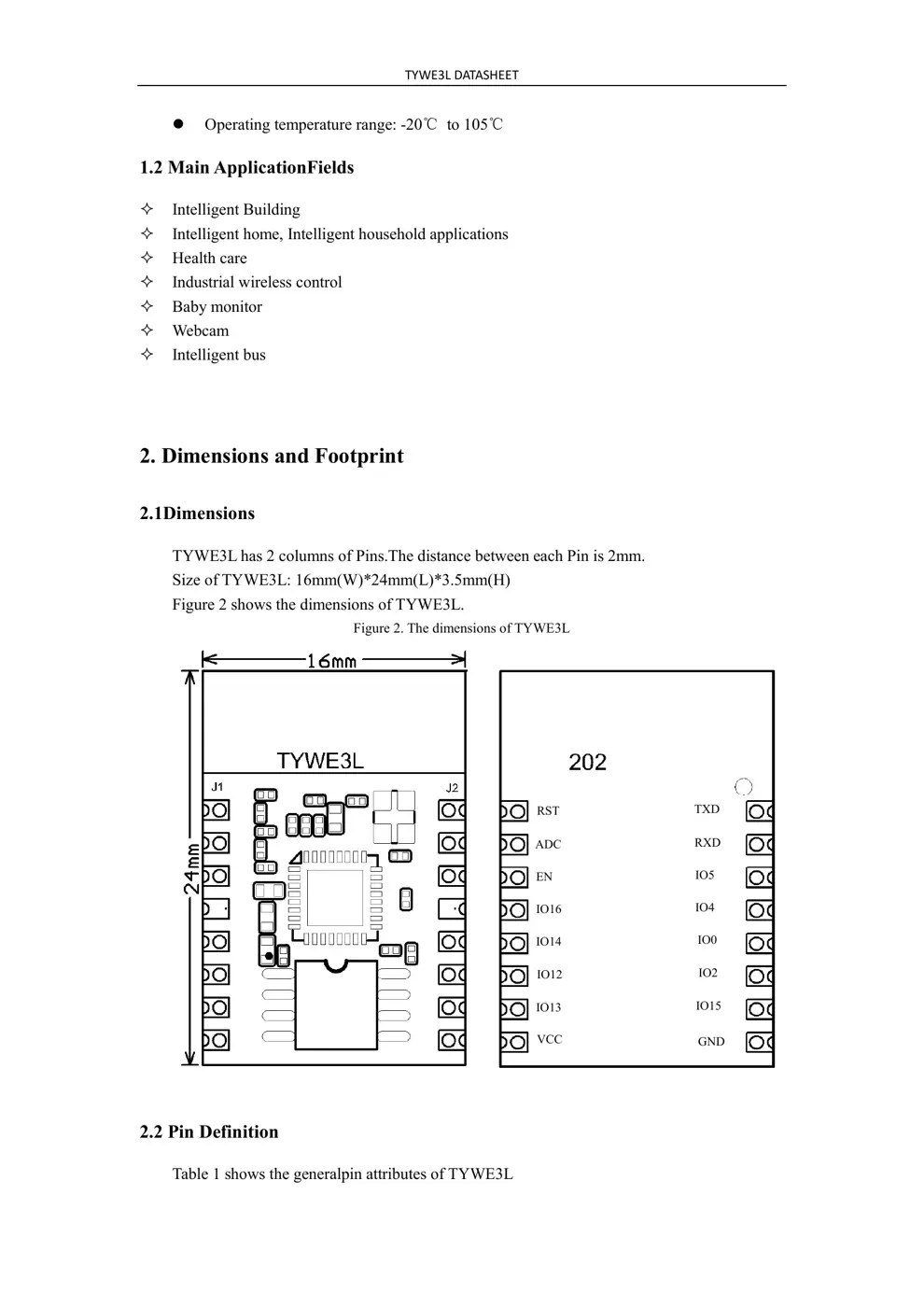

2. Dimensions and Footprint
2.1Dimensions
TYWE3L has 2 columns of Pins.The distance between each Pin is 2mm.
Size of TYWE3L: 16mm(W)*24mm(L)*3.5mm(H)

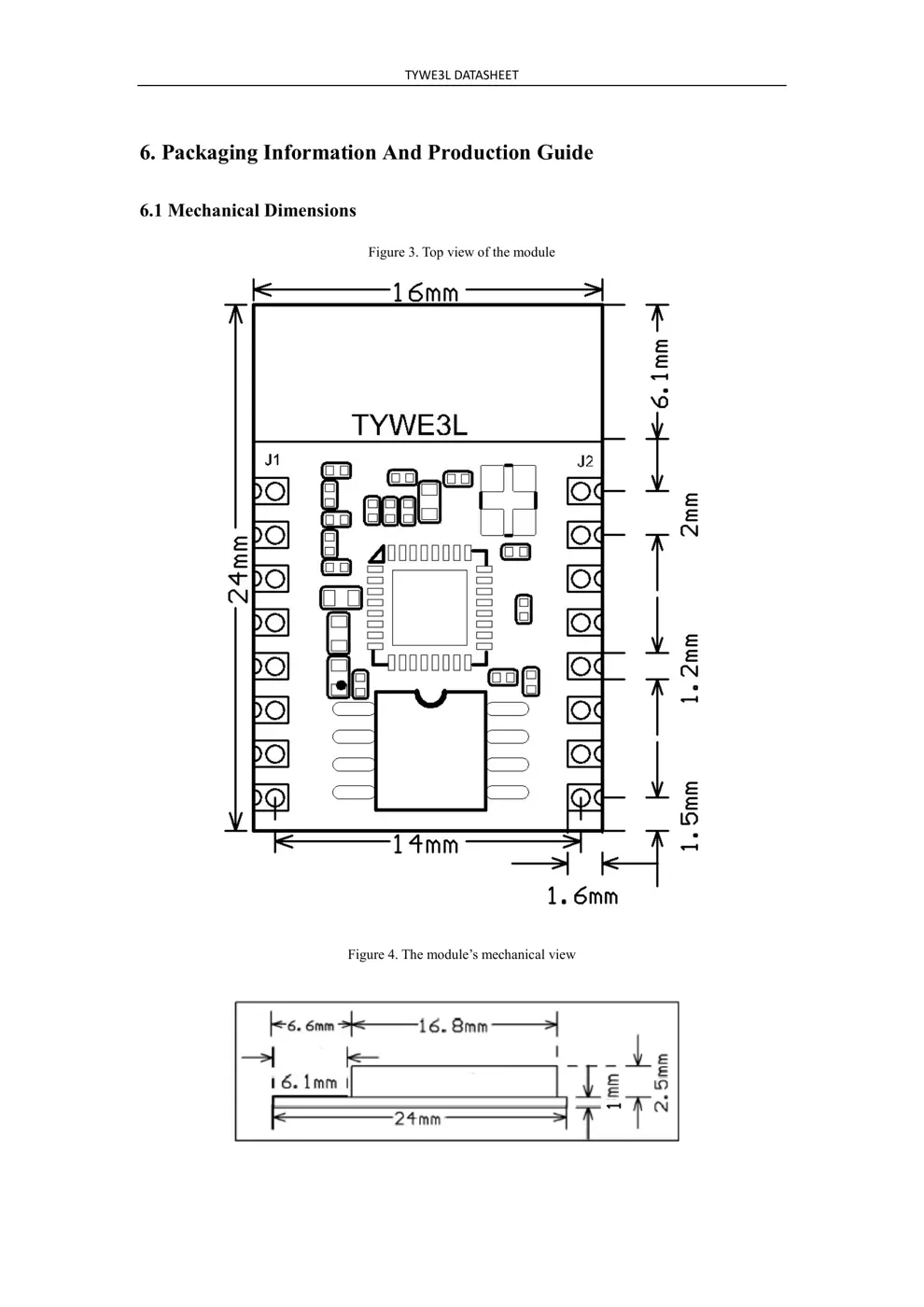

Figure 2 shows the dimensions of TYWE3L.
Figure 2. The dimensions of TYWE3L

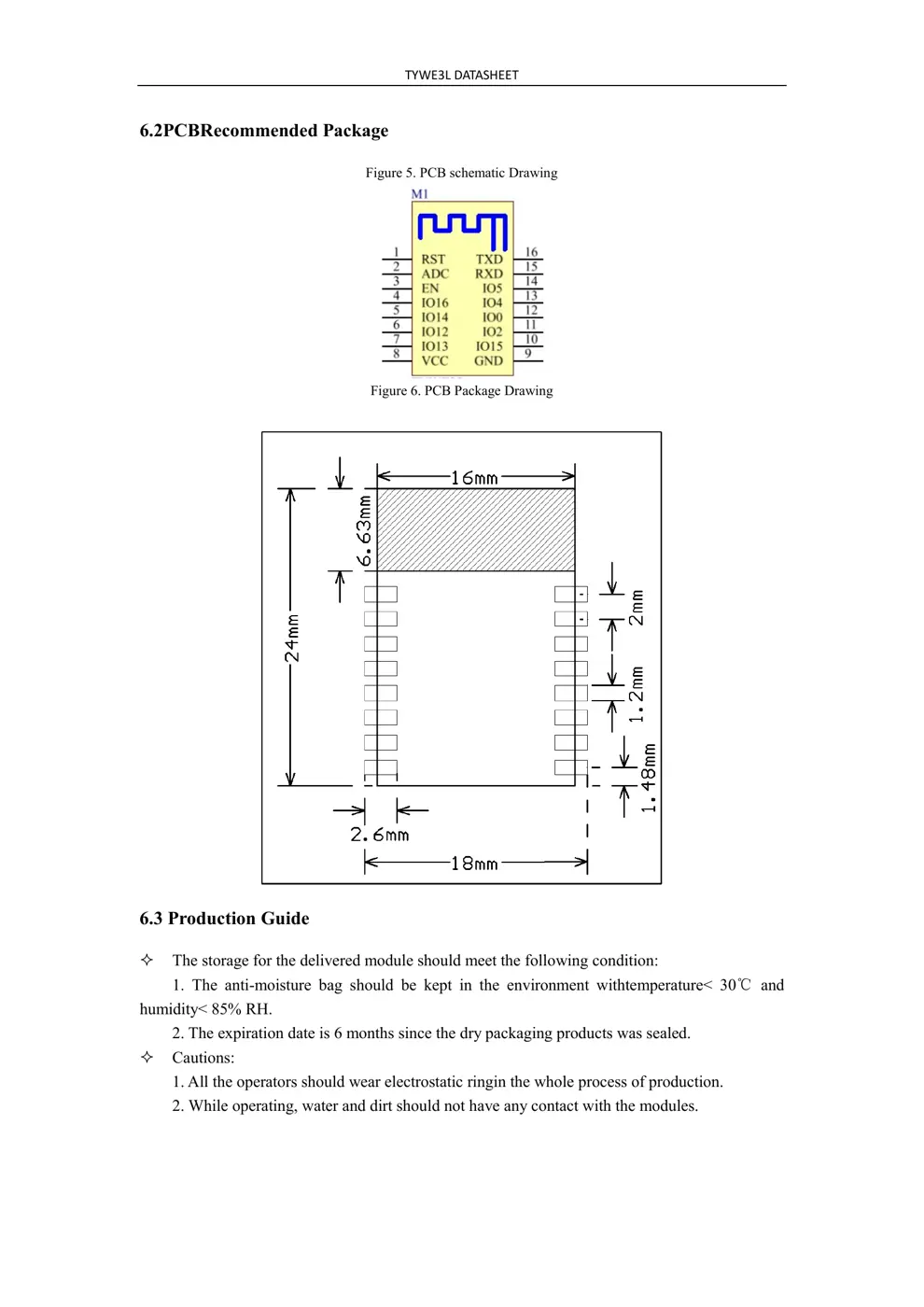

2.2 Pin Definition
Table 1 shows the generalpin attributes of TYWE3L
RST
ADC
EN
IO16
IO14
IO12
IO13
VCC GND
IO15
IO2
IO0
IO4
IO5
RXD
TXD
TYWE3L DATASHEET

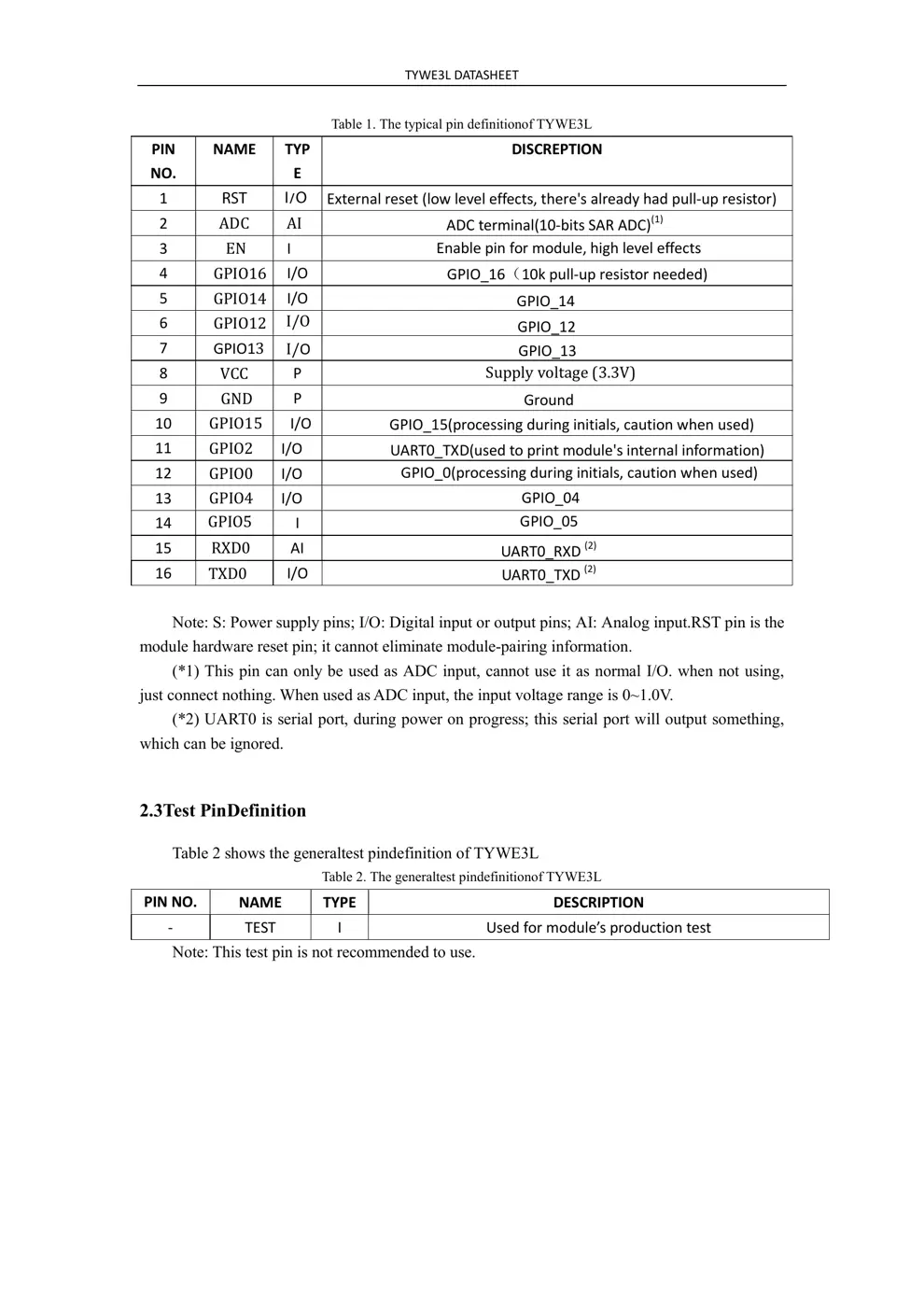

Table 1. The typical pin definitionof TYWE3L
PIN
NO.
NAME TYP
E
DISCREPTION
1 RST I/O
2 ADC AI
3 EN I
GPIO_05
4 GPIO16 I/O
GPIO_04
5 GPIO14 I/O
GPIO_0(processing during initials, caution when used)
6 GPIO12 I/O
UART0_TXD(used to print module's internal information)
7 GPIO13 I/O
GPIO_15(processing during initials, caution when used)
8 VCC P Supply voltage (3.3V)
9 GND P
10 GPIO15 I/O
GPIO_13
11 GPIO2 I/O
GPIO_12
12 GPIO0 I/O
GPIO_14
13 GPIO4 I/O
14 GPIO5 I
Enable pin for module, high level effects
15 RXD0 AI
ADC terminal(10-bits SAR ADC)(1)
16 TXD0 I/O
External reset (low level effects, there's already had pull-up resistor)
Note: S: Power supply pins; I/O: Digital input or output pins; AI: Analog input.RST pin is the
module hardware reset pin; it cannot eliminate module-pairing information.
(*1) This pin can only be used as ADC input, cannot use it as normal I/O. when not using,
just connect nothing. When used as ADC input, the input voltage range is 0~1.0V .
(*2) UART0 is serial port, during power on progress; this serial port will output something,
which can be ignored.

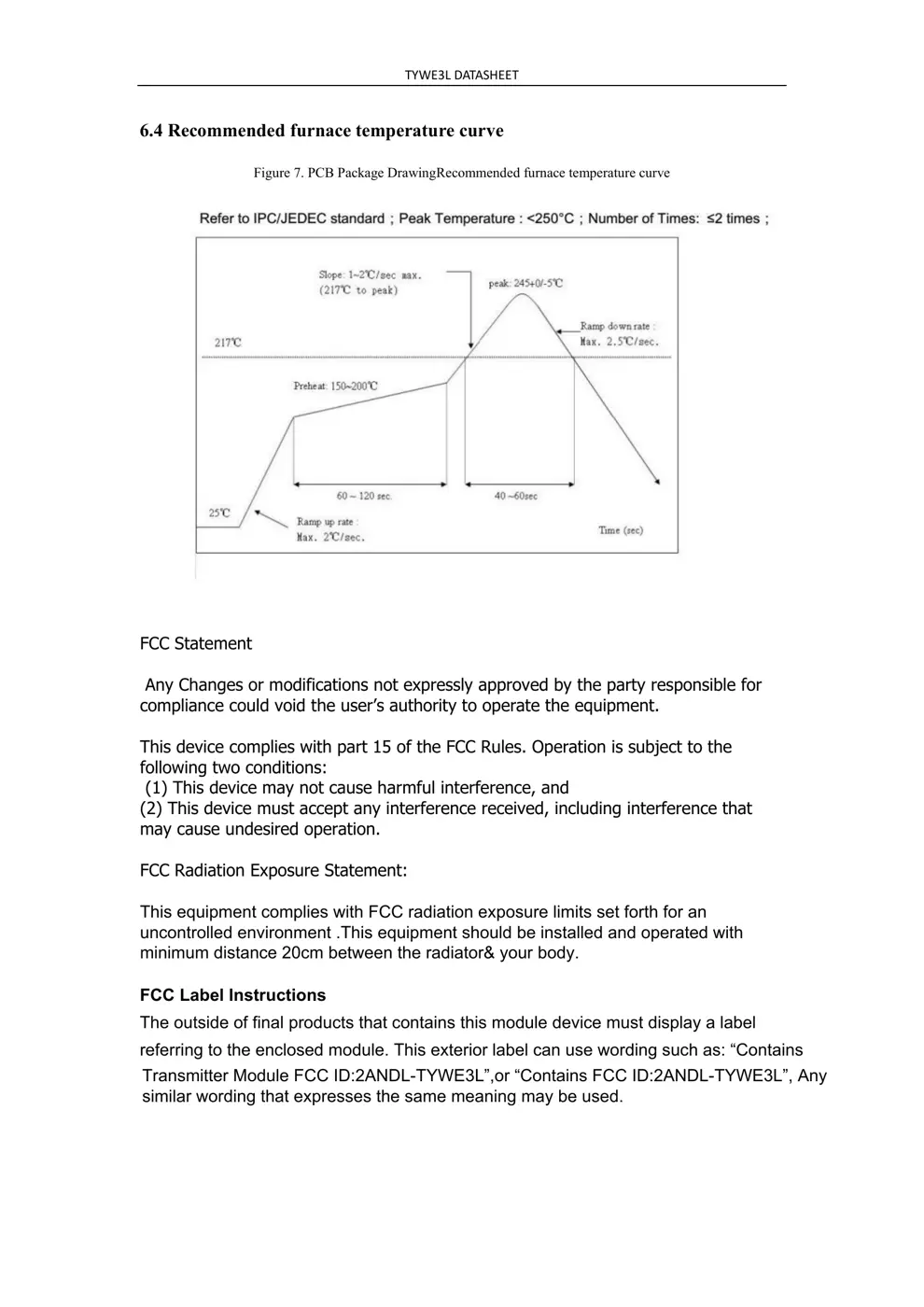

2.3Test PinDefiniti...
