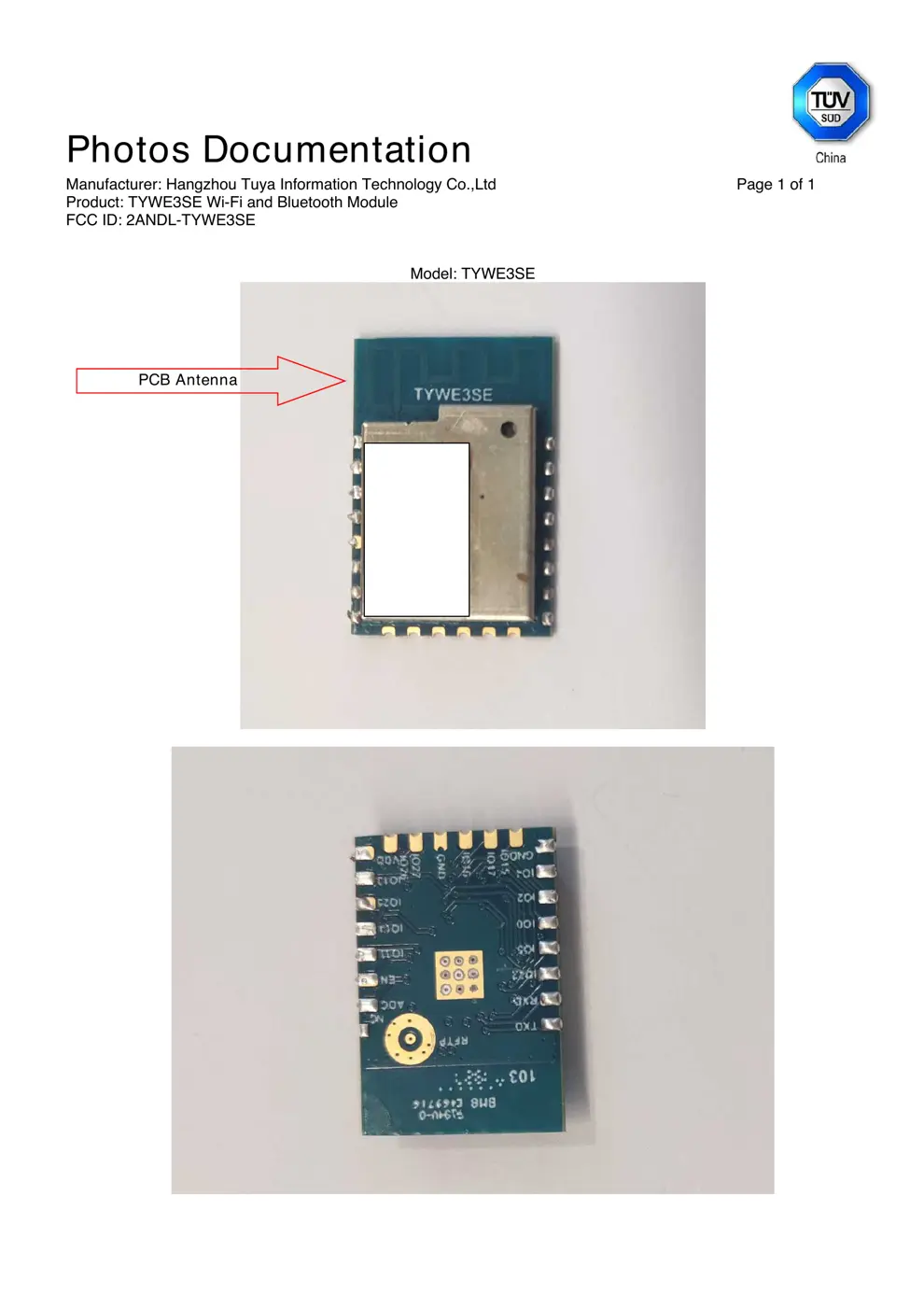

TYWE3SE Reset & Teardown (FCC ID 2ANDL-TYWE3SE)

TYWE3SE Datasheet
1
1. Product Overview

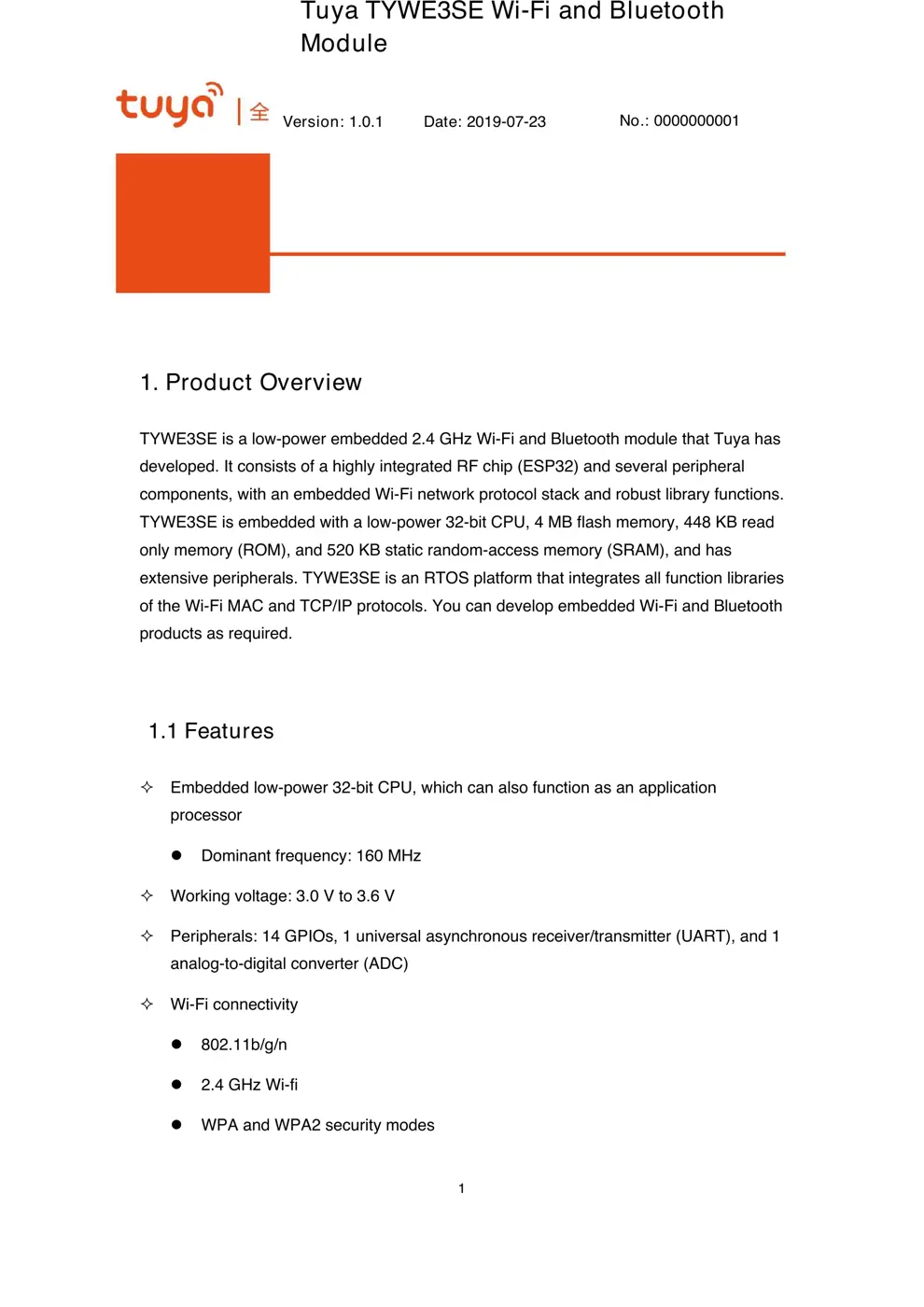

TYWE3SE is a low-power embedded 2.4 GHz Wi-Fi and Bluetooth module that Tuya has
developed. It consists of a highly integrated RF chip (ESP32) and several peripheral
components, with an embedded Wi-Fi network protocol stack and robust library functions.
TYWE3SE is embedded with a low-power 32-bit CPU, 4 MB flash memory, 448 KB read
only memory (ROM), and 520 KB static random-access memory (SRAM), and has
extensive peripherals. TYWE3SE is an RTOS platform that integrates all function libraries
of the Wi-Fi MAC and TCP/IP protocols. You can develop embedded Wi-Fi and Bluetooth
products as required.
1.1 Features
Embedded low-power 32-bit CPU, which can also function as an application
processor
Dominant frequency: 160 MHz
Working voltage: 3.0 V to 3.6 V
Peripherals: 14 GPIOs, 1 universal asynchronous receiver/transmitter (UART), and 1
analog-to-digital converter (ADC)
Wi-Fi connectivity
802.11b/g/n
2.4 GHz Wi-fi
WPA and WPA2 security modes
Tuya TYWE3SE Wi-Fi and Bluetooth
Module
Version: 1.0.1 Date: 2019-07-23 No.: 0000000001
Product
Manual
Global Intelligent Platform
TYWE3SE Datasheet
2
Up to +20 dBm output power in 802.11b mode
Smart and AP network configuration modes for Android and iOS devices
Onboard PCB antenna with a gain of 2.5 dBi
Working temperature: –20°C to +85°C
Bluetooth connectivity
Complete Bluetooth 4.2 standards: Bluetooth Basic Rate/Enhanced Data Rate
(BR/EDR) and Bluetooth Low Energy (BLE)
Class 1, Class 2, and Class 3 standards, requiring no external power amplifiers
Up to +9 dBm output power
Zero-IF receiver: –92 dBm BLE RX sensitivity
Adaptive frequency hopping (AFH)
Connections with multiple traditional Bluetooth and BLE devices
Simultaneous broadcasting and scanning
1.2 Applications
Intelligent building
Smart household and home appliances
Smart socket and light
Industrial wireless control
Baby monitor
Network camera
Intelligent bus
TYWE3SE Datasheet
3

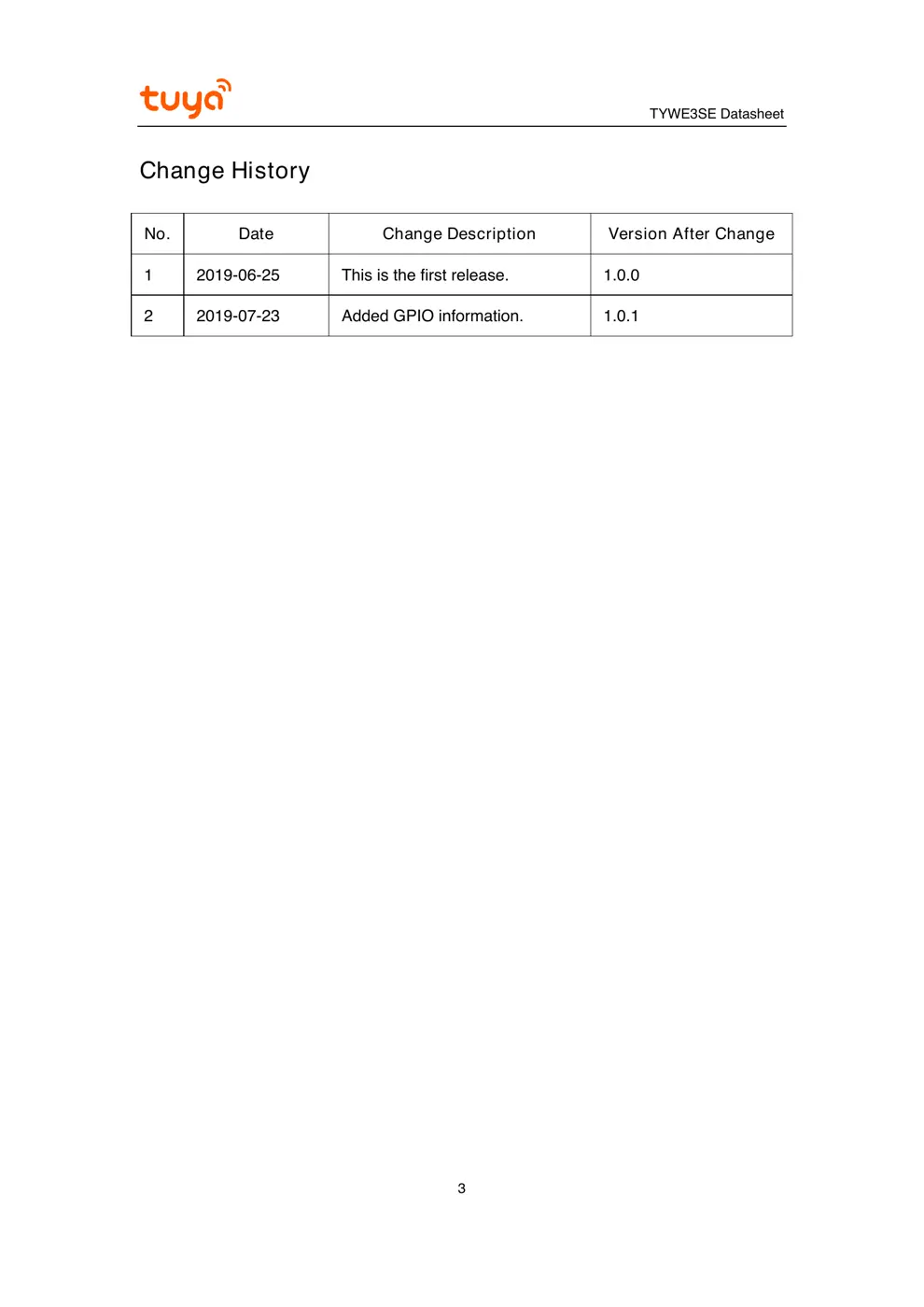

Change History
No. Date Change Description Version After Change
1 2019-06-25 This is the first release. 1.0.0
2 2019-07-23 Added GPIO information. 1.0.1
