TY
ZS2DATASHEET

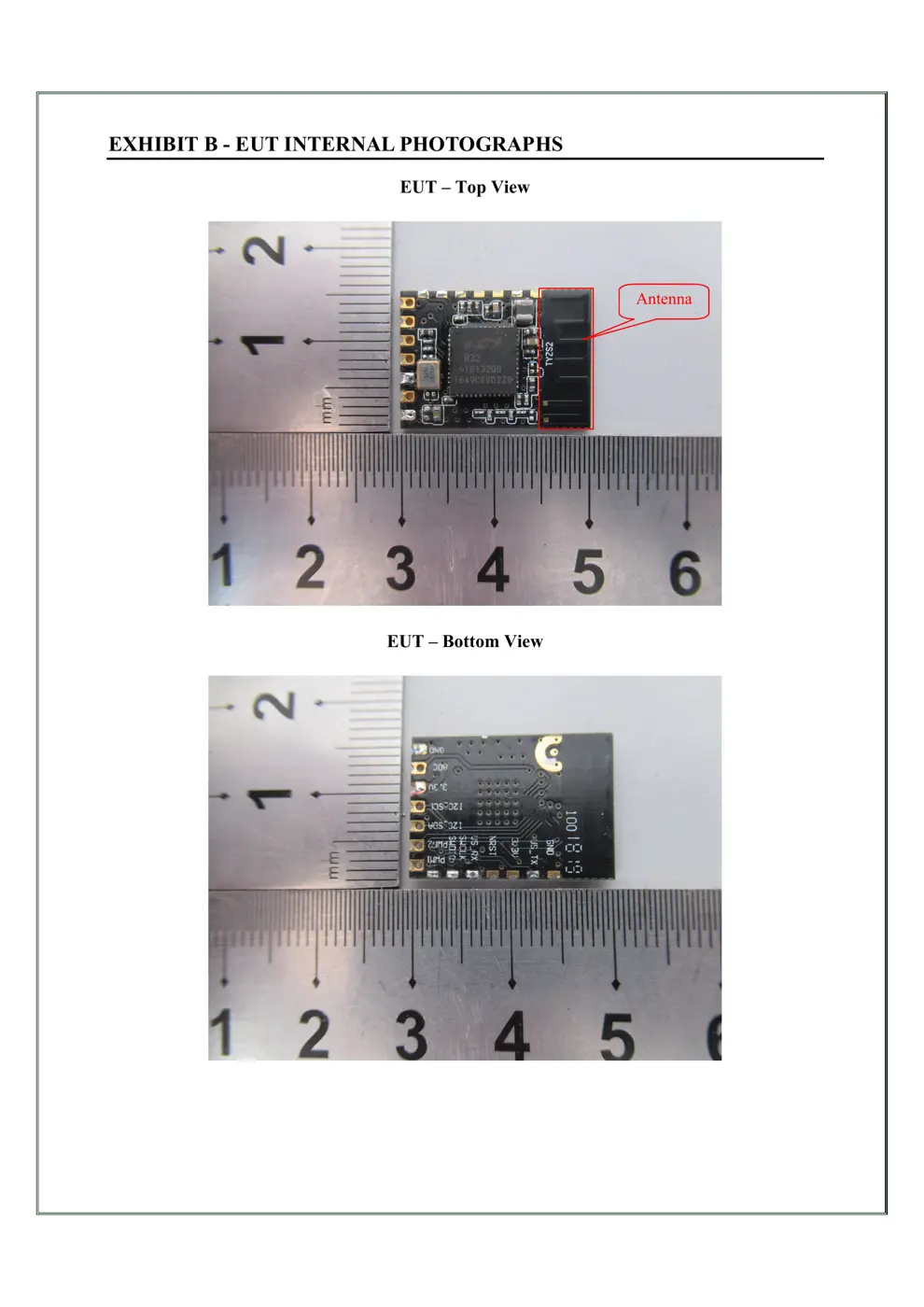

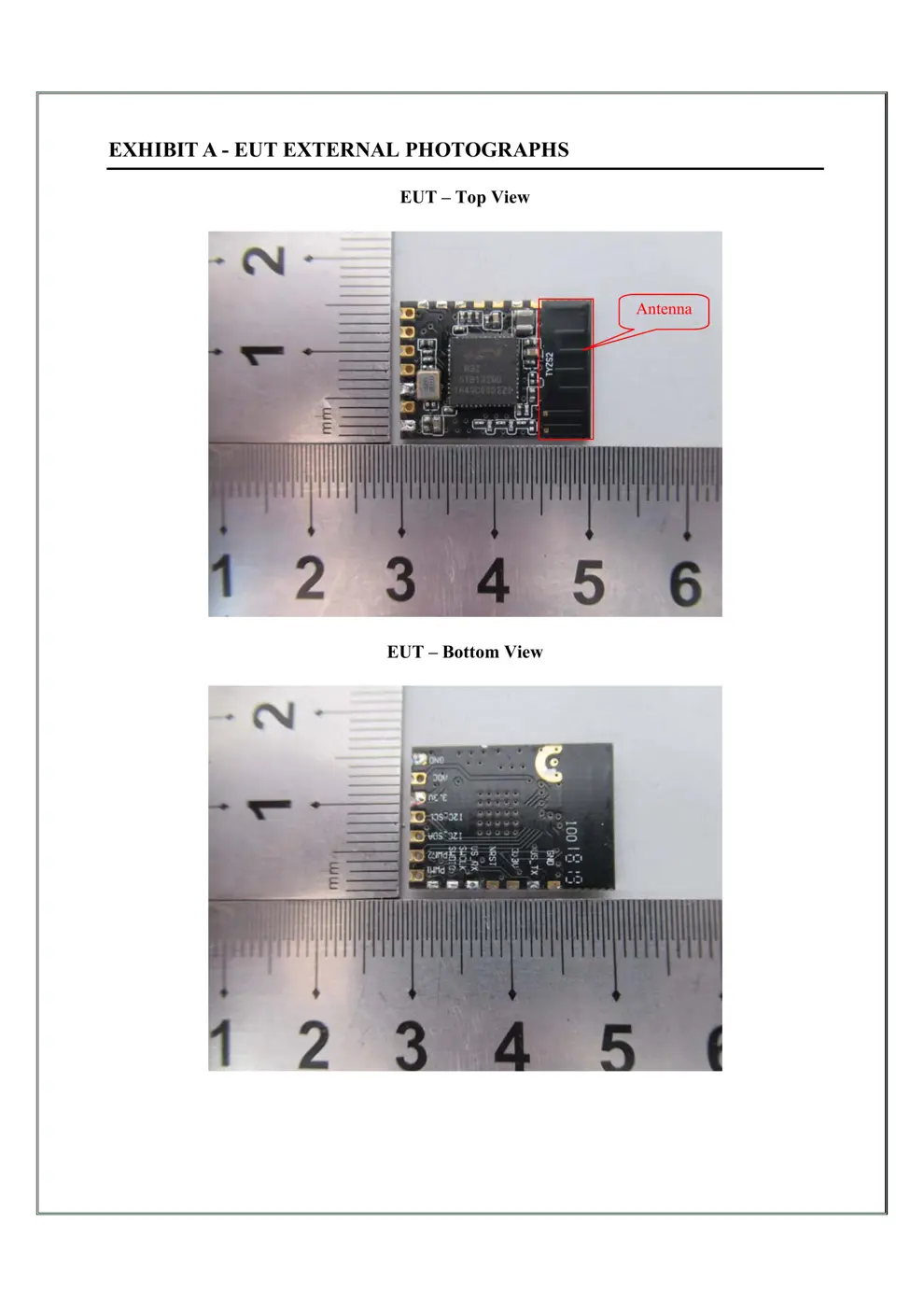

Tuya Smart Zigbee Module

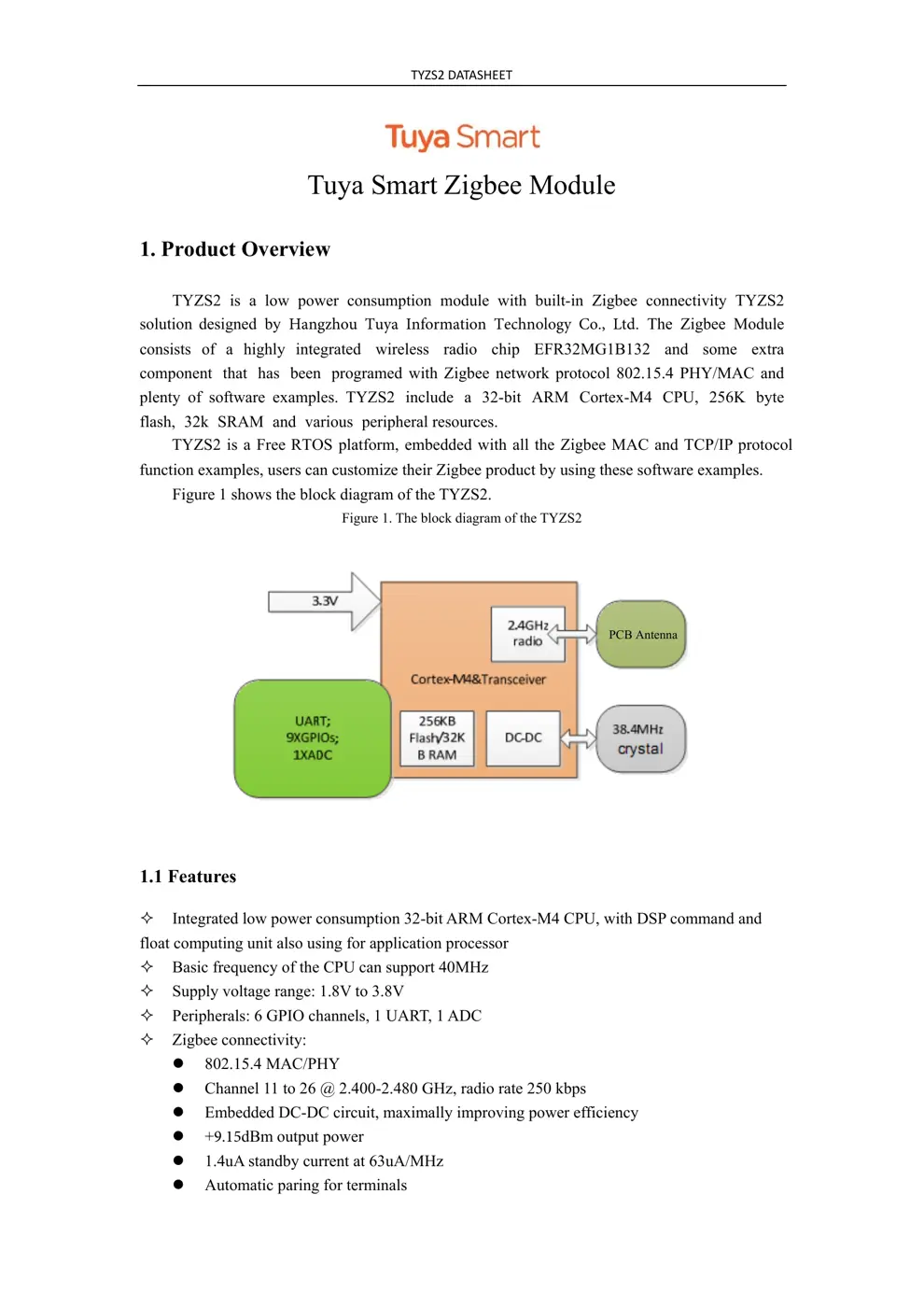

1. Product Overview
TYZS2 is a low power co nsumption module with built-in Zigbee connectiv ity TYZS2
solution designed by Hangzhou Tuya Information Technology Co., Ltd. The Zig bee Module

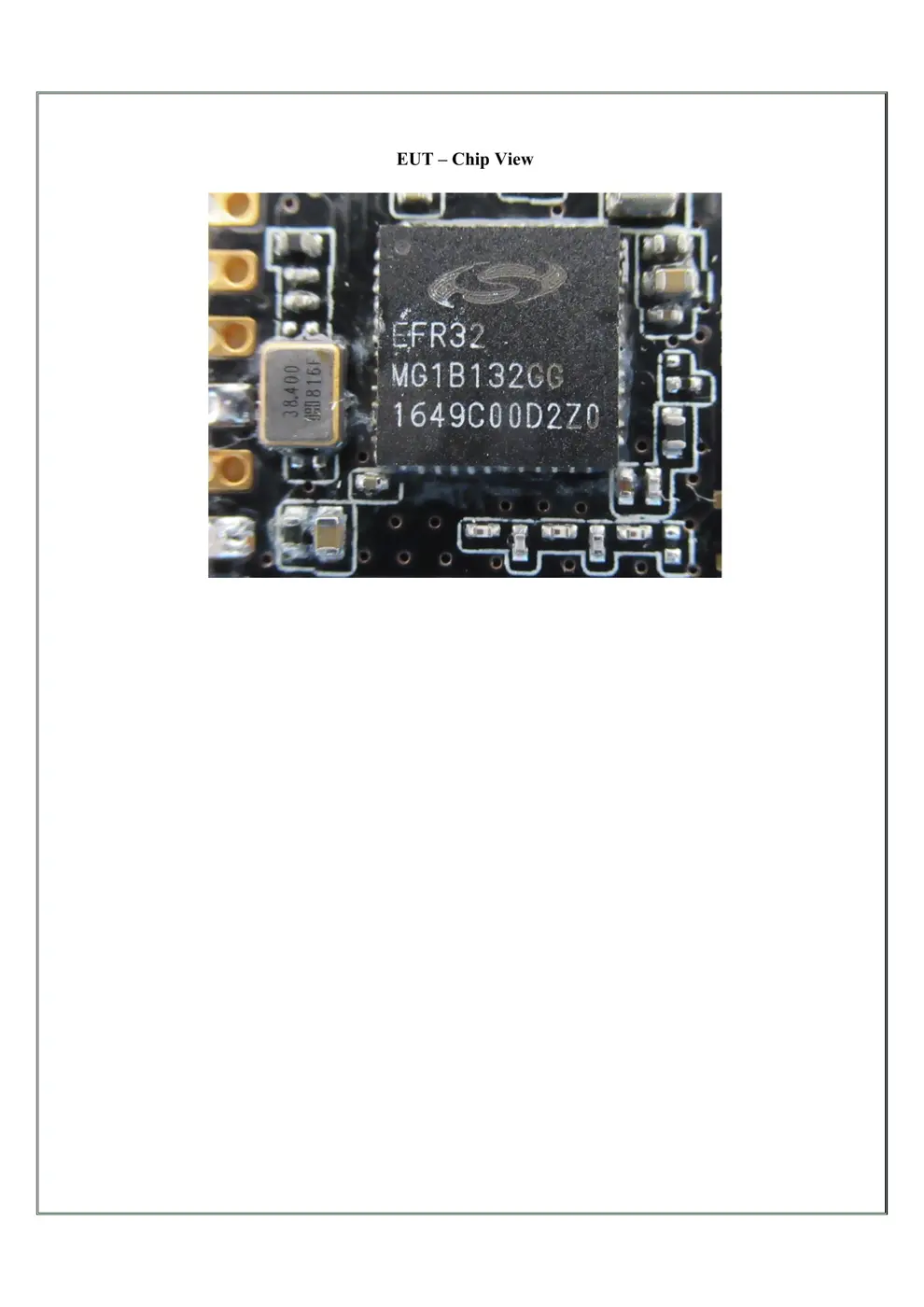

consists of a highly integrated wireless radio chip EFR32MG1 B132 and some extra
component that has been programed with Zigbee network protocol 802.15.4 PHY/MAC and
plenty of software examples. TYZS2 include a 32-bit ARM Cortex-M4 CPU, 2 56K b yte
flash, 32k SRAM and various peripheral resources.
TYZS2 is a Free RTOS platform, embedded with all the Zigbee MAC and TCP/IP protocol
function examples, users can customize their Zigbee product by using these software examples.
Figure 1 shows the block diagram of the TYZS2.
Figure 1. The block diagram of the TYZS2
1.1 Features
 Integrated low power consumption 32-bit ARM Cortex-M4 CPU, with DSP command and
float computing unit also using for application processor
 Basic frequency of the CPU can support 40MHz
 Supply voltage range: 1.8V to 3.8V
 Peripherals: 6 GPIO channels, 1 UART, 1 ADC
 Zigbee connectivity:
 802.15.4 MAC/PHY
 Channel 11 to 26 @ 2.400-2.480 GHz, radio rate 250 kbps
 Embedded DC-DC circuit, maximally improving power efficiency

+9.15dBm output power
 1.4uA standby current at 63uA/MHz
 Automatic paring for terminals
PCB Antenna
TYZS2DATASHEET

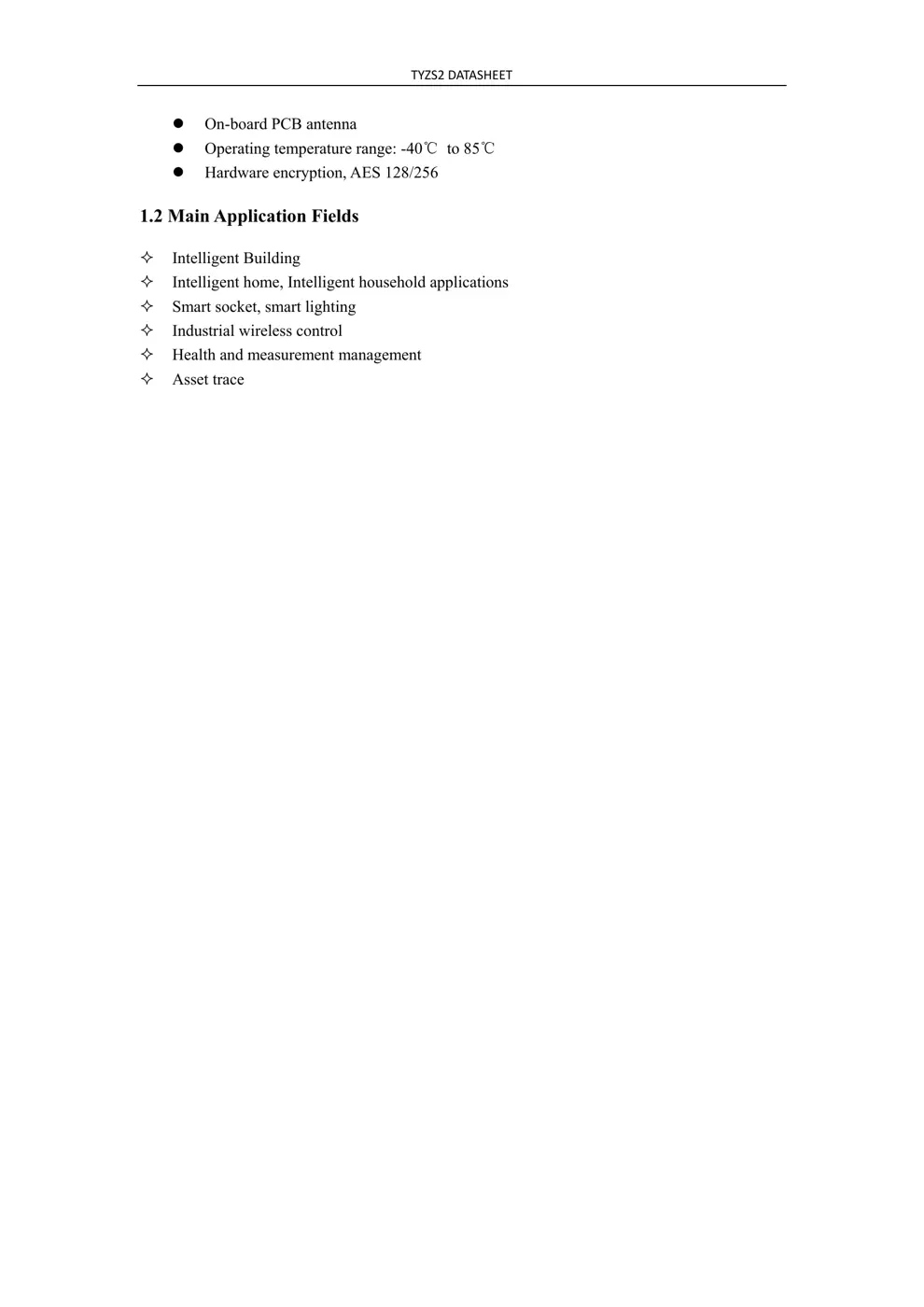

 On-board PCB antenna
 Operating temperature range: -40℃ to 85 ℃
 Hardware encryption, AES 128/256
1.2 Main Application Fields
 Intelligent Building
 Intelligent home, Intelligent household applications
 Smart socket, smart lighting
 Industrial wireless control
 Health and measurement management
 Asset trace
TYZS2DATASHEET

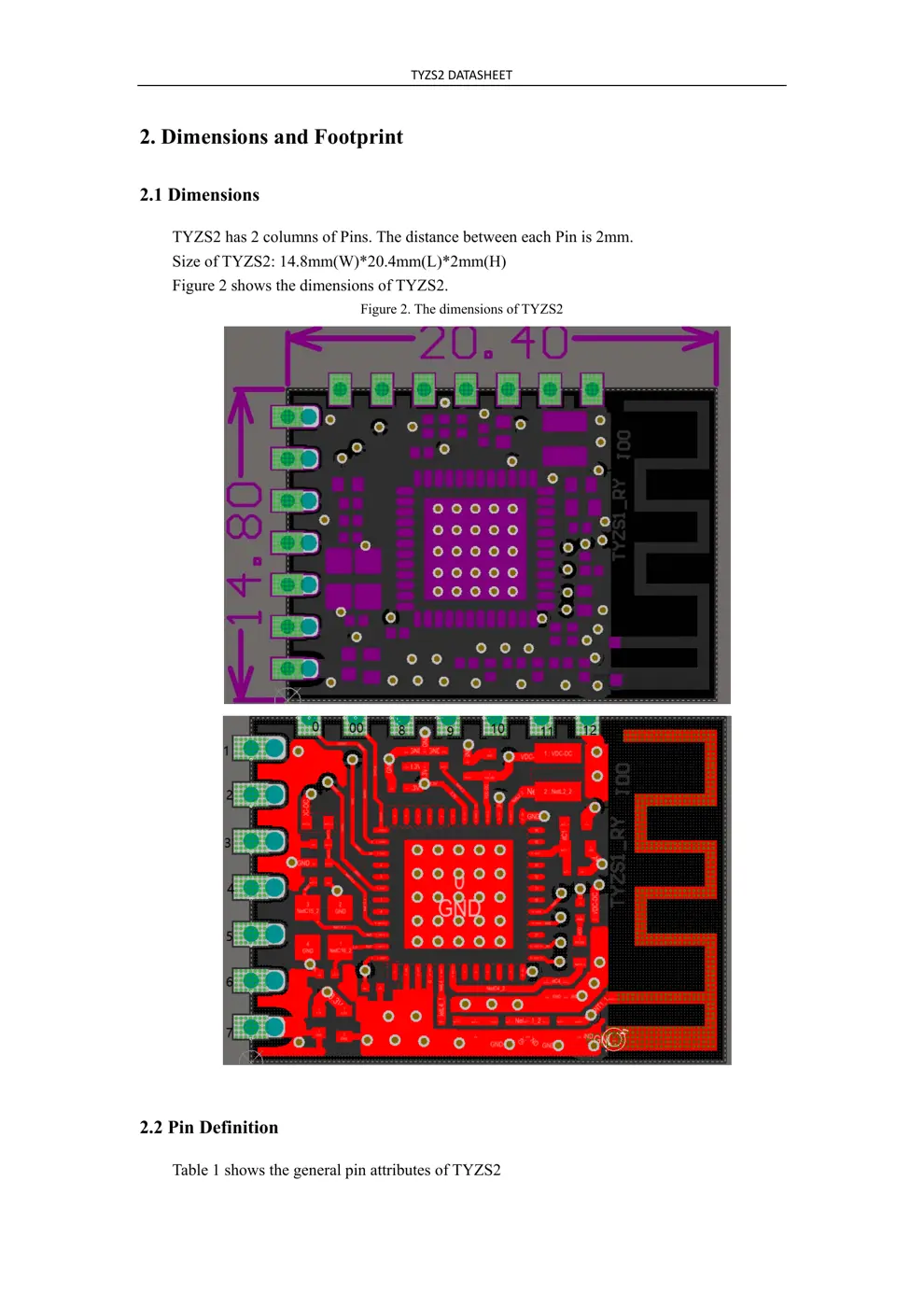

2. Dimensions and Footprint
2.1 Dimensions
TYZS2 has 2 columns of Pins. The distance between each Pin is 2mm.
Size of TYZS2: 14.8mm(W)*20.4mm(L)*2mm(H)
Figure 2 shows the dimensions of TYZS2.
Figure 2. The dimensions of TYZS2
2.2 Pin Definition
Table 1 shows the general pin attributes of TYZS2

TYZS2DATASHEET
Table 1. The typical pin definition of TYZS2
PINNO. NAME TYPE DISCREPTION
1 PWM1 I/O usedforLEDdriveroutput/universalGPIO
2 PWM2 I/O usedforLEDdriveroutput/universalGPIO
3 I2C_SDA I/O I2C_SDA,alsocanbeusedasuniversalGPIO
4 I2C_SCL I/O I2C_SCL,alsocanbeusedasuniversalGPIO
5 VCC P Supplyvoltage(3.3V)
6 ADC AI ADCterminal(12‐bitsSARADC)
7 GND P Ground
0 SWDIO I/O JLINKSWDIOburingpin,alsousedforuniversalGPIO
0 SWCLK I/O JLINKSWCLKburingpin,alsousedforuniversalGPIO
8 RXD I/O UART0_RXD
9 nRST I hardwareresetpin,lowleveleffects;
themodulewillresetwhilebooting,usercouldignorethe
pinjustincase
10 VCC P Supplyvoltage(3.3V)
11 TXD O UART0_TXD
12 GND P Ground
Note: S: P ower supply pins; I/O: Digital input or output pins; AI: Analog input. RST pin is
the module hardware reset pin; it cannot eliminate Zigbee module pairing information.
(1) This pin can only be used as ADC input, cannot use it as normal I/O. when not using, just
connect nothing. When used as ADC input, the input voltage ra...
