U Reset & Teardown (FCC ID 2ANDL-T1-U)

Before you buy the Tuya Global U, check what's inside.

The Tuya T1-U is a compact IoT module featuring both WiFi and Bluetooth LE connectivity, designed for integration into various smart devices. It is powered by a low-voltage battery and offers flexible control options through its MCU and peripherals.

⚠️ NOTE: Ensure correct battery polarity when installing.

Quick Specs

Manufacturer: Tuya Global
Model: U
Protocol: WiFi
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: T1C
Flashable: ❌ No
Info: Proprietary Tuya T1C chipset, not designed for third-party firmware flashing.

User Manual

Scanned pages from the official user manual:

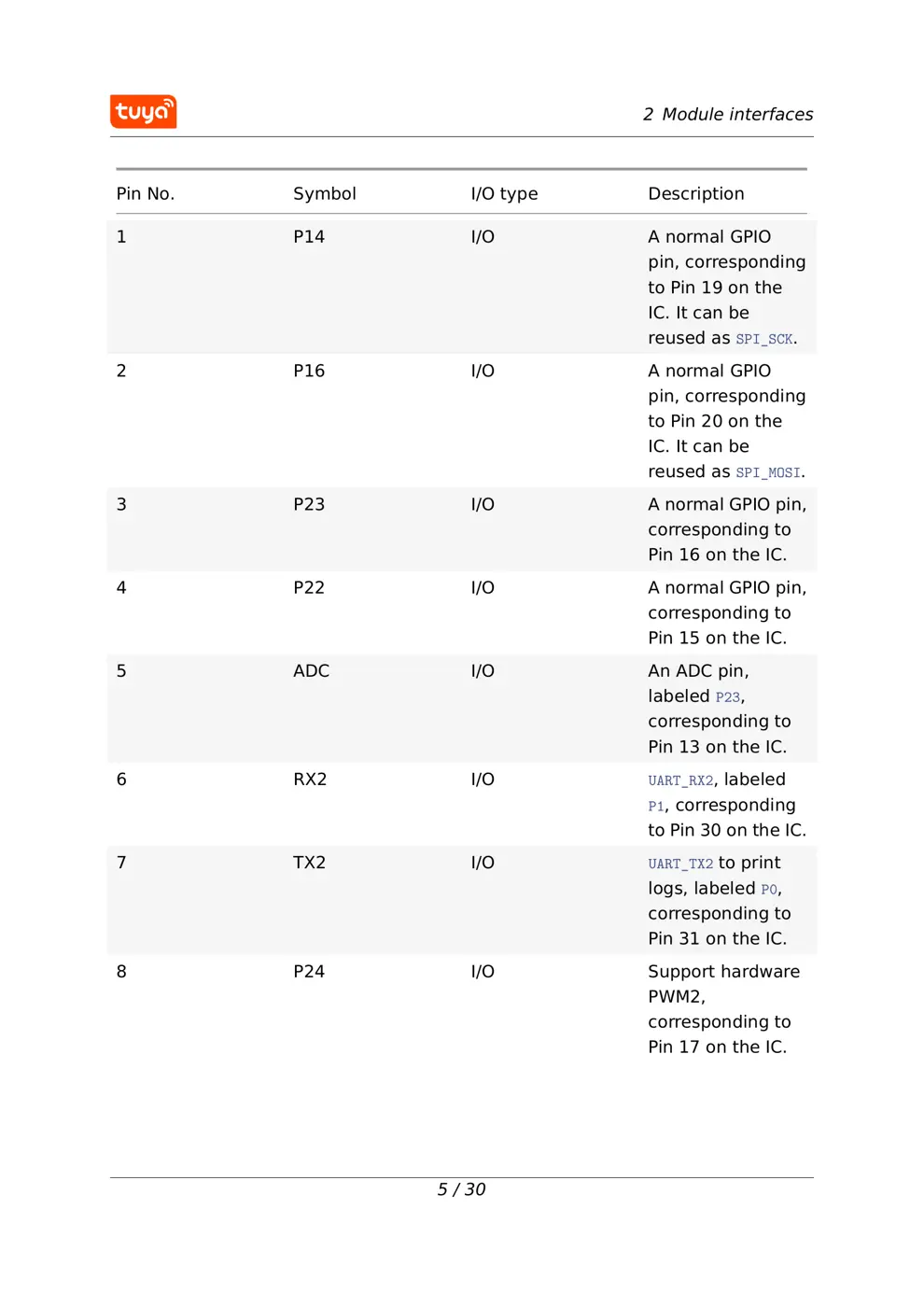

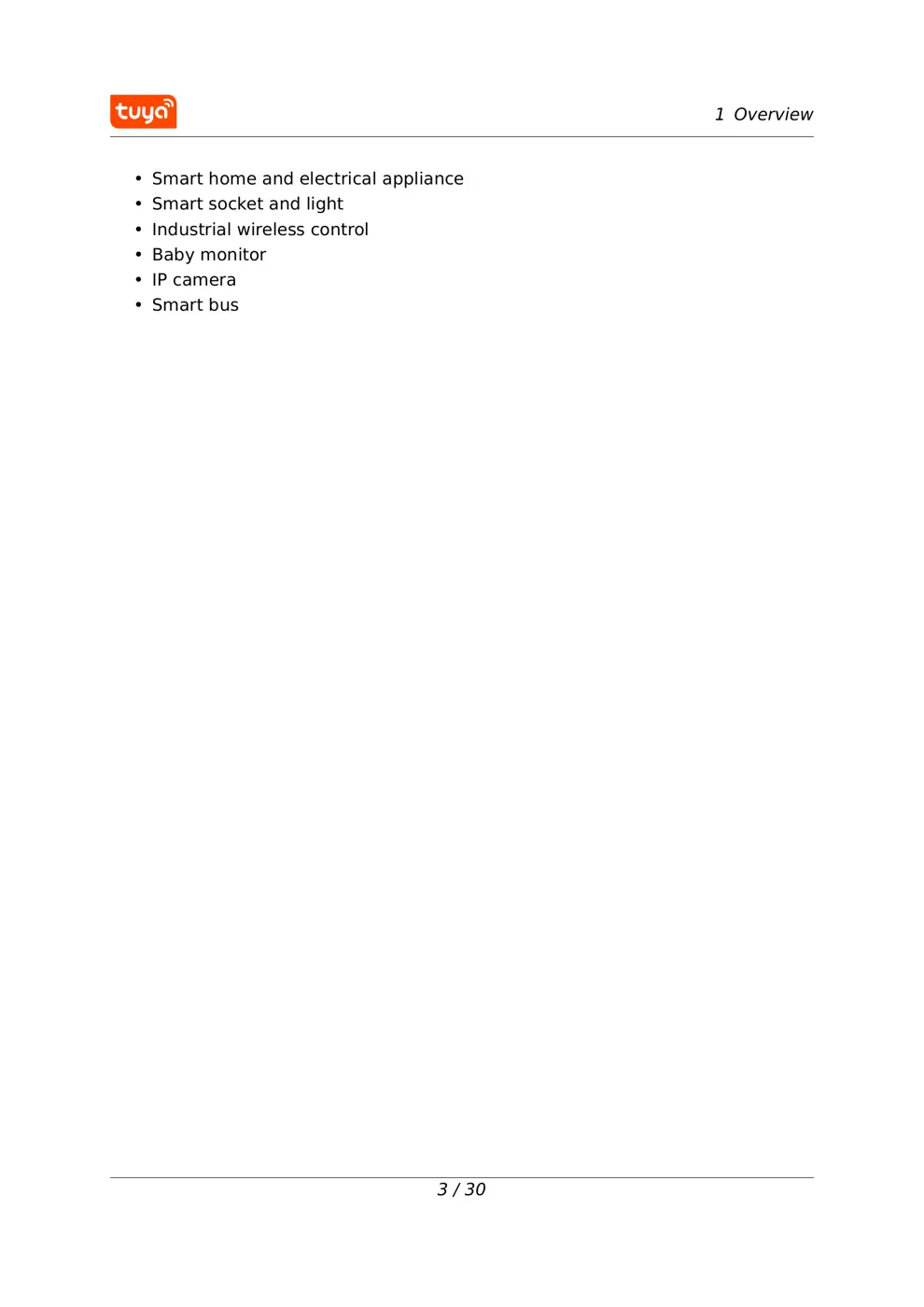

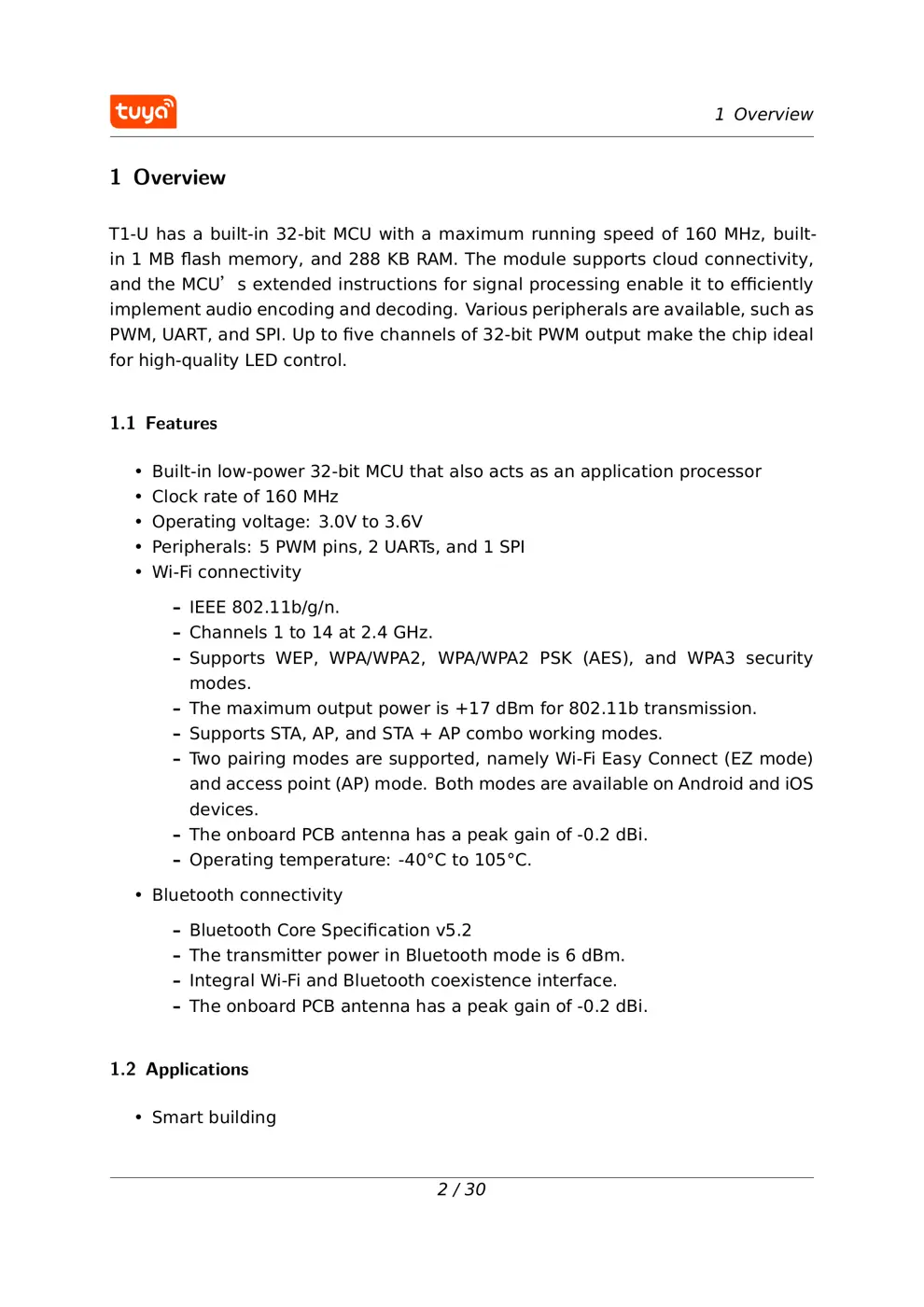

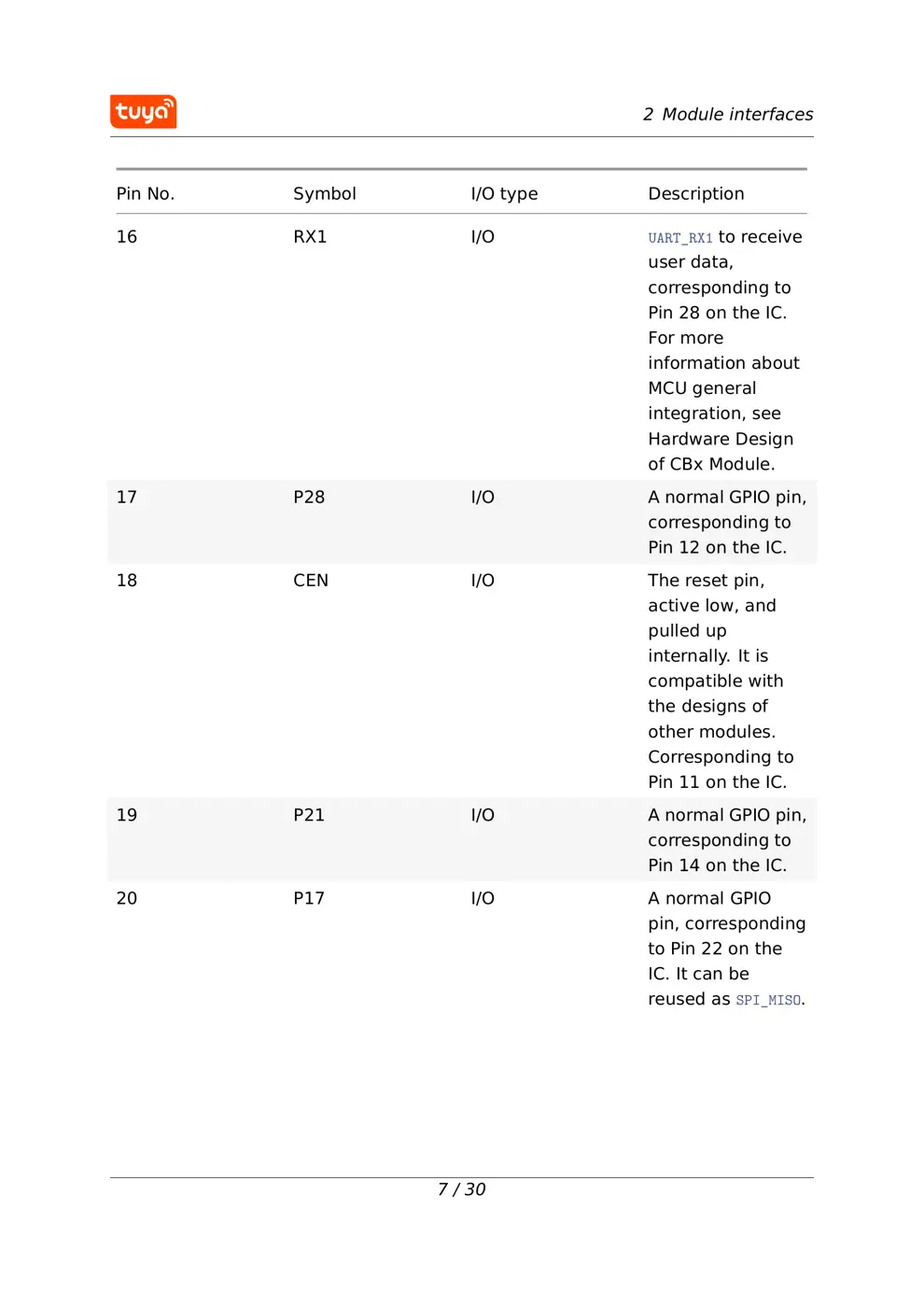

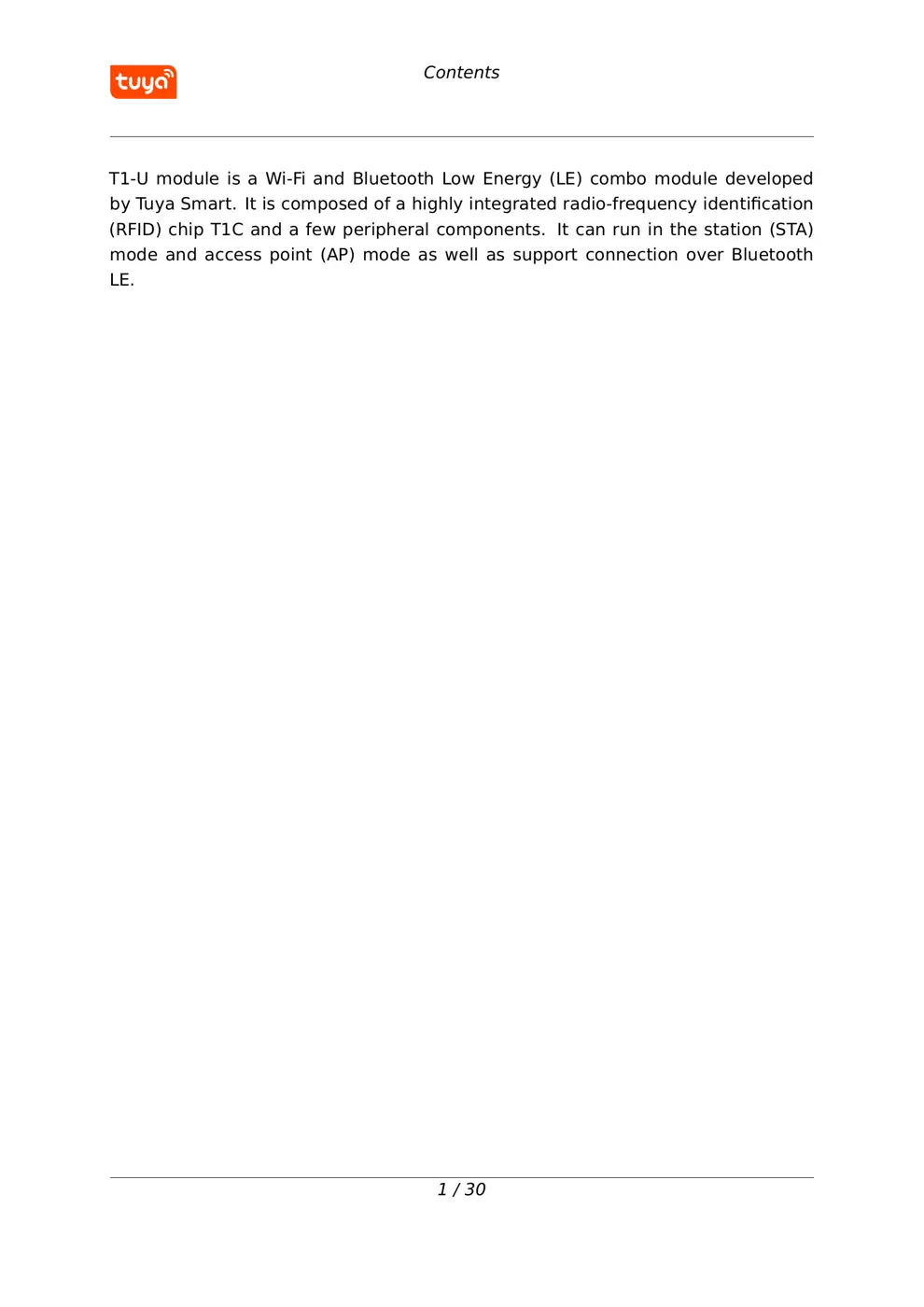

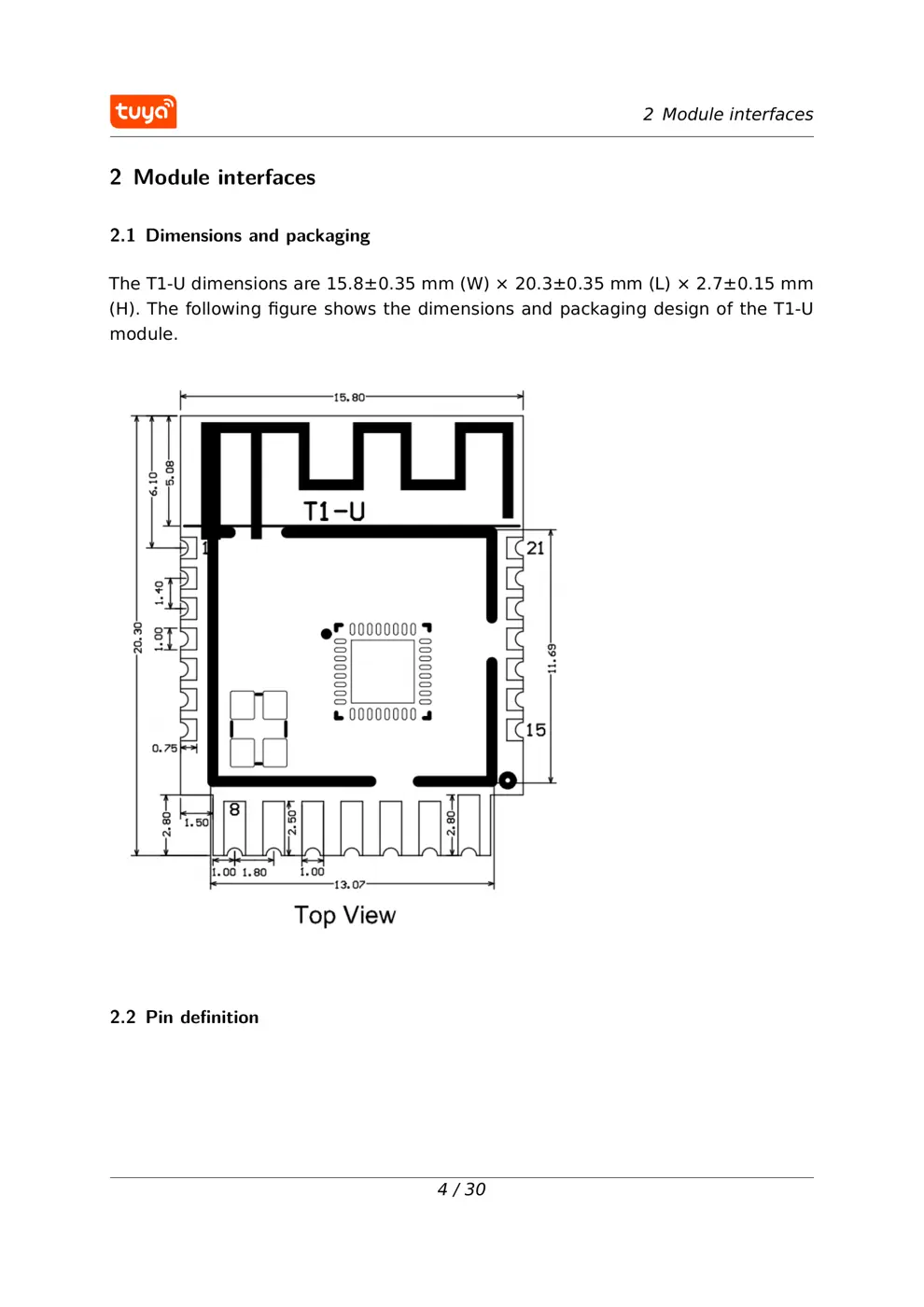

U Manual

External Photos

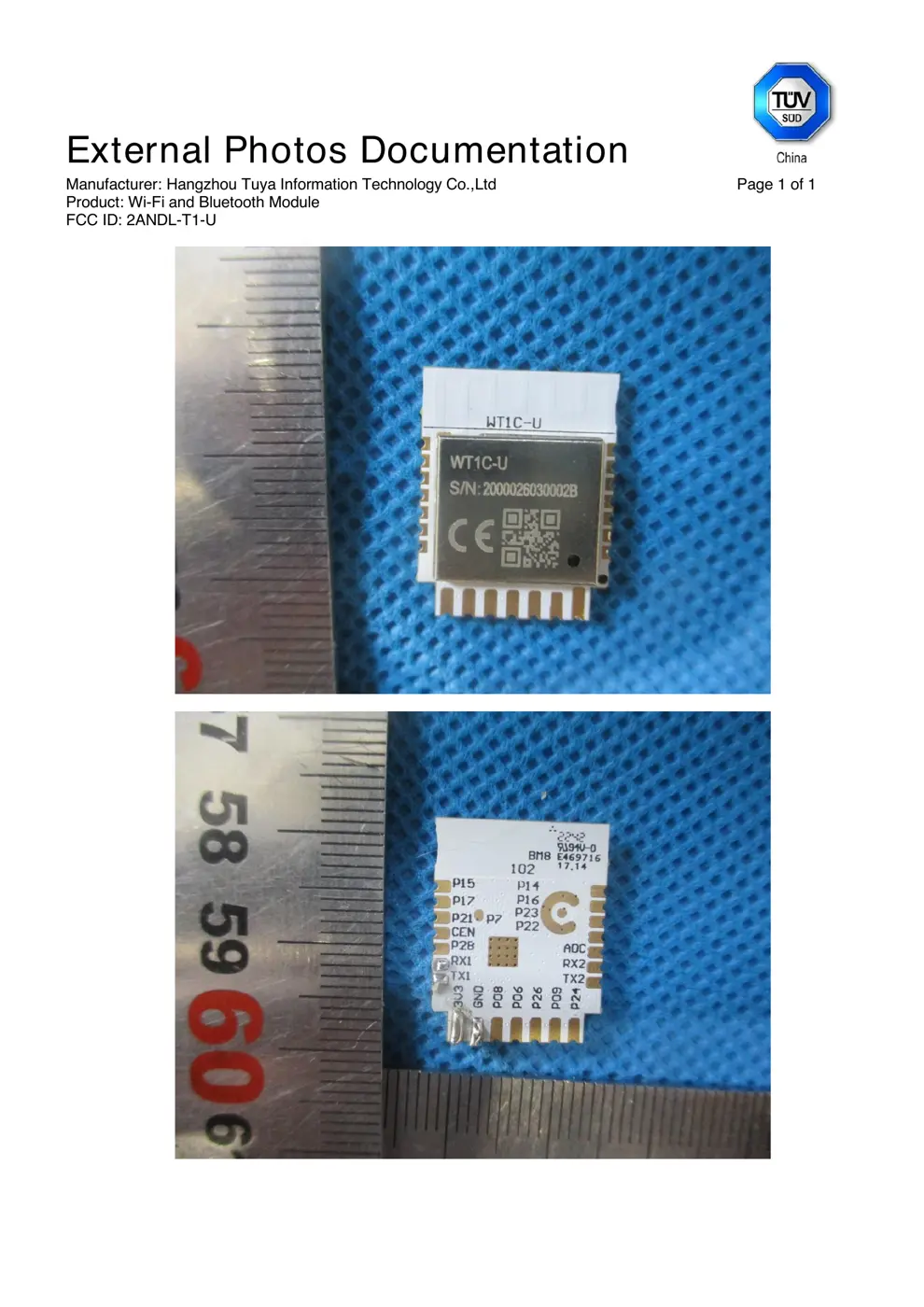

Photos of the device exterior:

U Exterior

Verdict

The U is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

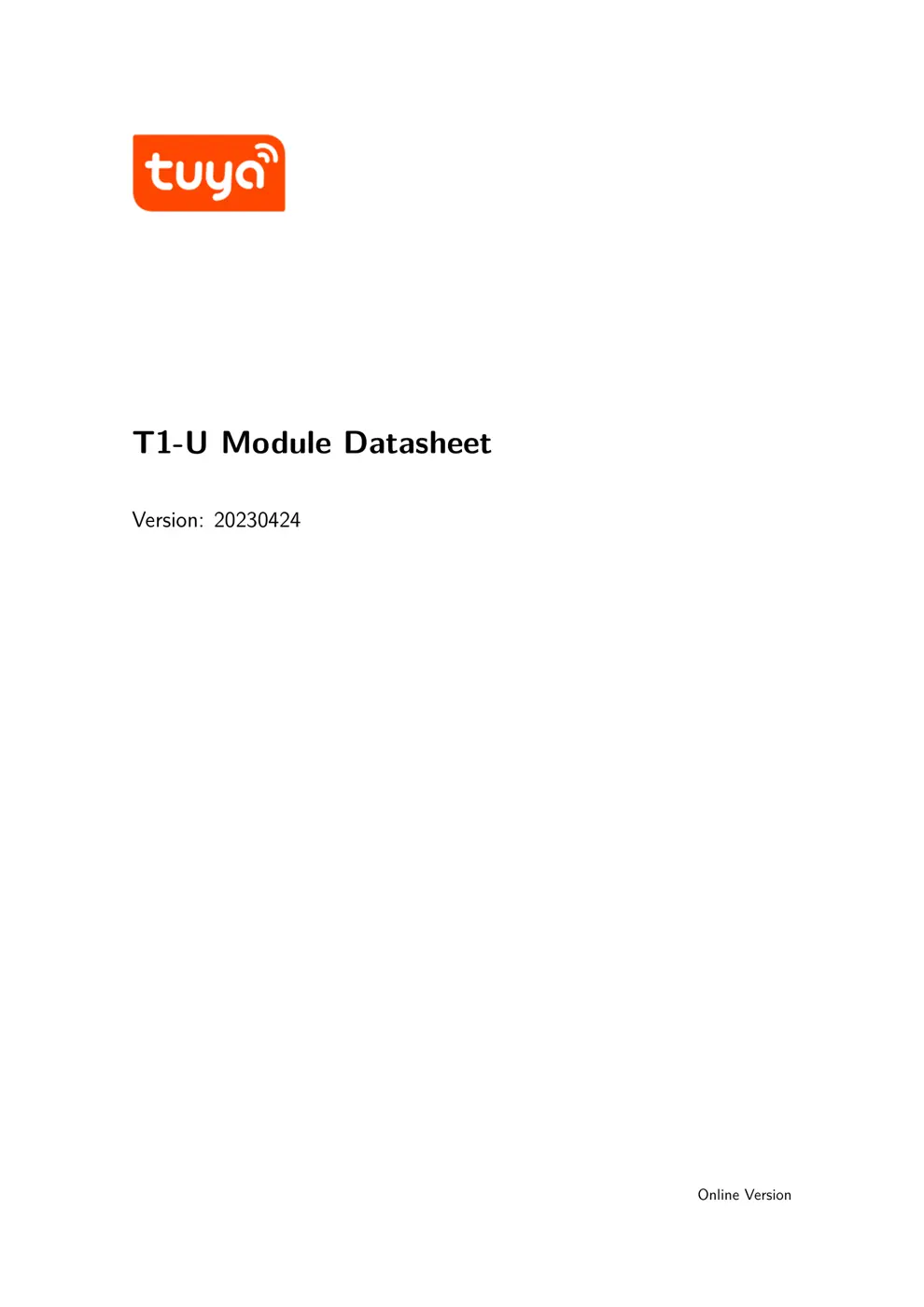

T1-U Module Datasheet
Version: 20230424
Online Version
Contents
Contents
1 Overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 4
2.1 Dimensions and packaging . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Electrical parameters 9
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 9
3.2 Working conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Radio frequency (RF) power . . . . . . . . . . . . . . . . . . . . . . . 10
3.4 Operating current . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 RF parameters 13
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Wi-Fi transmitter (TX) performance . . . . . . . . . . . . . . . . . . . 13
4.3 Wi-Fi receiver (RX) performance . . . . . . . . . . . . . . . . . . . . . 14
4.4 Bluetooth transmitter (TX) performance . . . . . . . . . . . . . . . . . 14
4.5 Bluetooth RX performance . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Antenna information 16
5.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.2 Antenna interference reduction . . . . . . . . . . . . . . . . . . . . . 16
6 Packing and production instructions 17
6.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 23
6.4 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 MOQ and packaging information 27
8 Appendix: Statement 28
I
Contents
T1-U module is a Wi-Fi and Bluetooth Low Energy (LE) combo module developed
by T uya Smart. It is composed of a highly integrated radio-frequency identification
(RFID) chip T1C and a few peripheral components. It can run in the station (STA)
mode and access point (AP) mode as well as support connection over Bluetooth
LE.
1 / 30
1 Overview
1 Overview
T1-U has a built-in 32-bit MCU with a maximum running speed of 160 MHz, built-
in 1 MB flash memory, and 288 KB RAM. The module supports cloud connectivity,
and the MCU ’s extended instructions for signal processing enable it to efficiently
implement audio encoding and decoding. Various peripherals are available, such as
PWM, UART, and SPI. Up to five channels of 32-bit PWM output make the chip ideal
for high-quality LED control.
1.1 Features
• Built-in low-power 32-bit MCU that also acts as an application processor
• Clock rate of 160 MHz
• Operating voltage: 3.0V to 3.6V
• Peripherals: 5 PWM pins, 2 UART s, and 1 SPI
• Wi-Fi connectivity
– IEEE 802.11b/g/n.
– Channels 1 to 14 at 2.4 GHz.
– Supports WEP, WPA/WPA2, WPA/WPA2 PSK (AES), and WPA3 security
modes.
– The maximum output power is +17 dBm for 802.11b transmission.
– S...
