LEGEND
Device terminals:
• N: Neutral terminal
• L: Live terminal (110–240 V AC)
• SW1: Switch/push-button input terminal
• SW2: Switch/push-button input terminal
• SW3: Switch/push-button input terminal
• SW4: Switch/push-button input terminal
Wires:
• N: Neutral wire
• L: Live wire (110-240 V AC)
Button:
• S: S button (Fig. 3)
EN

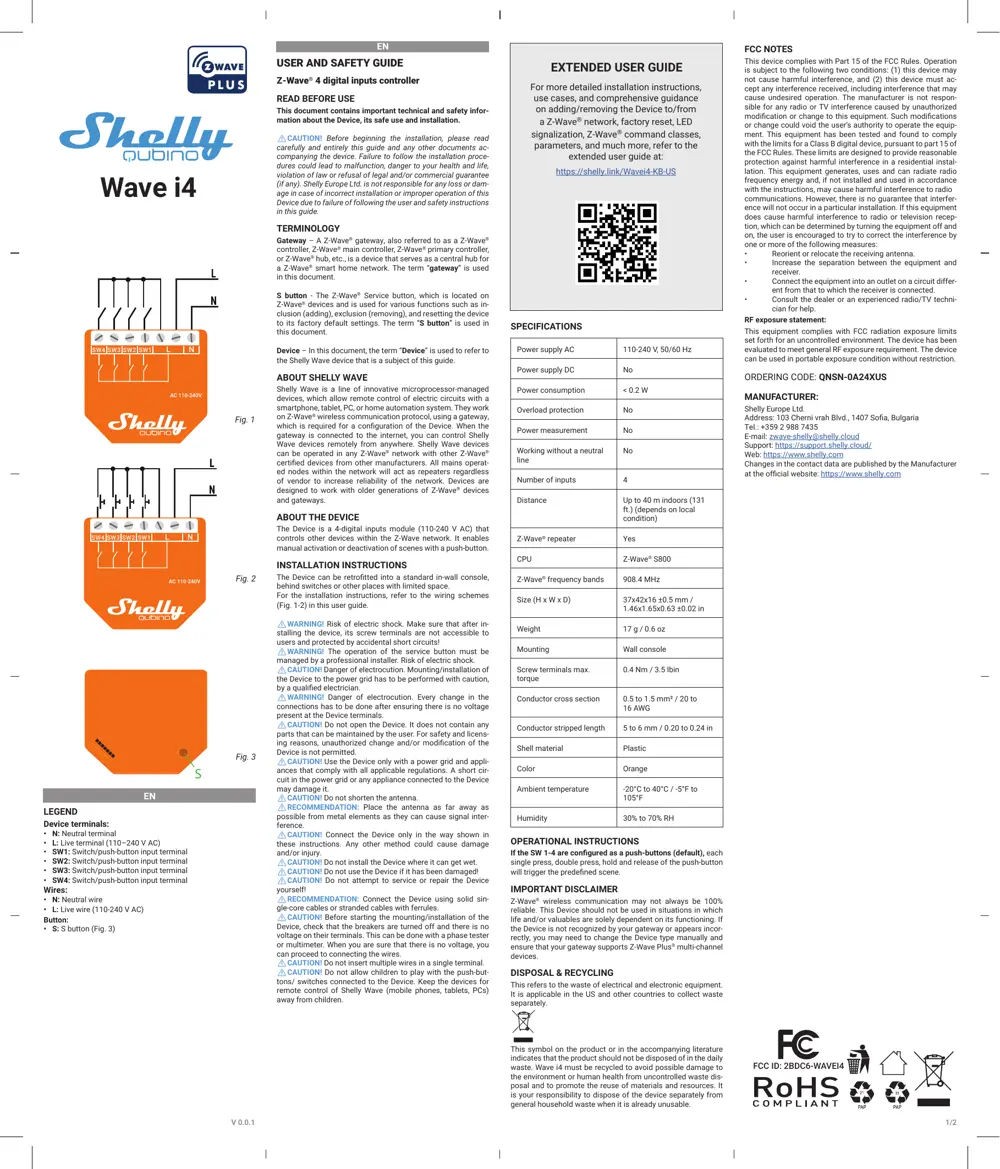

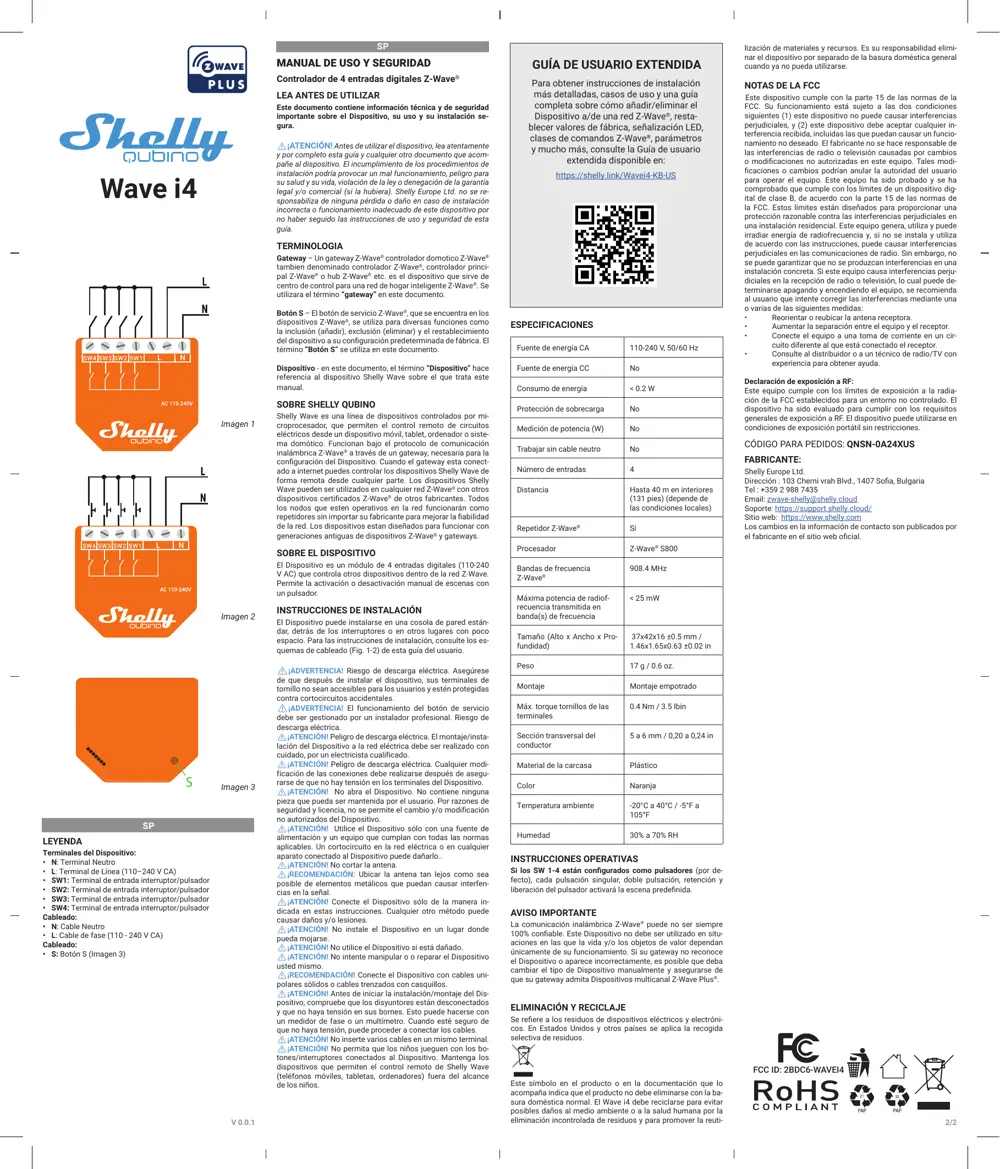

USER AND SAFETY GUIDE
Z-Wave® 4 digital inputs controller
READ BEFORE USE
This document contains important technical and safety infor -
mation about the Device, its safe use and installation.
⚠CAUTION! Before beginning the installation, please read
carefully and entirely this guide and any other documents ac -
companying the device. Failure to follow the installation proce -
dures could lead to malfunction, danger to your health and life,
violation of law or refusal of legal and/or commercial guarantee
(if any). Shelly Europe Ltd. is not responsible for any loss or dam-
age in case of incorrect installation or improper operation of this
Device due to failure of following the user and safety instructions
in this guide.
TERMINOLOGY
Gateway – A Z-Wave ® gateway, also referred to as a Z-Wave ®
controller, Z-Wave® main controller, Z-Wave® primary controller,
or Z-Wave® hub, etc., is a device that serves as a central hub for
a Z-Wave® smart home network. The term “ gateway” is used
in this document.
S button - The Z-Wave ® Service button, which is located on
Z-Wave® devices and is used for various functions such as in -
clusion (adding), exclusion (removing), and resetting the device
to its factory default settings. The term “ S button” is used in
this document.
Device – In this document, the term “Device” is used to refer to
the Shelly Wave device that is a subject of this guide.
ABOUT SHELL Y WAVE
Shelly Wave is a line of innovative microprocessor-managed
devices, which allow remote control of electric circuits with a
smartphone, tablet, PC, or home automation system. They work
on Z-Wave® wireless communication protocol, using a gateway,
which is required for a configuration of the Device. When the
gateway is connected to the internet, you can control Shelly
Wave devices remotely from anywhere. Shelly Wave devices
can be operated in any Z-Wave ® network with other Z-Wave ®
certified devices from other manufacturers. All mains operat -
ed nodes within the network will act as repeaters regardless
of vendor to increase reliability of the network. Devices are
designed to work with older generations of Z-Wave ® devices
and gateways.
ABOUT THE DEVICE

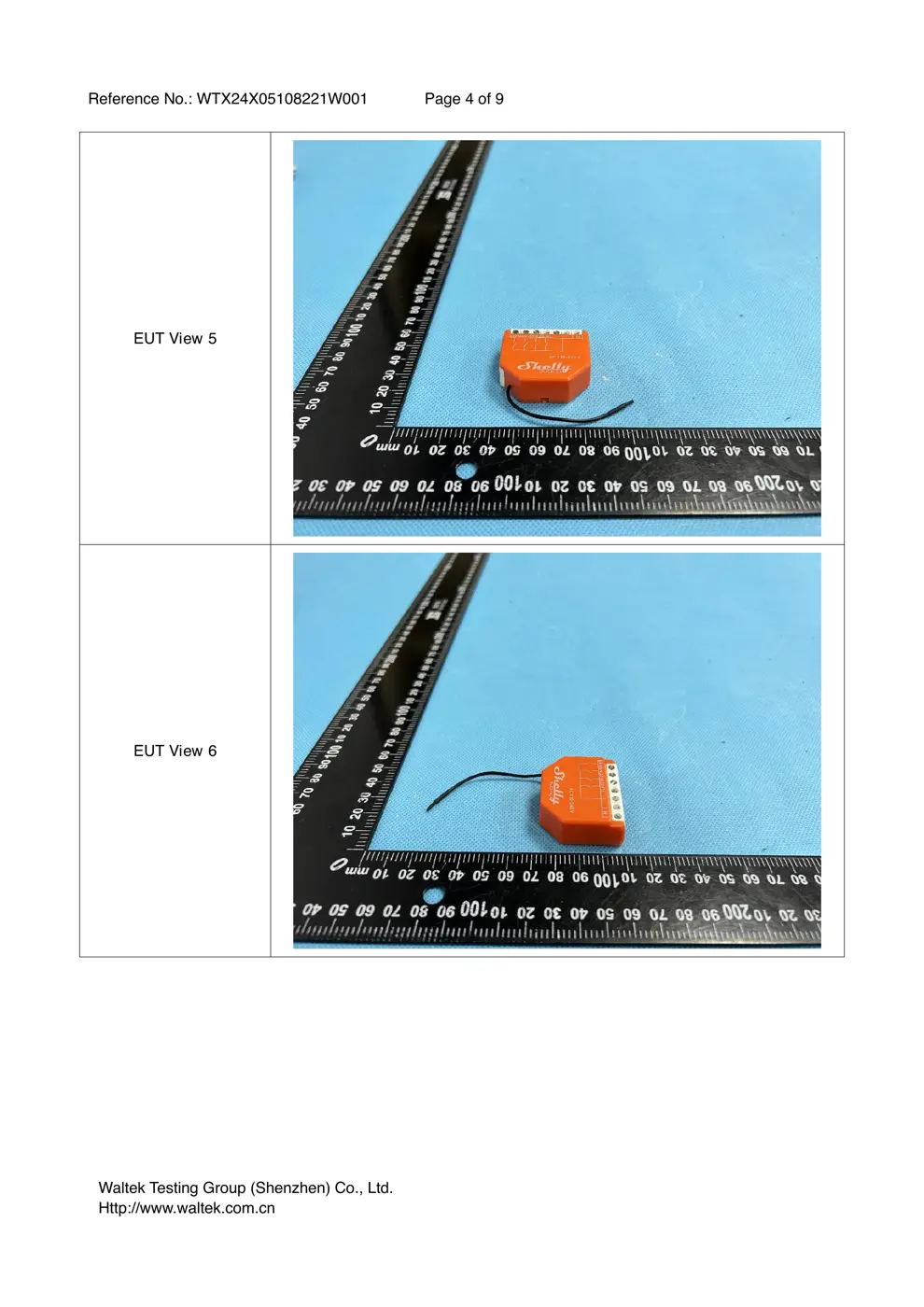

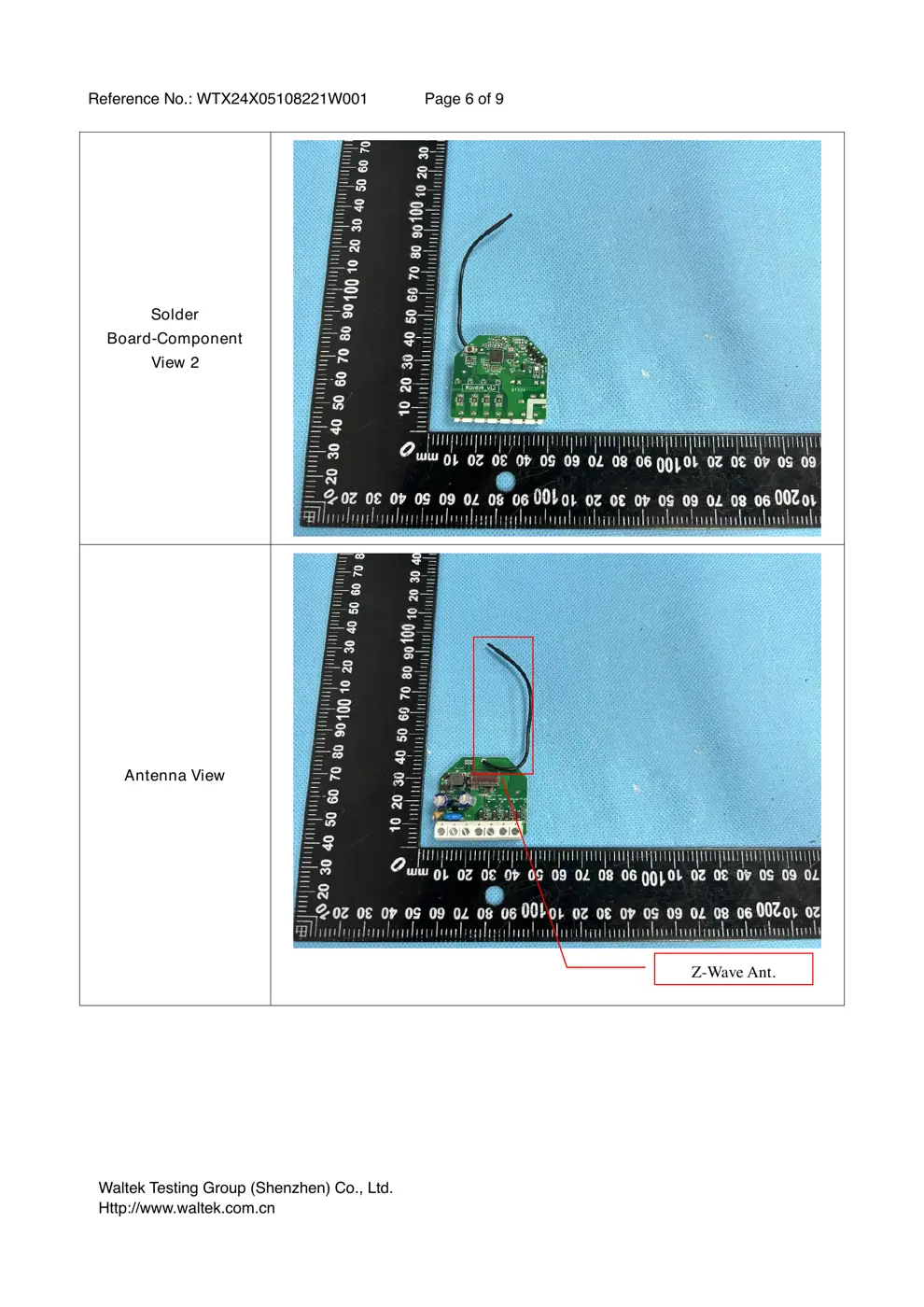

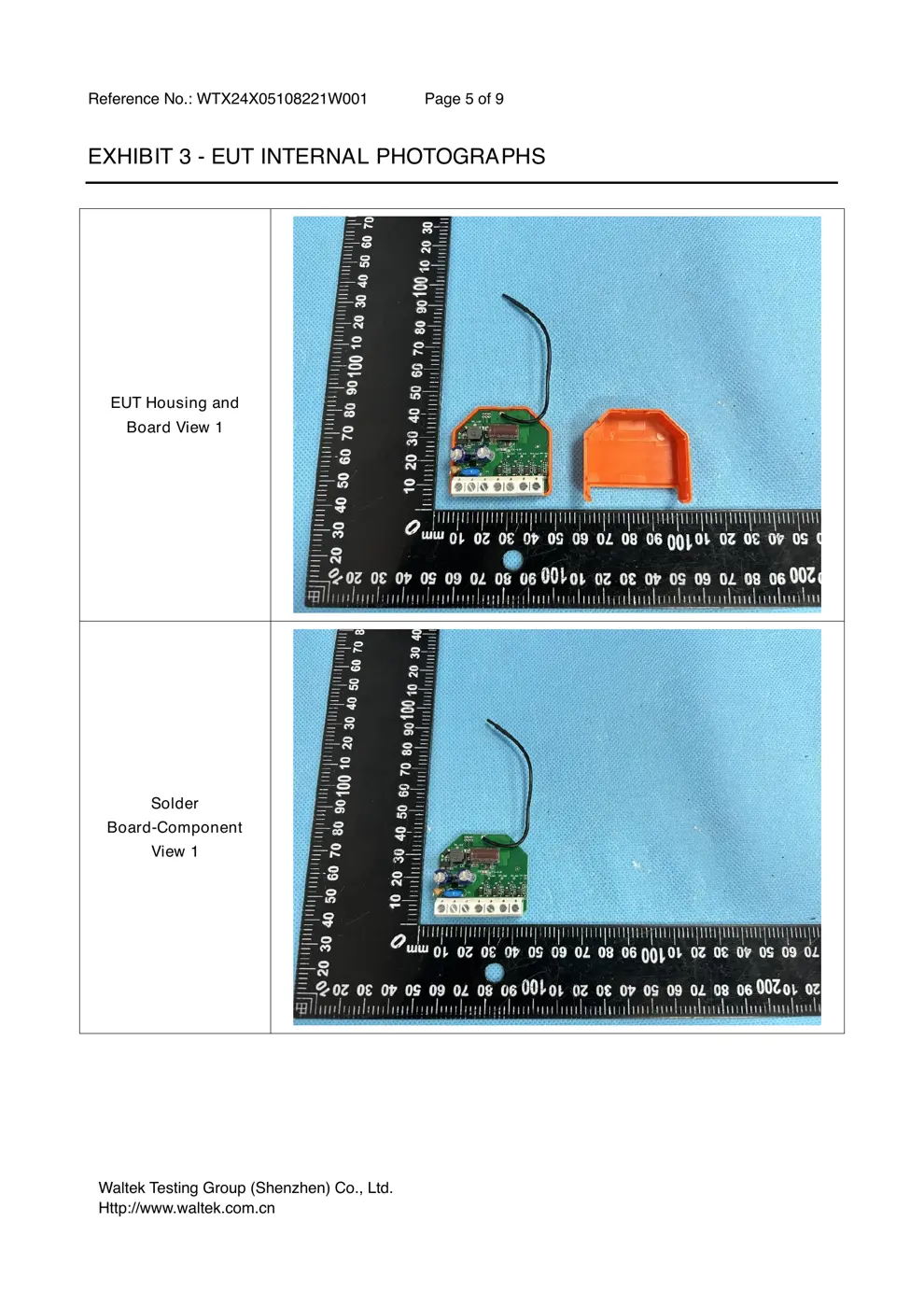

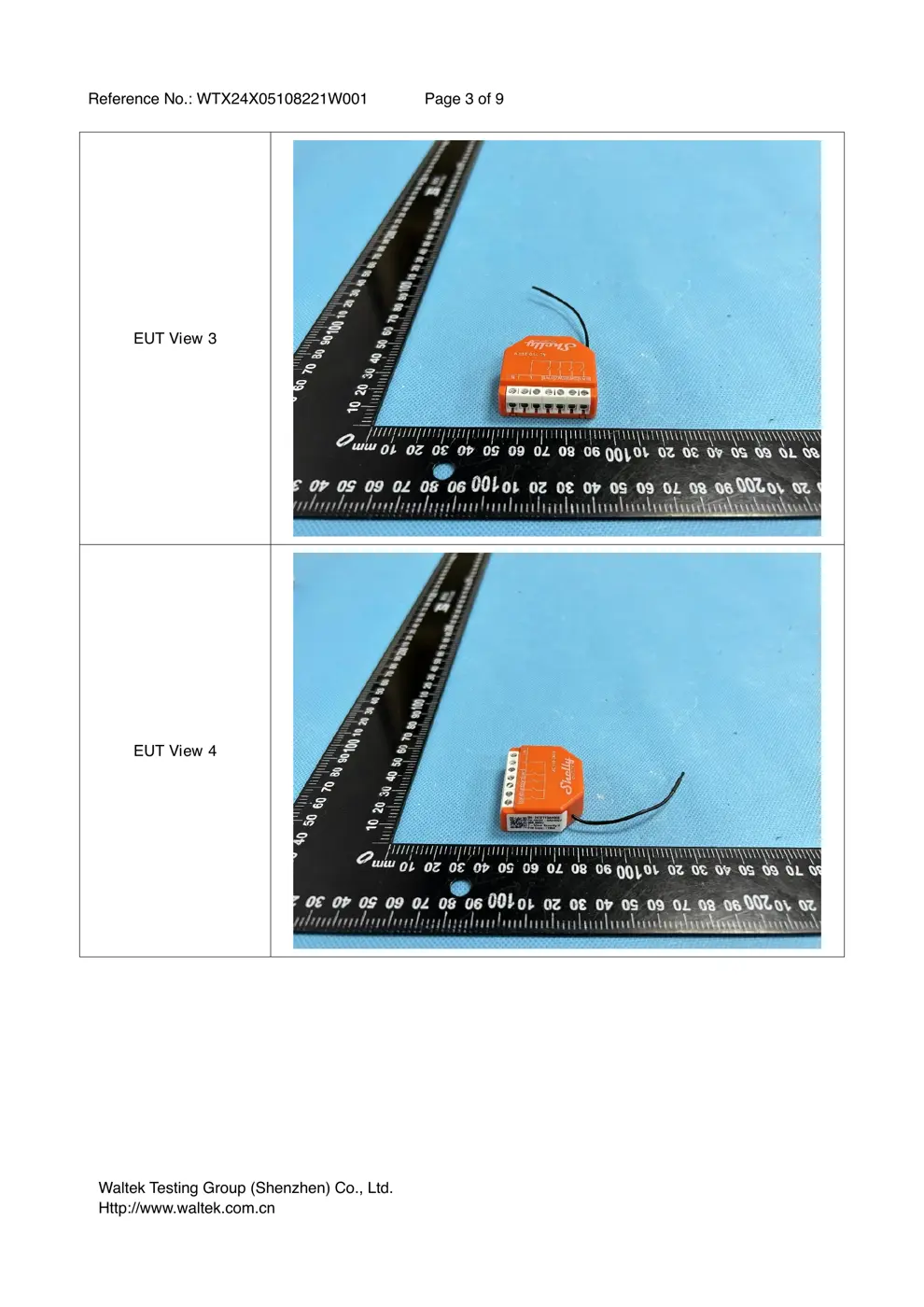

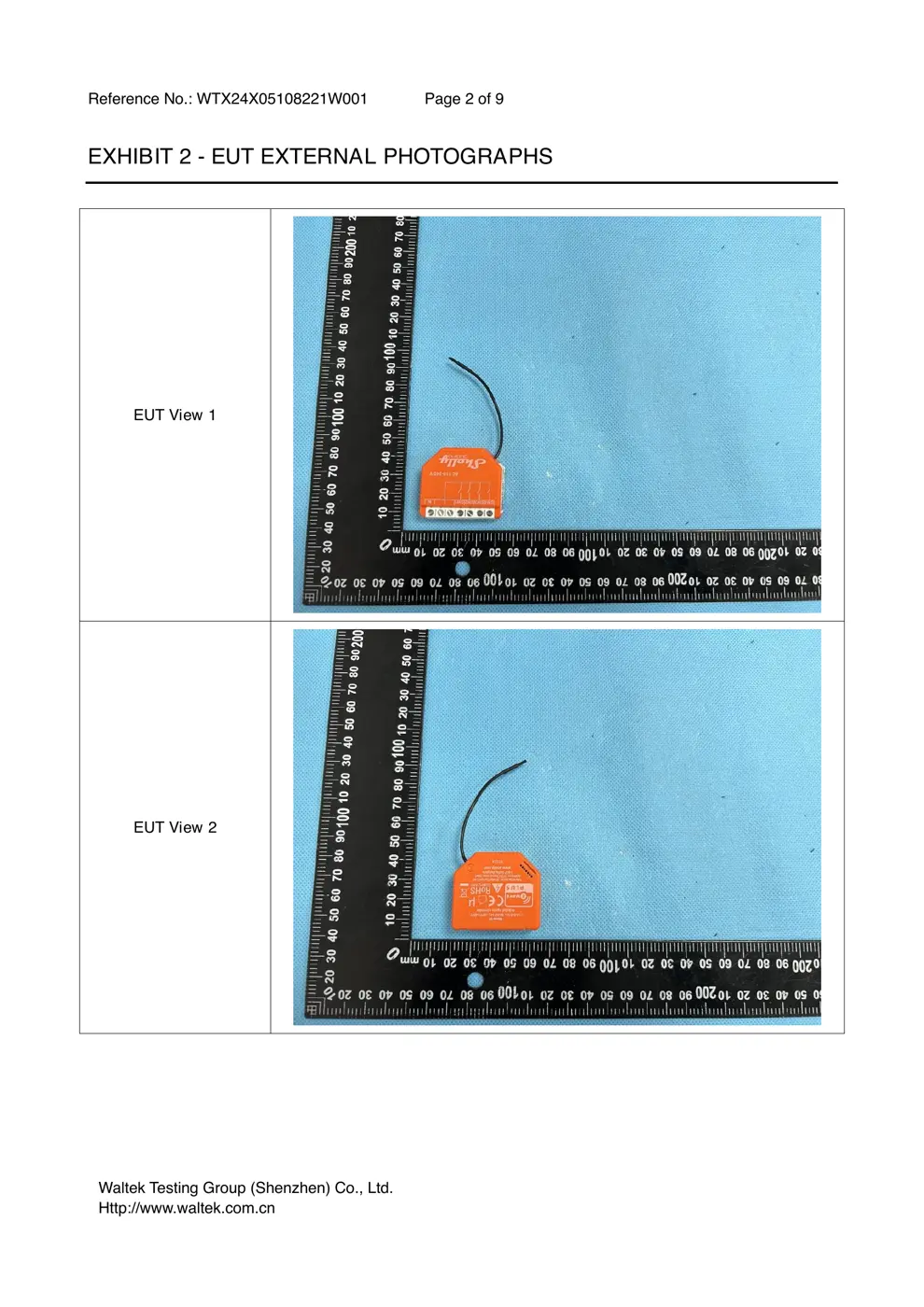

The Device is a 4-digital inputs module (110-240 V AC) that
controls other devices within the Z-Wave network. It enables
manual activation or deactivation of scenes with a push-button.
INSTALLATION INSTRUCTIONS
The Device can be retrofitted into a standard in-wall console,
behind switches or other places with limited space.
For the installation instructions, refer to the wiring schemes
(Fig. 1-2) in this user guide.
⚠WARNING! Risk of electric shoc...
