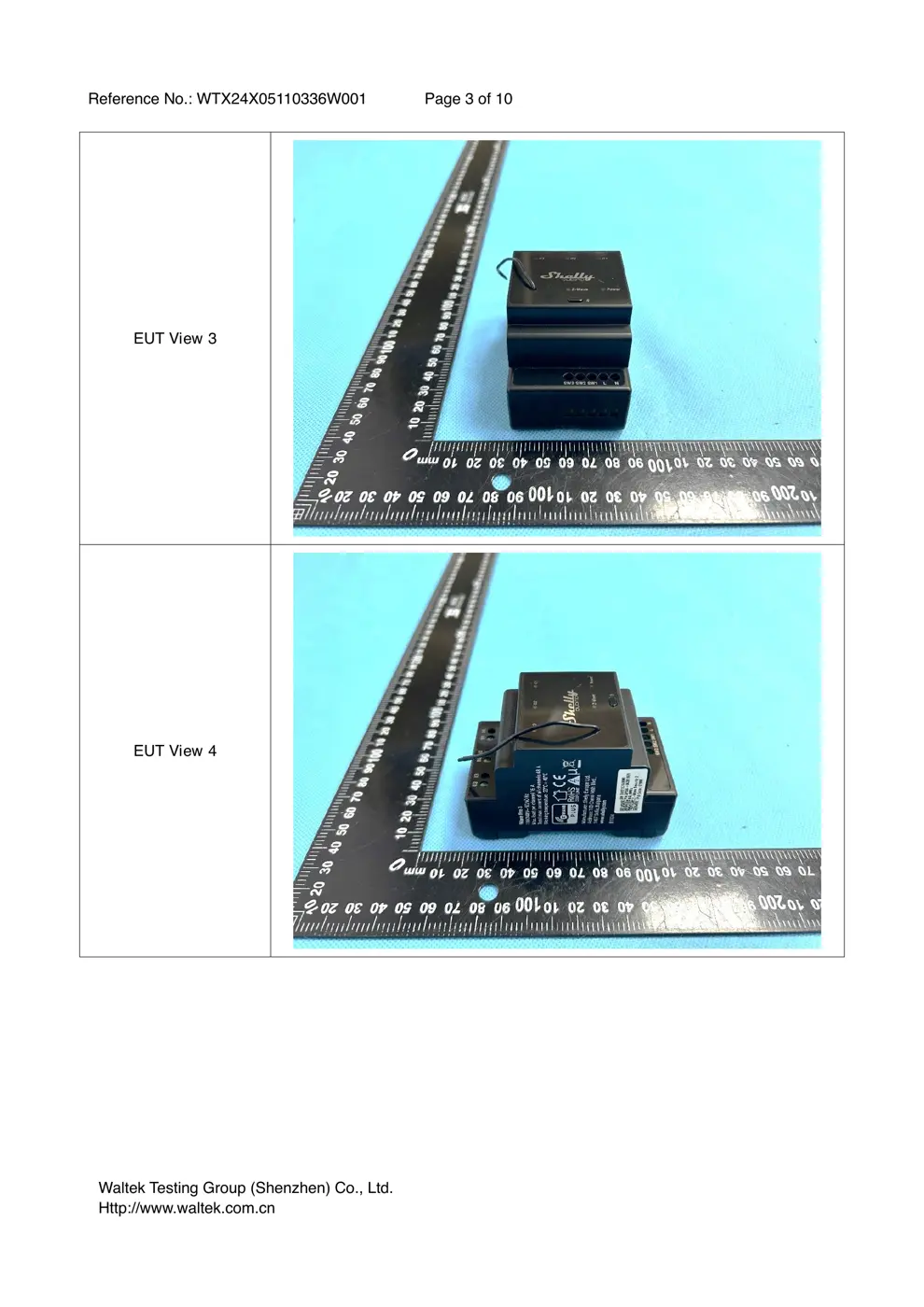

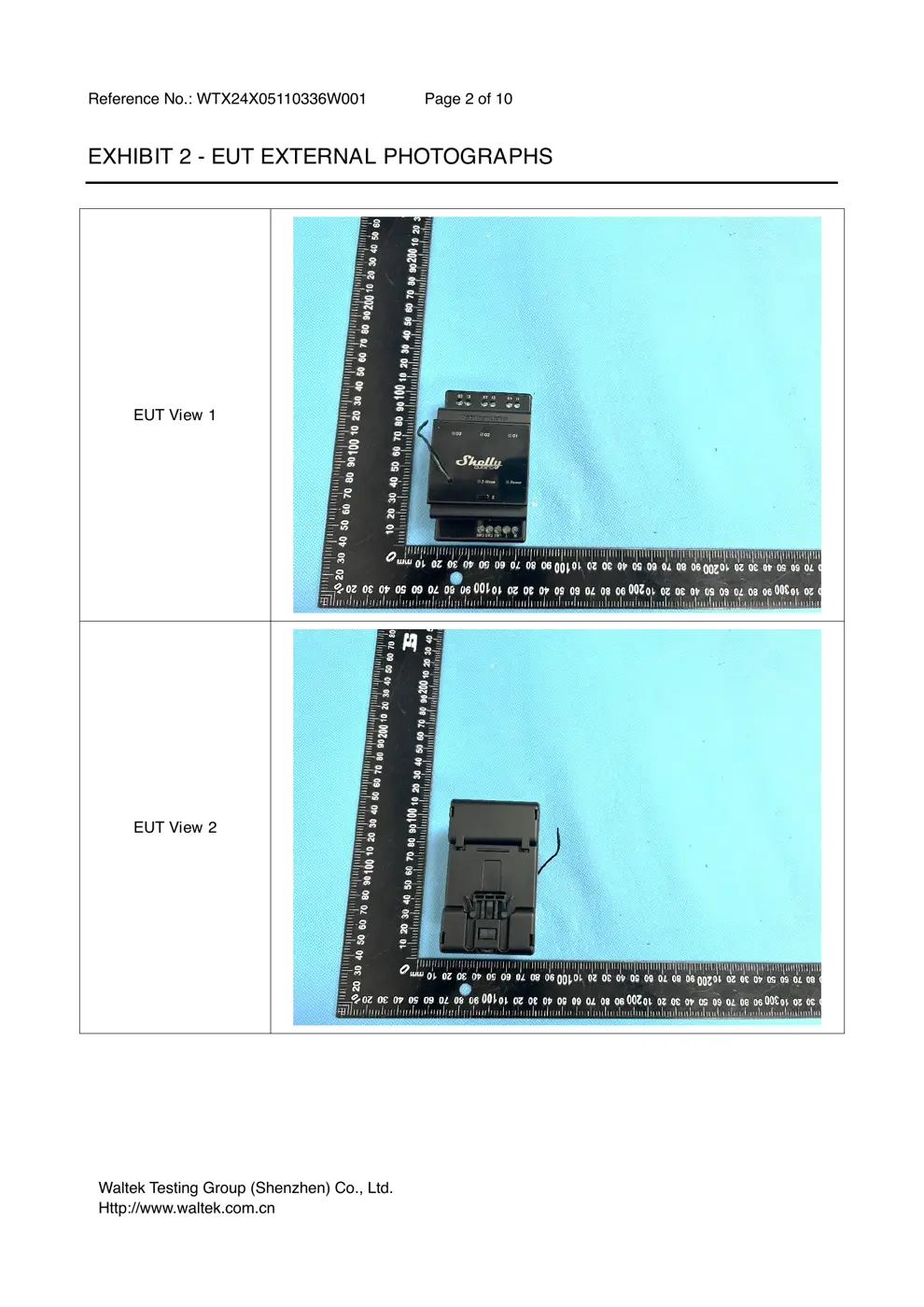

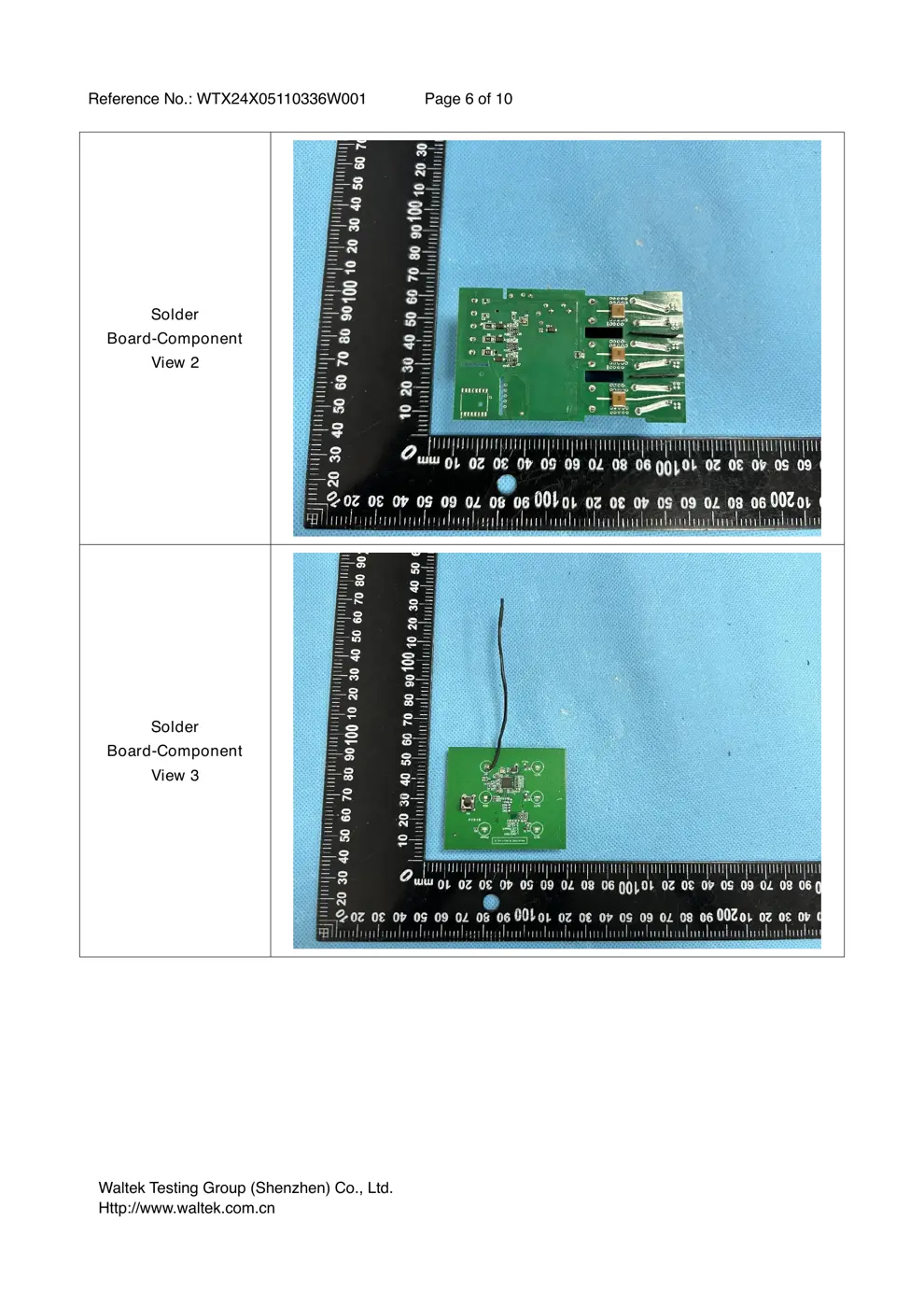

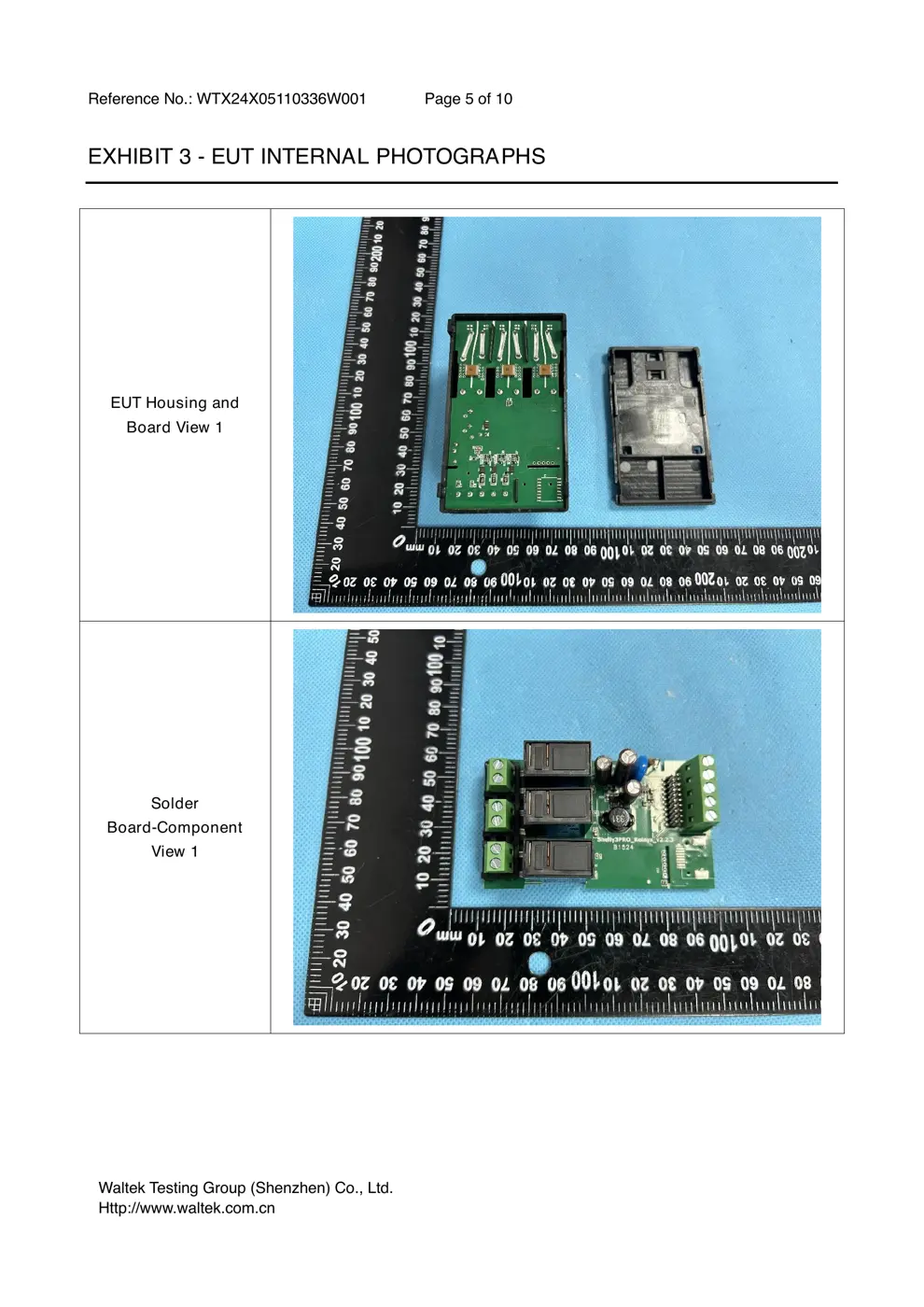

WAVEPRO3 Reset & Teardown (FCC ID 2BDC6-WAVEPRO3)

EN
LEGEND
Device terminals:
• N: Neutral terminal
• L: Live terminal (110-240 V AC)
• SW (SW1): Switch/push-button input terminal (controlling
O (O1))
• SW2: Switch/push-button input terminal (controlling O2)
• SW3: Switch/push-button input terminal (controlling O3)
• I1: Load circuit 1 input terminal
• I2: Load circuit 2 input terminal
• I3: Load circuit 3 input terminal
• O (O1): Load circuit 1 output terminal
• O2: Load circuit 2 output terminal
• O3: Load circuit 3 output terminal
Wires:
• N: Neutral wire
• L1(A): Load circuit 1 live wire (110-240 V AC)
• L2(B): Load circuit 2 live wire (110-240 V AC)
• L3(C): Load circuit 3 live wire (110-240 V AC)
Button:
• S: S button
EN
USER AND SAFETY GUIDE
3-circuit DIN-mountable Z-Wave® smart
switch with potential-free contacts
READ BEFORE USE
This document contains important technical and safety infor -
mation about the Device, its safe use and installation.
⚠CAUTION! Before beginning the installation, please read care-
fully and entirely this guide and any other documents accompany-
ing the Device. Failure to follow the installation procedures could
lead to malfunction, danger to your health and life, violation of law
or refusal of legal and/or commercial guarantee (if any). Shelly
Europe Ltd. is not responsible for any loss or damage in case of
incorrect installation or improper operation of this device due to
failure of following the user and safety instructions in this guide.
TERMINOLOGY
Gateway – A Z-Wave ® gateway, also referred to as a Z-Wave ®
controller, Z-Wave® main controller, Z-Wave® primary controller,
or Z-Wave® hub, etc., is a device that serves as a central hub for
a Z-Wave® smart home network. The term “gateway” is used in
this document.
S button - The Z-Wave ® Service button, which is located on
Z-Wave® devices and is used for various functions such as in -
clusion (adding), exclusion (removing), and resetting the device
to its factory default settings. The term “S button” is used in this
document.
Device – In this document, the term “ Device” is used to refer to
the Shelly Qubino device that is a subject of this guide.
ABOUT SHELL Y QUBINO
Shelly Qubino is a line of innovative microprocessor-managed
devices, which allow remote control of electric circuits with a
smartphone, tablet, PC, or home automation system. They work
on Z-Wave® wireless communication protocol, using a gateway,
which is required for the configuration of devices. When the
gateway is connected to the internet, you can control Shelly
Qubino devices remotely from anywhere. Shelly Qubino devic -
es can be operated in any Z-Wave® network with other Z-Wave®
certified devices from other manufacturers. All mains operated
nodes within the network will act as repeaters regardless of
vendor to increase reliability of the network. Devices are de -
signed to work with older generations of Z-Wave ® devices and
gateways.
WAVE PRO SERIES
Wave Pro series is a line of devices suitable for homes, offic...
