The Shelly Wave Pro Dimmer 2PM is a Z-Wave Plus certified dimmer module designed for smart home integration. It allows for the control and dimming of various types of lights, offering two independent channels for versatile lighting management.
⚠️ NOTE: Always disconnect mains power before installation or servicing. Ensure proper wiring to live and neutral terminals as per the manual.
Quick Specs
- Manufacturer: Shelly Group
- Model: WAVEPRODIMMER
- Protocol: Z-Wave
- Chipset: ESP32
- Ecosystem: Shelly
- App: Shelly App
🔧 Geek Corner (Flashing Info)
- Chipset: Z-Wave S800
- Flashable: ❌ No
- Info: Proprietary Z-Wave chipset, not designed for flashing with alternative firmware like Tasmota or ESPHome.
Reset Guide
Factory reset, led signalization, z-wave® command classes, parameters, and much more, refer to the extended user guide at: https://shelly.

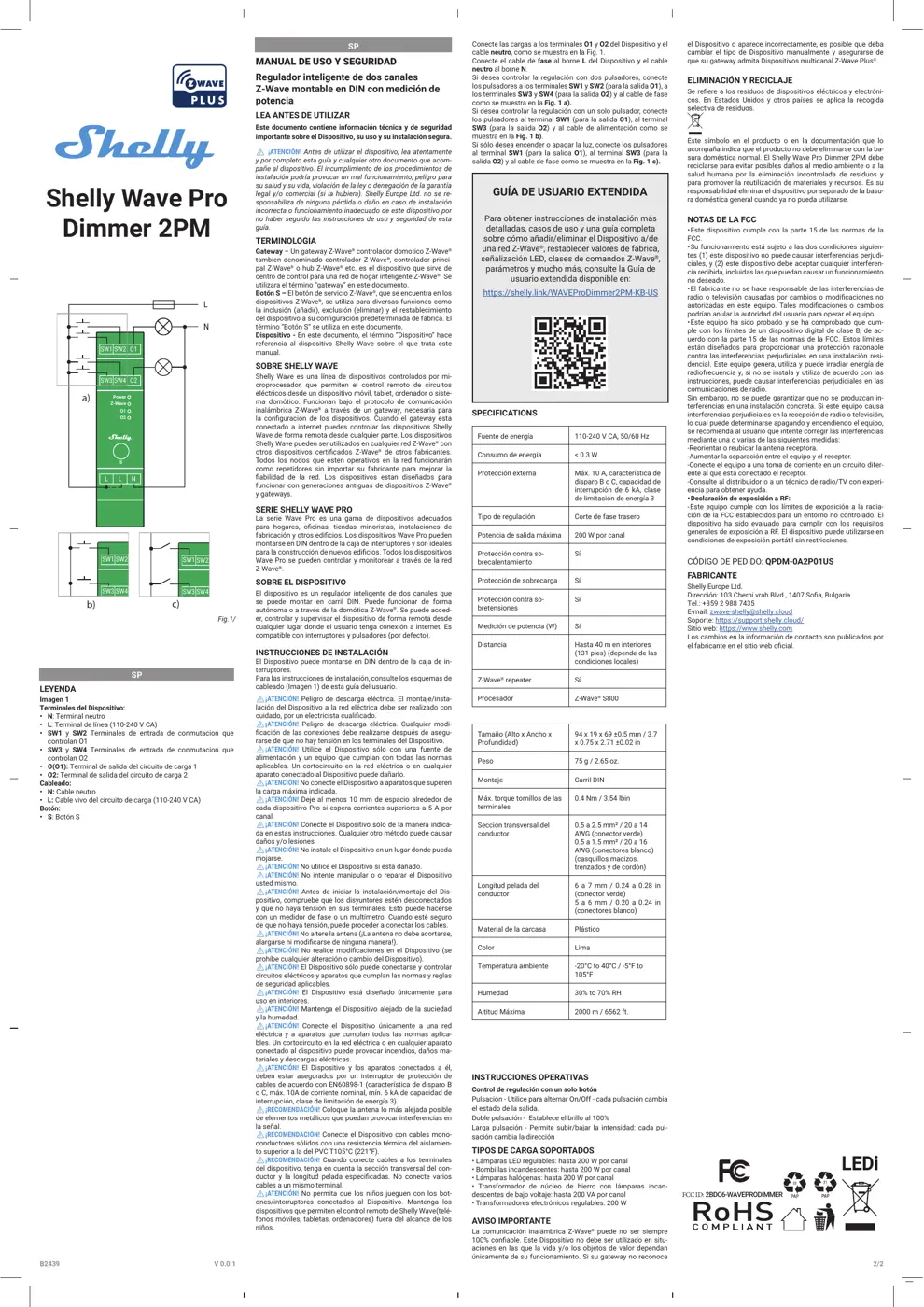

User Manual
Scanned pages from the official user manual:

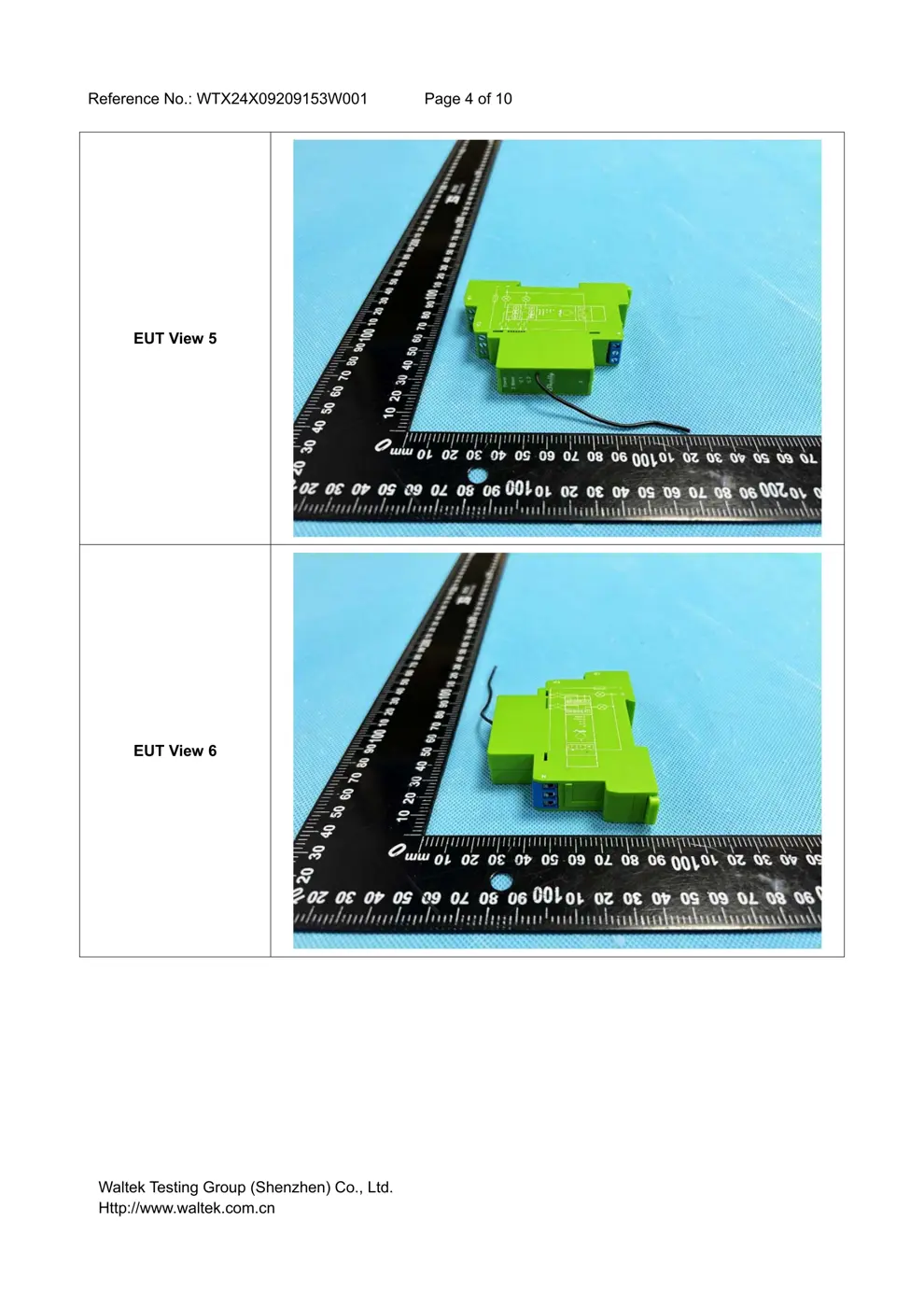

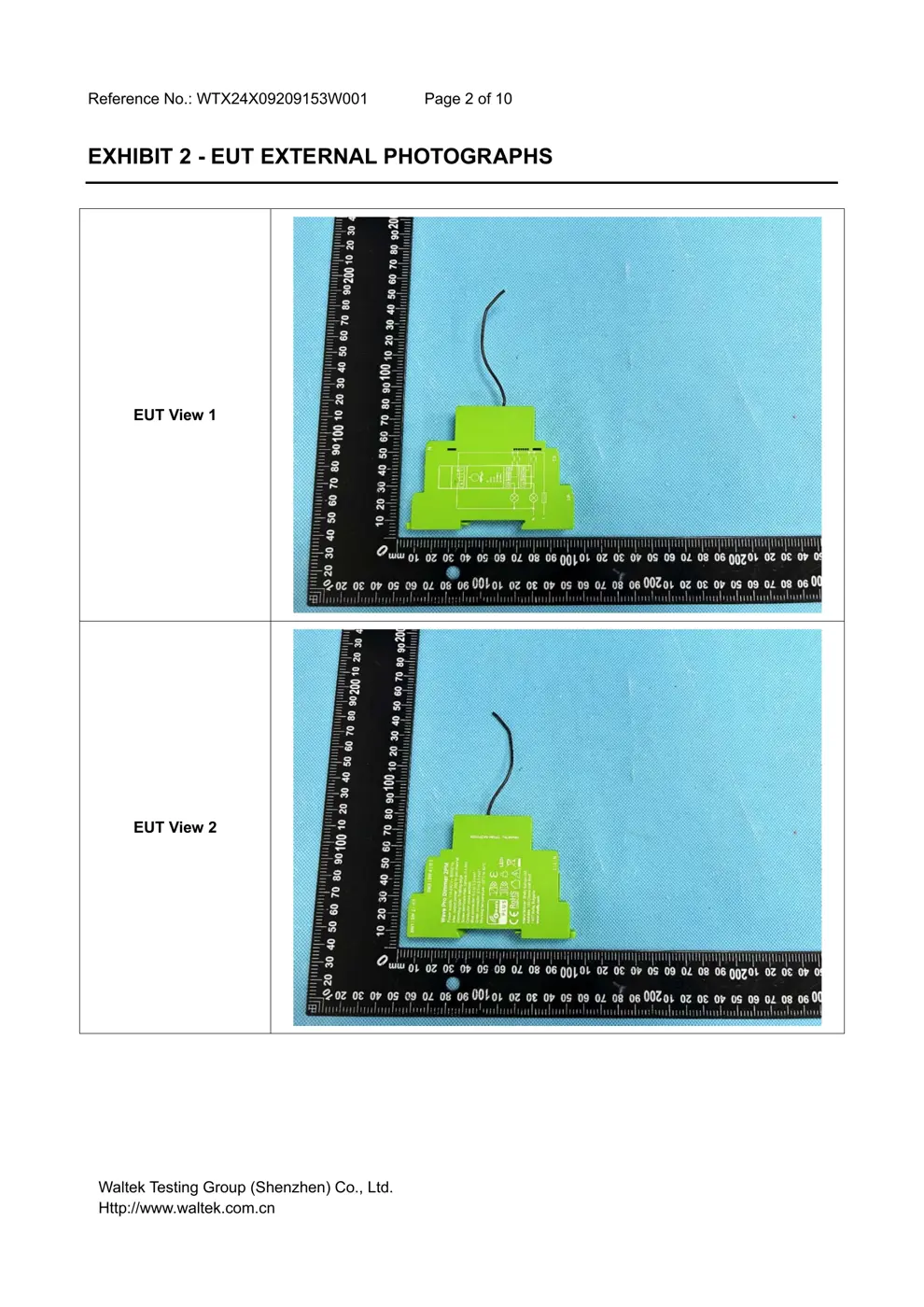

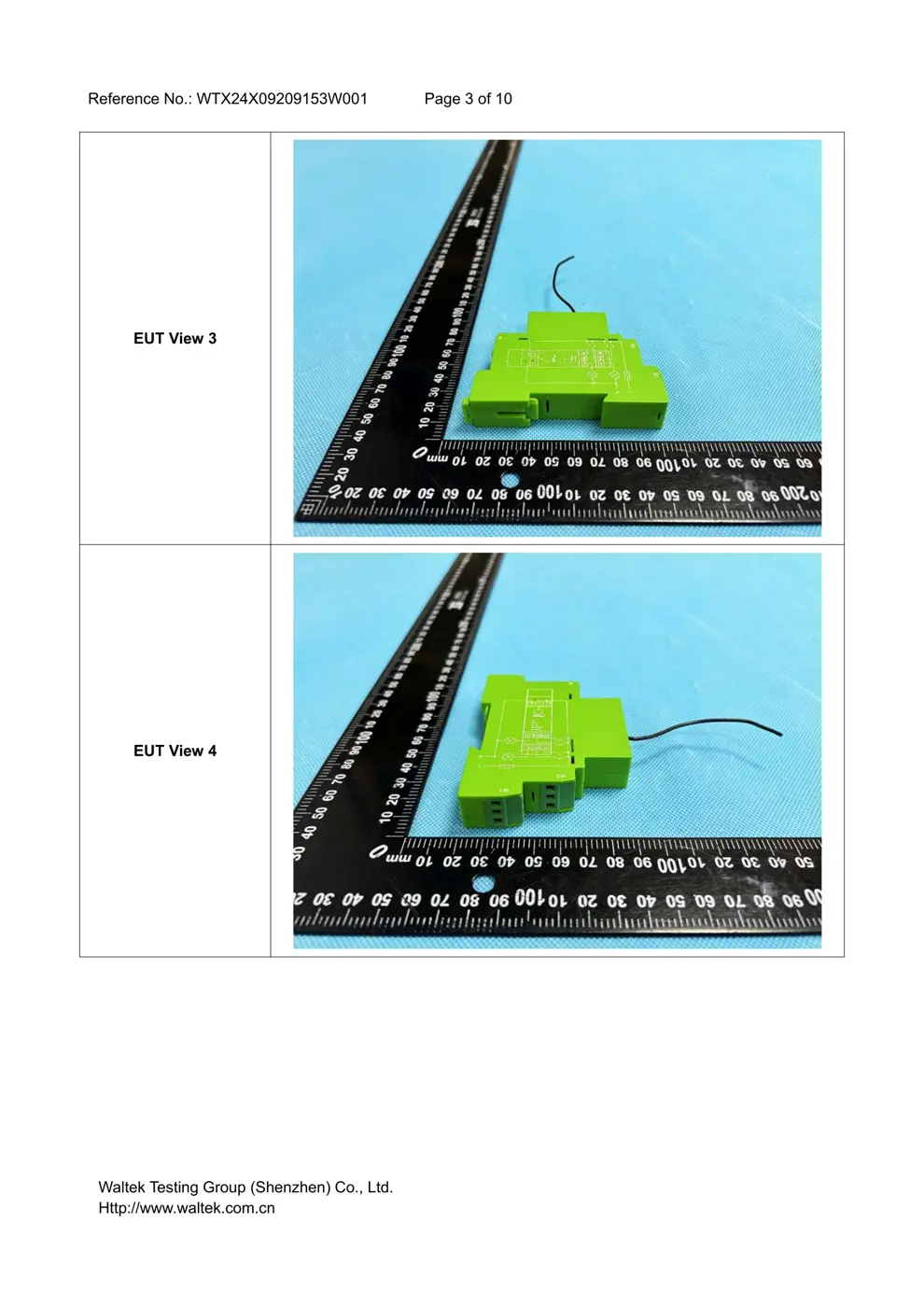

External Photos
Photos of the device exterior:

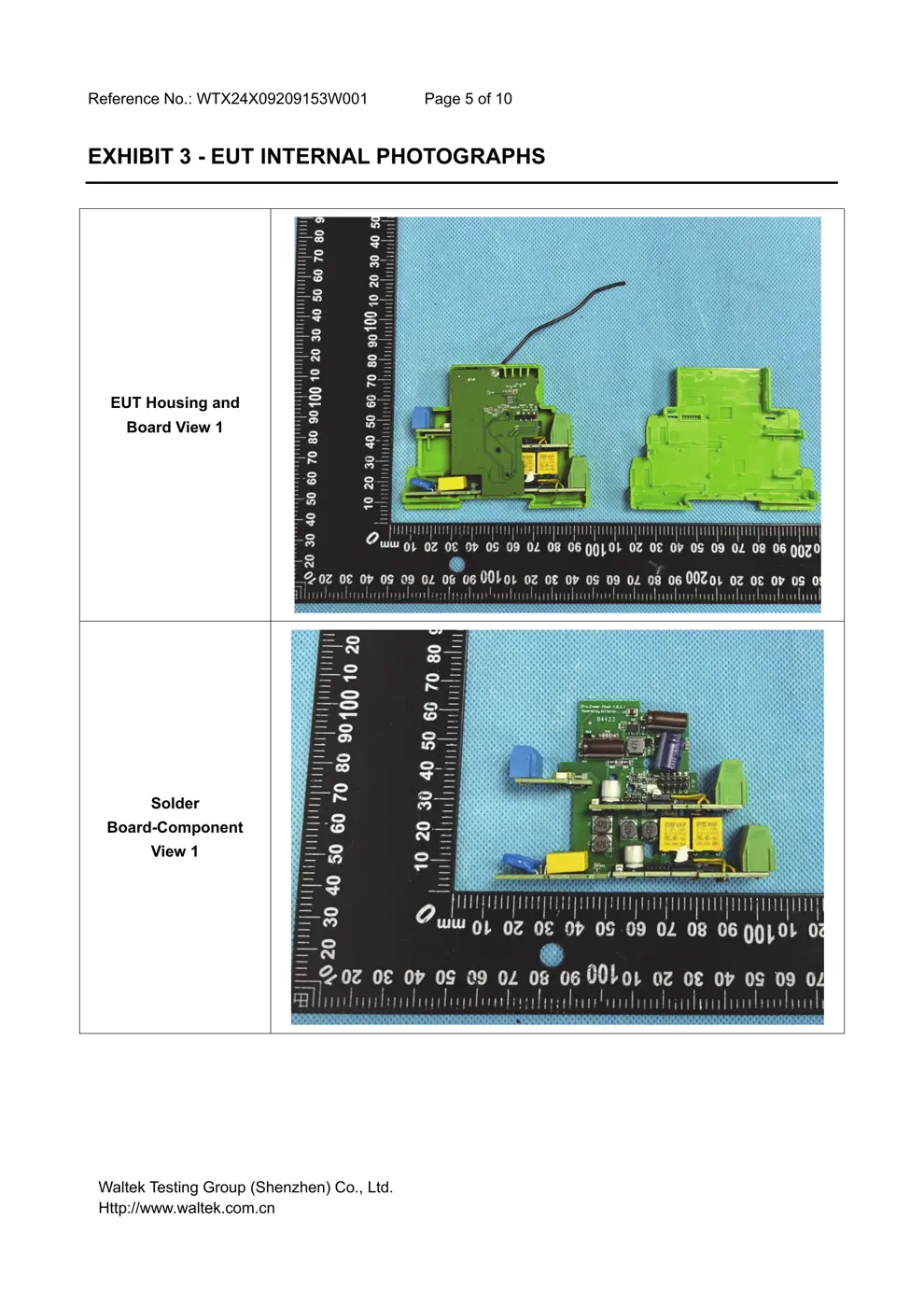

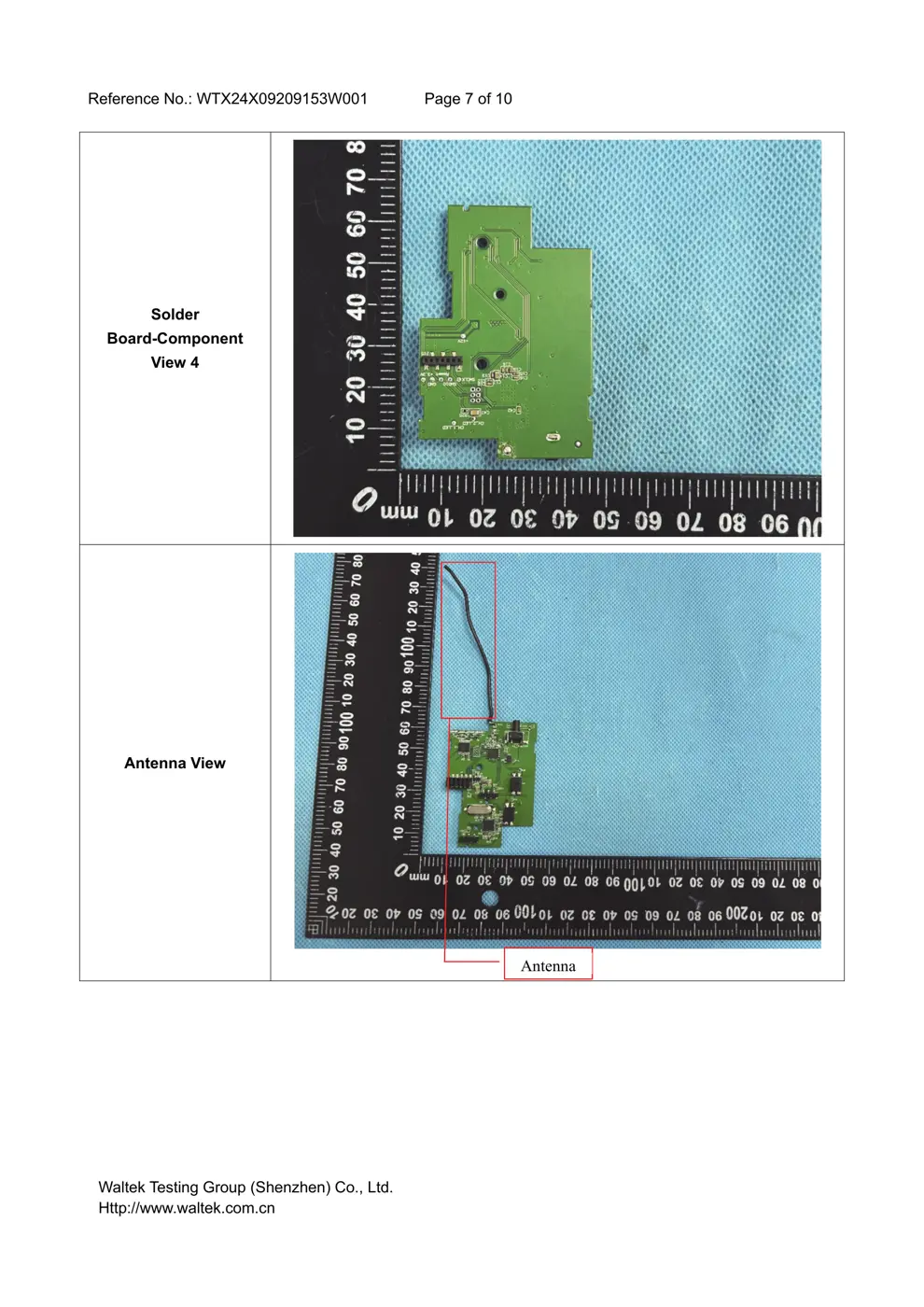

Internal Photos
Teardown photos showing the PCB and components:
Verdict
The WAVEPRODIMMER is a Z-Wave device from the Shelly ecosystem.
📄 Click to view full text manual (SEO)
EN
LEGEND
Fig. 1
Device terminals:
•N : Neutral terminal
•L : Live terminal (110–240 V AC)
•S W 1 and SW2 Switch input terminals controling O1
•S W 3 and SW4 Switch input terminals controling O2
•O ( O 1 ) : Load circuit 1 output terminal
•O 2 : Load circuit 2 output terminal
Wires:
•N : Neutral wire
•L : Live wire (110-240 V AC)
Button:
•S : S button
EN
V 0.0.1B2439
Shelly Wave Pro
Dimmer 2PM
Fig.1/
For more detailed installation instructions,
use cases, and comprehensive guidance on
adding/removing the Device to/from a Z-Wave®
network, factory reset, LED signalization,
Z-Wave® command classes, parameters, and
much more, refer to the extended user guide at:
https://shelly.link/WAVEProDimmer2PM-KB-US
EXTENDED USER GUIDE
SPECIFICATIONS
Power supply 110-240 V AC, 50/60 Hz
Power consumption < 0.3 W
External protection 10 A, tripping characteristic
B or C, 6 kA interrupting rat-
ing, Energy limiting class 3
Dimming type trailing edge
Max. Output power 200 W per channel
Overheating protection Yes
Overload protection Yes
Overvoltage protection Yes
Power measurement (W) Yes
Distance Up to 40 m indoors (131
ft.) (depends on local
condition)
Z-Wave® repeater Yes
CPU Z-Wave® S800
Size (H x W x D) 94 x 19 x 69 ±0.5 mm / 3.7
x 0.75 x 2.71 ±0.02 in
Weight 75 g / 2.65 oz.
Mounting DIN rail
Screw terminals max.
torque
0.4 Nm / 3.54 lbin
Conductor cross section Conductor cross section:
0.5 to 2.5 mm² / 20 to 14
AWG (green connector)
0.5 to 1.5 mm² / 20 to 16
AWG (white connectors)
(solid, stranded, and
bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in
(green connector)
5 to 6 mm / 0.20 to 0.24 in
(white connectors)
Shell material Plastic
Color Lime
Ambient temperature -20°C to 40°C / -5°F to
105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.
OPERATIONAL INSTRUCTIONS
Single button dimming control
Push - Use to toggle On/Off - every push changes the state of
the output.
Double Push - Sets brightness to 100%
Long Push - Use to dim up/down - every push changes the
direction
SUPPORTED LOAD TYPES
• Dimmable LED lamps: up to 200 W per channel
• Incandescent bulbs: up to 200 W per channel
• Halogen lamps: up to 200 W per channel
• Iron-core transformer with low-voltage incandescent lamps: up
to 200 VA per channel
• Dimmable electronic transformers: 200W
IMPORTANT DISCLAMER
Z-Wave® wireless communication may not always be 100%
reliable. This Device should not be used in situations in which
life and/or valuables are solely dependent on its functioning. If
the Device is not recognized by your gateway or appears incor-
rectly, you may need to change the Device type manually and
ensure that your gateway supports Z-Wave Plus
® multi-channel
devices.
DISPOSAL & RECYCLING
This refers to the waste of electrical and electronic equipment.
It is applicable in the US and other countries to collect waste
separately.This symbol on the product or in the accompanying literature
indicates that the product should not ...
