WB8P Reset & Teardown (FCC ID 2ANDL-WB8P)
Factory reset and internal photos for Tuya Global WB8P. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global WB8P, check what's inside.
The WB8P is a low-power embedded module from Tuya, integrating WiFi and Bluetooth connectivity. It is designed for integration into various smart home and IoT devices, powered by a BK7231T chipset.
⚠️ NOTE: Ensure correct voltage is supplied to the module and observe polarity when connecting power.
Quick Specs
- Manufacturer: Tuya Global
- Model: WB8P
- Protocol: WiFi
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: BK7231T
- Flashable: ✅ Yes
- Info: The BK7231T chipset is known to be flashable with custom firmware like OpenBeken.
User Manual

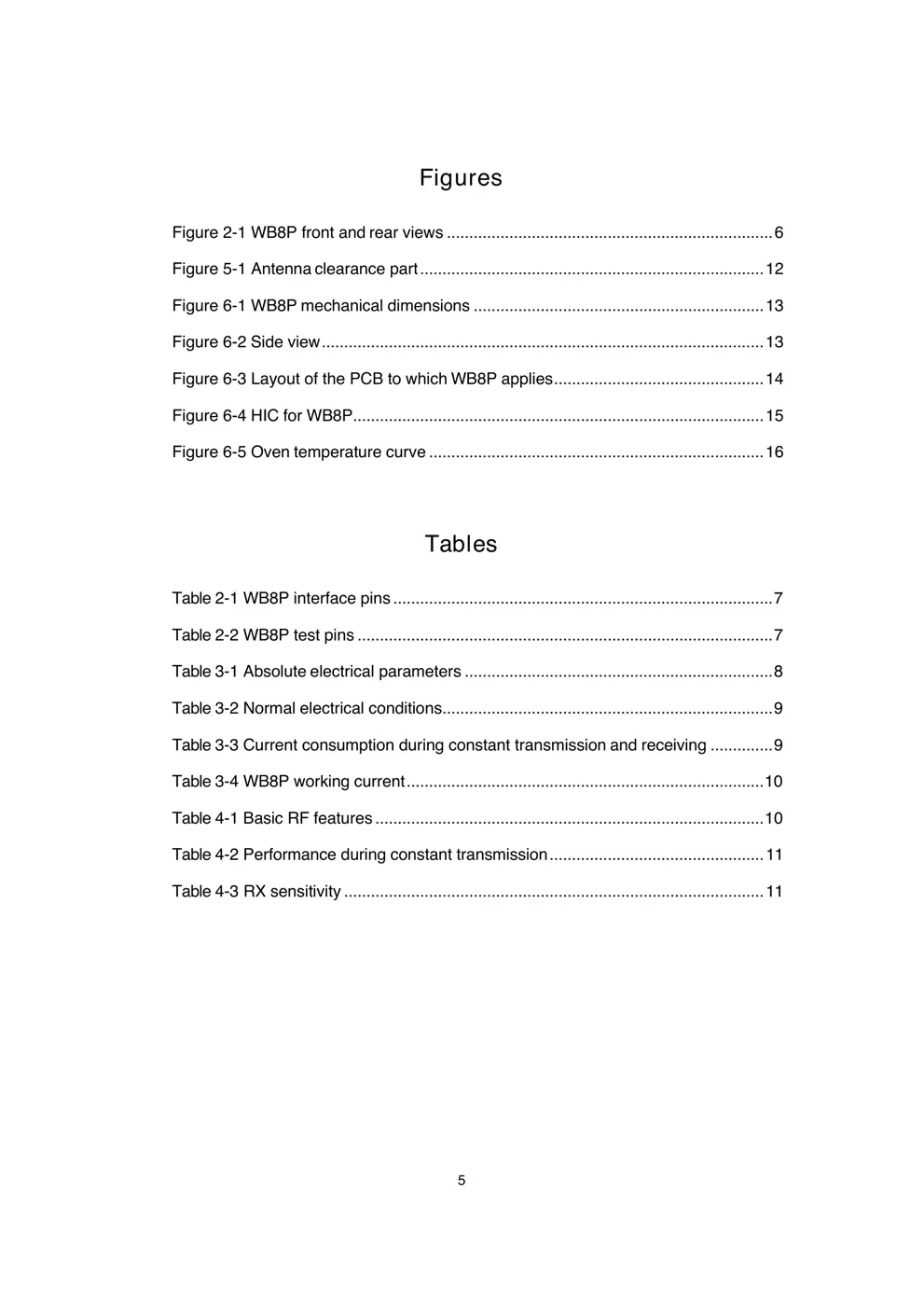

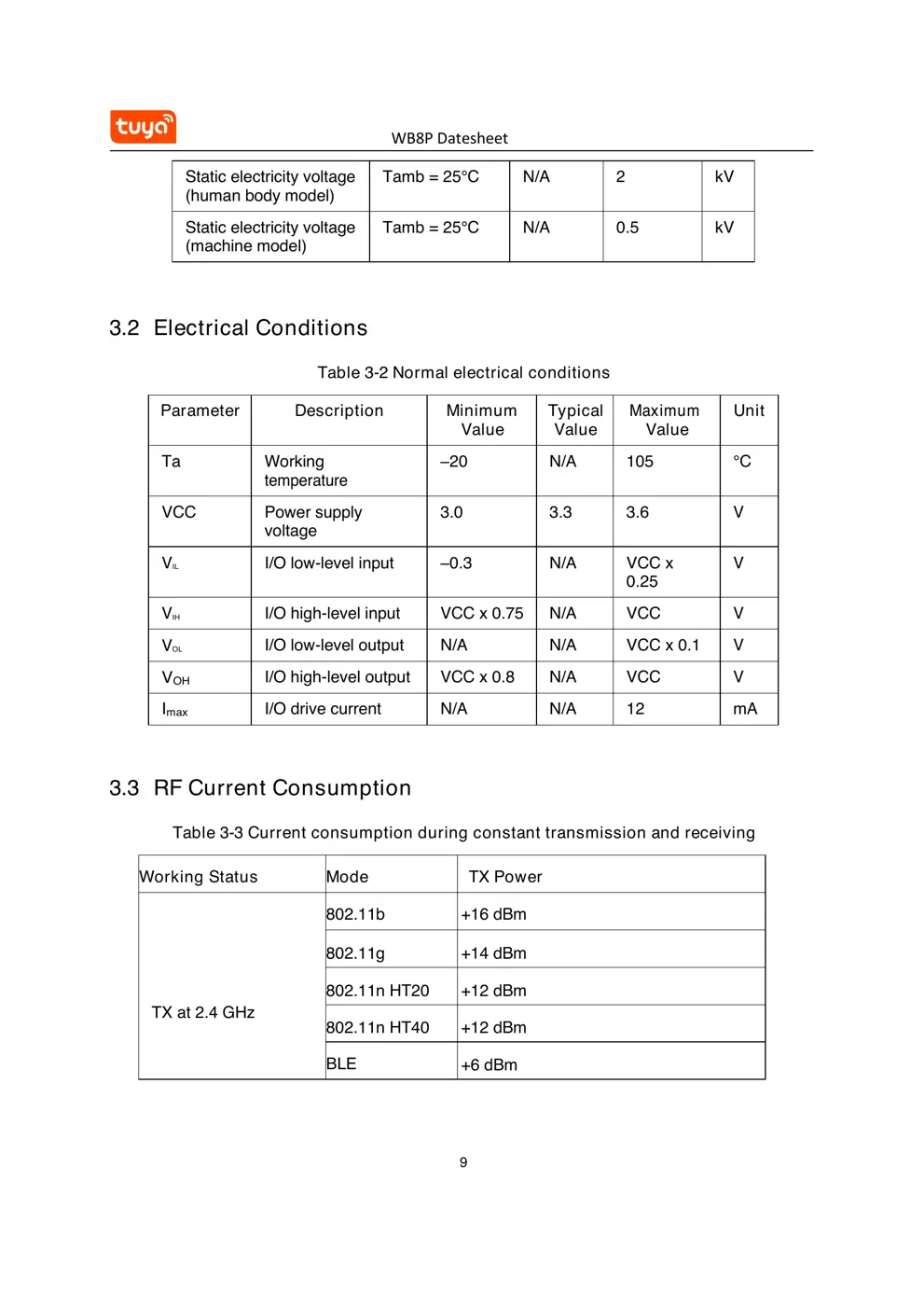

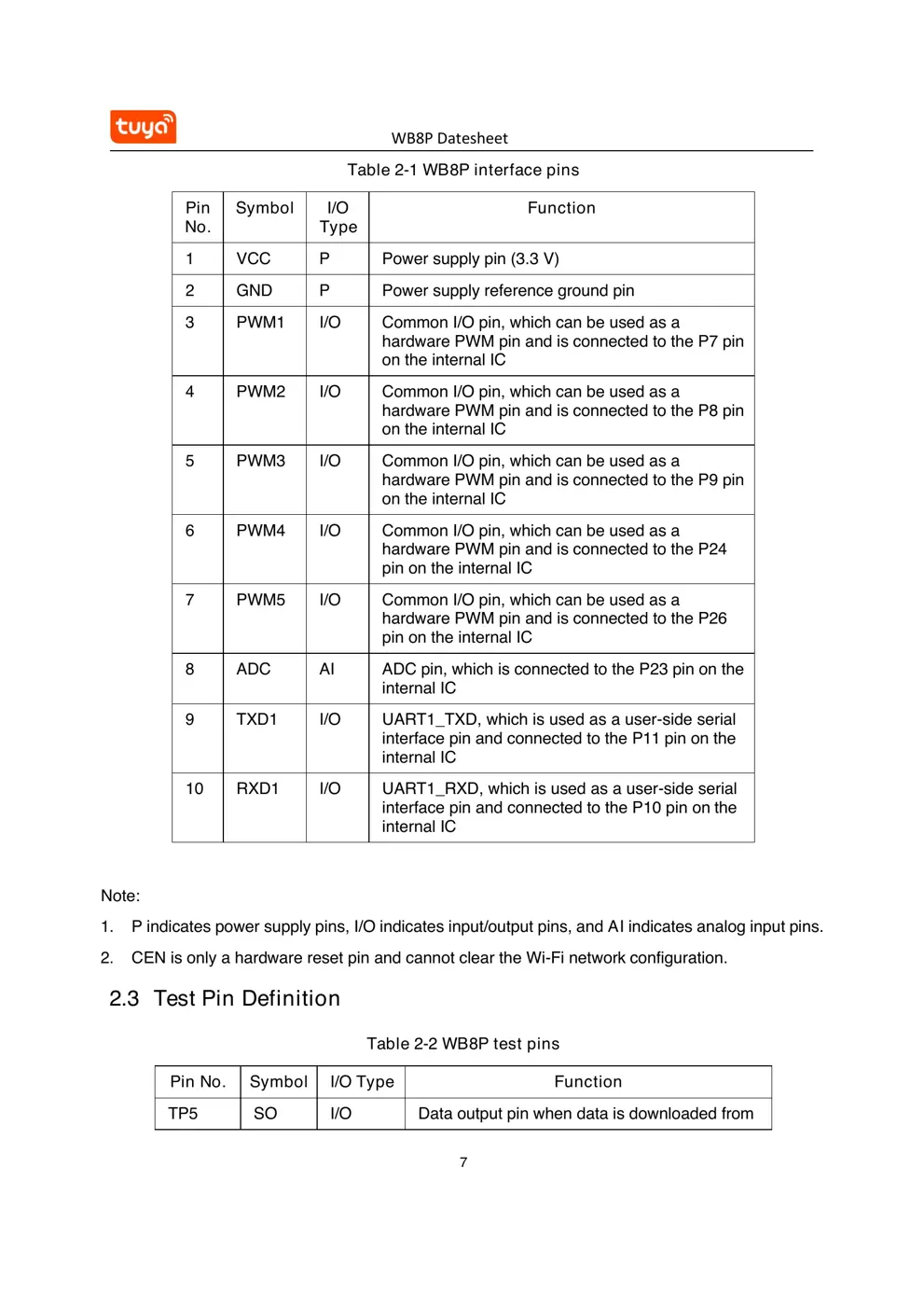

Scanned pages from the official user manual:

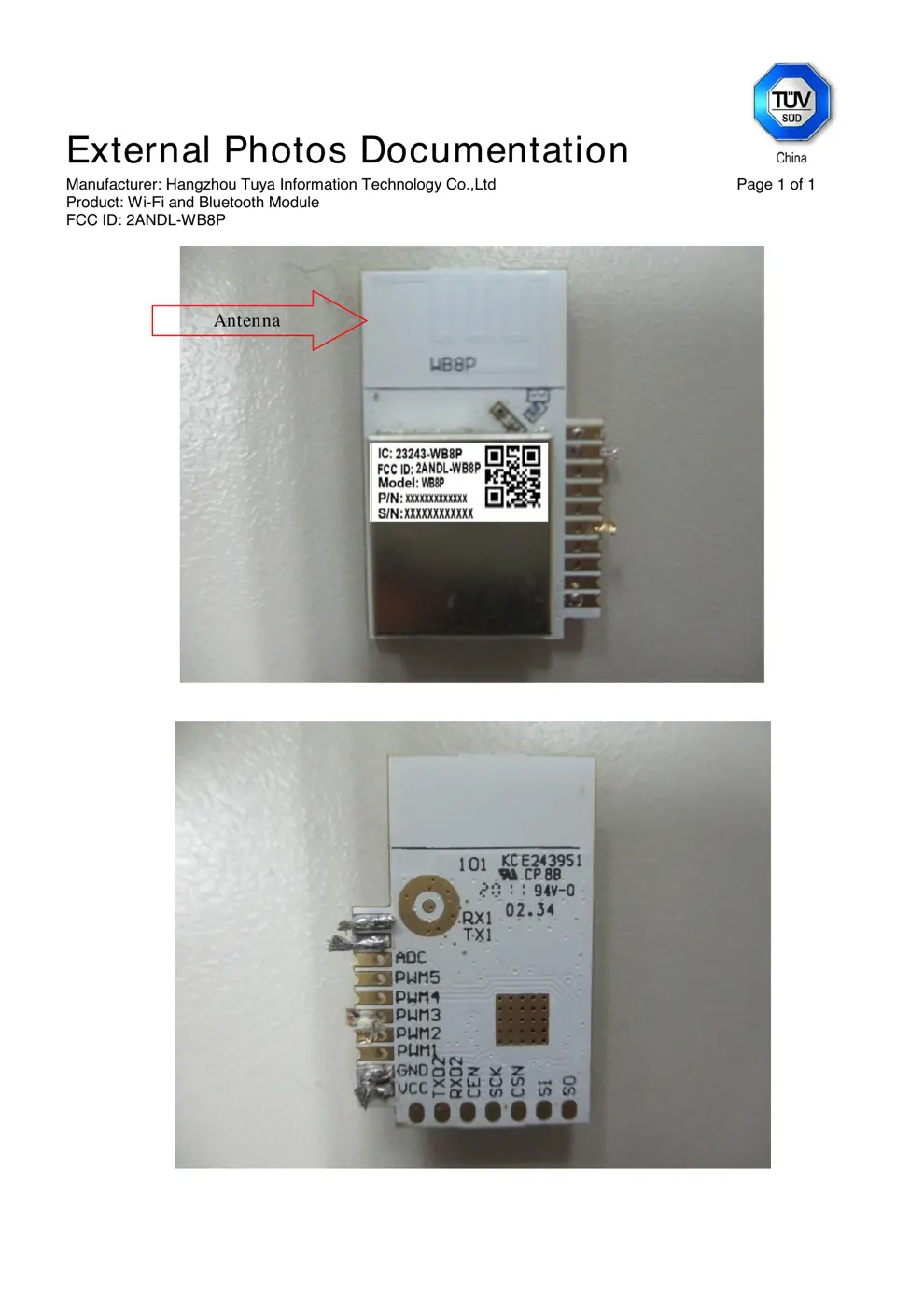

External Photos
Photos of the device exterior:

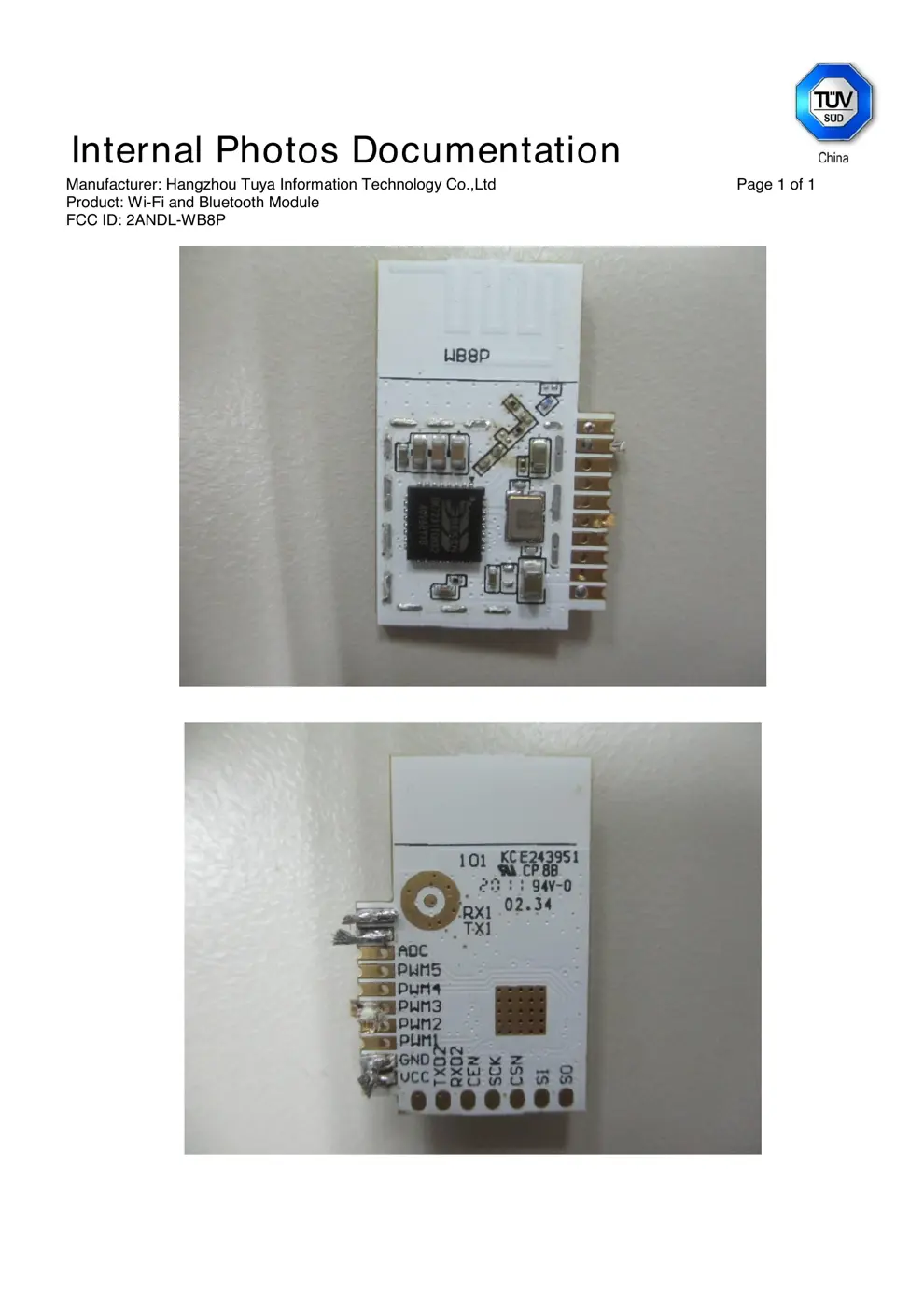

Internal Photos
Teardown photos showing the PCB and components:
Verdict
The WB8P is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
1

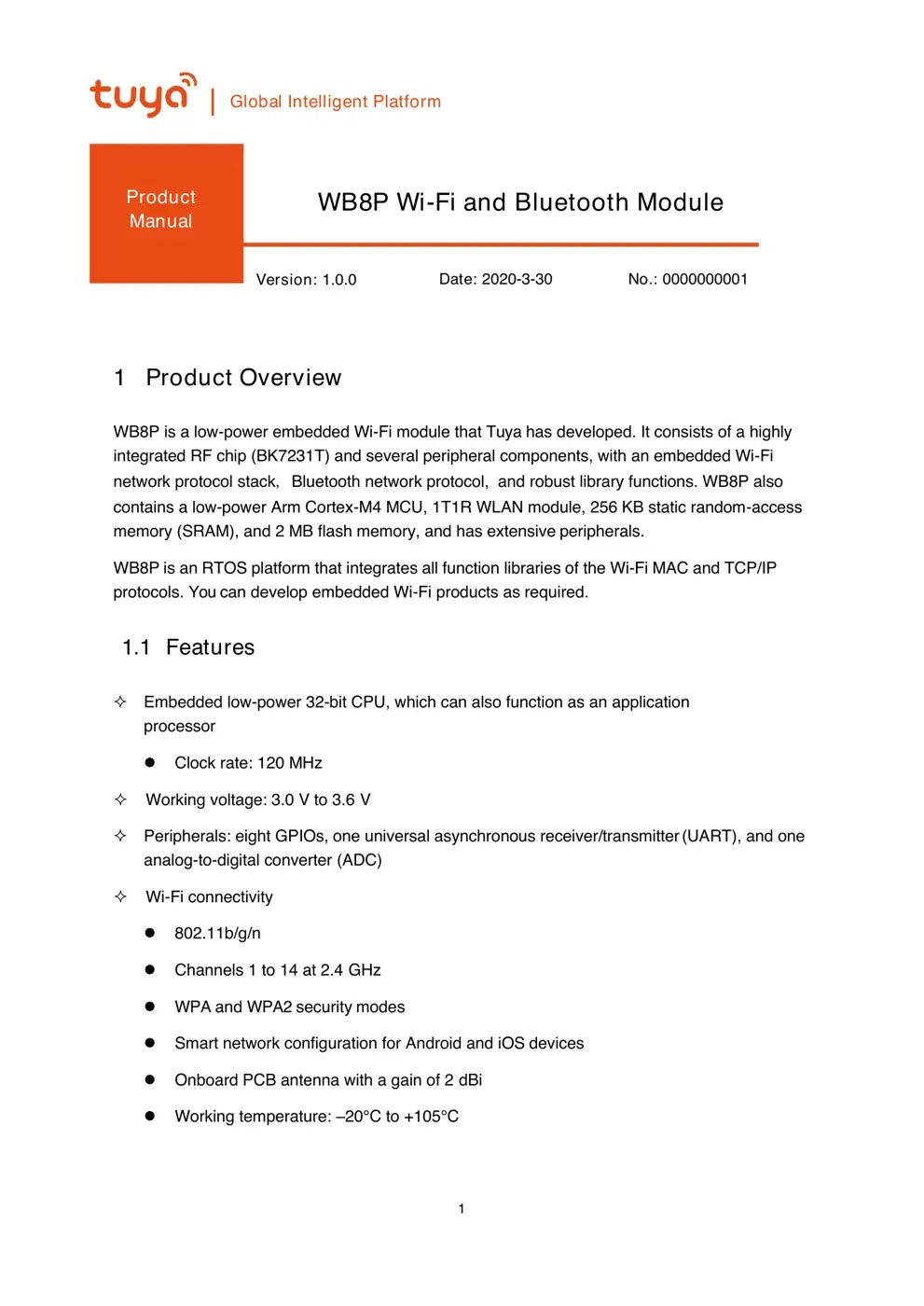

1 Product Overview
WB8P is a low-power embedded Wi-Fi module that Tuya has developed. It consists of a highly
integrated RF chip (BK7231T) and several peripheral components, with an embedded Wi-Fi
network protocol stack, Bluetooth network protocol, and robust library functions. WB8P also
contains a low-power Arm Cortex-M4 MCU, 1T1R WLAN module, 256 KB static random-access
memory (SRAM), and 2 MB flash memory, and has extensive peripherals.
WB8P is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and TCP/IP
protocols. You can develop embedded Wi-Fi products as required.
1.1 Features
Embedded low-power 32-bit CPU, which can also function as an application
processor
⚫ Clock rate: 120 MHz
Working voltage: 3.0 V to 3.6 V
Peripherals: eight GPIOs, one universal asynchronous receiver/transmitter (UART), and one
analog-to-digital converter (ADC)
Wi-Fi connectivity
⚫ 802.11b/g/n
⚫ Channels 1 to 14 at 2.4 GHz
⚫ WPA and WPA2 security modes
⚫ Smart network configuration for Android and iOS devices
⚫ Onboard PCB antenna with a gain of 2 dBi
⚫ Working temperature: –20° C to +105° C
Product
Manual
WB8P Wi-Fi and Bluetooth Module
Version: 1.0.0 Date: 2020-3-30 No.: 0000000001
Global Intelligent Platform
2
Bluetooth connectivity
⚫ Support Bluetooth （V4.2）
⚫ Onboard PCB antenna with a gain of 2 dBi
⚫ Working temperature: –20° C to +105° C
2

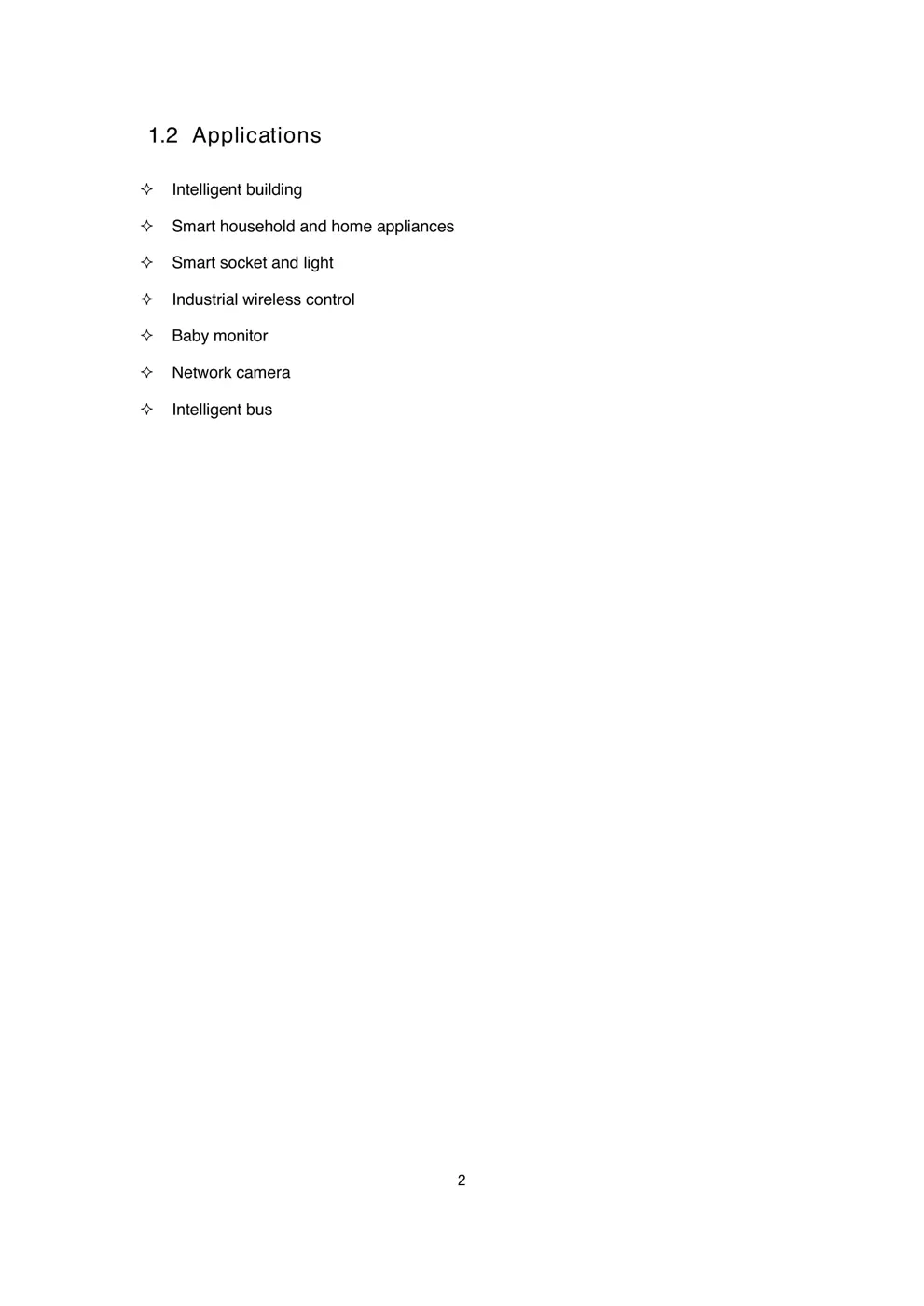

1.2 Applications
Intelligent building
Smart household and home appliances
Smart socket and light
Industrial wireless control
Baby monitor
Network camera
Intelligent bus
3

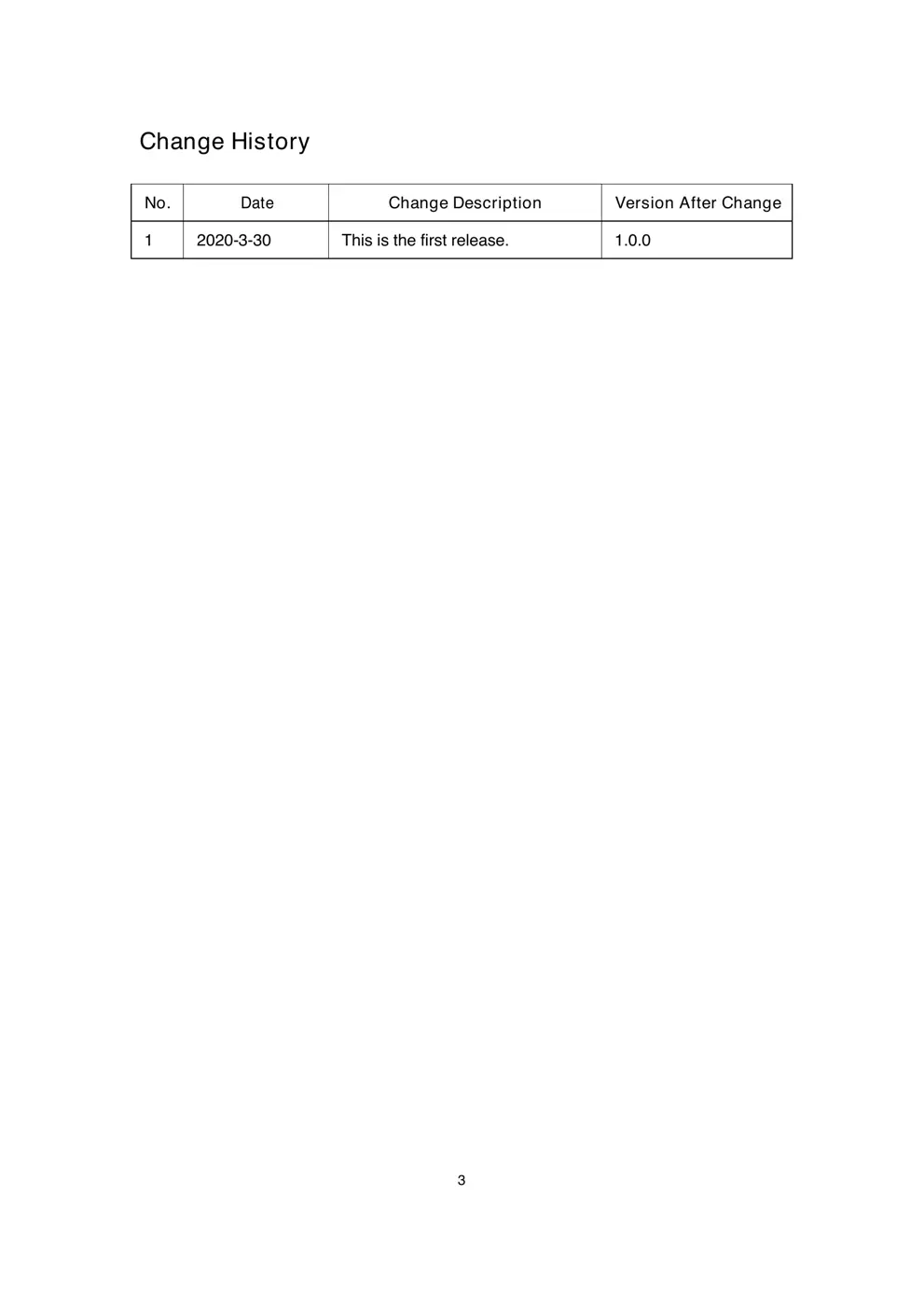

Change History
No. Date Change Description Version After Change
1 2020-3-30 This is the first release. 1.0.0
4
Contents
1 Product Overview ............................................................................................................. 1
1.1 Features ................................................................................................................. 1
1.2 Applications ............................................................................................................ 2
2 Module Interfaces ............................................................................................................. 6
2.1 Dimensions and Footprint ...................................................................................... 6
2.2 Interface Pin Definition ........................................................................................... 6
2.3 Test Pin Definition ................................................................................................... 7
3 Electrical Parameters ....................................................................................................... 8
3.1 Absolute Electrical Parameters .............................................................................. 8
3.2 Electrical Conditions ...........................................................................................
