WR2LV1.0.0 User Manual
 Version1.0.02

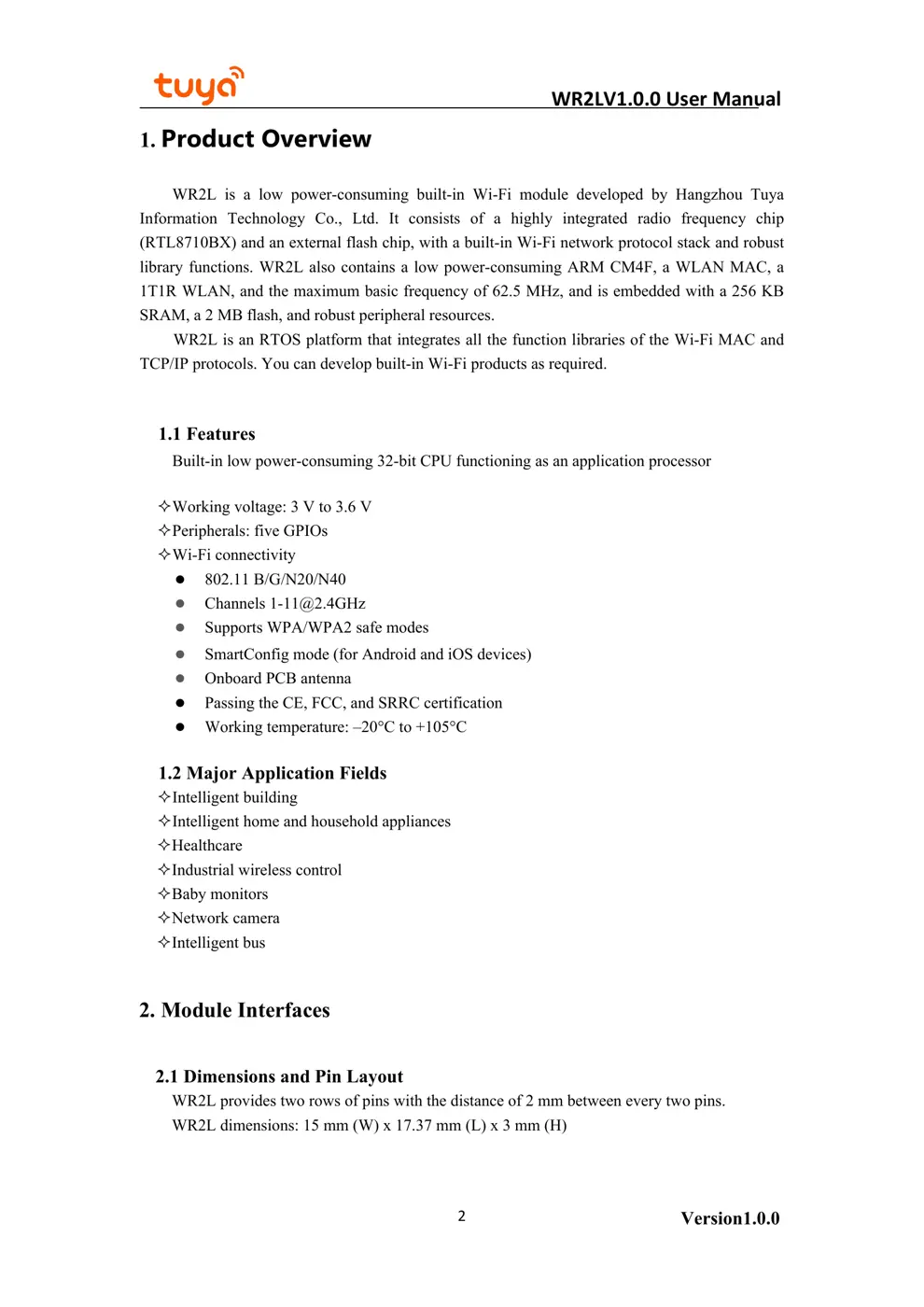

1. Product Overview
 WR2L is a low power-consuming built-in Wi-Fi module developed by Hangzhou Tuya
Information Technology Co., Ltd. It consists of a highly integrated radio frequency chip
(RTL8710BX) and an external flash chip, with a built-in Wi-Fi network protocol stack and robust
library functions. WR2L also contains a low power-consuming ARM CM4F, a WLAN MAC, a
1T1R WLAN, and the maximum basic frequency of 62.5 MHz, and is embedded with a 256 KB
SRAM, a 2 MB flash, and robust peripheral resources.
WR2L is an RTOS platform that integrates all the function libraries of the Wi-Fi MAC and
TCP/IP protocols. You can develop built-in Wi-Fi products as required.
1.1 Features
Built-in low power-consuming 32-bit CPU functioning as an application processor
 Working voltage: 3 V to 3.6 V
 Peripherals: five GPIOs

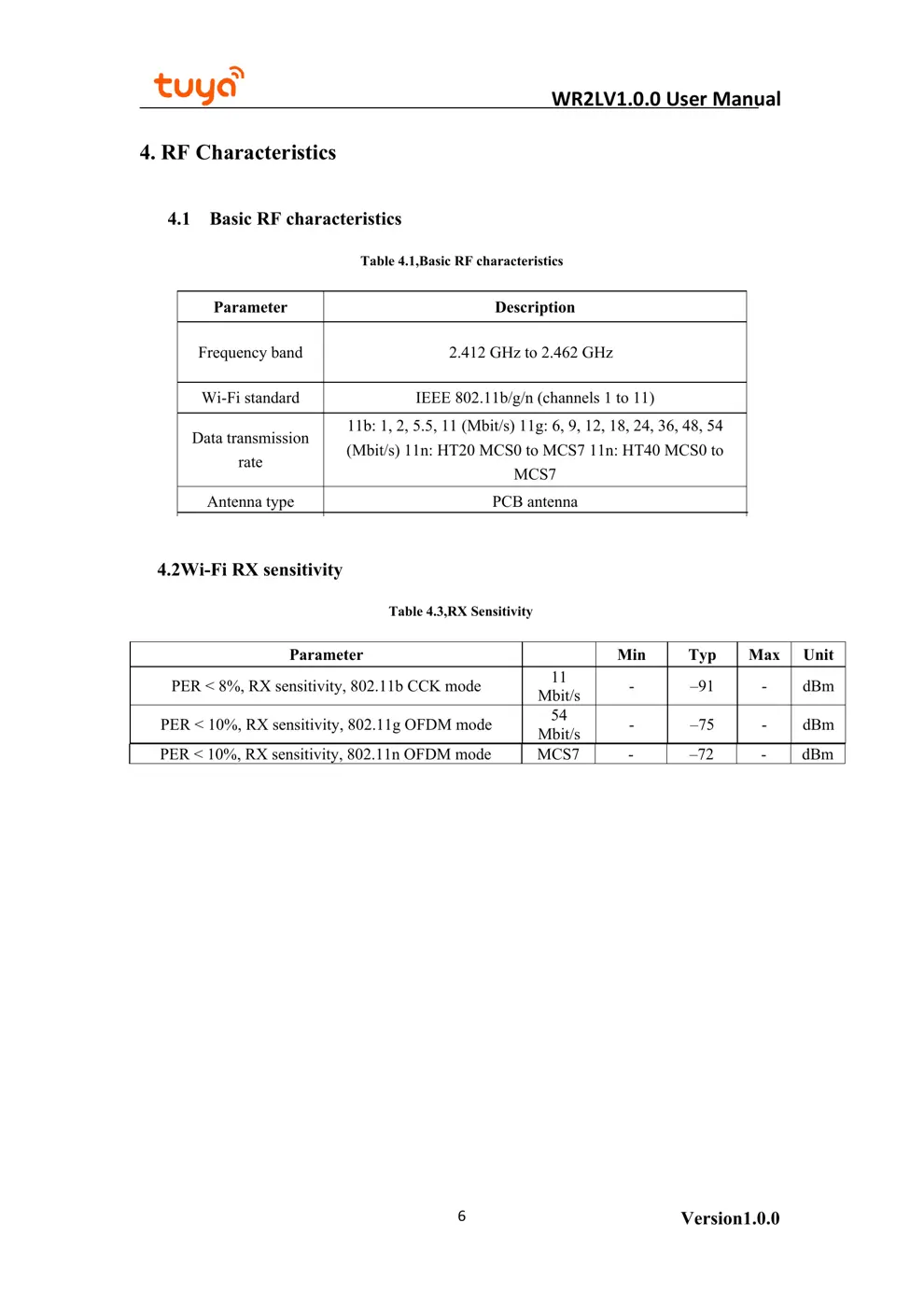

 Wi-Fi connectivity
 802.11 B/G/N20/N40
 Channels [email protected]
 Supports WPA/WPA2 safe modes
 SmartConfig mode (for Android and iOS devices)

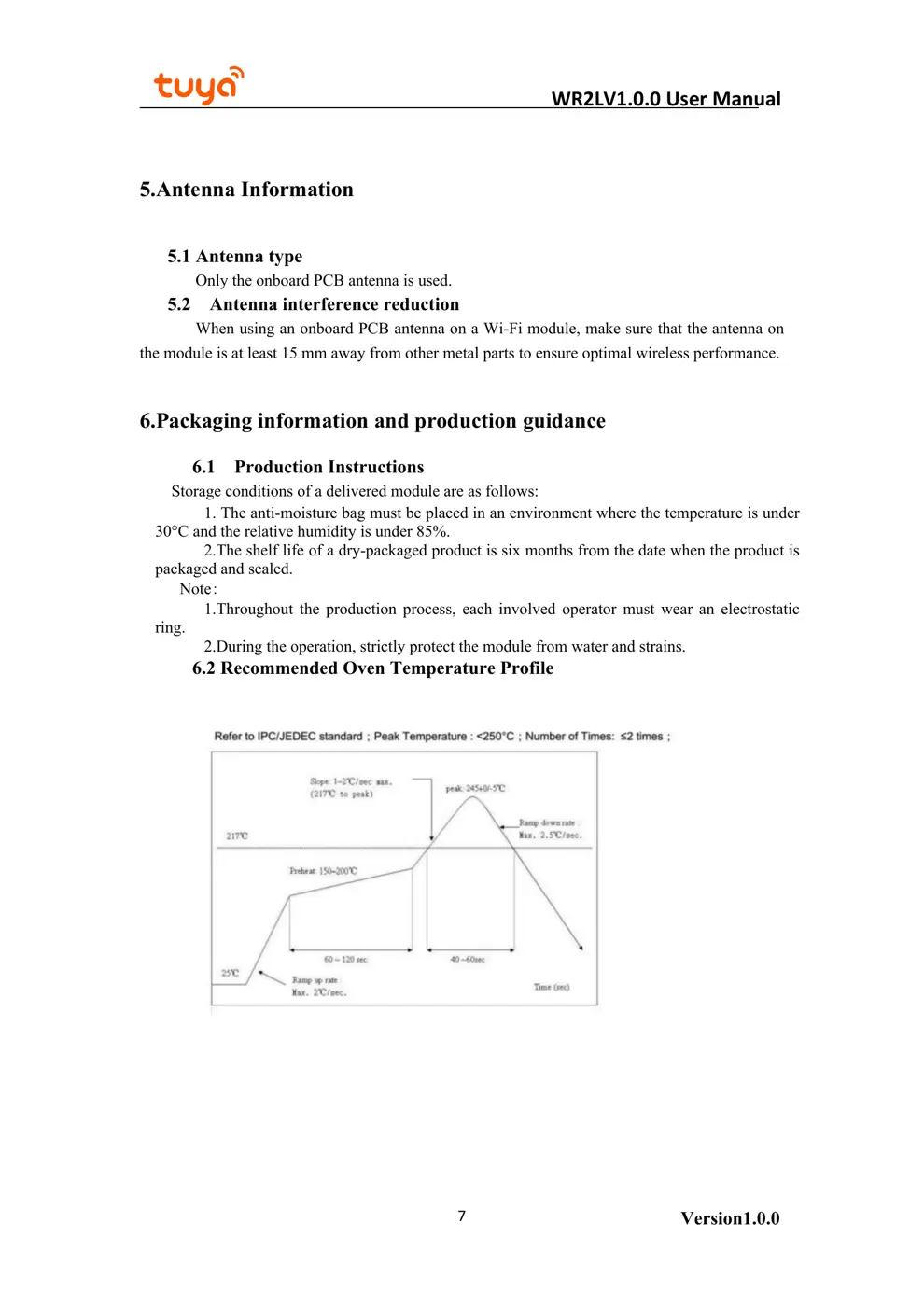

 Onboard PCB antenna

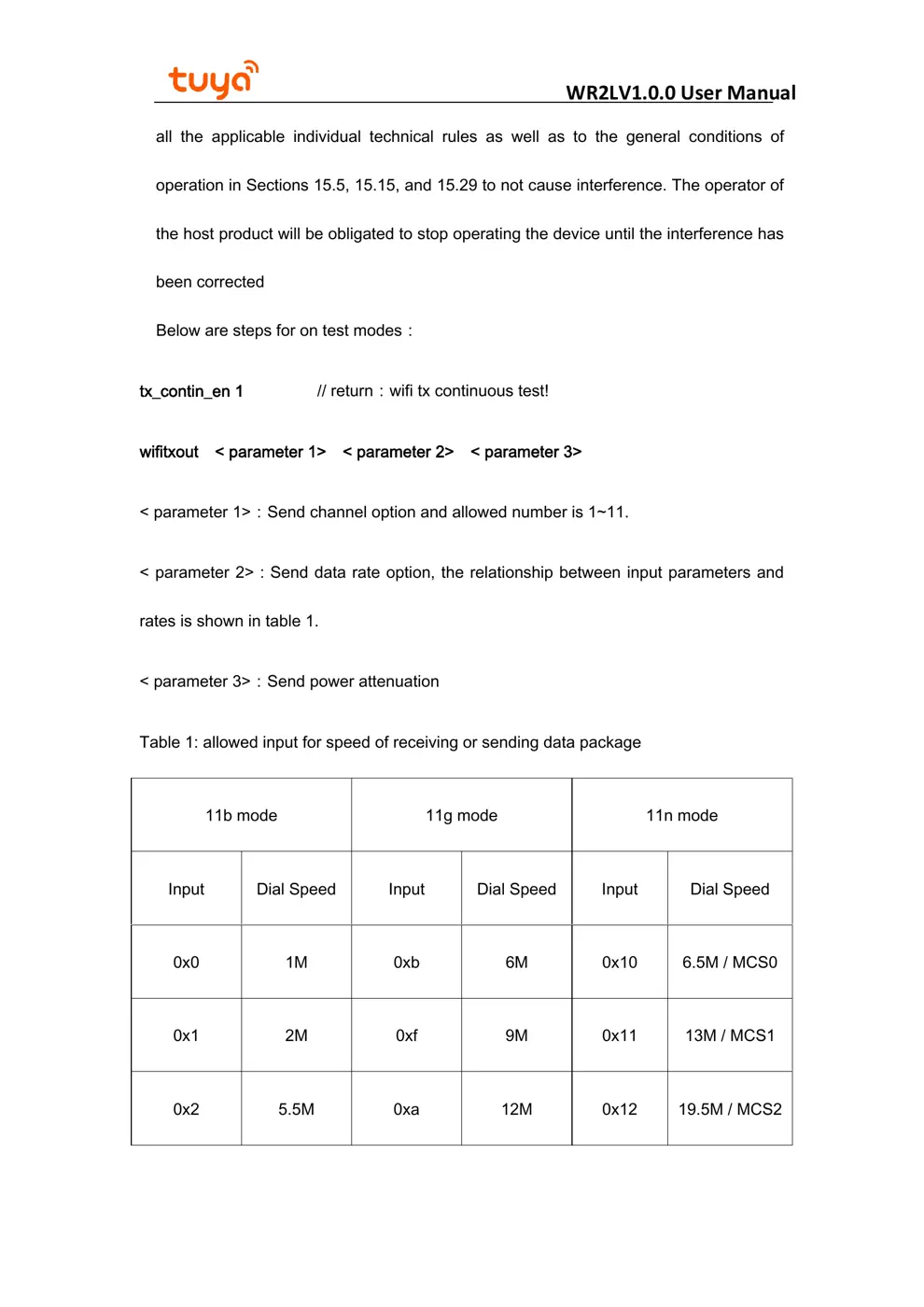

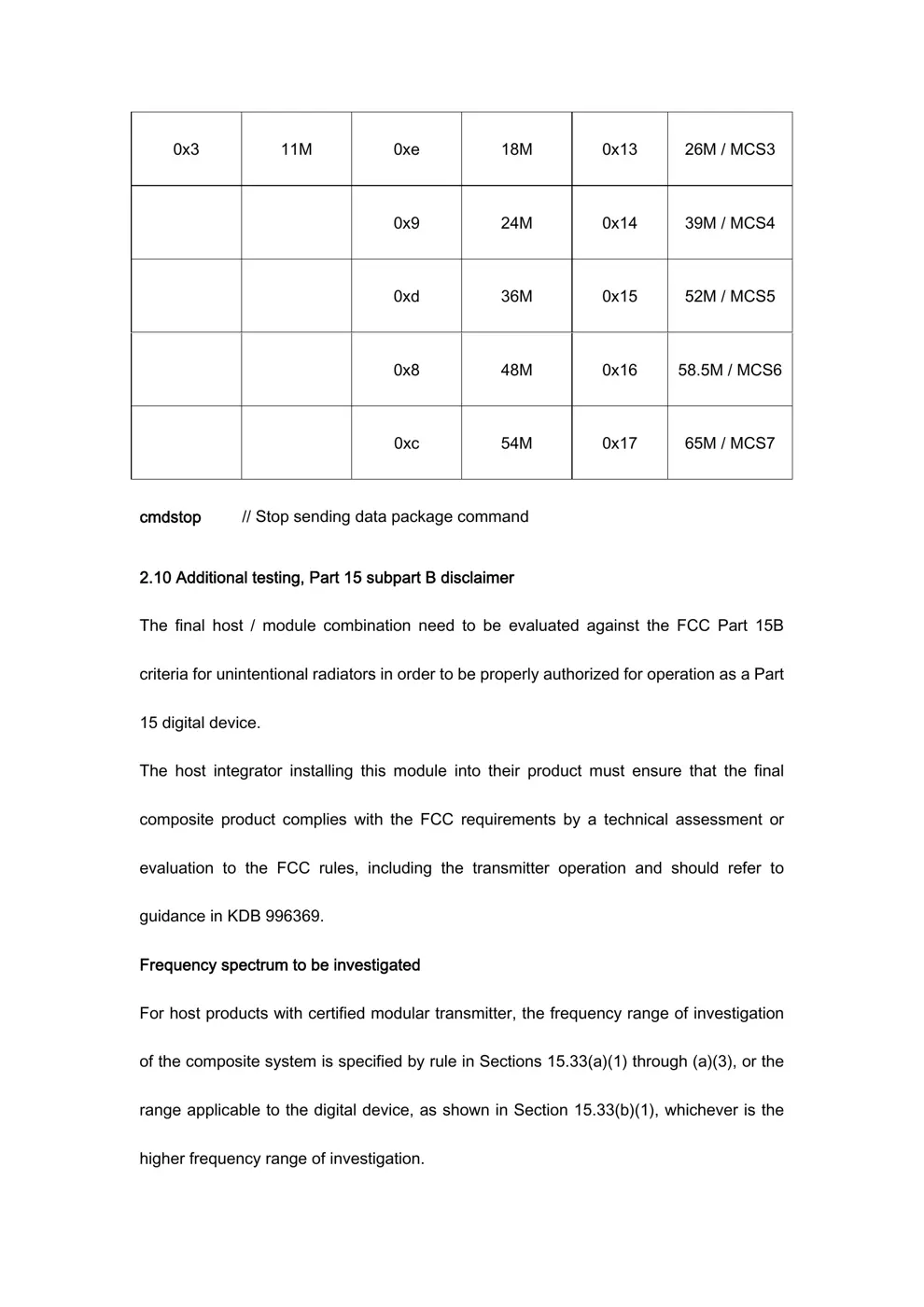

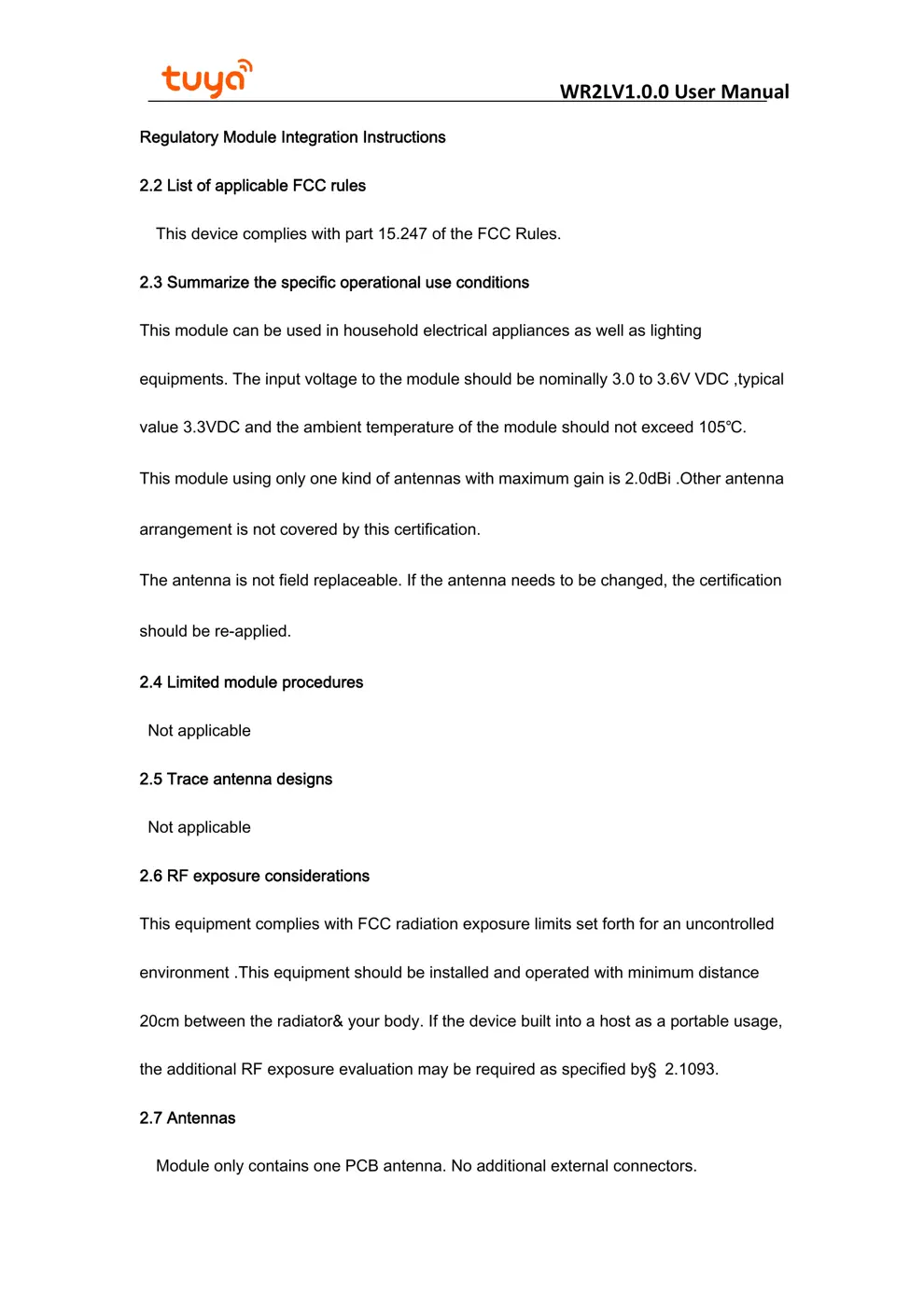

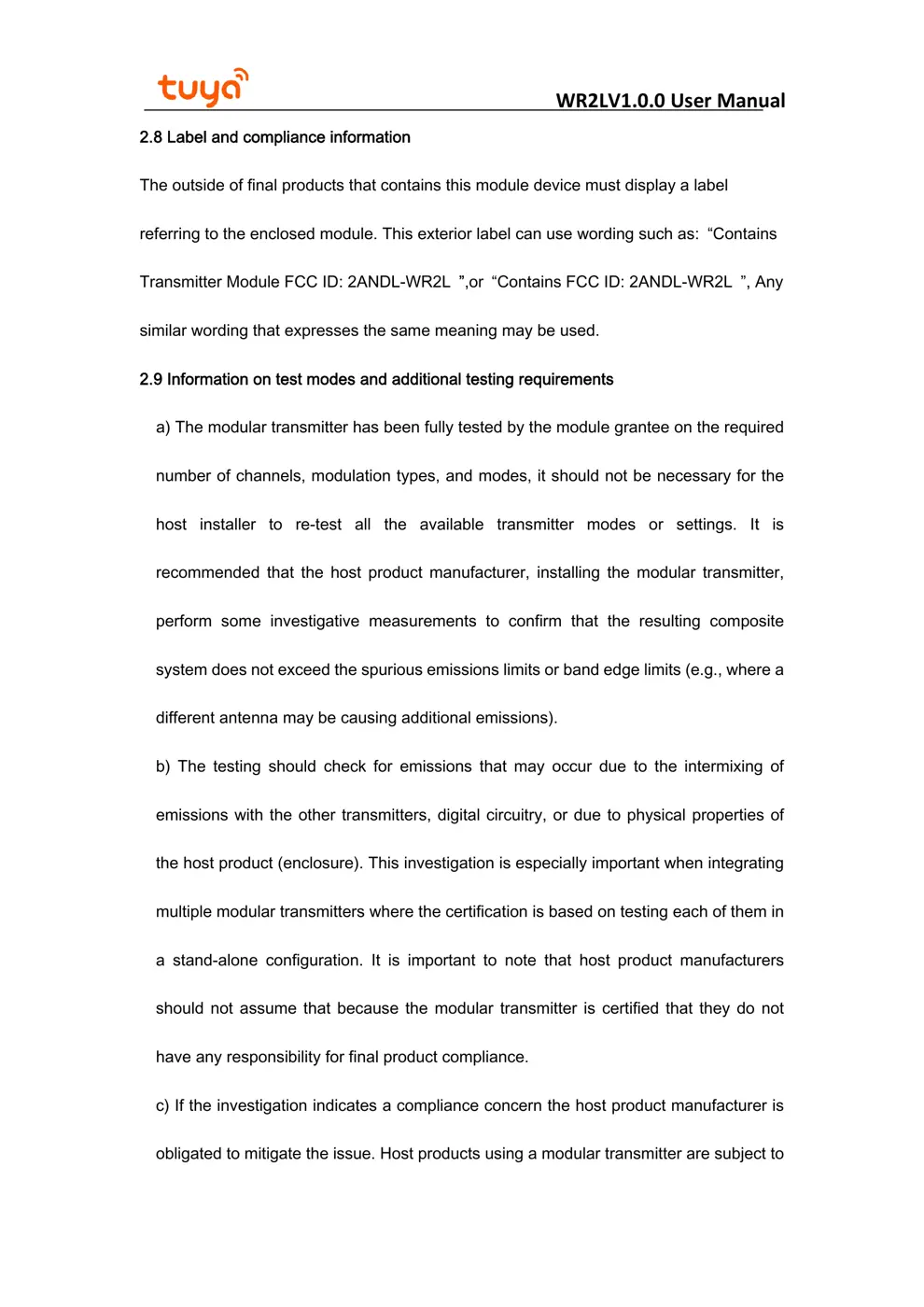

 Passing the CE, FCC, and SRRC certification
 Working temperature: –20°C to +105°C
1.2 Major Application Fields
 Intelligent building
 Intelligent home and household appliances
 Healthcare
 Industrial wireless control
 Baby monitors
 Network camera
 Intelligent bus
2.
Module Interfaces

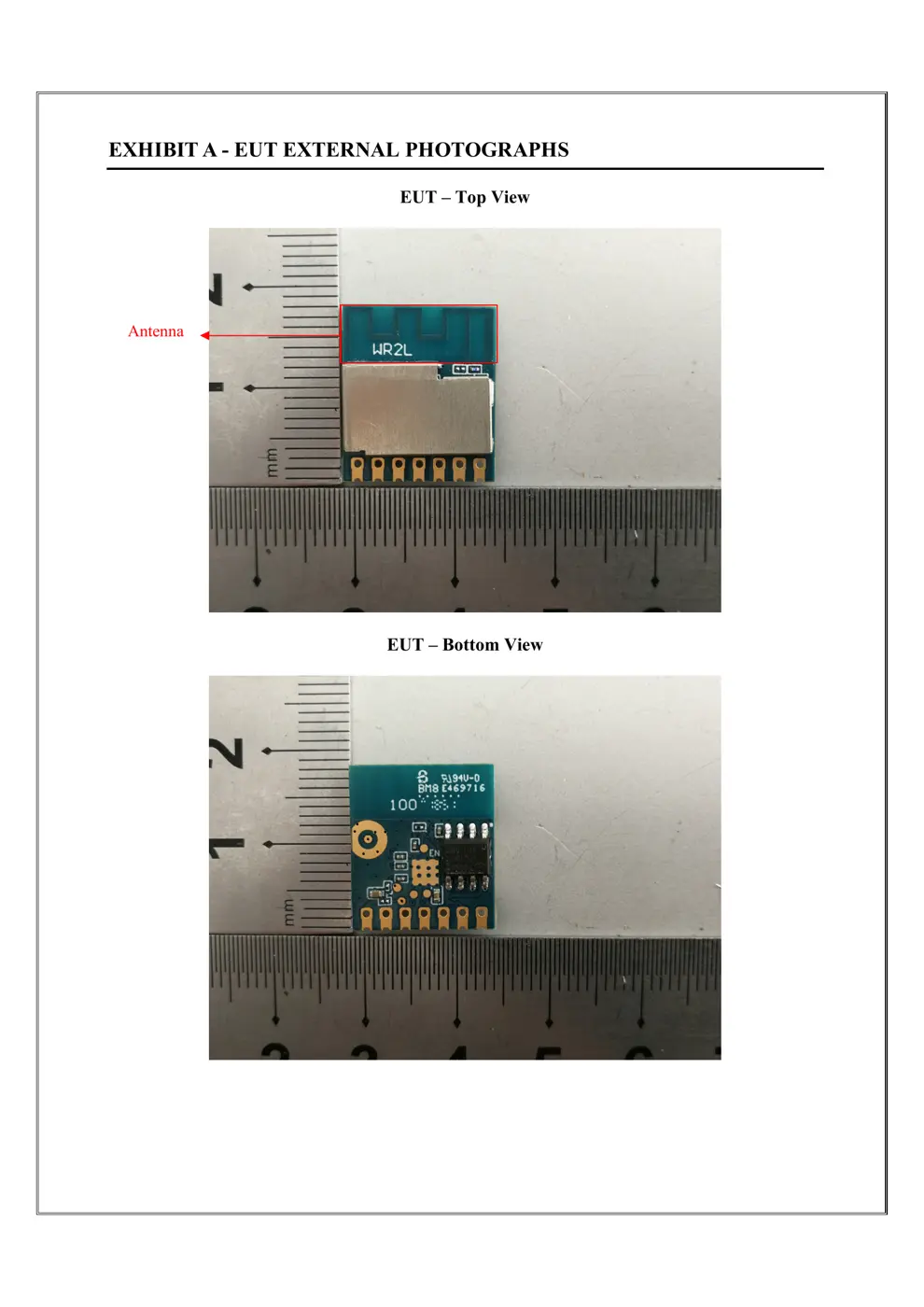

2.1 Dimensions and Pin Layout

WR2L provides two rows of pins with the distance of 2 mm between every two pins.
WR2L dimensions: 15 mm (W) x 17.37 mm (L) x 3 mm (H)
WR2LV1.0.0 User Manual
 Version1.0.03

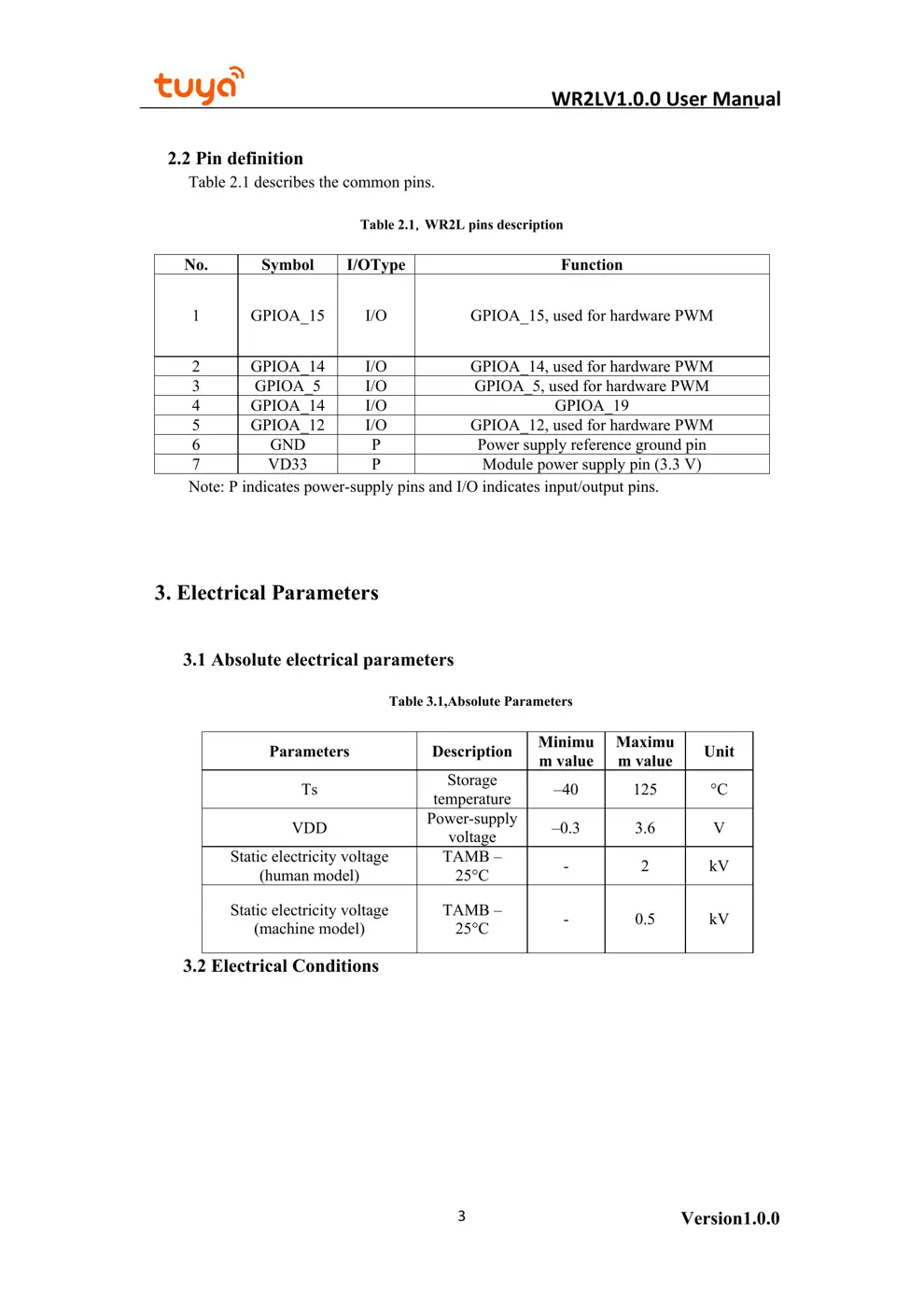

2.2 Pin definition
Table 2.1 describes the common pins.
Table 2.1，WR2L pins description
No. Symbol I/OType Function
1 GPIOA_15 I/O GPIOA_15, used for hardware PWM
2 GPIOA_14 I/O GPIOA_14, used for hardware PWM
3 GPIOA_5 I/O GPIOA_5, used for hardware PWM
4 GPIOA_14 I/O GPIOA_19
5 GPIOA_12 I/O GPIOA_12, used for hardware PWM
6 GND P Power supply reference ground pin
7 VD33 P Module power supply pin (3.3 V)
Note: P indicates power-supply pins and I/O indicates input/output pins.
3. Electrical Parameters
3.1 Absolute electrical parameters
Table 3.1,Absolute Parameters

Parameters Description Minimu
m value
Maximu
m value Unit
Ts Storage
temperature –40 125 °C
VDD Power-supply
voltage –0.3 3.6 V
Static electricity voltage
(human model)
TAMB –
25°C
 - 2 kV
Static electricity voltage
(machine model)

TAMB –
25°C
 - 0.5 kV
3.2 Electrical Conditions
WR2LV1.0.0 User Manual
 Version1.0.04
Table 3.2 Normal electrical conditions
Paramet
ers Description Min Typ Max Unit
Ta Working
temperature –20 - 105 °C
VDD Working voltage 3.0 - 3.6 V
VIL I/O low-level input –0.3 - VDD x 0.25 V
VIH I/O high-level input VDD x 0.75 - 3.6 V
VOL I/O low-level output - - VDD x 0.1 V
VOH I/O high-level
output VDD x 0.8 - VDD V
Imax I/O drive current - - 16 mA
Cpad Input pin
capacitance - 2 - pF

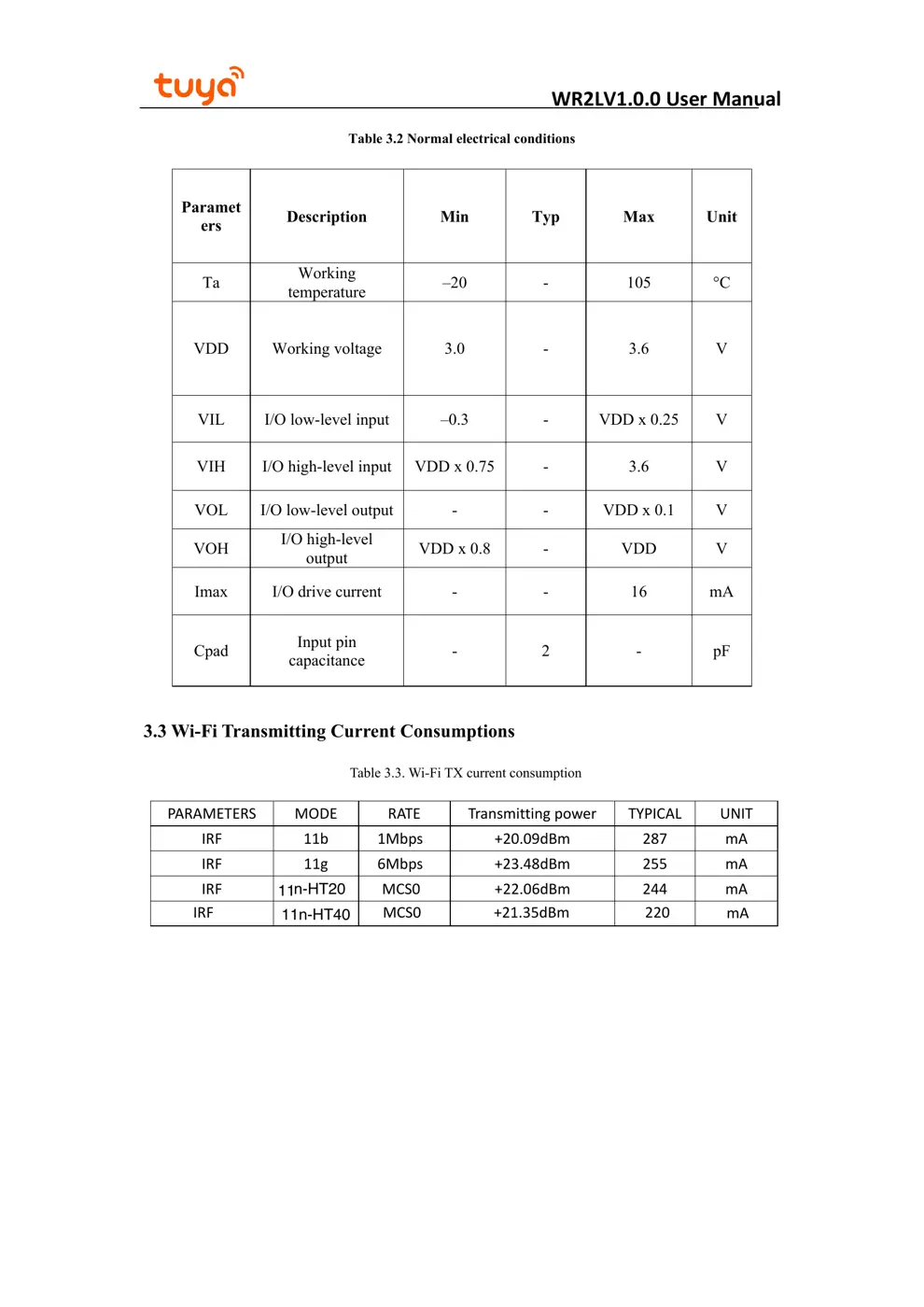

3.3 Wi-Fi Transmitting Current Consumptions
Table 3.3. Wi-Fi TX current consumption
PARAMETERS MODE RATE Transmittingpower TYPICAL UNIT

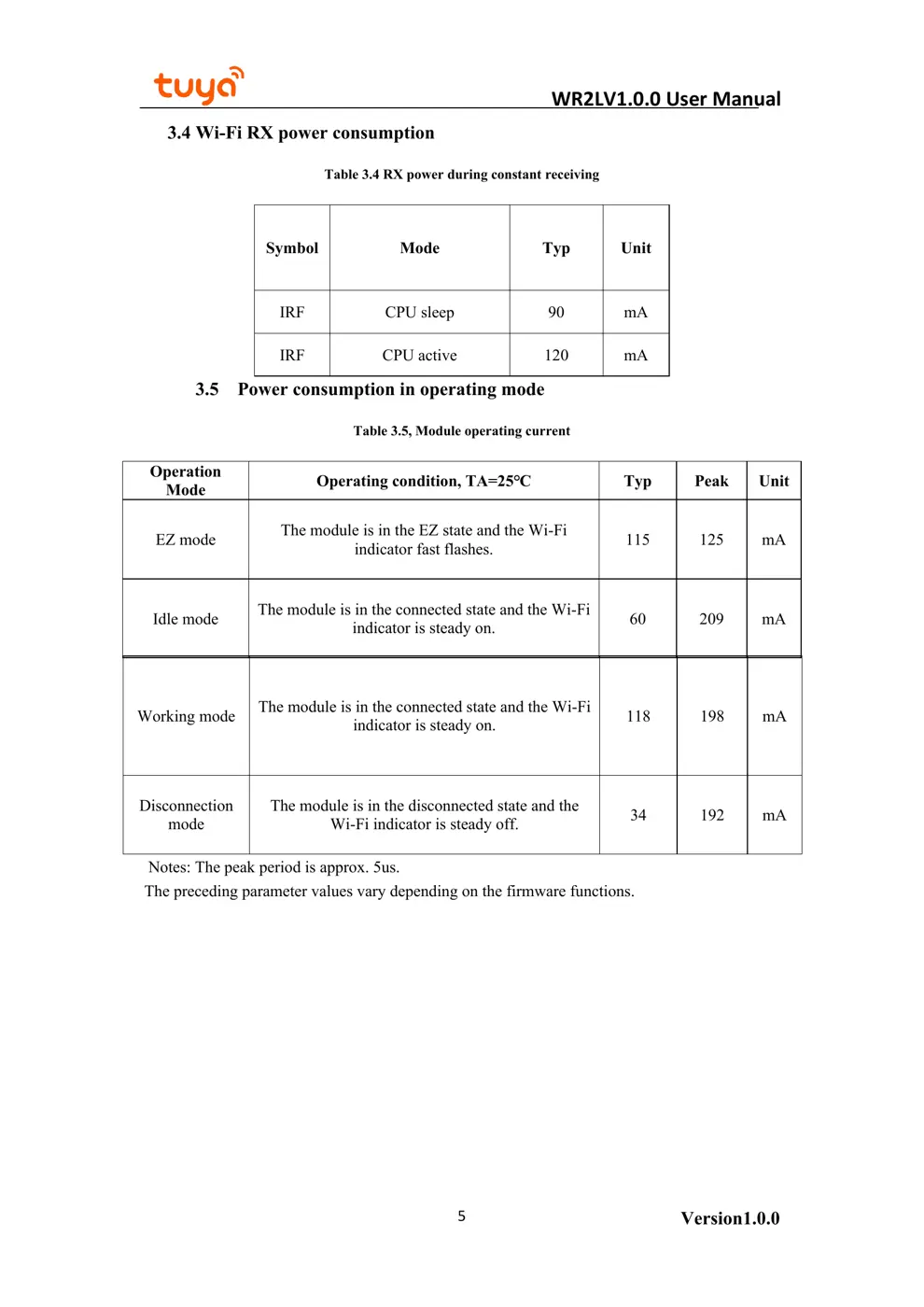

IRF 11b 1Mbps +20.09d...
