WR3N Reset & Teardown (FCC ID 2ANDL-WR3N)

Before you buy the Tuya Global WR3N, check what's inside.

The Tuya WR3N is a compact, low-power embedded Wi-Fi module featuring an RTL8710BN chipset. It's designed for integration into smart home devices, offering Wi-Fi connectivity and security features.

⚠️ NOTE: Ensure correct battery polarity and voltage levels during installation and operation.

Quick Specs

Manufacturer: Tuya Global
Model: WR3N
Protocol: WiFi
Chipset: Realtek RTL8720
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: RTL8710BN
Flashable: ❌ No
Info: The RTL8710BN chipset and its associated firmware are generally not designed for easy flashing of custom firmware like Tasmota.

User Manual

Scanned pages from the official user manual:

WR3N Manual

External Photos

Photos of the device exterior:

WR3N Exterior

Internal Photos

Teardown photos showing the PCB and components:

WR3N PCB

Verdict

The WR3N is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

WR3N Datasheet
1

1 Product Overview
WR3N is a low-power embedded Wi-Fi module that Tuya has developed. It consists of a
highly integrated RF chip (RTL8710BN) and an external flash chip, with an embedded
Wi-Fi network protocol stack and robust library functions. WR3N also contains a
low-power Arm Cortex-M4F microcontroller unit (MCU), WLAN MAC protocol, 1T1R
WLAN module, 256 KB static random-access memory (SRAM), 2 MB flash memory, and
extensive peripherals. WR3N also contains N32S032 security chip, embeded with
hardware algorithm co-processor to provide excellent performance DES / 3DES, AES,
SHA, RSA, ECC and national commercial passwords SM1 / SM2 / SM3 / SM4 and other
security algorithm modules. WR3N is an RTOS platform that integrates all function
libraries of the Wi-Fi MAC and TCP/IP protocols. You can develop embedded Wi-Fi
products as required.
1.1 Features
 Embedded low-power 32-bit CPU, which can also function as an application
processor
 Clock rate: 125 MHz
 Working voltage: 3.0 V to 3.6 V
 Peripherals: 7×GPIOs, 2×UART, 1×ADC
 Wi-Fi connectivity
 802.11b/g/n20/n40
 Channels 1 to 14 at 2.4 GHz
 WPA and WPA2 security modes
 Up to +20 dBm output power in 802.11b mode
 STA, AP, and STA+AP working modes
Product
Manual
Tuya WR3N Wi-Fi Module
Version: 1.0.1 Date: 2020-03-19 No.: 0000000001
Global Intelligent Platform
Product
Manual
 WR3N Datasheet
2

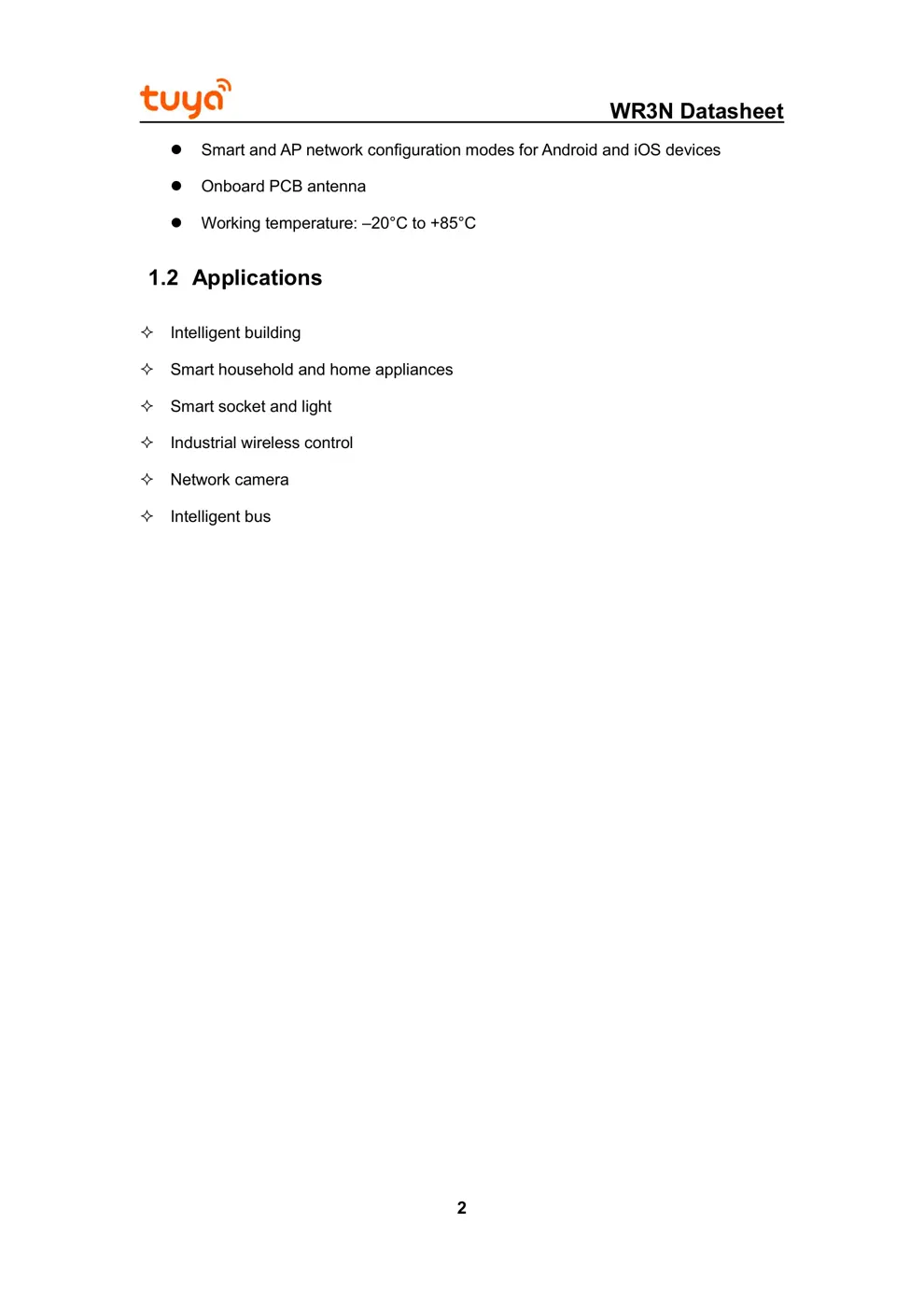

 Smart and AP network configuration modes for Android and iOS devices
 Onboard PCB antenna
 Working temperature: –20°C to +85°C
1.2 Applications
 Intelligent building
 Smart household and home appliances
 Smart socket and light
 Industrial wireless control
 Network camera
 Intelligent bus
 WR3N Datasheet
3
Change History
No. Date Change Description Version After
Change
1 2019-12-28 This is the first release. 1.0.0
2 2020-03-19 Update RF Current Consumption 1.0.1

 WR3N Datasheet
4
Contents
1 Product Overview ......................................................................................................... 1
1.1 Features ............................................................................................................ 1
1.2 Applications....................................................................................................... 2
Change History .................................................................................................................... 3

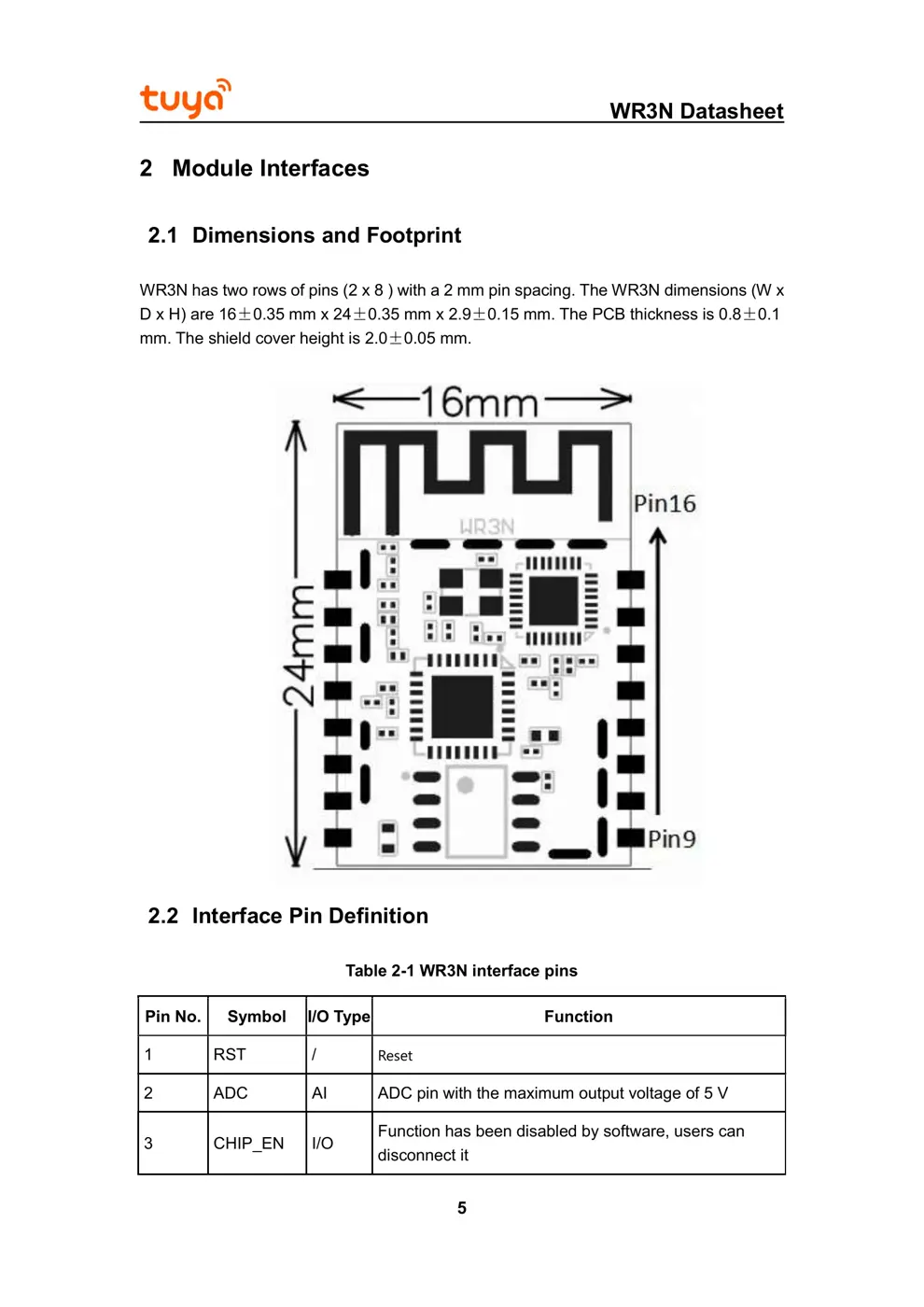

2 Module Interfaces ......................................................................................................... 5
2.1 Dimensions and Footprint ................................................................................. 5
2.2 Interface Pin Definition...................................................................................... 5
2.3 Test Pin Definition ............................................ Error! Bookmark not defined.

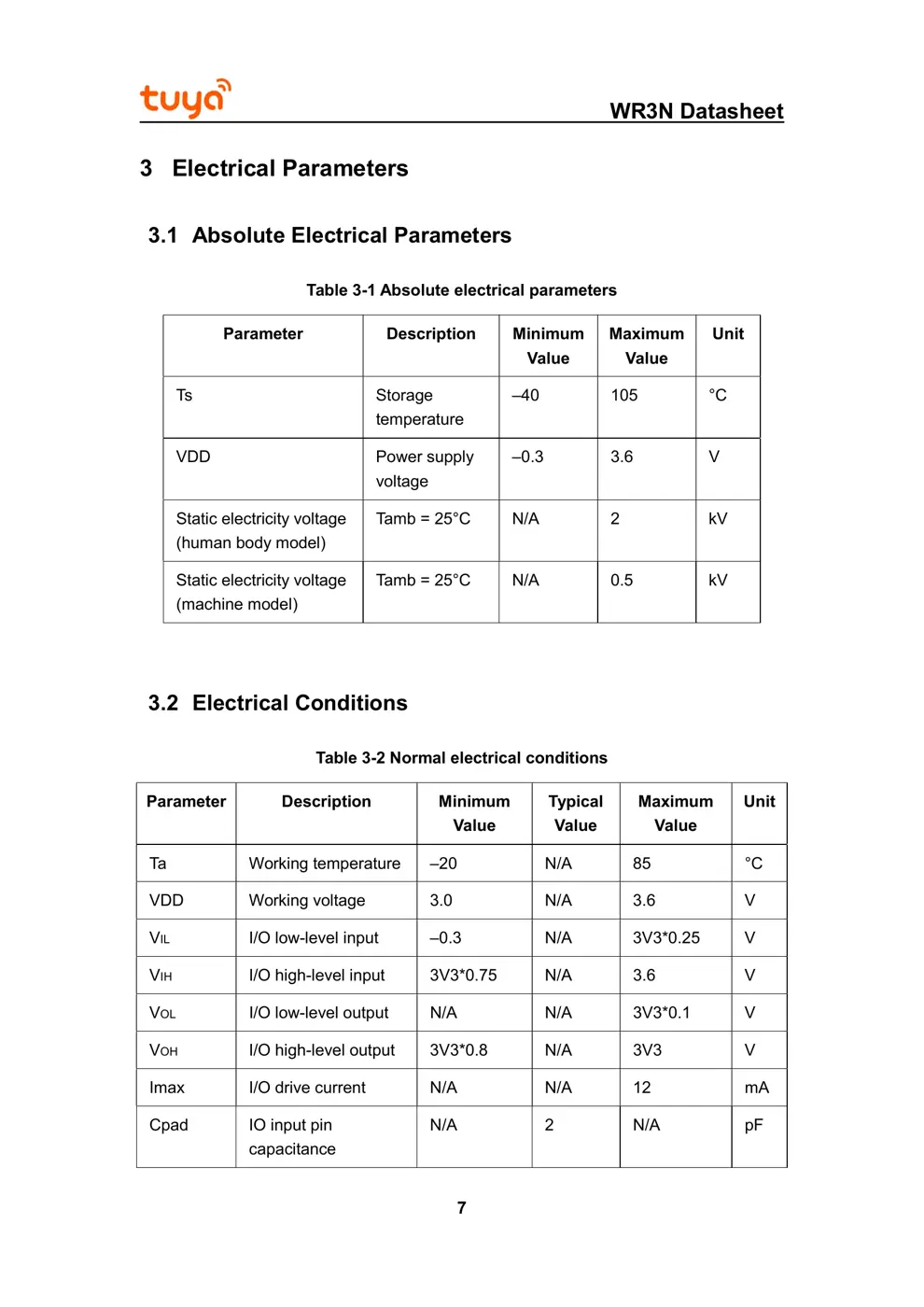

3 Electrical Parameters ...................................................................................
