WR6 Dat
asheet
Tuya In
c. Version 1.0.2
Tuya Smart Wi-Fi Module

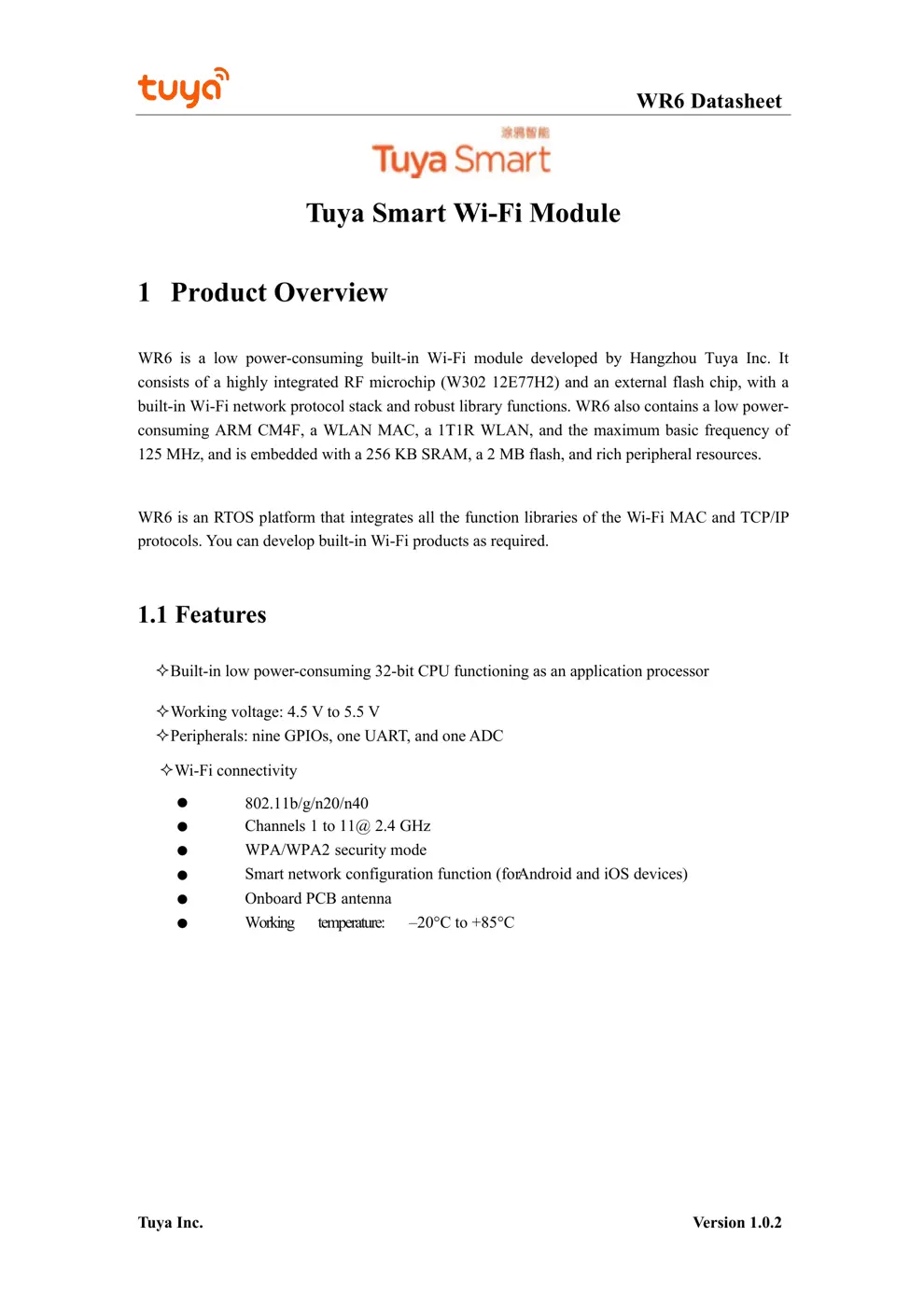

1 Product Overview

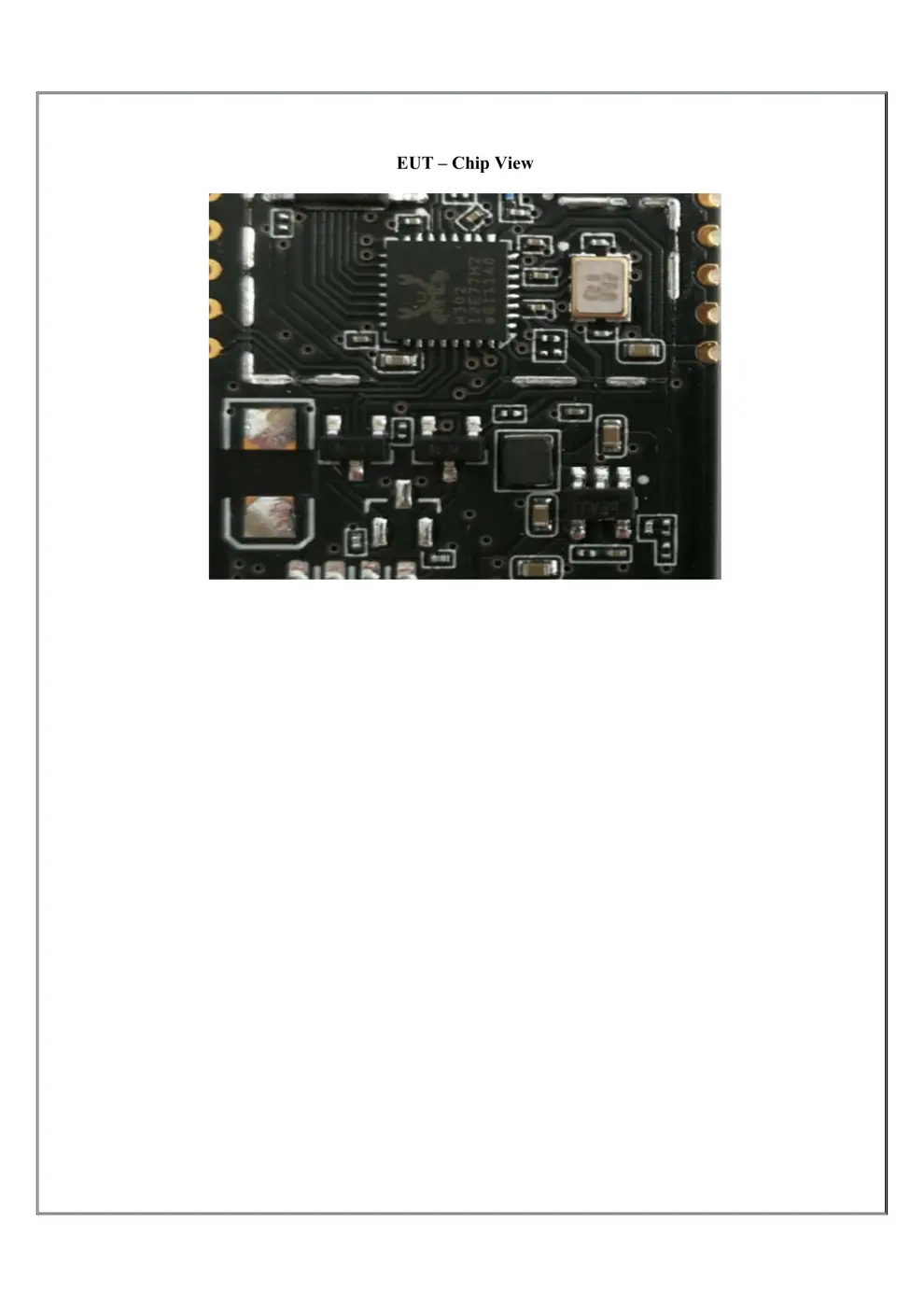

WR6 is a low power-c onsuming built-i n Wi-F i module developed by Hangzhou Tuya Inc. It
consists
of a highly integrated RF microchip (W302 12E77H2) and an external flash chip, with a
built-in Wi-Fi network protocol stack and robust library functions. WR6 also contains a low power-
consuming ARM CM4F, a WLAN MAC, a 1T1R WLAN, and the maximum basic frequency of
125 MHz, and is embedded with a 256 KB SRAM, a 2 MB flash, and rich peripheral resources.
WR6 is an RTOS platform that integrates all the function libraries of the Wi -Fi MAC and TCP/IP
protocols. You can develop built-in Wi-Fi products as required.
1.1 Features
² Built-in low power-consuming 32-bit CPU functioning as an application processor
² Working voltage: 4.5 V to 5.5 V
² Peripherals: nine GPIOs, one UART, and one ADC
² Wi-Fi connectivity
l 802.11b/g/n20/n40
l
l
l
l

l
Channels 1 to 11@ 2.4 GHz
WPA/WPA2 security mo
de
Smart networ
k configuration function (for Androi d and iO S devices)
Onboard PCB antenna
Working temperature: –20°C to +85°C
WR6 Datasheet
Tuya Inc. Version 1.0.2

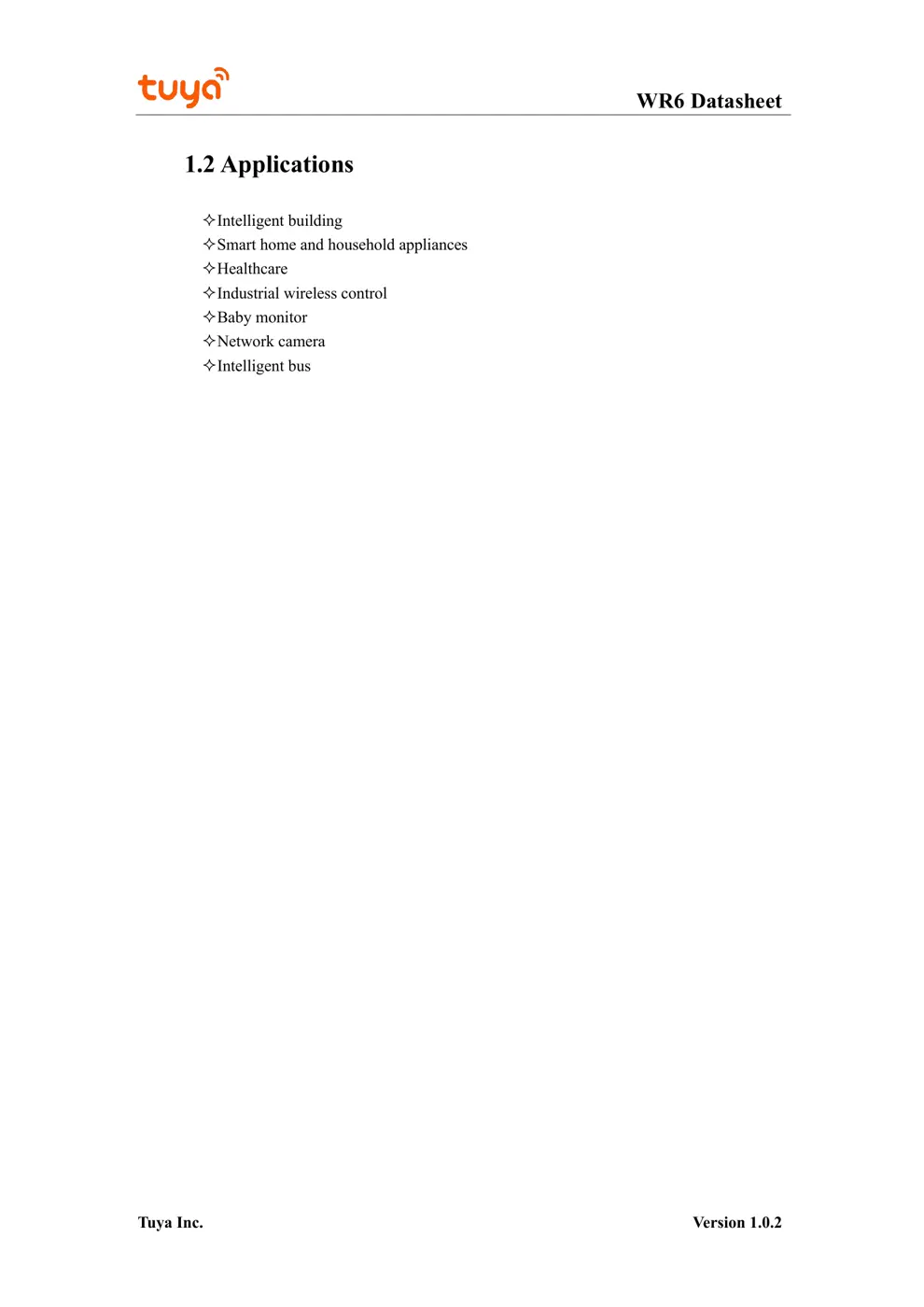

1.2 Applications
² Intelligent building
² Smart home and household appliances
² Healthcare
² Industrial wireless control
² Baby monitor
² Network camera
² Intelligent bus
WR6 Datasheet
Tuya Inc. Version 1.0.2

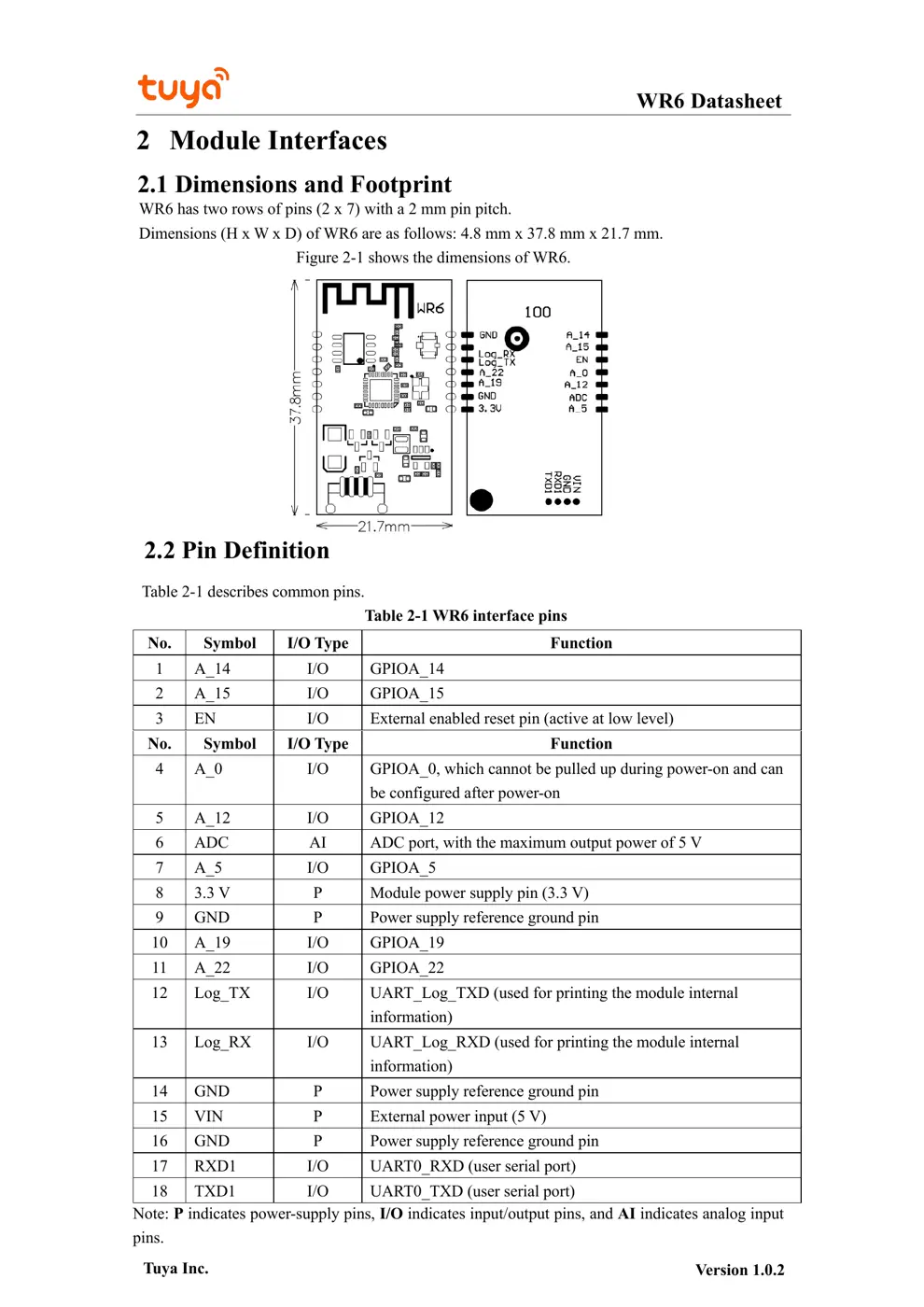

2 Module Interfaces

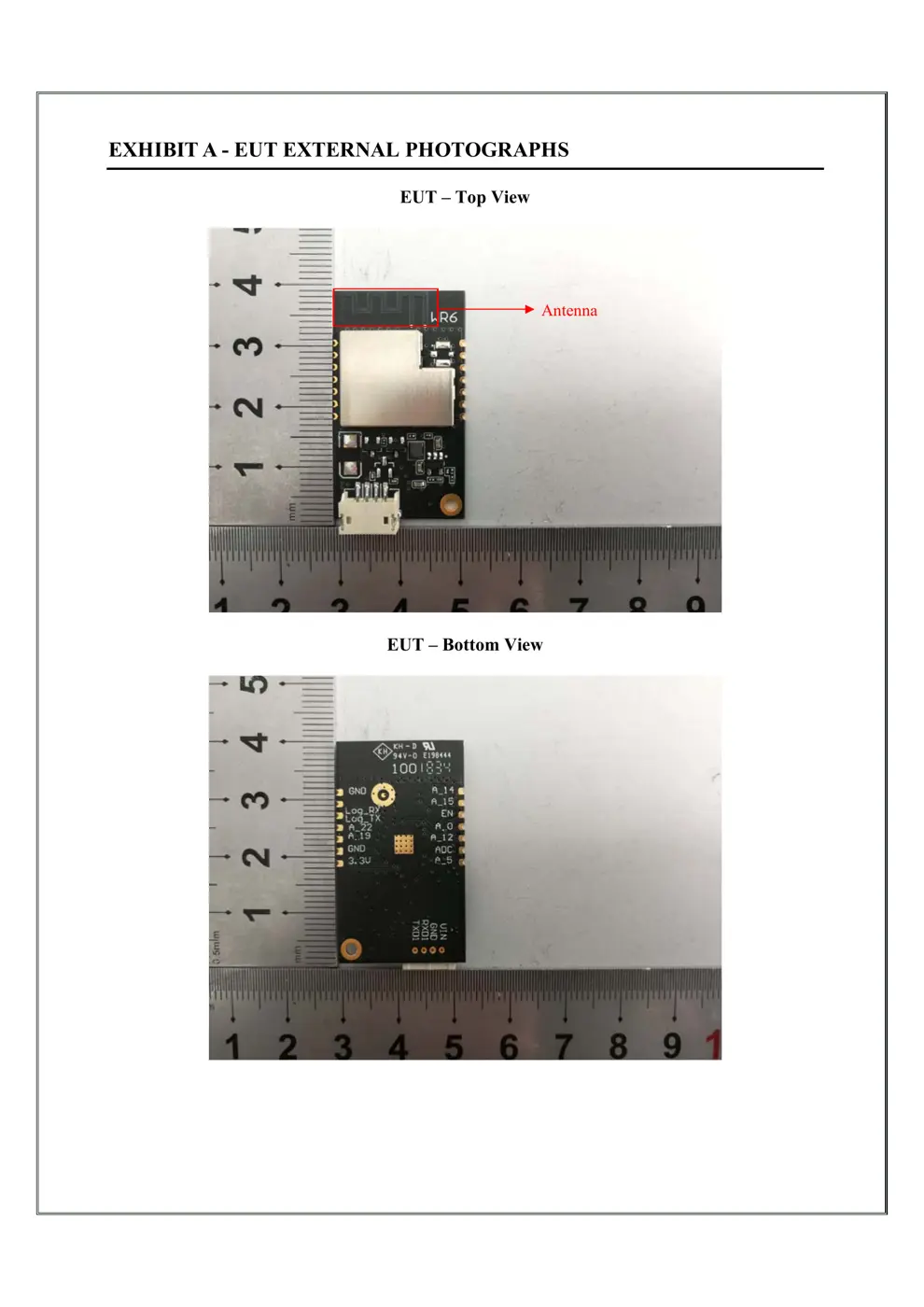

2.1 Dimensions and Footprint
WR6 has two rows of pins (2 x 7) with a 2 mm pin pitch.
Dimensions (H x W x D) of WR6 are as follows: 4.8 mm x 37.8 mm x 21.7 mm.
 Figure 2-1 shows the dimensions of WR6.
2.2 Pin Definition
Table 2-1 describes common pins.
Table 2-1 WR6 interface pins
No. Symbol I/O Type Function
1 A_14 I/O GPIOA_14
2 A_15 I/O GPIOA_15
3 EN I/O External enabled reset pin (active at low level)
No. Symbol I/O Type Function
4 A_0 I/O GPIOA_0, which cannot be pulled up during power-on and can
be configured after power-on
5 A_12 I/O GPIOA_12
6 ADC AI ADC port, with the maximum output power of 5 V
7 A_5 I/O GPIOA_5
8 3.3 V P Module power supply pin (3.3 V)
9 GND P Power supply reference ground pin
10 A_19 I/O GPIOA_19
11 A_22 I/O GPIOA_22
12 Log_TX I/O UART_Log_TXD (used for printing the module internal
information)
13 Log_RX I/O UART_Log_RXD (used for printing the module internal
information)
14 GND P Power supply reference ground pin
15 VIN P External power input (5 V)
16 GND P Power supply reference ground pin
17 RXD1 I/O UART0_RXD (user serial port)
18 TXD1 I/O UART0_TXD (user serial port)
Note: P indicates power-supply pins, I/O indicates input/output pins, and AI indicates analog input
pins.

WR6 Datasheet
Tuya Inc. Version 1.0.2

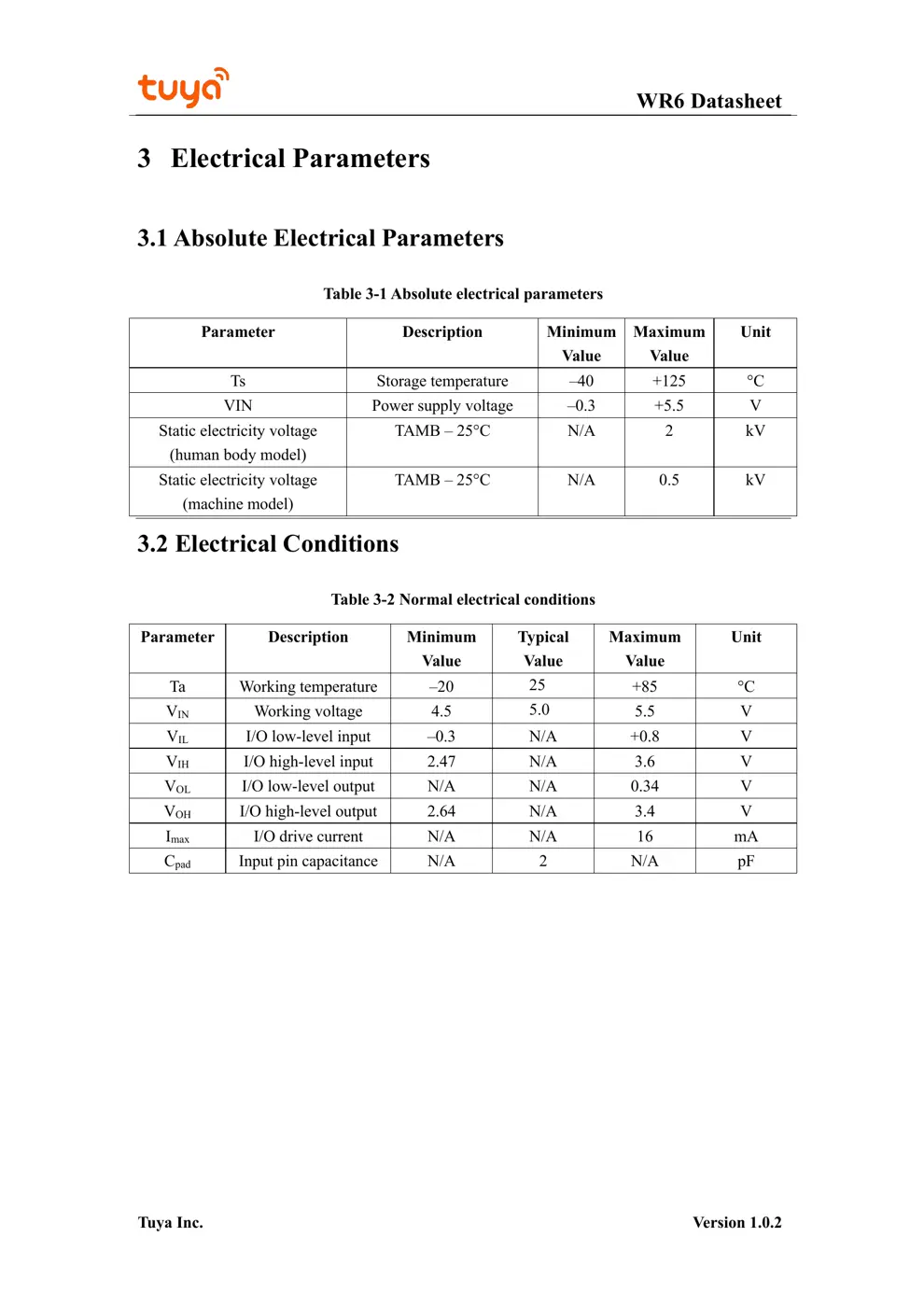

3 Electrical Parameters
3.1 Absolute Electrical Parameters
Table 3-1 Absolute electrical parameters
Parameter Description Minimum
Value
Maximum
Value
Unit
Ts Storage temperature – 40 +125 °C
VIN Power supply voltage – 0.3 +5.5 V
Static electricity voltage
(human body model)
TAMB – 25°C N...
