XR1 Reset & Teardown (FCC ID 2ANDL-XR1)
Factory reset and internal photos for Tuya Global XR1. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global XR1, check what's inside.
The Tuya XR1 is a low-power embedded Wi-Fi module featuring an Arm Cortex-M4F CPU and XR809 chipset, designed for integration into smart home appliances and intelligent building systems.
⚠️ NOTE: Ensure proper voltage regulation and polarity when connecting to the 2.7V to 5.5V input.
Quick Specs
- Manufacturer: Tuya Global
- Model: XR1
- Protocol: WiFi
- Chipset: Beken BK7231
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: XR809
- Flashable: ✅ Yes
- Info: The module is designed for custom firmware and has been confirmed to be flashable with OpenBeken.
User Manual
Scanned pages from the official user manual:
External Photos

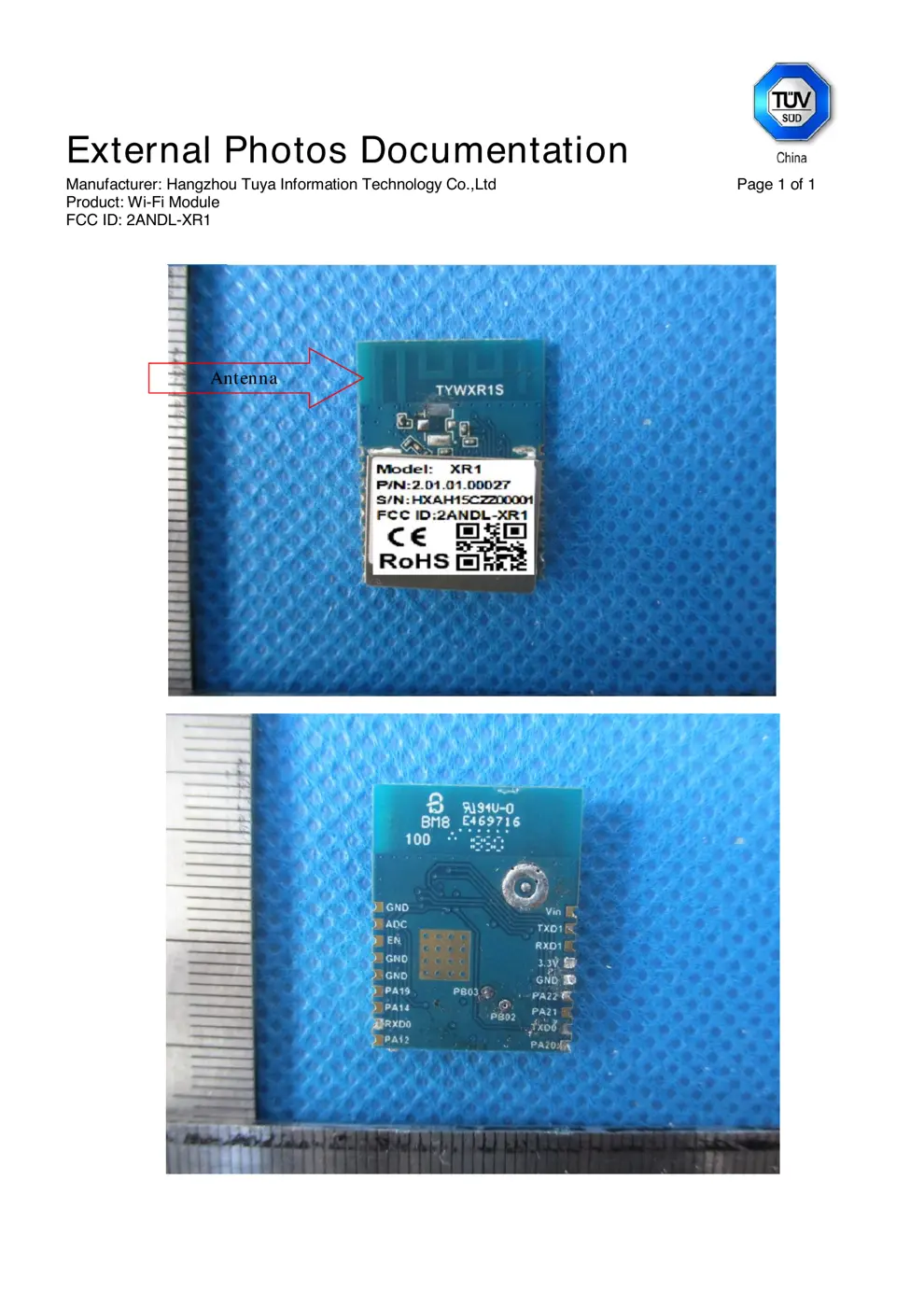

Photos of the device exterior:
Internal Photos
Teardown photos showing the PCB and components:
Verdict
The XR1 is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
XR1 Datasheet
1
1 Product Overview
XR1 is a low-power embedded Wi-Fi module that Tuya has developed. It consists of a
highly integrated RF chip (XR809) and several peripheral components, with an embedded
Wi-Fi network protocol stack and robust library functions. XR1 is embedded with an Arm
Cortex-M4F CPU, 2 MB flash read-only memory (ROM), and 384 KB static
random-access memory (SRAM), and has extensive peripherals.
1.1 Features
Working voltage: 2.7 V to 5.5 V
Clock rate: 160 MHz
Peripherals: two universal asynchronous receivers/transmitters (UARTs), and one
analog-to-digital converter (ADC)
Wi-Fi connectivity
⚫ 802.11b/g/n
⚫ Channels 1 to 14 at 2.4 GHz
⚫ WPA and WPA2 security modes
⚫ STA, AP, and STA+AP working modes
⚫ Smart and AP network configuration modes for Android and iOS devices
⚫ Onboard PCB antenna
⚫ Working temperature: –20° C to +85° C
1.2 Applications
Intelligent building
Product
Manual
Tuya XR1 Wi-Fi Module
Version: 2.0.0 Date: 2019-08-24 No.: 0000000001
Global Intelligent Platform
Product
Manual
XR1 Datasheet
2

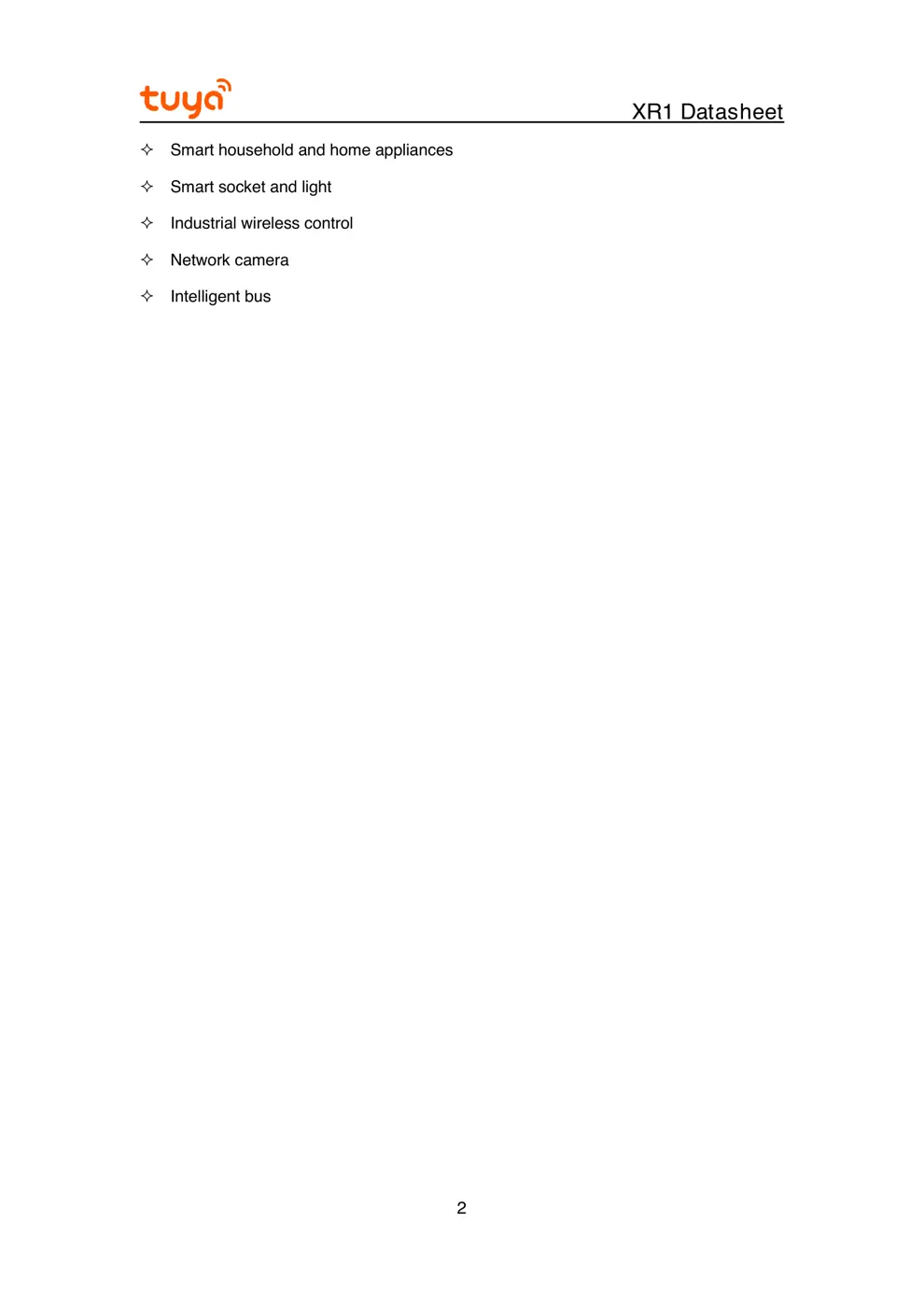

Smart household and home appliances
Smart socket and light
Industrial wireless control
Network camera
Intelligent bus
XR1 Datasheet
3
Change History

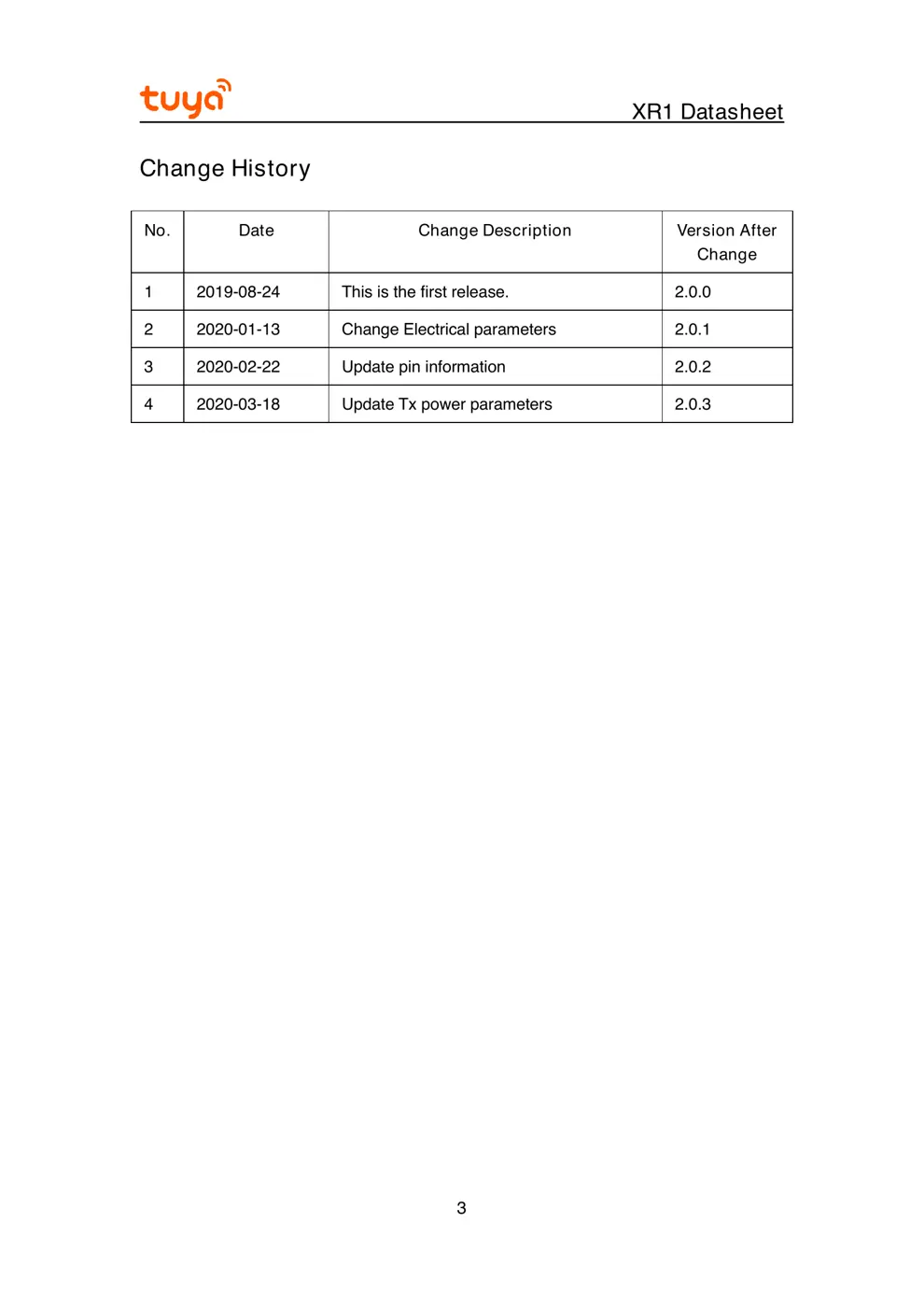

No. Date Change Description Version After
Change
1 2019-08-24 This is the first release. 2.0.0
2 2020-01-13 Change Electrical parameters 2.0.1
3 2020-02-22 Update pin information 2.0.2
4 2020-03-18 Update Tx power parameters 2.0.3
XR1 Datasheet
4

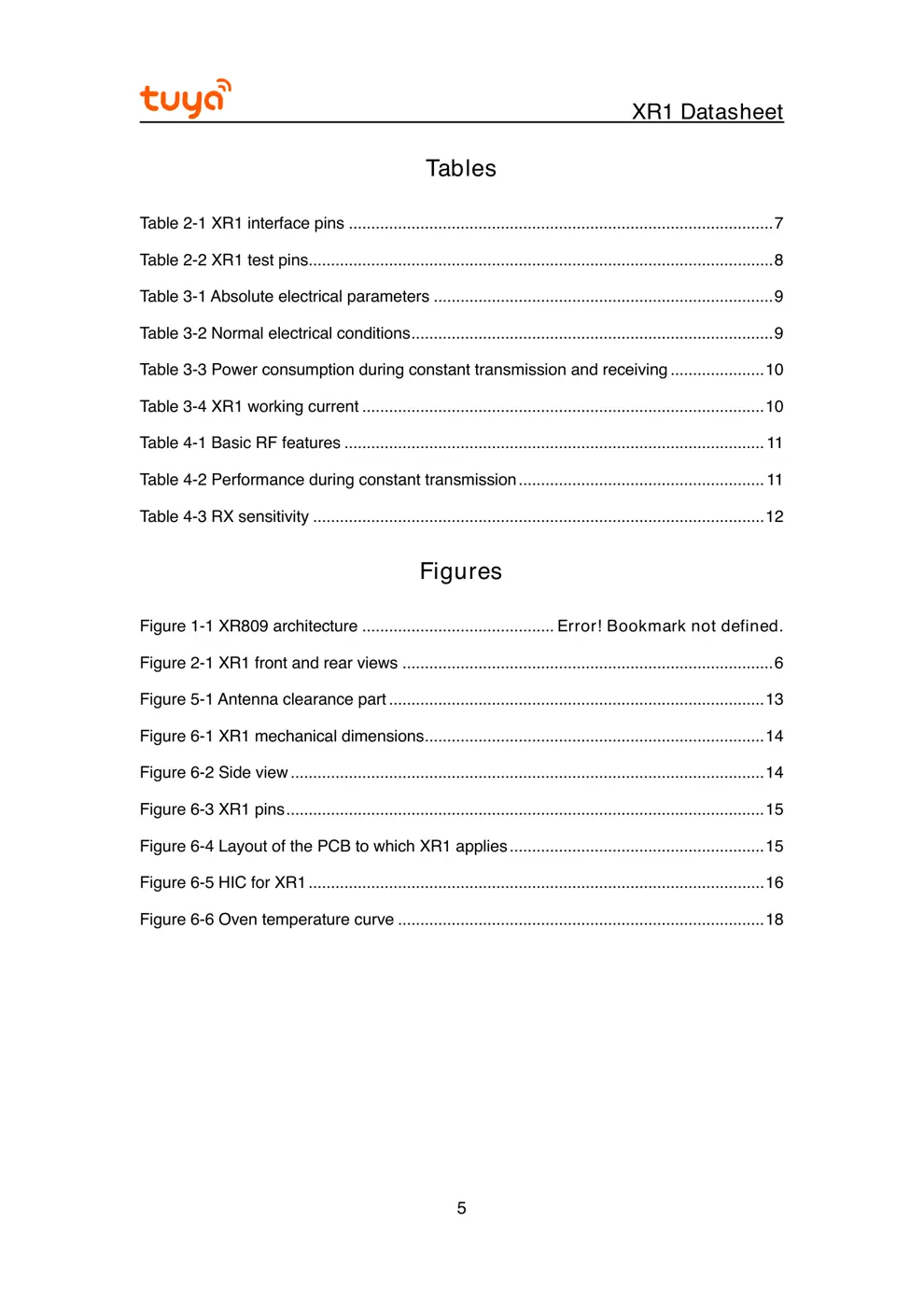

Contents
1 Product Overview ......................................................................................................... 1
1.1 Features ............................................................................................................ 1
1.2 Applications....................................................................................................... 1
Change History .................................................................................................................... 3
2 Module Interfaces ......................................................................................................... 6

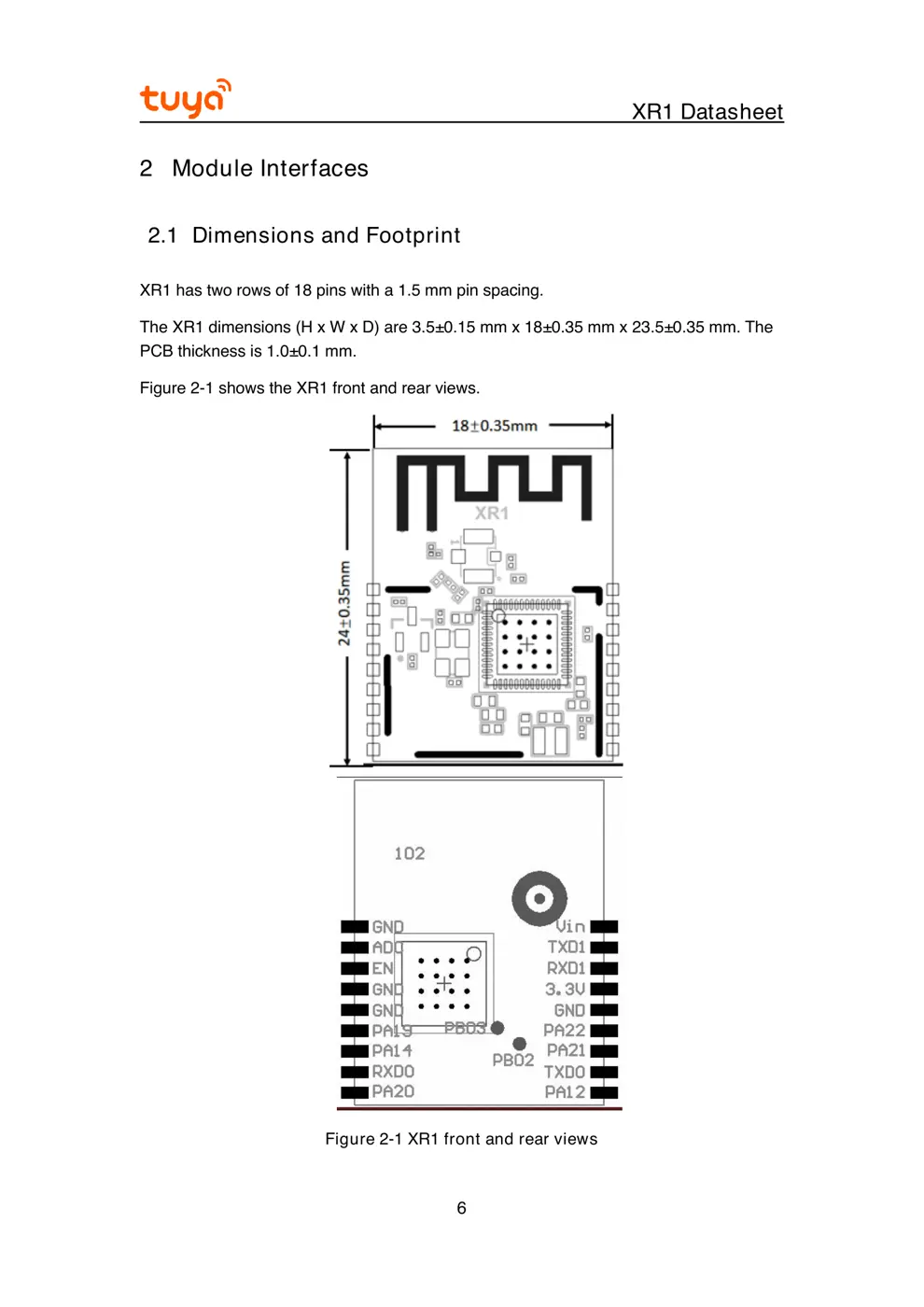

2.1 Dimensions and Footprint ................................................................................. 6

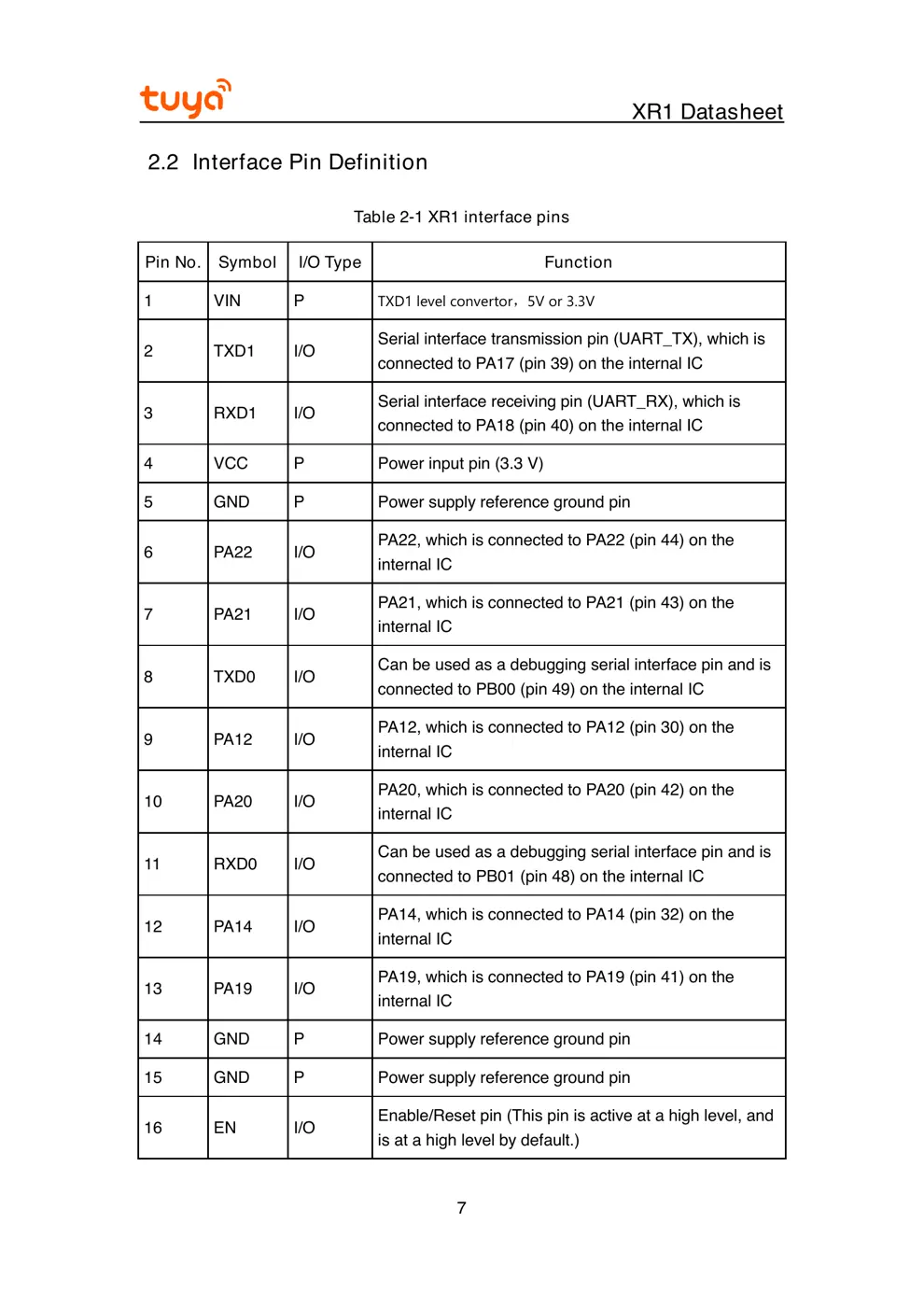

2.2 Interface Pin Definition...................................................................................... 7

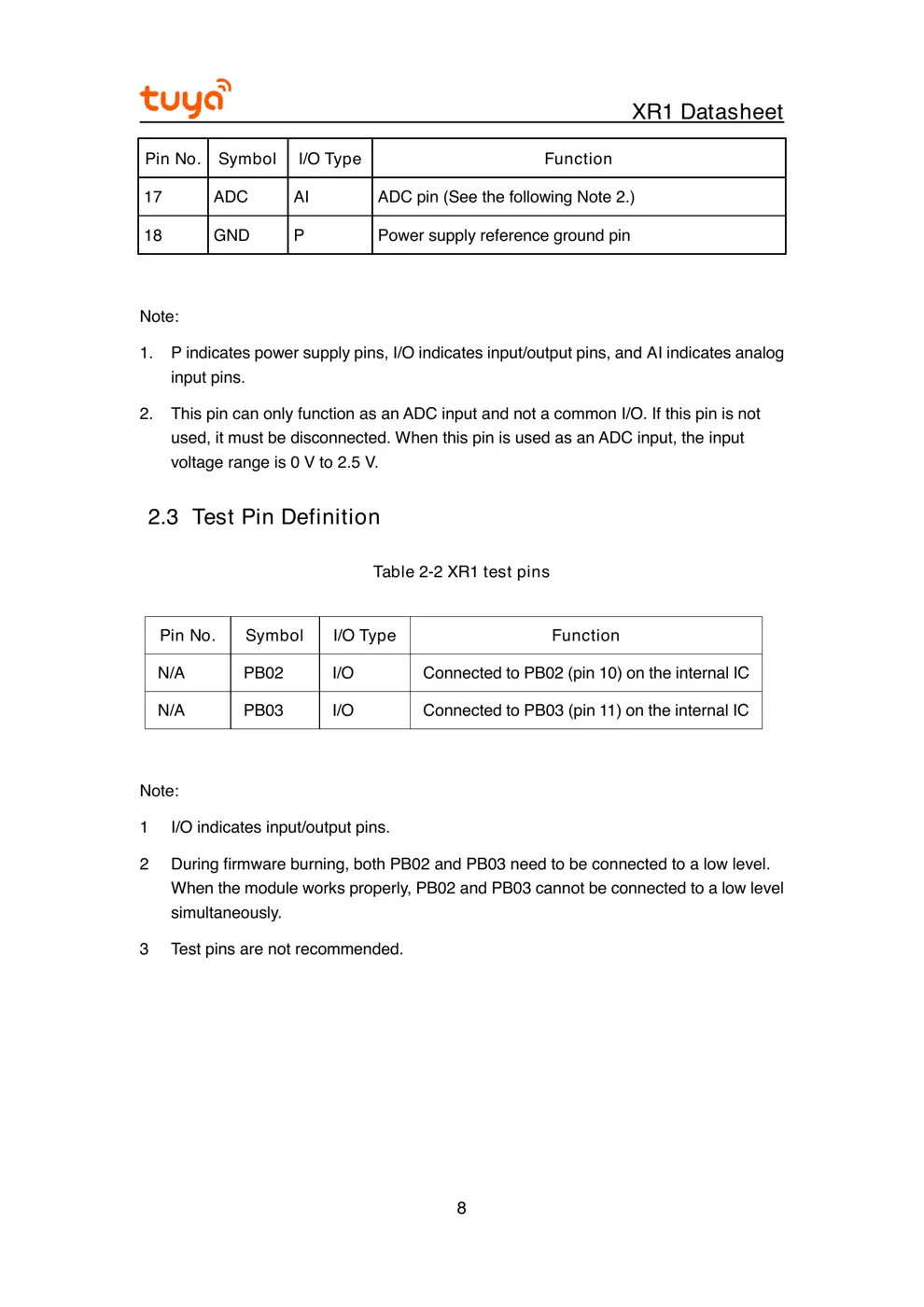

2.3 Test Pin Definition ............................................................................................. 8
3 Electrical Parameters ................................................................................................... 9

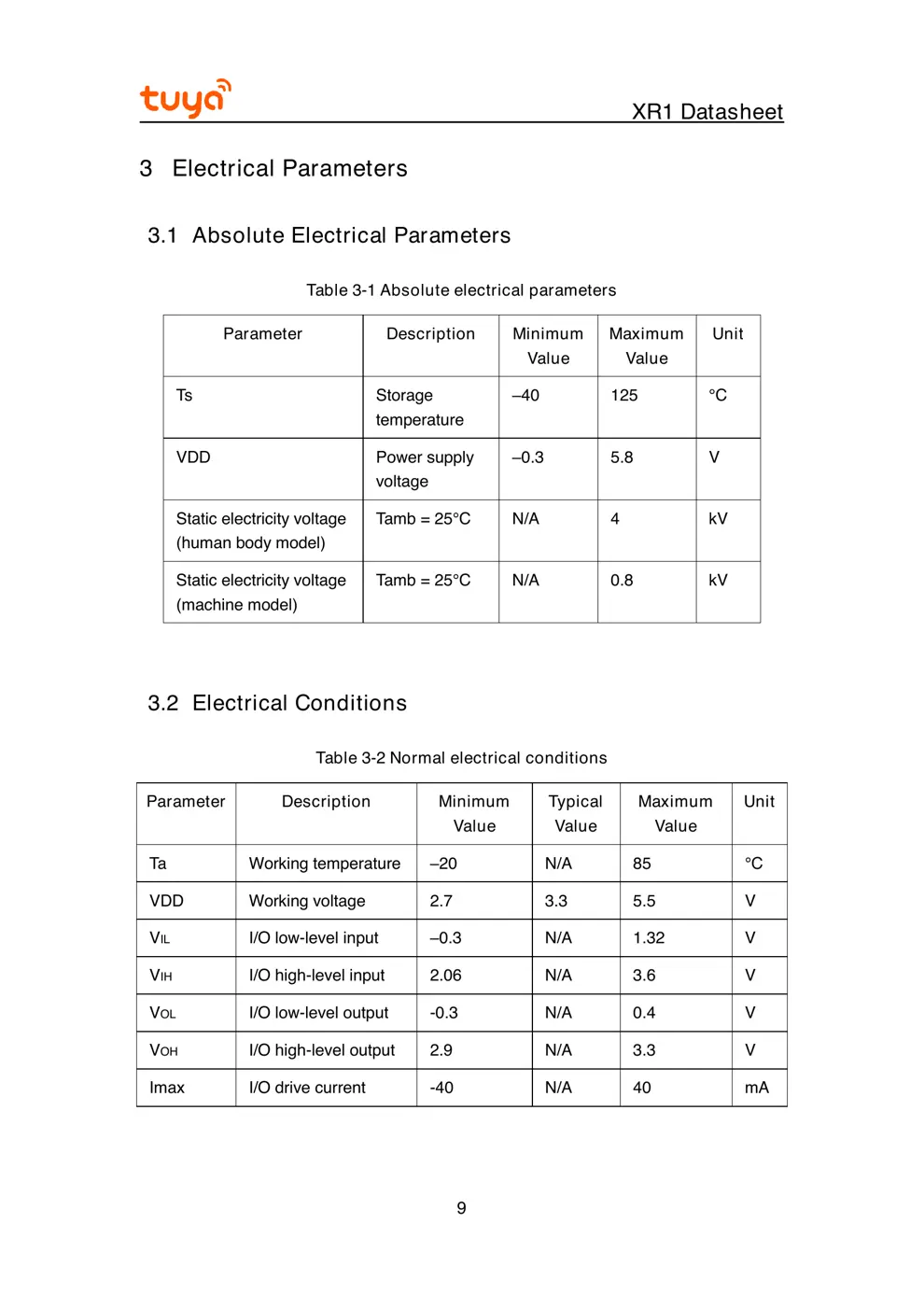

3.1 Absolute Electrical Parameters ........................................................................ 9
