ZTU Reset & Teardown (FCC ID 2ANDL-ZTU)
Factory reset and internal photos for Tuya Global ZTU. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global ZTU, check what's inside.
The Tuya ZTU is a compact Zigbee module designed for integration into smart home devices. It features the TLSR8258F1KAT32 chipset and supports the IEEE 802.15.4 standard, enabling low-power mesh networking capabilities for various applications.
⚠️ NOTE: Ensure proper voltage and polarity when connecting the module to a power source. Static discharge precautions should be observed during handling.
Quick Specs
- Manufacturer: Tuya Global
- Model: ZTU
- Protocol: Zigbee
- Chipset: Tuya Zigbee
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: TLSR8258F1KAT32
- Flashable: ❌ No
- Info: This is a proprietary Tuya Zigbee module with a locked bootloader. Flashing custom firmware is not supported.
User Manual

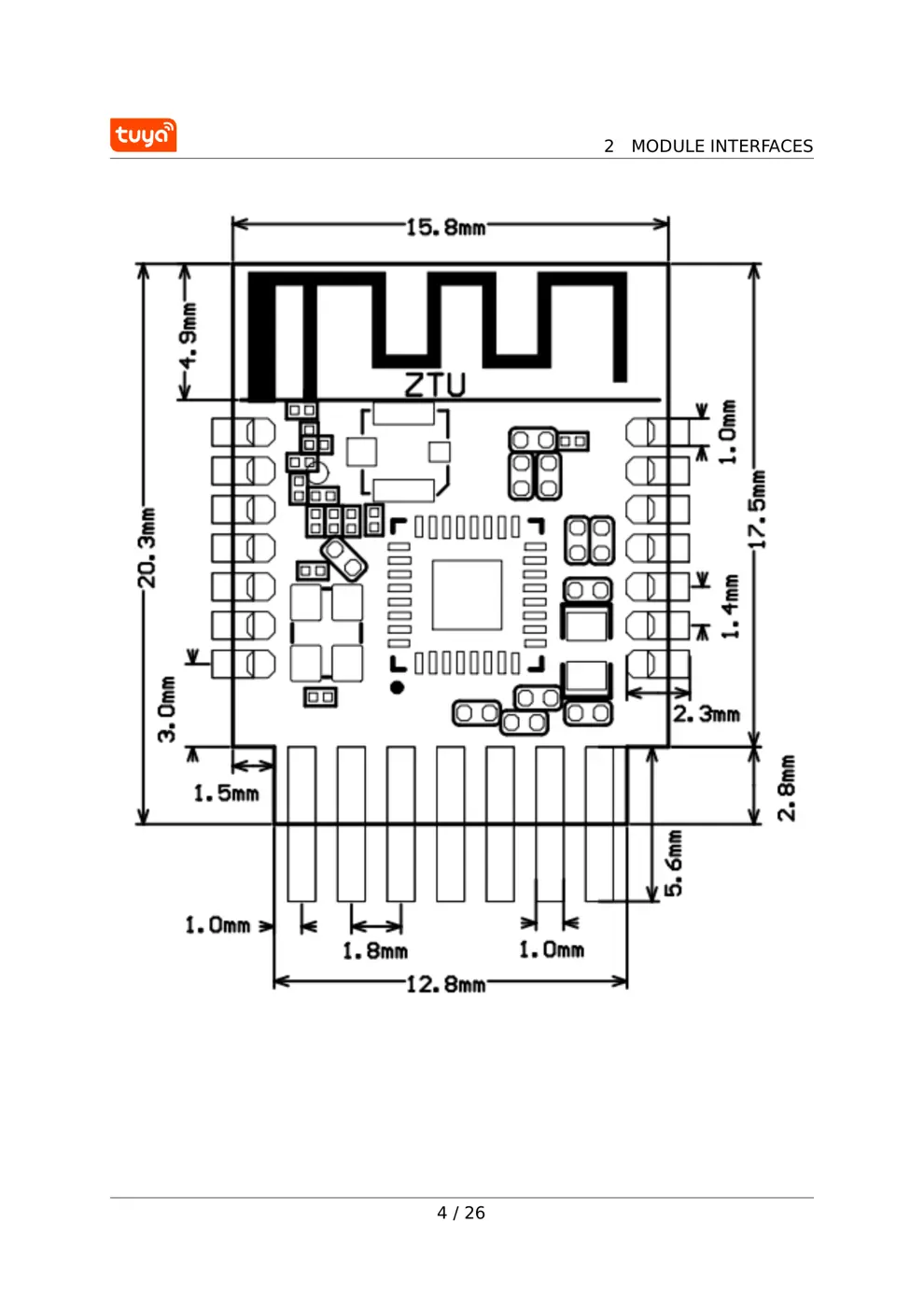

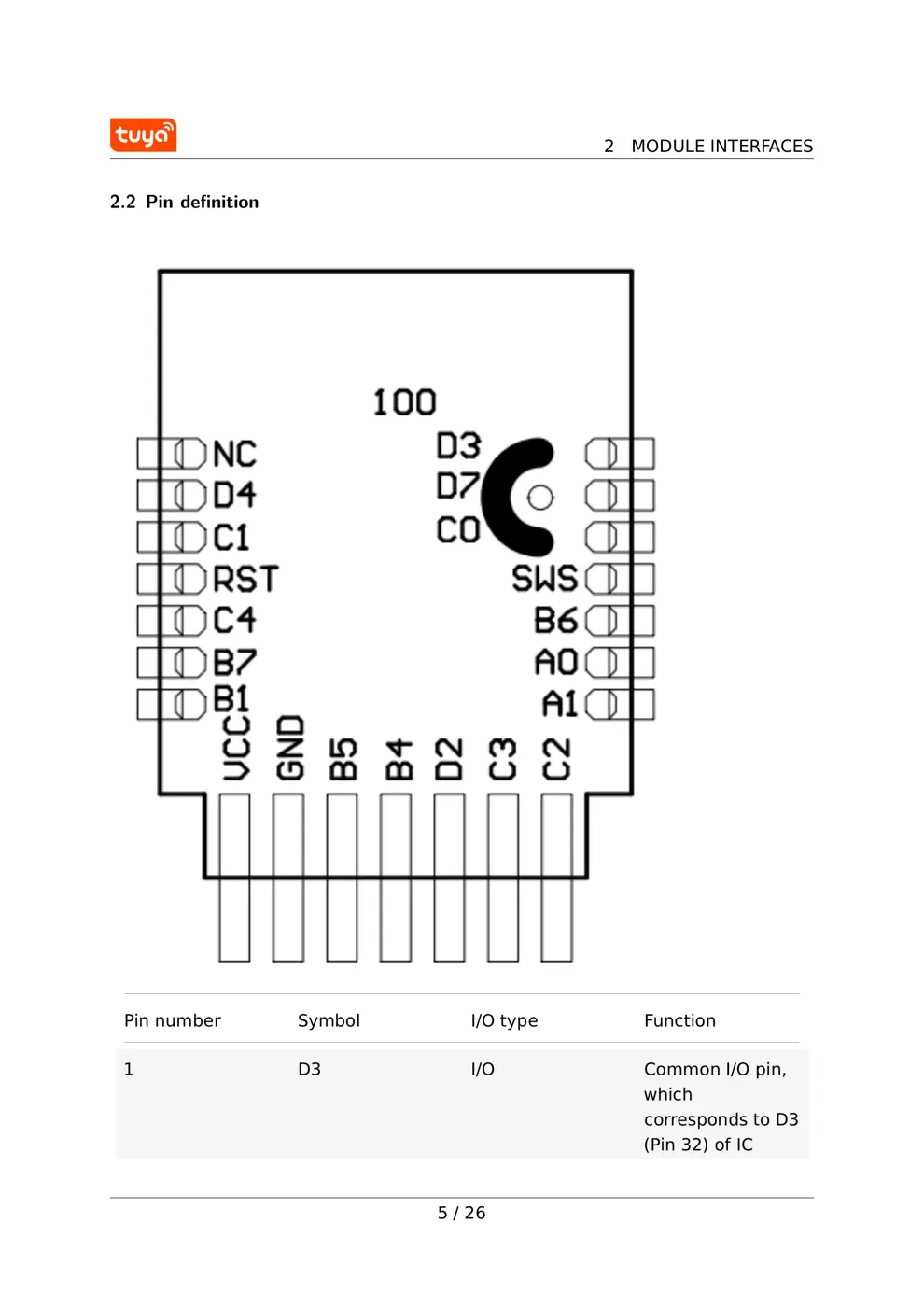

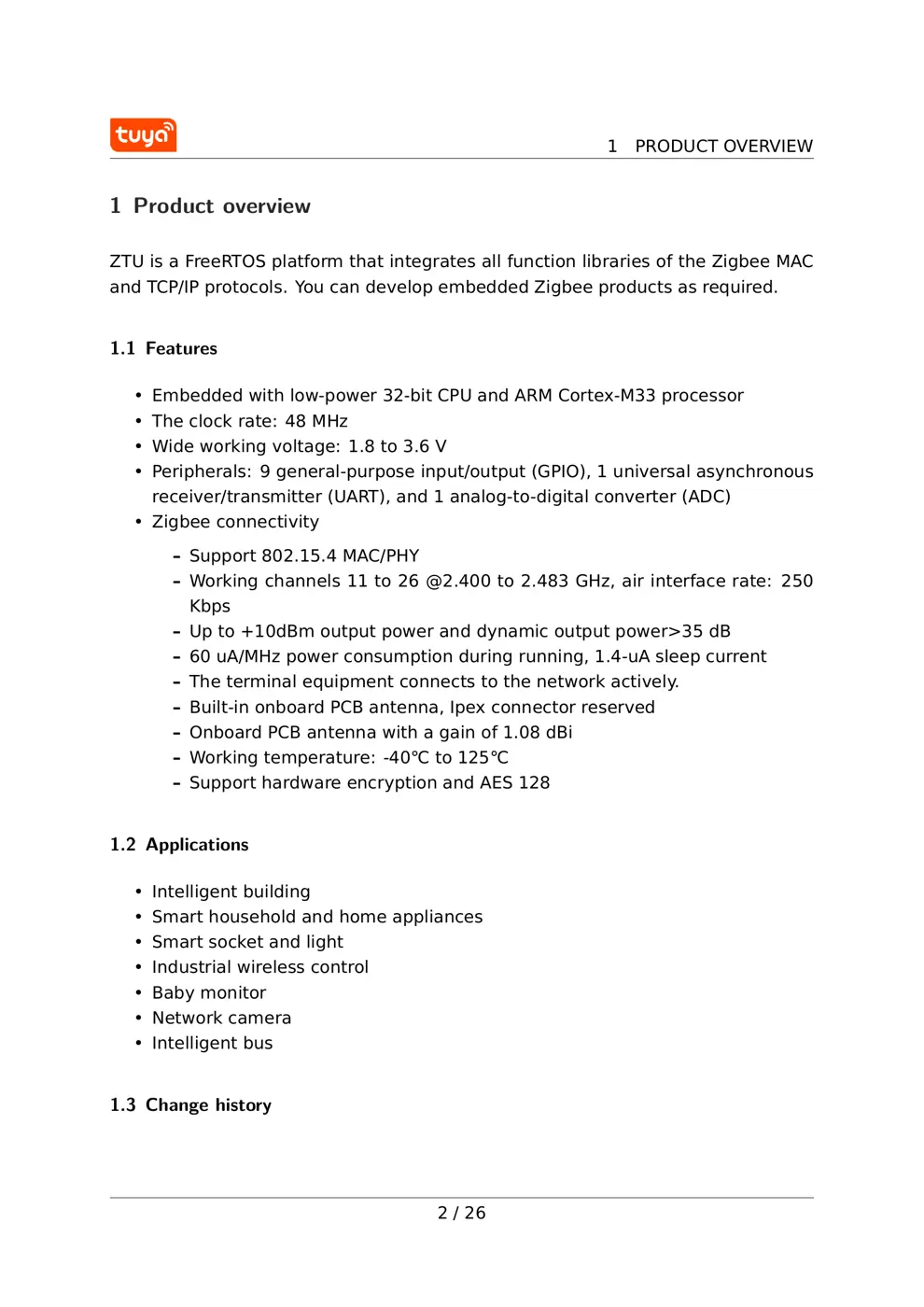

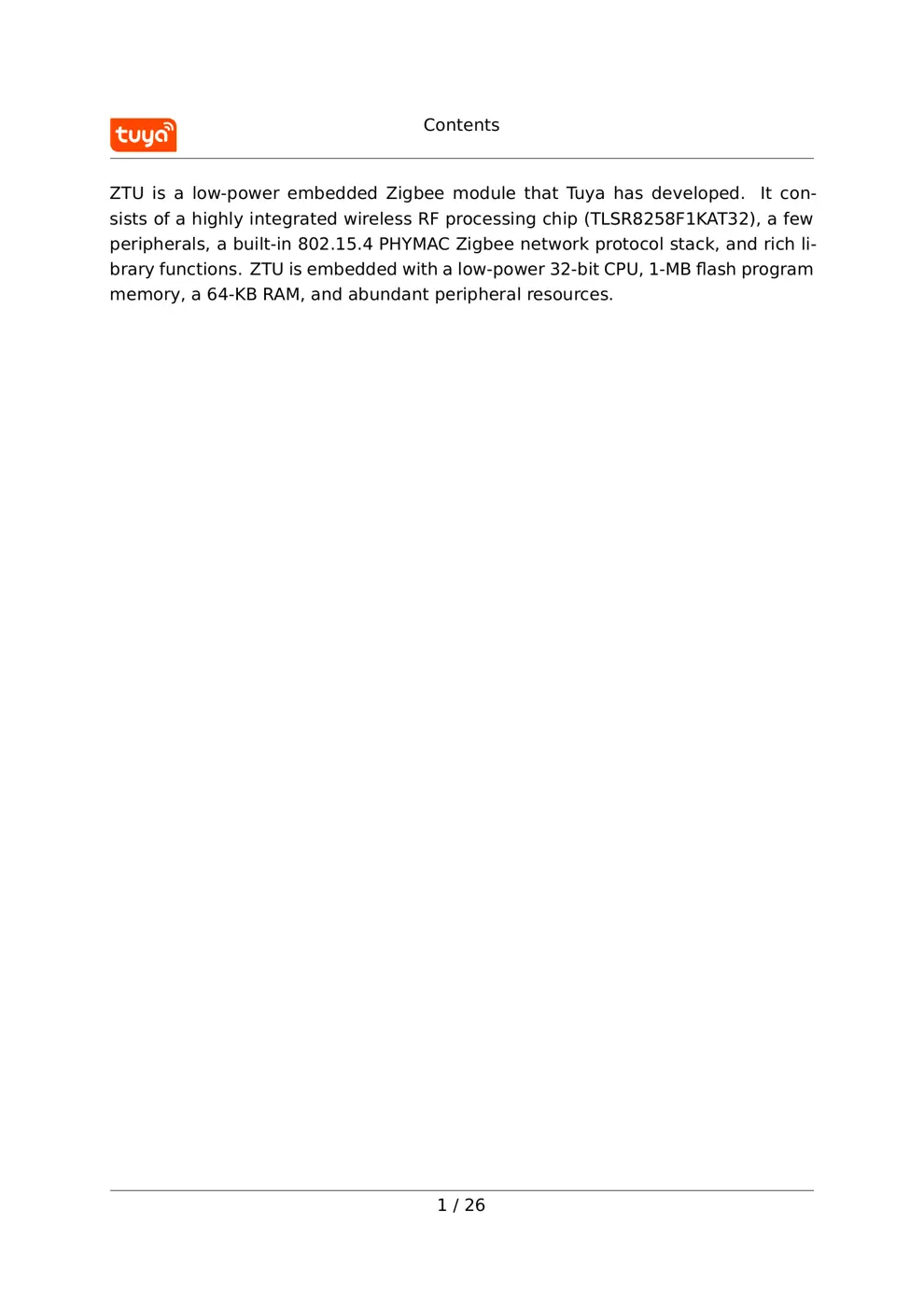

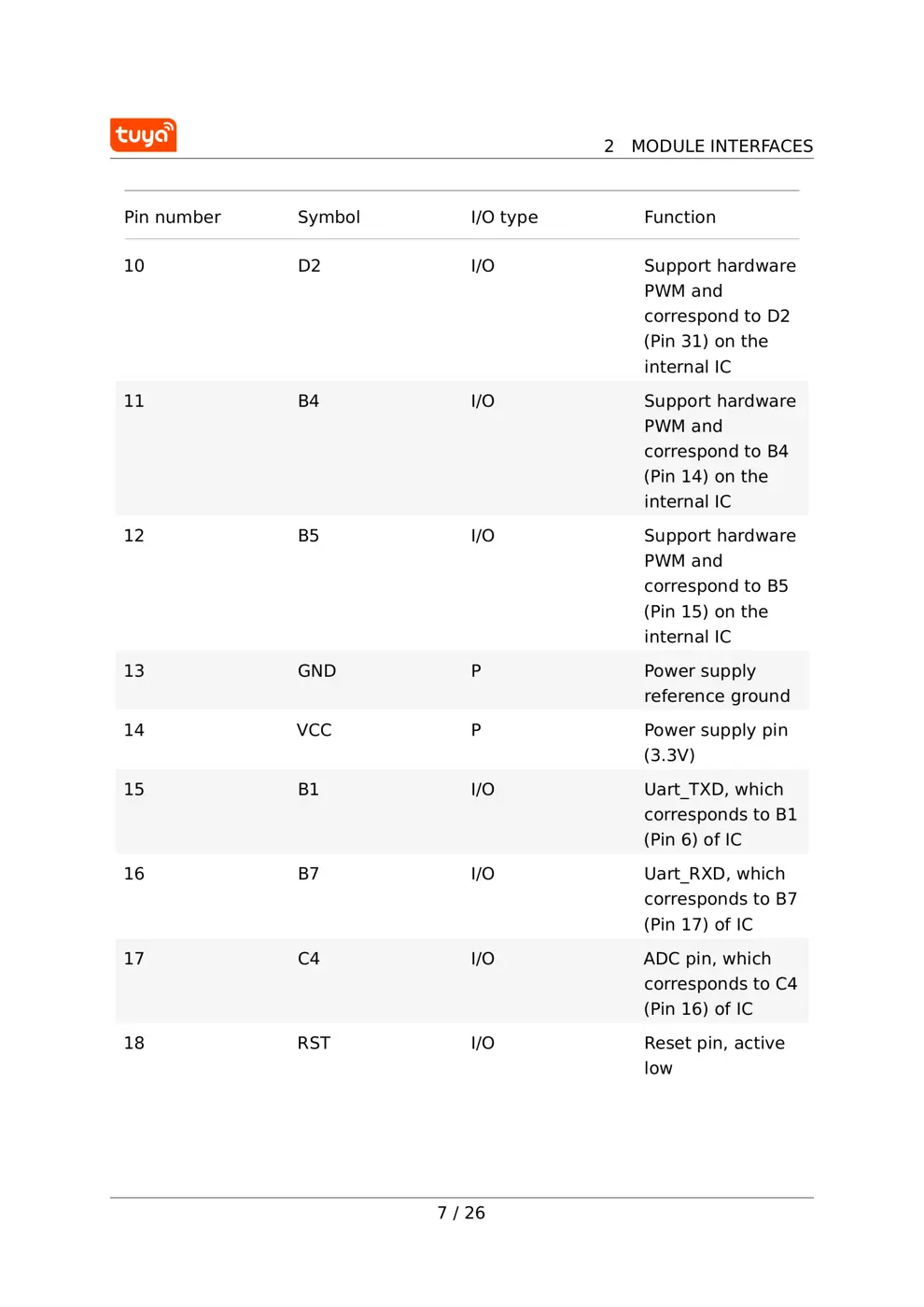

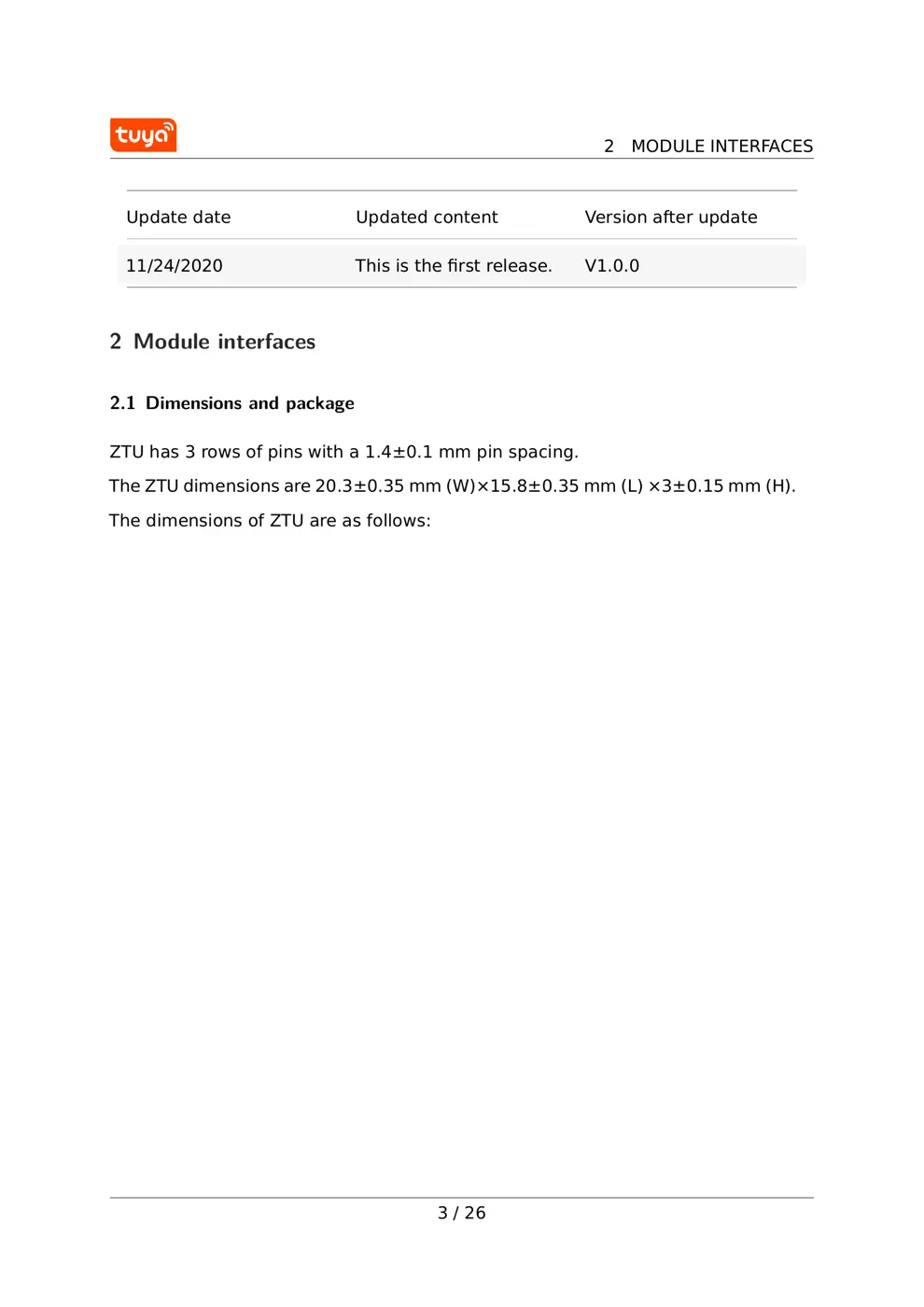

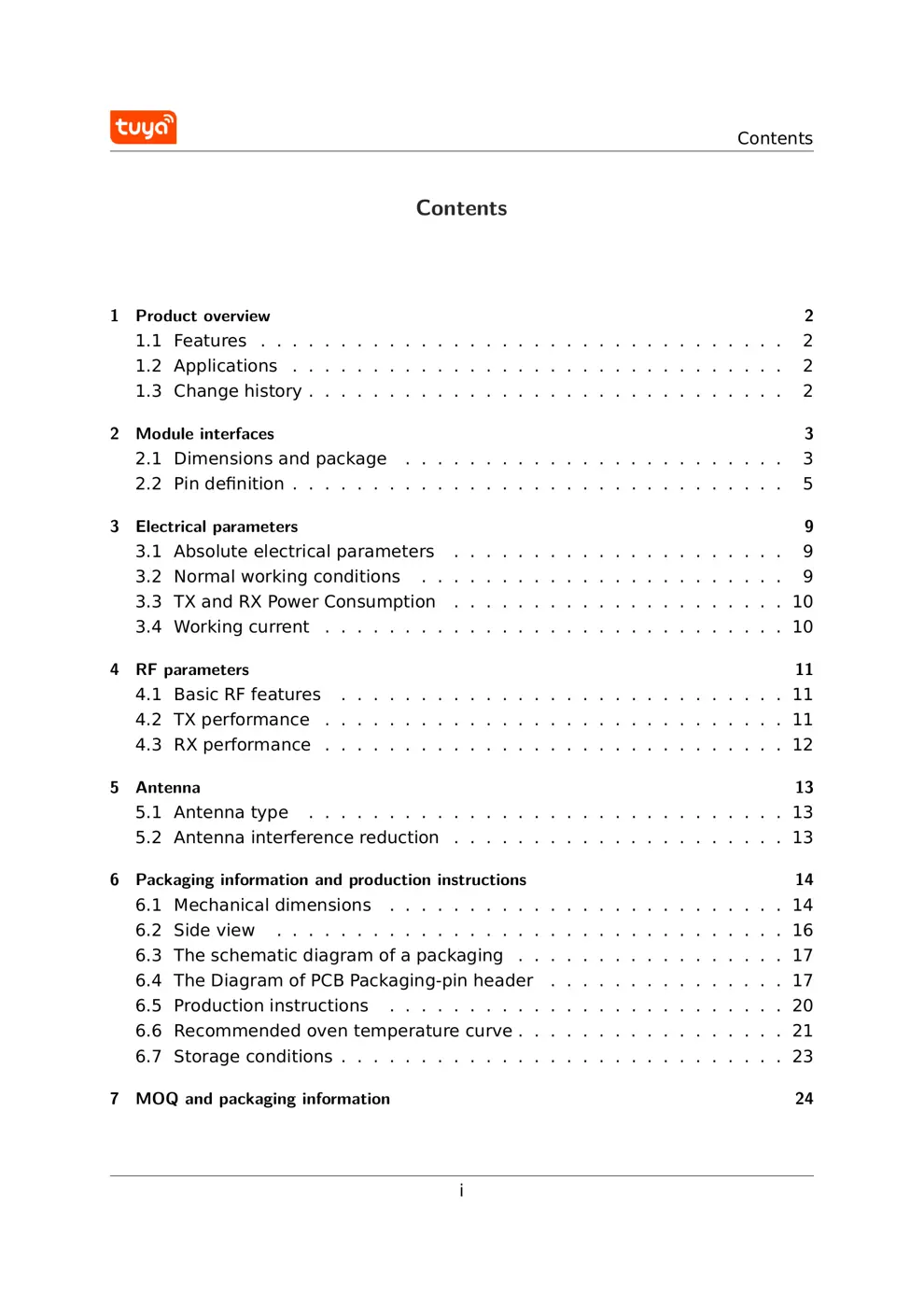

Scanned pages from the official user manual:
External Photos
Photos of the device exterior:
Internal Photos
Teardown photos showing the PCB and components:
Verdict
The ZTU is a Zigbee device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
ZTU Module Datasheet
Hardware Product Development > Cloud Module
Version: 20201126
Online Version
Contents
Contents
1 Product overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Change history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3
2.1 Dimensions and package . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Electrical parameters 9
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 9
3.2 Normal working conditions . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 TX and RX Power Consumption . . . . . . . . . . . . . . . . . . . . . 10
3.4 Working current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 RF parameters 11
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 TX performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3 RX performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Antenna 13
5.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 Antenna interference reduction . . . . . . . . . . . . . . . . . . . . . 13
6 Packaging information and production instructions 14
6.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.2 Side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.3 The schematic diagram of a packaging . . . . . . . . . . . . . . . . . 17
6.4 The Diagram of PCB Packaging-pin header . . . . . . . . . . . . . . . 17
6.5 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.6 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 21
6.7 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 MOQ and packaging information 24
i
Contents
8 Appendix: Statement 24
ii
Contents
ZTU is a low-power embedded Zigbee module that T uya has developed. It con-
sists of a highly integrated wireless RF processing chip (TLSR8258F1KAT32), a few
peripherals, a built-in 802.15.4 PHYMAC Zigbee network protocol stack, and rich li-
brary functions. ZTU is embedded with a low-power 32-bit CPU, 1-MB flash program
memory, a 64-KB RAM, and abundant peripheral resources.
