04 Reset & Teardown (FCC ID 2APN5SNZB-04)

SNZB-04
User manual V 1.0
Wireless Door/Window Sensor
中文-------1-6 English-------7-12
>
1
<15mm
2
>
eWeLink
eWeLink

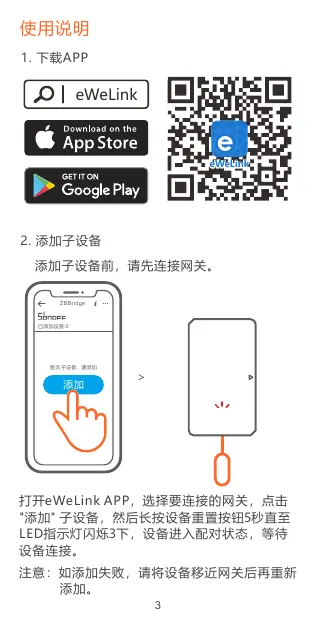

1. 下载APP
ZBBridge
 添加。
3
产品型号: SNZB-04
电池型号: CR2032
无线协议: ZigBee (IEEE 802.15.4)
工作温度: -10-40℃
工作湿度:10-90%RH(无冷凝)
安装距离: <15mm
产品规格: 发射器(47x27x13.5mm)
 磁铁(32x15.6x13mm)
ZBBridge
25s
>
4
5
6

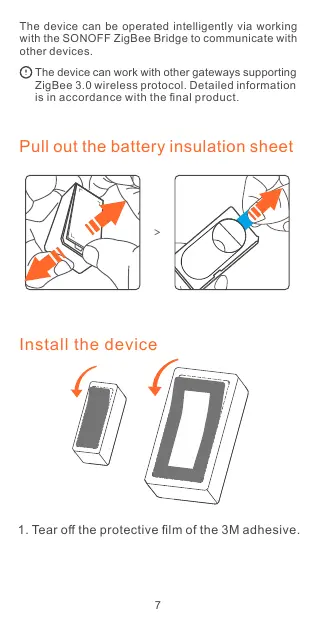

Pull out the battery insulation sheet
The device can be operated intelligently via working
with the SONOFF ZigBee Bridge to communicate with
other devices.
The device can work with other gateways supporting
ZigBee 3.0 wireless protocol. Detailed information
is in accordance with the final product.
>
Install the device
1. Tear off the protective film of the 3M adhesive.
7
<15mm

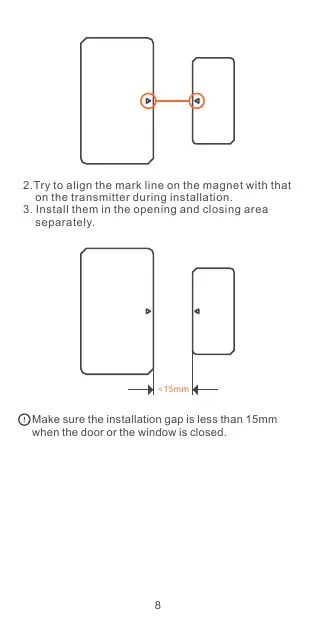

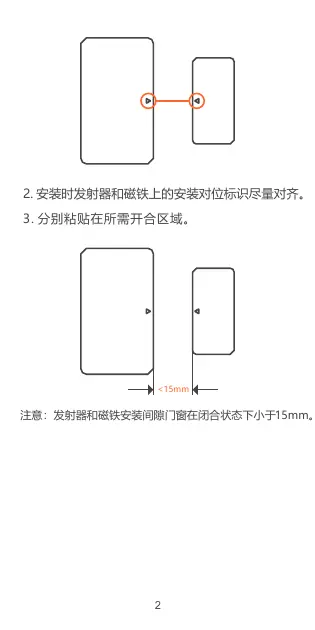

2.Try to align the mark line on the magnet with that
 on the transmitter during installation.
3. Install them in the opening and closing area
 separately.
Make sure the installation gap is less than 15mm
when the door or the window is closed.
8
ZBBridge
Added:0
No child device,please add.
Add
>

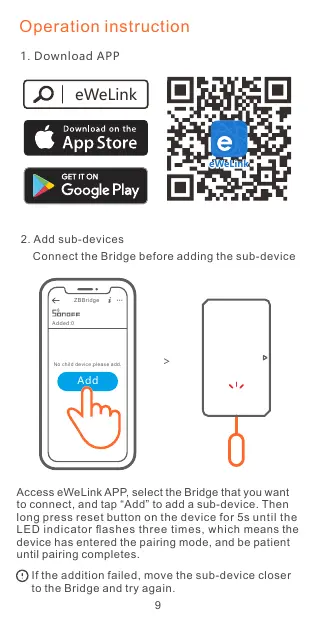

Operation instruction
eWeLink
eWeLink
1. Download APP
Connect the Bridge before adding the sub-device
Access eWeLink APP, select the Bridge that you want
to connect, and tap “Add” to add a sub-device. Then
long press reset button on the device for 5s until the
LED indicator flashes three times, which means the
device has entered the pairing mode, and be patient
until pairing completes.
If the addition failed, move the sub-device closer
to the Bridge and try again.
2. Add sub-devices
9

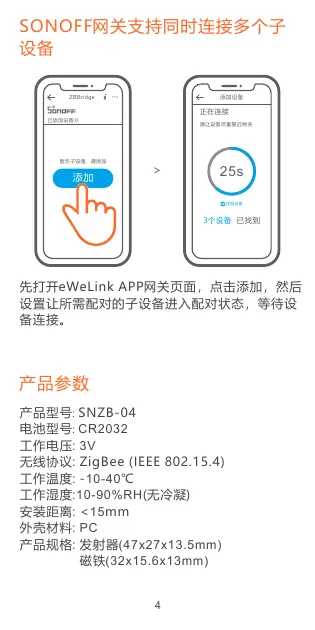

SONOFF ZigBee Bridge supports
connecting multiple sub-devices at
the same time.
Connecting
Keep the device close
enough to the hub.
25s>
Power the Bridge on, access the Bridge page in the
eWeLink APP, and tap “Add”. Then set the sub-device
to be pair to the pairing mode, and be patient until the
pairing completes.
ZBBridge
Added:0
No child device,please add.
Add
Add Device
Looking for device
3 devices Found
Specifications
Model: SNZB-04

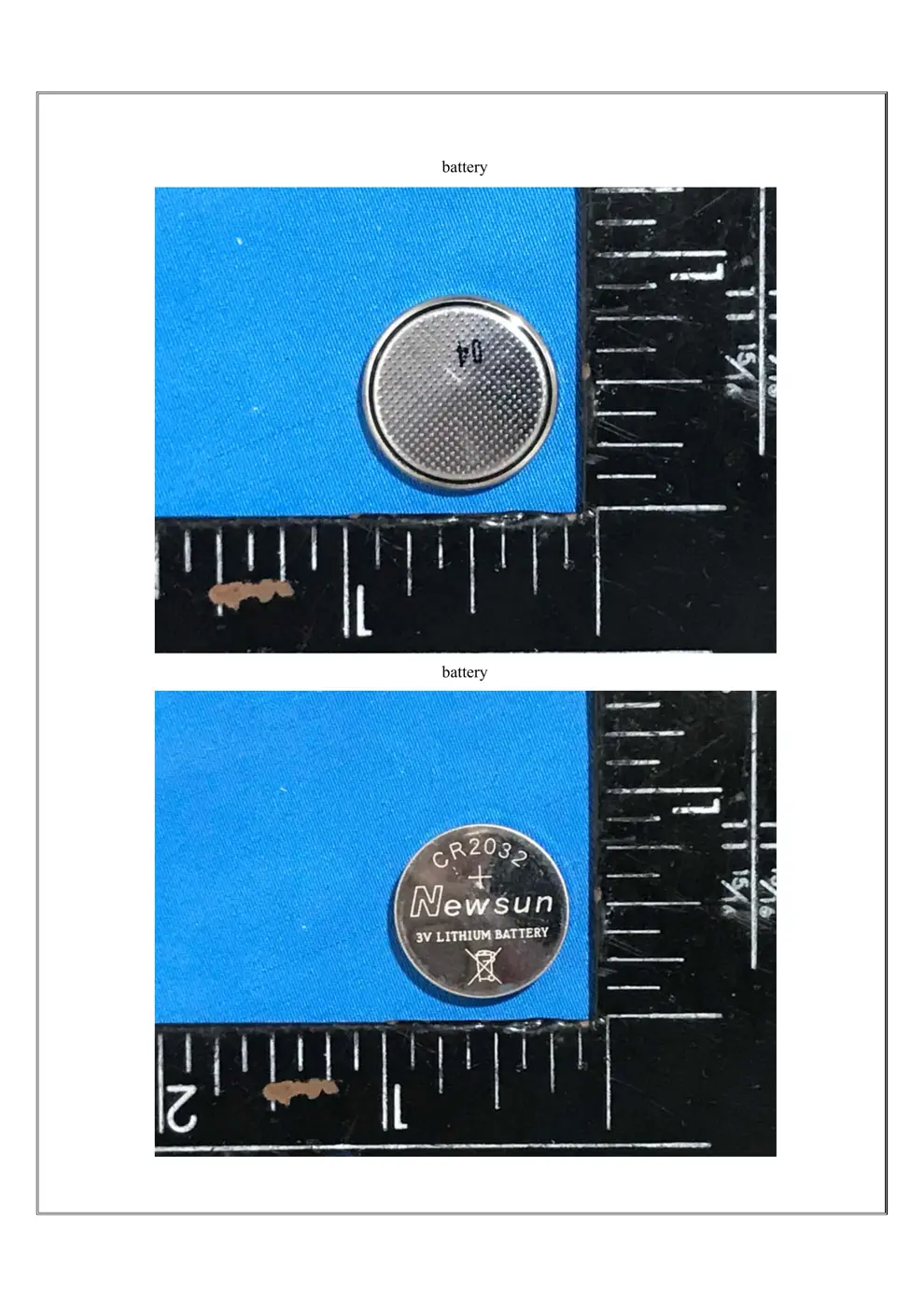

Battery model: CR2032
Working voltage: 3V
Wireless connection: ZigBee (IEEE 802.15.4)
Working temperature : -10-40℃
Working humidity: 10-90%RH (non-condensing)
Installation gap: <15mm
Material: PC
Dimension: Transmitter(47x27x13.5mm)
 Magnet(32x15.6x13mm)
10

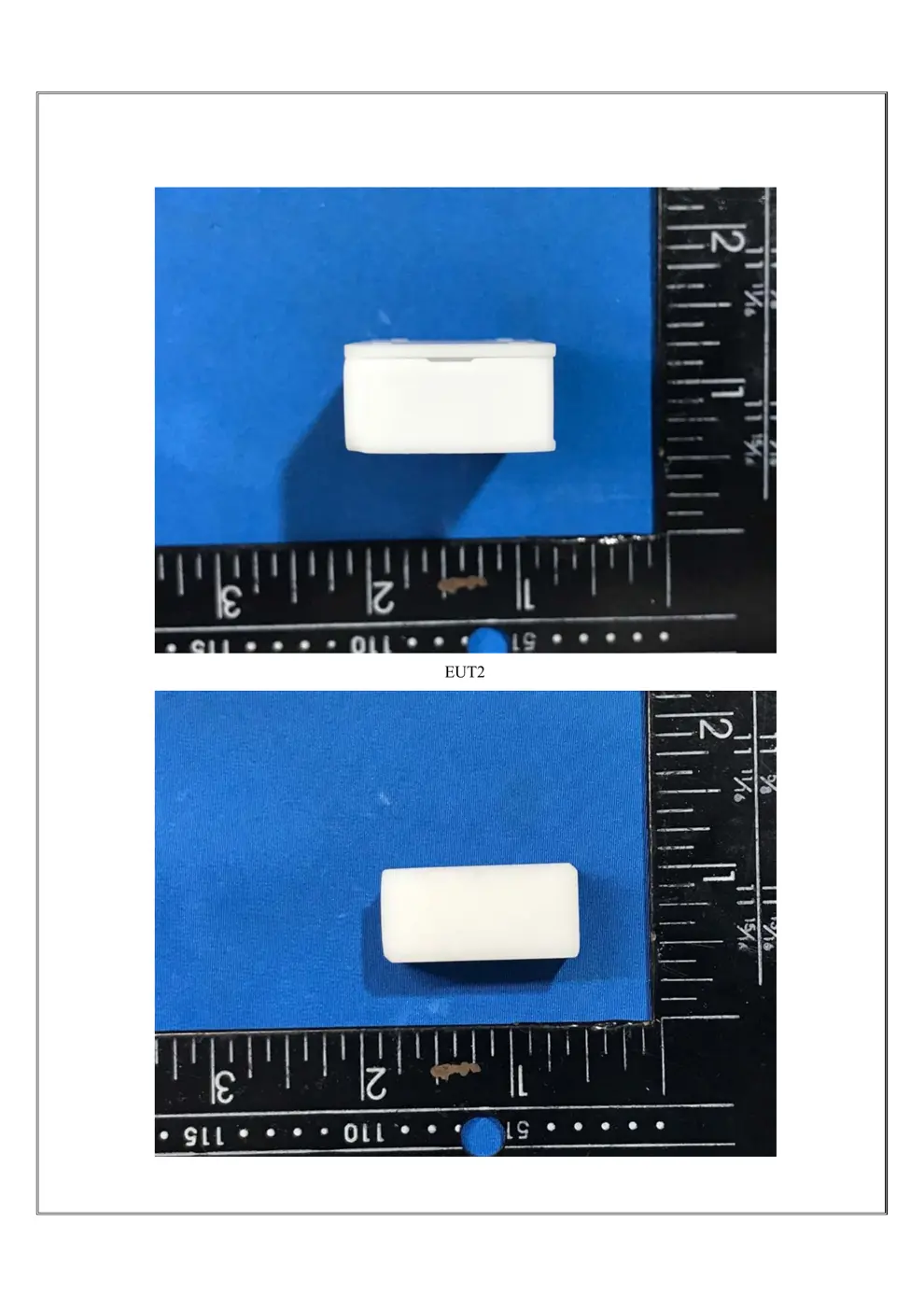

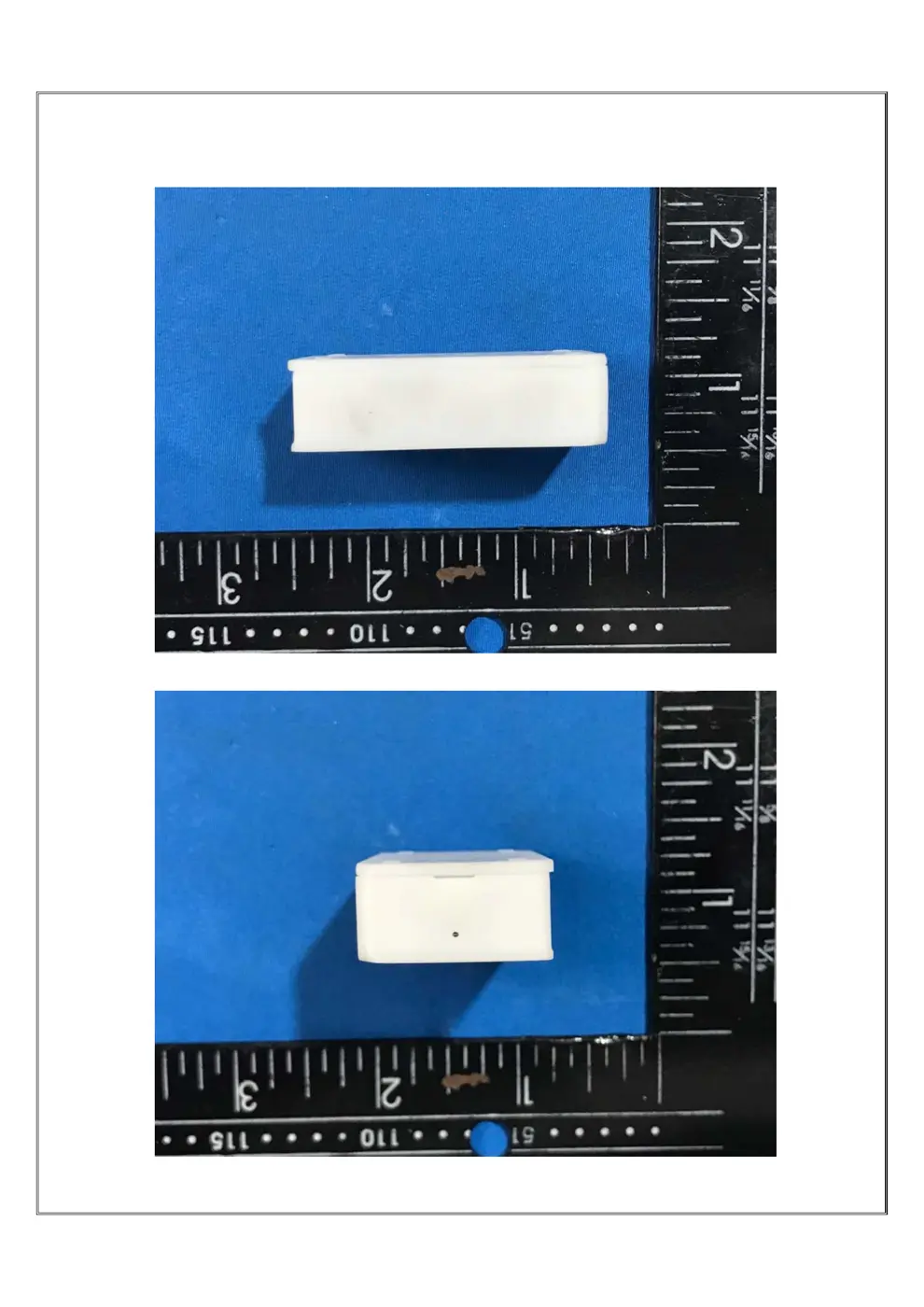

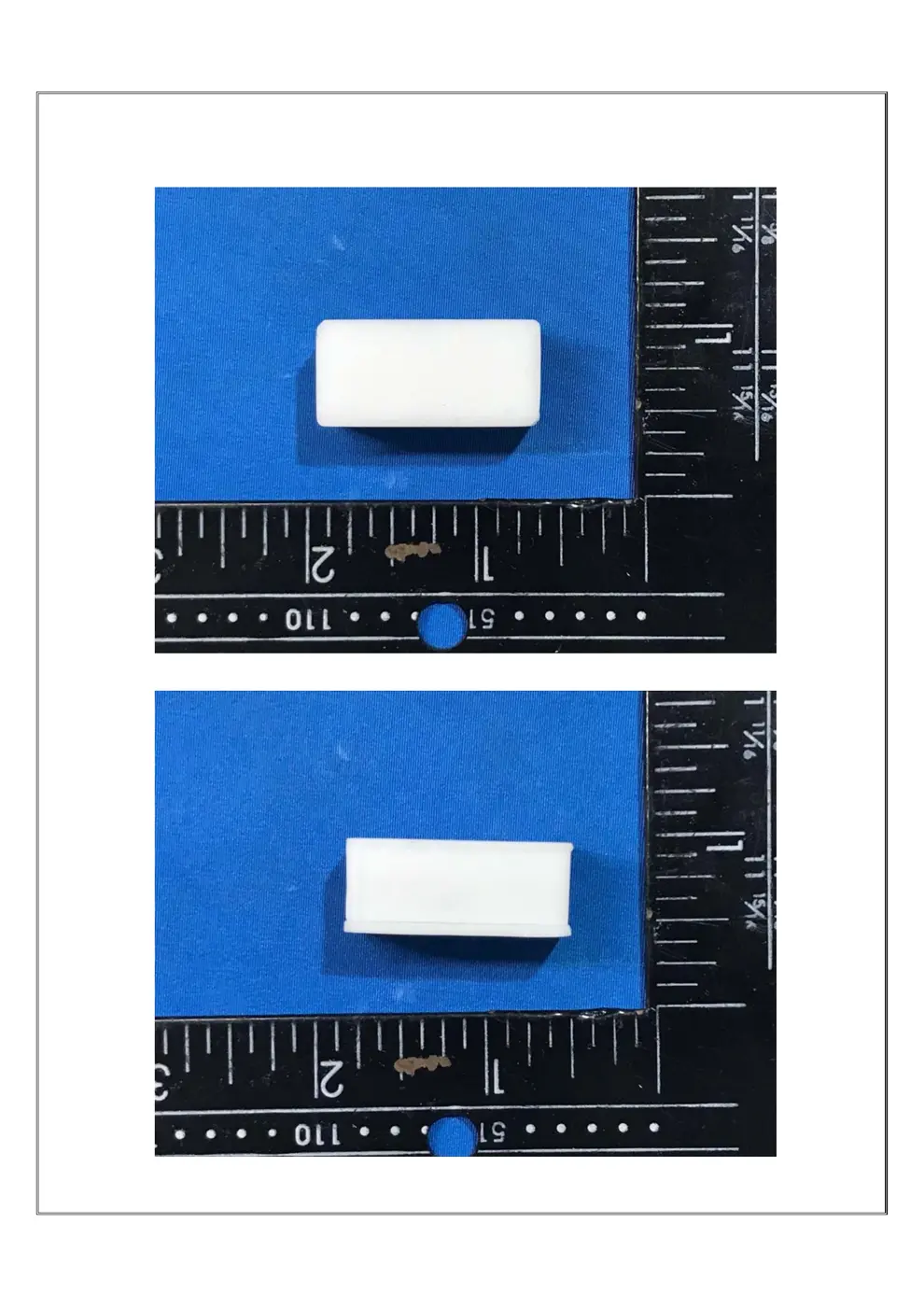

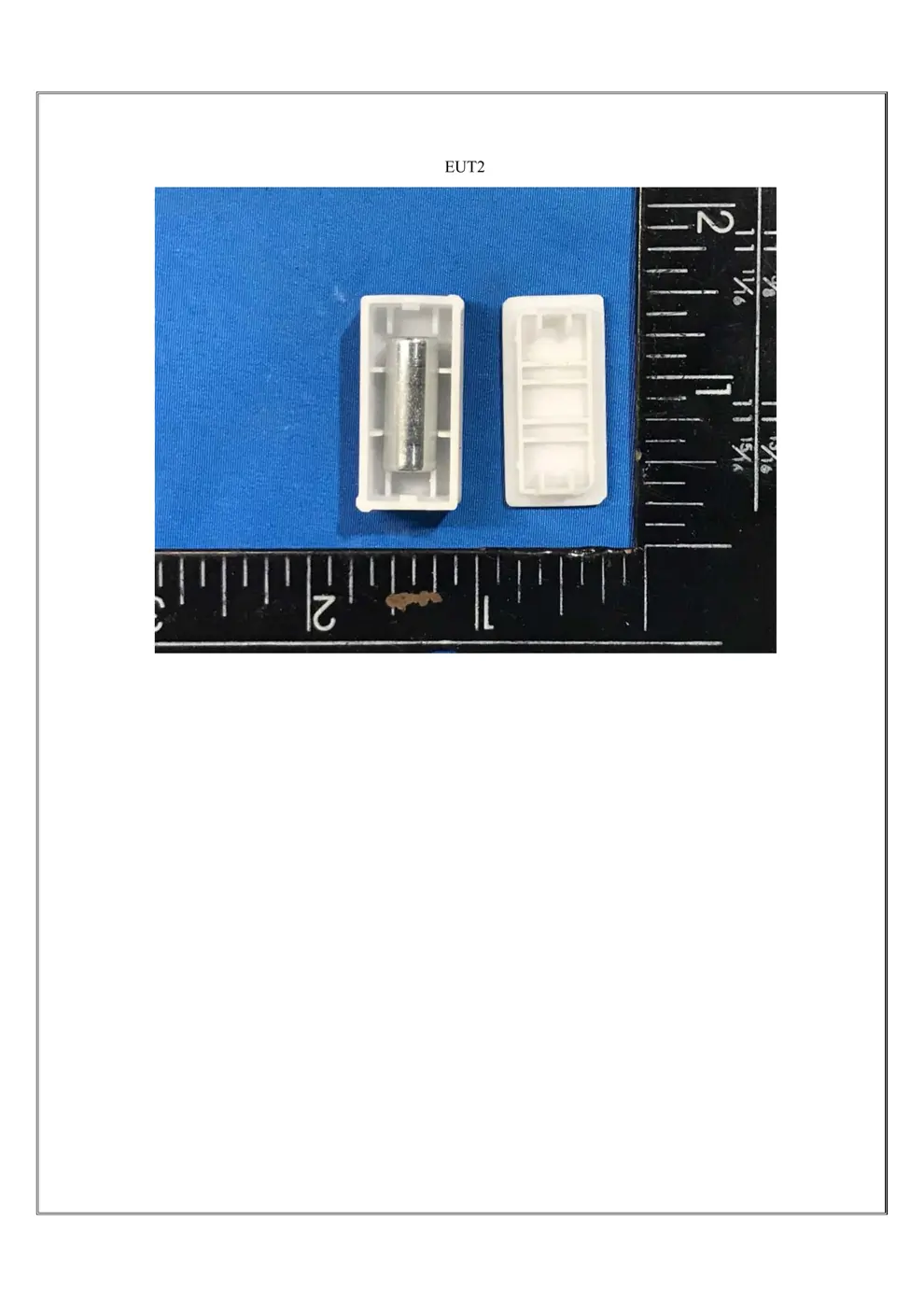

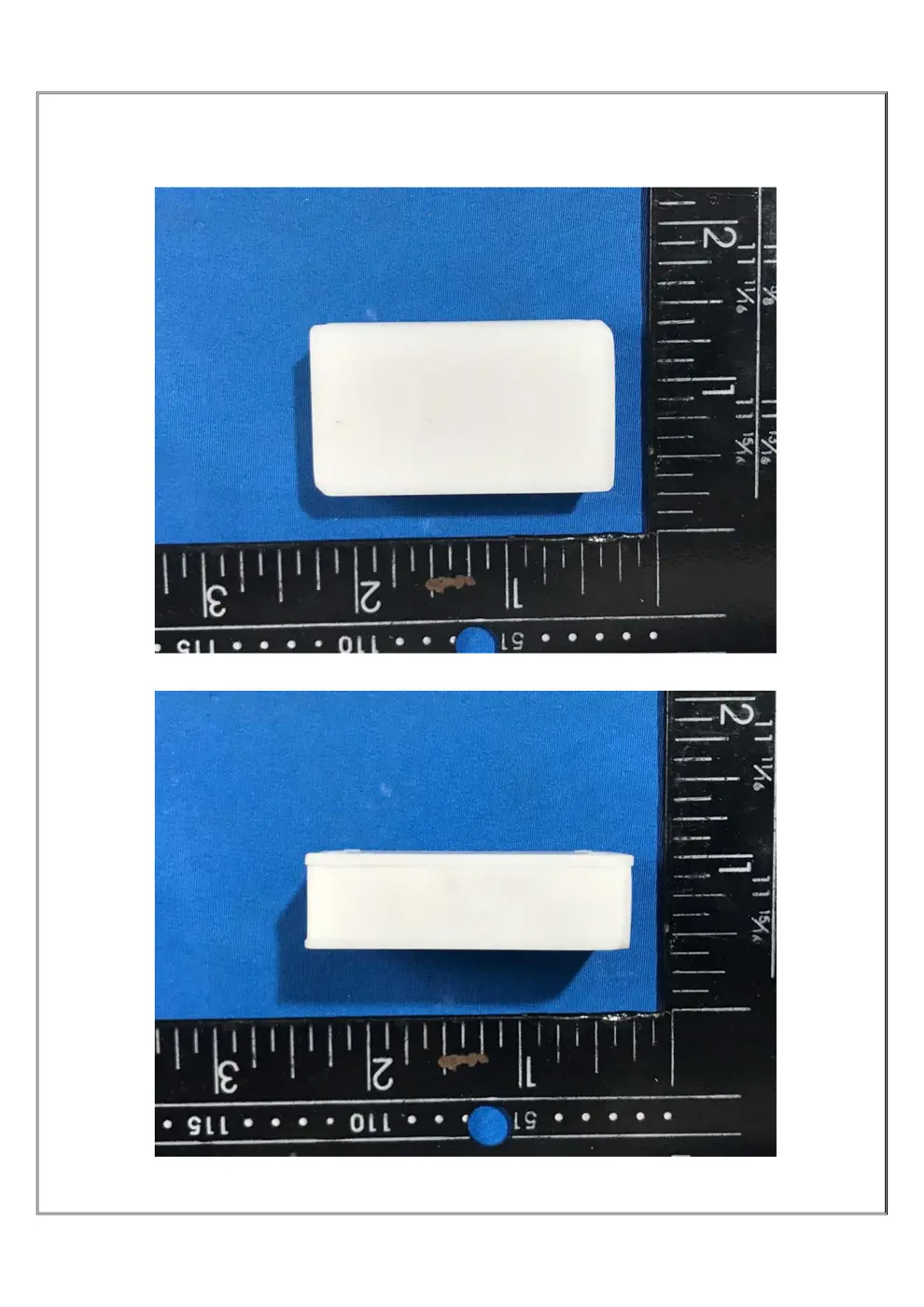

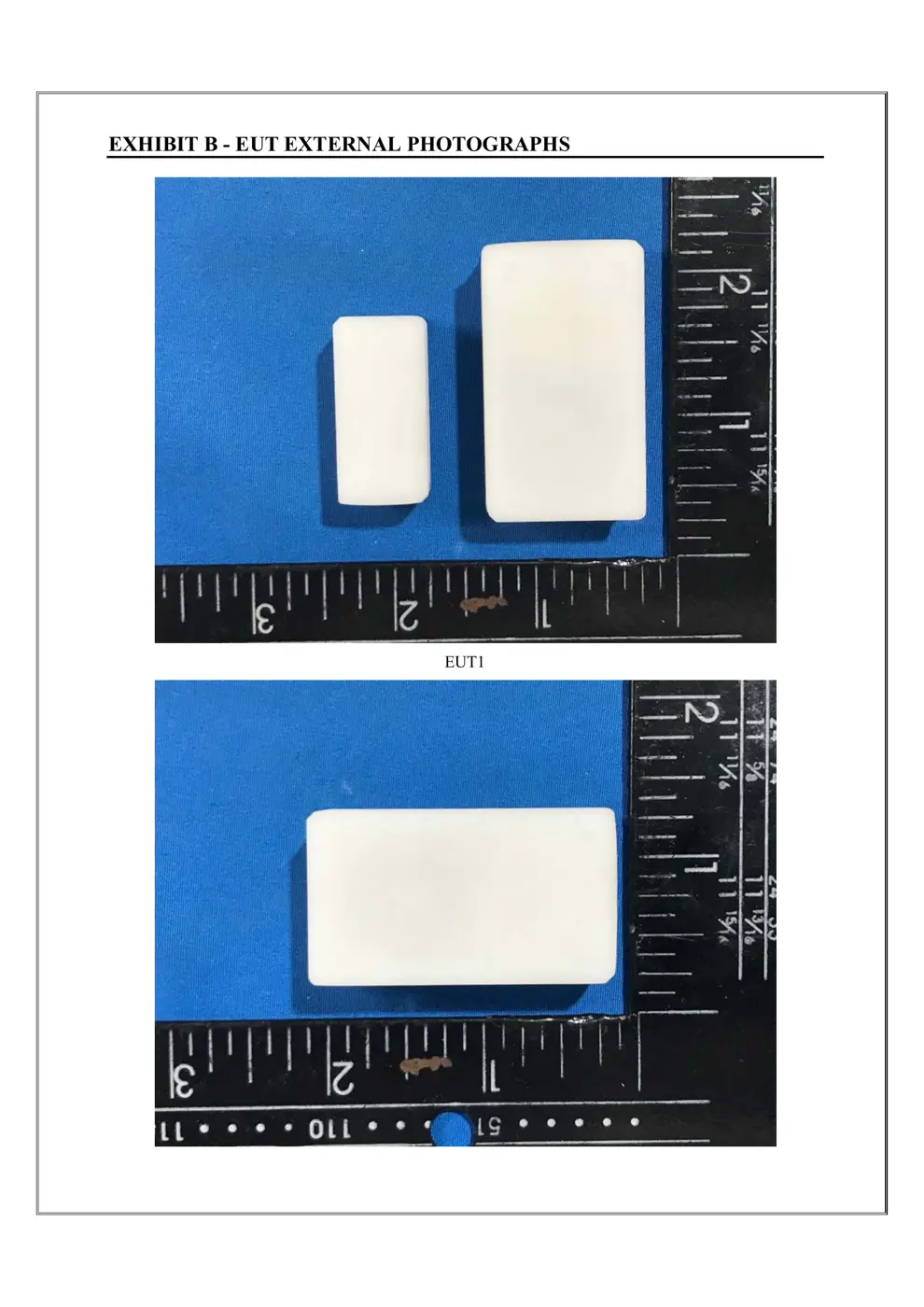

Align the mark lines
Transmitter
Magnet

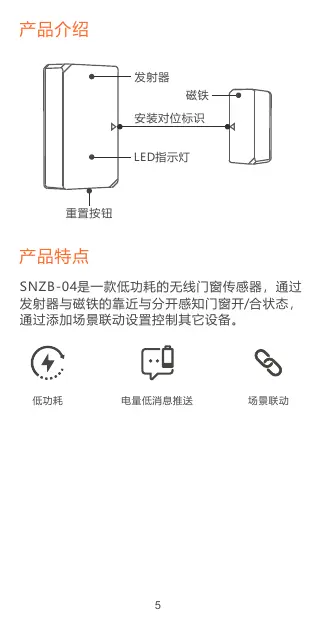

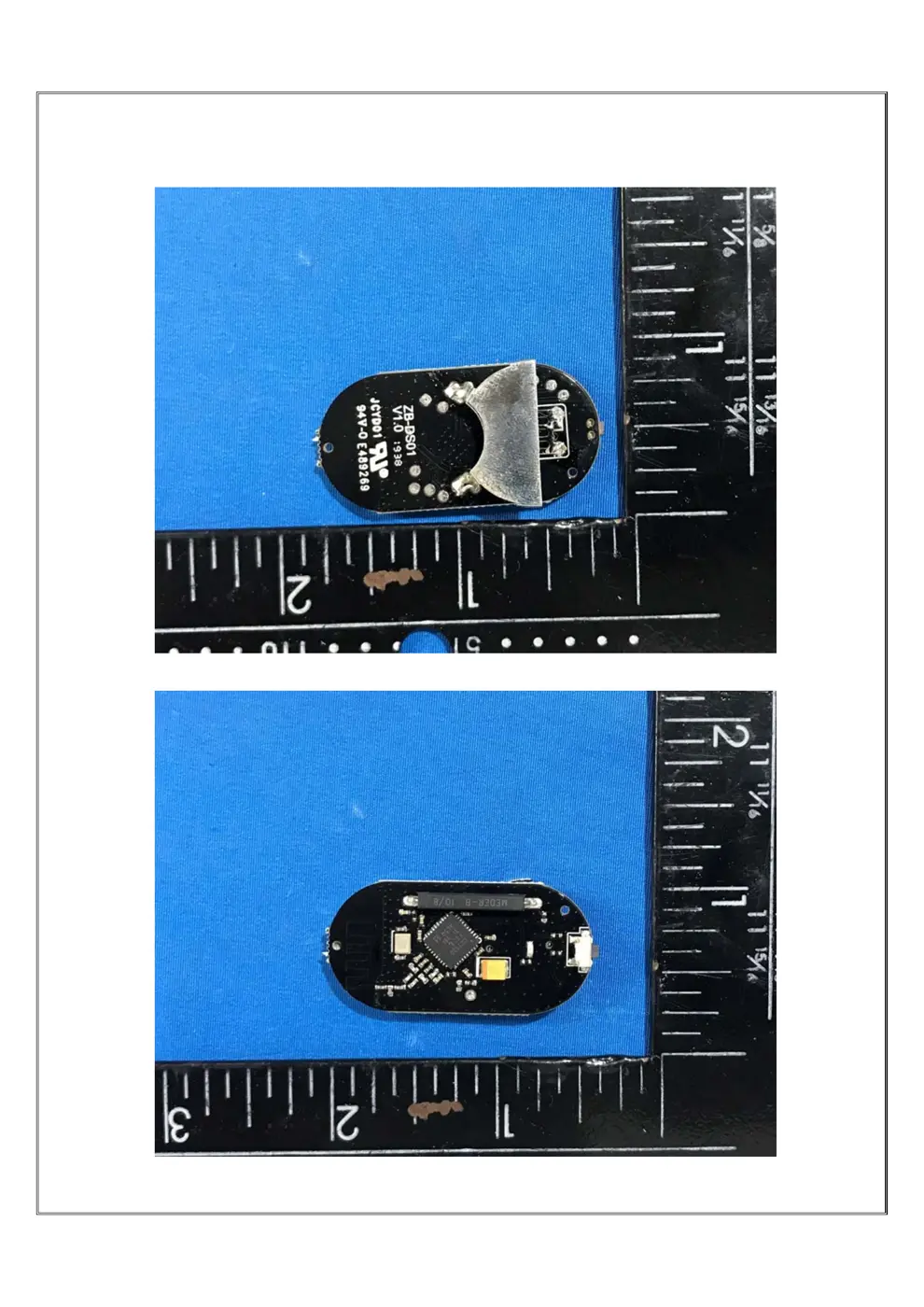

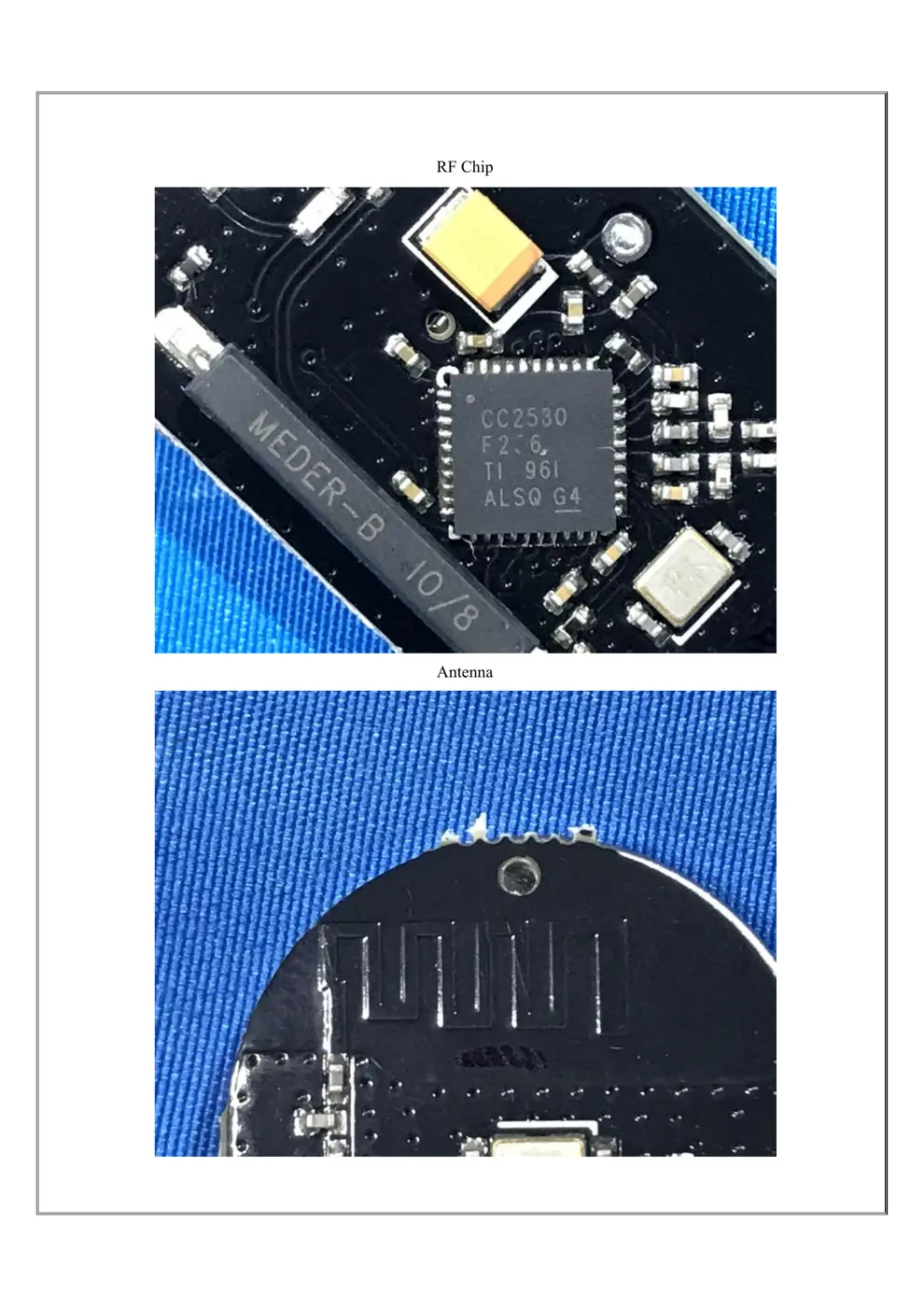

Product Introduction
Reset button
LED indicator
Features
Low-energy Low battery notification Smart scenes
SNZB-04 is a ZigBee low-energy wireless door/
window sensor that makes you know the opening/
closing status of door and window by separating
the magnet from the transmitter. Connect it with the
Bridge and you can create a smart scene to trigger
other devices.
11

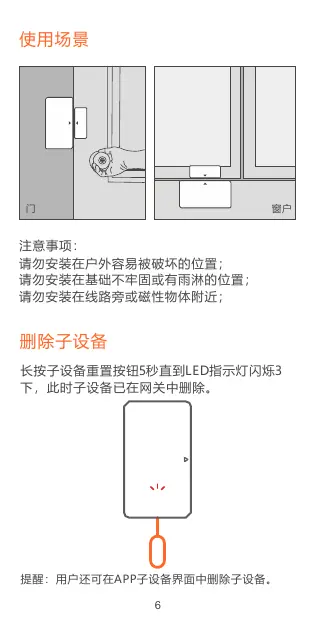

Application
Door Window
Delete sub-devices
Long press the reset button on the sub-device for 5s
until the LED indicator flashes three times. In this
case, the sub-device is deleted from the Bridge
successfully.
Users can delete sub-devices directly from the
sub-device page on APP.
Note:
● Do not install outside the door/window.
● Do not install in the unstable position or in the place
 expo...
