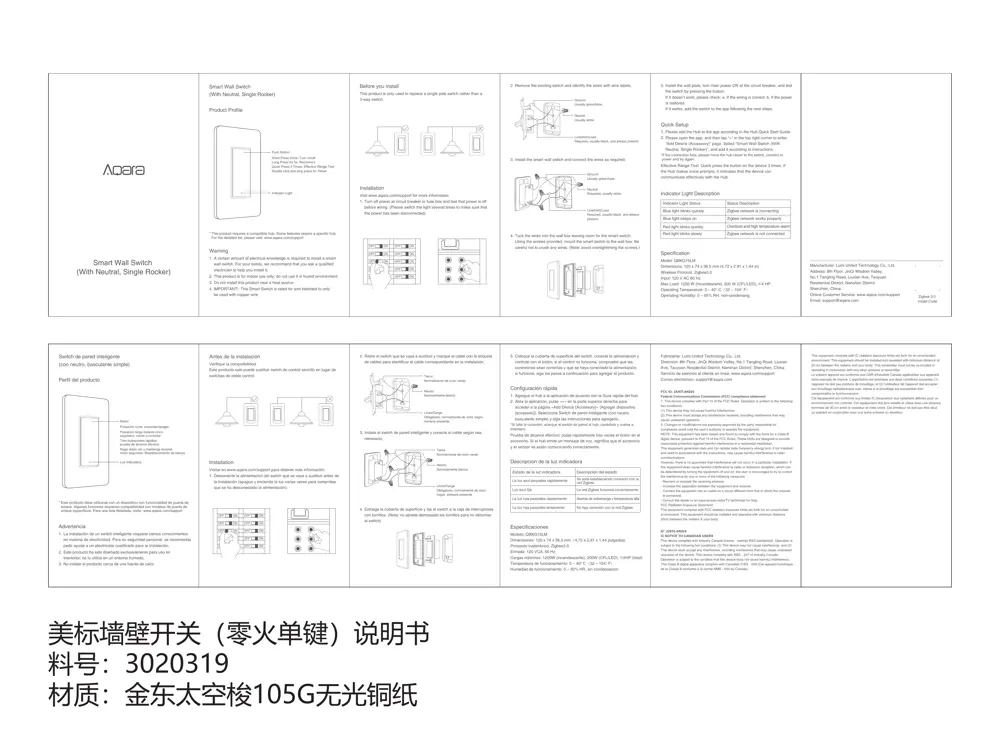

美标墙壁开关（零火单键）说明书
料号：3020319
材质：金东太空梭105G无光铜纸

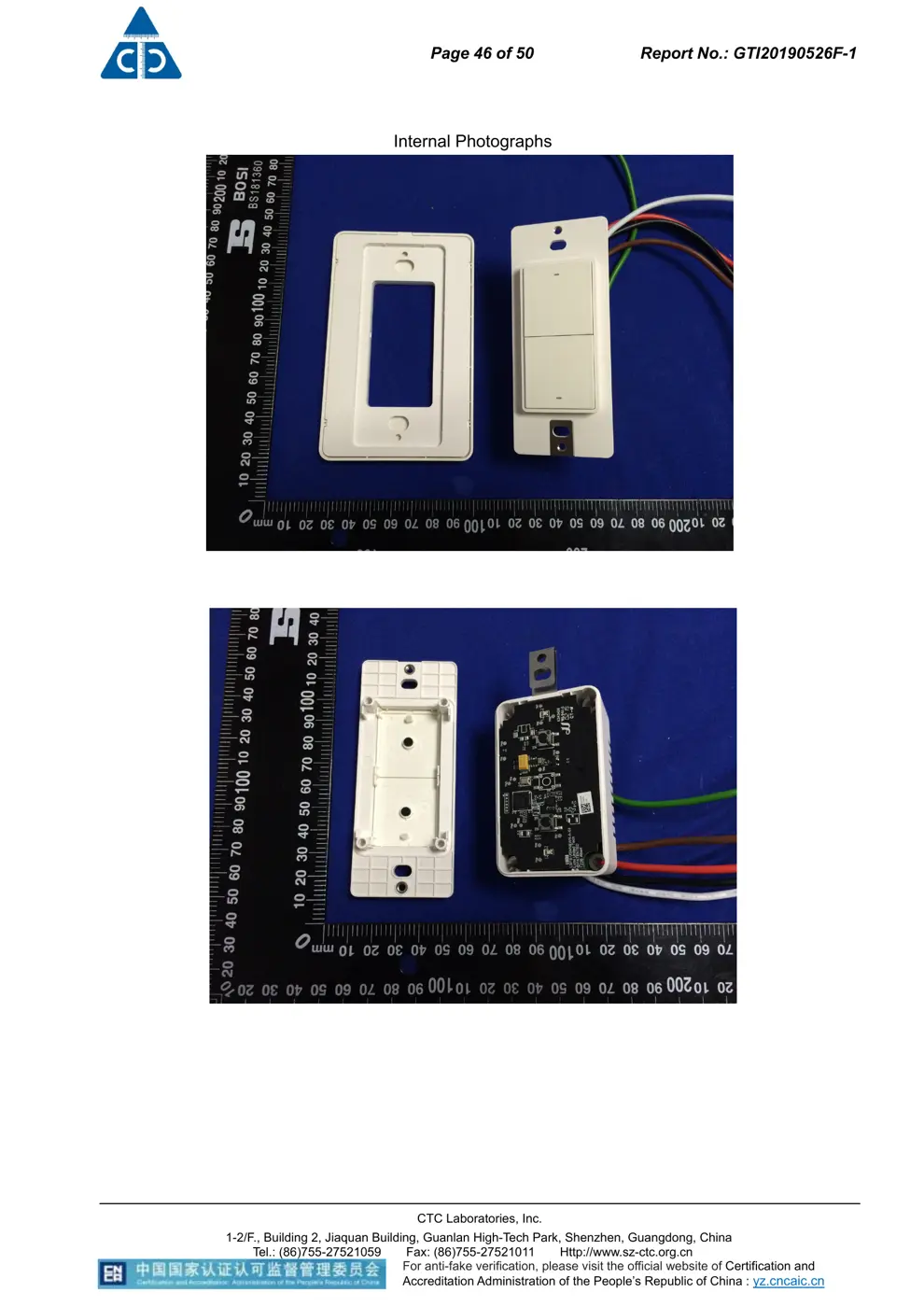

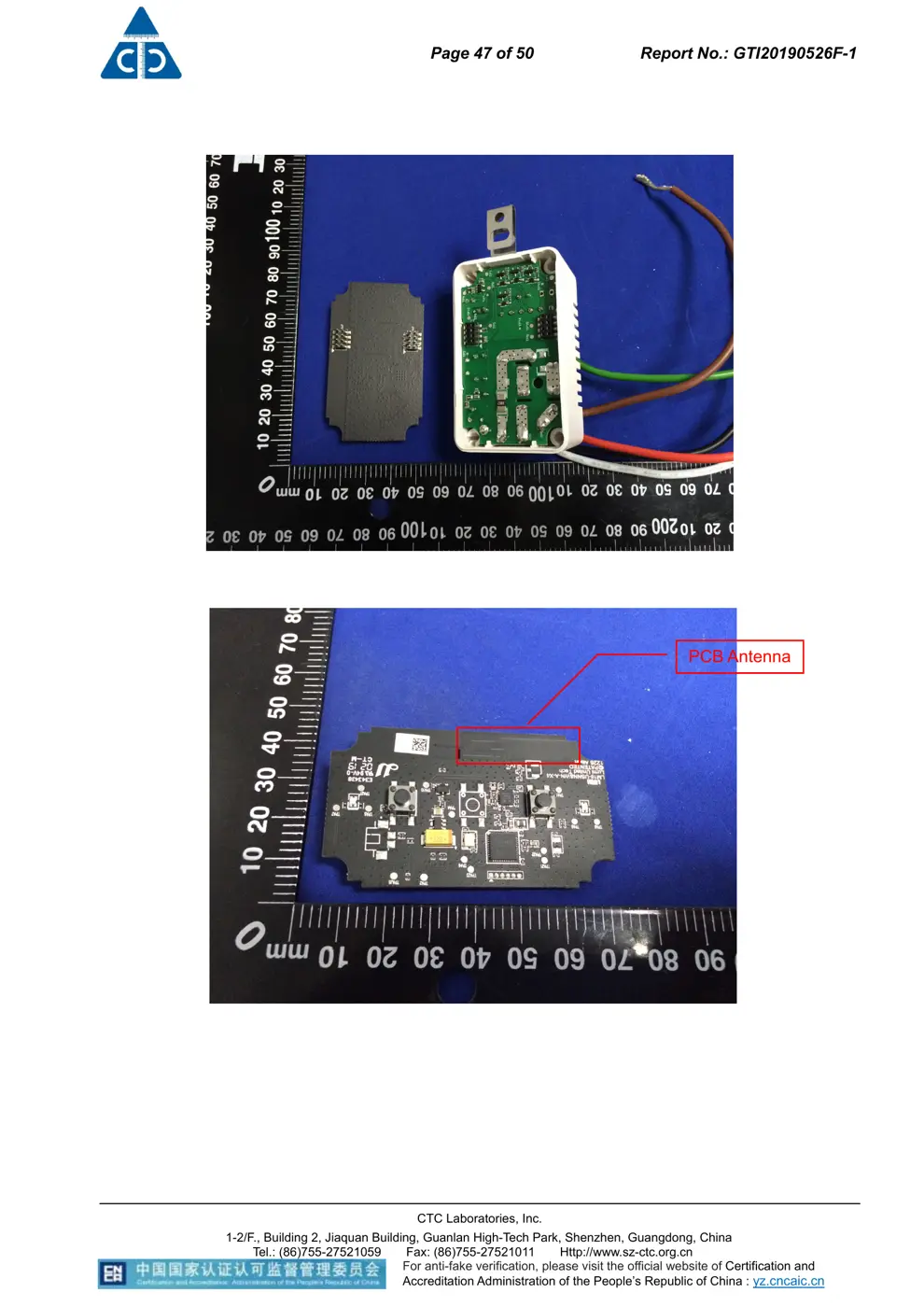

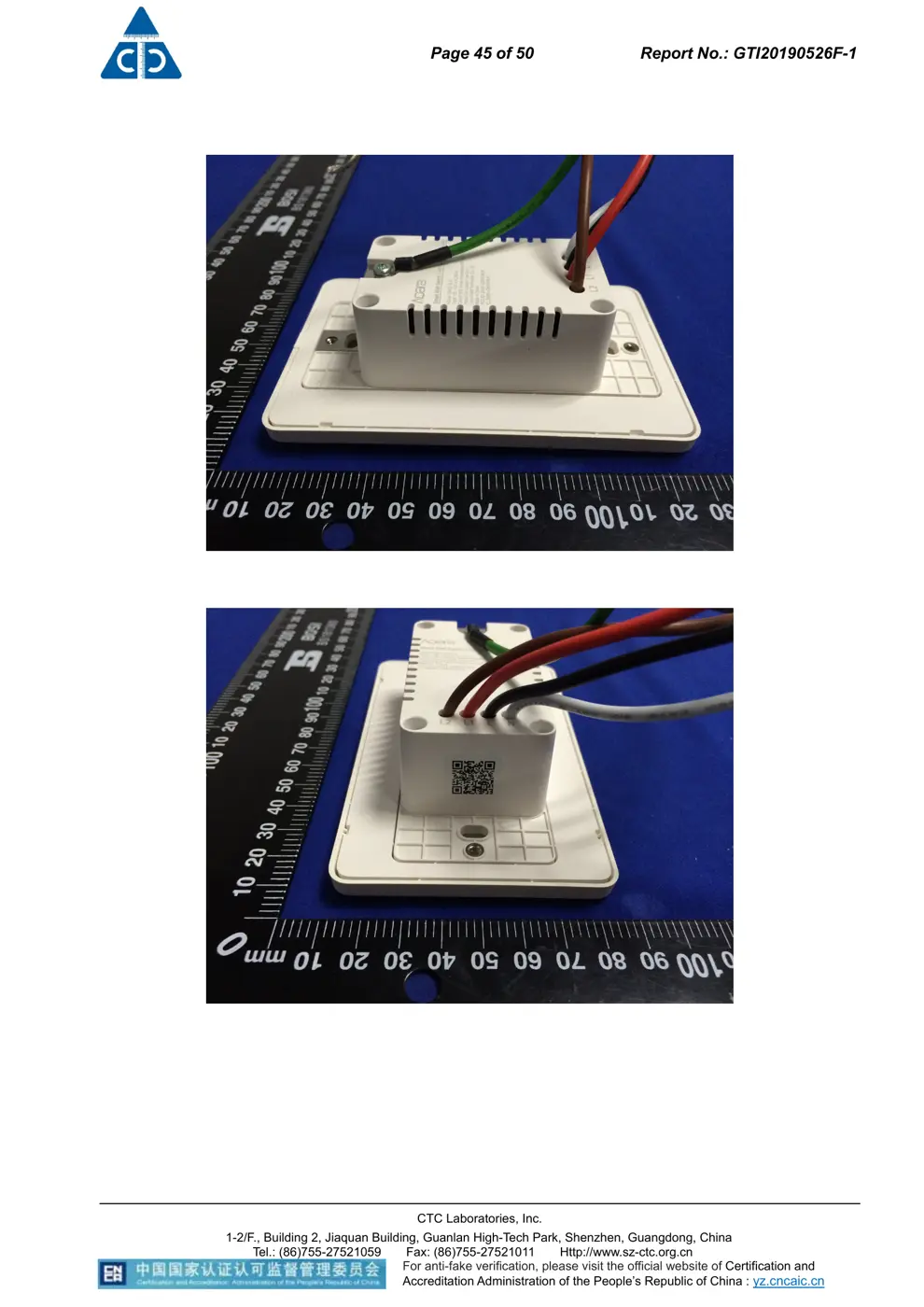

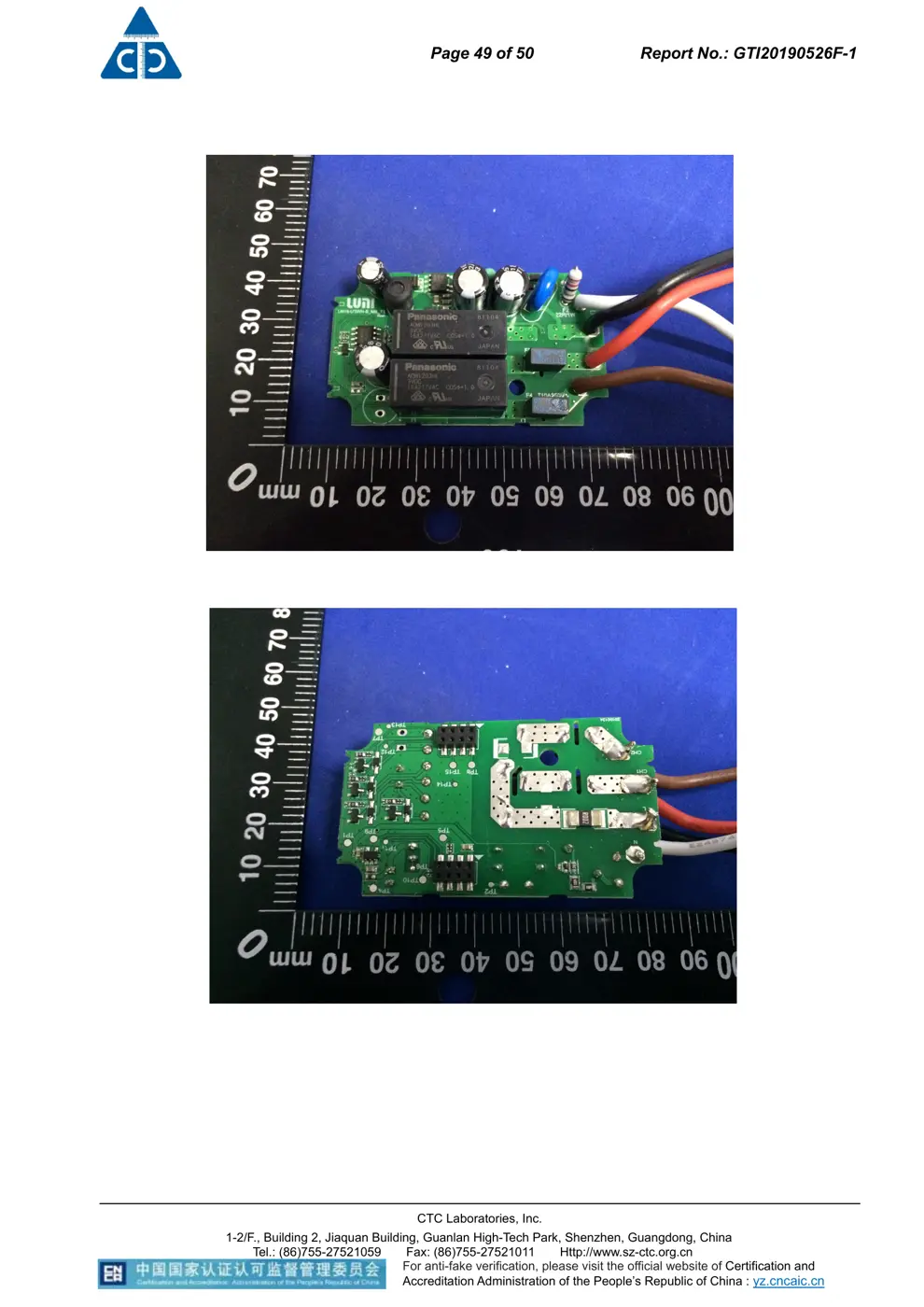

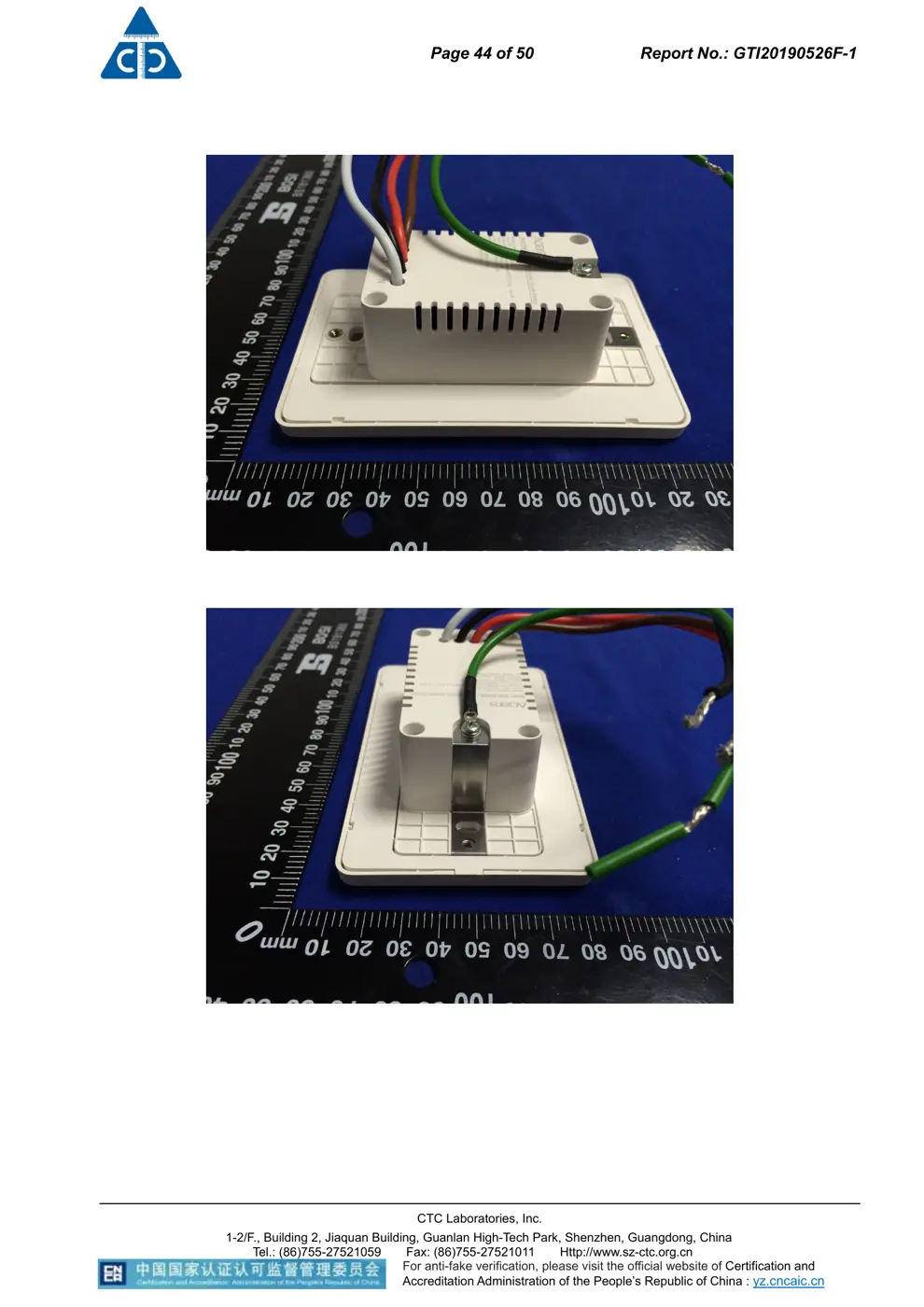

Smart Wall Switch
(With Neutral, Single Rocker)
Product Profile
Indicator Light
Push Button
Short Press Once: Turn on/off
Long Press for 5s: Reconnect
Quick Press 3 Times: Effective Range Test
Double click and long press 5s: Reset
This product requires a compatible hub. Some features require a specific hub.
For the detailed list, please visit: www.aqara.com/support
*
Turn off power at circuit breaker or fuse box and test that power is off
before wiring. (Please switch the light several times to make sure that
the power has been disconnected)
1.
Remove the existing switch and identify the wires with wire labels.2.
Install the smart wall switch and connect the wires as required.3.
Tuck the wires into the wall box leaving room for the smart switch.
Using the screws provided, mount the smart switch to the wall box. Be
careful not to crush any wires. (Note: avoid overtightening the screws.)
4.
Install the wall plate, turn main power ON at the circuit breaker, and test
the switch by pressing the button;
If it doesn’t work, please check: a. If the wiring is correct; b. If the power
is restored.
If it works, add the switch to the app following the next steps;
5.
Warning
A certain amount of electrical knowledge is required to install a smart
wall switch. For your safety, we recommend that you ask a qualified
electrician to help you install it;
1.
This product is for indoor use only; do not use it in humid environment;2.
Do not install this product near a heat source;3.
4. IMPORTANT!: This Smart Switch is rated for and intended to only
 be used with copper wire.
Before you install
This product is only used to replace a single pole switch rather than a
3-way switch.
Installation
Visit www.aqara.com/support for more information.
Ground
Usually green/bare.
Neutral
Usually white.
Line(Hot)/Load
Required, usually black, and always present.
Neutral
Required, usually white.
Ground
Usually green/bare.
Line(Hot)/Load
Required, usually black, and always
present.
Please add the Hub to the app according to the Hub Quick Start Guide.
Please open the app, and then tap “+” in the top right corner to enter
“Add Device (Accessory)” page. Select “Smart Wall Switch (With
Neutral, Single Rocker)”, and add it according to instructions.
1.
2.
Effective Range Test: Quick press the button on the device 3 times. If
the Hub makes voice prompts, it indicates that the device can
communicate effectively with the Hub.
*If the connection fails, please move the hub closer to the switch, connect to
 power and try again.
Quick Setup
Model: QBKG15LM
Dimensions: 120 x 74 x 36.5 mm (4.72 x 2.91 x 1.44 in)
Wireless Protocol: Zigbee3.0
Input: 120 V AC 60 Hz
Max Load: 1200 W (Incandescent), 200 W (CFL/LED), 1/4 HP
Operating Temperature: 0 – 40° Cč32 – 104° FĎ
Operating Humidity: 0 – 95% RH, non-condensing
Specification
Indicator Light Status Status Description
Blue light blinks quickly Zigbee network is connecting
Blue light keeps...
