Motion Sensor T1
English
Motion Sensor T1 Quick Start Guide
Quick Setup

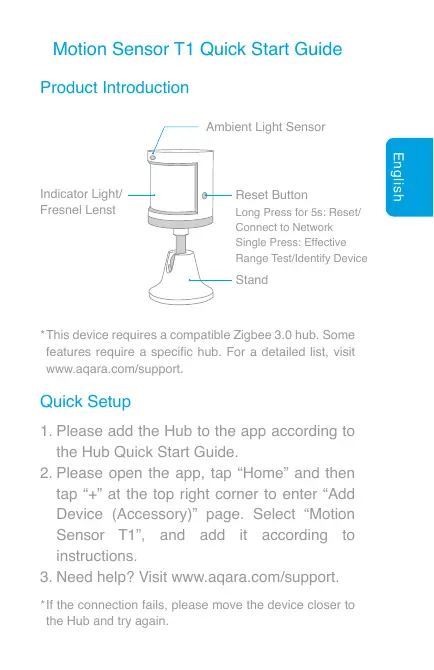

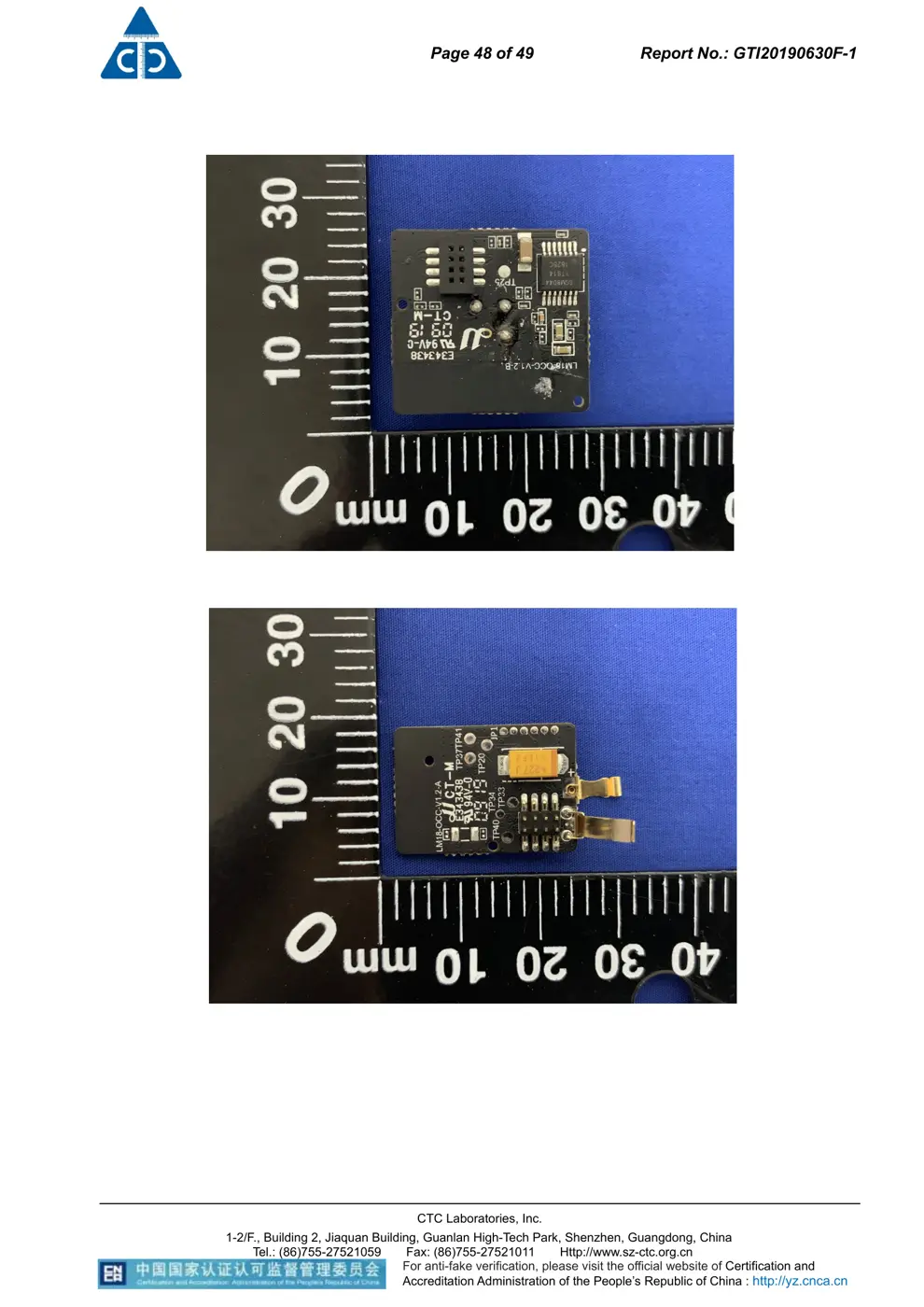

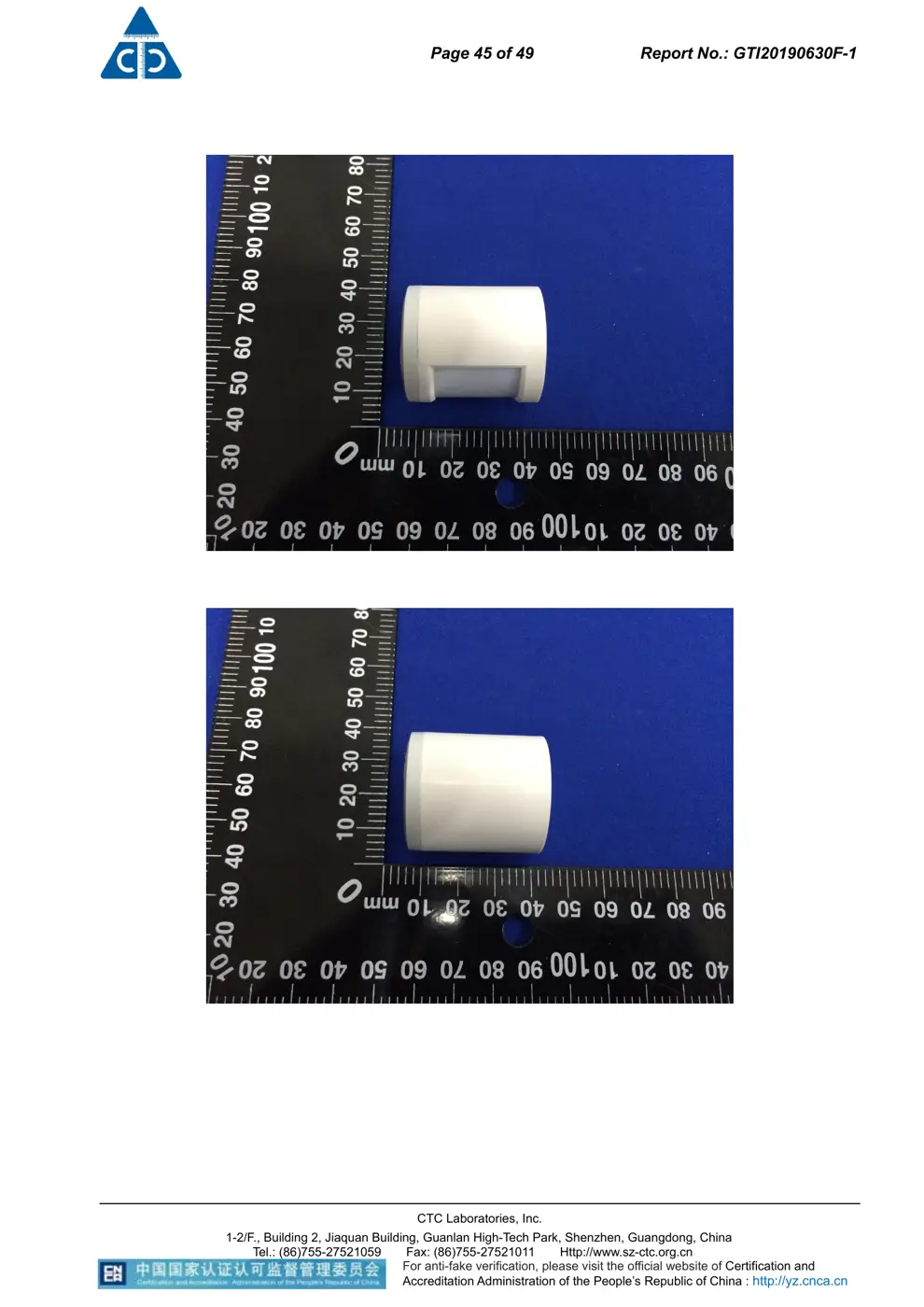

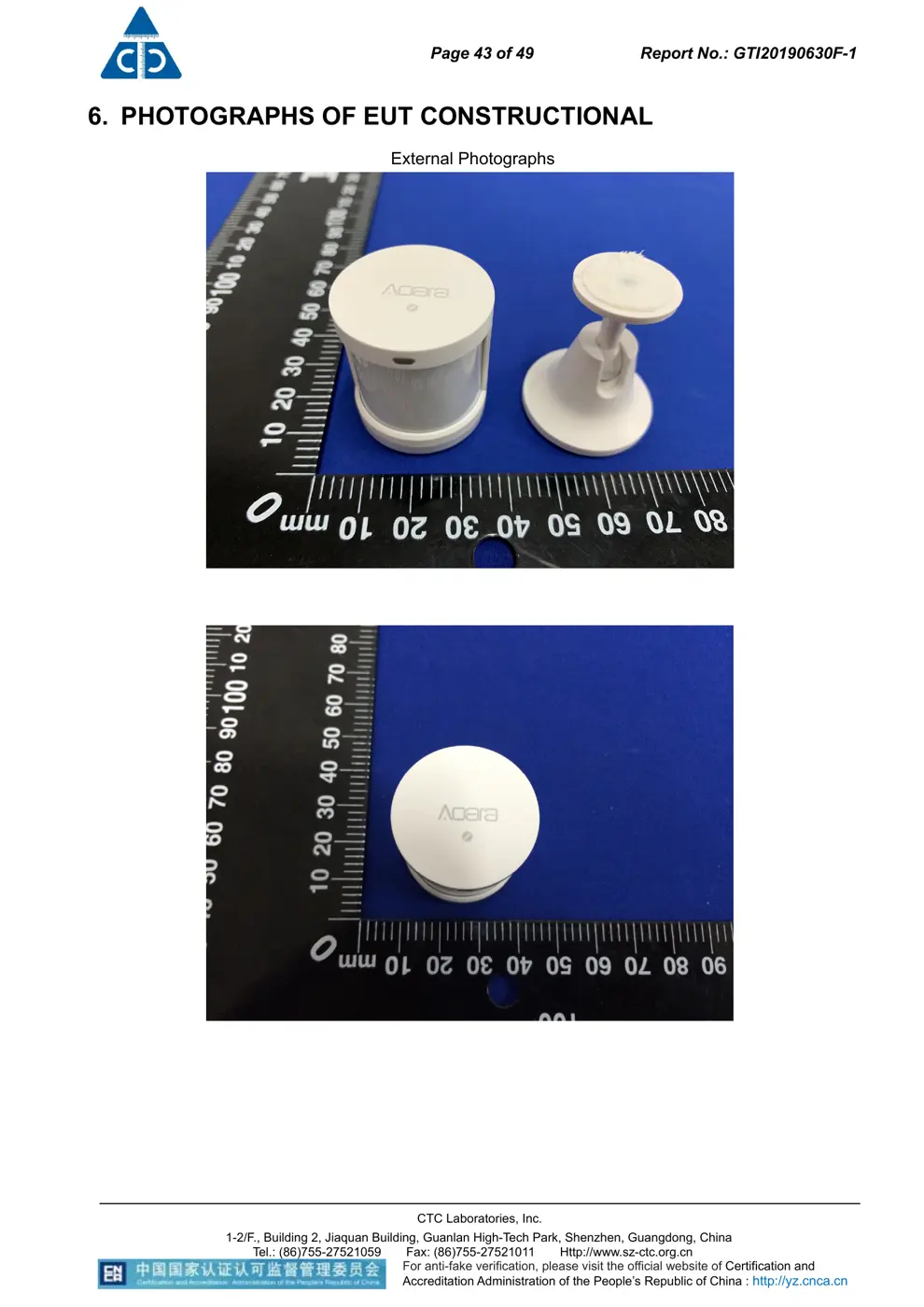

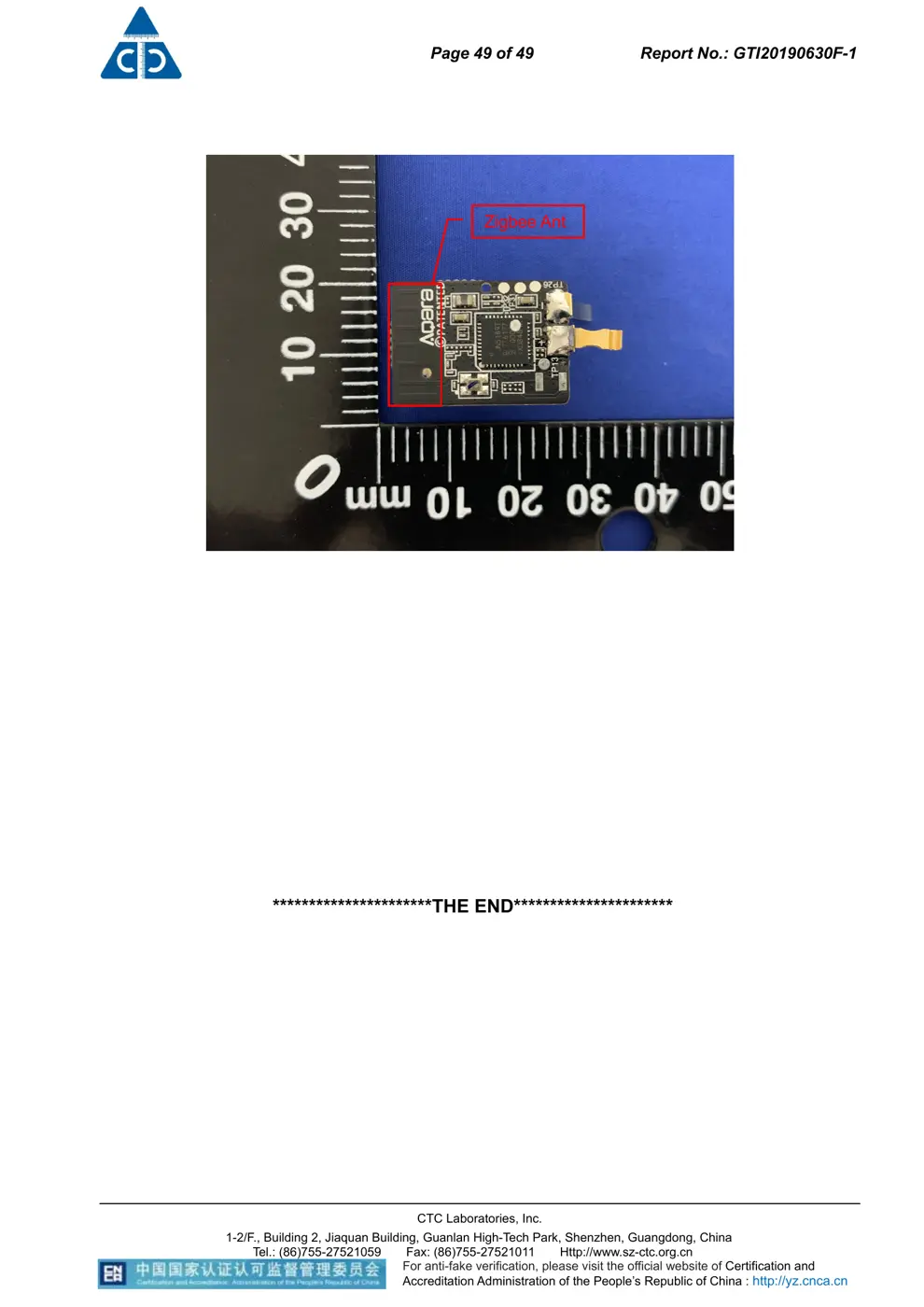

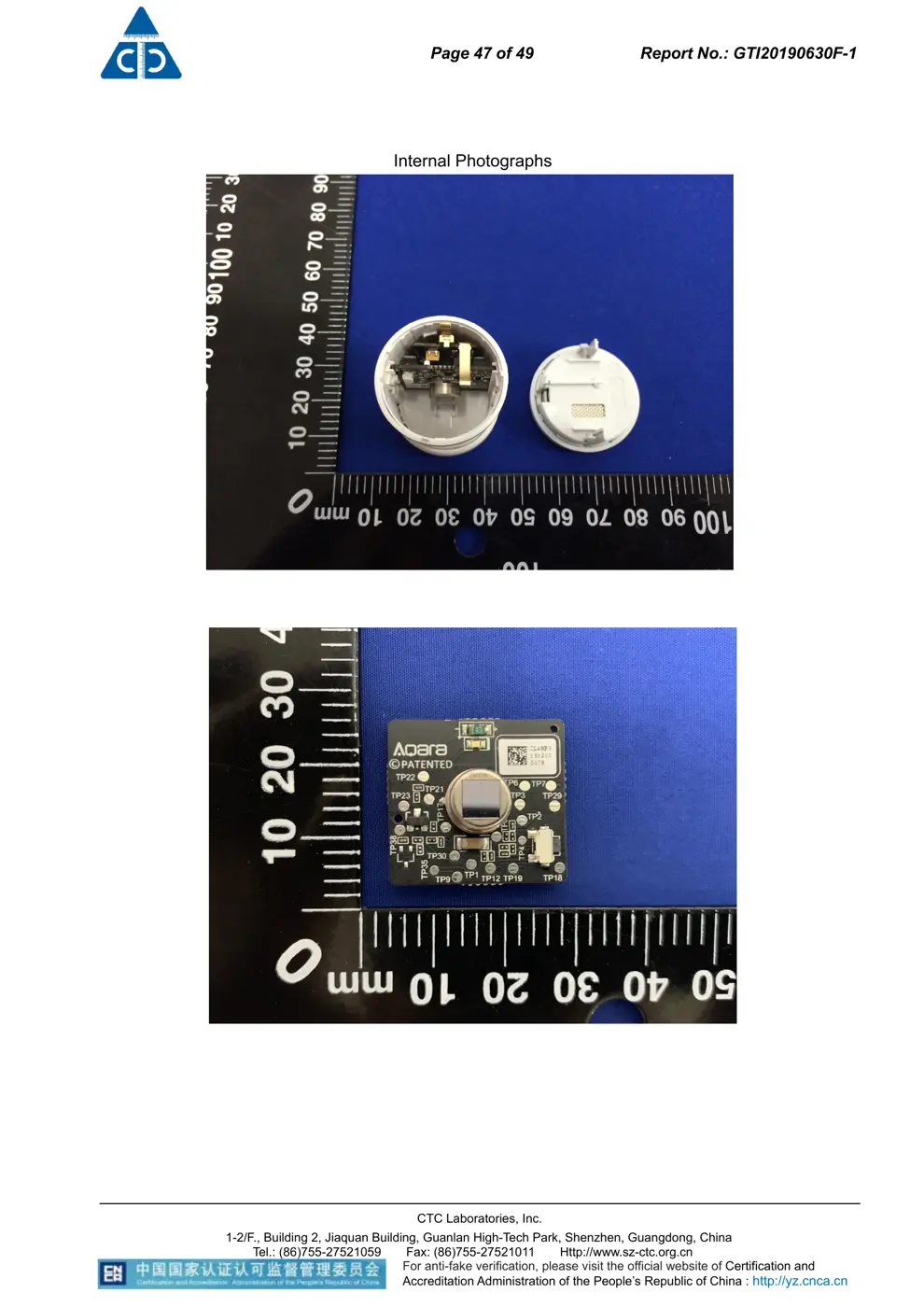

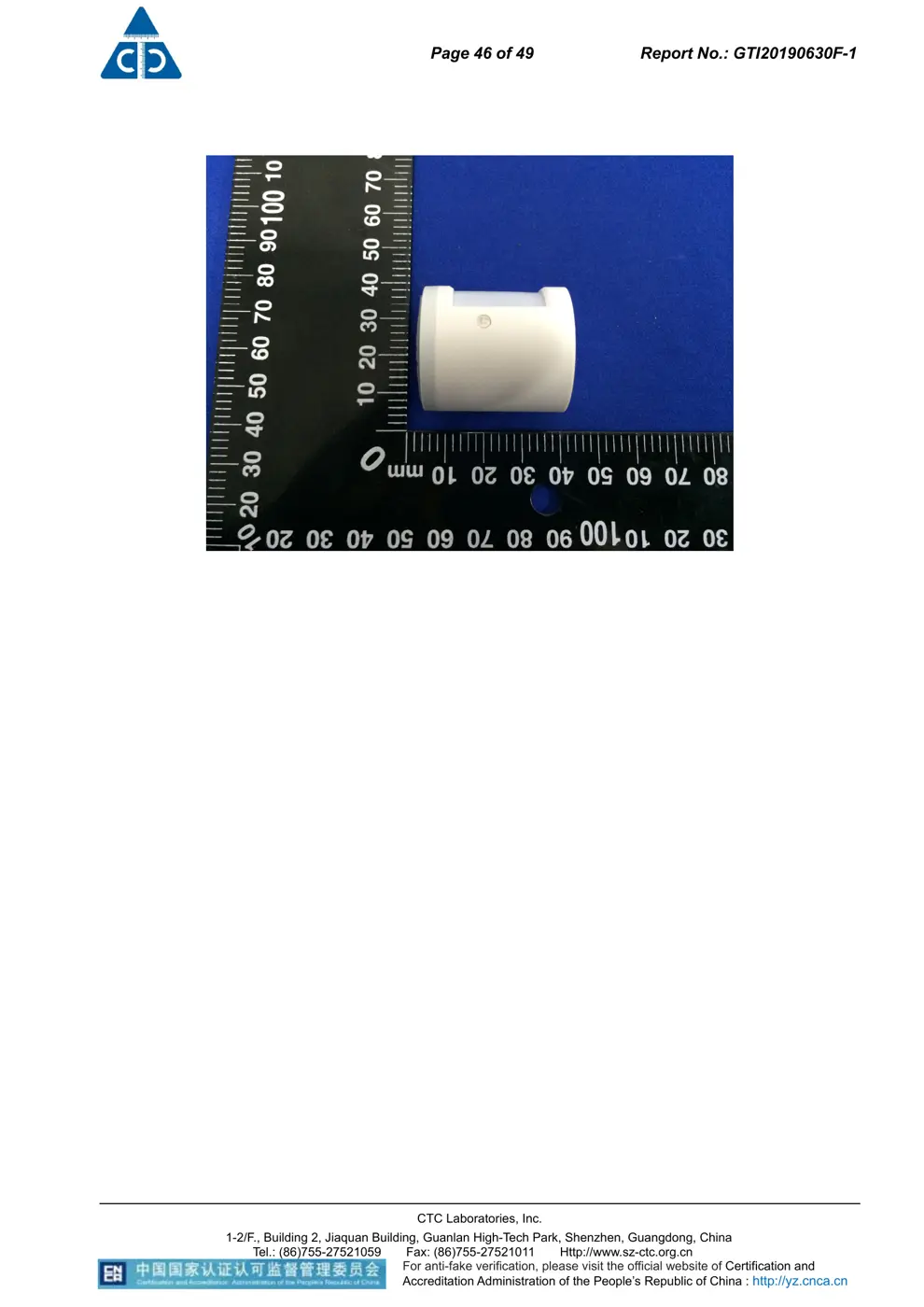

Product Introduction
Ambient Light Sensor
Indicator Light/
Fresnel Lenst
Stand
Reset Button
Long Press for 5s: Reset/
Connect to Network
Single Press: Effective
Range Test/Identify Device
This device requires a compatible Zigbee 3.0 hub. Some
features require a specific hub. For a detailed list, visit
www.aqara.com/support.
*
If the connection fails, please move the device closer to
the Hub and try again.
*
Please add the Hub to the app according to
the Hub Quick Start Guide.
Please open the app, tap “Home” and then
tap “+” at the top right corner to enter “Add
Device (Accessory)” page. Select “Motion
Sensor T1”, and add it according to
instructions.
Need help? Visit www.aqara.com/support.
1.
2.
3.
English
Stick it to the
desired position
Remove the
protective film
2

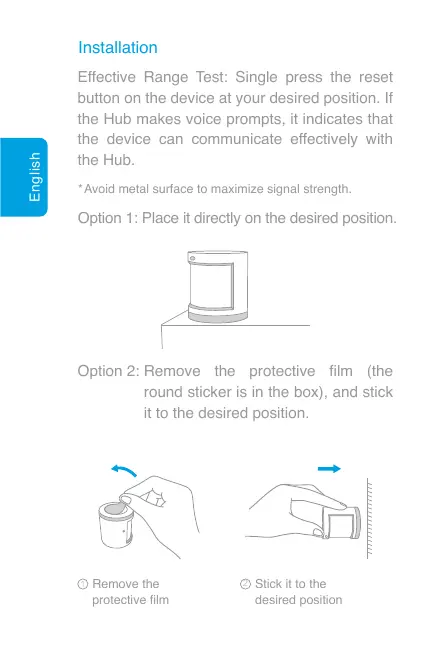

Installation
Avoid metal surface to maximize signal strength.*
Effective Range Test: Single press the reset
button on the device at your desired position. If
the Hub makes voice prompts, it indicates that
the device can communicate effectively with
the Hub.
Option 2: Remove the protective film (the
round sticker is in the box), and stick
it to the desired position.
Option 1: Place it directly on the desired position.
1
English
Keep the surface clean and dry.*
The recommended installation height is 1.2 m to 2.1 m
(47.2 in. to 82.6 in.). If the installation height is below 1.2
m (47.2 in.), the detection area will decrease; if it is more
than 2.1 m (82.6 in.), the detection area may have blind
spots.
*
NOTE: the lens should be aligned with the detection
area, and placed as close to the edge of a table or
cabinet as possible.
*

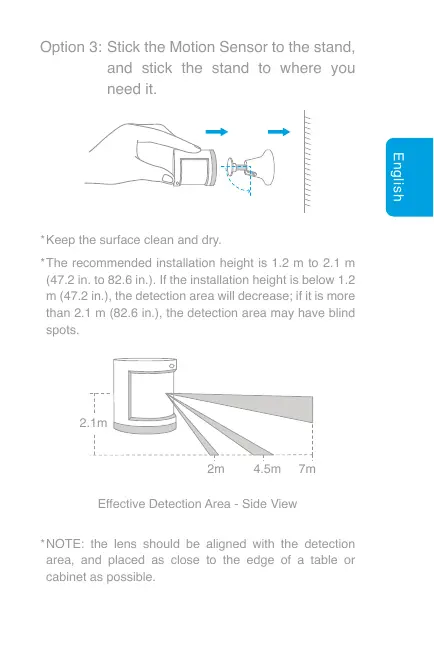

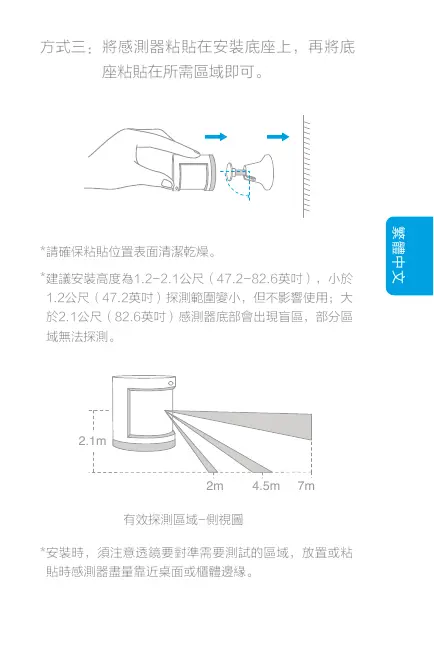

Option 3: Stick the Motion Sensor to the stand,
and stick the stand to where you
need it.
7m4.5m
2.1m
2m
Effective Detection Area - Side View
EnglishSpecifications
Read this Quick Start Guide carefully before use and
keep it for future reference.
*
Model: RTCGQ12LMGB
Dimensions: 30 × 30 × 33 mm
(1.18 × 1.18 × 1.30 in.)
Wireless Protocol: Zigbee 3.0
Battery: CR2450
Maximum Detection Distance: 7 m (23 ft.)
Maximum Detection Angle: 170°
Operating Temperature: -10° - +45℃
(14° - 113℉)
Operating Humidity: 0 - 95% RH,
non-condensing

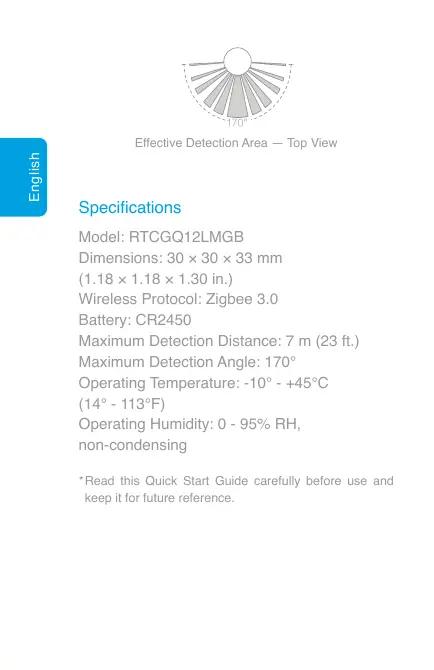

Effective Detection Area — Top View
170°
繁體中文
人體感測器 T1使用說明書

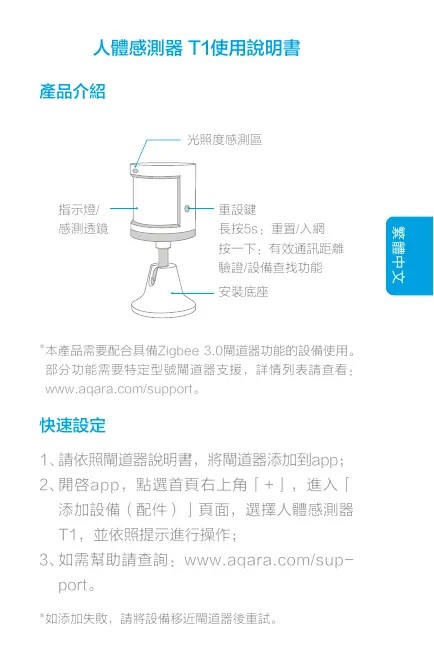

產品介紹
快速設定
本產品需要配合具備Zigbee 3.0閘道器功能的設備使用。
部分功能需要特定型號閘道器支援，詳情列表請查看：
www.aqara.com/support。
*
如添加失敗，請將設備移近閘道器後重試。*
重設鍵
長按5s：重置/入網
按一下：有效通訊距離
驗證/設備查找功能
安裝底座
光照度感測區
指示燈/
感測透鏡
請依照閘道器說明書，將閘道器添加到app；
開啓app，點選首頁右上角「+」，進入「
添加設備（配件）」頁面，選擇人體感測器
T1，並依照提示進行操作；
如需幫助請查詢：www.aqara.com/sup-
port。
1、
2、
3、
繁體中文

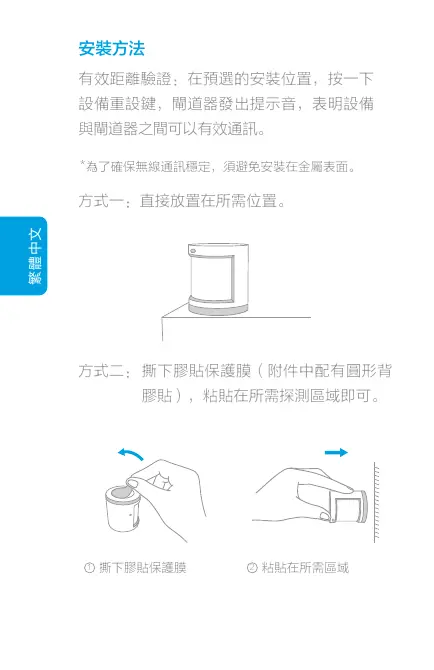

安裝方法
為了確保無線通訊穩定，須避免安裝在金屬表面。*
粘貼在所需區域撕下膠貼保護膜 21
有效距離驗證：在預選的安裝位置，按一下
設備重設鍵，閘道器發出提示音，表明設備
與閘道器之間可以有效通訊。
方式一：直接放置在所需位置。
方式二： 撕下膠貼保護膜（附件中配有圓形背
膠貼），粘貼在所需探測區域即可。
繁體中文
7m4.5m
2.1m
2m
請確保粘貼位置表面清潔乾燥。*
安裝時，須注意透鏡要對準需要測試的區域，放置或粘
貼時感測器盡量靠近桌面或櫃體邊緣。
*
建議安裝高度為1.2-2.1公尺（47.2-82.6英吋），小於
1.2公尺（47.2英吋）探測範圍變小，但不影響使用；大
於2.1公尺（82.6英吋）感測器底部會出現...
