AXY2S Reset & Teardown (FCC ID 2ANDL-AXY2S)

Before you buy the Tuya Global AXY2S, check what's inside.

The AXY2S is a low-power Wi-Fi 6 and Bluetooth 5.1 module based on the ECR6600-TS2D chipset. It is designed for embedded IoT applications and is controlled by a Tuya Global ecosystem, suitable for integration into smart home devices.

⚠️ NOTE: Ensure correct battery polarity when installing the module.

Quick Specs

Manufacturer: Tuya Global
Model: AXY2S
Protocol: WiFi
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: ECR6600-TS2D
Flashable: ❌ No
Info: Tuya modules often use proprietary firmware and bootloaders that are not easily flashable with custom firmware like Tasmota or ESPHome.

User Manual

Scanned pages from the official user manual:

AXY2S Manual

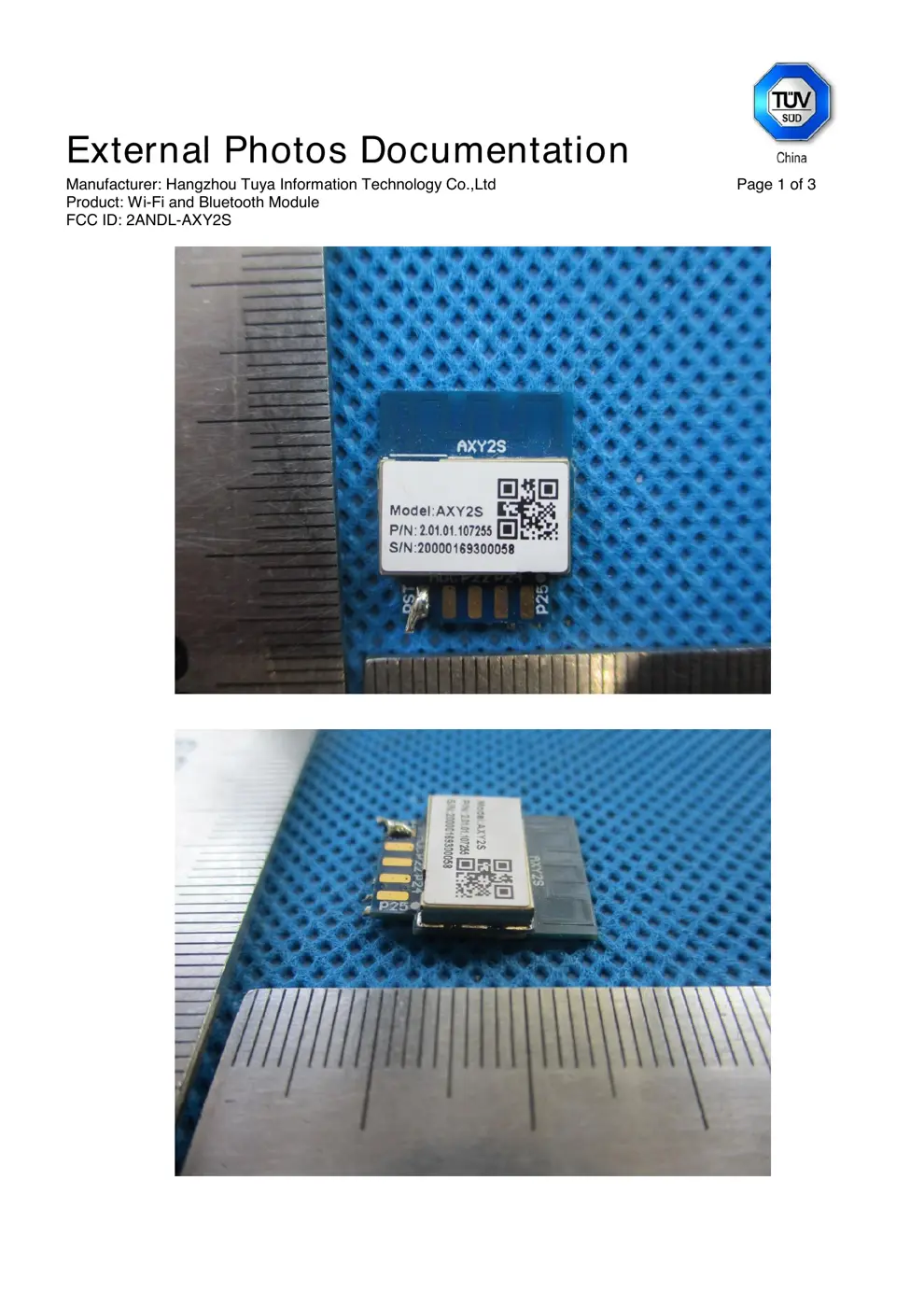

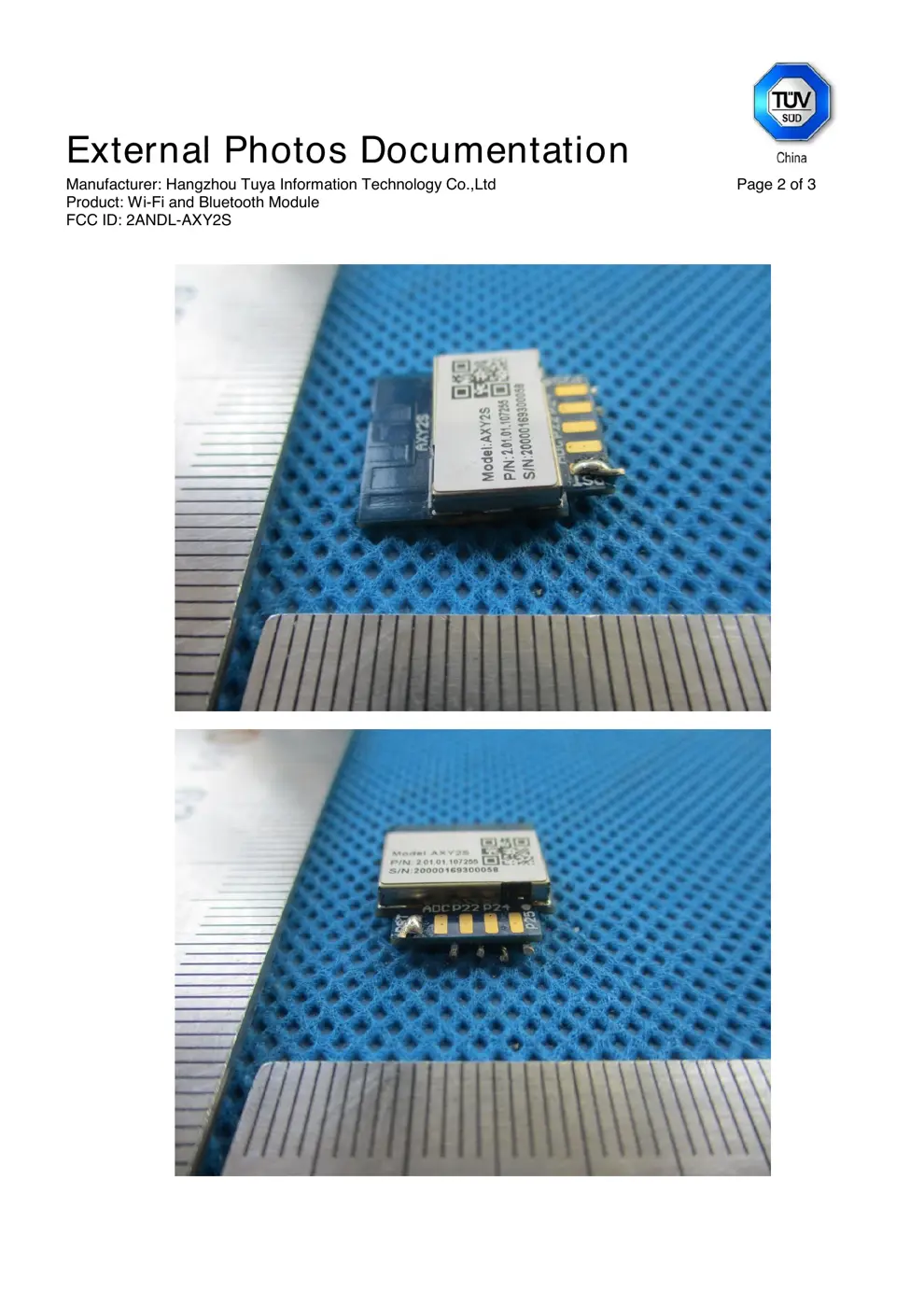

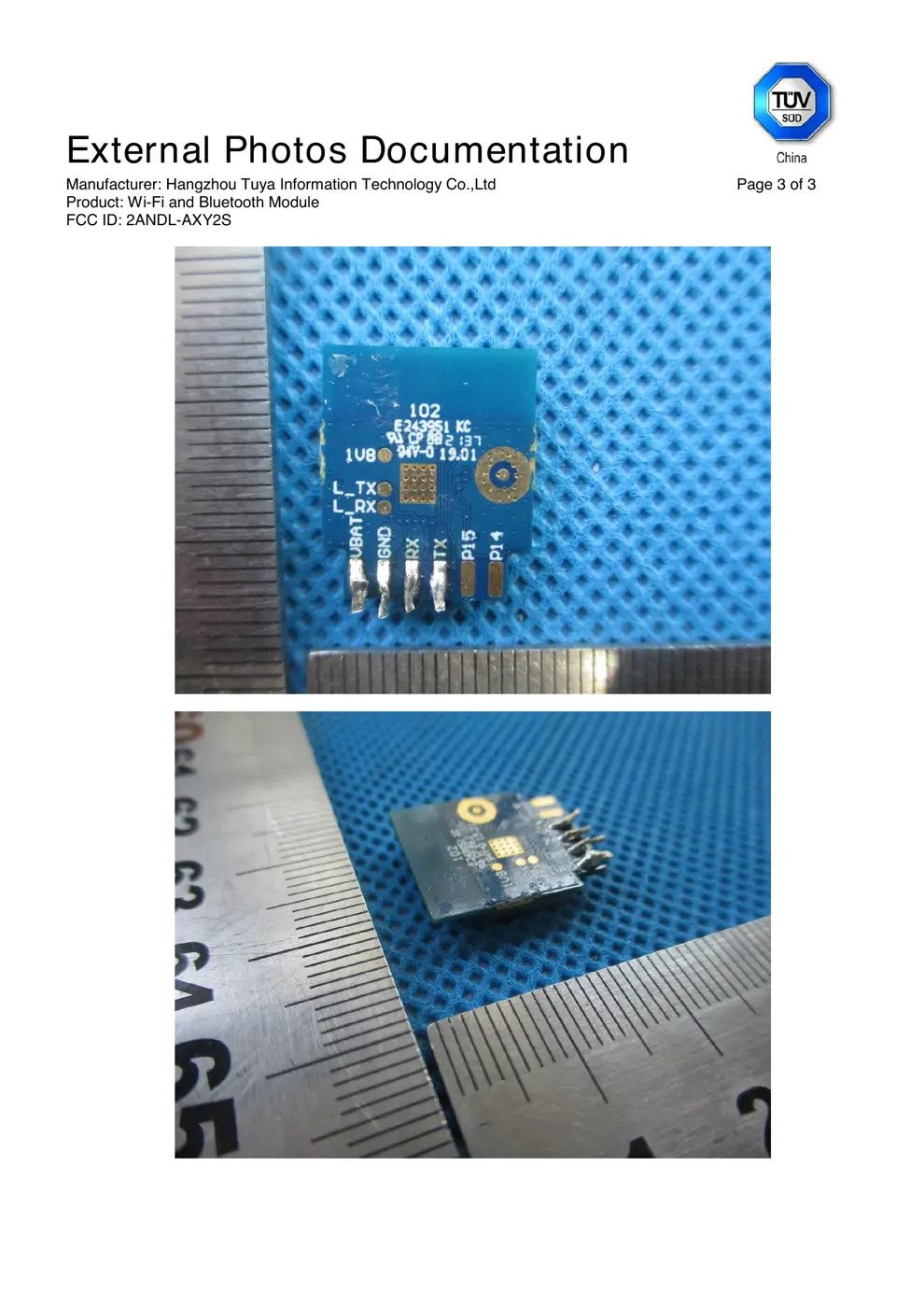

External Photos

Photos of the device exterior:

AXY2S Exterior

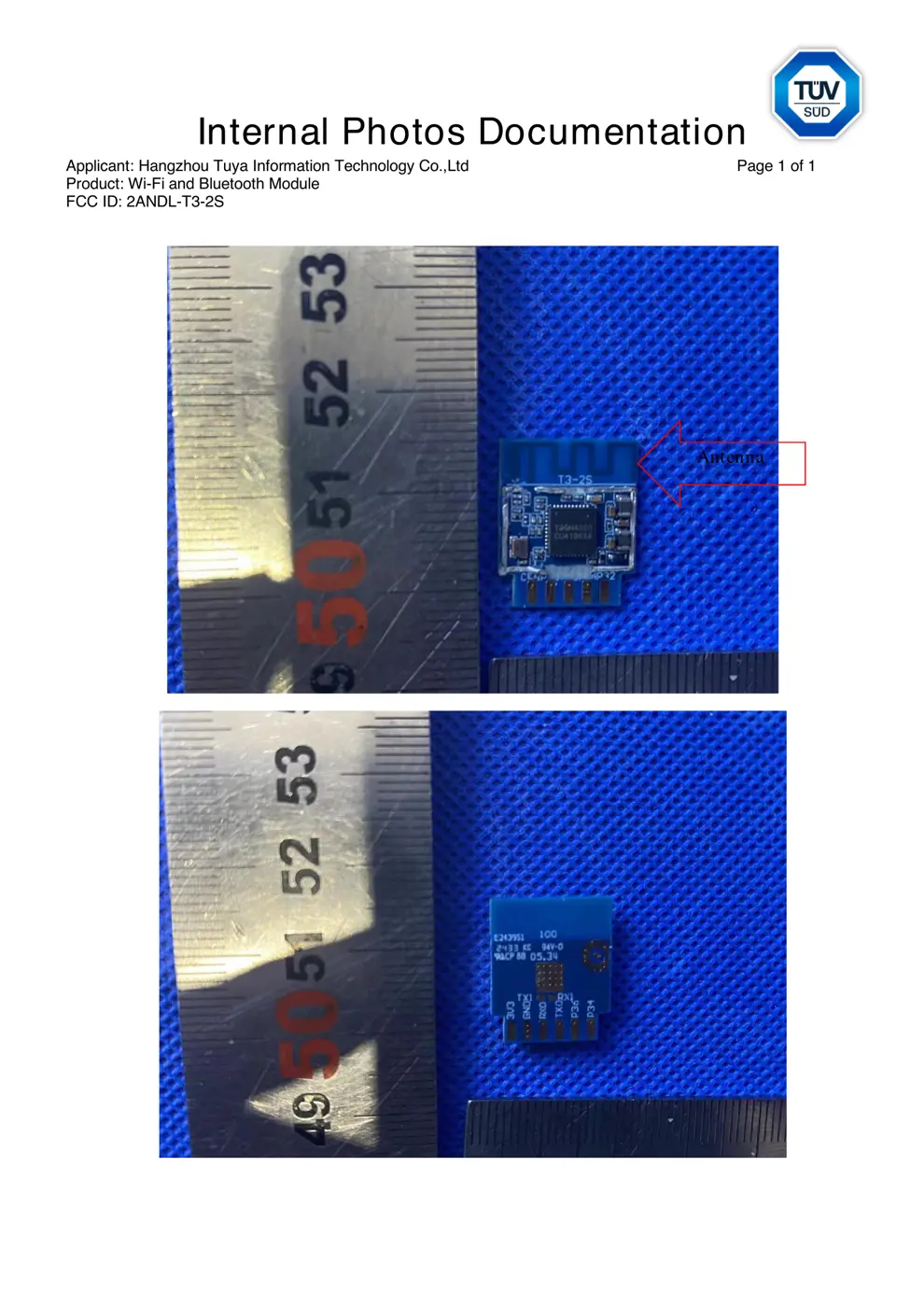

Internal Photos

Teardown photos showing the PCB and components:

AXY2S PCB

Verdict

The AXY2S is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

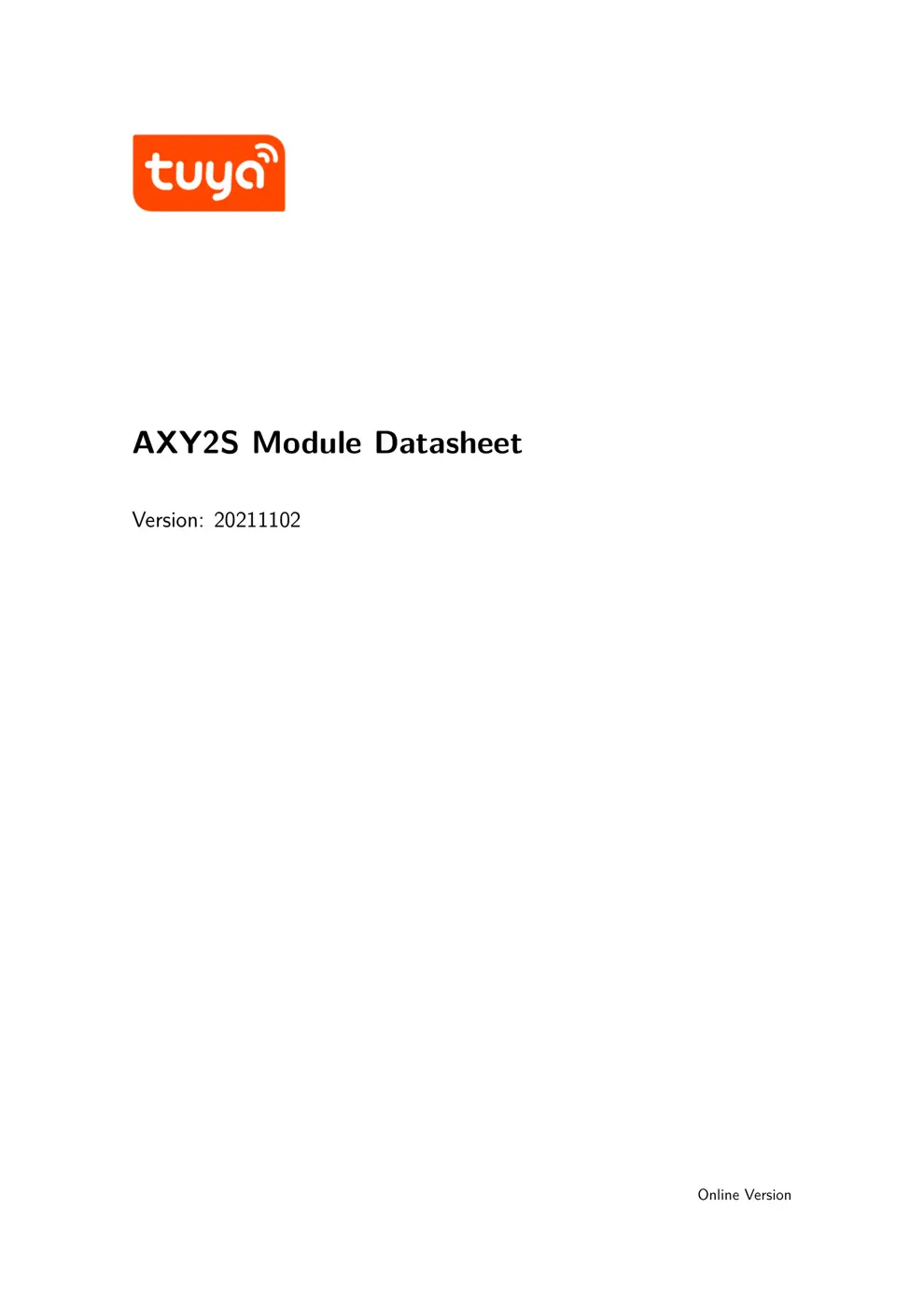

AXY2S Module Datasheet
Version: 20211102
Online Version

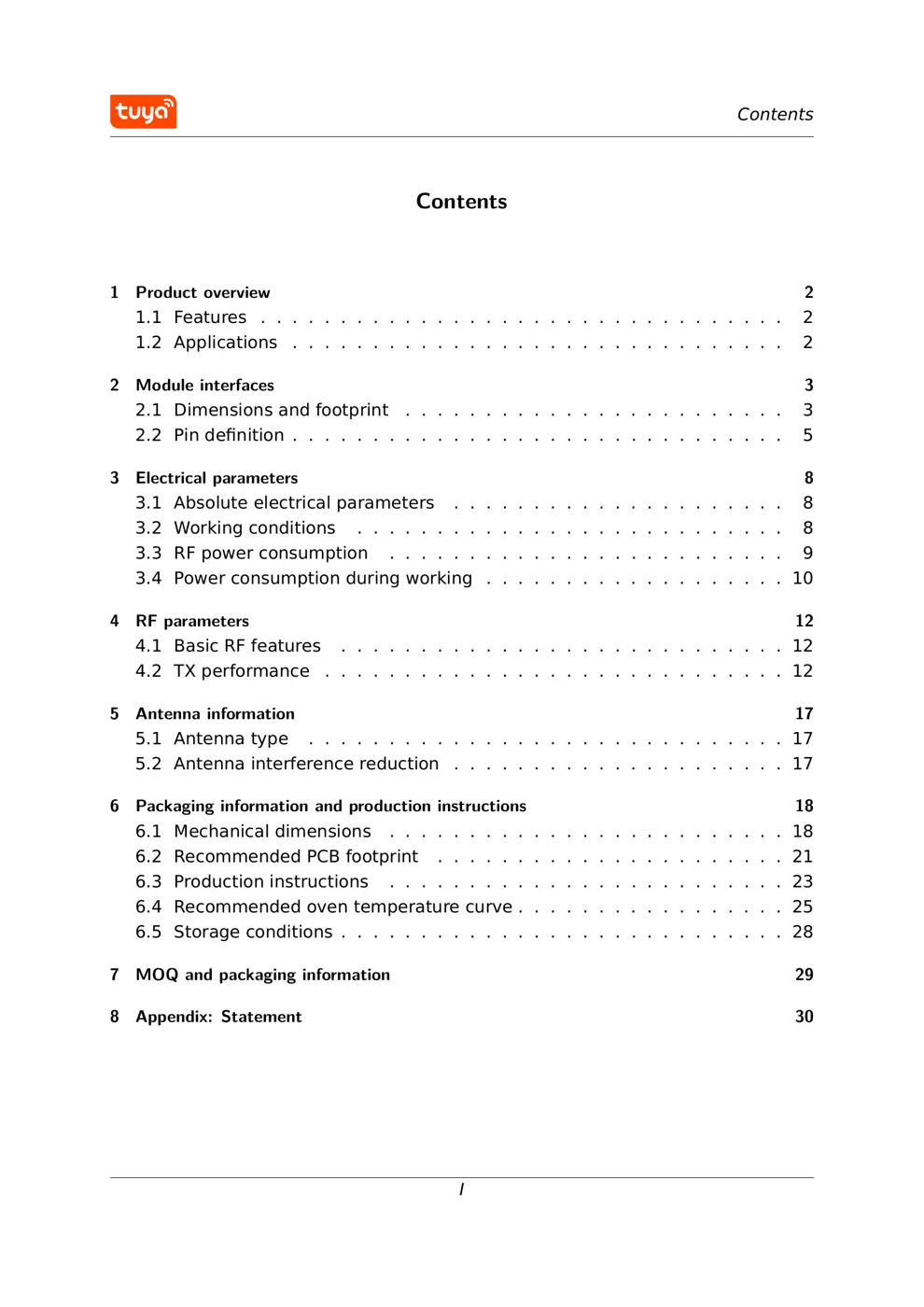

Contents
Contents
1 Product overview 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Module interfaces 3

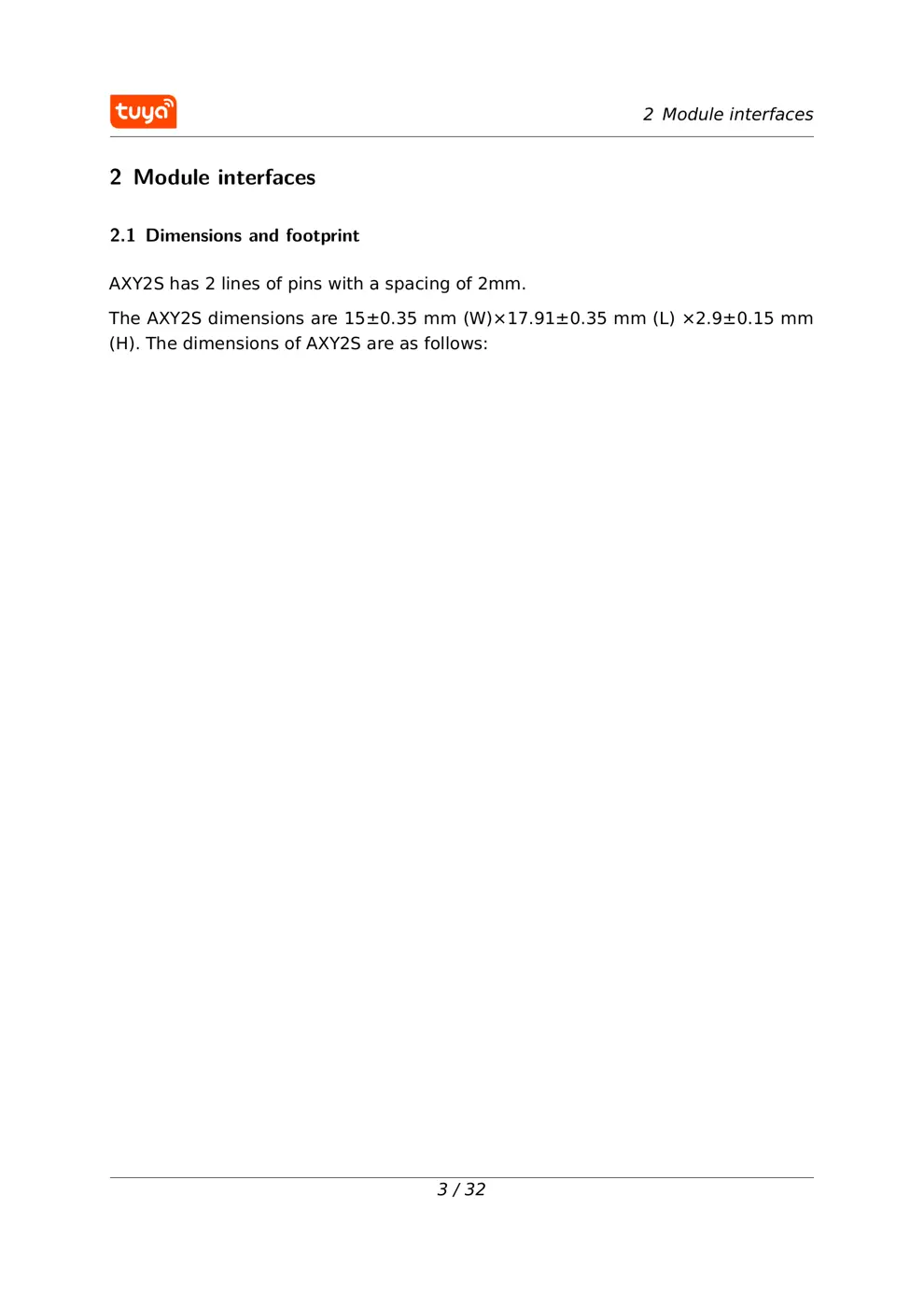

2.1 Dimensions and footprint . . . . . . . . . . . . . . . . . . . . . . . . 3

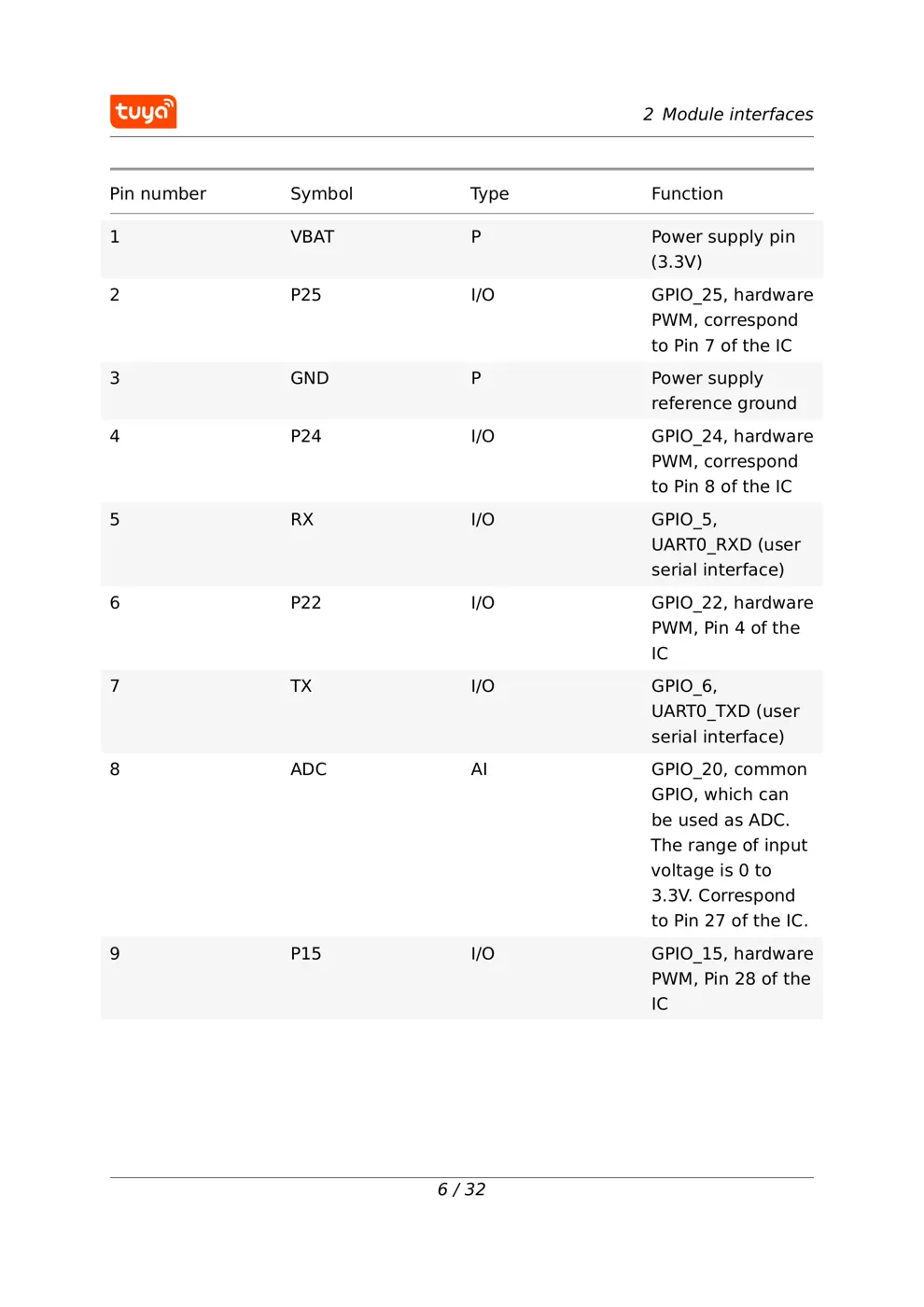

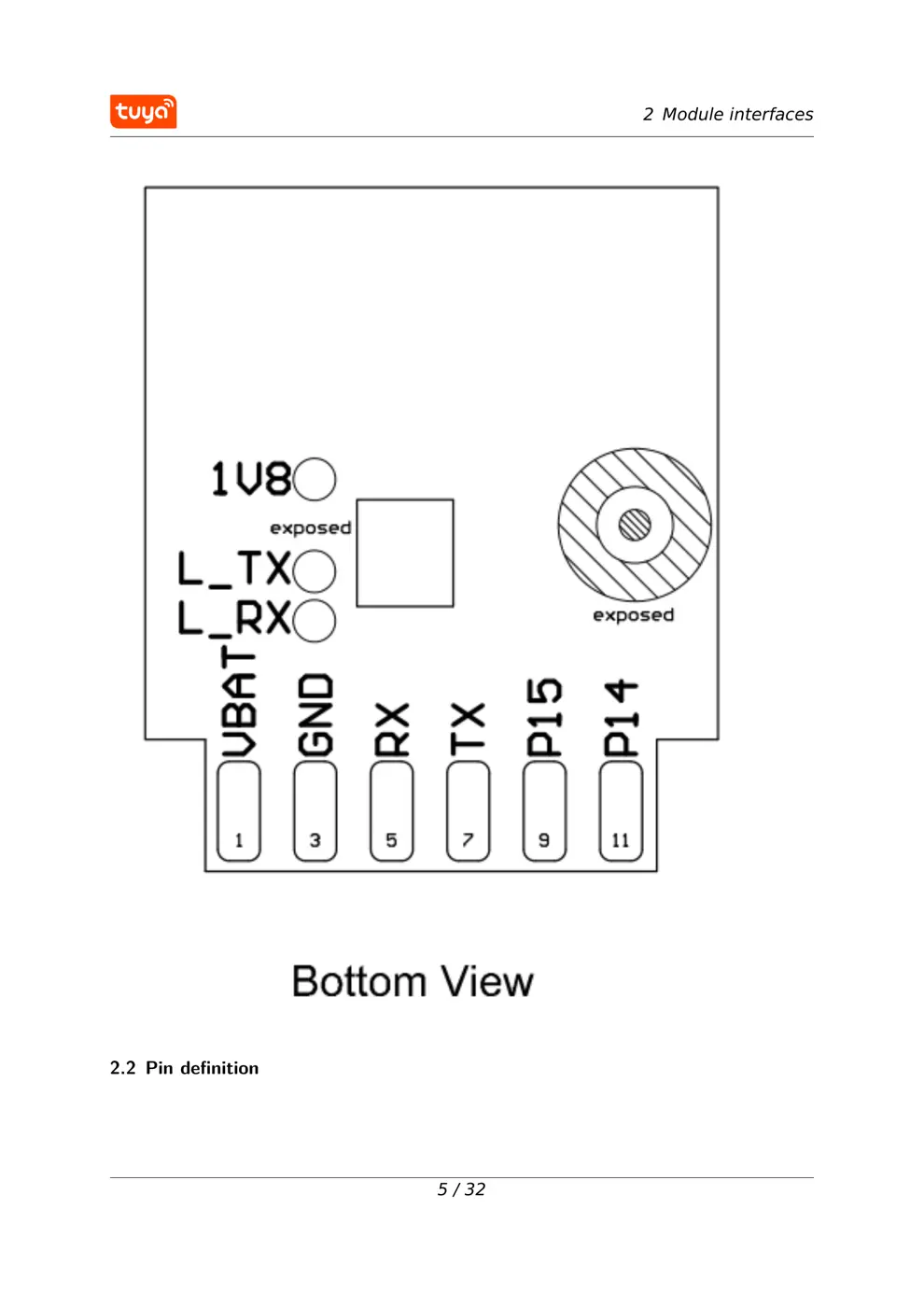

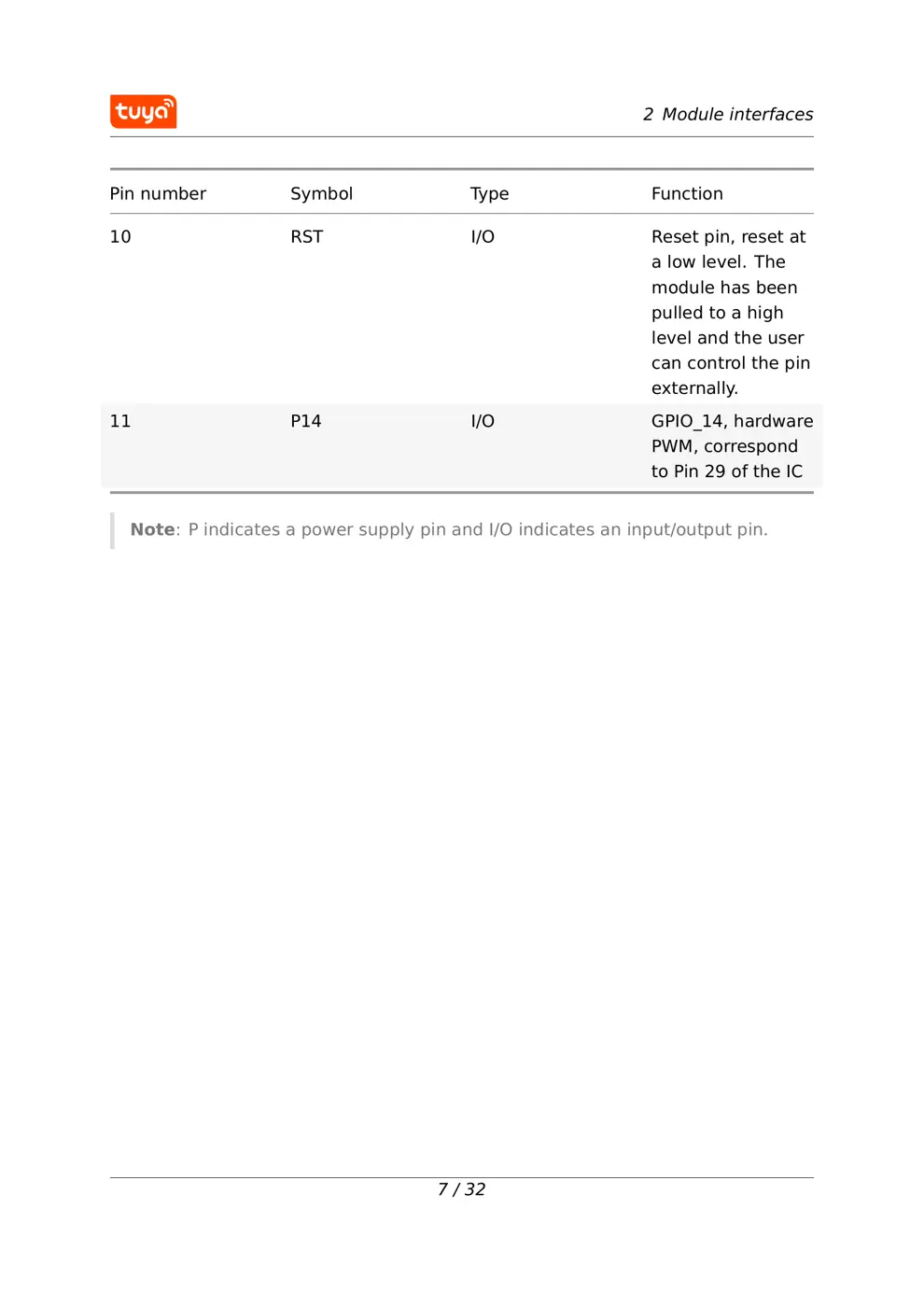

2.2 Pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

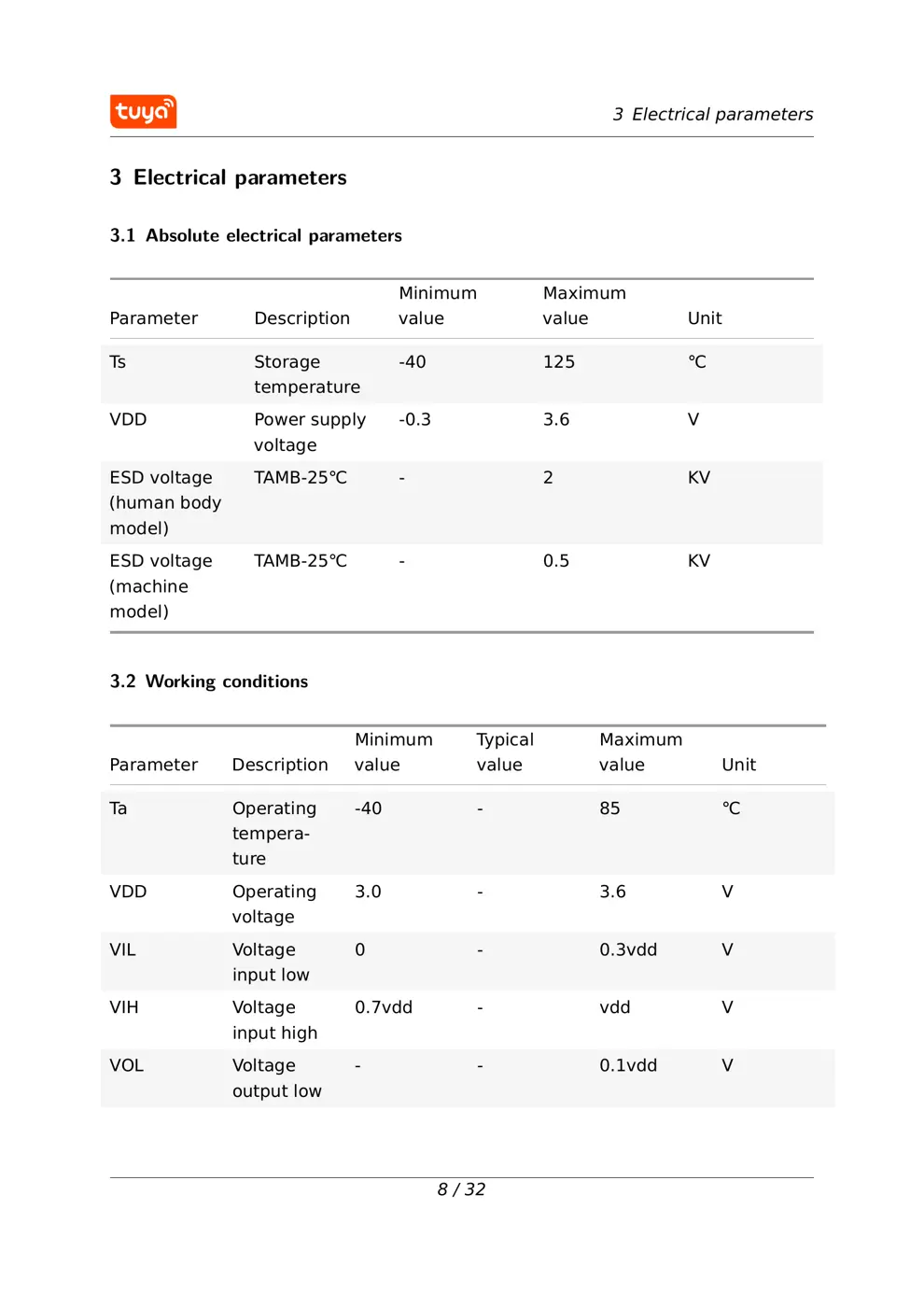

3 Electrical parameters 8
3.1 Absolute electrical parameters . . . . . . . . . . . . . . . . . . . . . 8
3.2 Working conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 RF power consumption . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Power consumption during working . . . . . . . . . . . . . . . . . . . 10
4 RF parameters 12
4.1 Basic RF features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 TX performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Antenna information 17
5.1 Antenna type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2 Antenna interference reduction . . . . . . . . . . . . . . . . . . . . . 17
6 Packaging information and production instructions 18
6.1 Mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.2 Recommended PCB footprint . . . . . . . . . . . . . . . . . . . . . . 21
6.3 Production instructions . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.4 Recommended oven temperature curve . . . . . . . . . . . . . . . . . 25
6.5 Storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7 MOQ and packaging information 29
8 Appendix: Statement 30
I
Contents

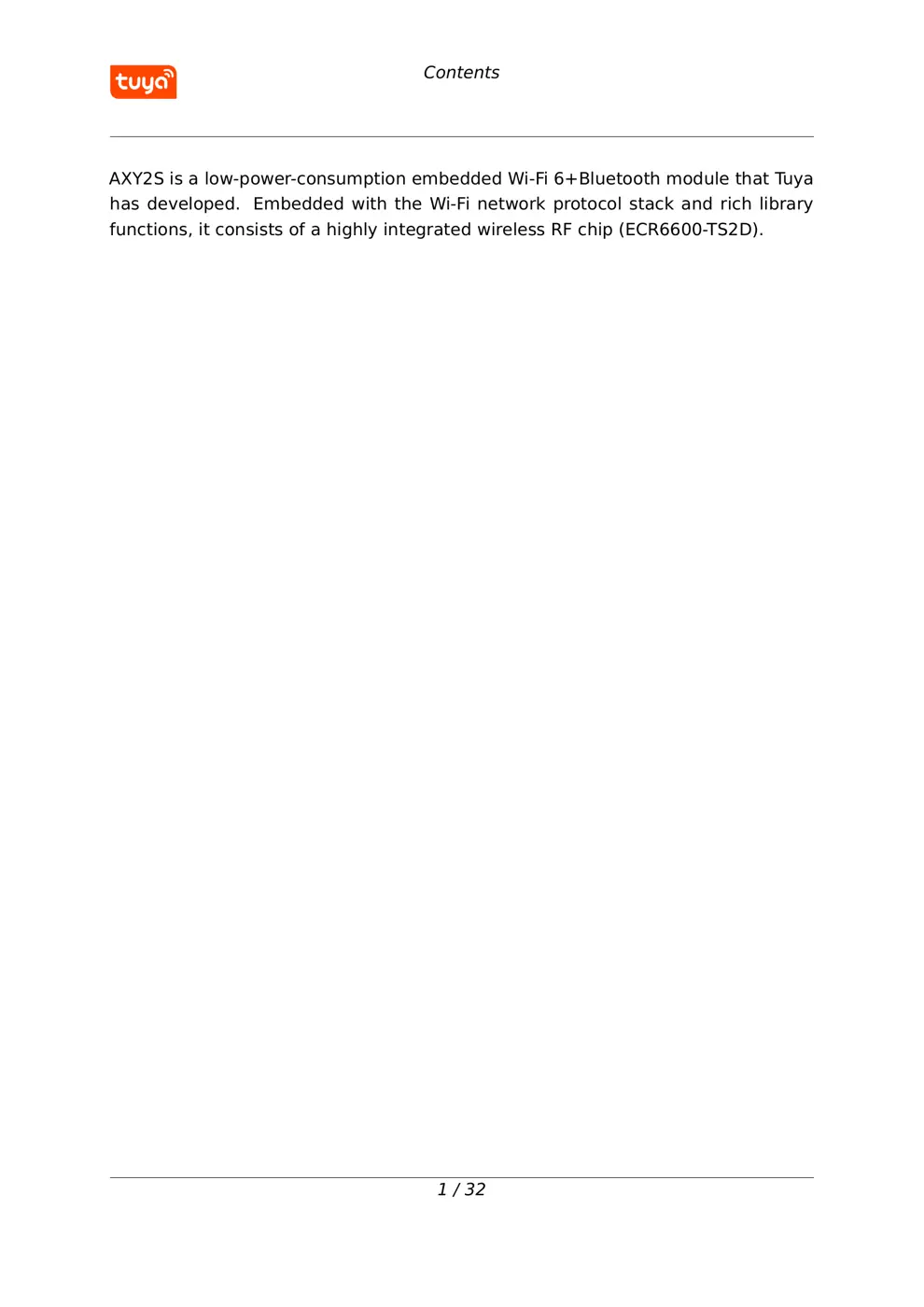

AXY2S is a low-power-consumption embedded Wi-Fi 6+Bluetooth module that T uya
has developed. Embedded with the Wi-Fi network protocol stack and rich library
functions, it consists of a highly integrated wireless RF chip (ECR6600-TS2D).
1 / 32

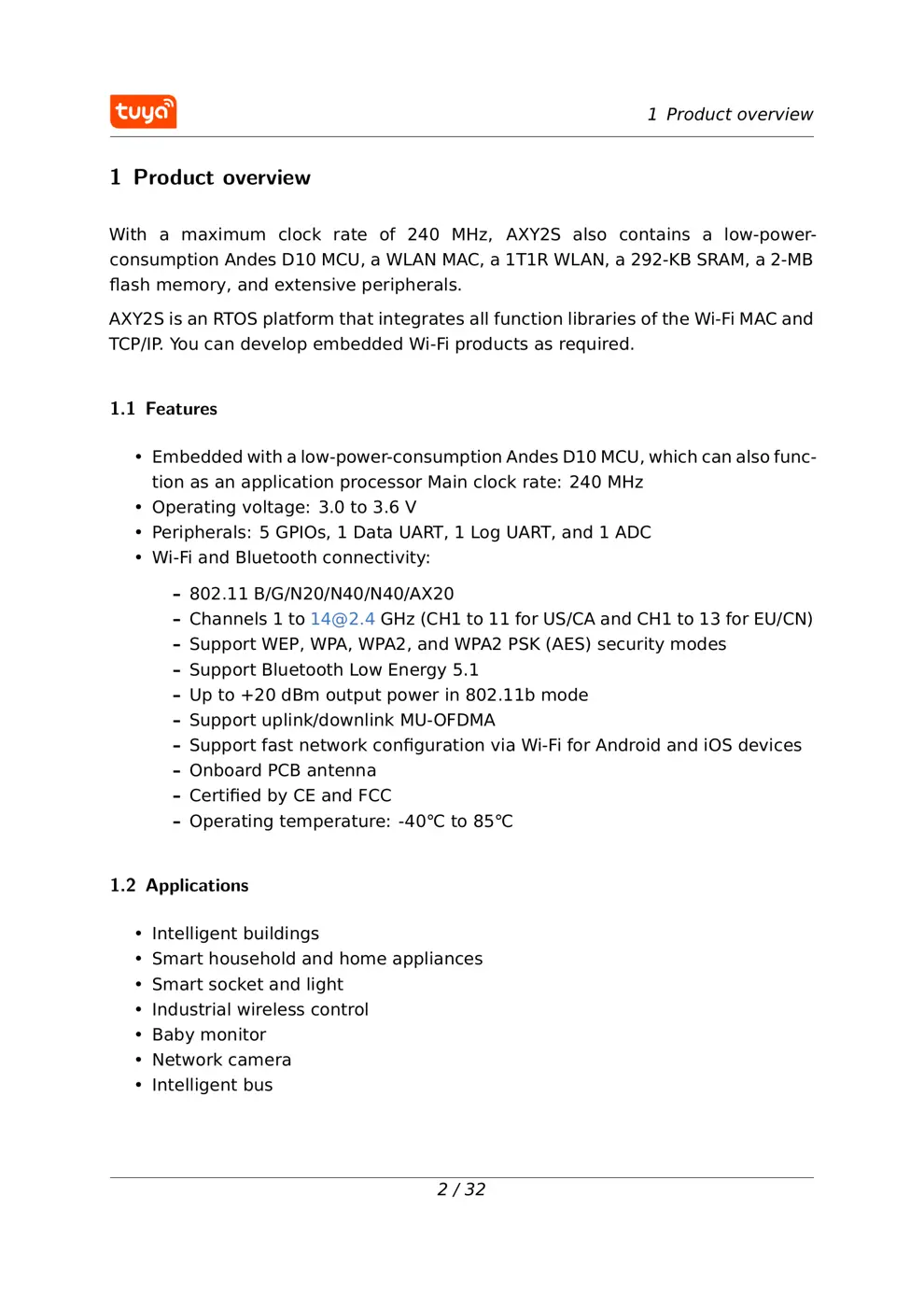

1 Product overview
1 Product overview
With a maximum clock rate of 240 MHz, AXY2S also contains a low-power-
consumption Andes D10 MCU, a WLAN MAC, a 1T1R WLAN, a 292-KB SRAM, a 2-MB
flash memory, and extensive peripherals.
AXY2S is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and
TCP/IP . Y ou can develop embedded Wi-Fi products as required.
1.1 Features
• Embedded with a low-power-consumption Andes D10 MCU, which can also func-
tion as an application processor Main clock rate: 240 MHz
• Operating voltage: 3.0 to 3.6 V
• Peripherals: 5 GPIOs, 1 Data UART, 1 Log UART, and 1 ADC
• Wi-Fi and Bluetooth connectivity:
– 802.11 B/G/N20/N40/N40/AX20
– Channels 1 to [email protected] GHz (CH1 to 11 for US/CA and CH1 to 13 for EU/CN)
– Support WEP, WPA, WPA2, and WPA2 PSK (AES) security modes
– Support Bluetooth Low Energy 5.1
– Up to +20 dBm output power in 802.11b mode
– Support uplink/downlink MU-OFDMA
– Support fast network configuration via Wi-Fi for Android and iOS devices
– Onboard PCB antenna
– Certified by CE and FCC
– Operating temperature: -40℃ to 85℃
1.2 ...
