BASICR2 Reset & Teardown (FCC ID 2APN5BASICR2)

Before you buy the Sonoff (Itead) BASICR2, check what's inside.

This device is a dual-mode smart switch supporting both WiFi and 433MHz RF communication. It allows remote control via the eWeLink app and can also be controlled by compatible 433MHz remote controllers.

⚠️ NOTE: Ensure the mains power is disconnected before installation or wiring.

Quick Specs

Manufacturer: Sonoff (Itead)
Model: BASICR2
Protocol: WiFi
Chipset: ESP/CK Chip
Ecosystem: Sonoff
App: eWeLink

🔧 Geek Corner (Flashing Info)

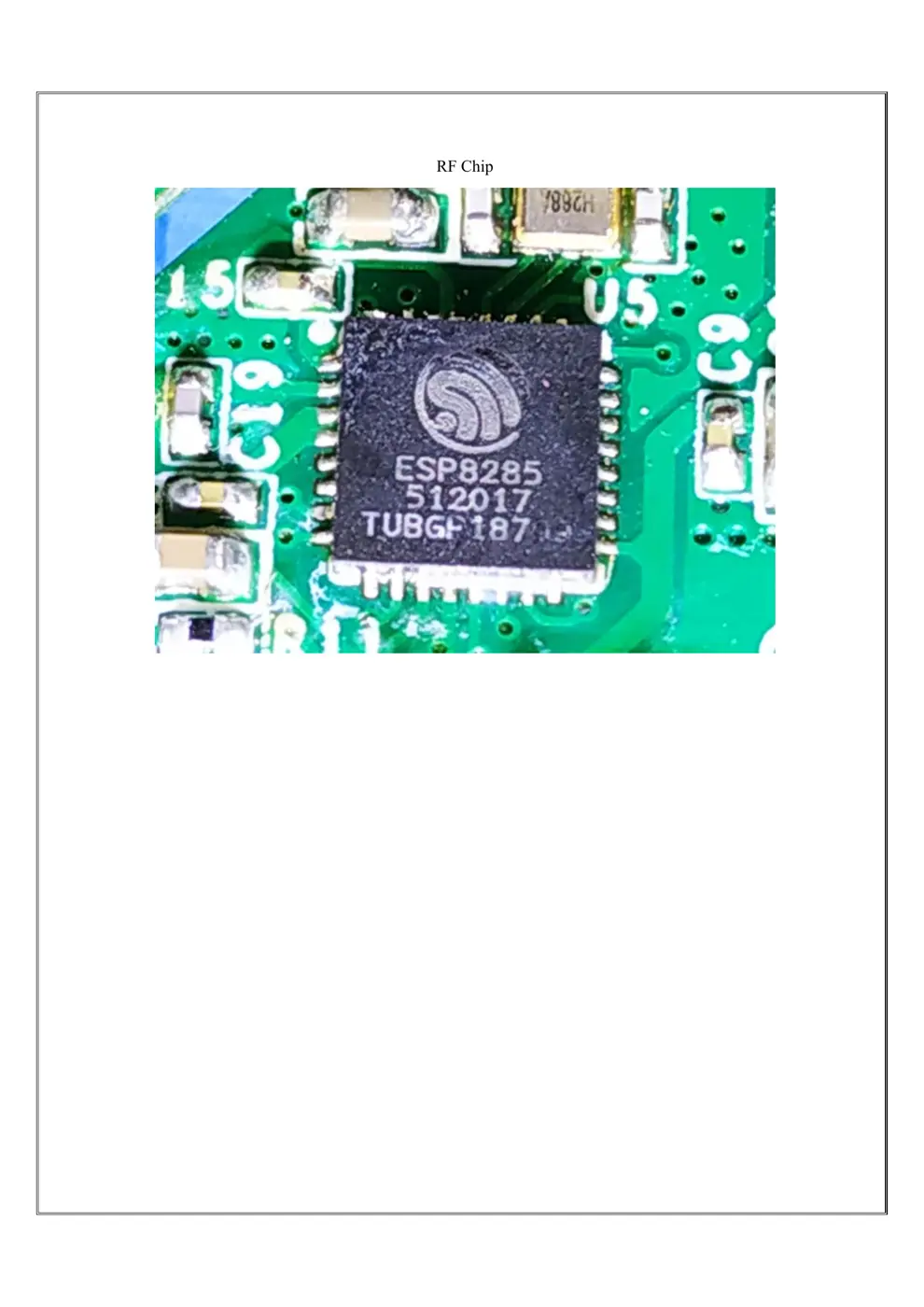

Chipset: ESP8285
Flashable: ✅ Yes
Info: Uses ESP8285 chip which is known to be flashable with custom firmware like Tasmota or ESPHome.

User Manual

Scanned pages from the official user manual:

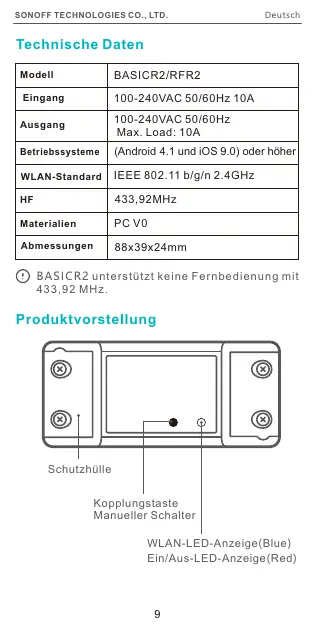

BASICR2 Manual

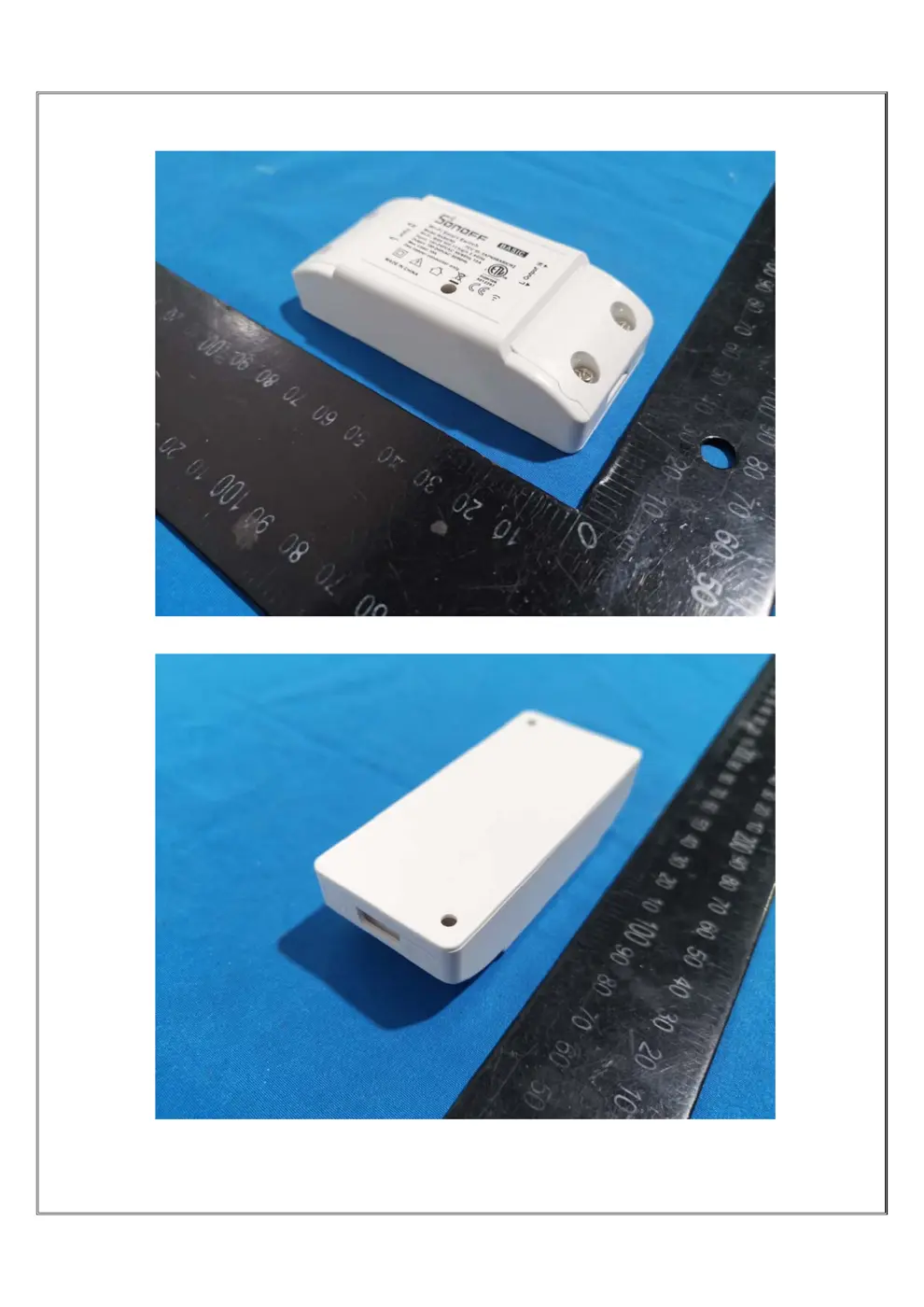

External Photos

Photos of the device exterior:

BASICR2 Exterior

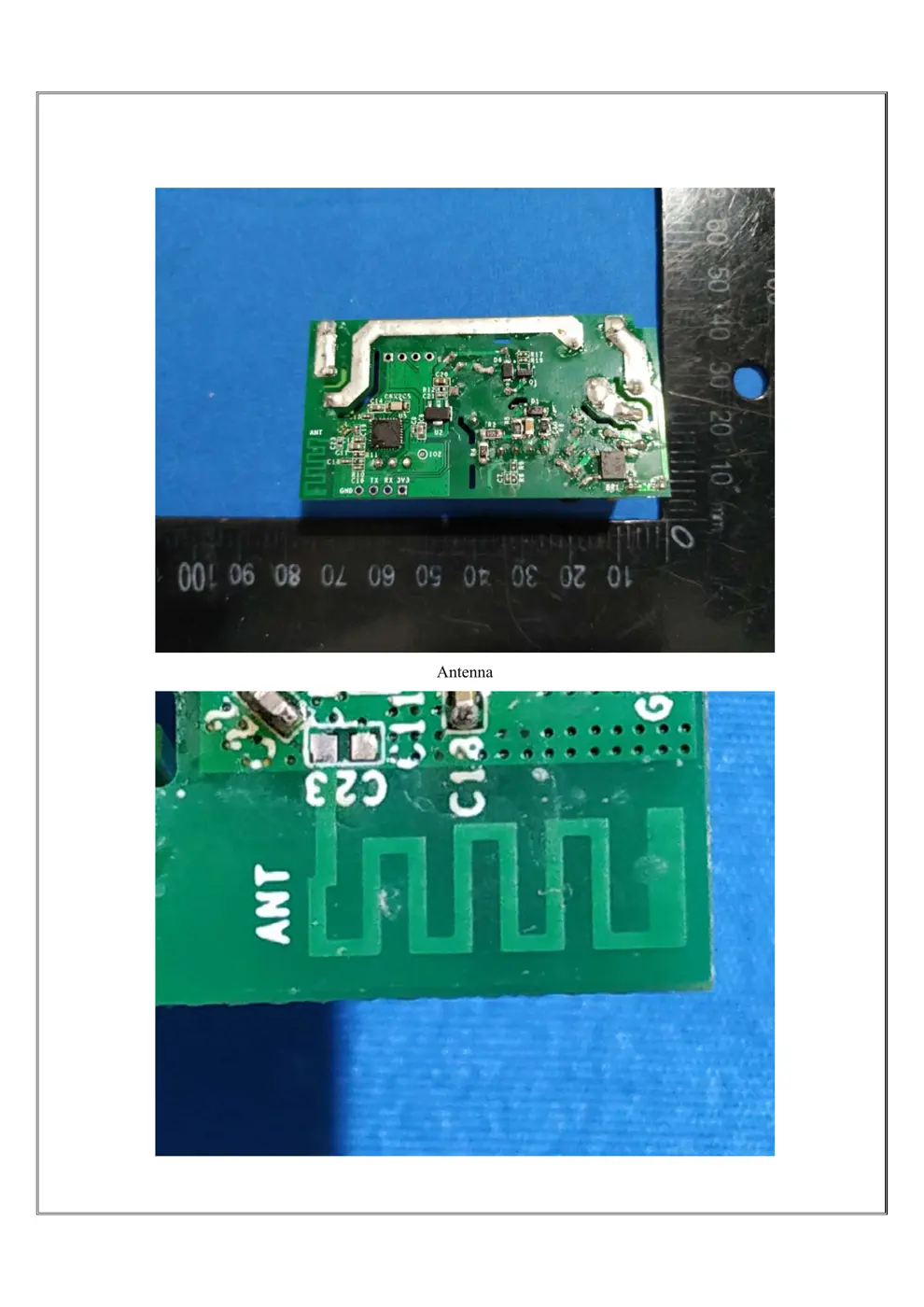

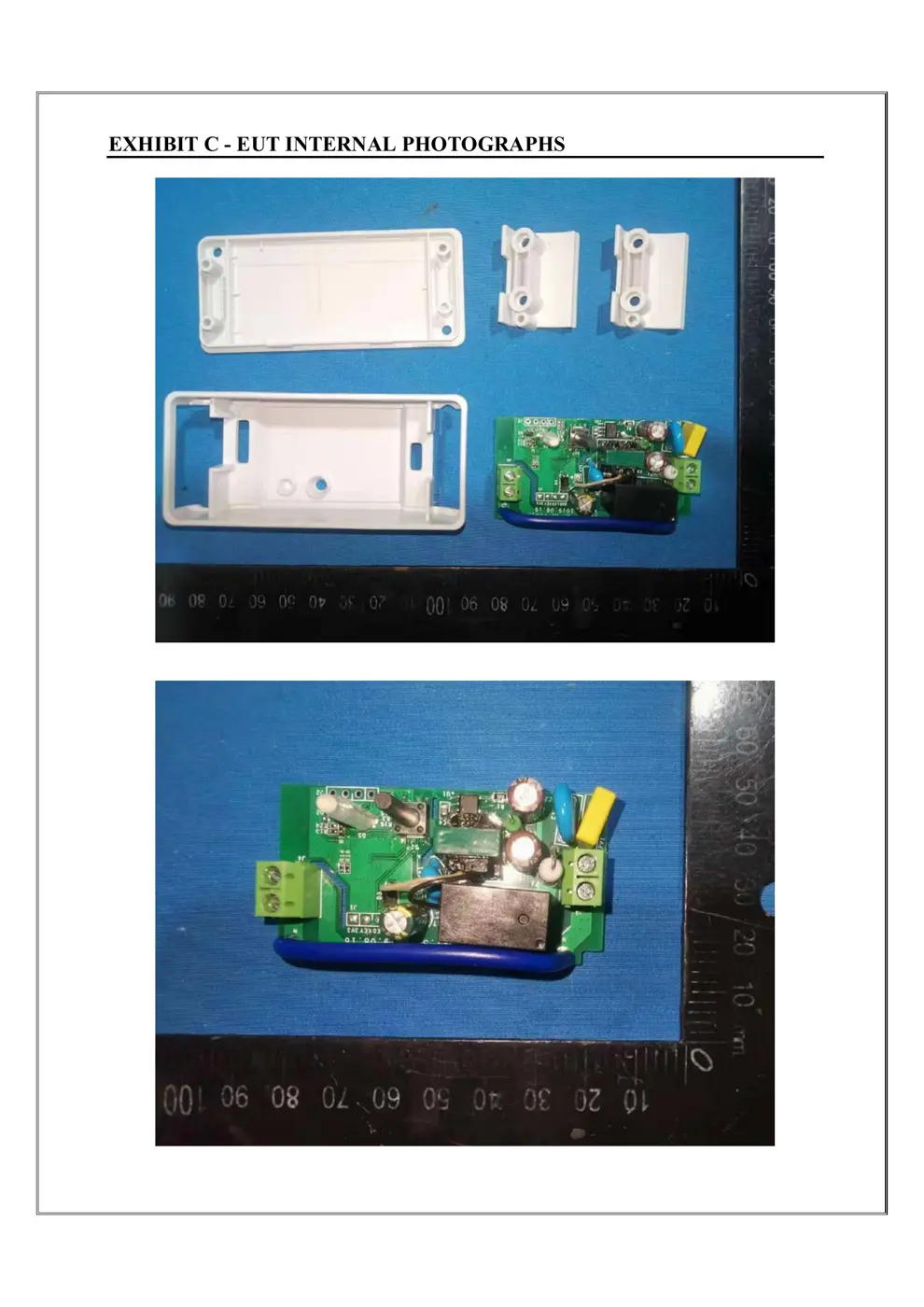

Internal Photos

Teardown photos showing the PCB and components:

BASICR2 PCB

Verdict

The BASICR2 is a WiFi device from the Sonoff ecosystem.

📄 Click to view full text manual (SEO)

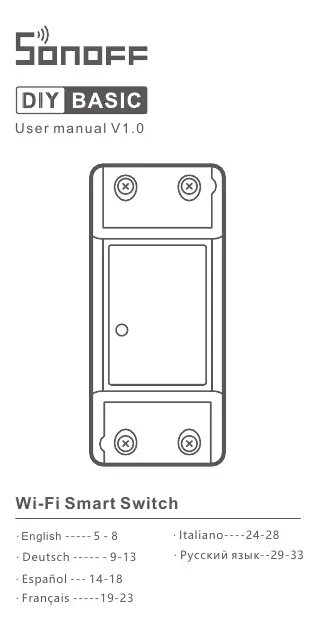

Wi-Fi Smart Switch
User manual V1.0
· English ----- 5 - 8
· Español --- 14 -18
· Français -----19-23
· Deutsch ---- - - 9-13
· Italiano----24-28
BASICR2 does not support the remote controller
with 433.92MHz.
100-240VAC 50/60Hz 10A
100-240VAC 50/60Hz Max. Load: 10A
IEEE 802.11 b/g/n 2.4GHz
433.92MHz
PC V0
88x39x24mm
5
Model
Input
Output
Operating
systems
Wi-Fi
RF
Material
Dimension
（Android 4.1 & iOS 9.0）or higher

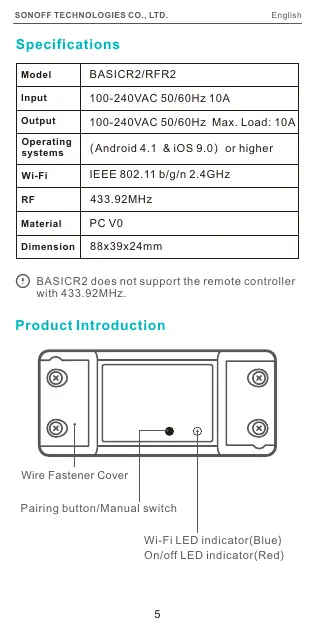

Specifications
Product Introduction
Wi-Fi LED indicator(Blue)
On/off LED indicator(Red)
Pairing button/Manual switch
EnglishSONOFF TECHNOLOGIES CO., LTD.
BASICR2/RFR2
Wire Fastener Cover

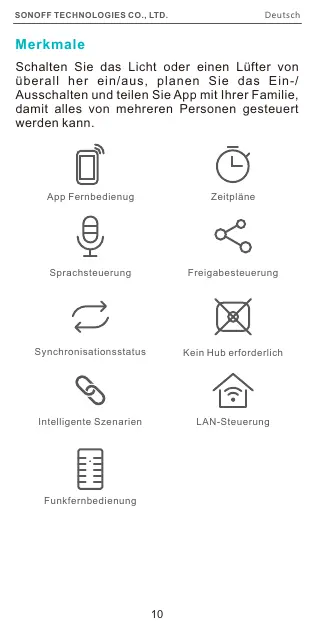

Features
Turn on/oﬀ the light or fan from anywhere,
schedule power on/oﬀ and share APP with your
family to control.
Remote Control Single/Countdown
Timing
Voice Control
Share Control Sync Status No Hub Required
Smart Scenes LAN Control 433MHz
Remote Control
6
EnglishSONOFF TECHNOLOGIES CO., LTD.
Please reset the switch to factory defaults if you
want to use other Wi-Fi networks, then reconnect
the network.
7

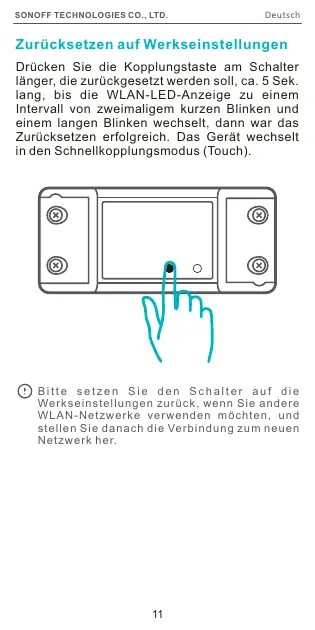

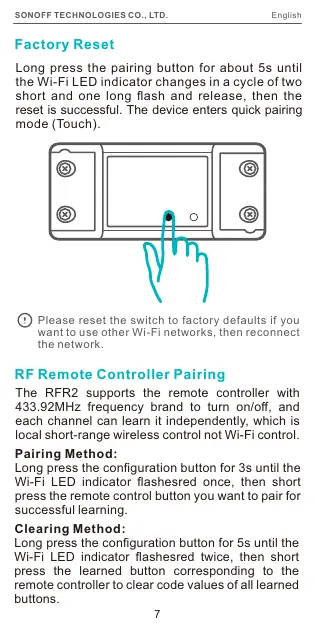

Factory Reset
Long press the pairing button for about 5s until
the Wi-Fi LED indicator changes in a cycle of two
short and one long ﬂash and release, then the
reset is successful. The device enters quick pairing
mode (Touch).

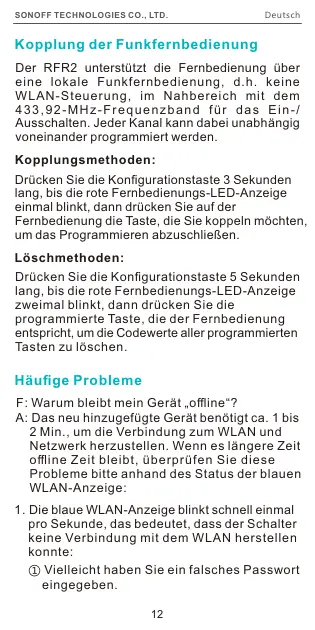

RF Remote Controller Pairing
The RFR2 supports the remote controller with
433.92MHz frequency brand to turn on/oﬀ, and
each channel can learn it independently, which is
local short-range wireless control not Wi-Fi control.
Pairing Method:
Long press the conﬁguration button for 3s until the
Wi-Fi LED indicator ﬂashesred once, then short
press the remote control button you want to pair for
successful learning.
Clearing Method:
Long press the conﬁguration button for 5s until the
Wi-Fi LED indicator ﬂashesred twice, then short
press the learned button corresponding to the
remote controller to clear code values of all learned
buttons.
EnglishSONOFF TECHNOLOGIES CO., LTD.

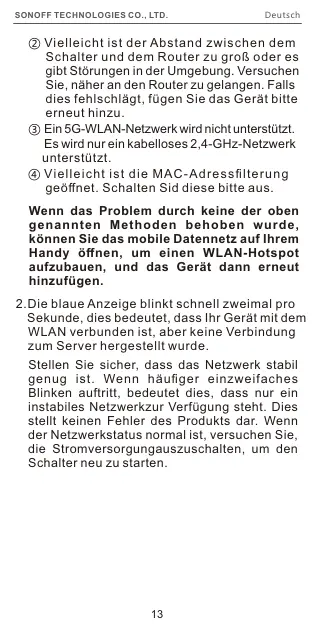

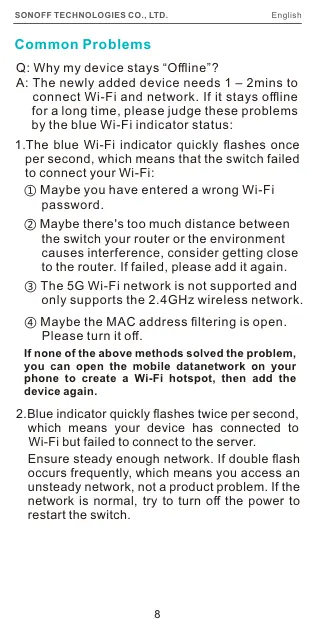

Common Problems
Q: Why my device stays “Oﬄine”?
A: The newly added device needs 1 – 2mins to
 connect Wi-Fi and network. If it stays oﬄine
 for a long time, please judge these problems
 by the blue Wi-Fi indicator status:
1. The blue Wi-Fi indicator quickly ﬂashes once
 per second, which means that the switch failed
 to connect your Wi-Fi:
① Maybe you have entered a wrong Wi-Fi
 password.
② Maybe there's too much distance between
 the switch your router or the environment
 causes interference, consider getting close
 to the router. If failed, please add it again.
 ③ The 5G Wi-Fi network is not supported and
 only supports the 2.4GHz wireless network.
④ Maybe the MAC address ﬁltering is open.
 Please turn it oﬀ.
2.Blue indicator quickly ﬂashes twice per second,
 which means your device has connected to
 Wi-Fi but failed to connect to the server.
8
EnglishSONOFF TECHNOLOGIES CO., LTD.
If none of the above methods solved the problem,
you can open the mobile datanetwork on your
phone to create a Wi-Fi hotspot, then add the
device ...
