BT3L Reset & Teardown (FCC ID 2ANDL-BT3L)
Factory reset and internal photos for Tuya Global BT3L. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global BT3L, check what's inside.
This is the Tuya BT3L, a compact Bluetooth Low Energy (BLE) module designed for integration into smart home devices. It is powered by a low-voltage battery and features a powerful MCU and BLE 5.0 compatibility.
⚠️ NOTE: Ensure correct battery polarity and voltage (1.8V to 3.6V) during installation.
Quick Specs
- Manufacturer: Tuya Global
- Model: BT3L
- Protocol: Bluetooth
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: TLSR8250F512ET32
- Flashable: ❌ No
- Info: The TLSR8250F512ET32 chipset is typically not flashable with custom firmware like Tasmota or ESPHome due to proprietary bootloaders and limited community support.
User Manual
Scanned pages from the official user manual:

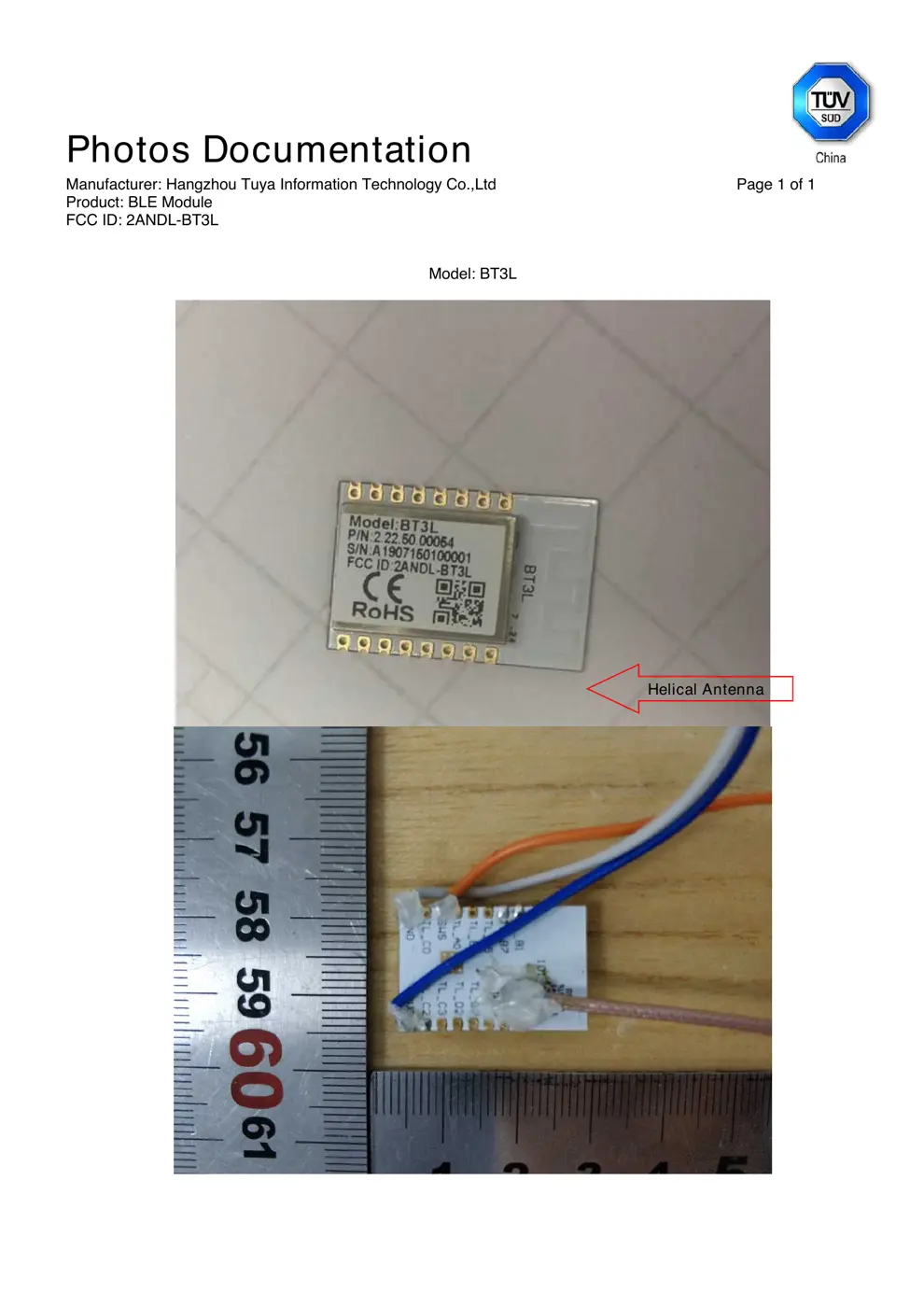

External Photos
Photos of the device exterior:
Internal Photos
Teardown photos showing the PCB and components:
Verdict
The BT3L is a Bluetooth device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)

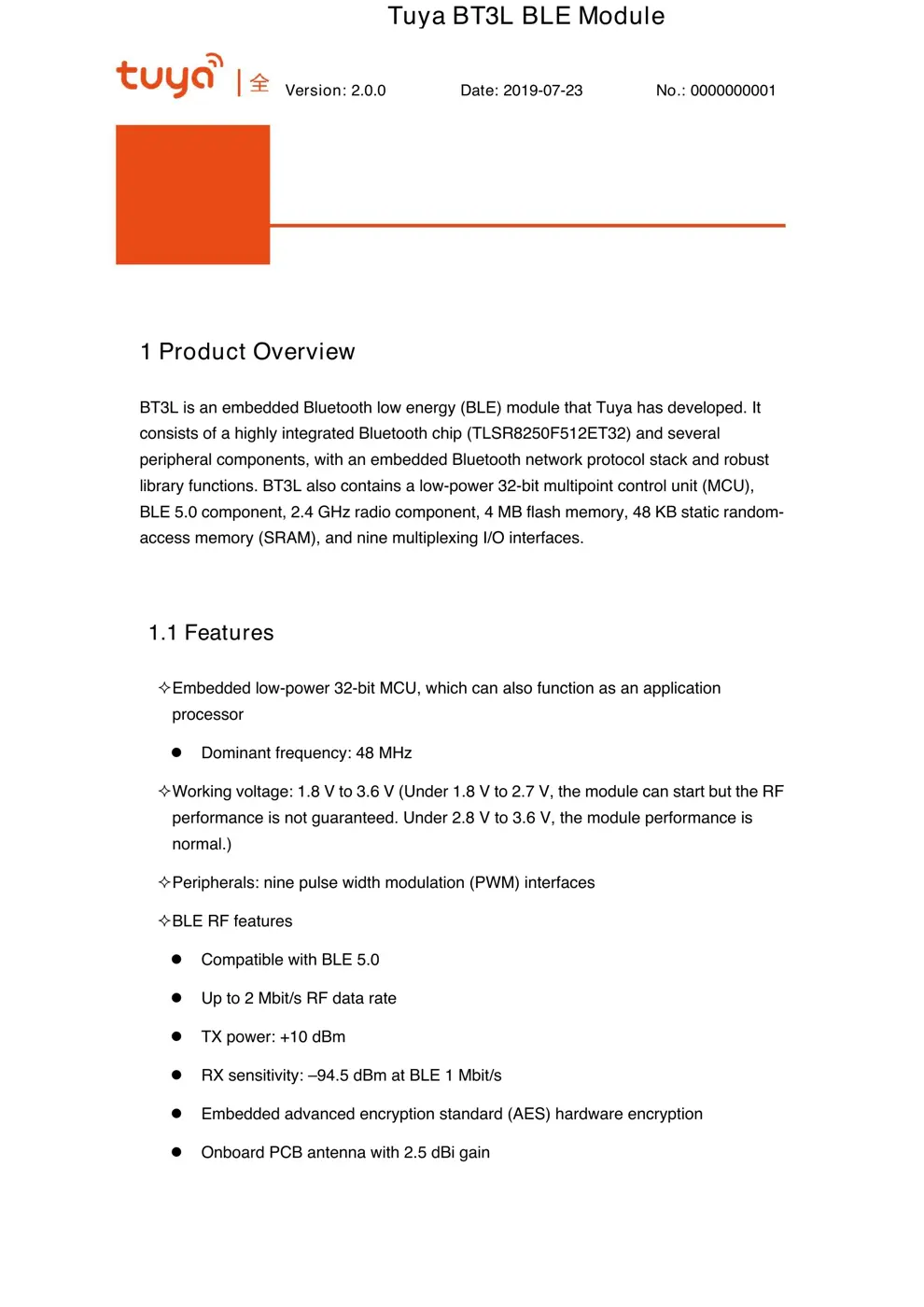

1 Product Overview
BT3L is an embedded Bluetooth low energy (BLE) module that Tuya has developed. It
consists of a highly integrated Bluetooth chip (TLSR8250F512ET32) and several
peripheral components, with an embedded Bluetooth network protocol stack and robust
library functions. BT3L also contains a low-power 32-bit multipoint control unit (MCU),
BLE 5.0 component, 2.4 GHz radio component, 4 MB flash memory, 48 KB static random-
access memory (SRAM), and nine multiplexing I/O interfaces.
1.1 Features
Embedded low-power 32-bit MCU, which can also function as an application
processor
Dominant frequency: 48 MHz
Working voltage: 1.8 V to 3.6 V (Under 1.8 V to 2.7 V, the module can start but the RF
performance is not guaranteed. Under 2.8 V to 3.6 V, the module performance is
normal.)
Peripherals: nine pulse width modulation (PWM) interfaces
BLE RF features
Compatible with BLE 5.0
Up to 2 Mbit/s RF data rate
TX power: +10 dBm
RX sensitivity: –94.5 dBm at BLE 1 Mbit/s
Embedded advanced encryption standard (AES) hardware encryption
Onboard PCB antenna with 2.5 dBi gain
Version: 2.0.0 Date: 2019-07-23 No.: 0000000001
Tuya BT3L BLE ModuleProduct
Manual
Global Intelligent Platform
BT3L Datasheet
2

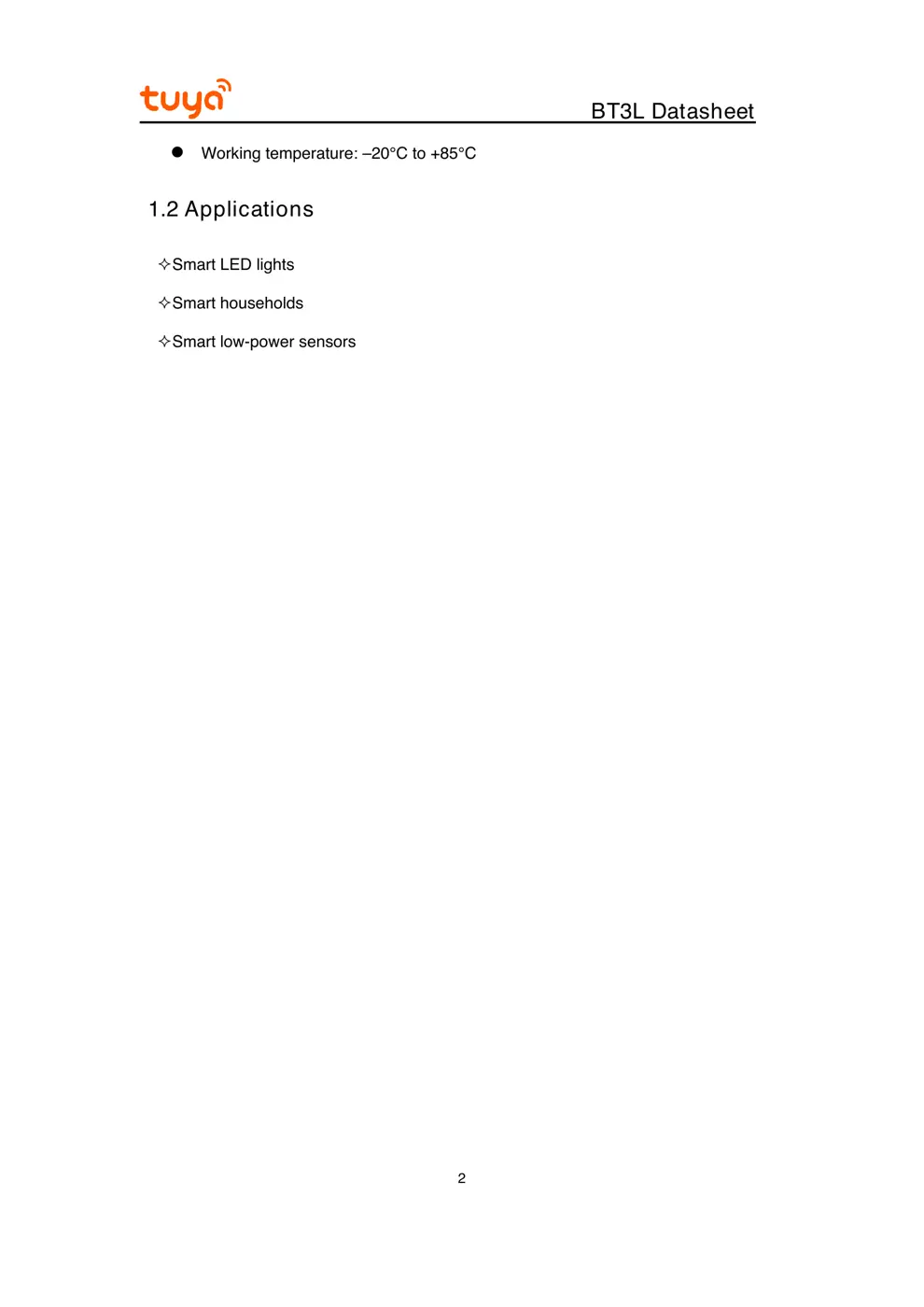

Working temperature: –20°C to +85°C
1.2 Applications
Smart LED lights
Smart households
Smart low-power sensors
BT3L Datasheet
3
Change History
No. Date Change Description
Version After
Change
1 2019-03-09 This is the first release. 1.0.0
2 2019-07-23
1. Optimized the pin definition.
2. Standardized the dimensional tolerances.
3.Updated the temperature range, oven
temperature, and working voltage settings.
4. Added packing methods.
2.0.0
BT3L Datasheet
4

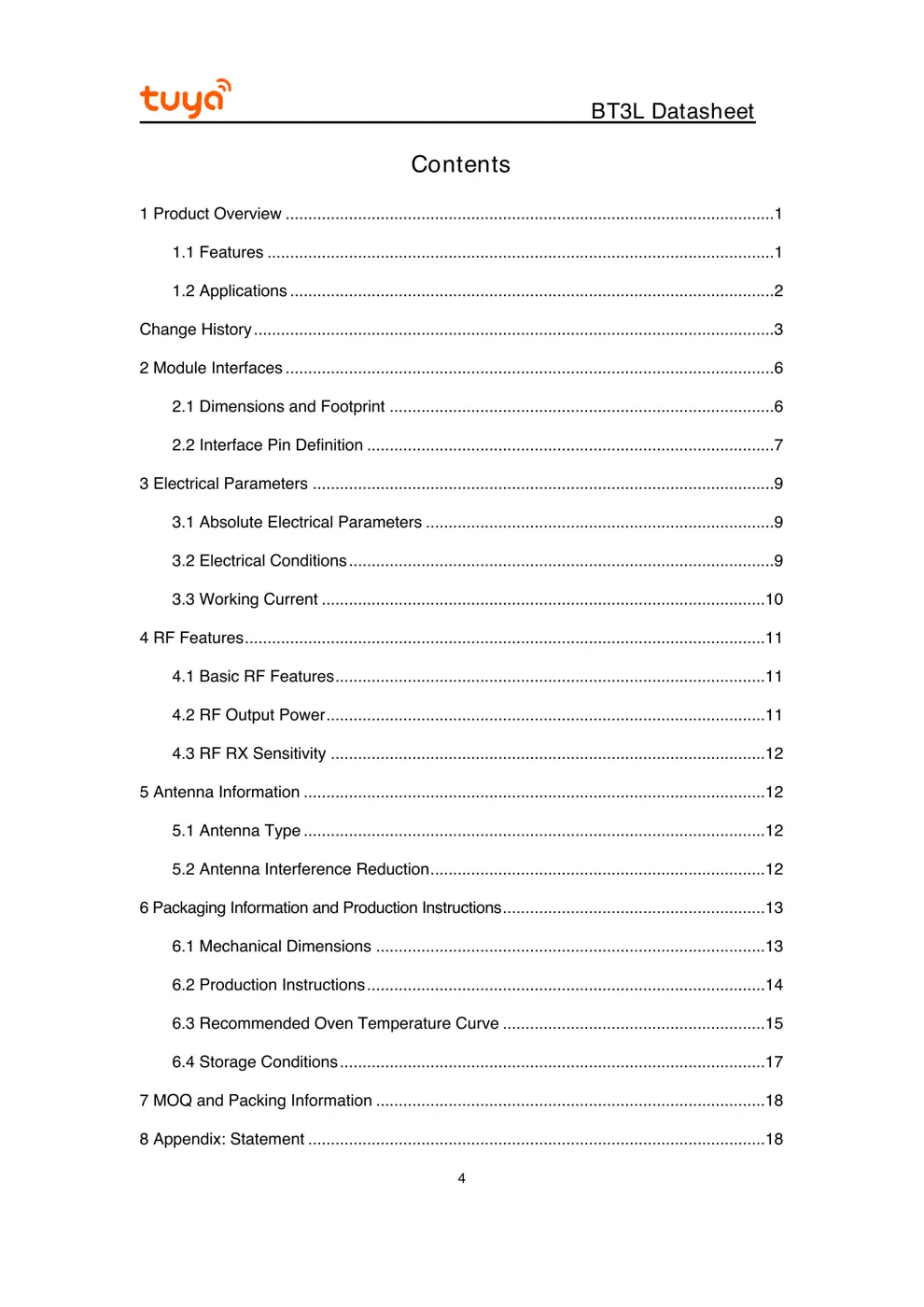

Contents
1 Product Overview ............................................................................................................1
1.1 Features ................................................................................................................1
1.2 Applications ...........................................................................................................2
Change History...................................................................................................................3
2 Module Interfaces ............................................................................................................6

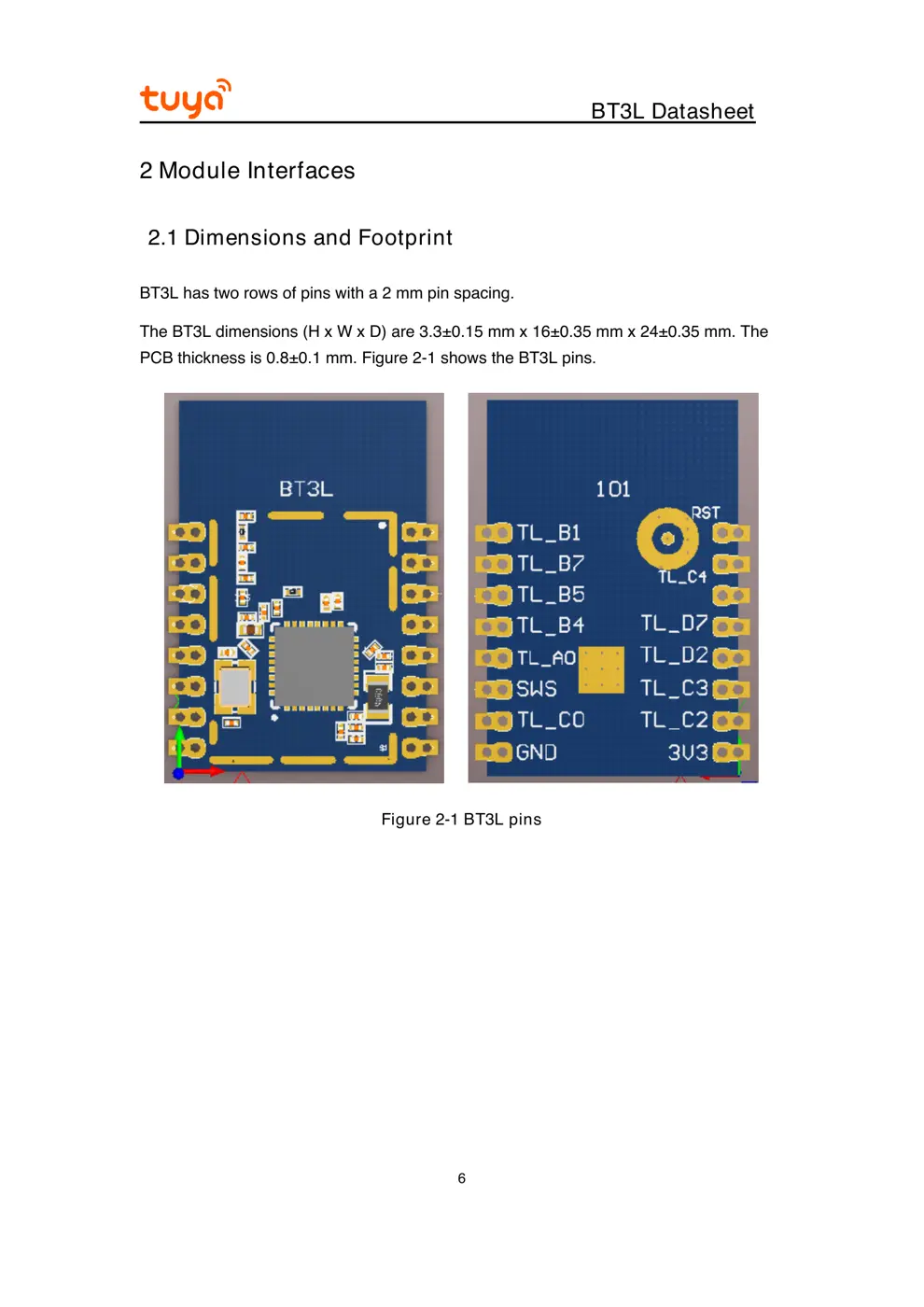

2.1 Dimensions and Footprint .....................................................................................6

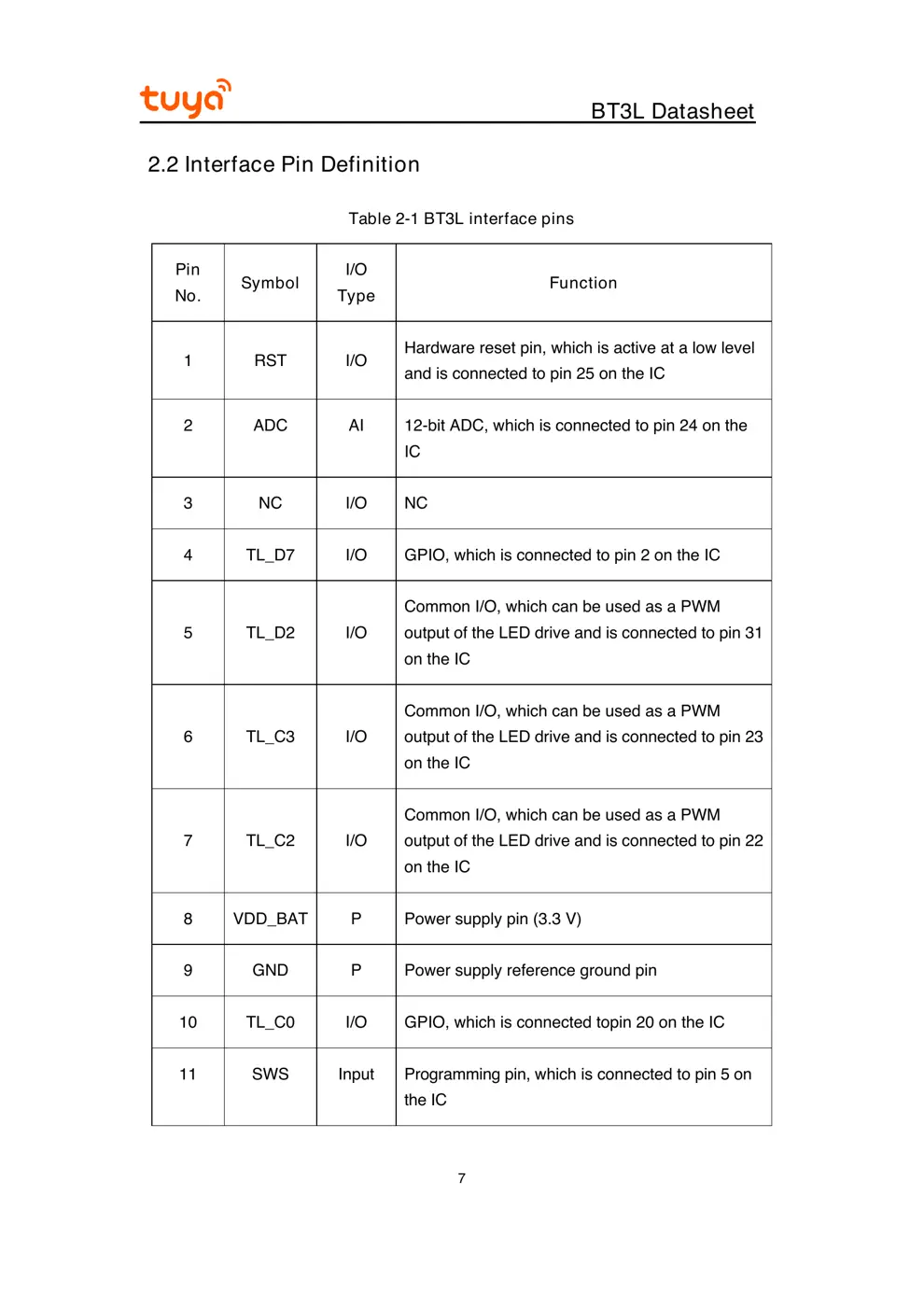

2.2 Interface Pin Definition ..........................................................................................7

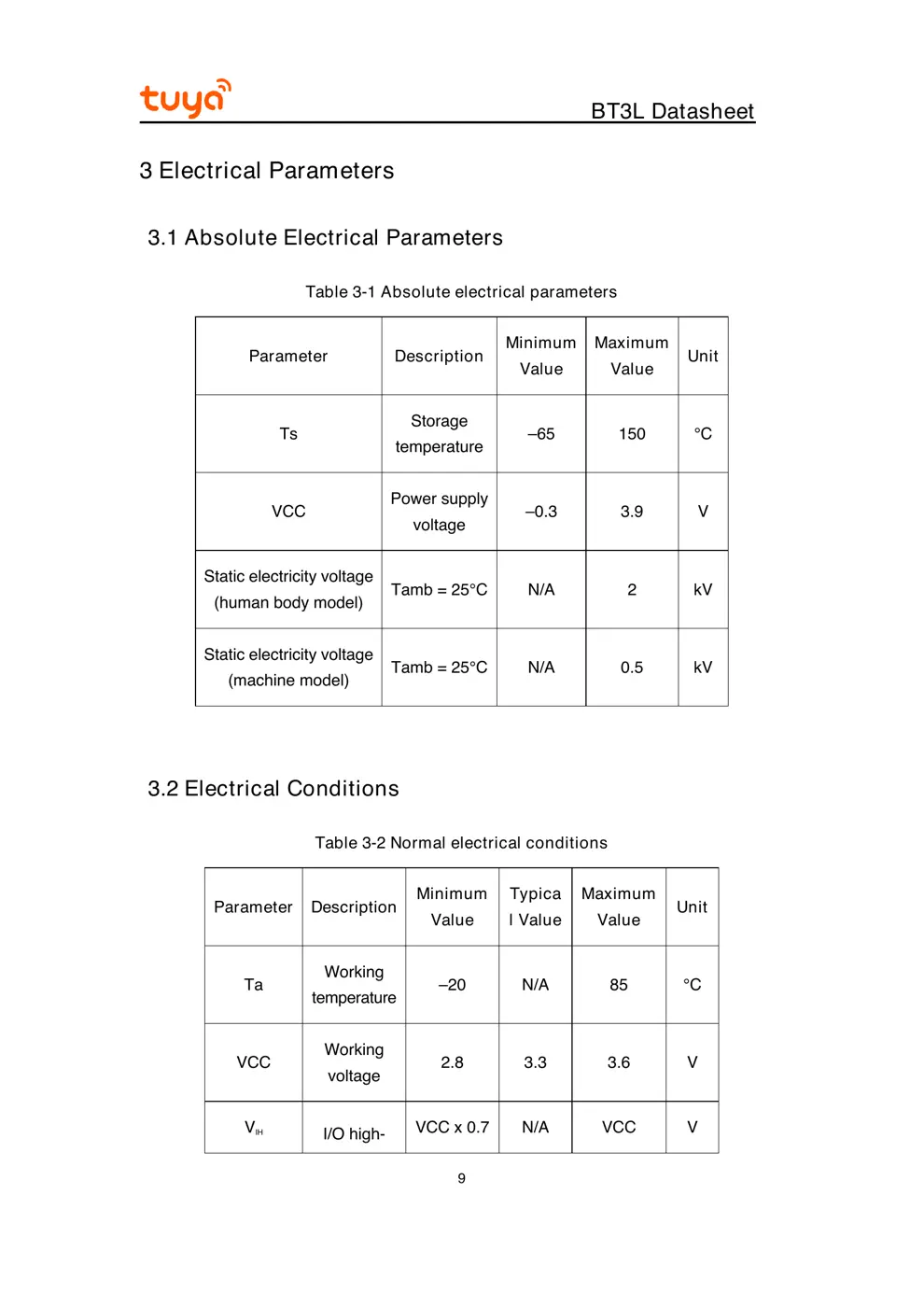

3 Electrical Parameters ......................................................................................................9
3.1 Absolute Electrical Parameters .............................................................................9
3.2 Electrical Conditions..............................................................................................9

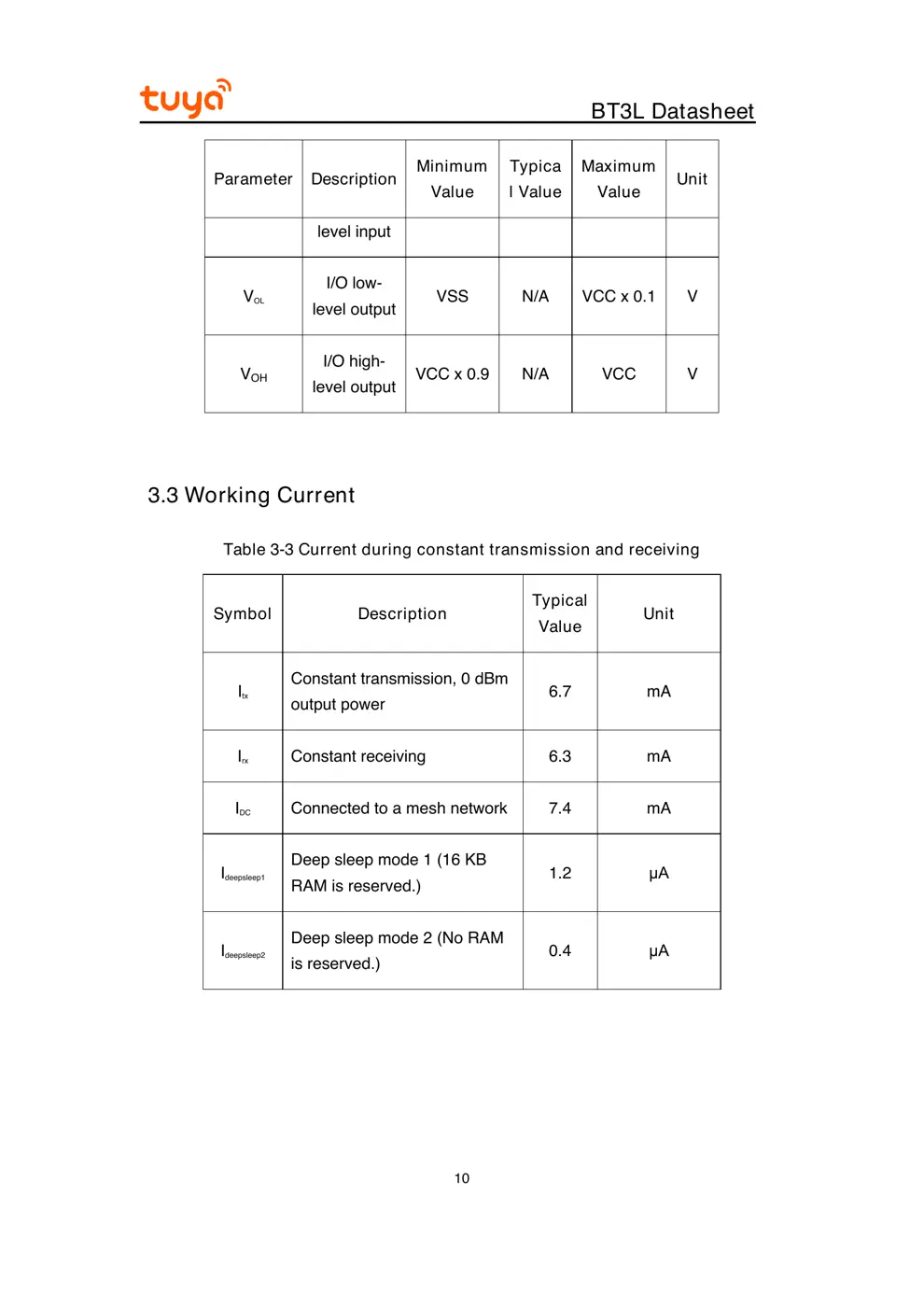

3.3 Working Current ....................................................
