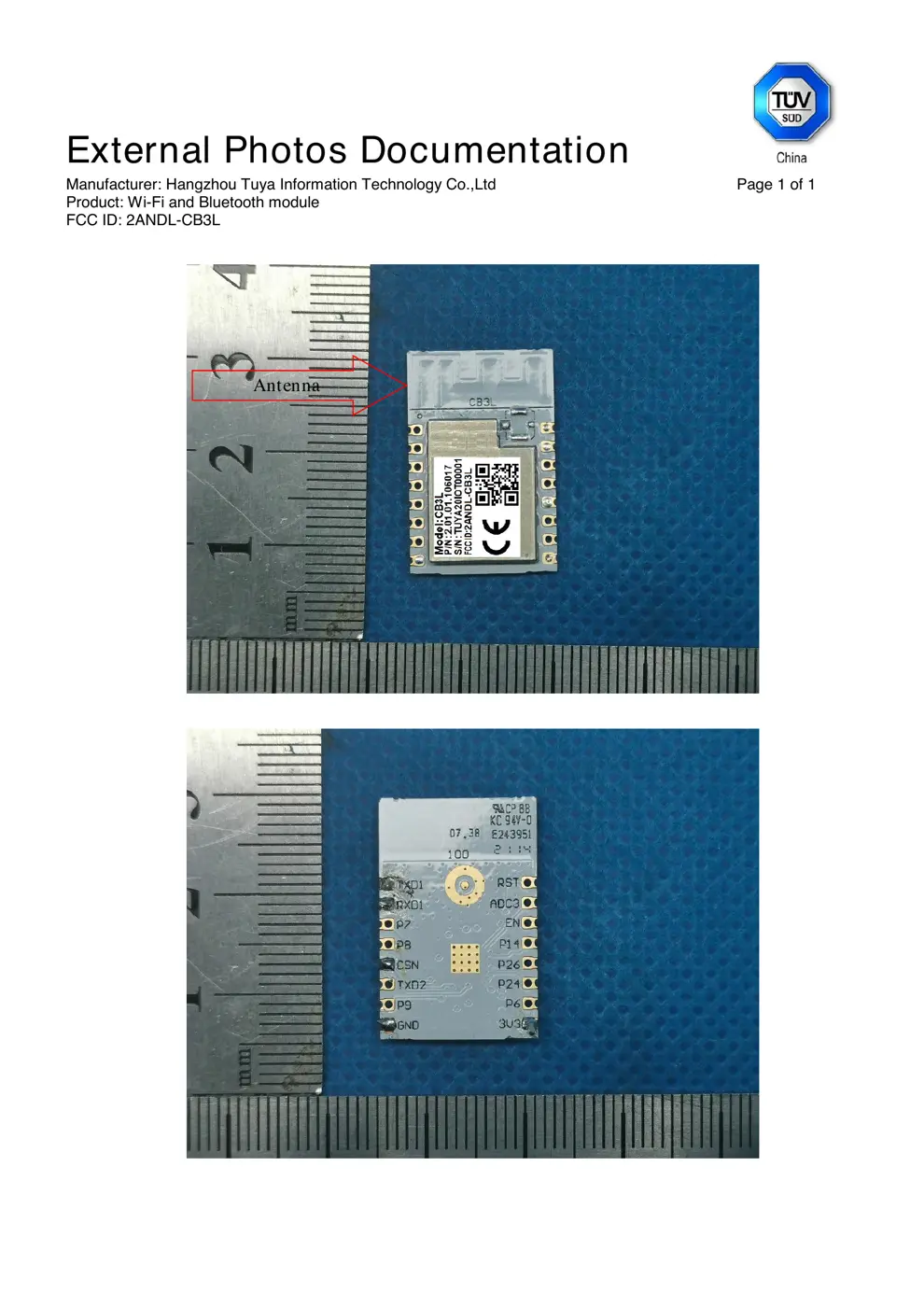

CB3L Reset & Teardown (FCC ID 2ANDL-CB3L)

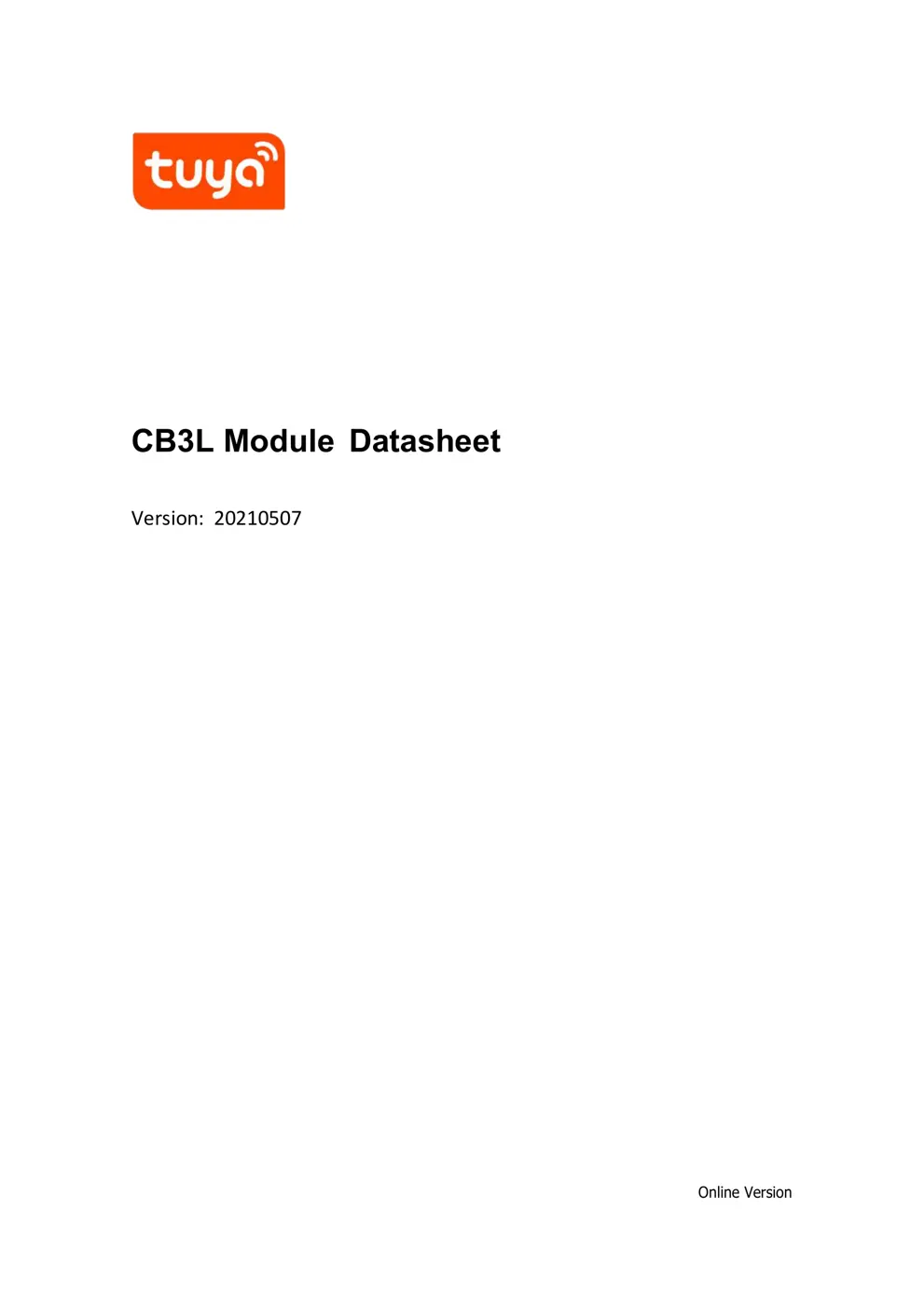

CB3L Module Datasheet
Version: 20210507
Online Version

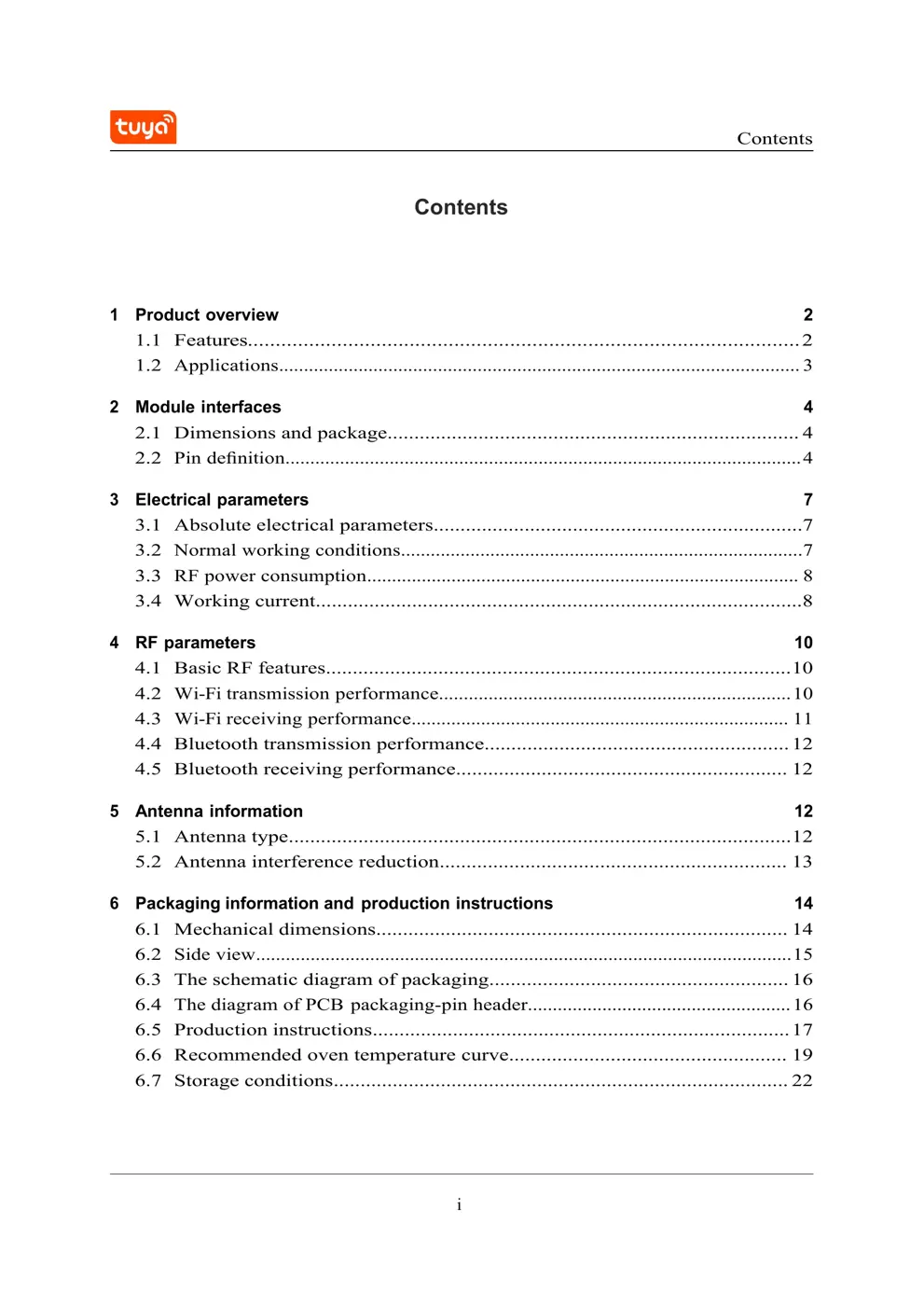

Contents
i
Contents
1 Product overview 2
1.1 Features...................................................................................................2

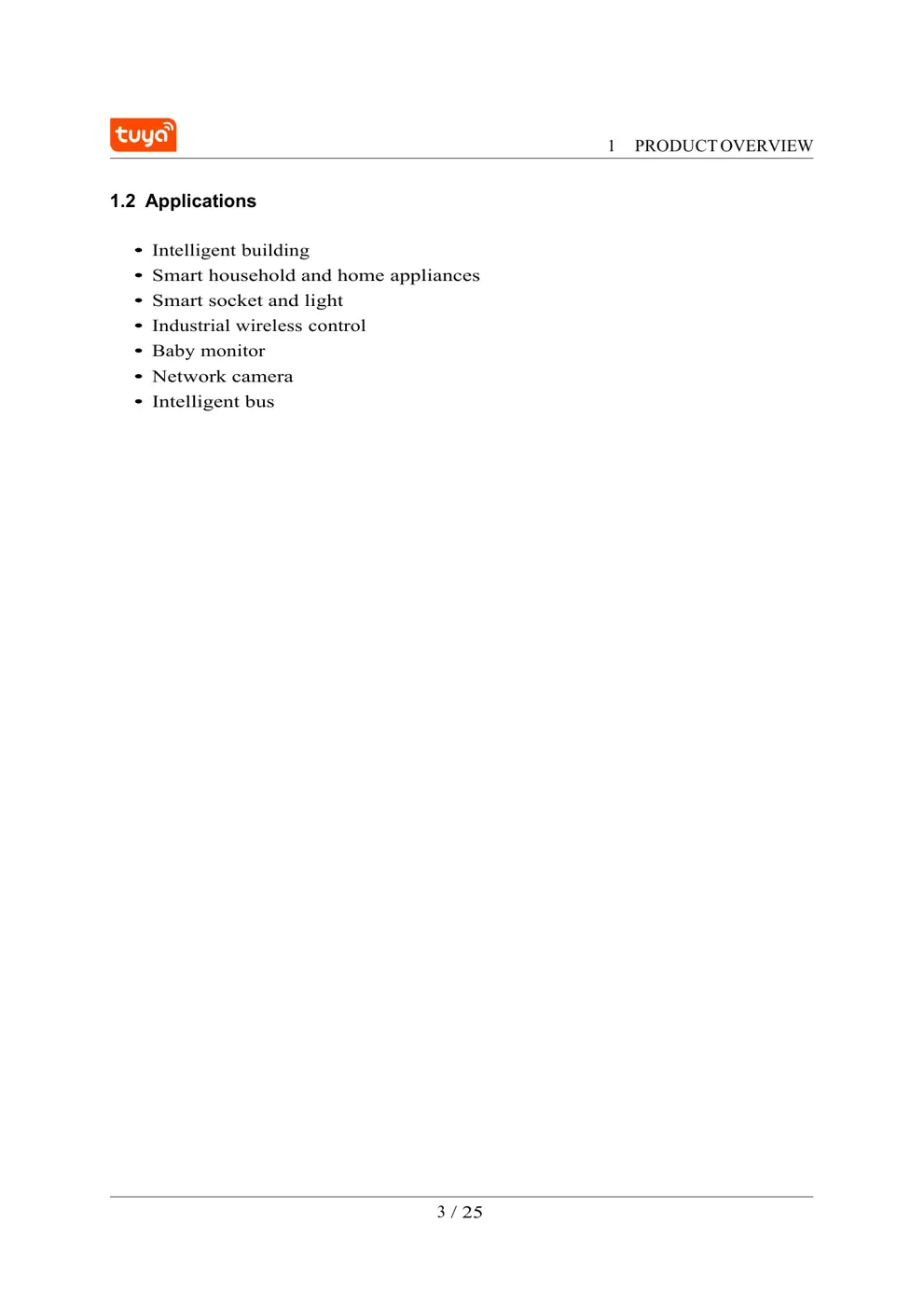

1.2 Applications......................................................................................................... 3
2 Module interfaces 4

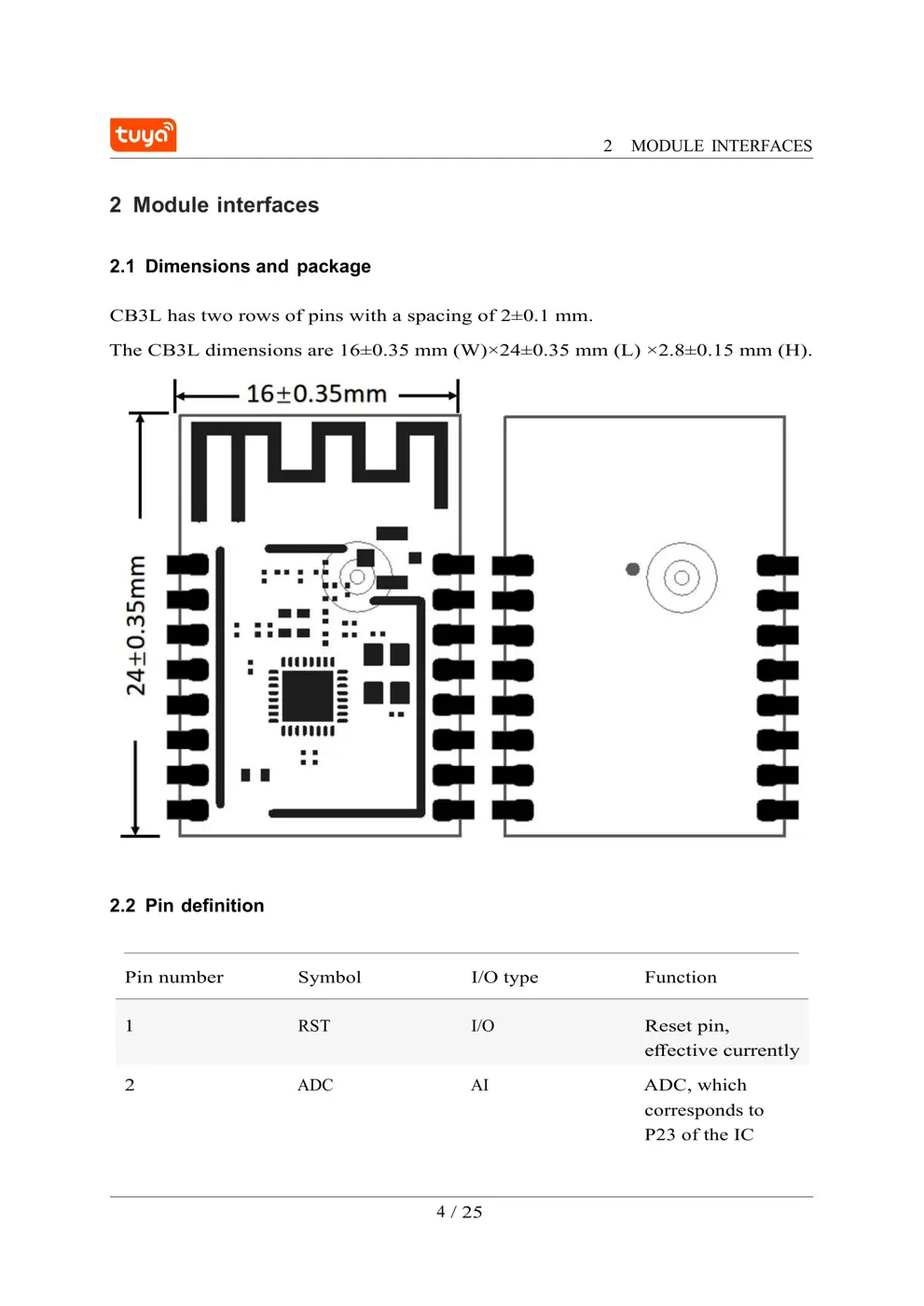

2.1 Dimensions and package............................................................................. 4

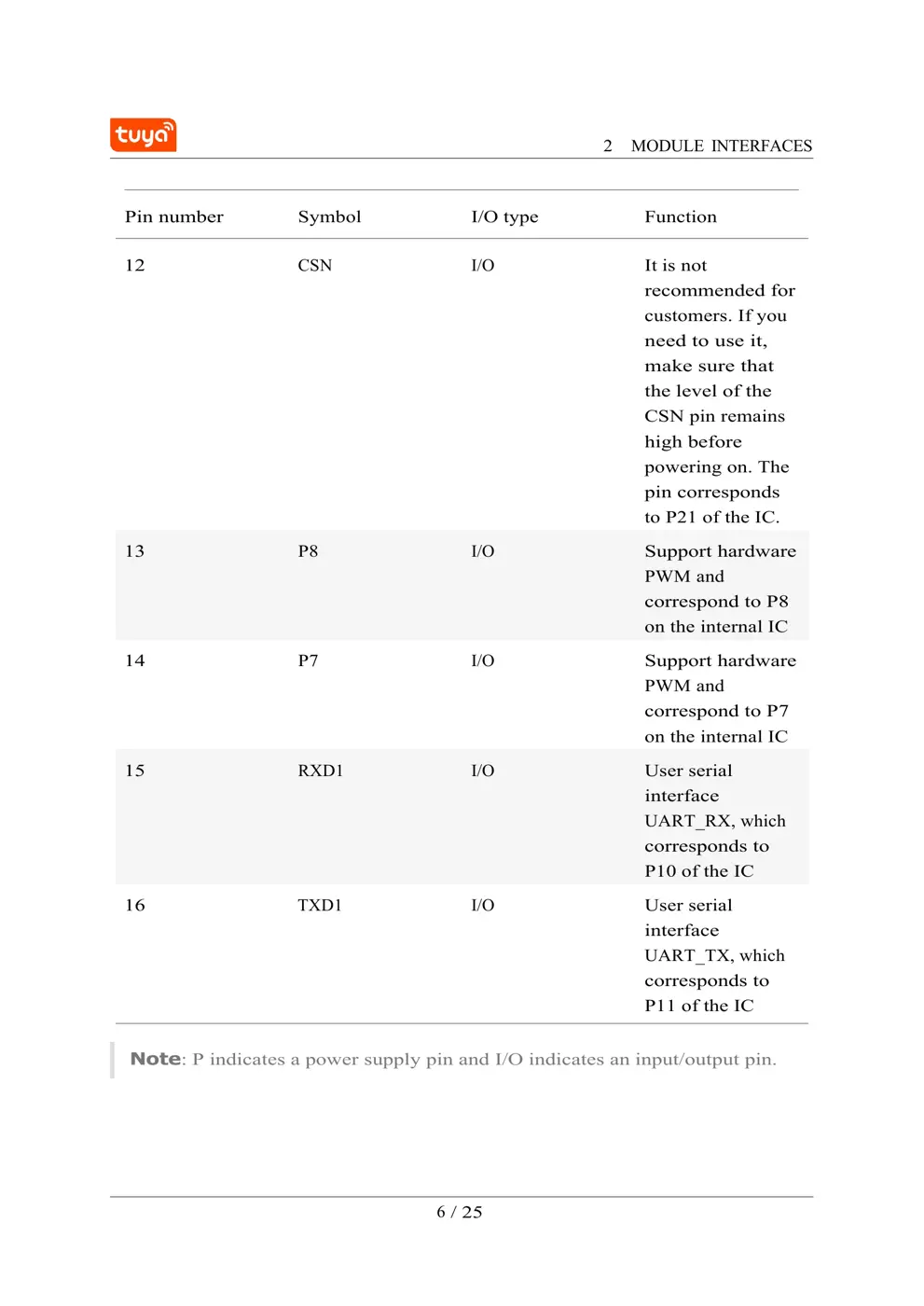

2.2 Pin definition........................................................................................................4
3 Electrical parameters 7
3.1 Absolute electrical parameters.....................................................................7
3.2 Normal working conditions.................................................................................7
3.3 RF power consumption....................................................................................... 8
3.4 Working current...........................................................................................8
4 RF parameters 10
4.1 Basic RF features.......................................................................................10
4.2 Wi-Fi transmission performance.......................................................................10
4.3 Wi-Fi receiving performance............................................................................ 11
4.4 Bluetooth transmission performance......................................................... 12
4.5 Bluetooth receiving performance.............................................................. 12
5 Antenna information 12
5.1 Antenna type..............................................................................................12
5.2 Antenna interference reduction................................................................. 13
6 Packaging information and production instructions 14
6.1 Mechanical dimensions............................................................................. 14
6.2 Side view............................................................................................................15
6.3 The schematic diagram of packaging........................................................ 16
6.4 The diagram of PCB packaging-pin header..................................................... 16
6.5 Production instructions.............................................................................. 17
6.6 Recommended oven temperature curve.................................................... 19
6.7 Storage conditions..................................................................................... 22
Contents
ii

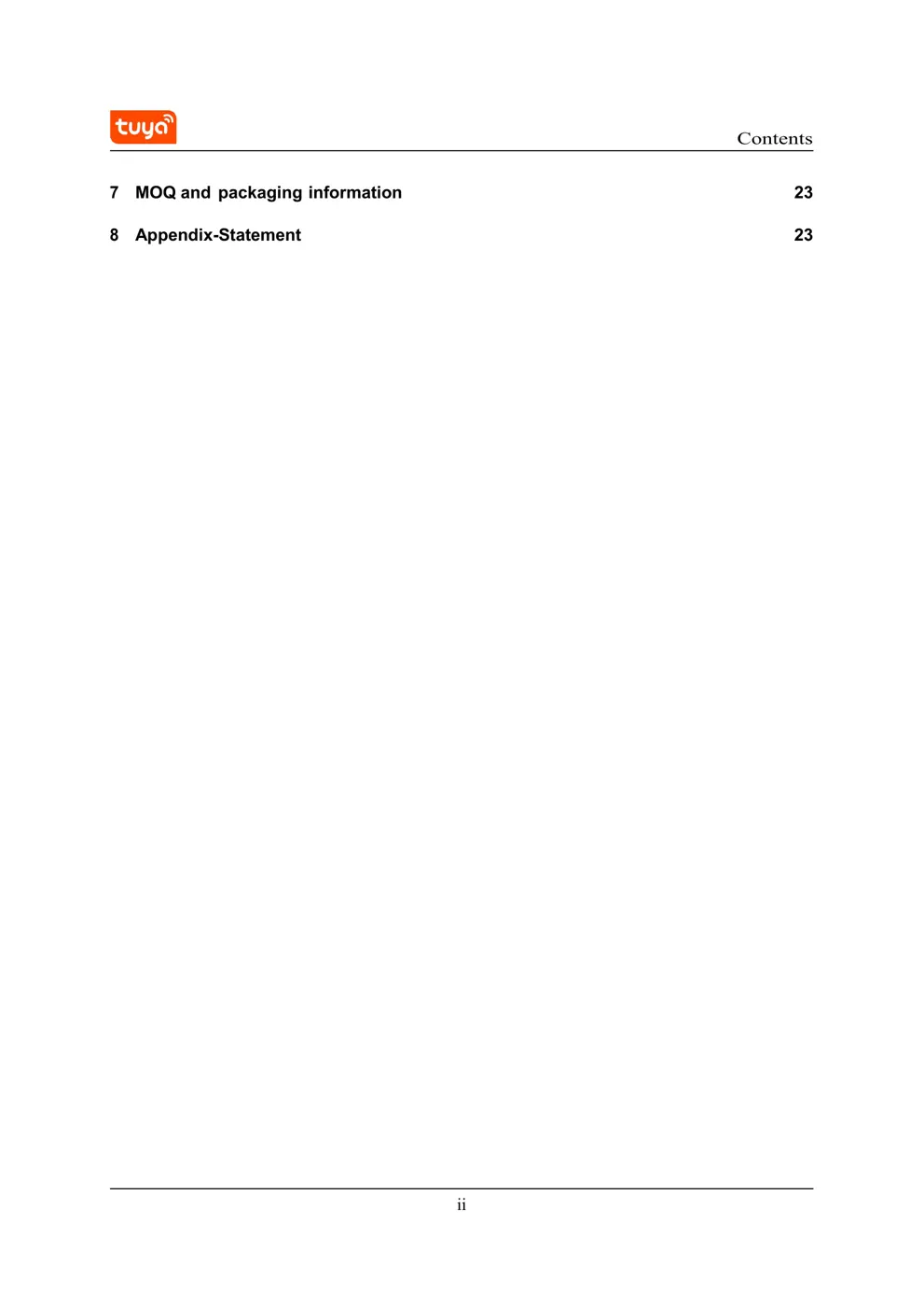

7 MOQ and packaging information 23
8 Appendix-Statement 23
1 / 25
Contents

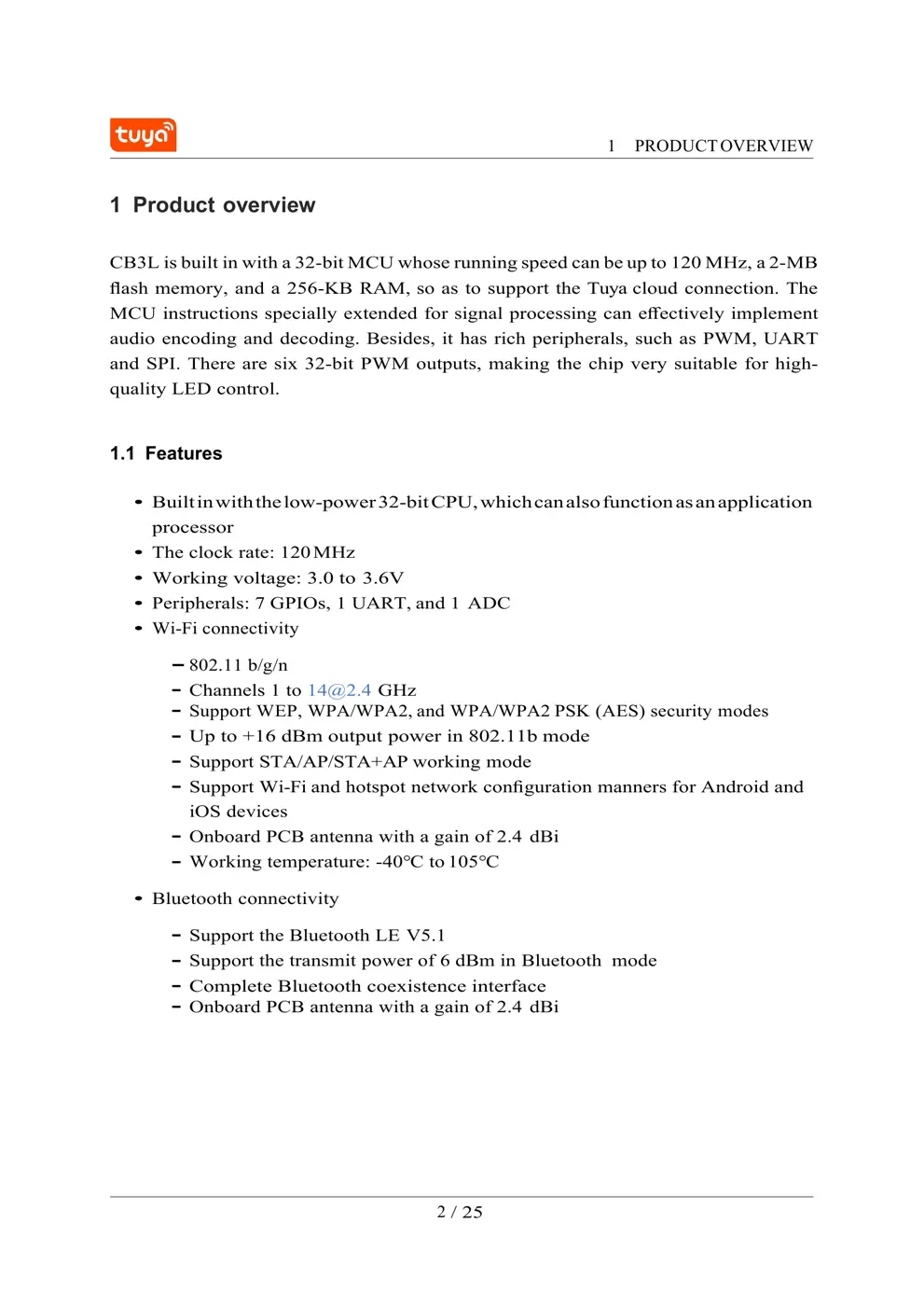

CB3L is an embedded low-power Wi-Fi module that Tuya has developed. It consists of
a highly integrated RF chip BK7231N and a few peripherals. CB3L not only supports
the Wi-Fi AP and STA modes, but also supports the Bluetooth LE.

1 PRODUCT OVERVIEW
2 / 25
1 Product overvie...
