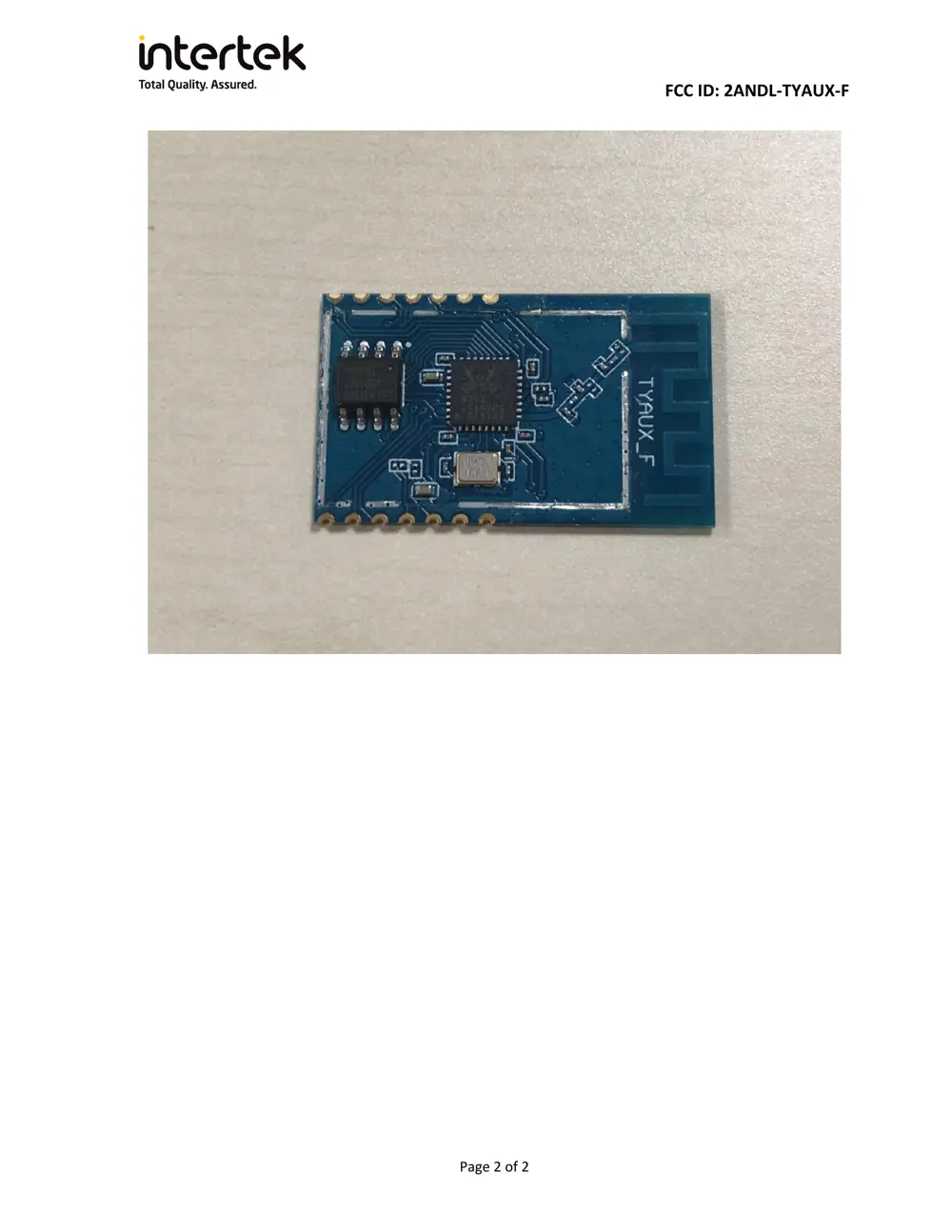

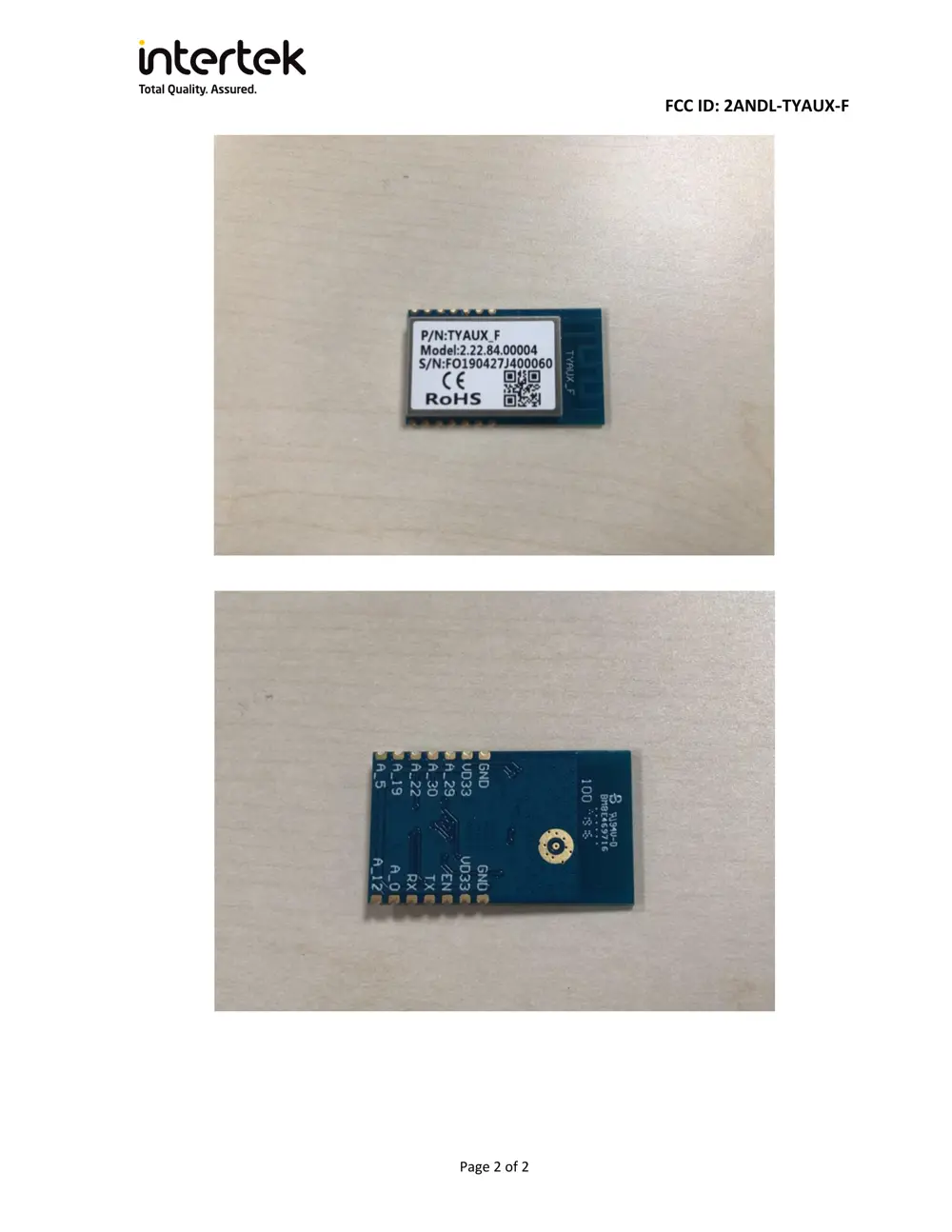

F Reset & Teardown (FCC ID 2ANDL-TYAUX-F)

TYAUX_F DATASHEET
TuyaSmartWi-Fi Module

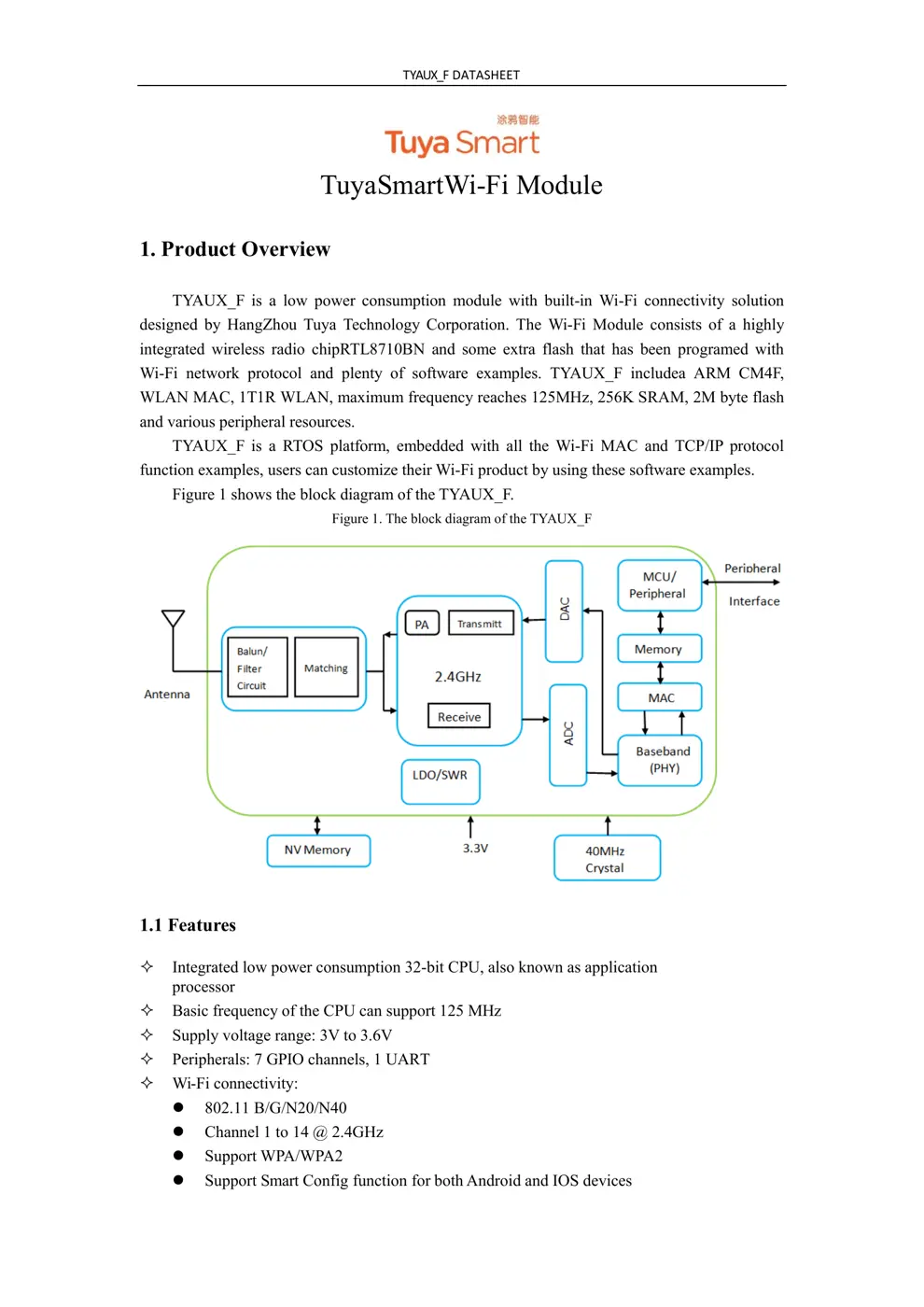

1. Product Overview
TYAUX_F is a low power consumption module with built-in Wi-Fi connectivity solution
designed by HangZhou Tuya Technology Corporation. T he Wi-Fi Module consist s of a highly
integrated wireless radio chip RTL8710BN and some extra flash that has been programed with
Wi-Fi network protocol and plenty of software examples. TY AUX_F includea ARM CM4F,
WLAN MAC, 1T1R WLAN, maximum frequency reaches 125MHz, 256K SRAM, 2M byte flash
and various peripheral resources.
TYAUX_F is a RTOS platform, embedded with all the Wi -Fi MAC and TCP/IP protocol
function examples, users can customize their Wi-Fi product by using these software examples.
Figure 1 shows the block diagram of the TYAUX_F.
Figure 1. The block diagram of the TYAUX_F
1.1 Features
 Integrated low power consumption 32-bit CPU, also known as application
processor
 Basic frequency of the CPU can support 125 MHz
 Supply voltage range: 3V to 3.6V
 Peripherals: 7 GPIO channels, 1 UART
 Wi-Fi connectivity:
 802.11 B/G/N20/N40
 Channel 1 to 14 @ 2.4GHz
 Support WPA/WPA2
 Support Smart Config function for both Android and IOS devices

TYAUX_F DATASHEET
 Pass CE, FCC, SRRC certifications
 Operating temperature range: -20℃ to 85℃
1.2 Main Application Fields
 Intelligent Building
 Intelligent home, Intelligent household applications
 Healthy devices
 Industrial wireless control
 Baby monitor
 Webcam
 Intelligent bus
TYAUX_F DATASHEET

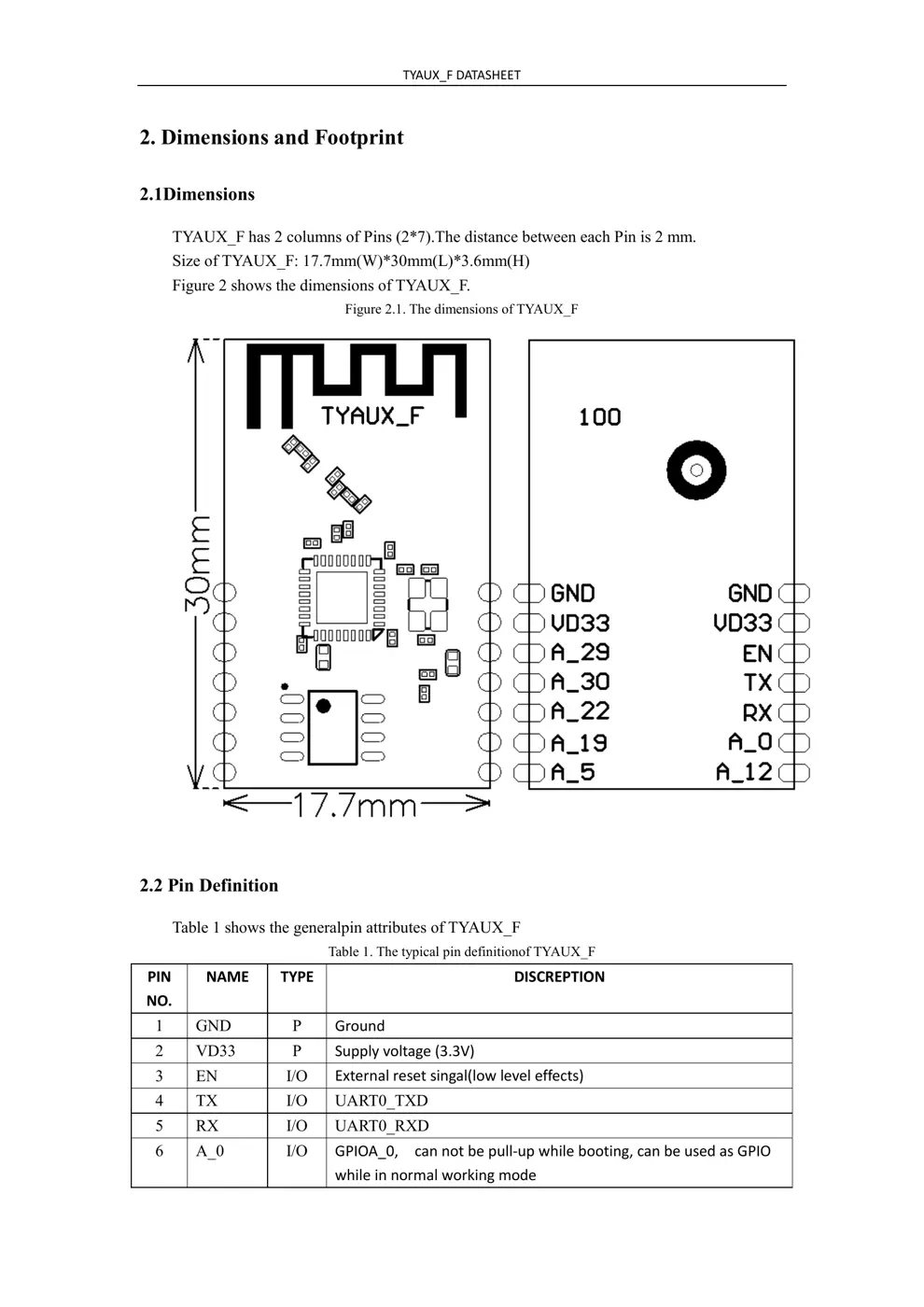

2. Dimensions and Footprint

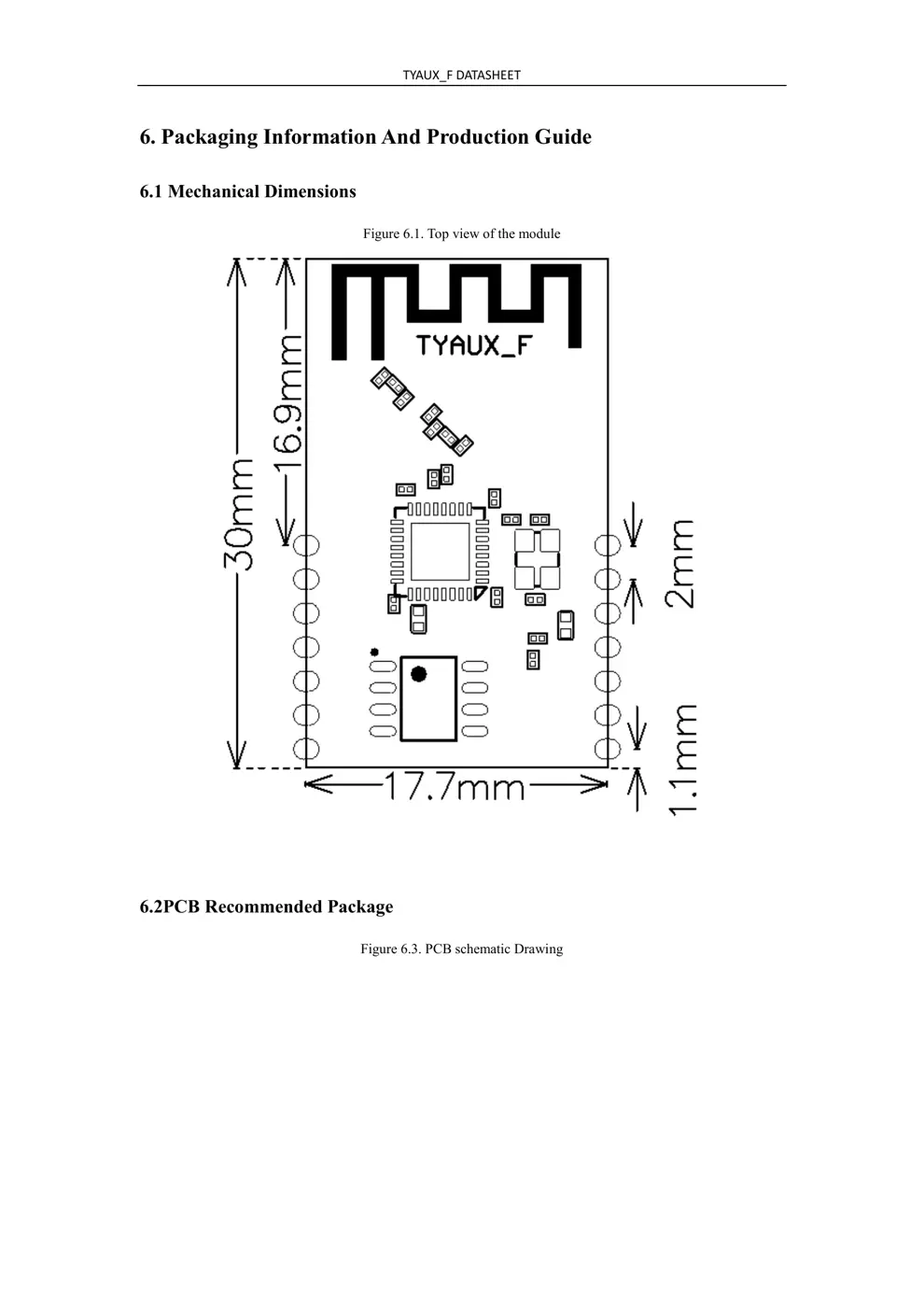

2.1Dimensions
TYAUX_F has 2 columns of Pins (2*7).The distance between each Pin is 2 mm.
Size of TYAUX_F: 17.7mm(W)*30mm(L)*3.6mm(H)
Figure 2 shows the dimensions of TYAUX_F.
Figure 2.1. The dimensions of TYAUX _F

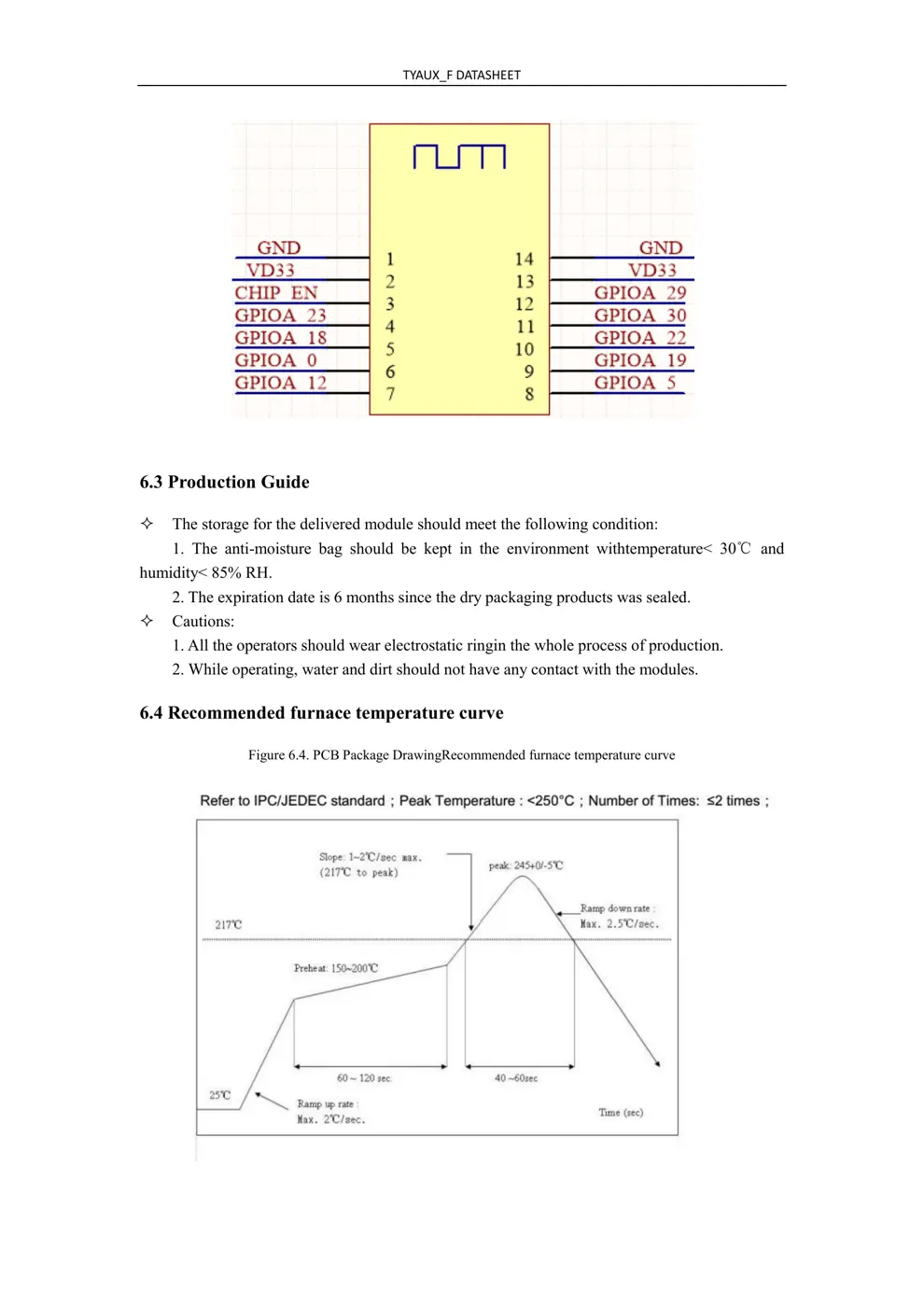

2.2 Pin Definition
Table 1 shows the generalpin attributes of TYAUX_F
Table 1. The typical pin definitionof TYAUX_F
PIN
NO.
NAME TYPE DISCREPTION
1 GND P Ground
2 VD33 P Supply voltage (3.3V)
3 EN I/O External reset singal(low level effects)
4 TX I/O UART0_TXD
5 RX I/O UART0_RXD
6 A_0 I/O GPIOA_0, can not be pull -up while booting, can be used as GPIO
while in normal working mode

TYAUX_F DATASHEET

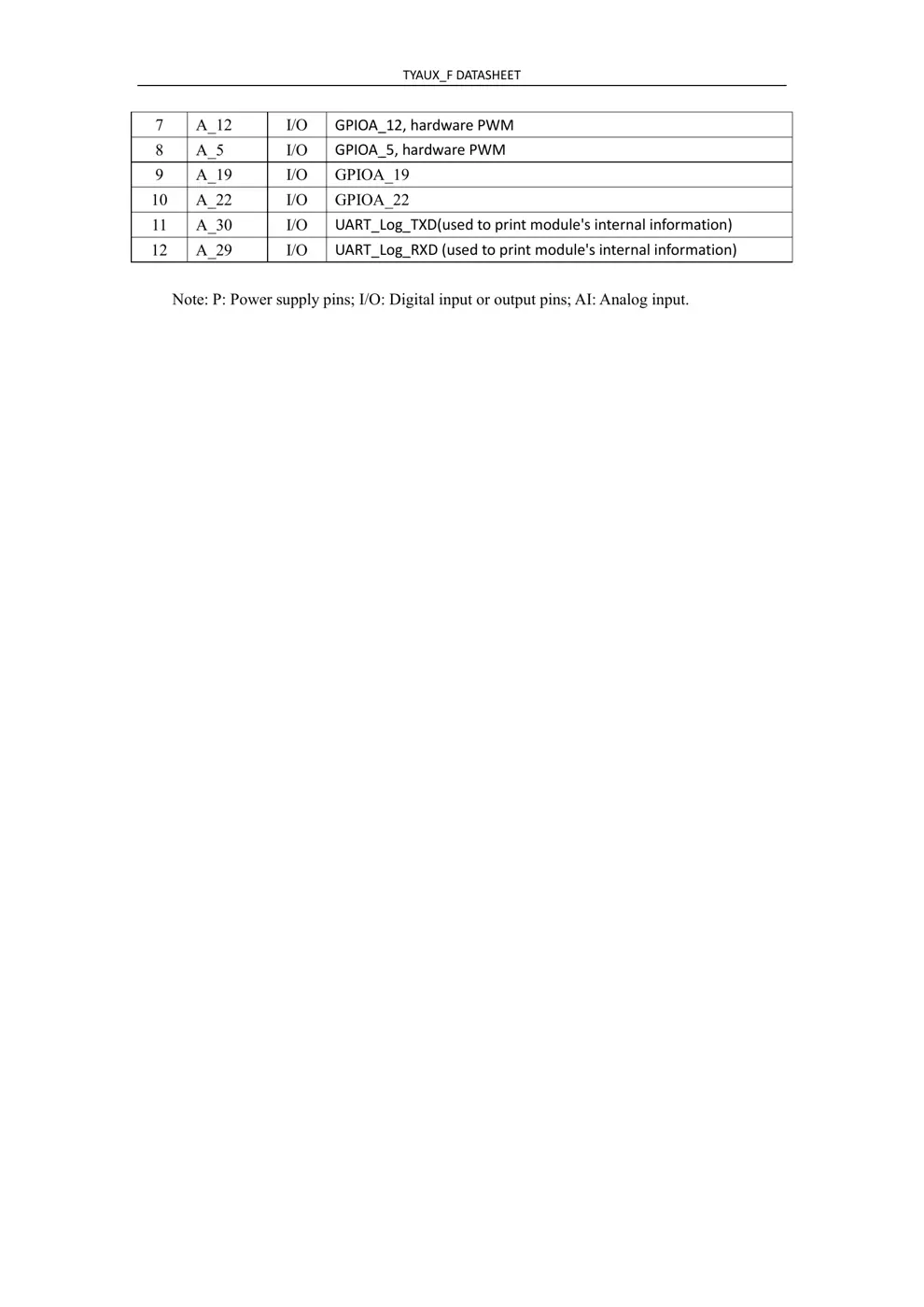

7 A_12 I/O GPIOA_12, hardware PWM
8 A_5 I/O GPIOA_5, hardware PWM
9 A_19 I/O GPIOA_19
10 A_22 I/O GPIOA_22
11 A_30 I/O UART_Log_TXD(used to print module's internal information)
12 A_29 I/O UART_Log_RXD (used to print module's internal information)
Note
: P: Power supply pins; I/O: Digital input or output pins; AI: Analog input.
TYAUX_F DATASHEET

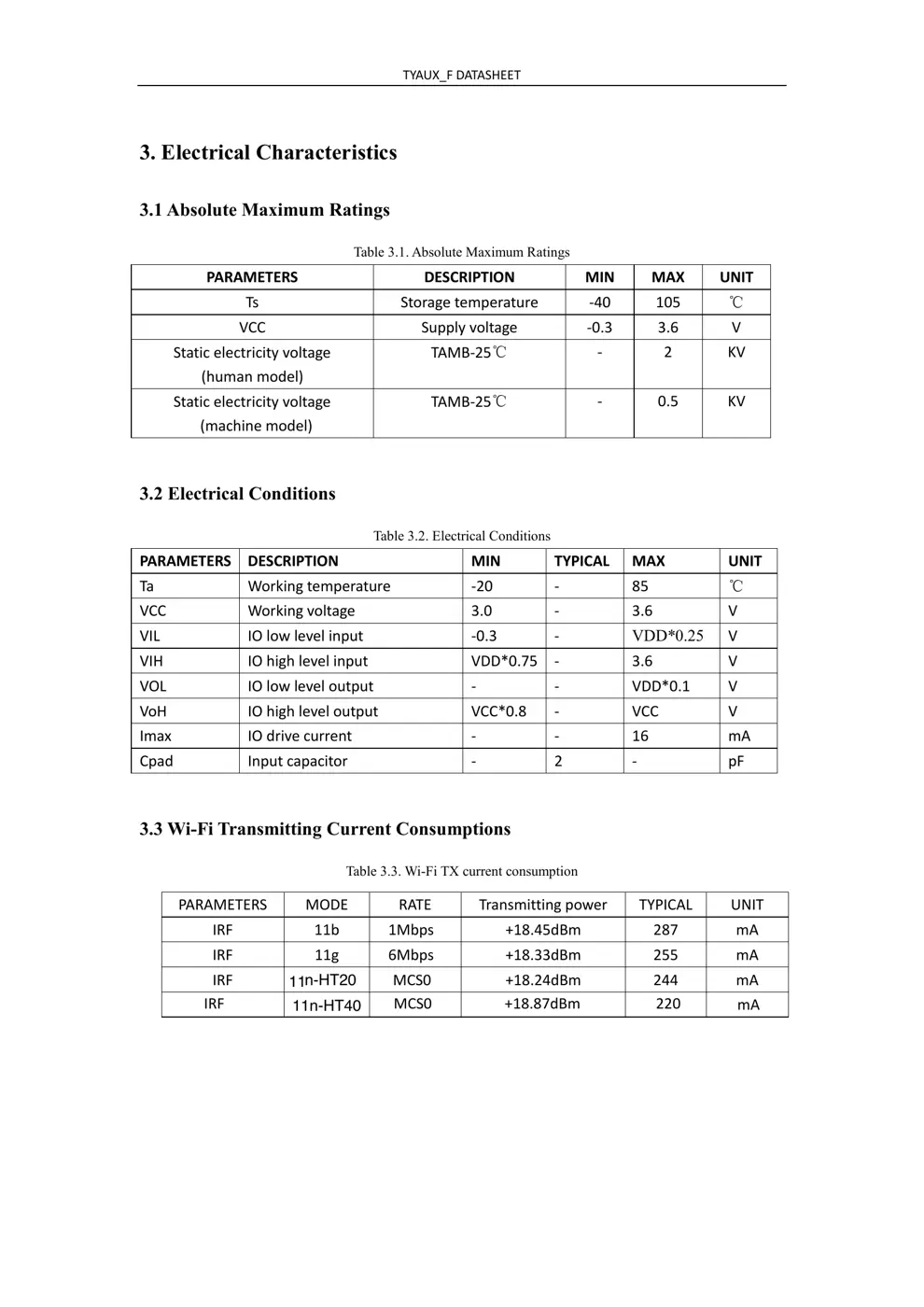

3. Electrical Characteristics
3.1 Absolute Maximum Ratings
Table 3.1. Absolute Maximum Ratings
PARAMETERS DESCRIPTION MIN MAX UNIT
Ts Storage temperature -40 105 ℃
VCC Supply voltage -0.3 3.6 V
Static electricity voltage
(human model)
TAMB-25℃ - 2 KV
Static electricity voltage
(machine model)
TAMB-25℃ - 0.5 KV
3.2 Electrical Conditions
Table 3.2. Electrical Conditions
PARAMETERS DESCRIPTION MIN TYPICAL MAX UNIT
Ta Working temperature -20 - 85 ℃
VCC Working voltage 3.0 - 3.6 V
VIL IO low ...
