IPEX Reset & Teardown (FCC ID 2ANDL-BT7L-IPEX)
Factory reset and internal photos for Tuya Global IPEX. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global IPEX, check what's inside.
The Tuya BT7L-IPEX is a compact Bluetooth Low Energy (BLE) module based on the TLSR8250F512ET32 chipset. It is designed for integration into various smart home devices requiring low-power wireless communication.
⚠️ NOTE: Ensure correct battery polarity and voltage range (1.8V-3.6V) during operation.
Quick Specs
- Manufacturer: Tuya Global
- Model: IPEX
- Protocol: WiFi
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: TLSR8250F512ET32
- Flashable: ❌ No
- Info: Proprietary Tuya module, typically not designed for user flashing.
User Manual
Scanned pages from the official user manual:

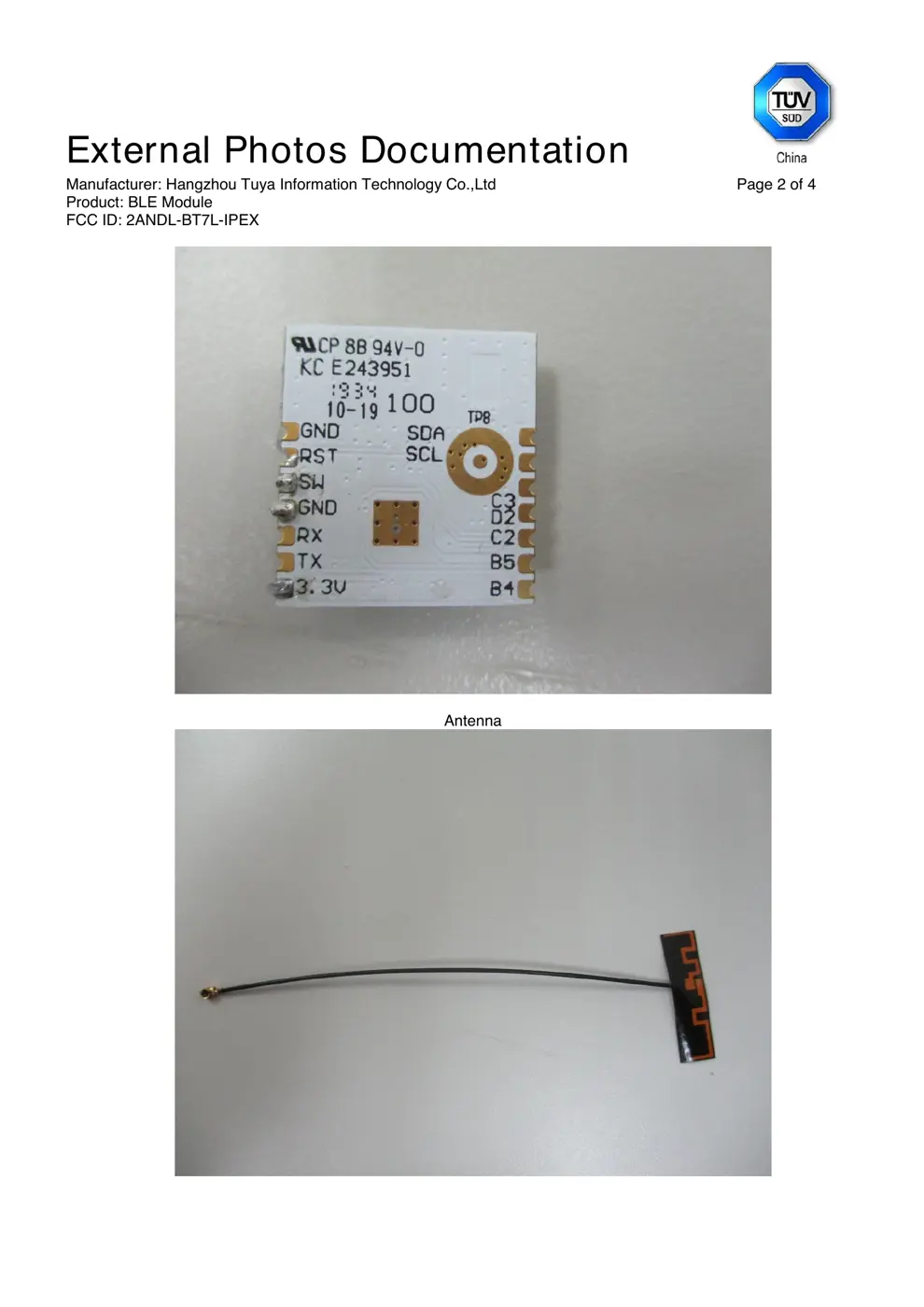

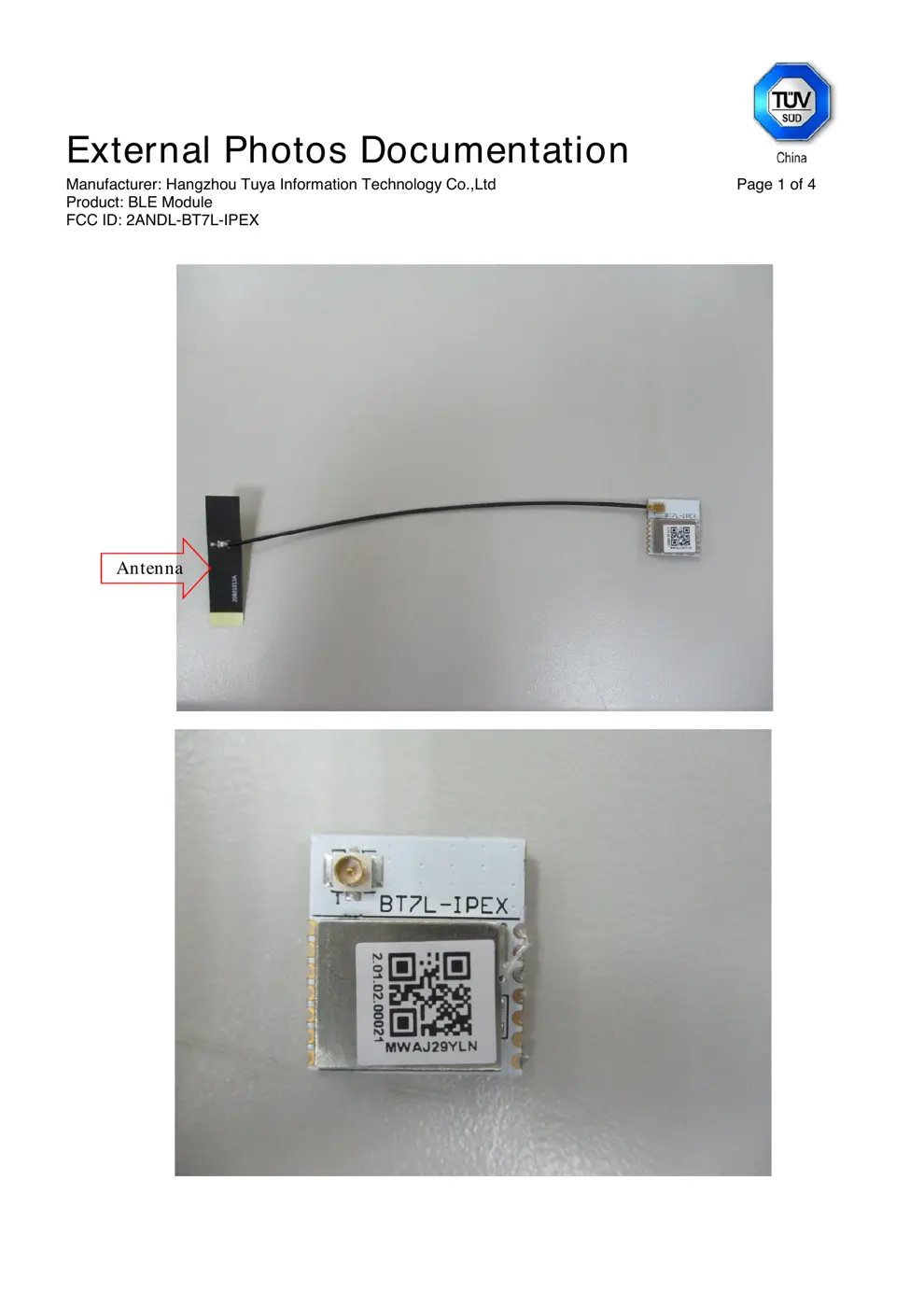

External Photos
Photos of the device exterior:
Internal Photos
Teardown photos showing the PCB and components:
Verdict
The IPEX is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)

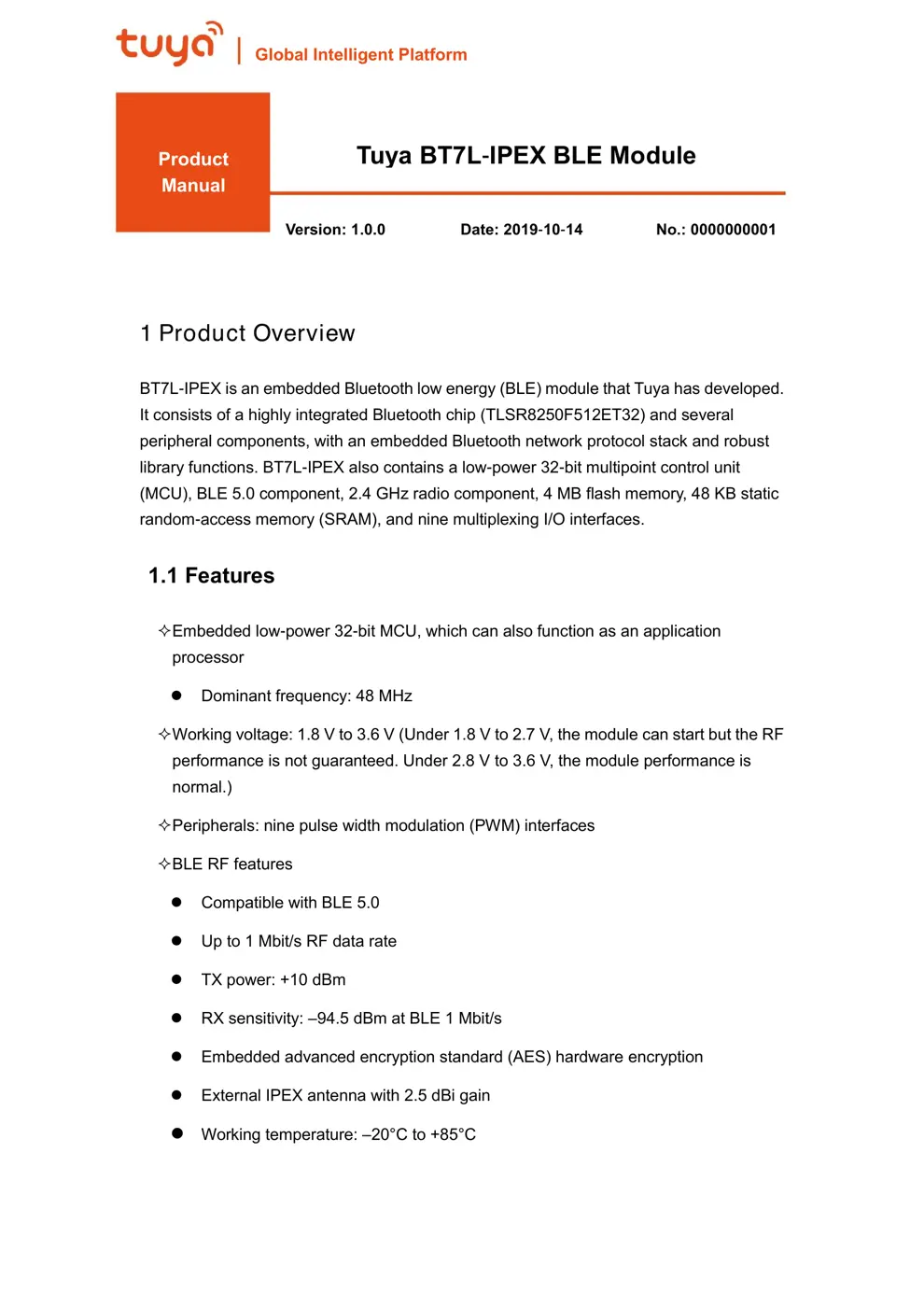

1 Product Overview
BT7L-IPEX is an embedded Bluetooth low energy (BLE) module that Tuya has developed.
It consists of a highly integrated Bluetooth chip (TLSR8250F512ET32) and several
peripheral components, with an embedded Bluetooth network protocol stack and robust
library functions. BT7L-IPEX also contains a low-power 32-bit multipoint control unit
(MCU), BLE 5.0 component, 2.4 GHz radio component, 4 MB flash memory, 48 KB static
random-access memory (SRAM), and nine multiplexing I/O interfaces.
1.1 Features
Embedded low-power 32-bit MCU, which can also function as an application
processor
⚫ Dominant frequency: 48 MHz
Working voltage: 1.8 V to 3.6 V (Under 1.8 V to 2.7 V, the module can start but the RF
performance is not guaranteed. Under 2.8 V to 3.6 V, the module performance is
normal.)
Peripherals: nine pulse width modulation (PWM) interfaces
BLE RF features
⚫ Compatible with BLE 5.0
⚫ Up to 1 Mbit/s RF data rate
⚫ TX power: +10 dBm
⚫ RX sensitivity: –94.5 dBm at BLE 1 Mbit/s
⚫ Embedded advanced encryption standard (AES) hardware encryption
⚫ External IPEX antenna with 2.5 dBi gain
⚫ Working temperature: –20°C to +85°C
Version: 1.0.0
Date: 2019-10-14
No.: 0000000001
Tuya BT7L-IPEX BLE Module
Product
Manual
Global Intelligent Platform
BT7L-IPEX Datasheet
2

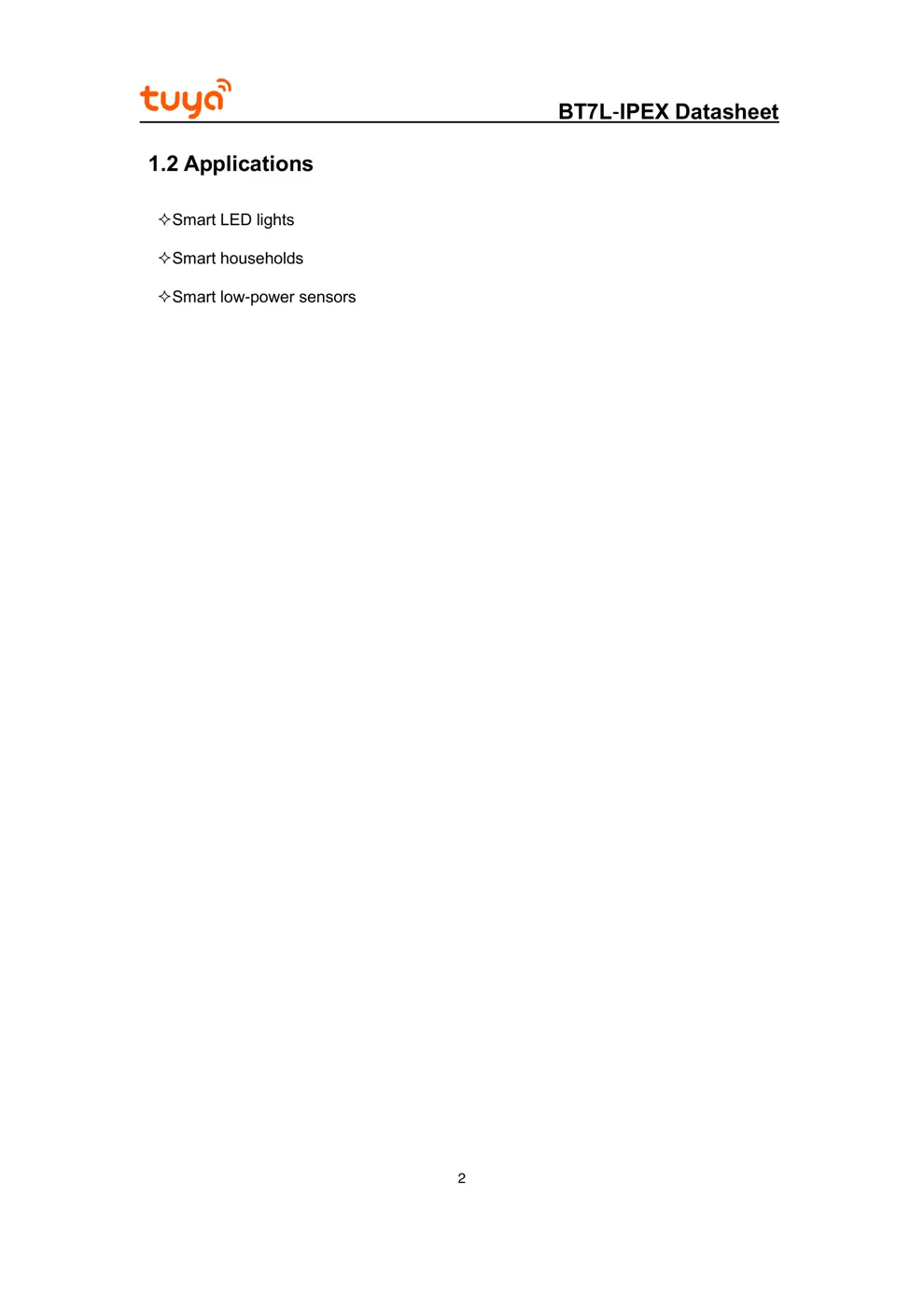

1.2 Applications
Smart LED lights
Smart households
Smart low-power sensors
BT7L-IPEX Datasheet
3

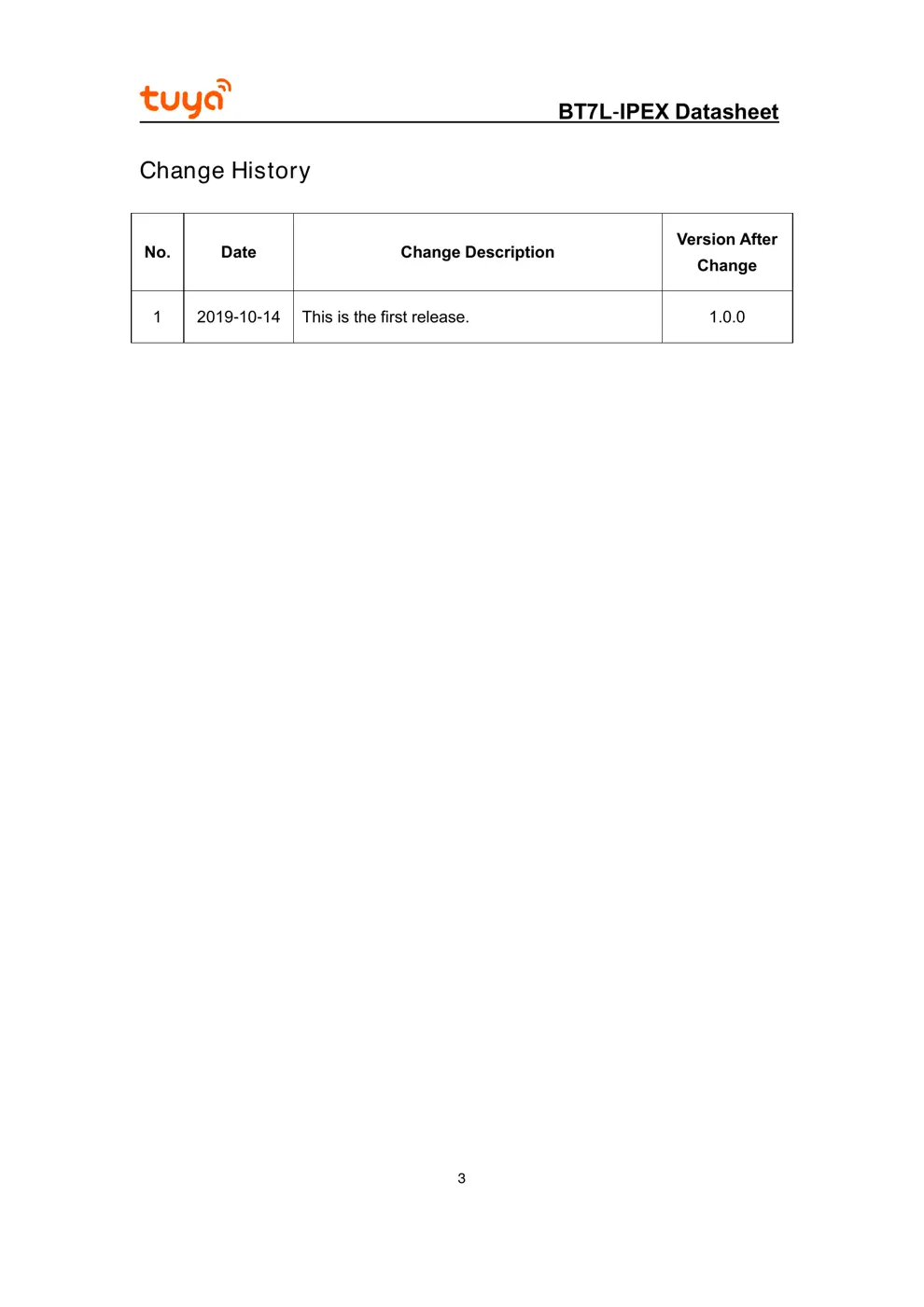

Change History
No. Date Change Description Version After
Change
1 2019-10-14 This is the first release. 1.0.0
BT7L-IPEX Datasheet
4

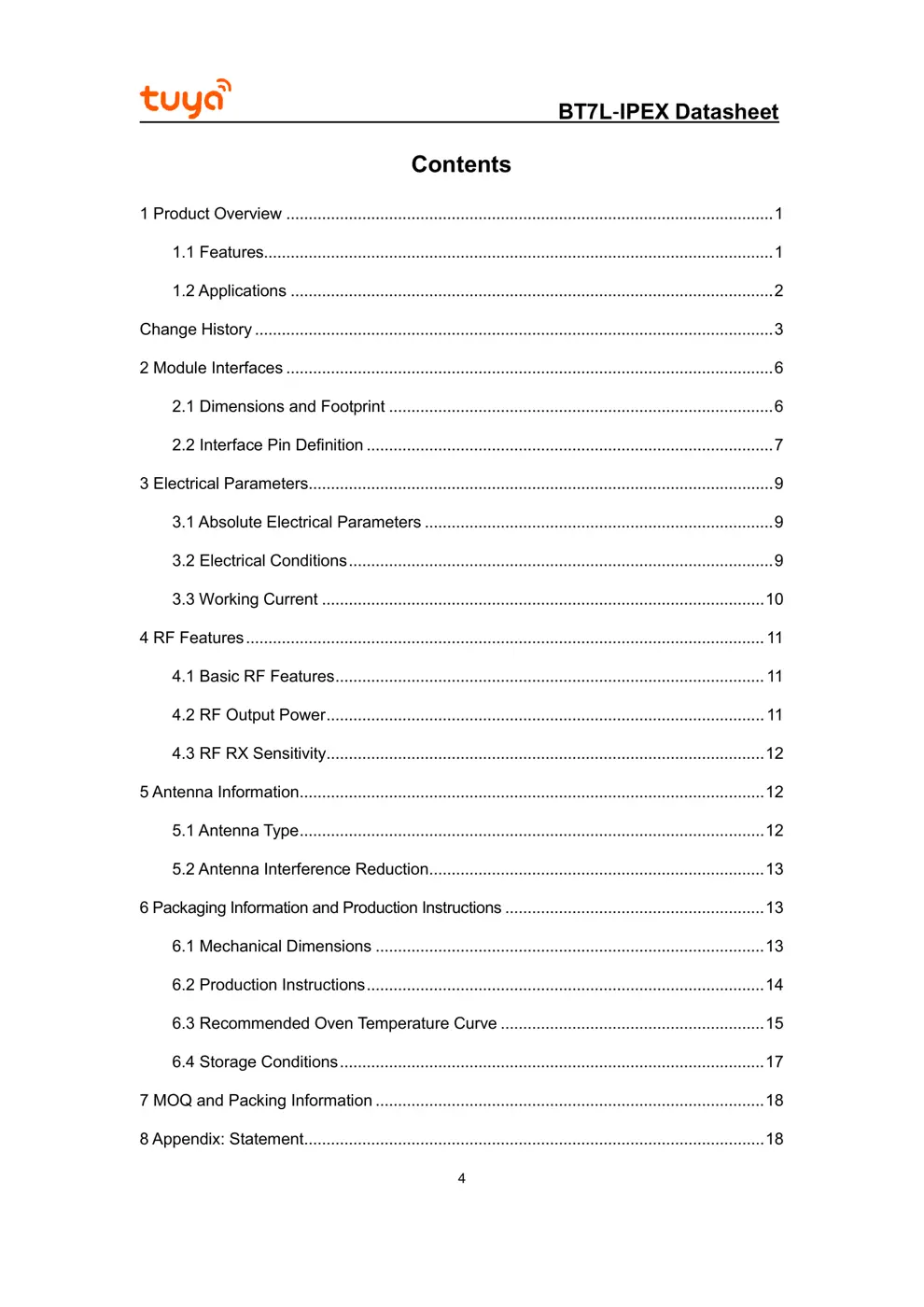

Contents
1 Product Overview ............................................................................................................. 1
1.1 Features.................................................................................................................. 1
1.2 Applications ............................................................................................................ 2
Change History .................................................................................................................... 3
2 Module Interfaces ............................................................................................................. 6
2.1 Dimensions and Footprint ...................................................................................... 6

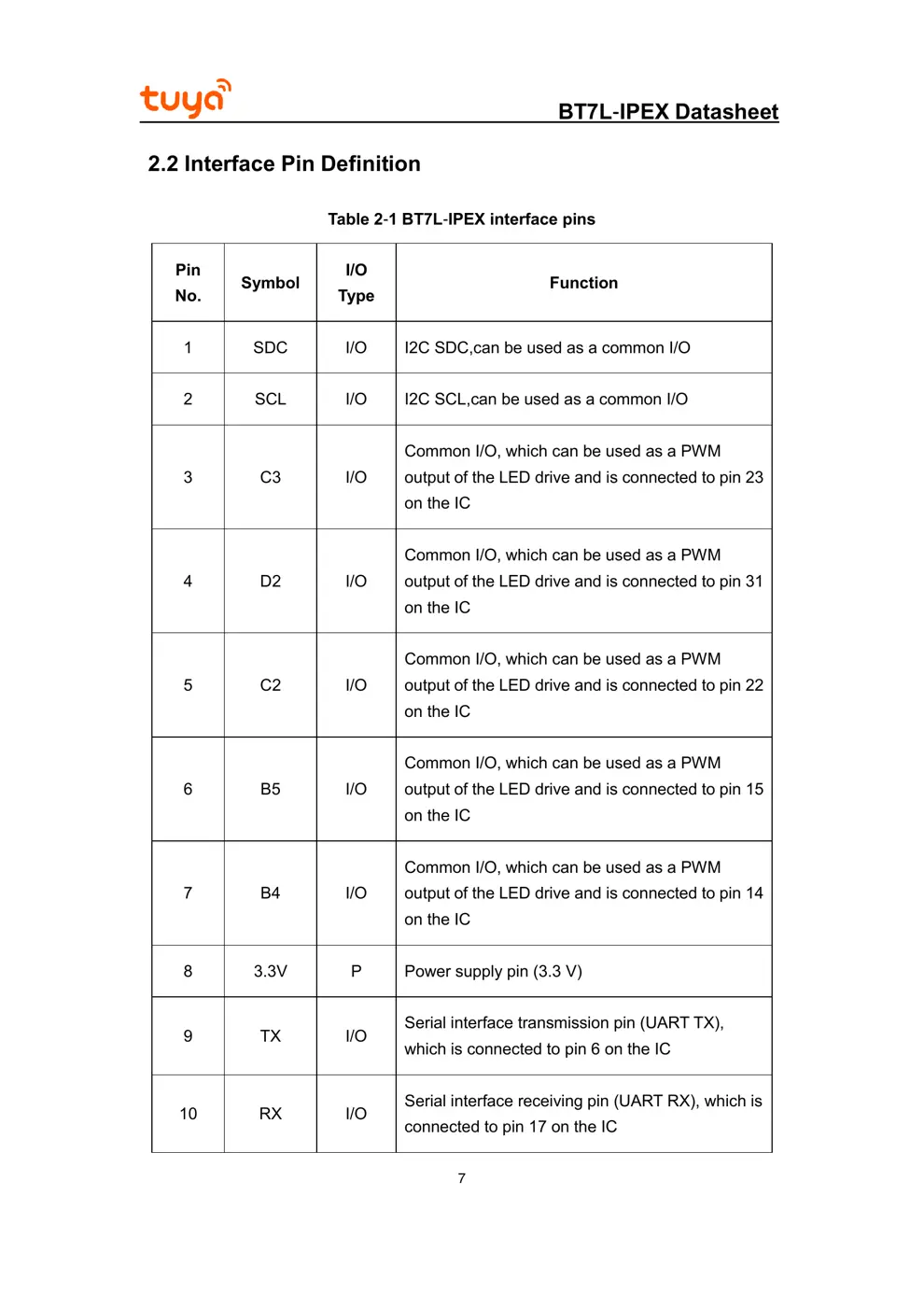

2.2 Interface Pin Definition ........................................................................................... 7

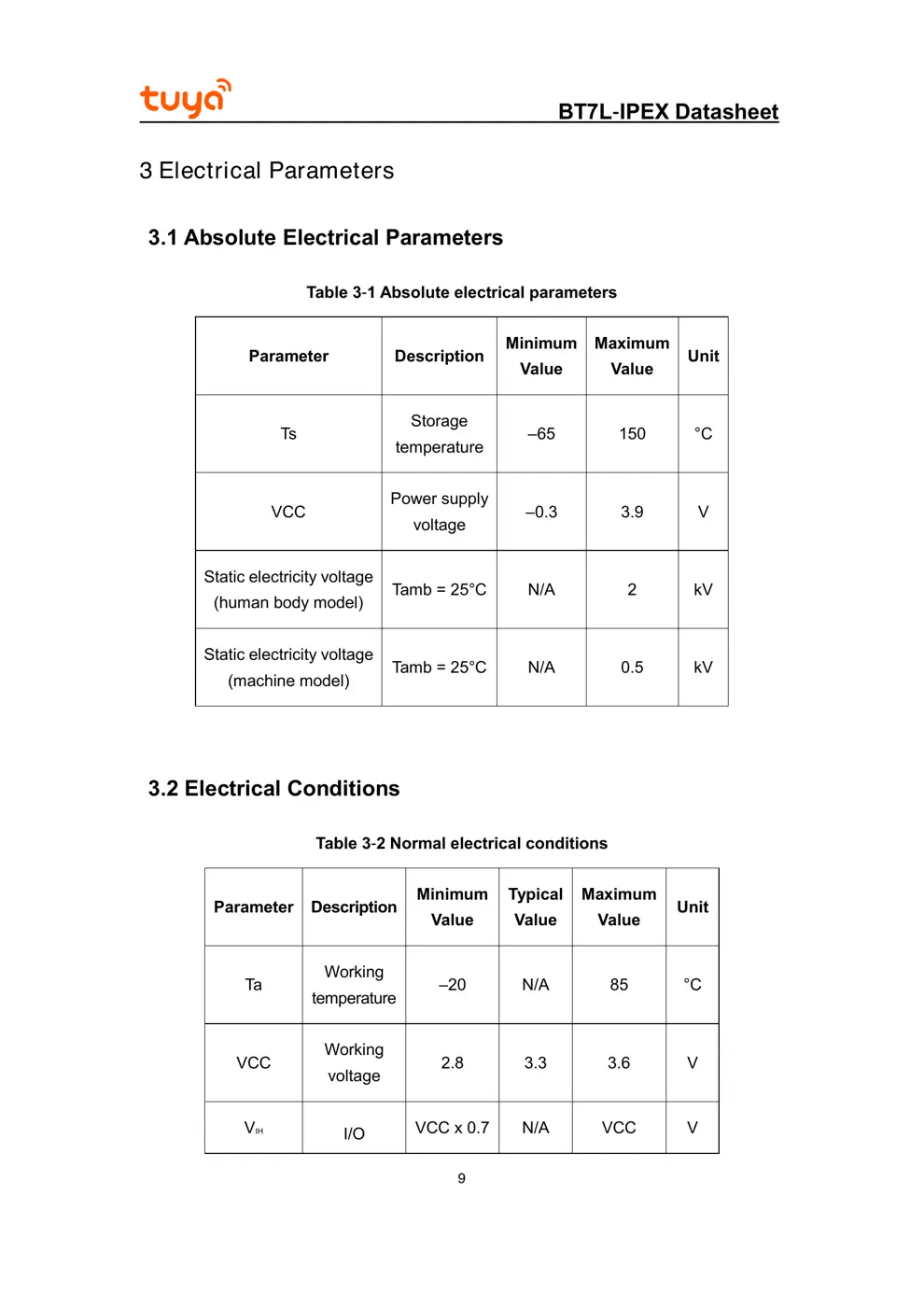

3 Electrical Parameters ........................................................................................................ 9
3.1 Absolute Electrical Parameters .............................................................................. 9
3.2 Electrical Conditions ............................................................................................... 9

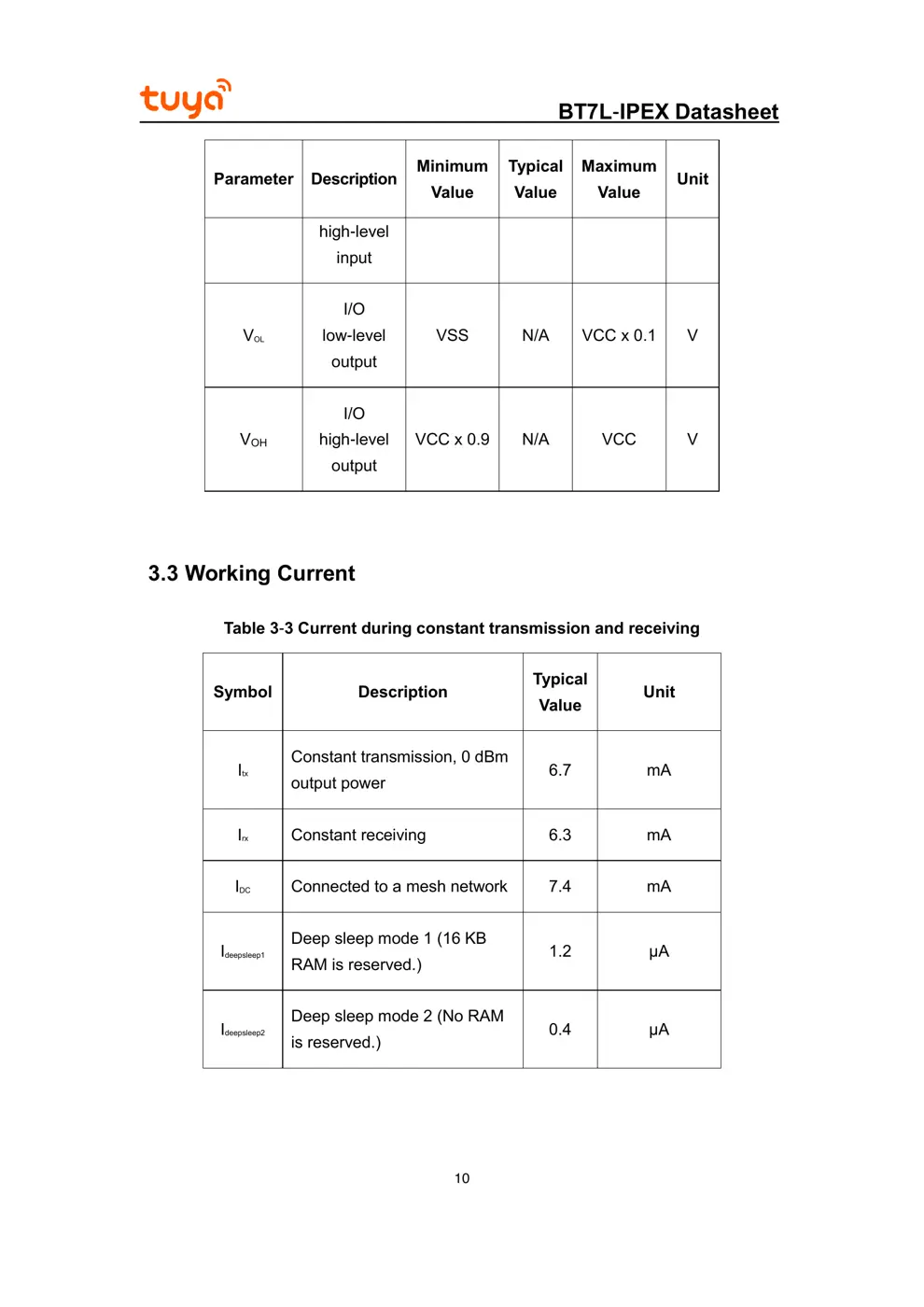

3.3 Working Current ................................................................................................... 10
4 RF Features .......
