SMART WI-FI
C A M E RA
USER MANUAL

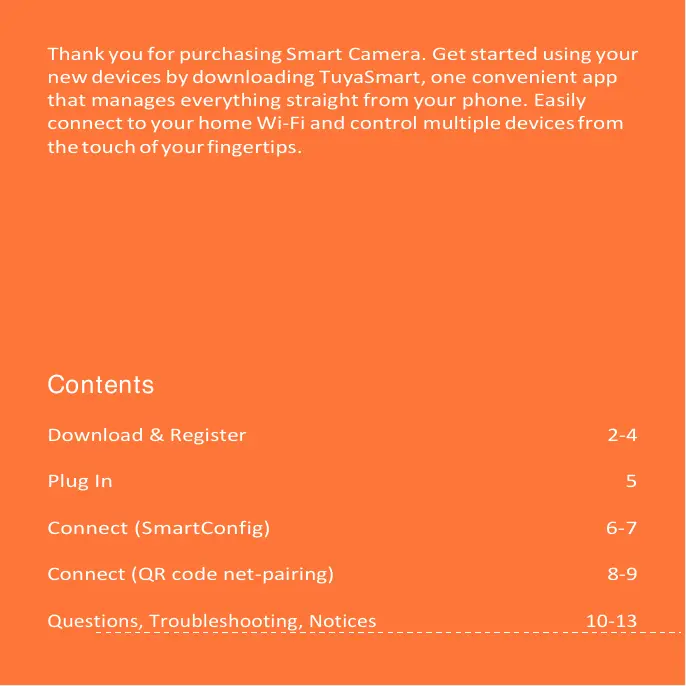

Thank you for purchasing Smart Camera. Get started using your
new devices by downloading TuyaSmart, one convenient app
that manages everything straight from your phone. Easily
connect to your home Wi-Fi and control multiple devices from
the touch of your fingertips.

Contents
Download & Register 2-4
Plug In 5
Connect (SmartConfig) 6-7
Connect (QR code net-pairing) 8-9
Questions, Troubleshooting, Notices 10-13

What’s in the Box

• Smart Wi-Fi Camera
• USB Cable
• Power Adapter
• User Manual

Get Ready
• Know your Wi-Fi network and password
• Make sure your mobile device is running iOS® 8 or higher
or Android™ 4.1× or higher
• Make sure you’re connecting to a 2.4GHz Wi-Fi network
(It can’t connect to 5GHz networks)

USER
MANUAL

1 Download the TuyaSmart app from App Store or Google Play.

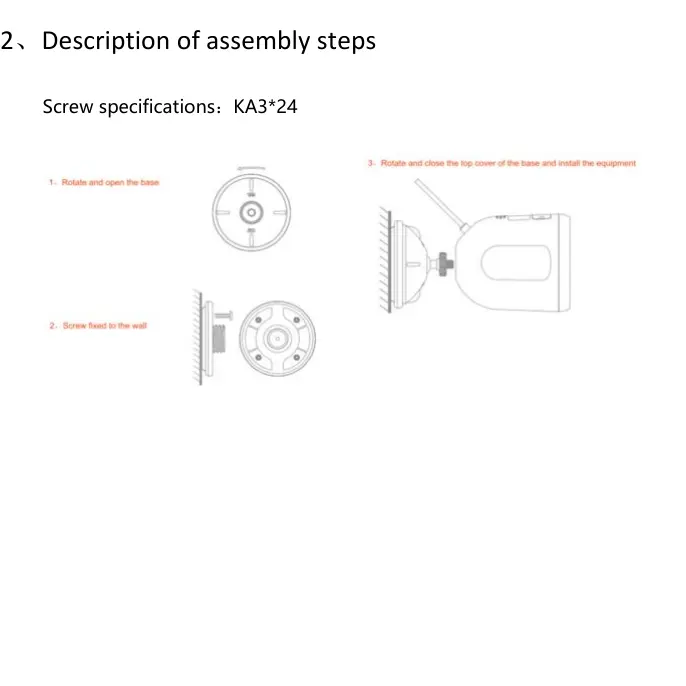

2、Description of assembly steps

 Screw specifications：KA3*24

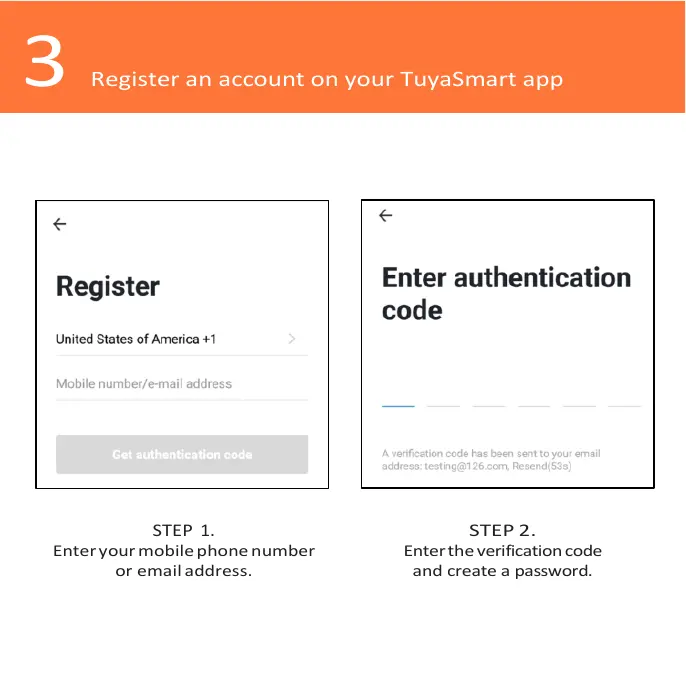

 3 Register an account on your TuyaSmart app

STEP 1.
Enter your mobile phone number
or email address.
STEP 2.
Enter the verification code
and create a password.

 3 Register an account on your TuyaSmart app

STEP 3.
Login to the App.

3 Plug in

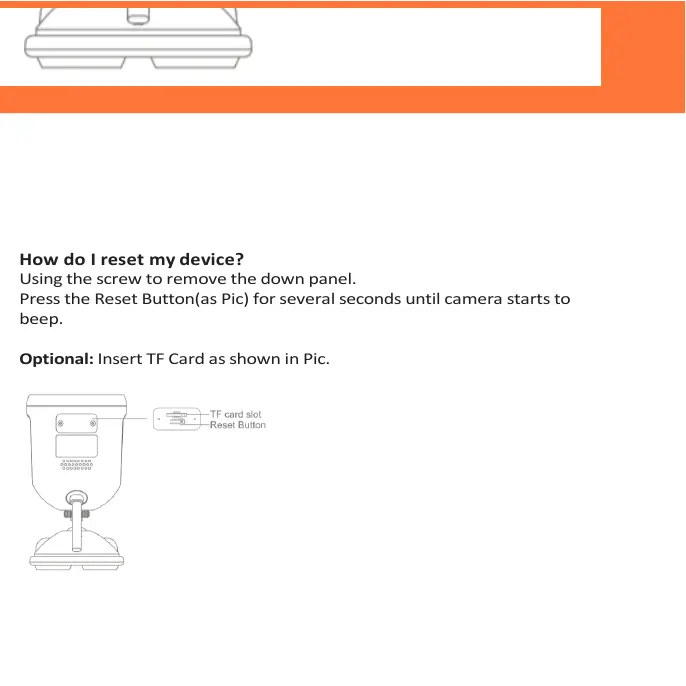

How do I reset my device?
Using the screw to remove the down panel.
Press the Reset Button(as Pic) for several seconds until camera starts to
beep.

Optional: Insert TF Card as shown in Pic.

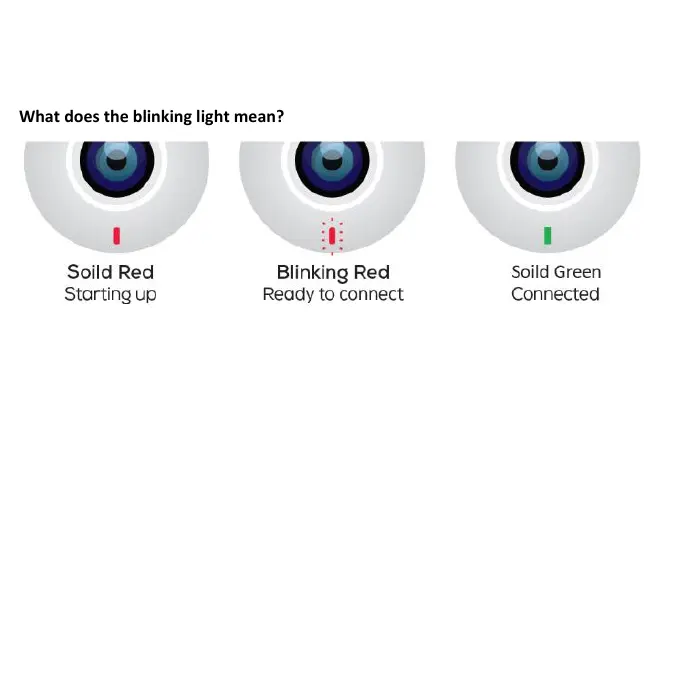

 What does the blinking light mean?

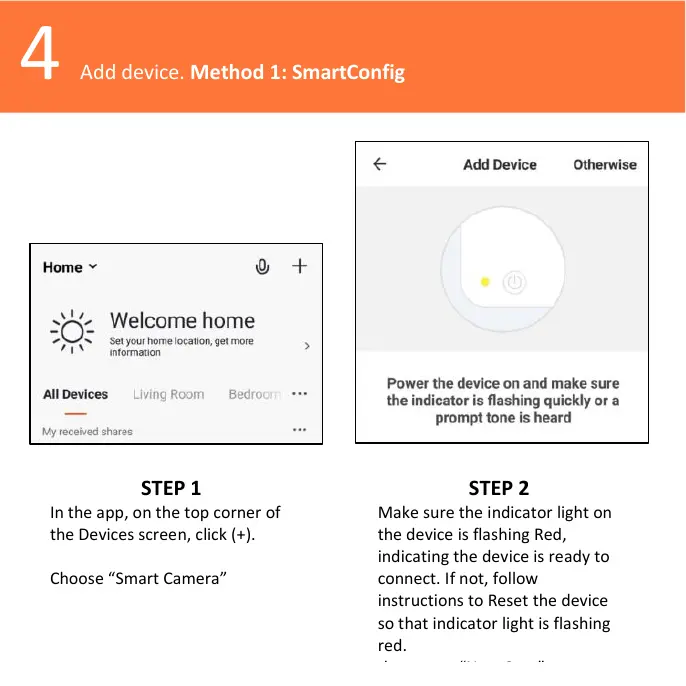

 4 Add device. Method 1: SmartConfig

STEP 1
In the app, on the top corner of
the Devices screen, click (+).

Choose “Smart Camera”
STEP 2
Make sure the indicator light on
the device is flashing Red,
indicating the device is ready to
connect. If not, follow
instructions to Reset the device
so that indicator light is flashing
red.
then press “Next Step”.
 4 Add device. Method 1: SmartConfig

STEP 3
Enter your Wi-Fi network and
password.

STEP 4
The app will try to connect your
device. During this time, the
camera will beep, start quickly
blinking Red, and then turn solid
Green.
*If the connection fails, try to connect directly using QR Code Mode.
Add device. Method 1: SmartConfig

 5 Add device. Method 2: QR code net-pairing

STEP 1
In the app, on the top corner of the
Devices screen, click (Otherwise)

STEP 2
Choose “QR code”

 5 Add device. Method 2: QR code net-pairing

STEP 3
Enter your Wi-Fi network and
password.

STEP 4
Scan the QR Code with
the camera.”

10

Frequently Asked Questions

1.Can I share with family and friends?
Yes, you can share your cameras with family and friends who will have
access to view the camera and control your bulbs, plugs, and other d e v i c e s.
In the app, press the Profile button and click on the “Device Sharing”
button, and you will be able to give or revoke sharing permissions. In
order to share, the other user should already have downloaded the app
and registered a new account.

2. What’s the Wireless Range?
The range of your home Wi-Fi is heavily dependent on your hom...
