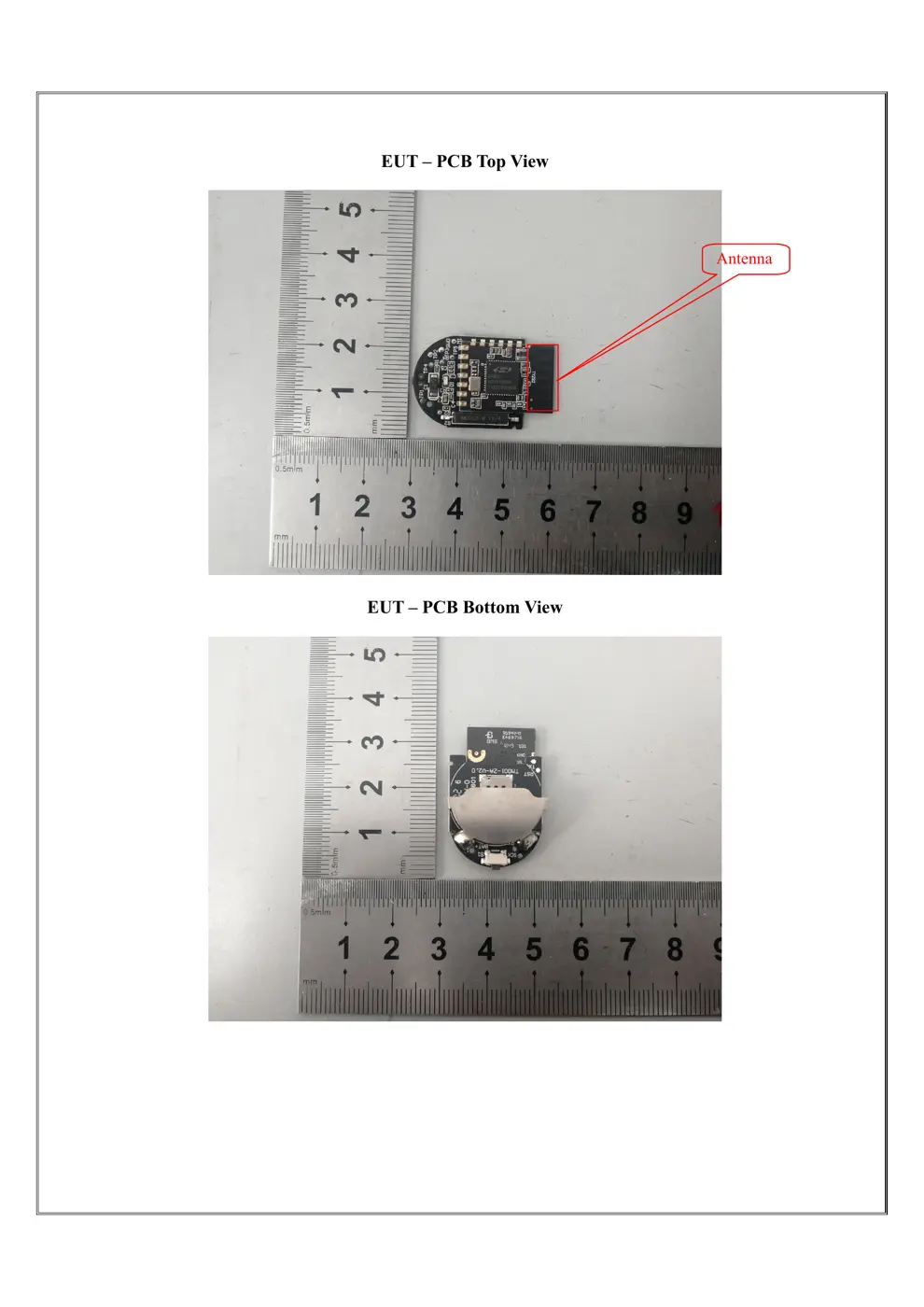

TM001ZA Reset & Teardown (FCC ID 2ANDL-TM001ZA)

Guidance for TM001-ZA Door and Window sensor Application
Product Specification for TM001-ZA
Door and Window sensor
1. Product Profile
1.1 Overview
As a low-cost product solution developed by Hangzhou Tuya Information Technology
Co., Ltd. based on the Zigbee module (TYZS2), the TM001-ZA Door and Window sensor
can help clients realize mass production in a short time.
1.2 Application Framework
2. Pr
oduct Specification
2.1 Basic Parameters
Name: Door and Window sensor
 Mode
l: TM001-ZA
 Supported mobile phone operating systems: Android 4.4+; iOS 8.0+
 Battery type: 3V CR2032
 Magnet material: N38
1 / 5
Guidance for TM001-ZA Door and Window sensor Application
2.2 Technical Indexes
Item Parameter
Transport protocol: ZigBee
Wireless frequency: 2.4 GHz
Working voltage: 3.0 V
Detection range: Opening and closing of the door/window at a fixed position
Working current (reported): 5 mA on average (Zigbee)
Standby current: <3 uA

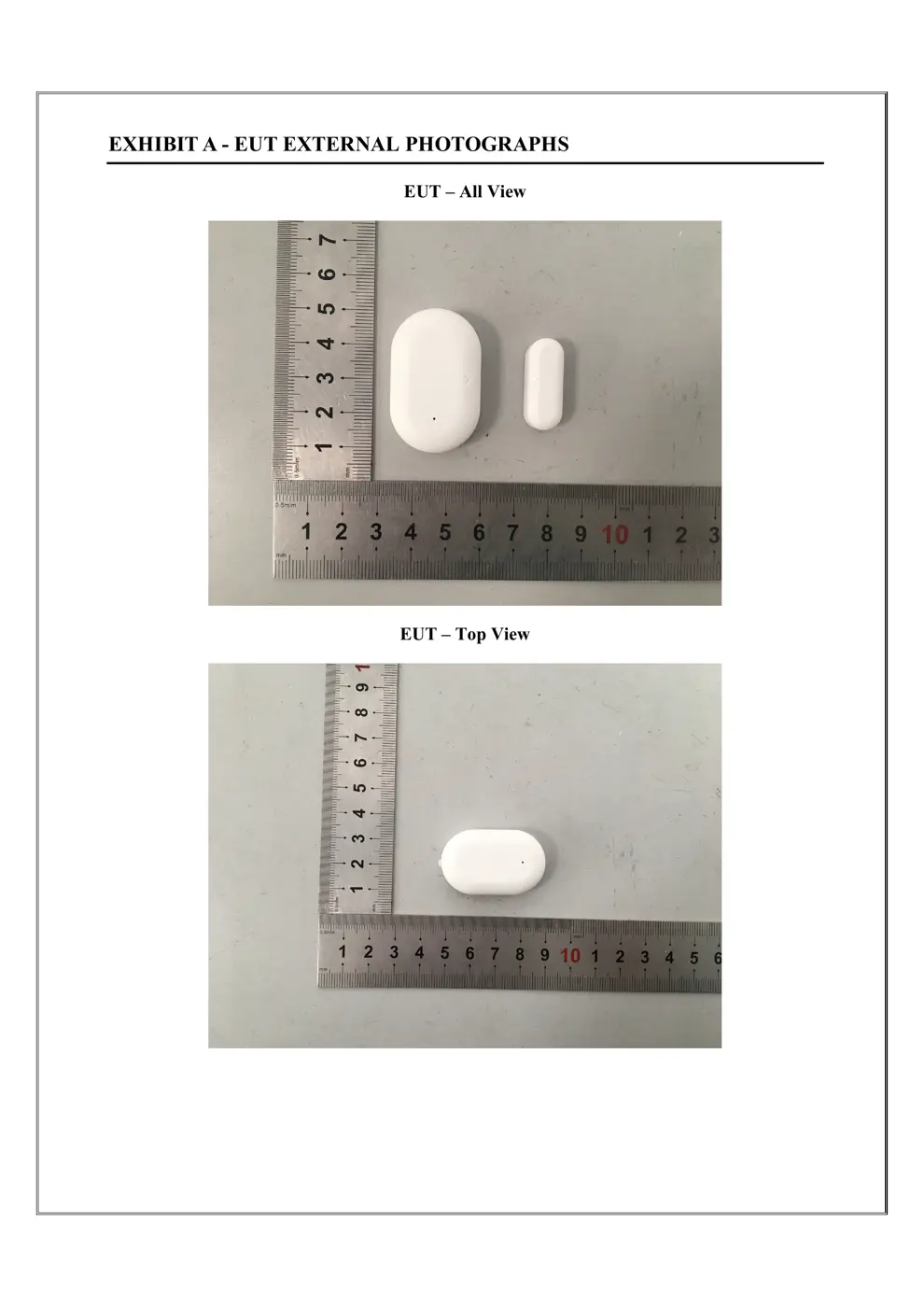

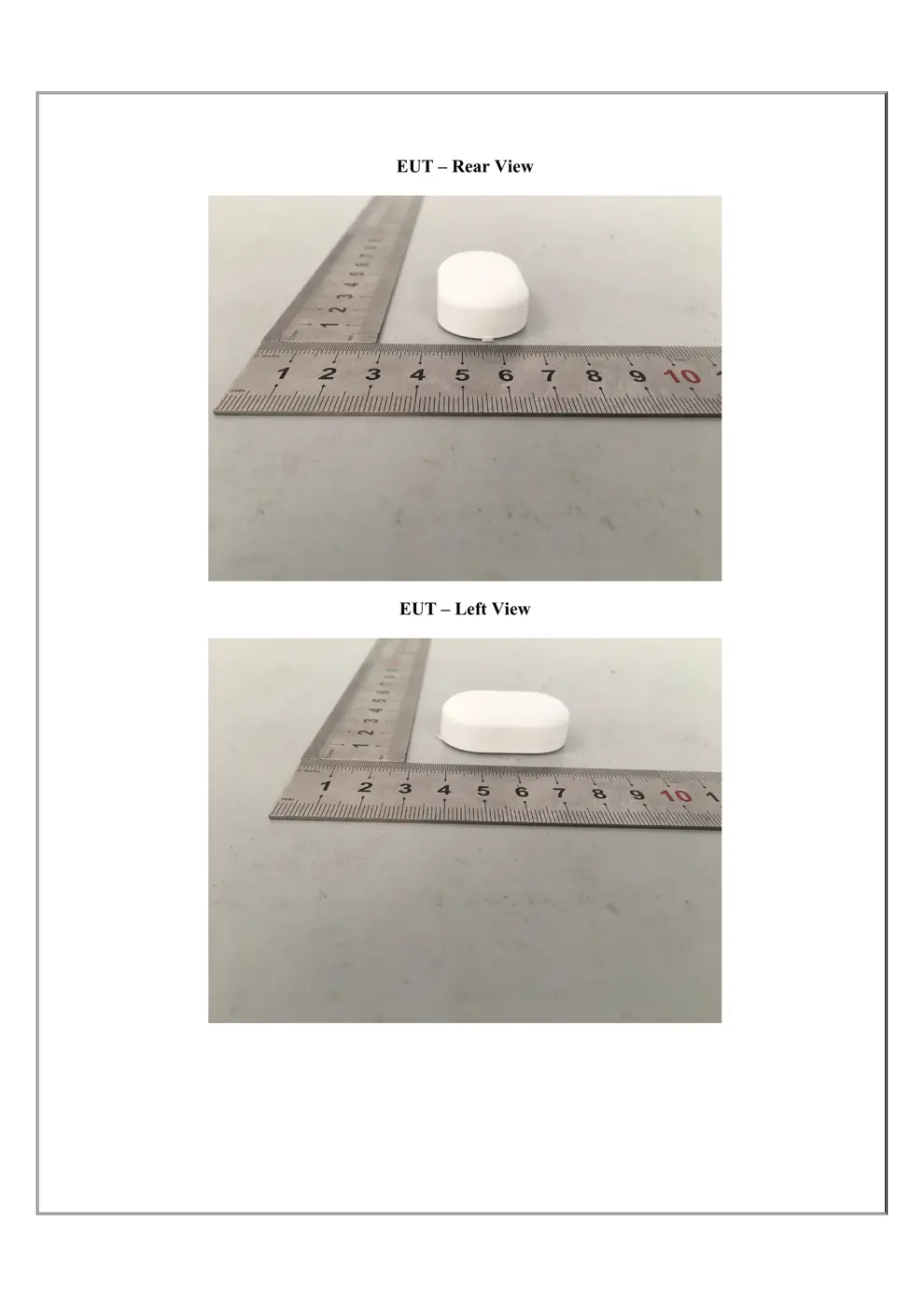

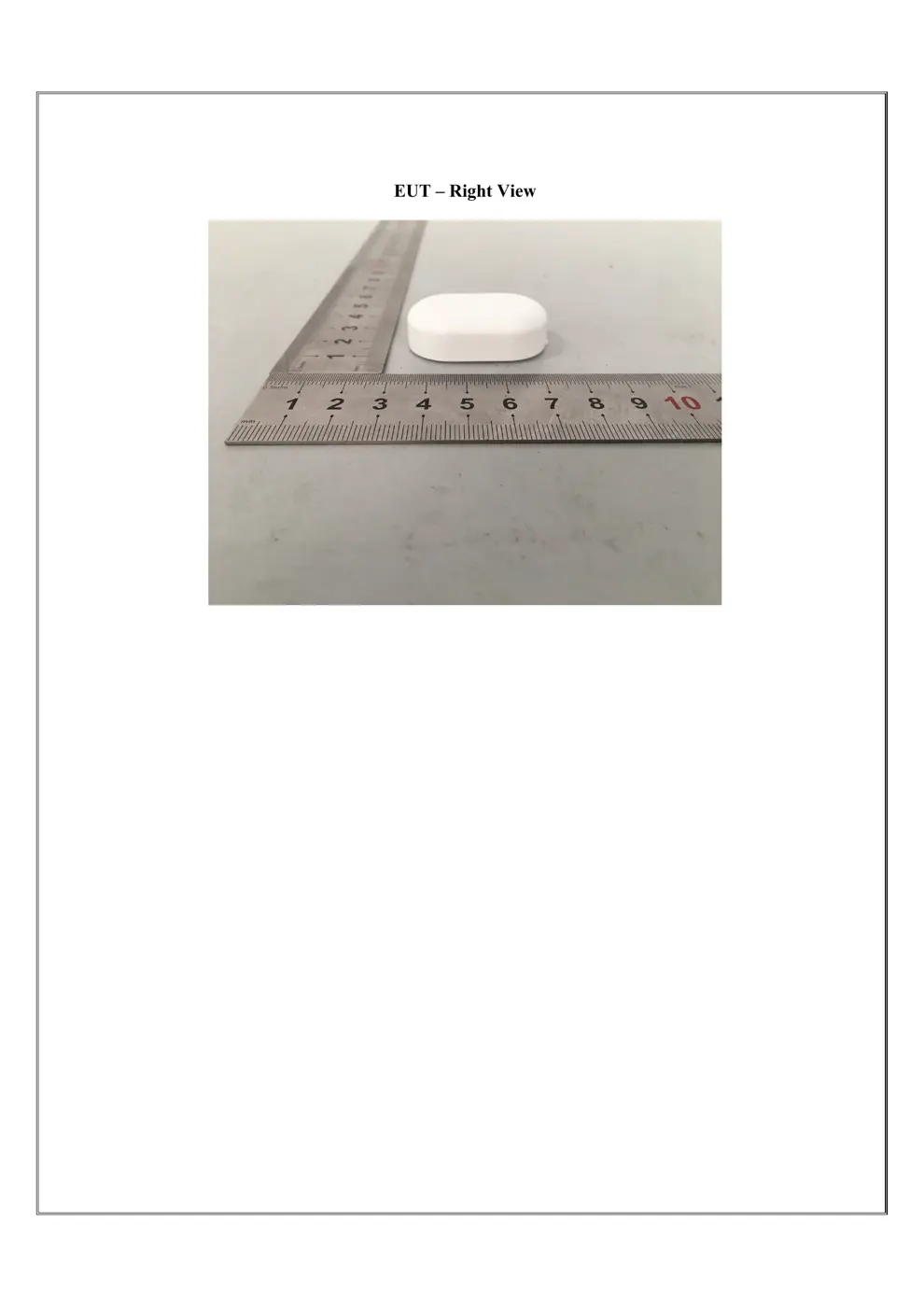

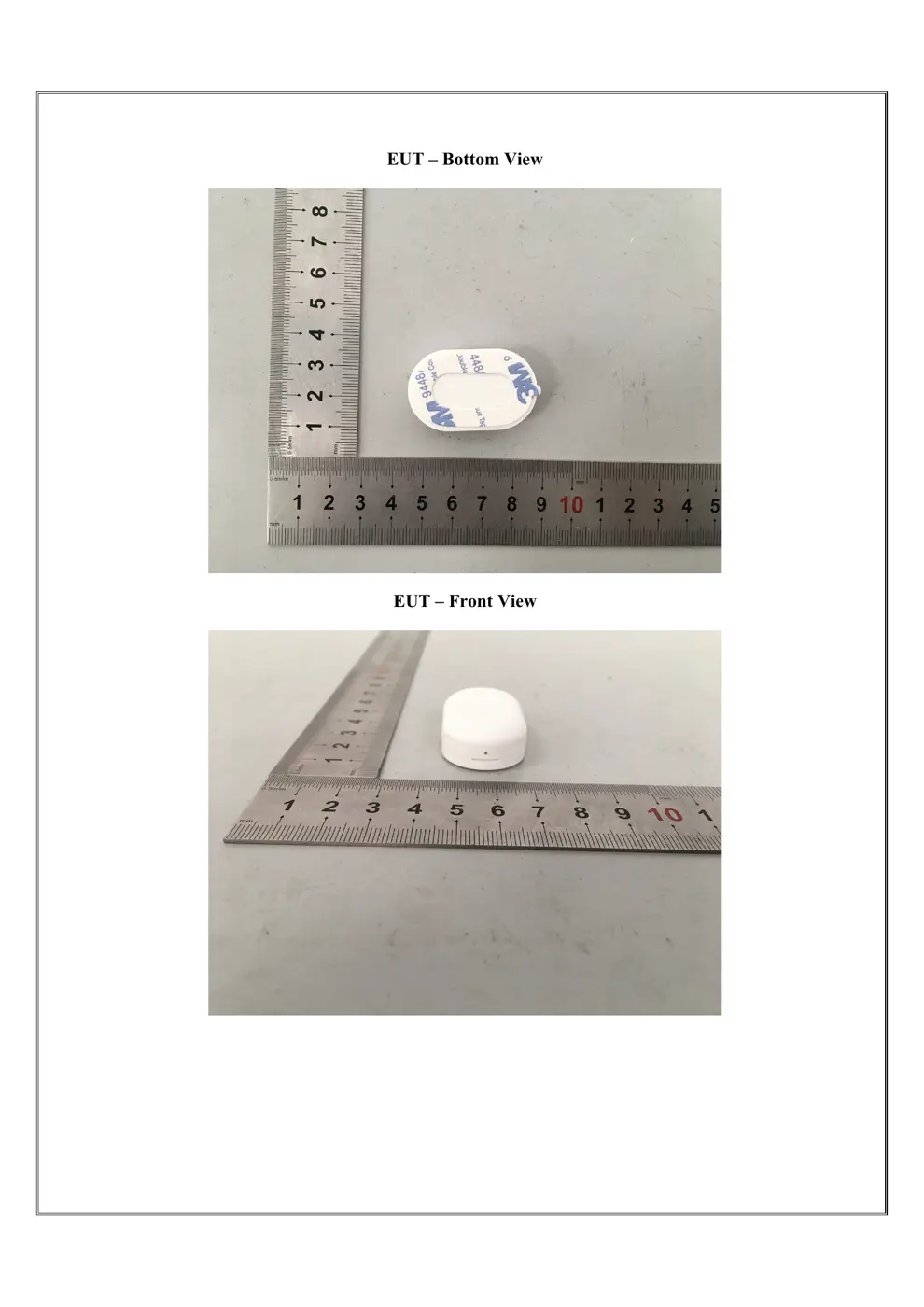

2.3 Appearance
2 / 5
Guidance for TM001-ZA Door and Window sensor Application

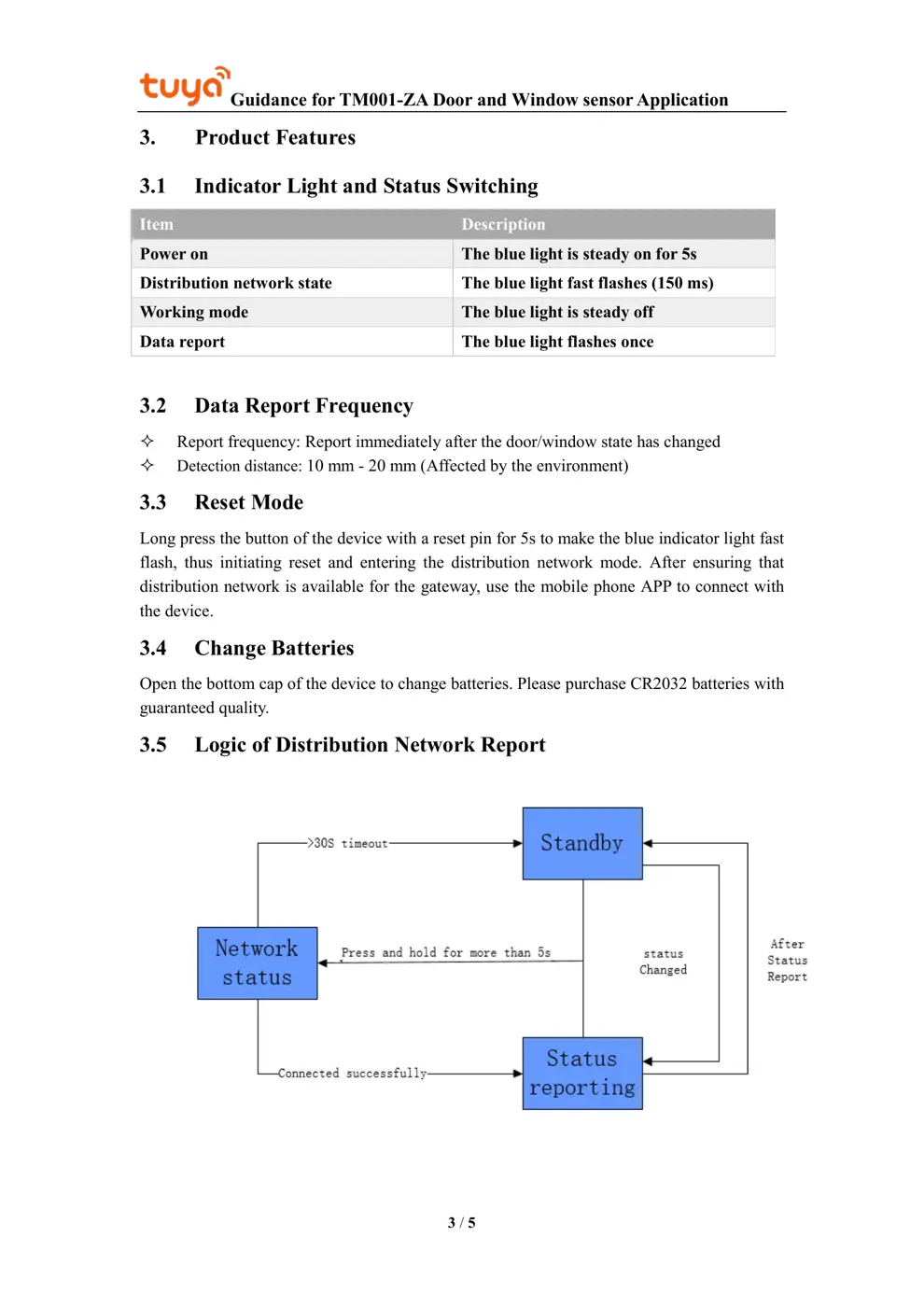

3. Product Features
3.1 Indicator Light and Status Switching
Item Description
Power on The blue light is steady on for 5s
Distribution network state The blue light fast flashes (150 ms)
Working mode The blue light is steady off
Data report The blue light flashes once
3.2 Data Report Frequency
 Report frequency: Report immediately after the door/window state has changed
 Detection distance: 10 mm - 20 mm (Affected by the environment)
3.3 Reset Mode
Long press the button of the device with a reset pin for 5s to make the blue indicator light fast
flash, thus initiating reset and entering the distribution network mode. After ensuring that
distribution network is available for the gateway, use the mobile phone APP to connect with
the device.

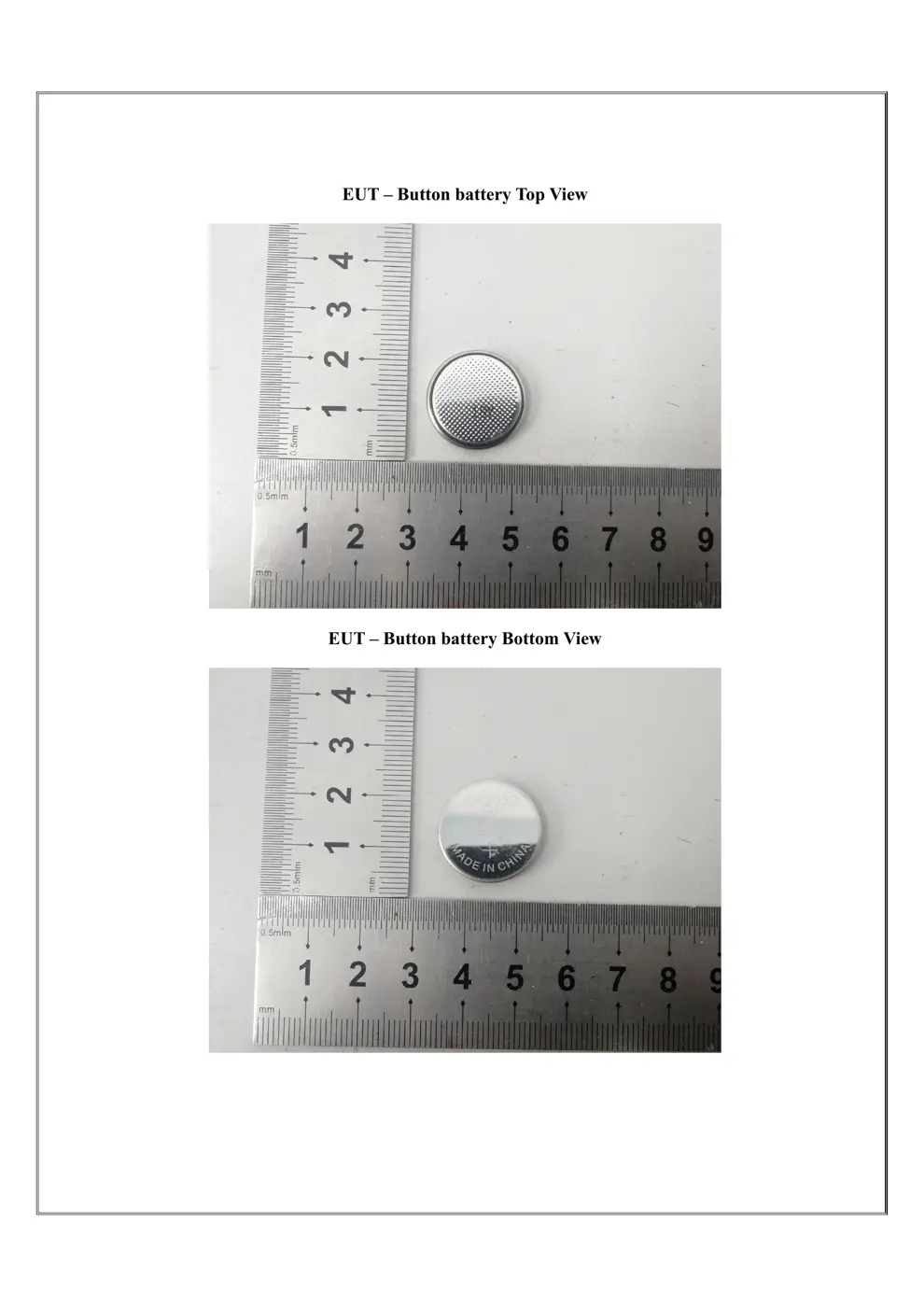

3.4 Change Batteries
Open the bottom cap of the device to change batteries. Please purchase CR2032 batteries with
guaranteed quality.
3.5 Logic of Distribution Network Report
3 / 5
Guidance for TM001-ZA Door and Window sensor Application

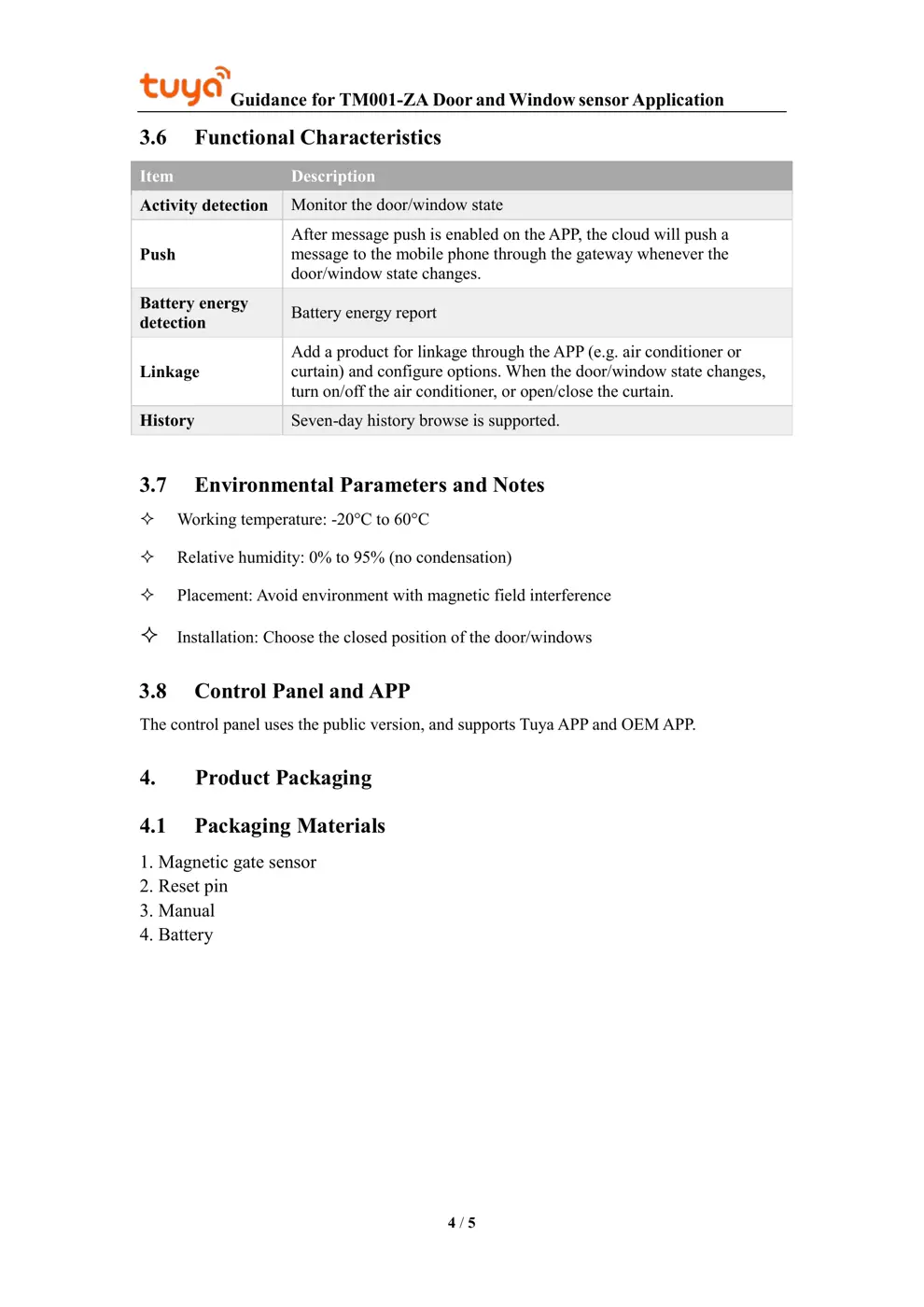

3.6 Functional Characteristics
Item Description
Activity detection Monitor the door/window state
Push
After message push is enabled on the APP, the cloud will push a
message to the mobile phone through the gateway whenever the
door/window state changes.
Battery energy
detection Battery energy report
Linkage
Add a product for linkage through the APP (e.g. air conditioner or
curtain) and configure options. When the door/window state changes,
turn on/off the air conditioner, or open/close the curtain.
History Seven-day history browse is supported.
3.7 Environmental Parameters and Notes
 Working temperature: -20°C to 60°C
 Relative humidity: 0% to 95% (no condensation)
 Placement: Avoid environment with magnetic field interference
 Installation: Choose the closed position of the door/windows
3
.8 Control Panel and APP
The control panel uses the public version, and supports Tuya APP and OEM APP.
