Guidance for TT001-ZA T&H sensor Application

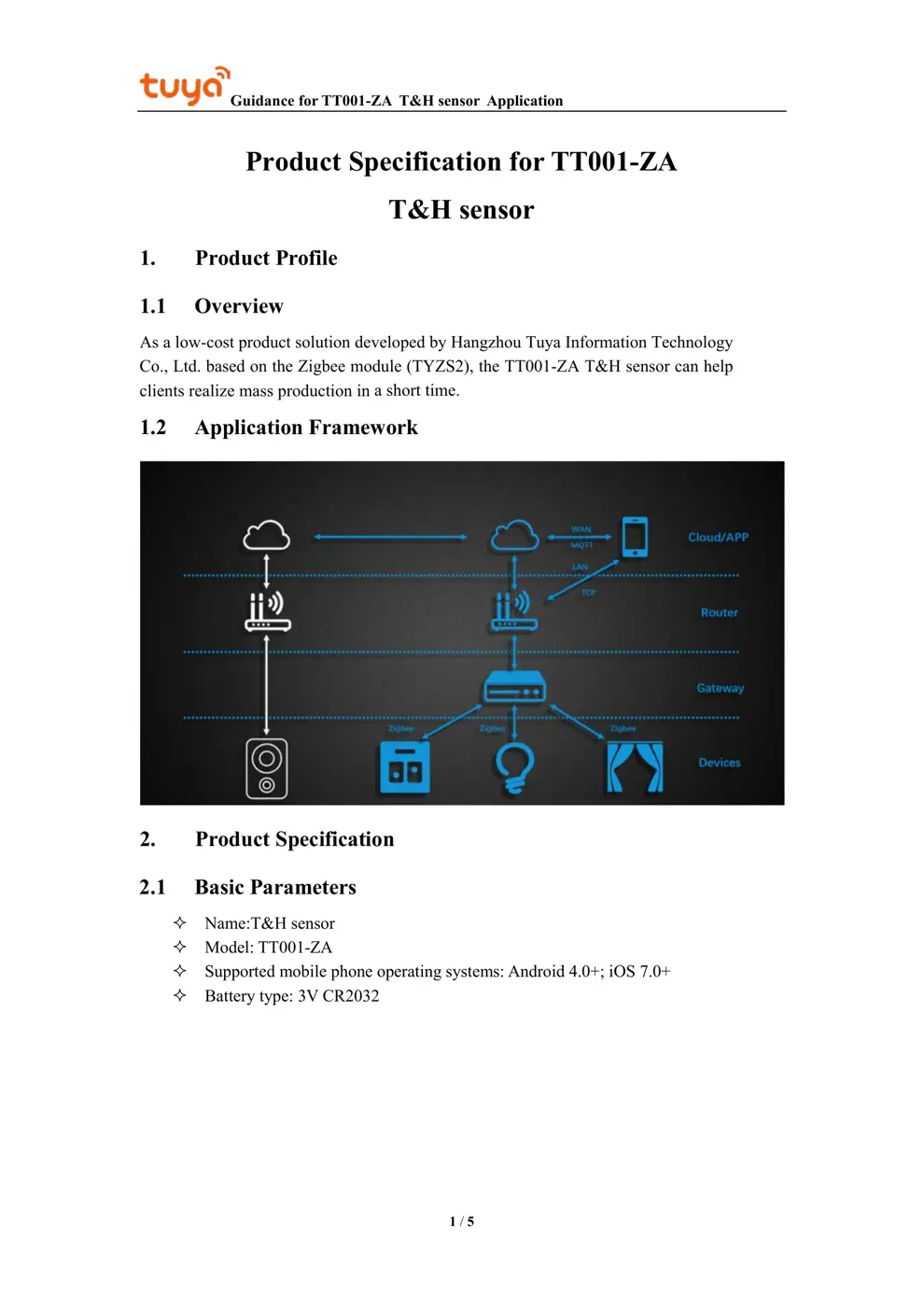

Product Specification for TT001-ZA
T&H
sensor
1. Product Profile
1.1 Overview
As a low-cost product solution developed by Hangzhou Tuya Information Technology
Co., Ltd. based on the Zigbee module (TYZS2), the TT001-ZA T&H sensor can help
clients realize mass production in a short time.
1.2 Application Framework
2. Product Specification
2.1 Basic Parameters
Name:T&H sensor
 Mode
l: TT001-ZA
 Supported mobile phone operating systems: Android 4.0+; iOS 7.0+
 Battery type: 3V CR2032
1 / 5
Guidance for TT001-ZA T&H sensor Application
2.2 Technical Indexes
Item Parameter
Transport protocol: Zigbee
Wireless frequency: 2.4 GHz
Working voltage: 3.0V
Detection range: Ambient temperature and humidity
Working current (reported): 5 mA on average (Zigbee)
Standby current: <3 uA
Battery life: More than 12 months (calculated by 210 mAh battery)
Application scope: Indoor use
Installation: Paste
Transport distance:
Indoor: 10 m - 30 m, outdoor: 30 m - 50 m
(It is for reference only, because parameters may vary
with different application environment and transport
modes.)
Battery model: CR2032
Physical switch: One
Indicator light: One
2.3 Appearance
2 / 5
Guidance for TT001-ZA T&H sensor Application

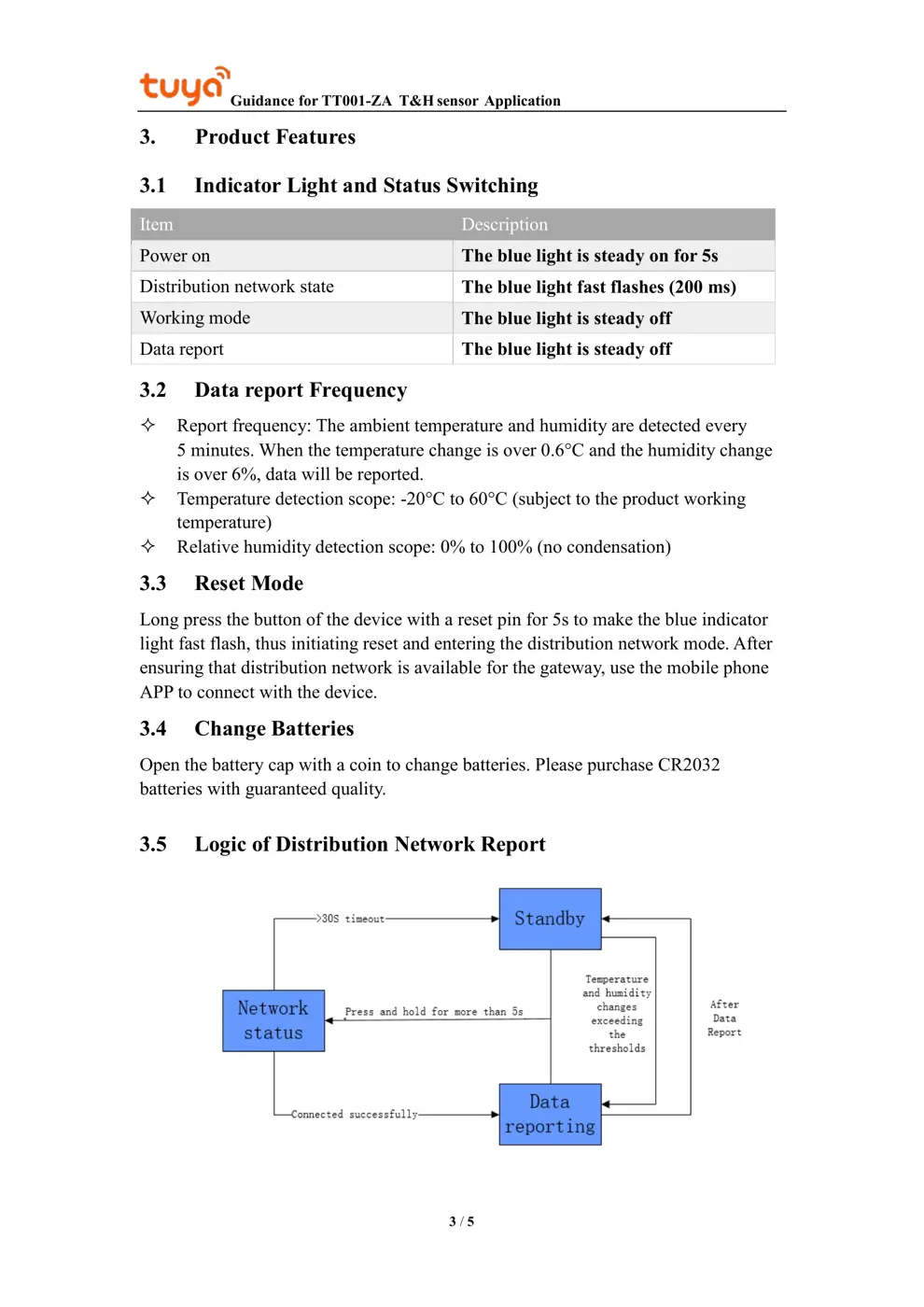

3. Product Features
3.1 Indicator Light and Status Switching
Item Description
Power on The blue light is steady on for 5s
Distribution network state The blue light fast flashes (200 ms)
Working mode The blue light is steady off
Data report The blue light is steady off
3.2 Data report Frequency
 Report frequency: The ambient temperature and humidity are detected every
5 minutes. When the temperature change is over 0.6°C and the humidity change
is over 6%, data will be reported.
 Temperature detection scope: -20°C to 60°C (subject to the product working
temperature)
 Relative humidity detection scope: 0% to 100% (no condensation)
3.3 Reset Mode
Long press the button of the device with a reset pin for 5s to make the blue indicator
light fast flash, thus initiating reset and entering the distribution network mode. After
ensuring that distribution network is available for the gateway, use the mobile phone
APP to connect with the device.
3.4 Change Batteries
Open the battery cap with a coin to change batteries. Please purchase CR2032
batteries with guaranteed quality.
3.5 Logic of Distribution Network Report
3 / 5
Guidance for TT001-ZA T&H sensor Application

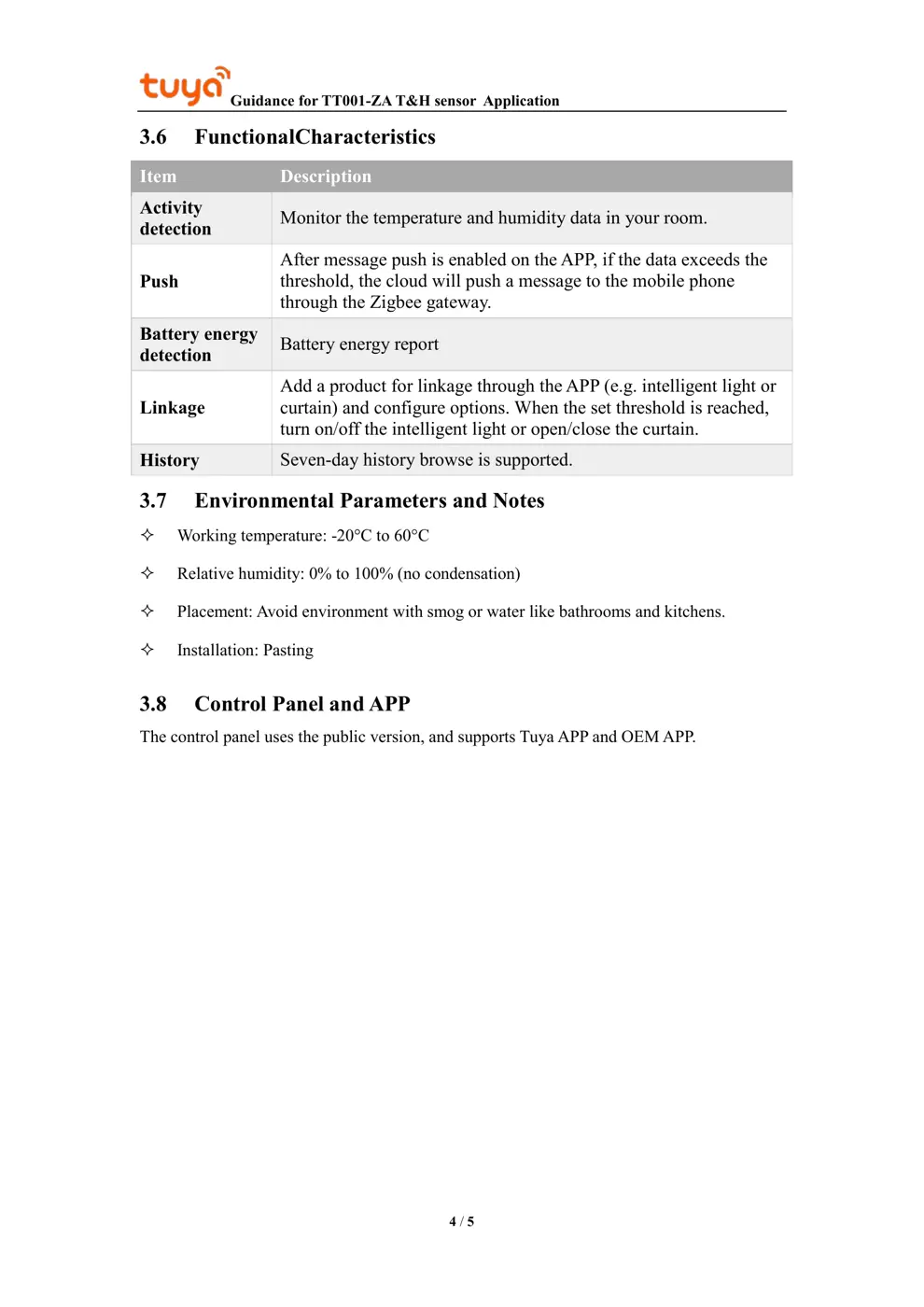

3.6 FunctionalCharacteristics
Item Description
Activity
detection Monitor the temperature and humidity data in your room.
Push
After message push is enabled on the APP, if the data exceeds the
threshold, the cloud will push a message to the mobile phone
through the Zigbee gateway.
Battery energy
detection Battery energy report
Linkage
Add a product for linkage through the APP (e.g. intelligent light or
curtain) and configure options. When the set threshold is reached,
turn on/off the intelligent light or open/clos...
