TYBT2 Reset & Teardown (FCC ID 2ANDL-TYBT2)
Factory reset and internal photos for Tuya Global TYBT2. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global TYBT2, check what's inside.
The TYBT2 is a Bluetooth Low Energy (BLE) module designed by Tuya for integration into smart devices. It facilitates wireless communication for various smart home applications within the Tuya/Smart Life ecosystem.
⚠️ NOTE: Ensure correct battery polarity when installing.
Quick Specs
- Manufacturer: Tuya Global
- Model: TYBT2
- Protocol: Bluetooth
- Chipset: Tuya BLE
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: Tuya BLE Chipset (Specific model unknown from provided data)
- Flashable: ❌ No
- Info: Proprietary Tuya BLE module, not designed for third-party firmware flashing.
User Manual
Scanned pages from the official user manual:

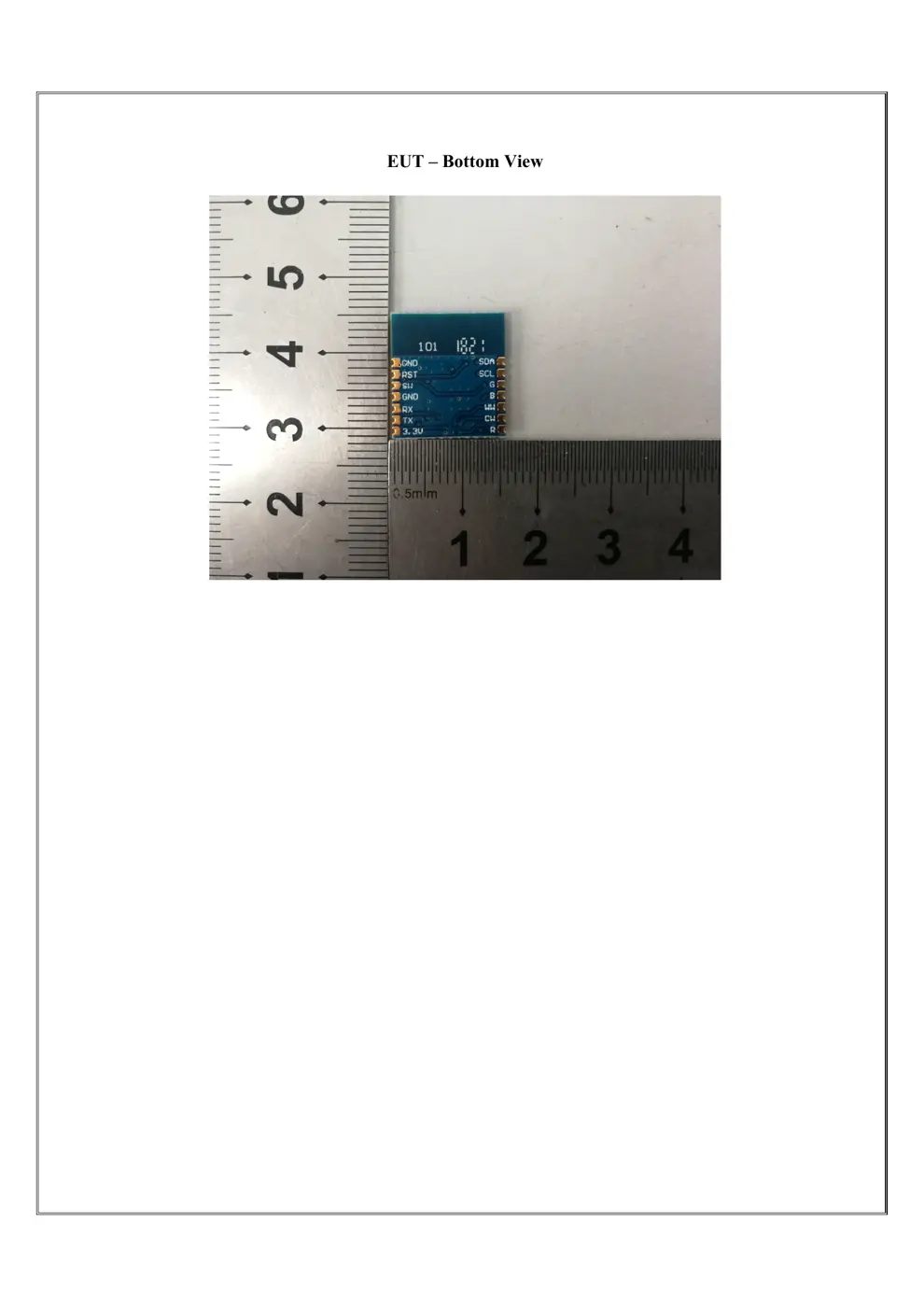

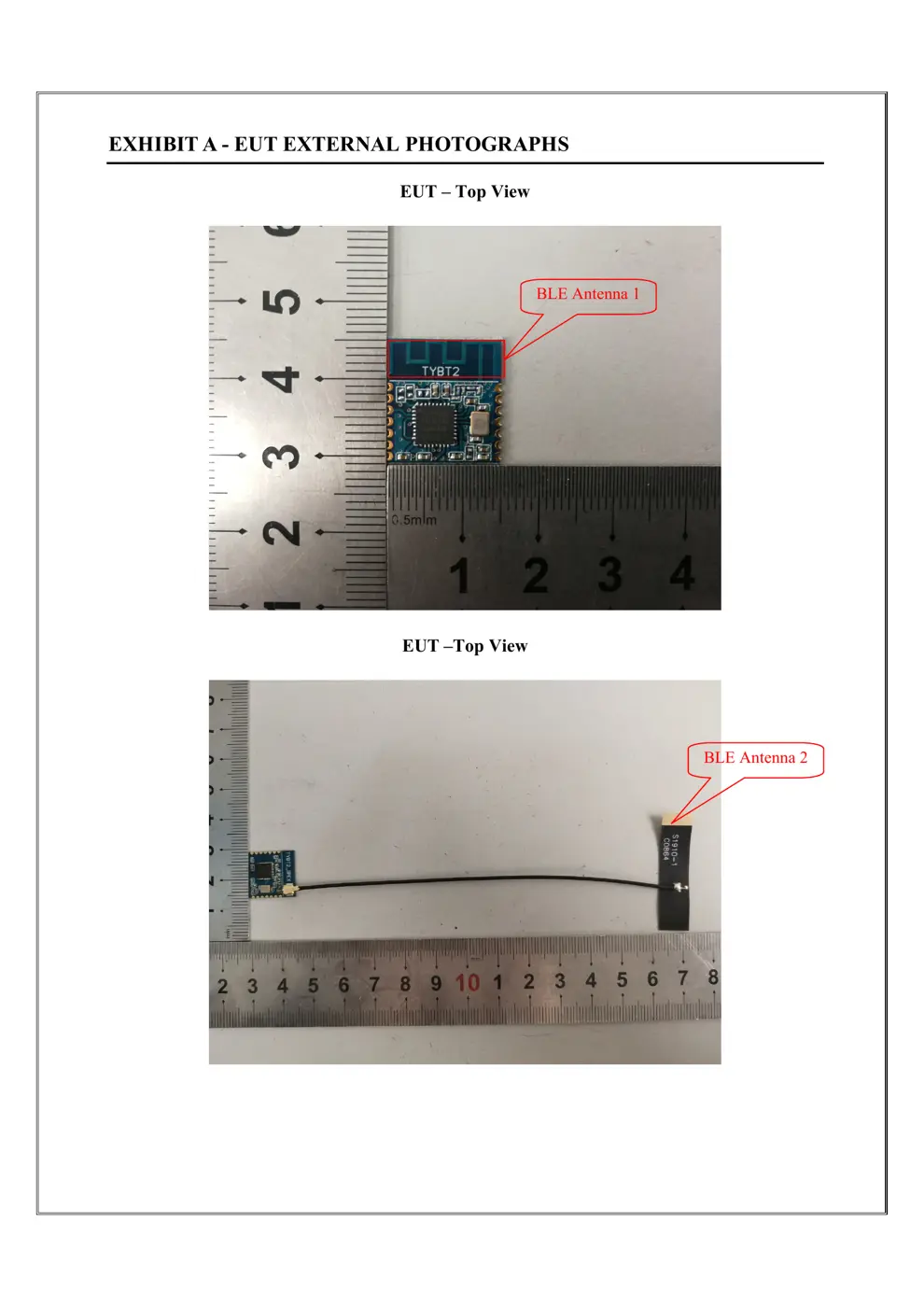

External Photos
Photos of the device exterior:

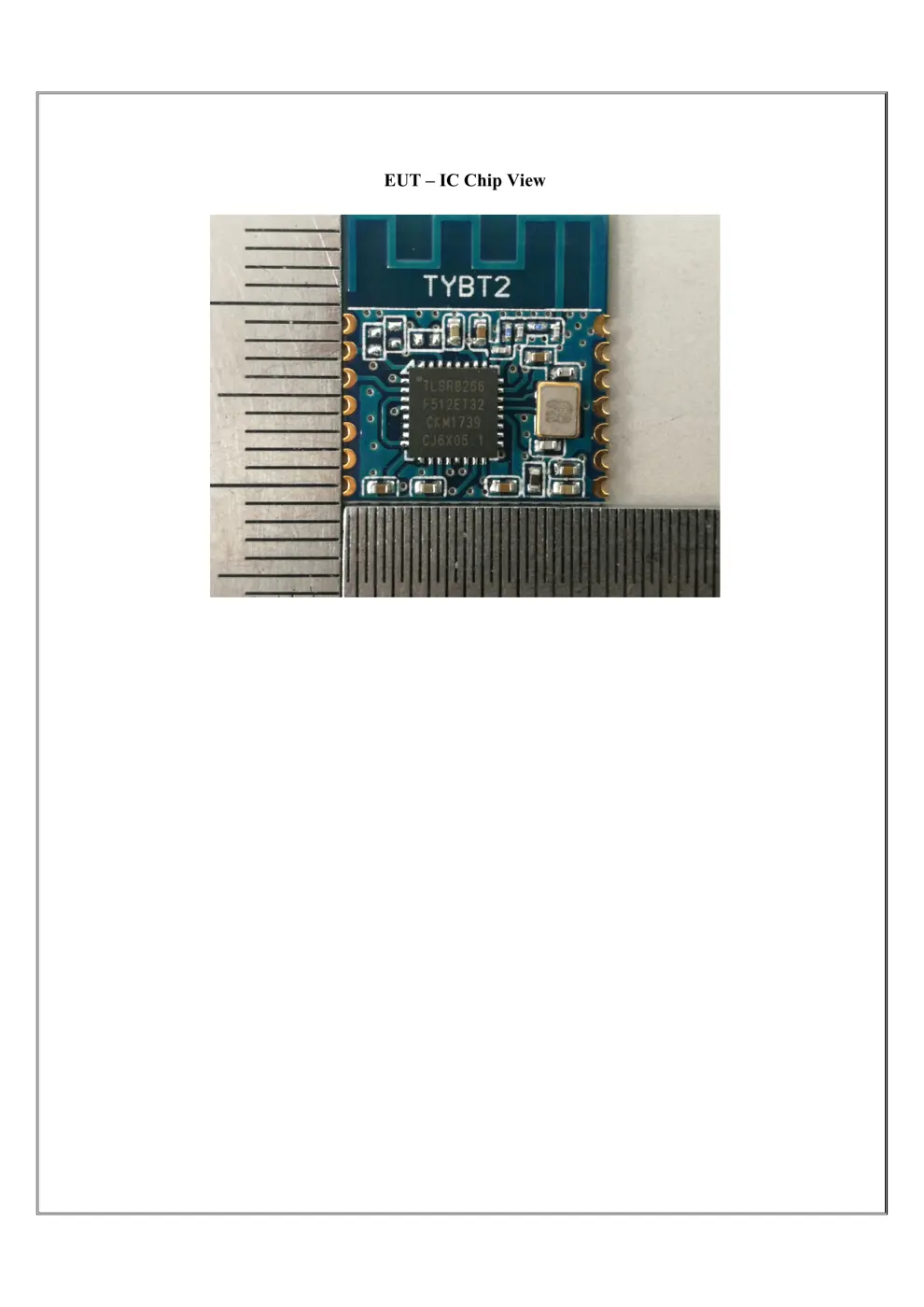

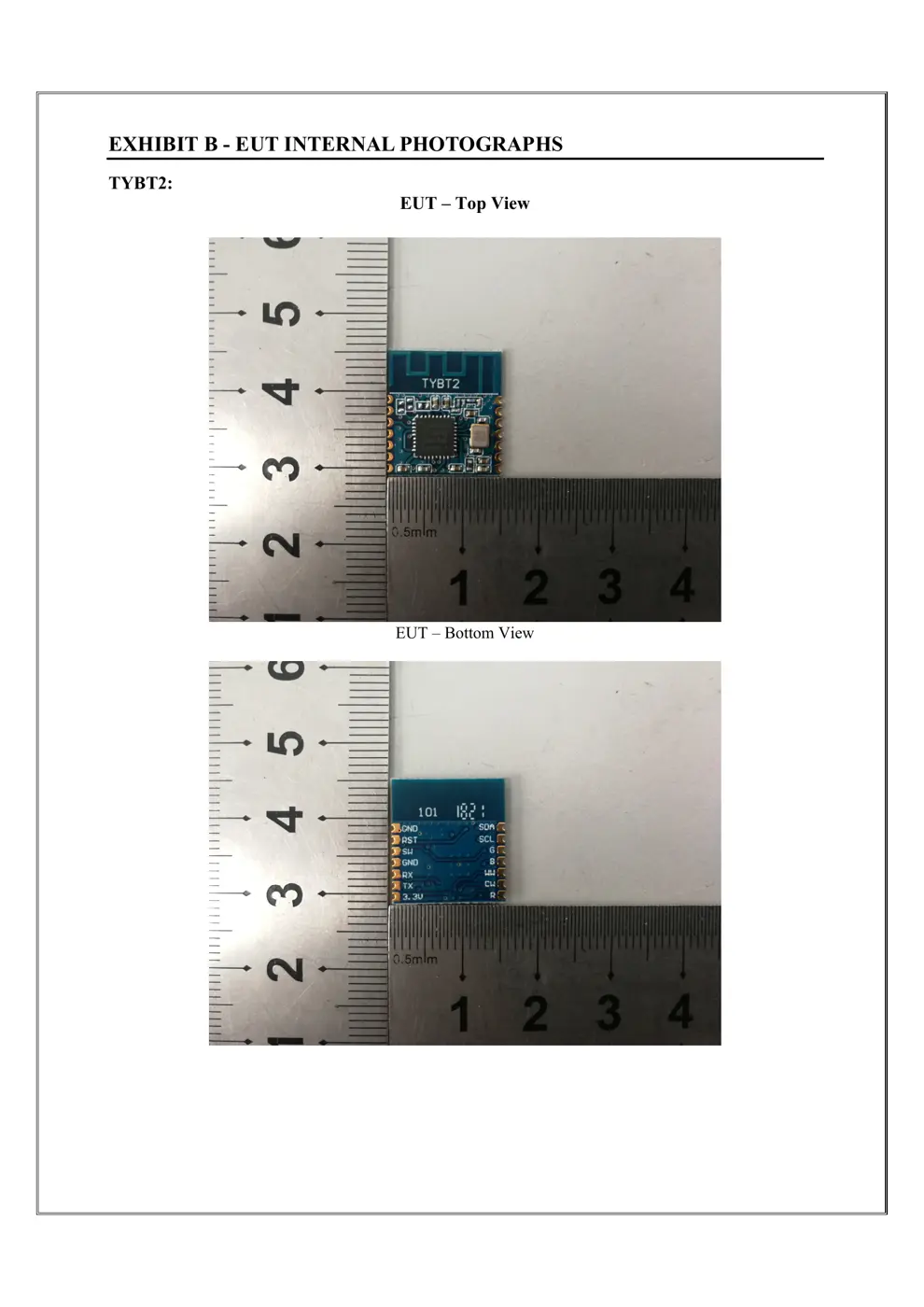

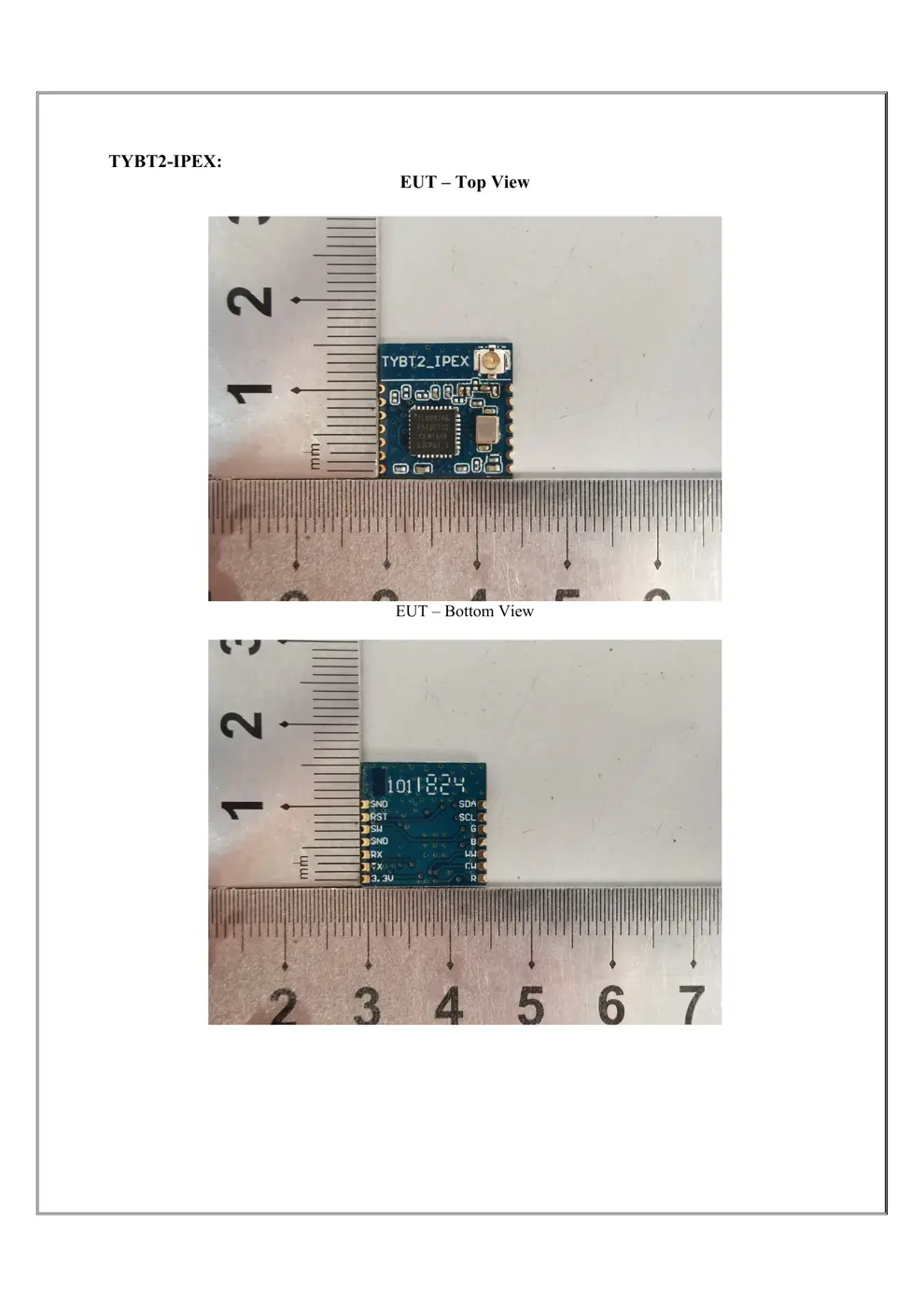

Internal Photos
Teardown photos showing the PCB and components:
Verdict
The TYBT2 is a Bluetooth device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
TYBT2 ,TYBT2-IPEX UserManual
Version1.0.01

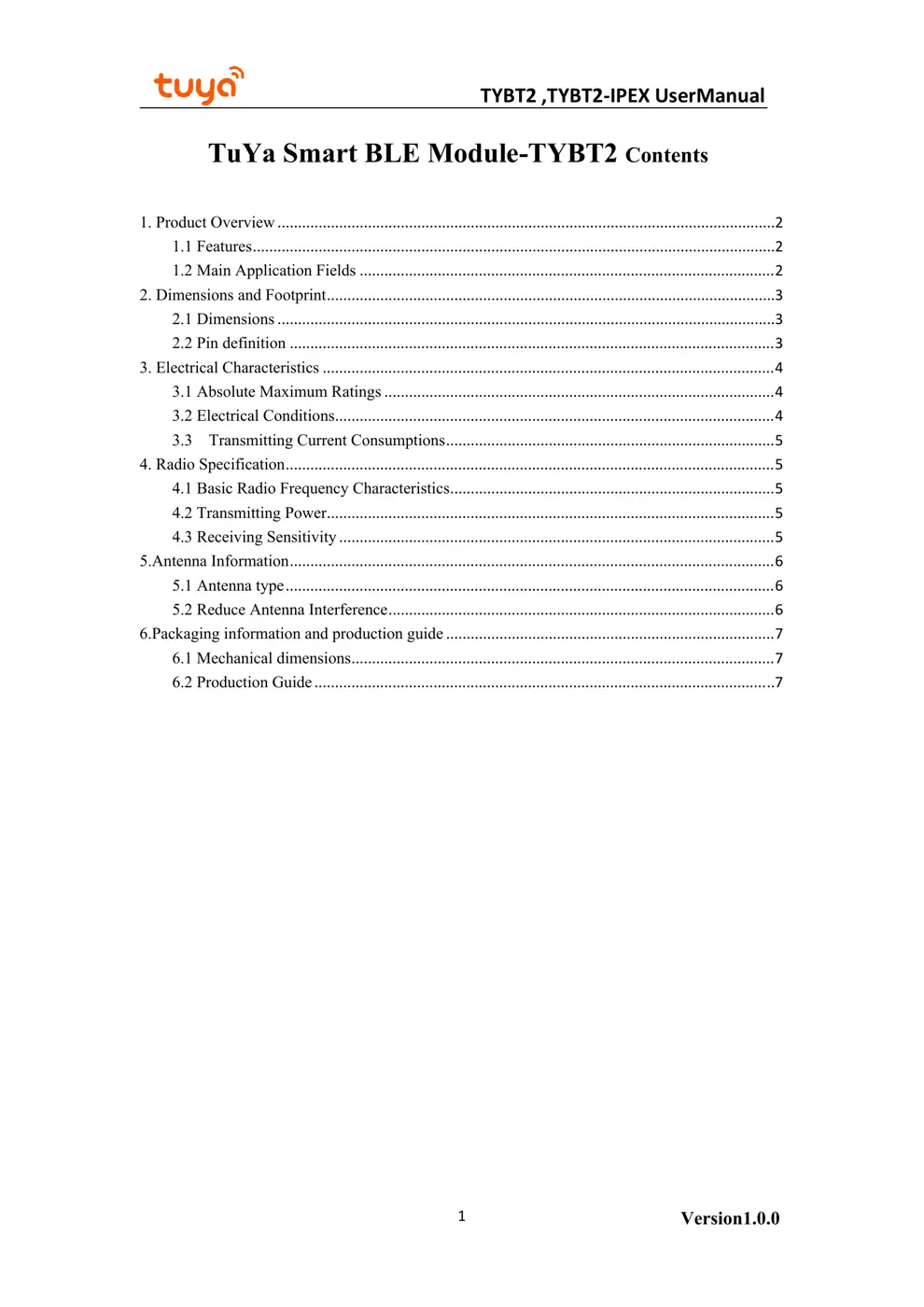

TuYa Smart BLE Module-TYBT2 Contents
1. Product Overview .........................................................................................................................2
1.1 Features ...............................................................................................................................2
1.2 Main Application Fields .....................................................................................................2
2. Dimensions and Footprint .............................................................................................................3

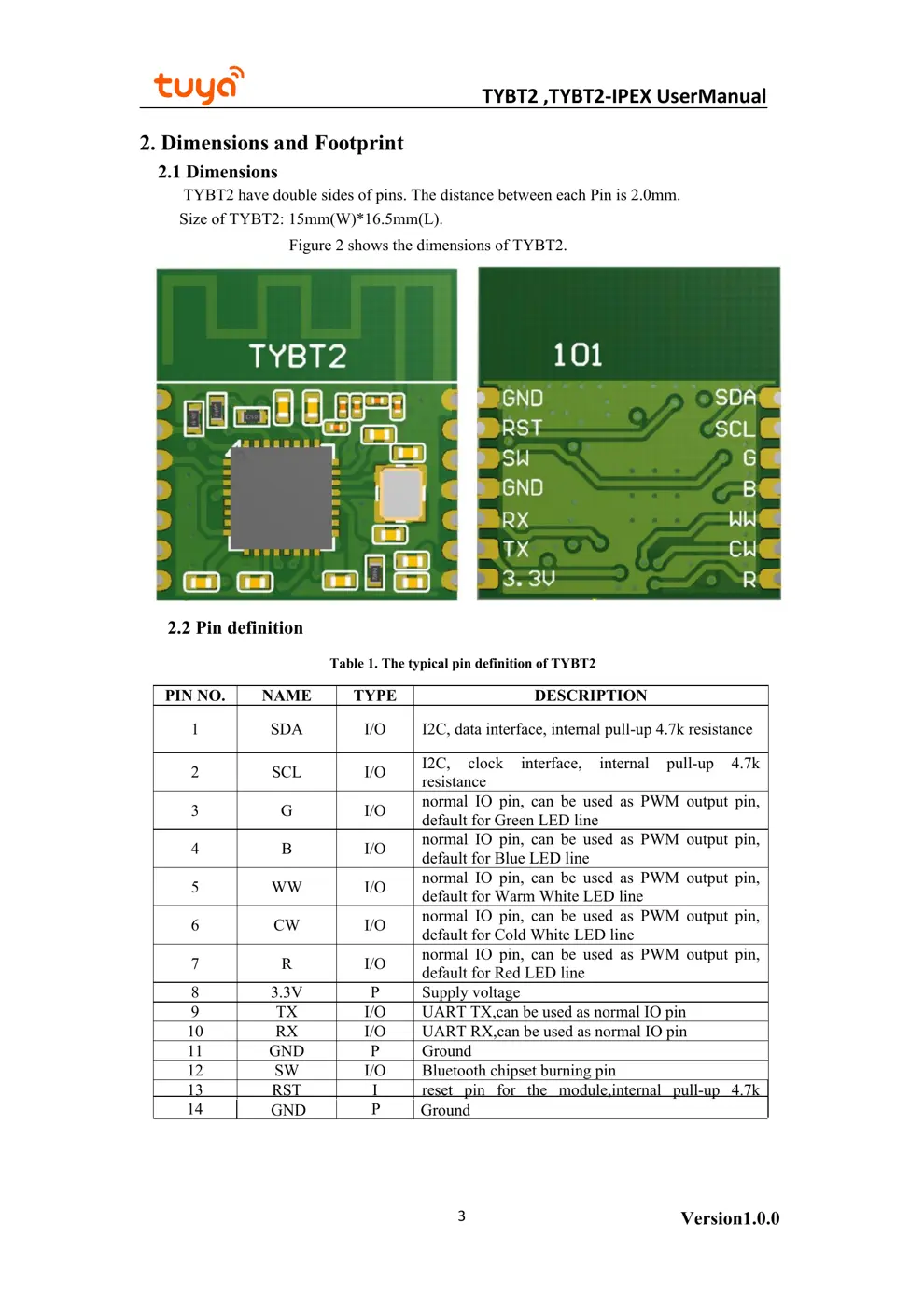

2.1 Dimensions .........................................................................................................................3
2.2 Pin definition ......................................................................................................................3
3. Electrical Characteristics ..............................................................................................................4

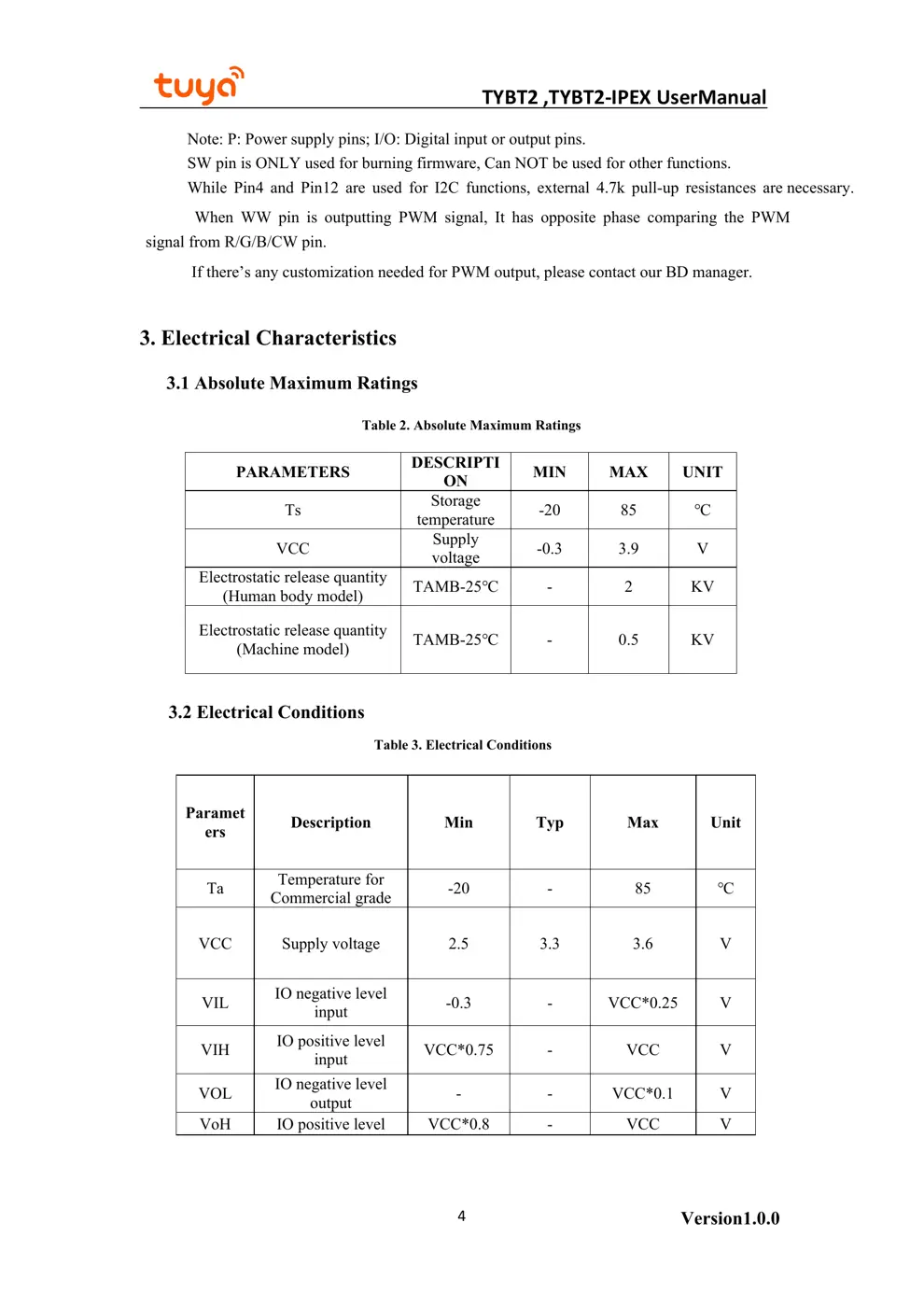

3.1 Absolute Maximum Ratings ...............................................................................................4
3.2 Electrical Conditions ...........................................................................................................4
3.3 Transmitting Current Consumptions ................................................................................5

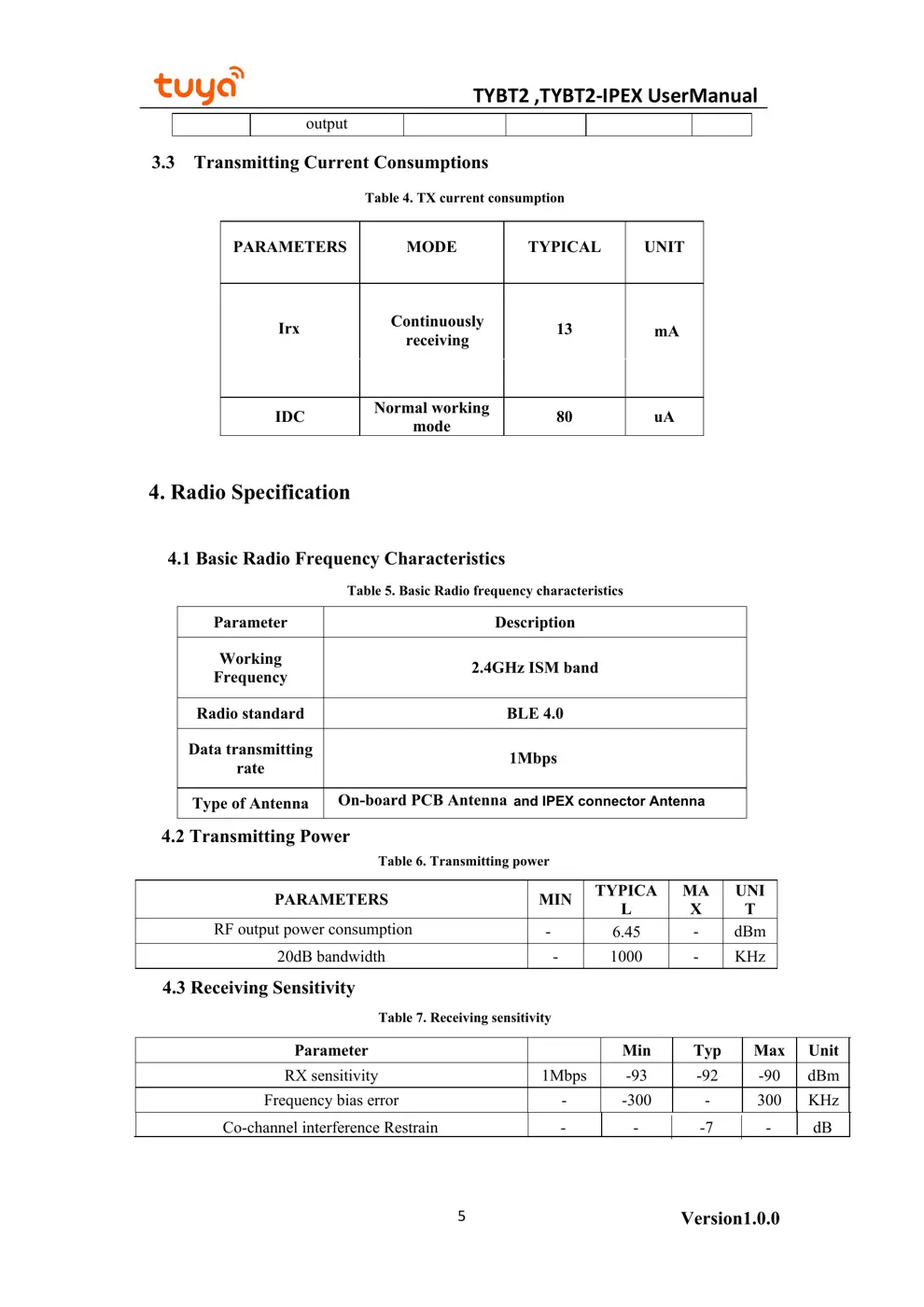

4. Radio Specification .......................................................................................................................5
4.1 Basic Radio Frequency Characteristics ...............................................................................5
4.2 Transmitting Power .............................................................................................................5
4.3 Receiving Sensitivity ..........................................................................................................5
5.Antenna Information ......................................................................................................................6
5.1 Antenna type .......................................................................................................................6
5.2 Reduce Antenna Interference ..............................................................................................6
6.Packaging information and production guide ................................................................................7

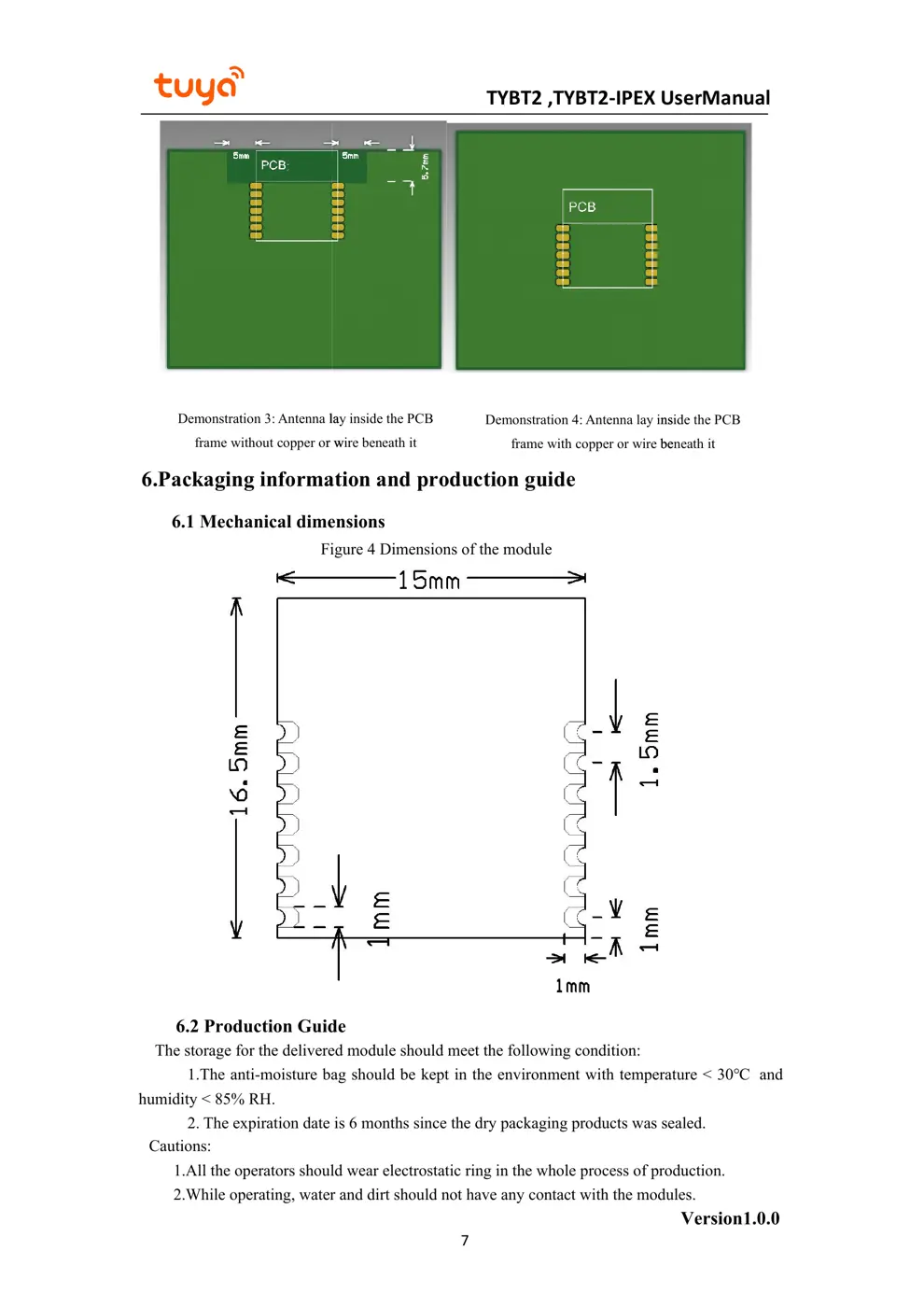

6.1 Mechanical dimensions .......................................................................................................7
6.2 Production Guide ................................................................................................................7
TYBT2 ,TYBT2-IPEX UserManual
Version1.0.02

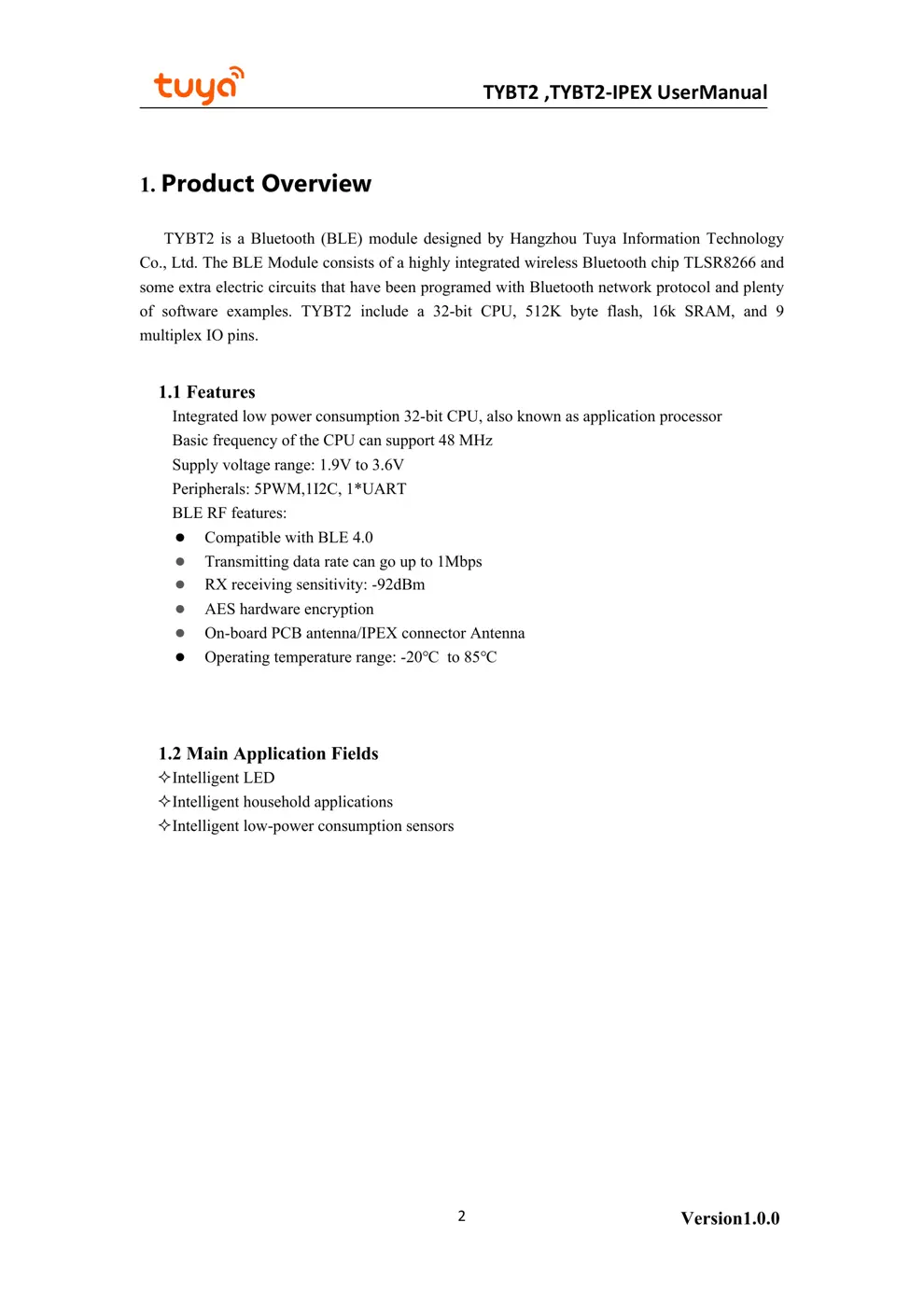

1. Product Overview
TYBT2 is a Bluetooth (BLE) module designed by Hangzhou Tuya Information Technology
Co., Ltd. The BLE Module consists of a highly integrated wireless ...
