TYBT3 Reset & Teardown (FCC ID 2ANDL-TYBT3)

Before you buy the Tuya Global TYBT3, check what's inside.

The Tuya TYBT3 is a compact Bluetooth Low Energy (BLE) module featuring the TLSR8267 chipset. It is designed for low-power applications such as smart sensors and LED controllers within the Tuya/Smart Life ecosystem.

⚠️ NOTE: Ensure correct battery polarity and voltage range (1.9V to 3.6V).

Quick Specs

Manufacturer: Tuya Global
Model: TYBT3
Protocol: Bluetooth
Chipset: Tuya BLE
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: TLSR8267
Flashable: ❌ No
Info: Firmware is BLE Only and the SW pin is exclusively for factory burning.

User Manual

Scanned pages from the official user manual:

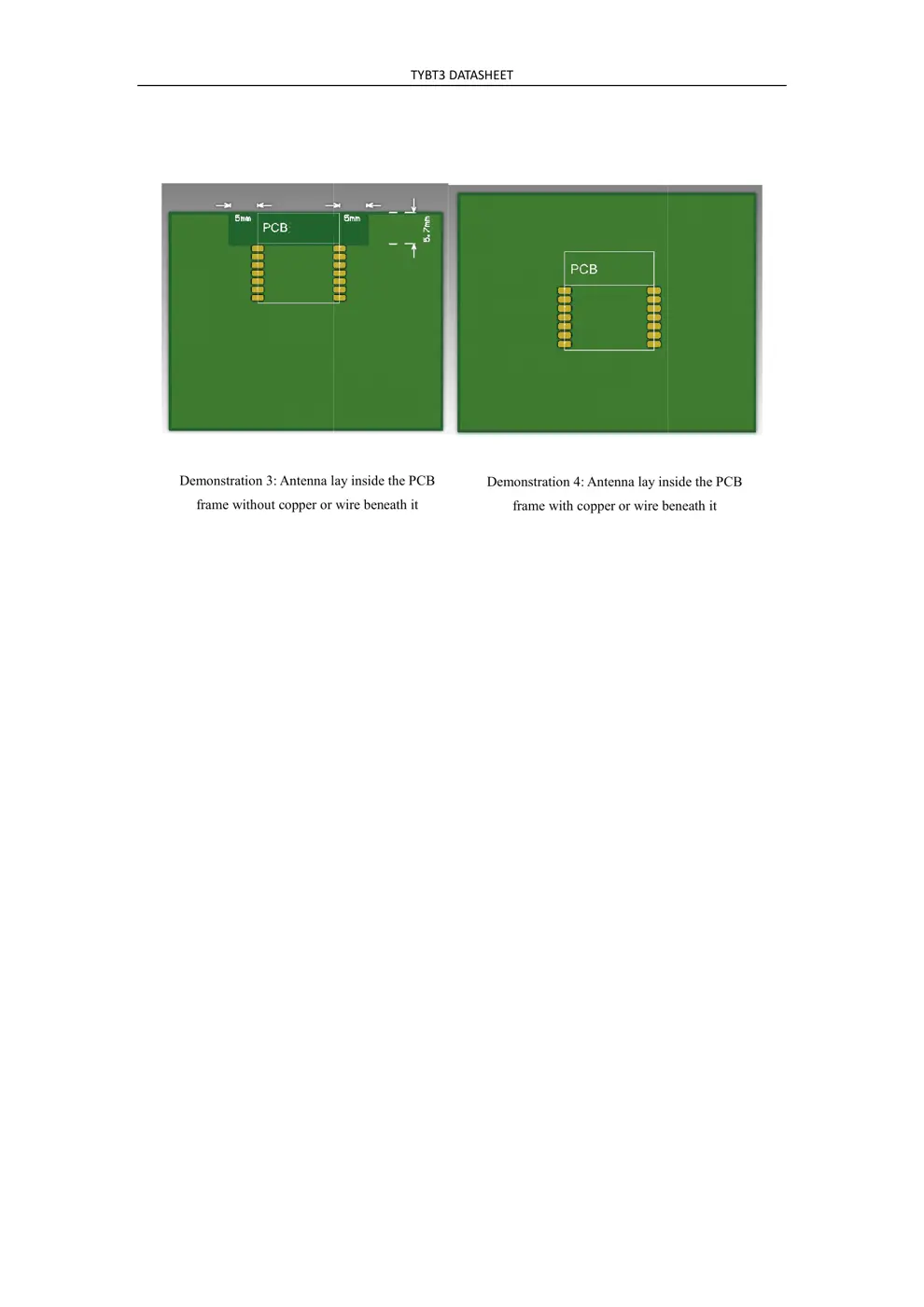

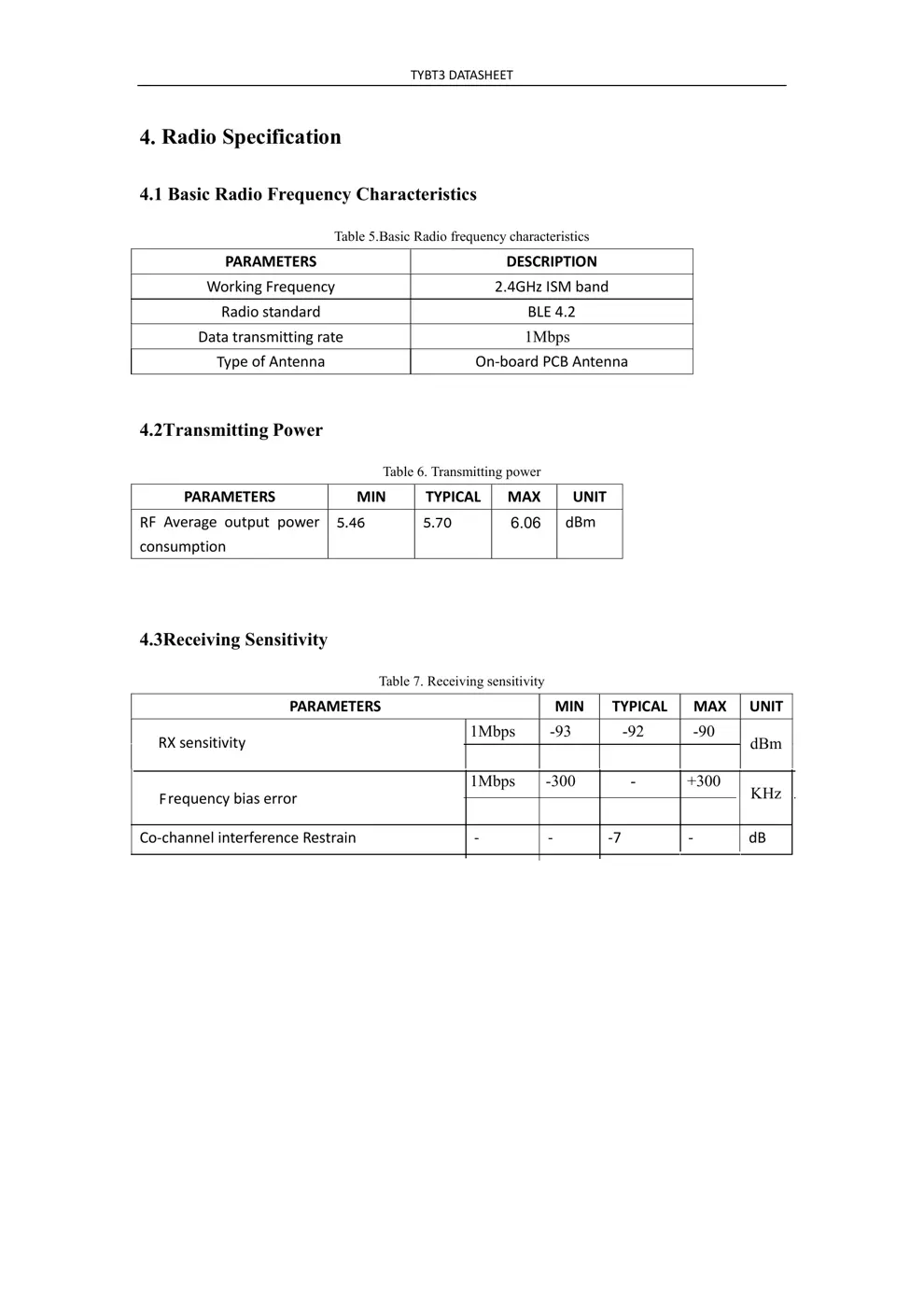

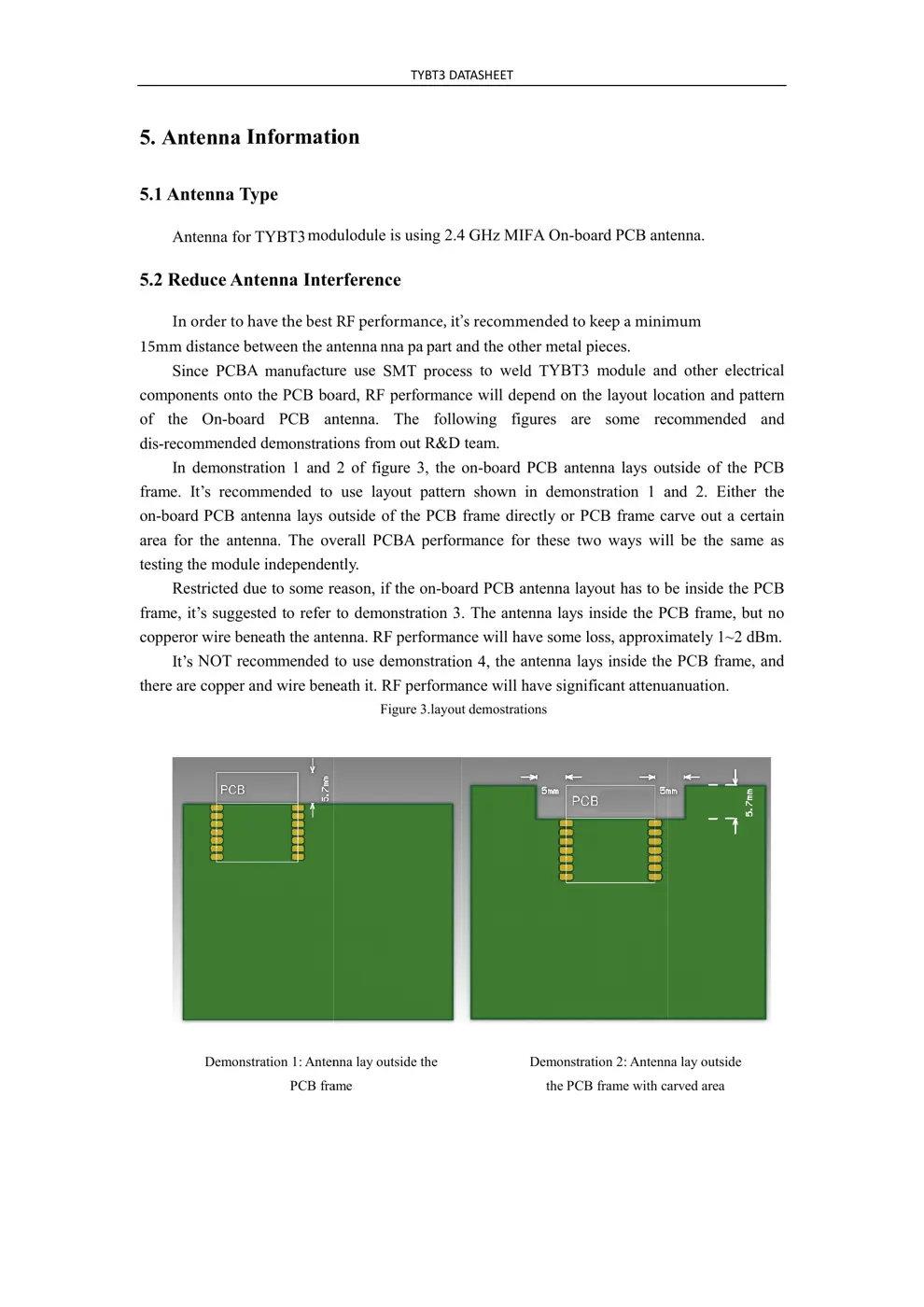

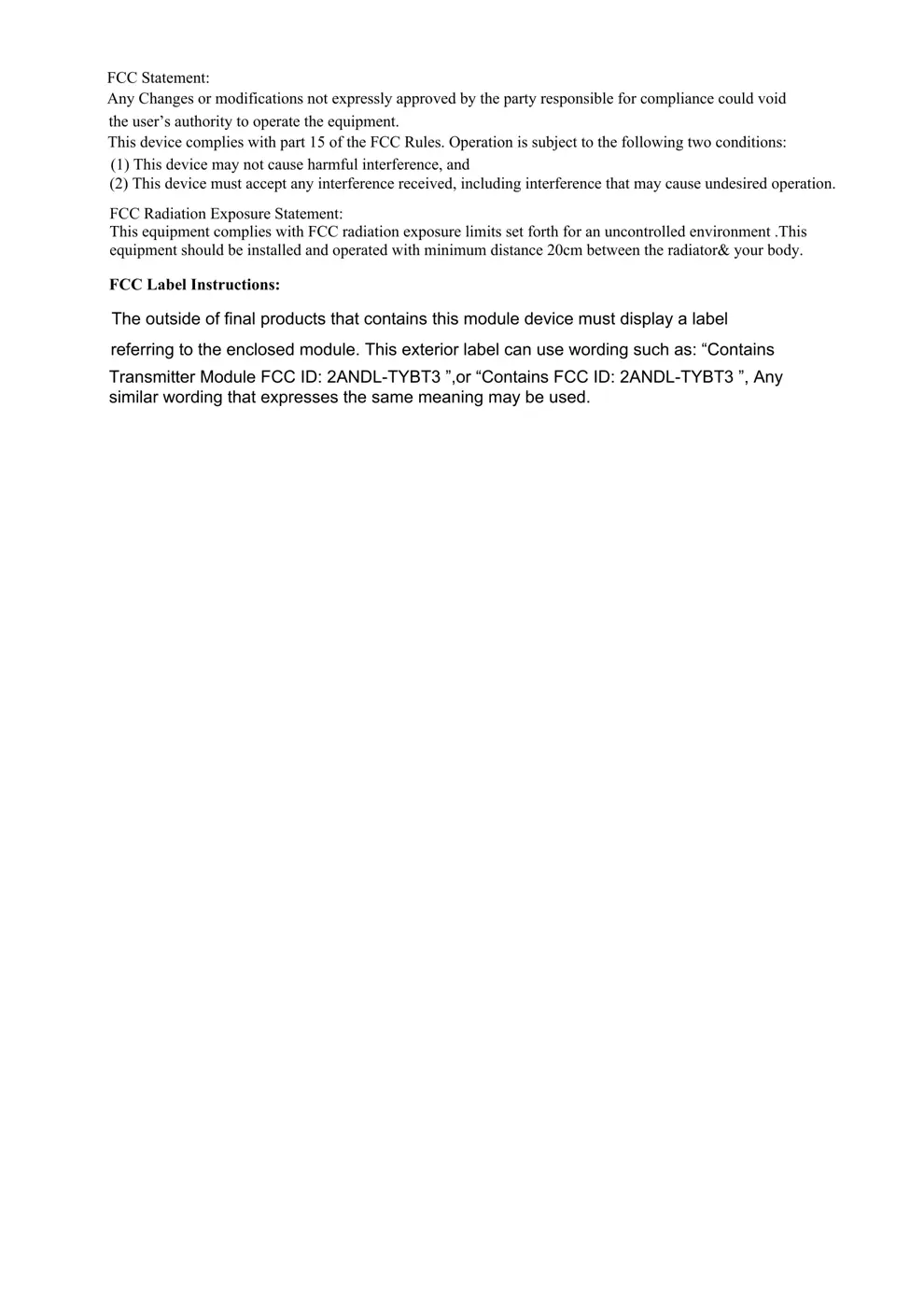

TYBT3 Manual

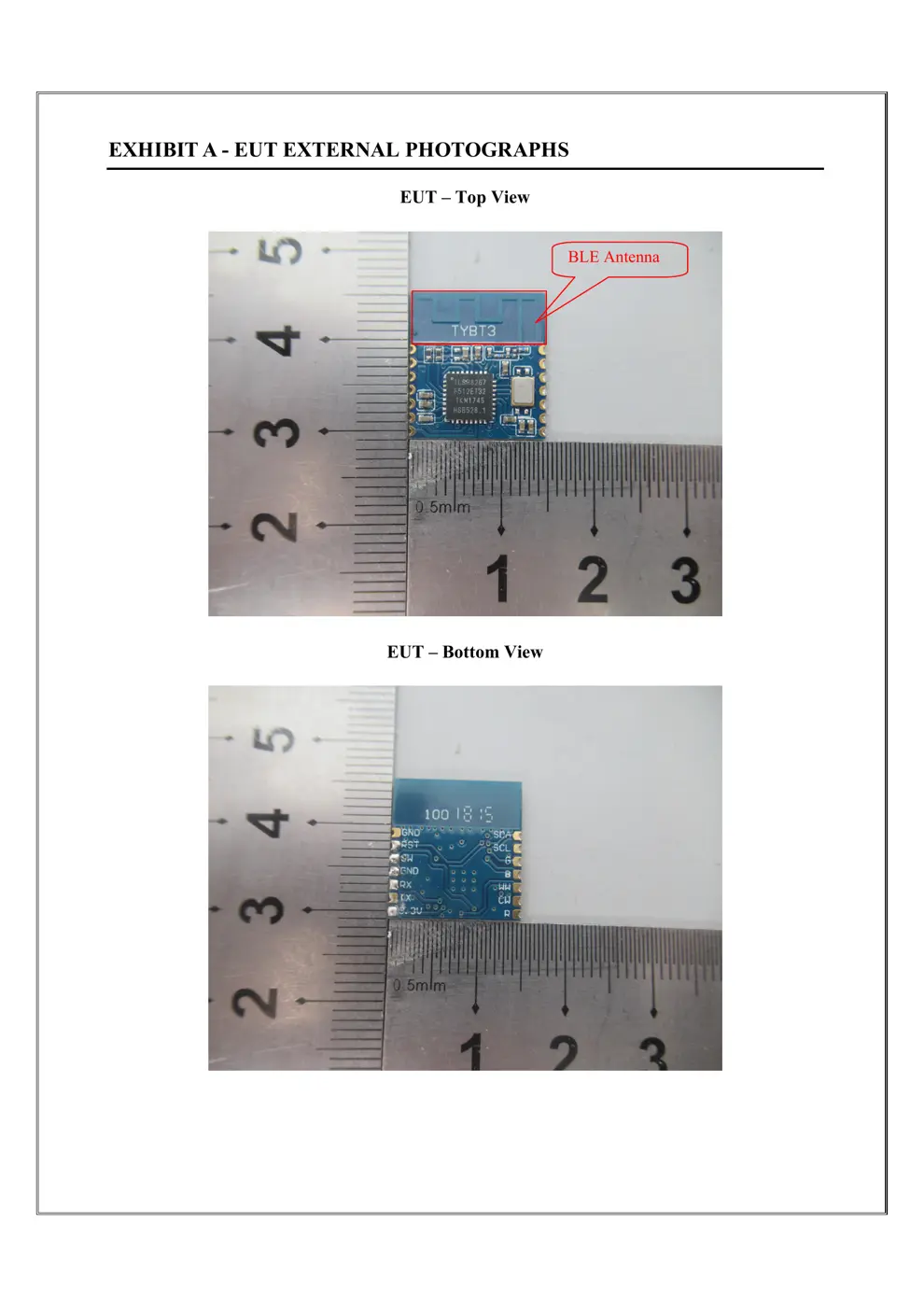

External Photos

Photos of the device exterior:

TYBT3 Exterior

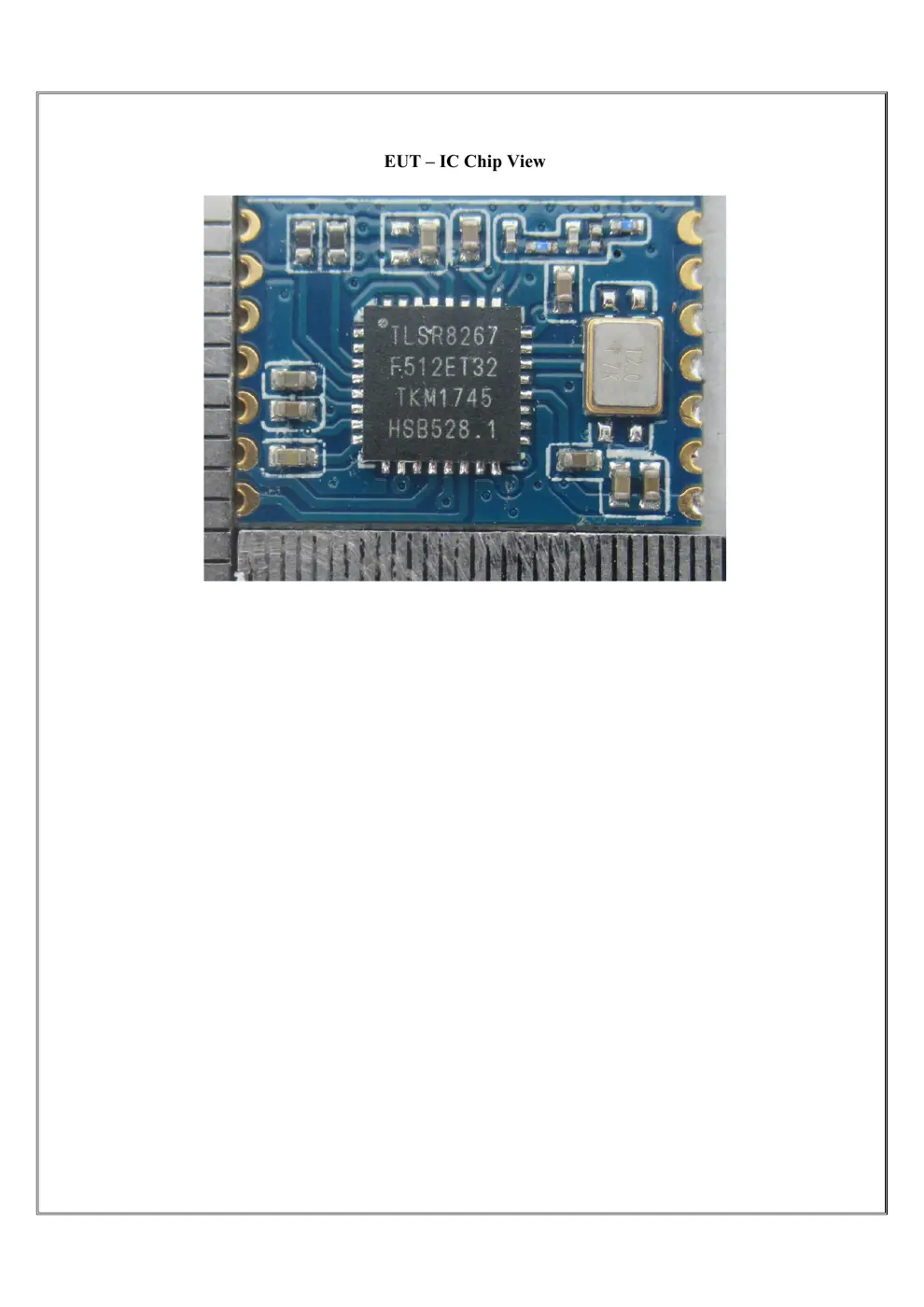

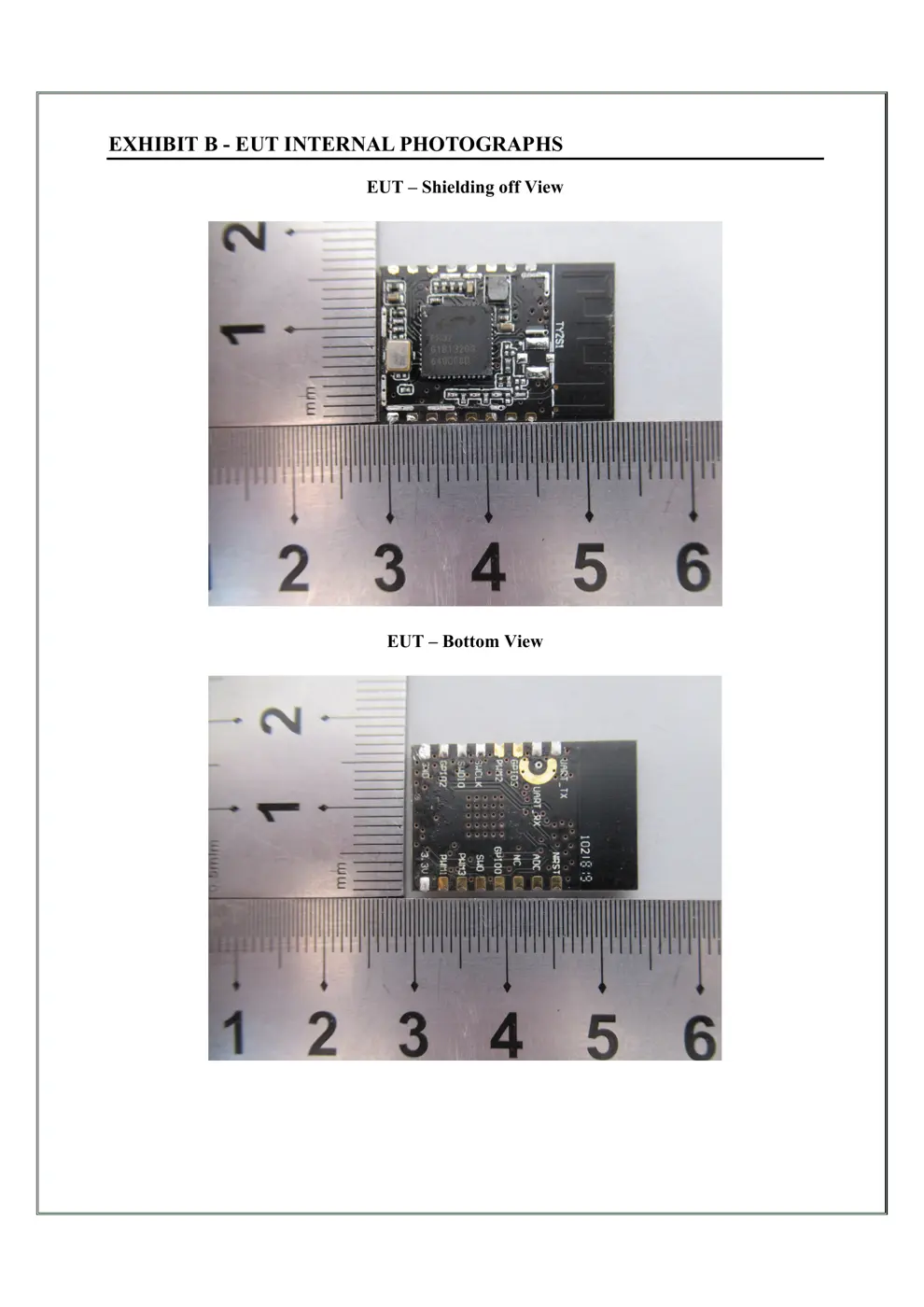

Internal Photos

Teardown photos showing the PCB and components:

TYBT3 PCB

Verdict

The TYBT3 is a Bluetooth device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

TYBT3
 DATASHEET
Tuya Smart BLE Module
1. Product Overview
TYBT3 is a Bluetooth (BLE) module designed by Hangzhou Tuya Information Technology
Co., Ltd. The BLE Module consists of a highly integrated wireless Bluetooth chip TLSR8267 and
some extra electric circuits that have been programed with Bluetooth network protocol and plenty
of software examples.TYBT3 include a 32-bit CPU, BLE, 512K byte flash, 16k SRAM, and 9
multiplex IO pins.
Figure 1 shows the block diagram of the TYBT3.
Figure 1. The block diagram of the TYBT3
1.1 Features
 Integrated low power consumption 32-bit CPU, also known as application processor
 Basic frequency of the CPU can support 48 MHz
 Supply voltage range: 1.9V to 3.6V
 Peripherals: 5*PWM,1*I2C, 1*UART
 BLE RF features:
 Compatible with BLE 4.2
 Transmitting data rate can go up to 1Mbps
 TX transmitting power: +6.06dBm
 RX receiving sensitivity: -92dBm
 AES hardware encryption
 On-board PCB antenna
BLE

IO in
terface
12M

Crystal
PCB
on
-board
antenna
BLE
MCU F
REQ
48MHz
SRA
M
16K Bytes
FLA
SH
512K I2C
3.3V i
nput
PWM
UAR
T
TYB
T3 DATASHEET

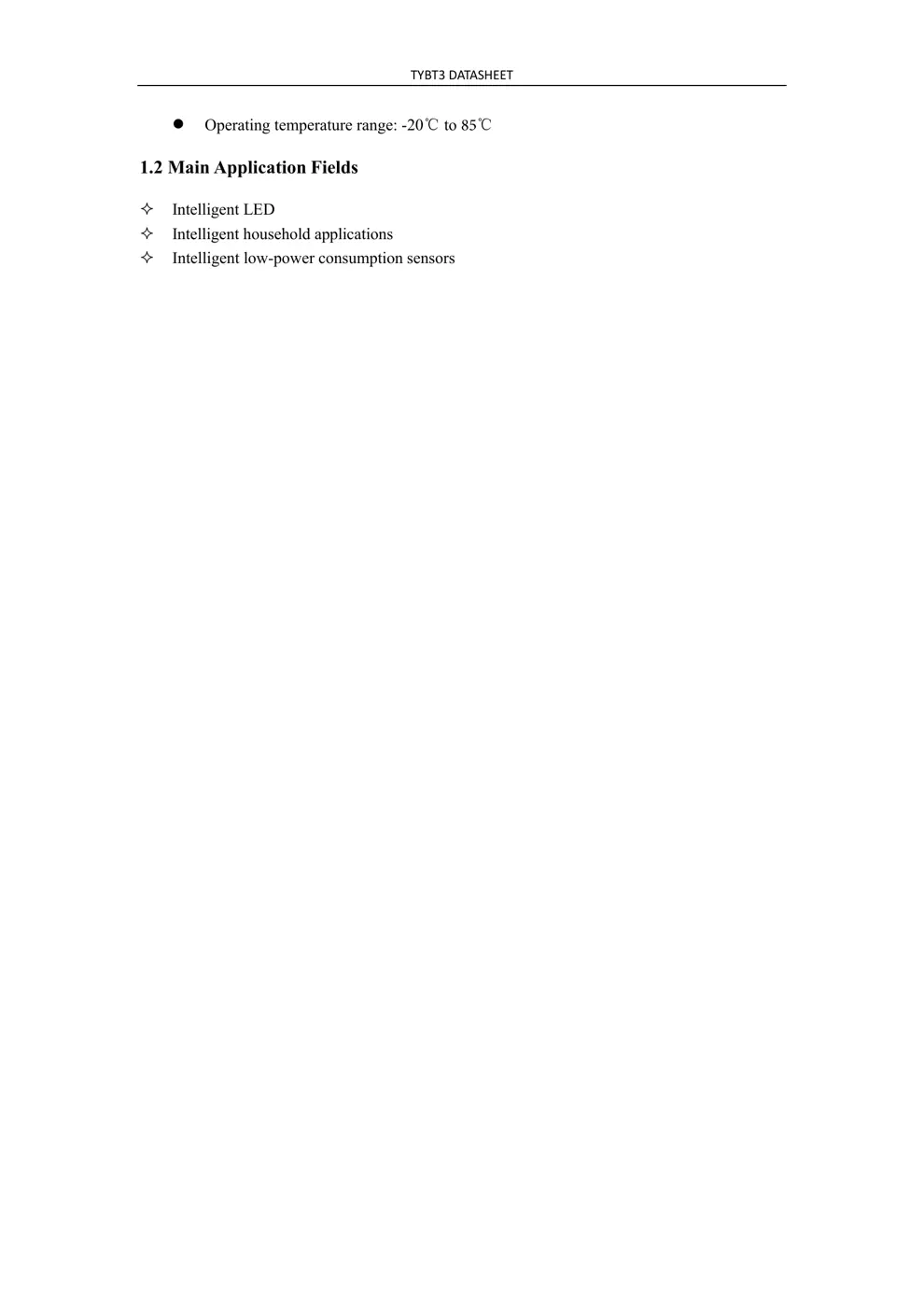

 Operating temperature range: -20℃ to 85℃
1.2 Main Application Fields
 Intelligent LED
 Intelligent household applications
 Intelligent low-power consumption sensors
TY
BT3 DATASHEET

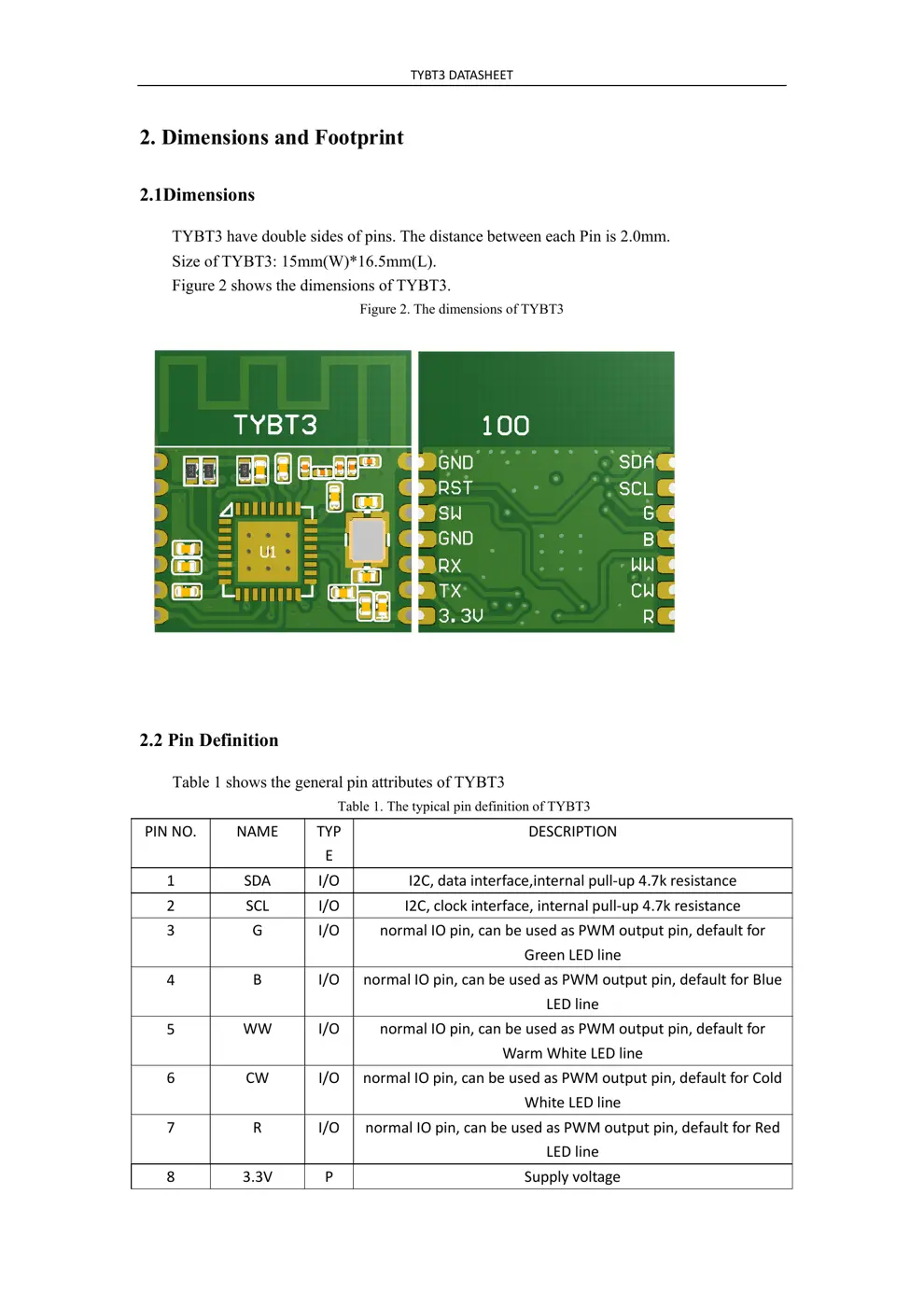

2. Dimensions and Footprint
2.1Dimensions
TYBT3 have double sides of pins. The distance between each Pin is 2.0mm.
Size of TYBT3: 15mm(W)*16.5mm(L).
Figure 2 shows the dimensions of TYBT3.

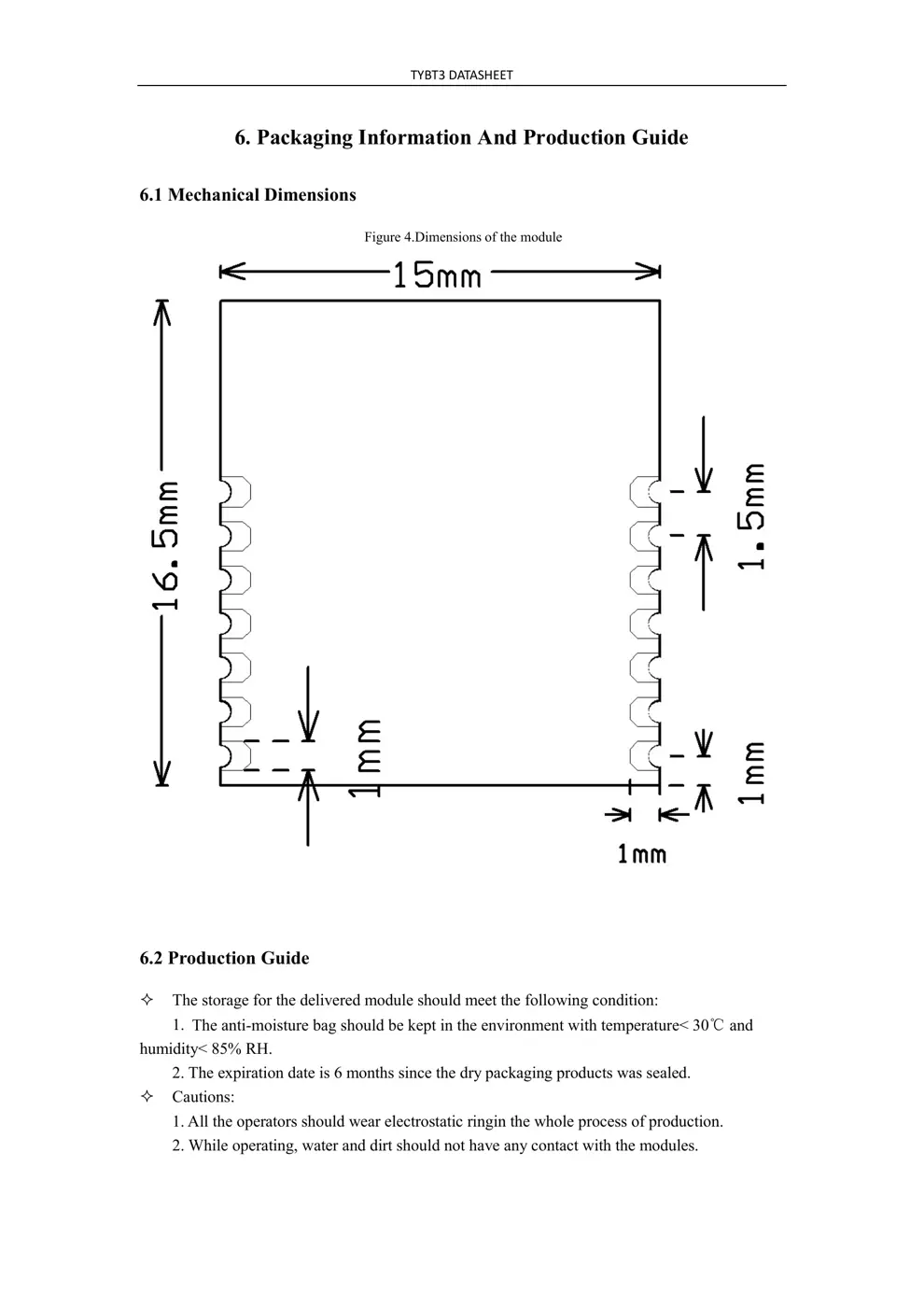

Figure 2. The dimensions of TYBT3
2.2 Pin Definition
Table 1 shows the general pin attributes of TYBT3
Table 1. The typical pin definition of TYBT3
PIN NO. NAME TYP
E
DESCRIPTION
1
 SDA I/O I2C, data interface,internal pull-up 4.7k resistance
2
 SCL I/O I2C, clock interface, internal pull-up 4.7k resistance
3
 G I/O normal IO pin, can be used as PWM output pin, default for
Green LED line
4
 B I/O normal IO pin, can be used as PWM output pin, default for Blue
LED line
5
 WW I/O normal IO pin, can be used as PWM output pin, default for
Warm White LED line
6
 CW I/O normal IO pin, can be used as PWM output pin, default for Cold
White LED line
7
 R I/O normal IO pin, can be used as PWM output pin, default for Red
LED line
8
 3.3V P Supply voltage

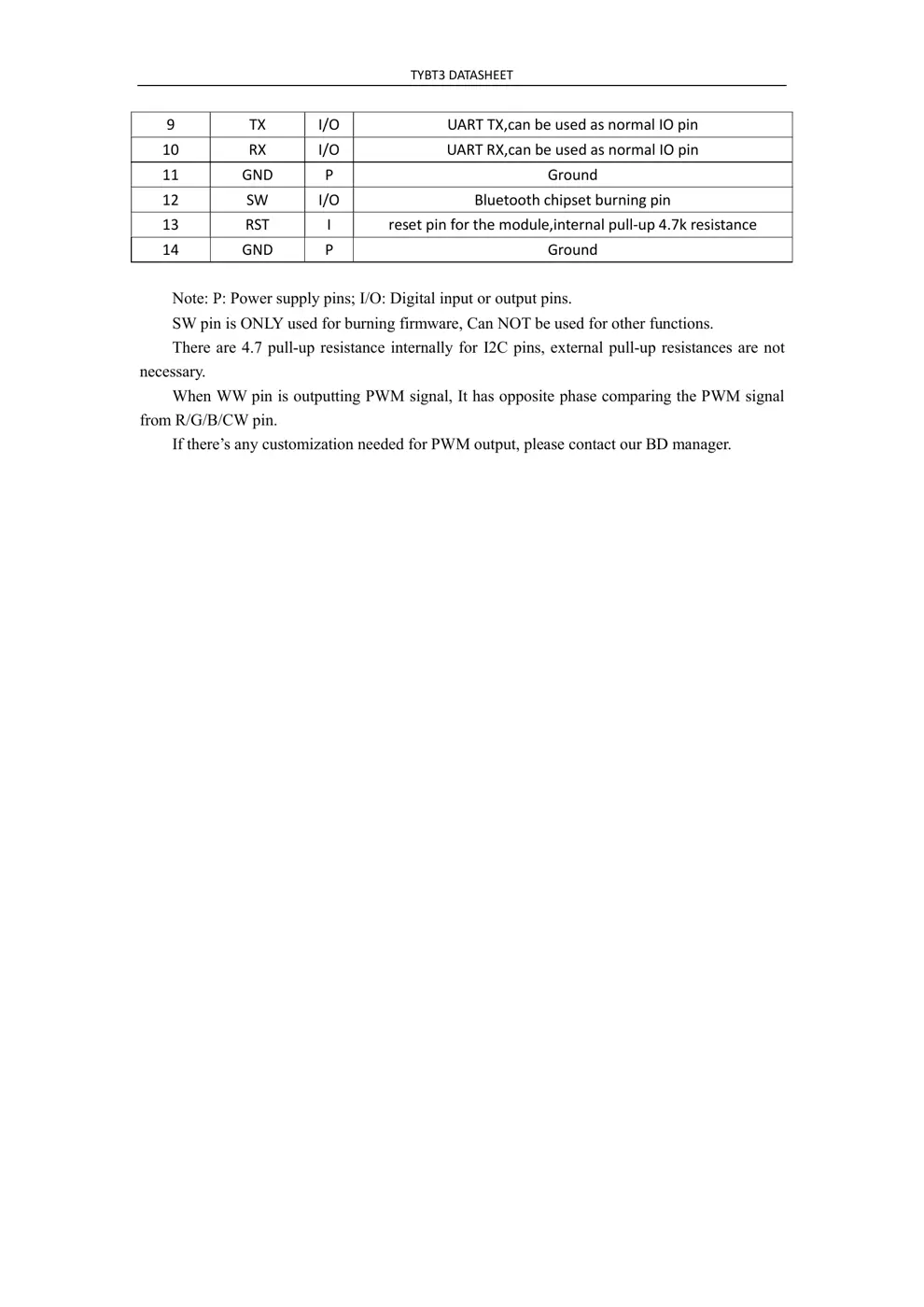

TYBT3 DATASHEET
9 TX I/O UART TX,can be used as normal IO pin
10 RX I/O UART RX,can be used as normal IO pin
11 GND P Ground
12 SW I/O Bluetooth chipset burning pin
13 RST I reset pin for the module,internal pull-up 4.7k resistance
14 GND P Ground
Note: P: Power supply pins; I/O: Digital input or output pins.
SW pin is ONL Y used for burning firmware, Can NOT be used for other functions.
There are 4.7 pull- up resistance internally for I2C pins, external pull-up resistances are not
necessary.
When WW pin is outputting PWM signal, It has opposite phase comparing the PWM signal
from R/G/B/CW pin.
If there’s any customization needed for PWM output, please contact our BD manager.
TYB
T3 DATASHEET

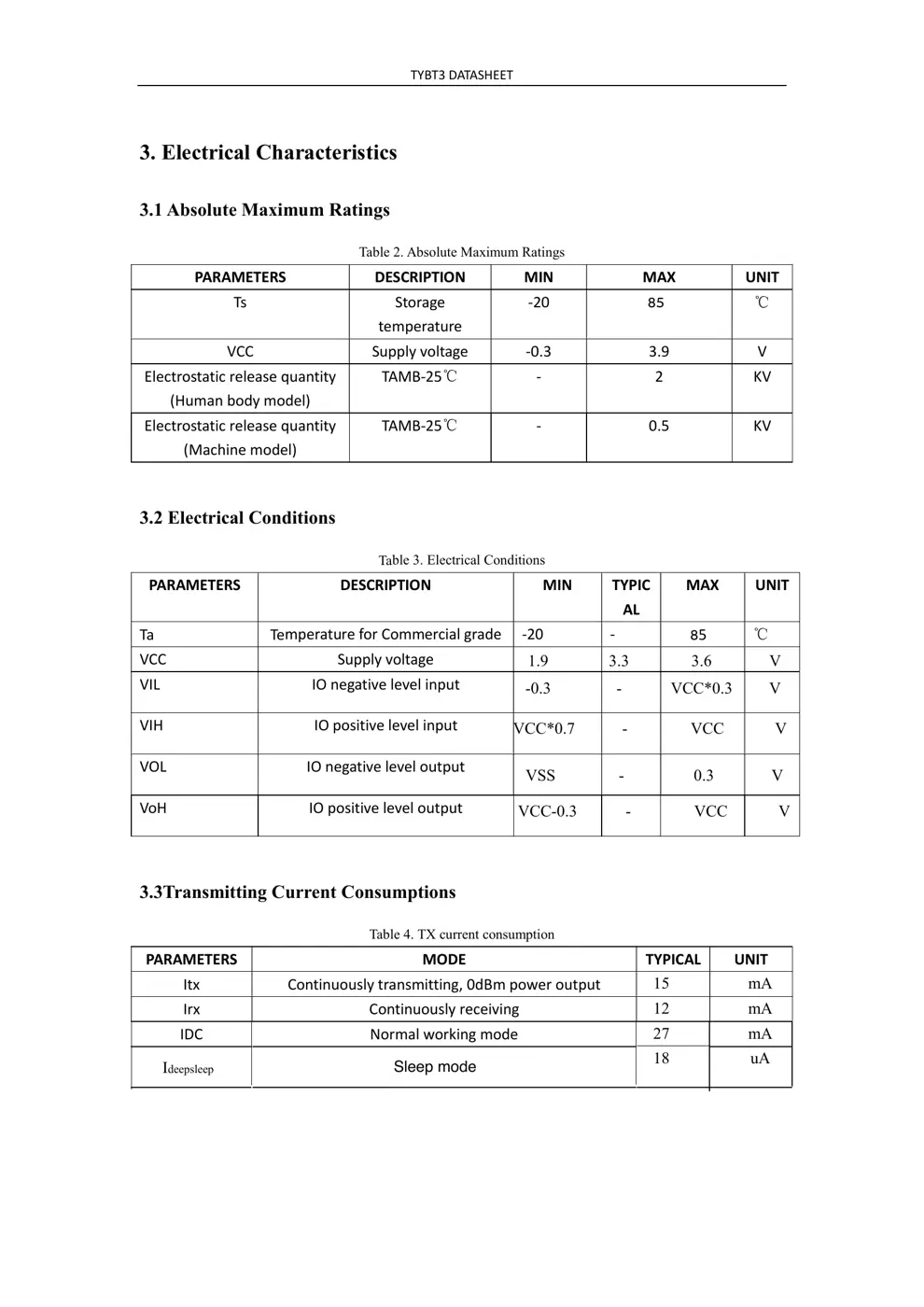

3. E
lectrical Character...
