TYLC5 Reset & Teardown (FCC ID 2ANDL-TYLC5)
Factory reset and internal photos for Tuya Global TYLC5. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global TYLC5, check what's inside.
The Tuya TYLC5 is a WiFi-based module designed for integration into smart home devices. It provides connectivity for appliances and control through the Smart Life app.
⚠️ NOTE: Always disconnect mains power before working with or installing this module.
Quick Specs
- Manufacturer: Tuya Global
- Model: TYLC5
- Protocol: WiFi
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: Realtek/Beken
- Flashable: ❌ No
- Info: Modules with Realtek/Beken chipsets are typically locked down by the manufacturer and not easily flashable with custom firmware like Tasmota or ESPHome.
User Manual

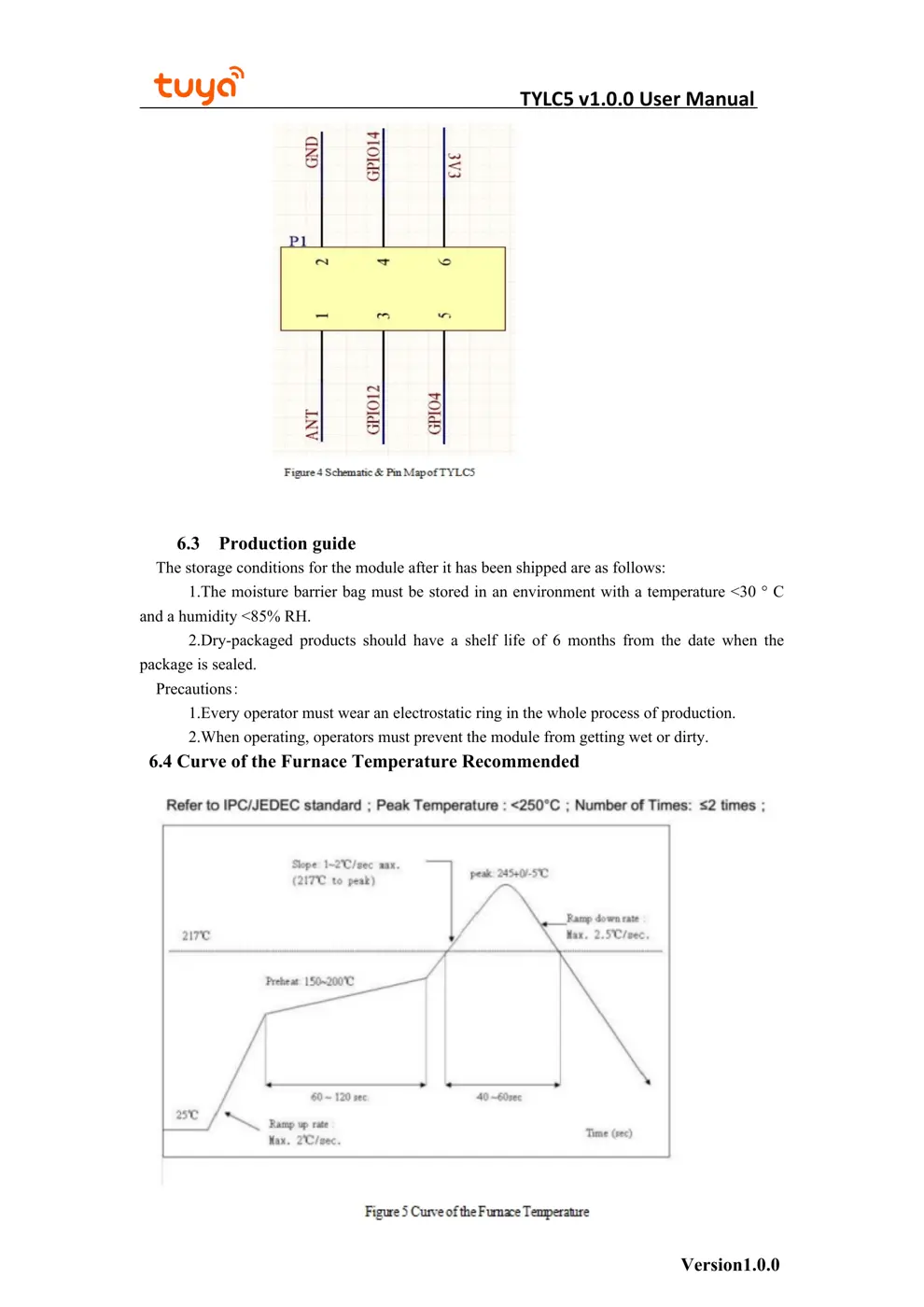

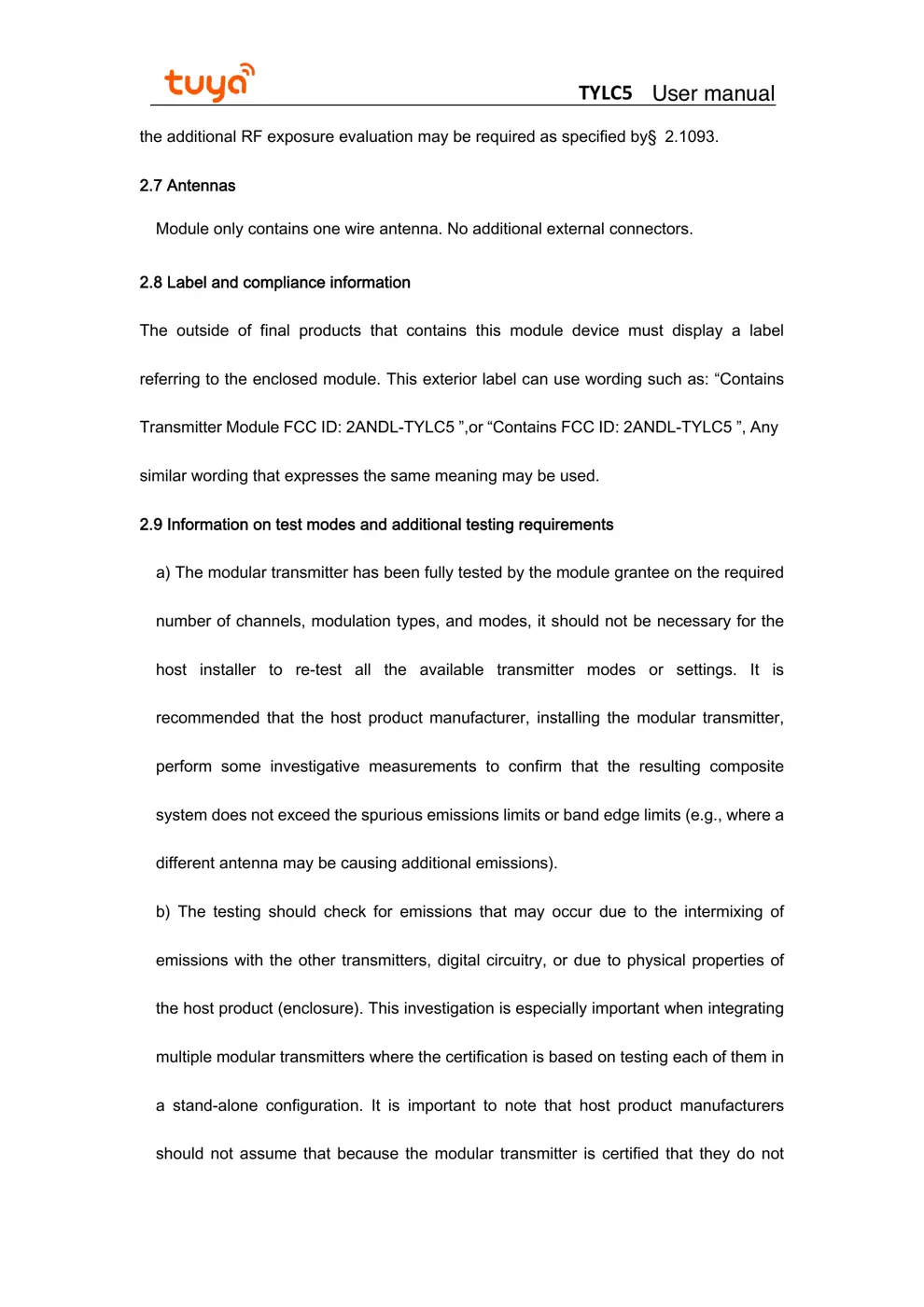

Scanned pages from the official user manual:

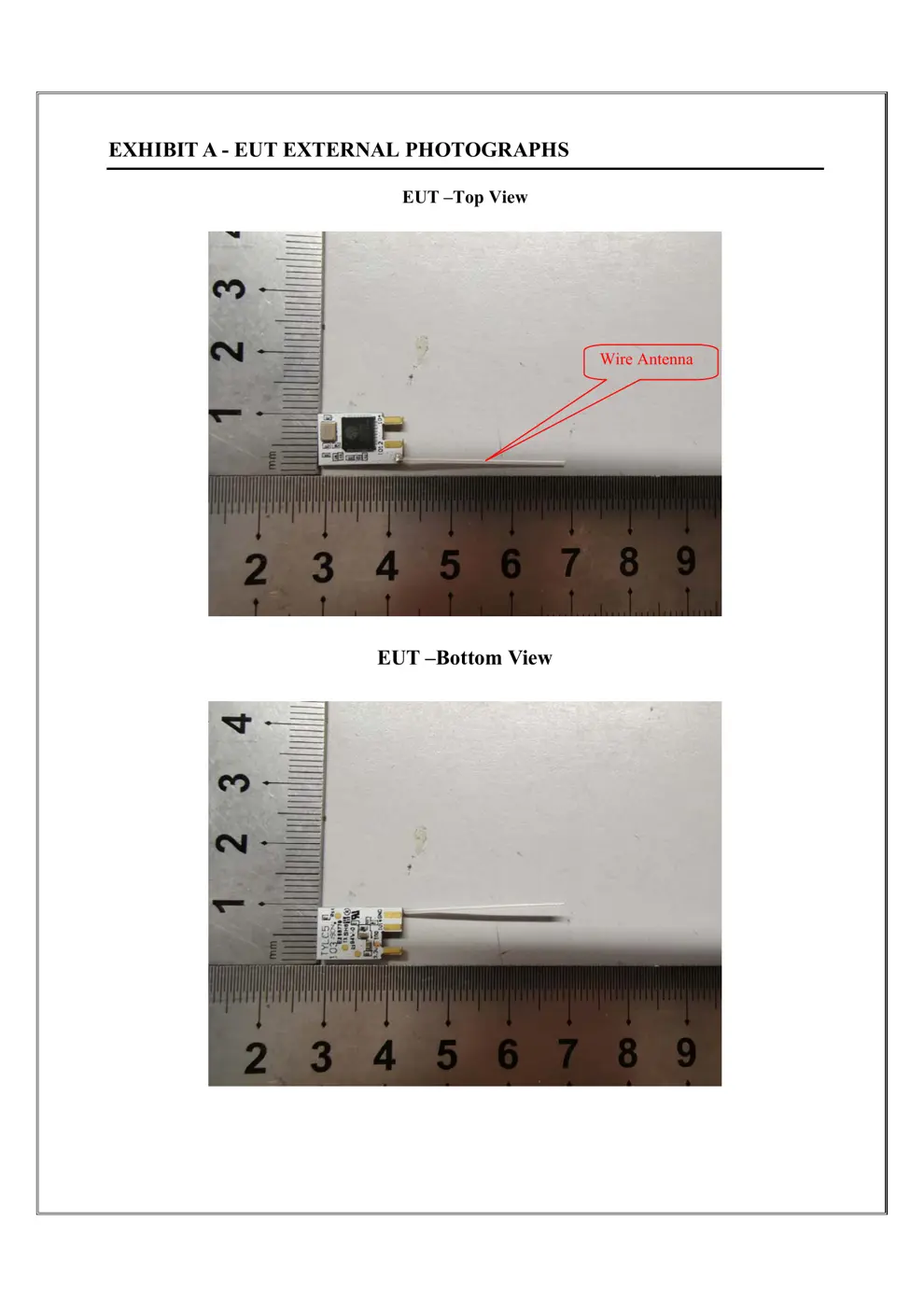

External Photos
Photos of the device exterior:

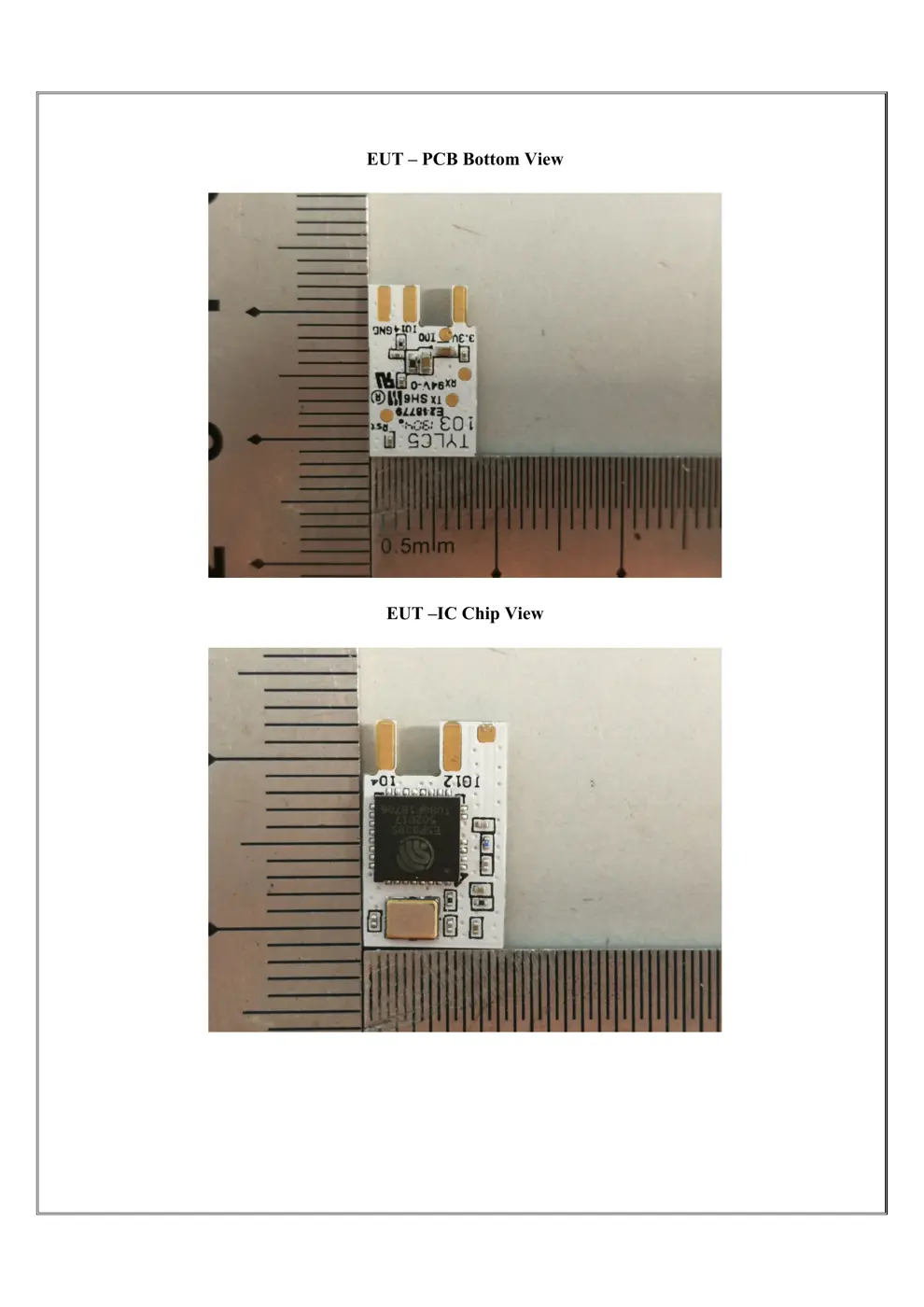

Internal Photos

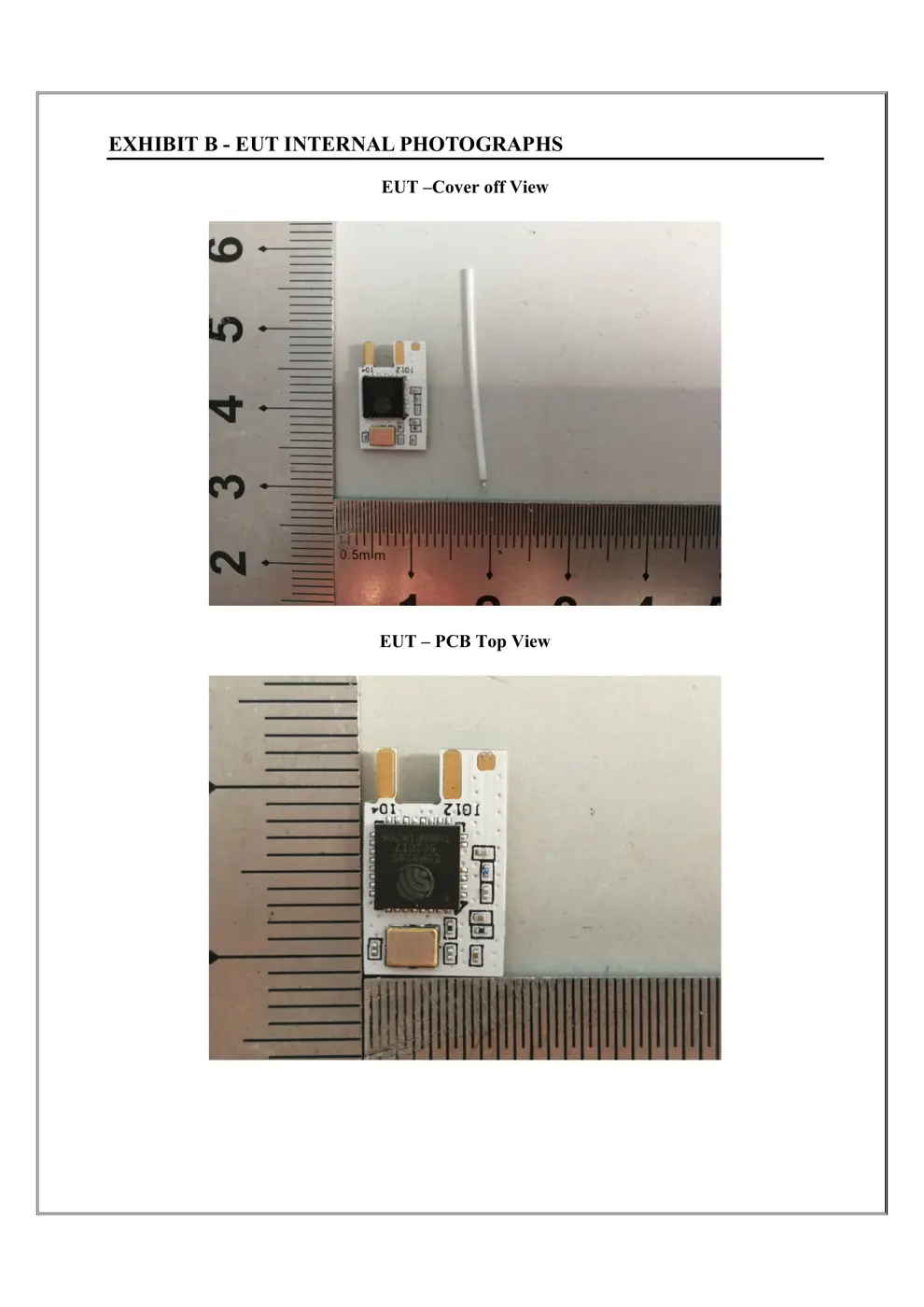

Teardown photos showing the PCB and components:
Verdict
The TYLC5 is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
TYLC5 v1.0.0 User Manual
Version1.0.01
TuYa Smart Wi-Fi Module-TYLC5

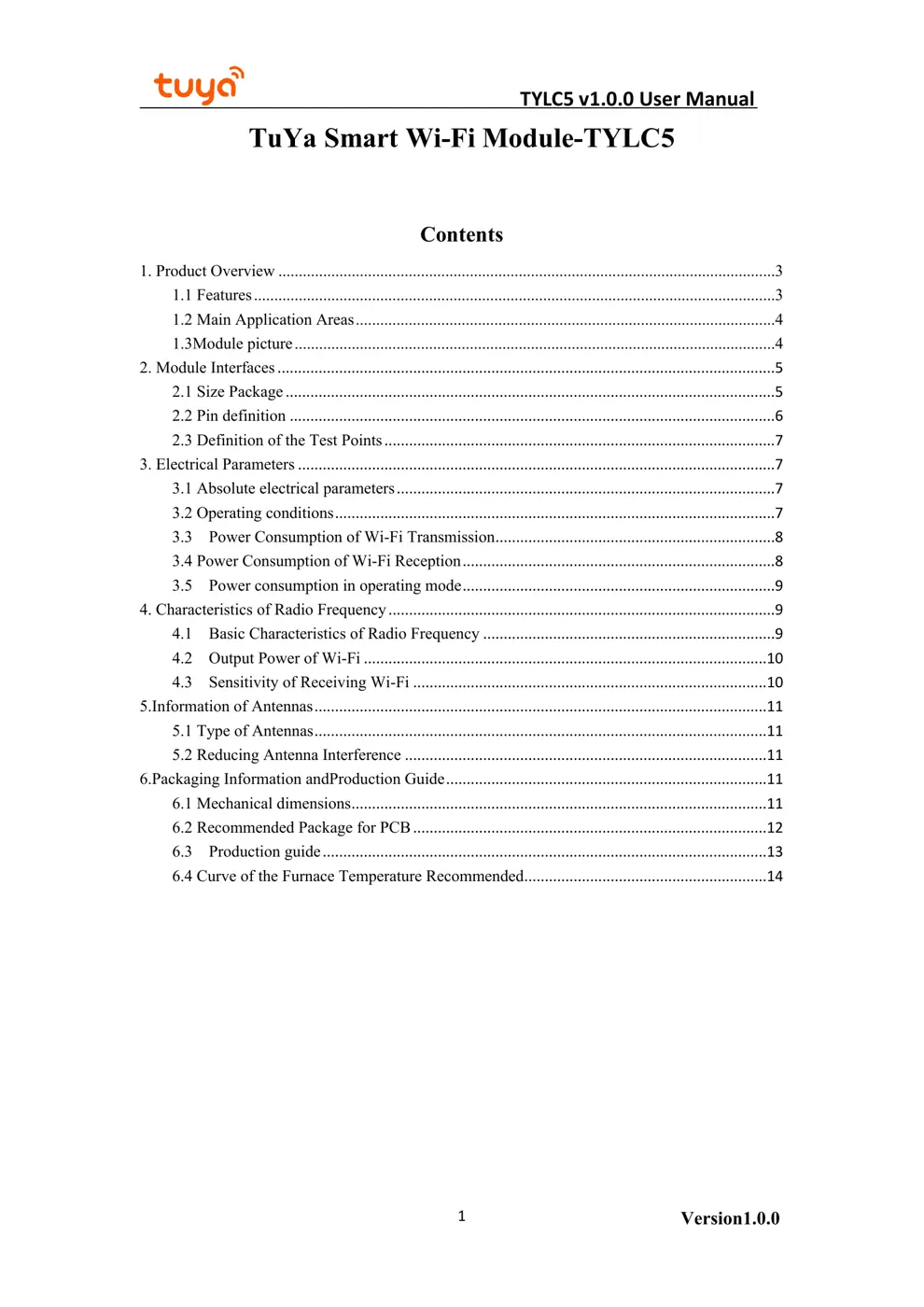

Contents

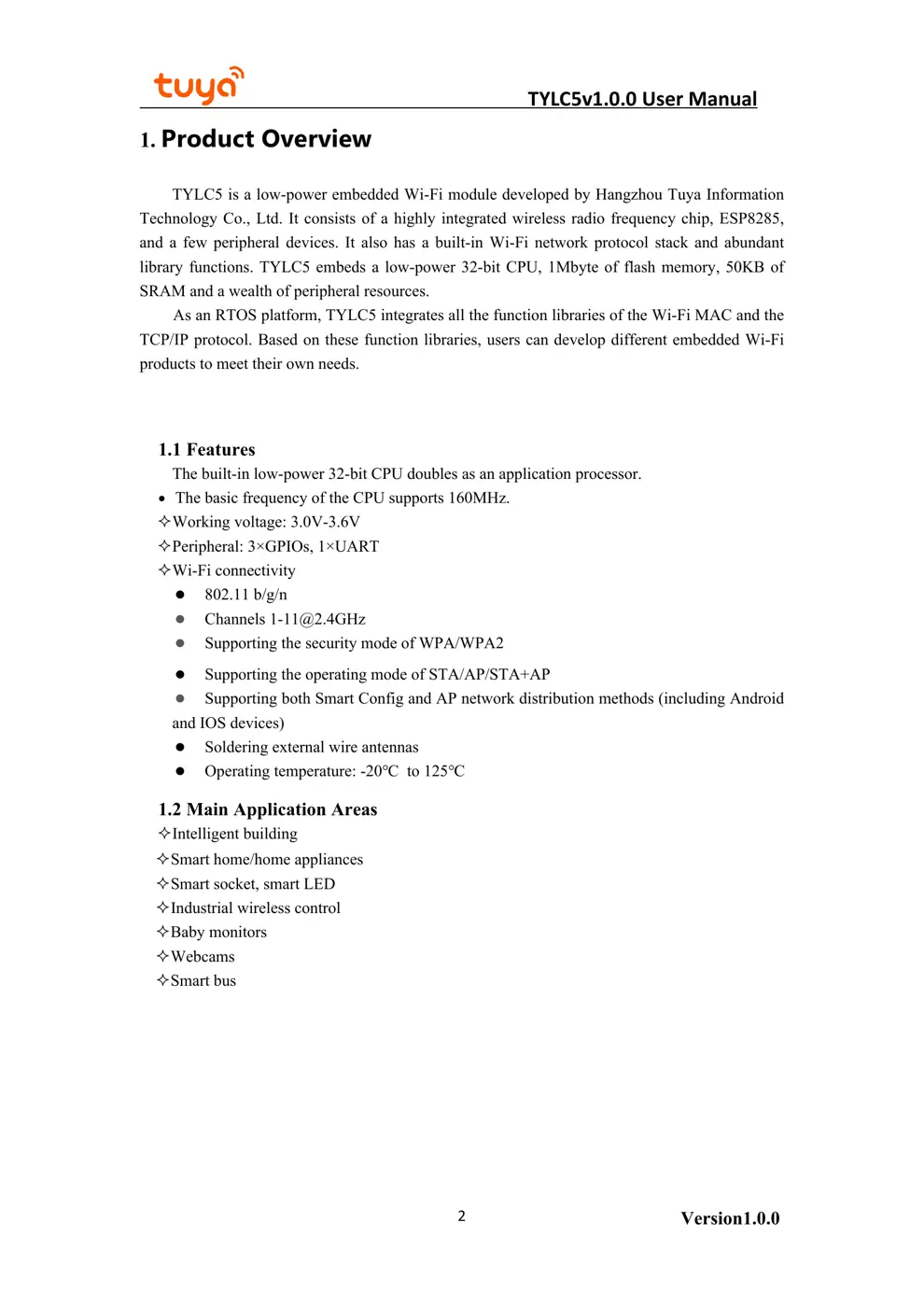

1. Product Overview ..........................................................................................................................3
1.1 Features ................................................................................................................................3
1.2 Main Application Areas .......................................................................................................4

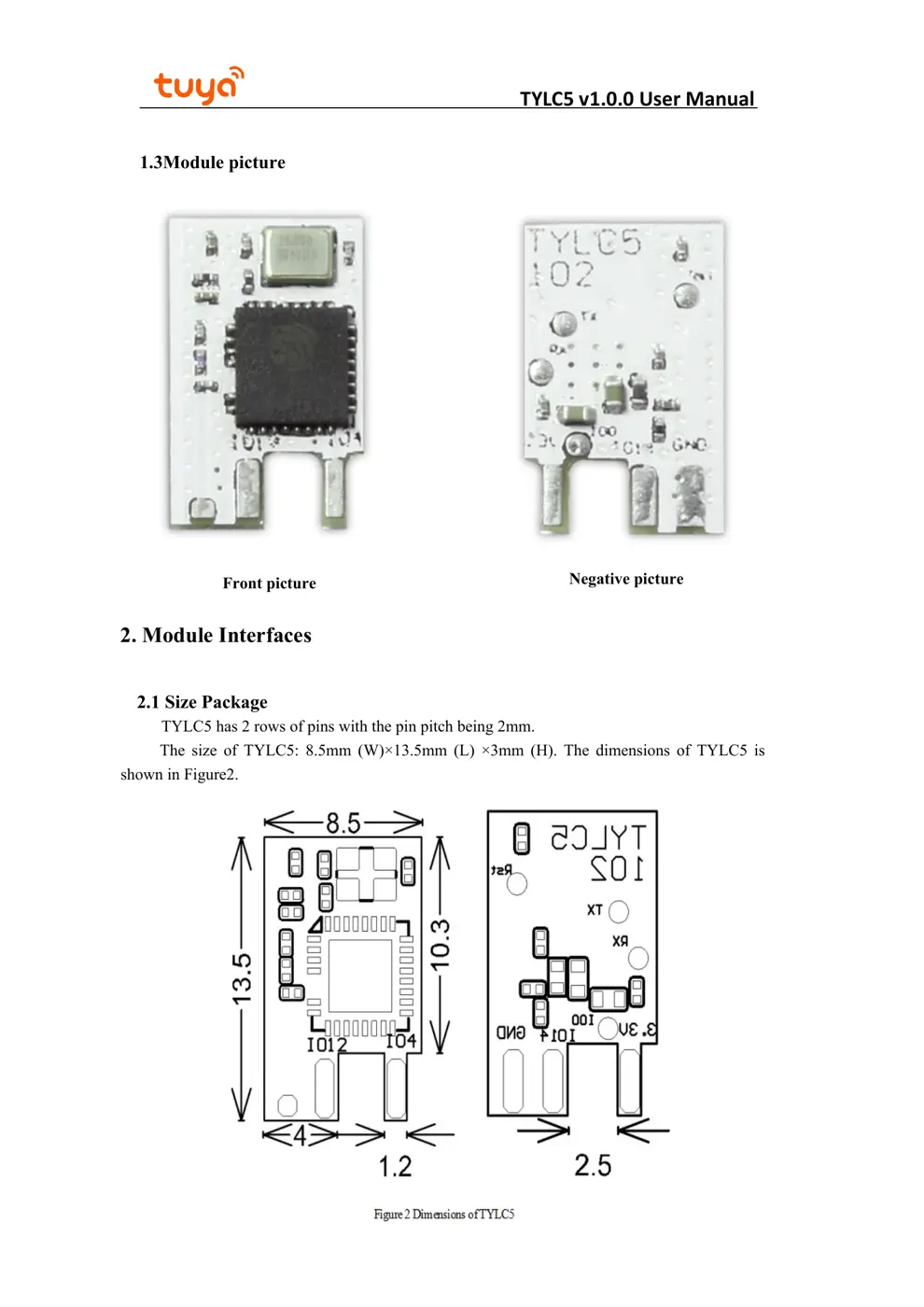

1.3Module picture ......................................................................................................................4
2. Module Interfaces .........................................................................................................................5
2.1 Size Package .......................................................................................................................5

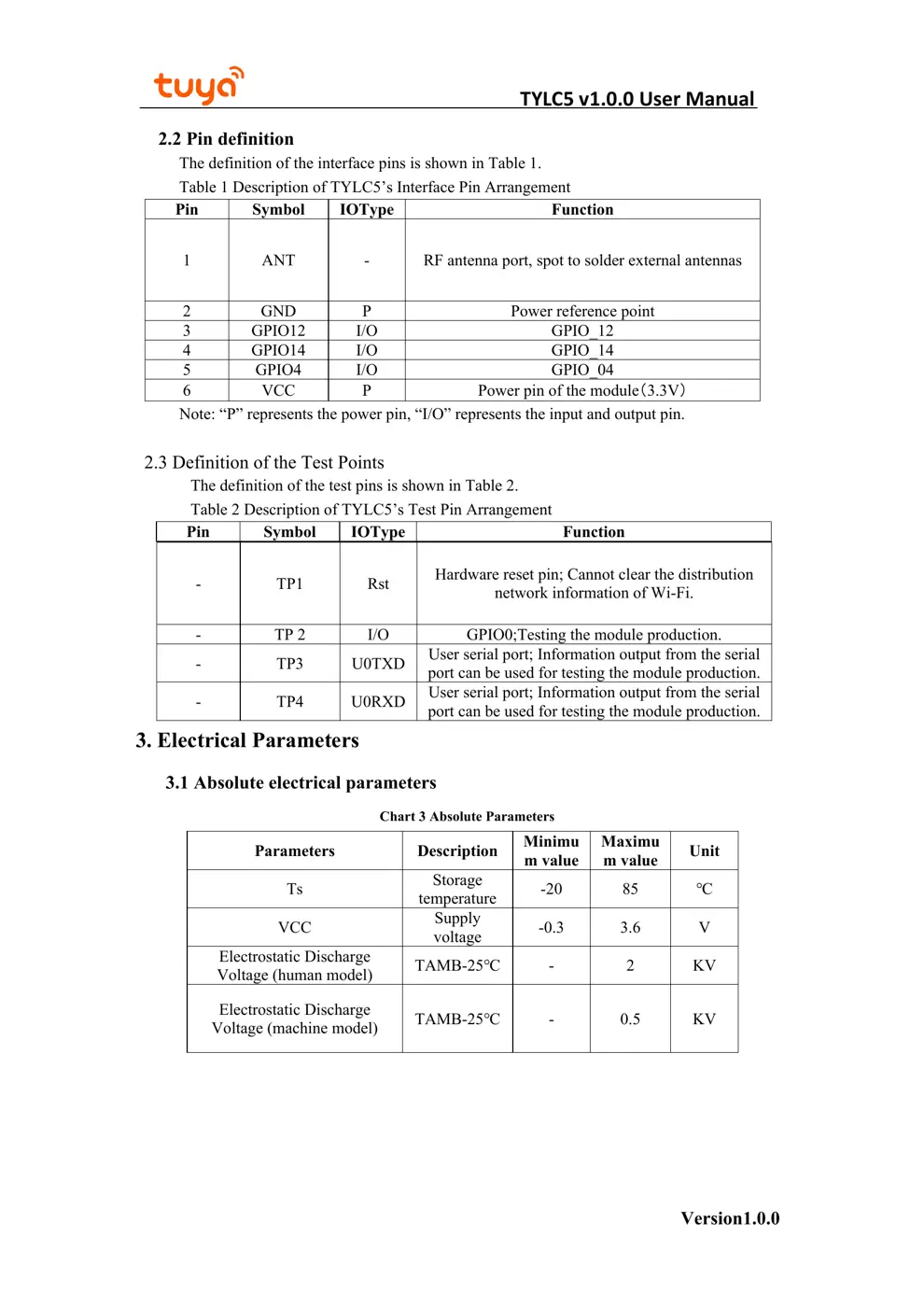

2.2 Pin definition ......................................................................................................................6
2.3 Definition of the Test Points ...............................................................................................7
3. Electrical Parameters ....................................................................................................................7
3.1 Absolute electrical parameters ............................................................................................7

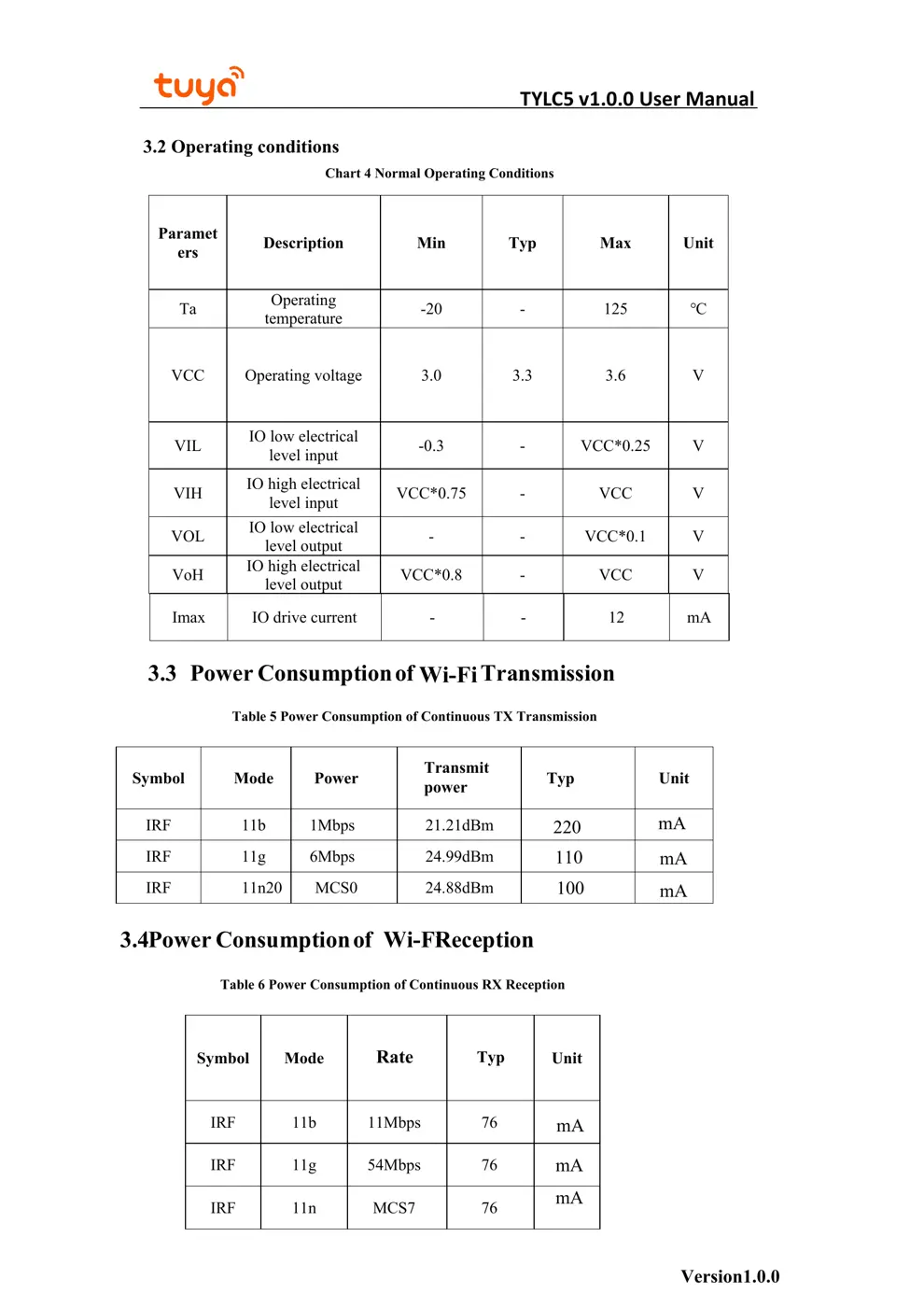

3.2 Operating conditions ...........................................................................................................7
3.3 Power Consumption of Wi-Fi Transmission ....................................................................8
3.4 Power Consumption of Wi-Fi Reception ............................................................................8

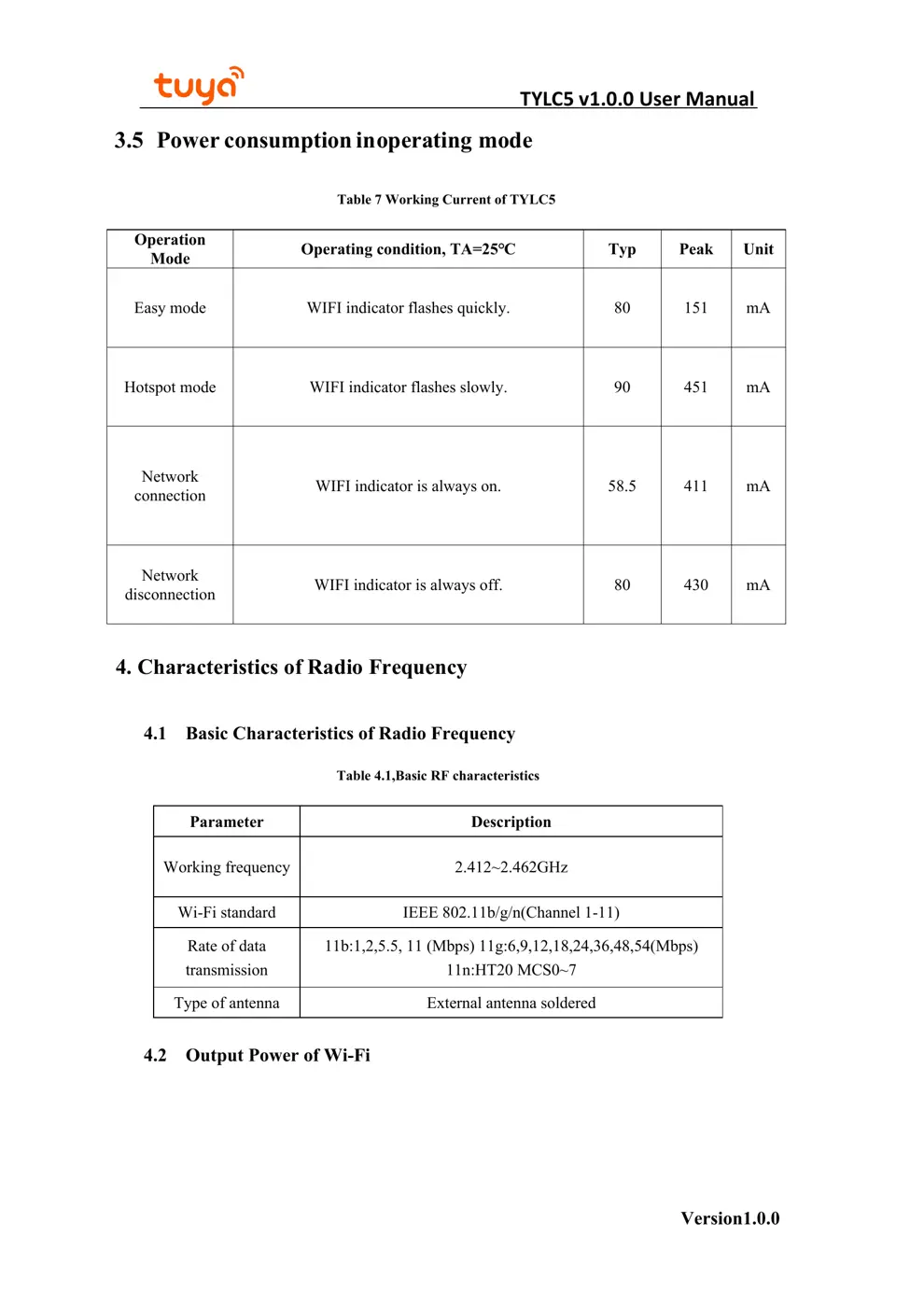

3.5 Power consumption in operating mode ............................................................................9
4. Characteristics of Radio Frequency ..............................................................................................9
4.1 Basic Characteristics of Radio Frequency .......................................................................9

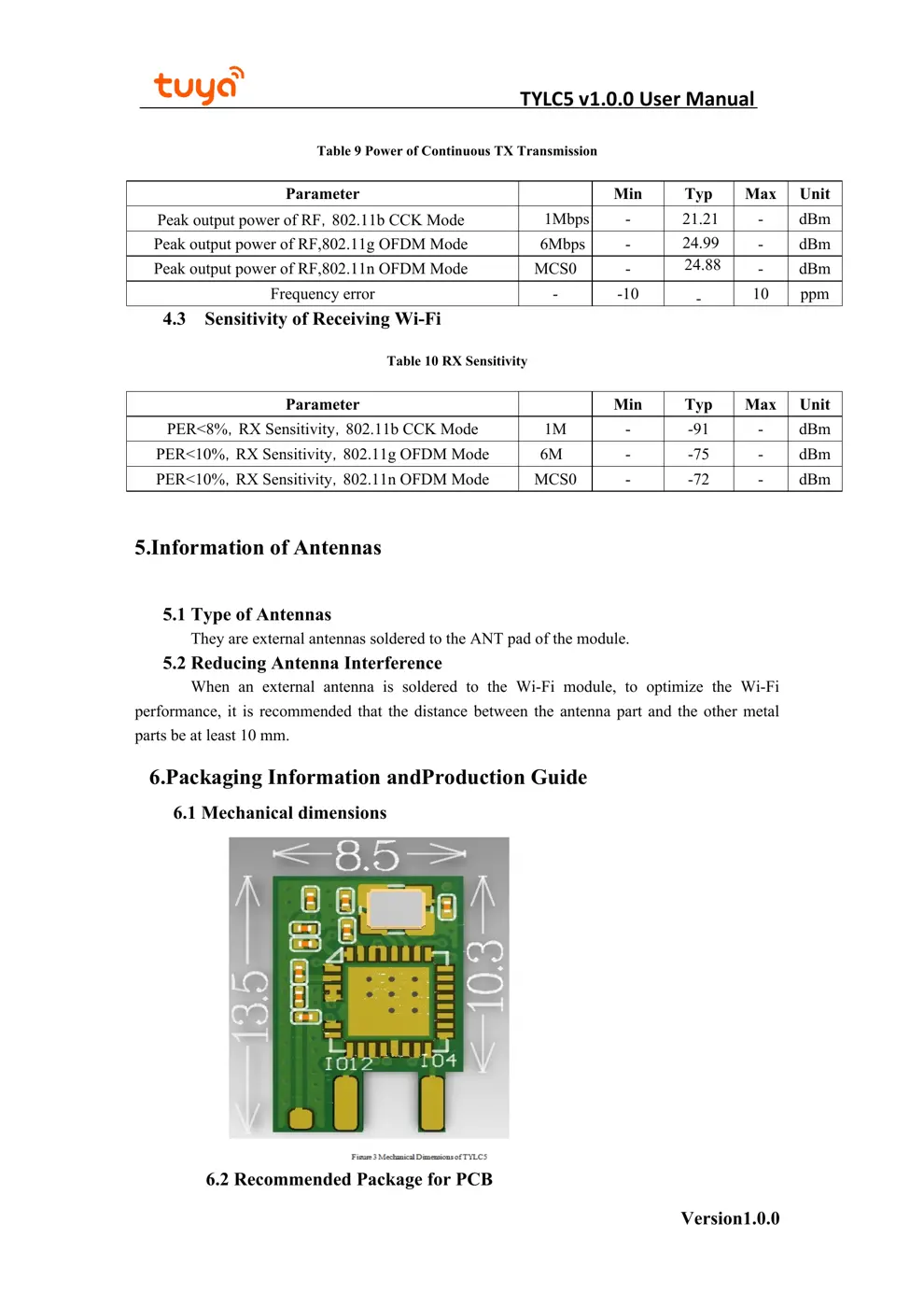

4.2 Output Power of Wi-Fi ..................................................................................................10
4.3 Sensitivity of Receiving Wi-Fi ......................................................................................10
5.Information of Antennas ..............................................................................................................11
5.1 Type of Antennas ..............................................................................................................11
5.2 Reducing Antenna Interference ........................................................................................11
6.Packaging Information andProduction Guide ..............................................................................11
6.1 Mechanica...
