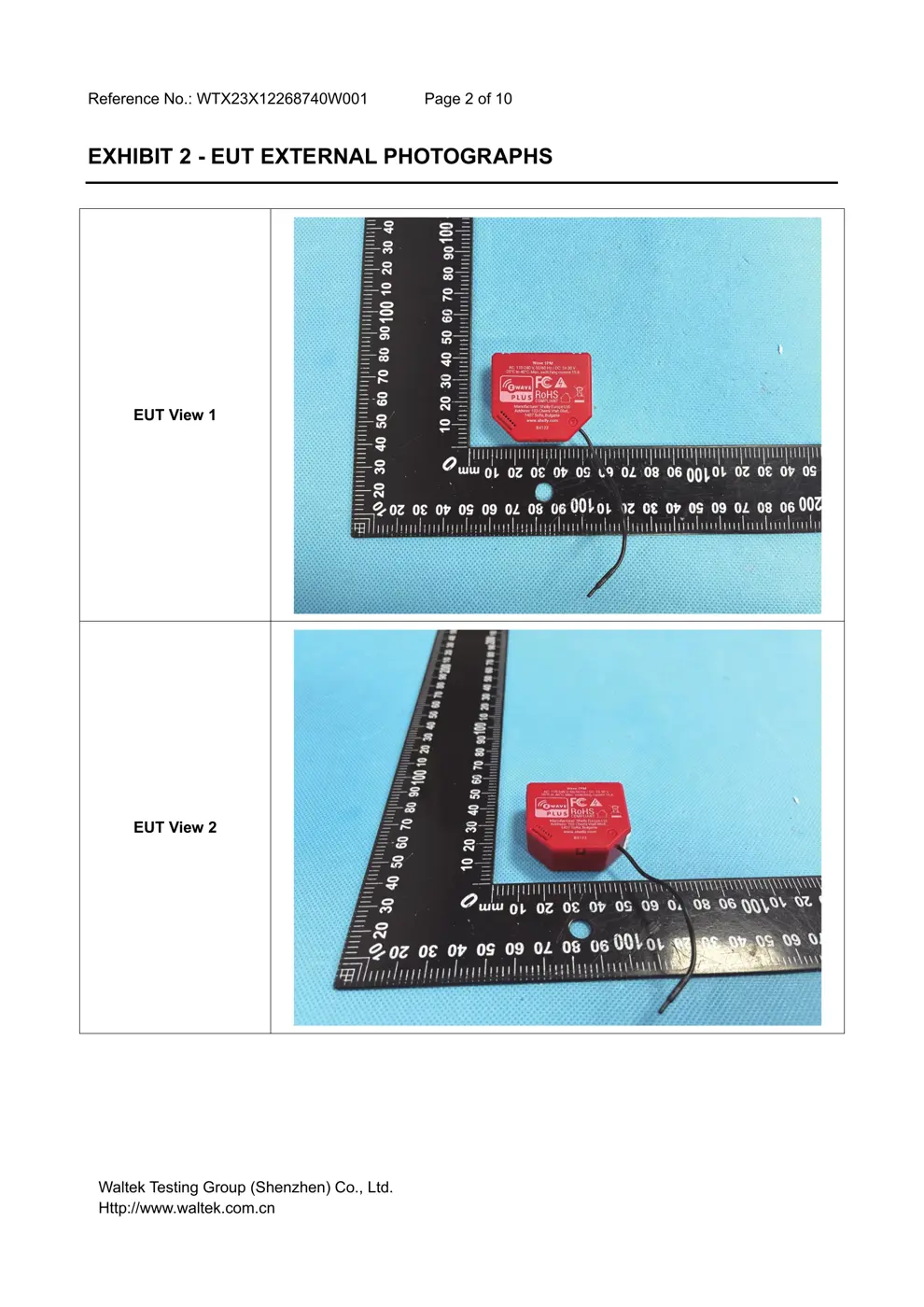

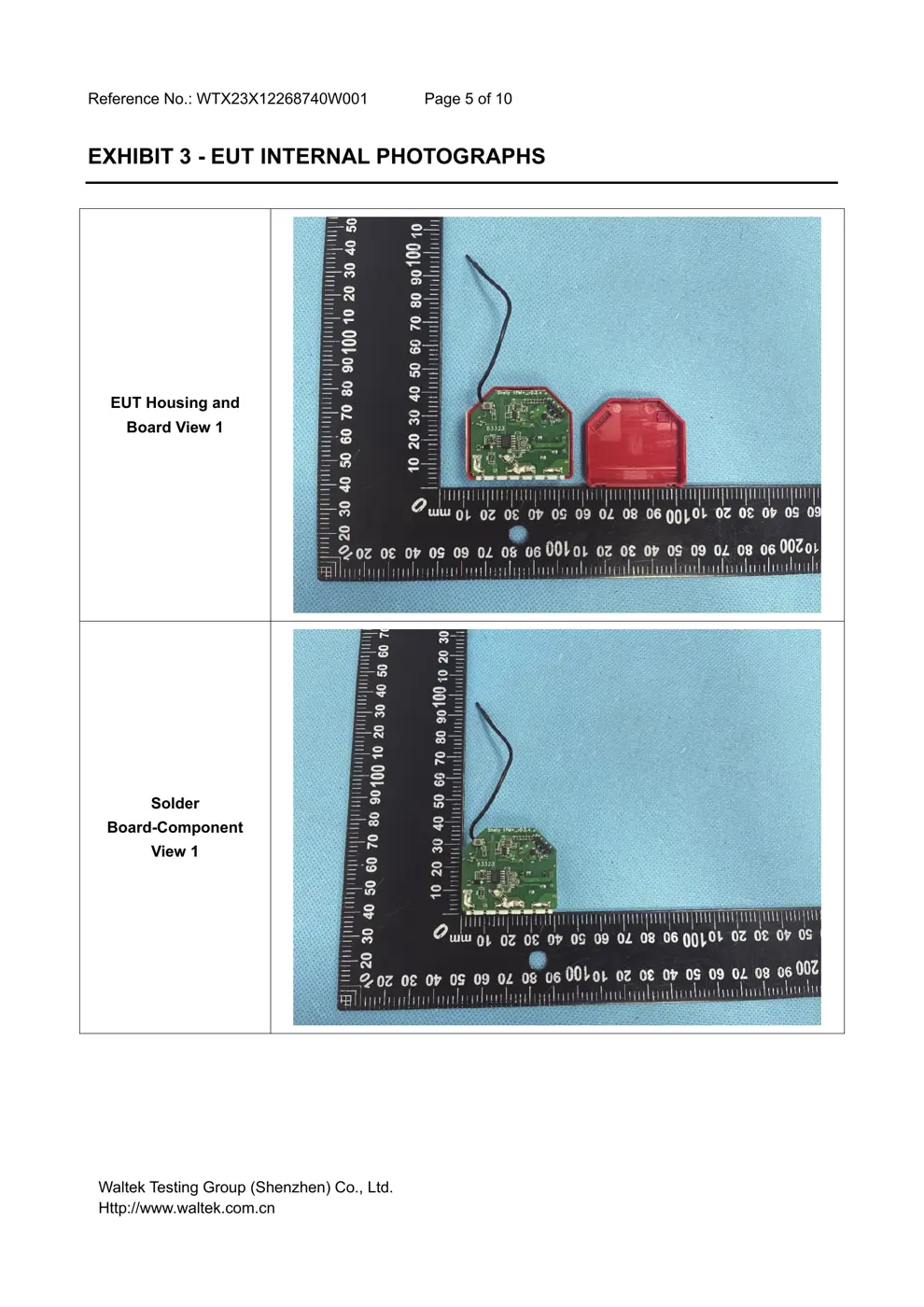

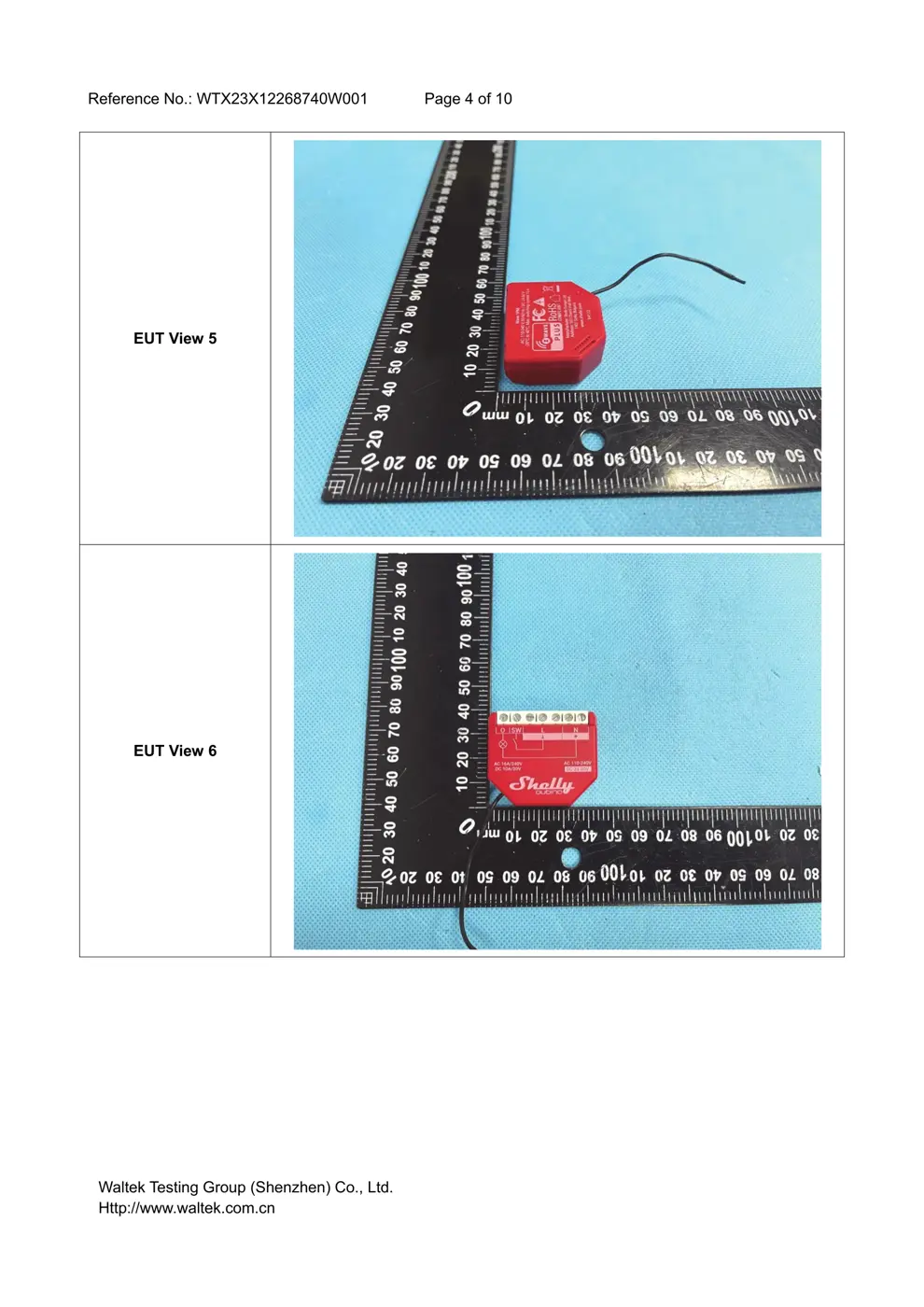

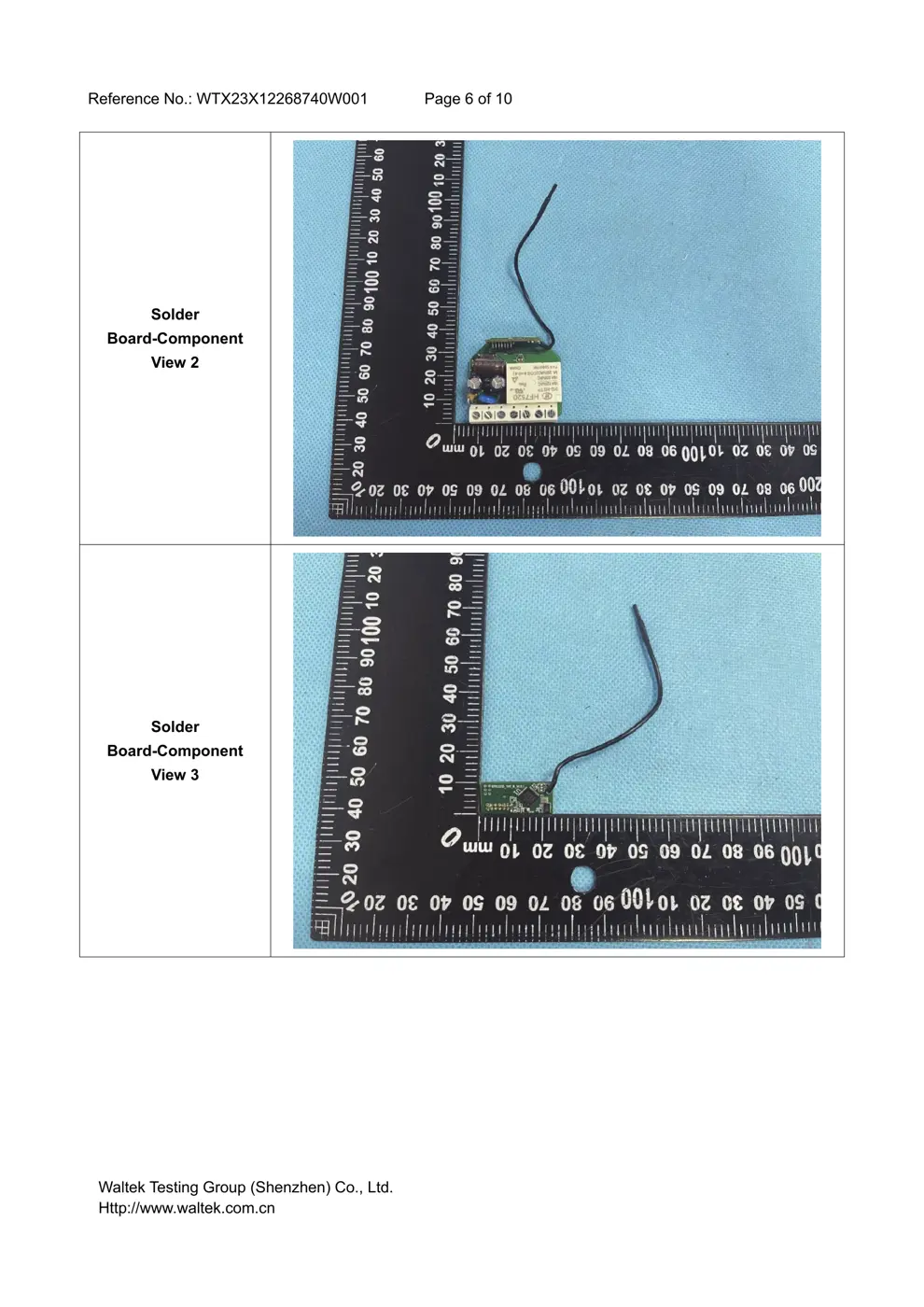

WAVE1PM Reset & Teardown (FCC ID 2BDC6-WAVE1PM)

Fig. 1
Fig. 2
Fig. 3
Wave 1PM
110-240 V AC
AC 15A/240V
DC 10A/30V
SWO NL
+
AC 15A/240V
DC 10A/30V
SWO NL
GND
24-30 V DC
S
EN
LEGEND
Device terminals:
• N: Neutral terminal
• L: Live terminal (110–240 V AC)
• SW: Switch/push-button input terminal (controlling O)
• O: Load circuit output terminal
• +: 24-30 V DC positive terminals
• : 24-30 V DC ground terminals
• S: S button (Fig. 3)
Wires:
• N: Neutral wire
• L: Live wire (110-240 V AC)
• +: 24–30 V DC positive wire
• GND: 24–30 V DC ground wire
Packaging contents: Device, user guide, Z-Wave™ DSK label
EN

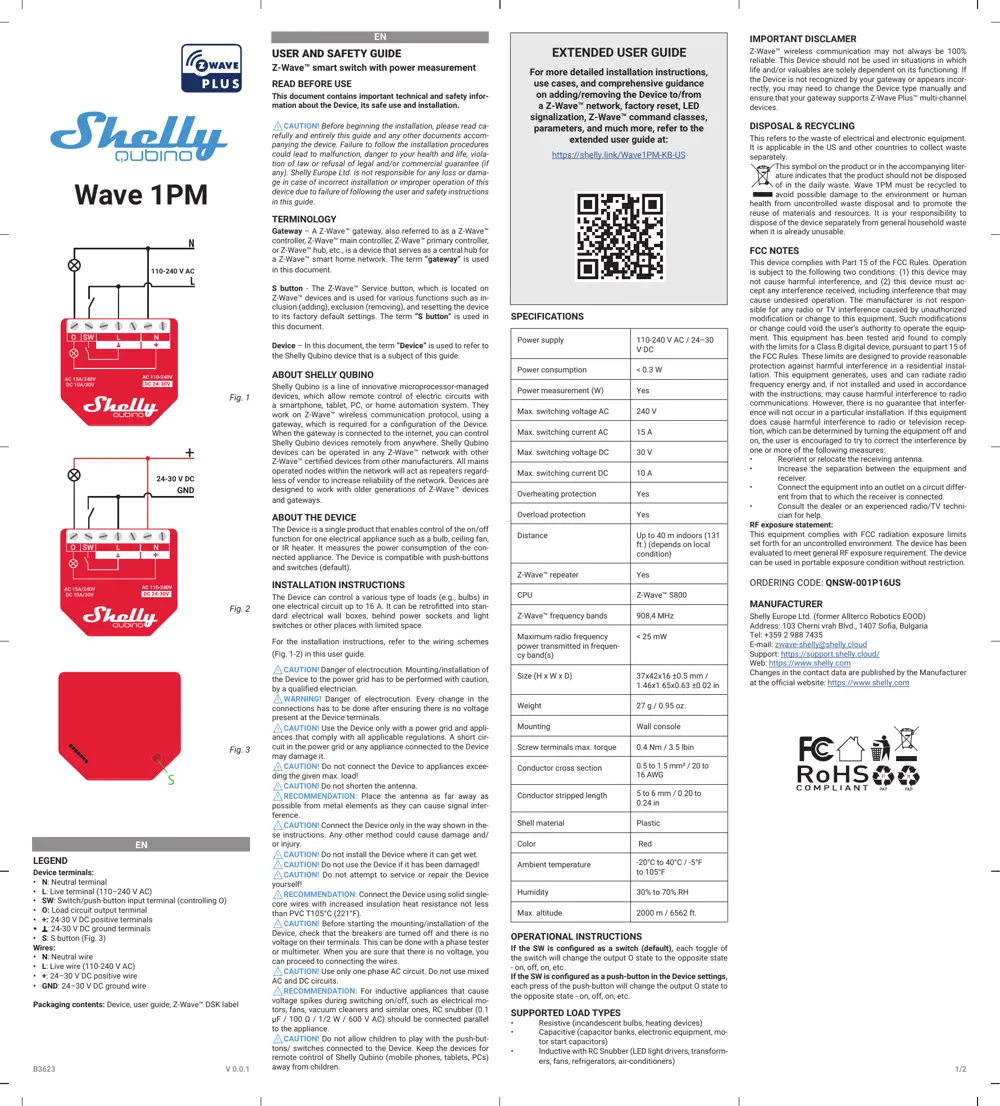

USER AND SAFETY GUIDE
Z-Wave™ smart switch with power measurement
READ BEFORE USE
This document contains important technical and safety infor -
mation about the Device, its safe use and installation.
⚠CAUTION! Before beginning the installation, please read ca -
refully and entirely this guide and any other documents accom -
panying the device. Failure to follow the installation procedures
could lead to malfunction, danger to your health and life, viola -
tion of law or refusal of legal and/or commercial guarantee (if
any). Shelly Europe Ltd. is not responsible for any loss or dama -
ge in case of incorrect installation or improper operation of this
device due to failure of following the user and safety instructions
in this guide.
TERMINOLOGY
Gateway – A Z-Wave™ gateway, also referred to as a Z-Wave™
controller, Z-Wave™ main controller, Z-Wave™ primary controller,
or Z-Wave™ hub, etc., is a device that serves as a central hub for
a Z-Wave™ smart home network. The term “gateway” is used
in this document.
S button - The Z-Wave™ Service button, which is located on
Z-Wave™ devices and is used for various functions such as in -
clusion (adding), exclusion (removing), and resetting the device
to its factory default settings. The term “S button” is used in
this document.
Device – In this document, the term “Device” is used to refer to
the Shelly Qubino device that is a subject of this guide.
ABOUT SHELL Y QUBINO
Shelly Qubino is a line of innovative microprocessor-managed
devices, which allow remote control of electric circuits with
a smartphone, tablet, PC, or home automation system. They
work on Z-Wave™ wireless communication protocol, using a
gateway, which is required for a configuration of the Device.
When the gateway is connected to the internet, you can control
Shelly Qubino devices remotely from anywhere. Shelly Qubino
devices can be operated in any Z-Wave™ network with other
Z-Wave™ certified devices from other manufacturers. All mains
operated nodes within the network will act as repeaters regard-
less of vendor to increase reliability of the network. Devices are
designed to work with older generations of Z-Wave™ devices
and gateways.
ABOUT THE DEVICE
The Device is a single product that enables control of the on/off
function for one electrical appliance such as a bulb, ceiling fan,
or IR heater. It measures the power consumption of the con -
nected appliance. The D...
