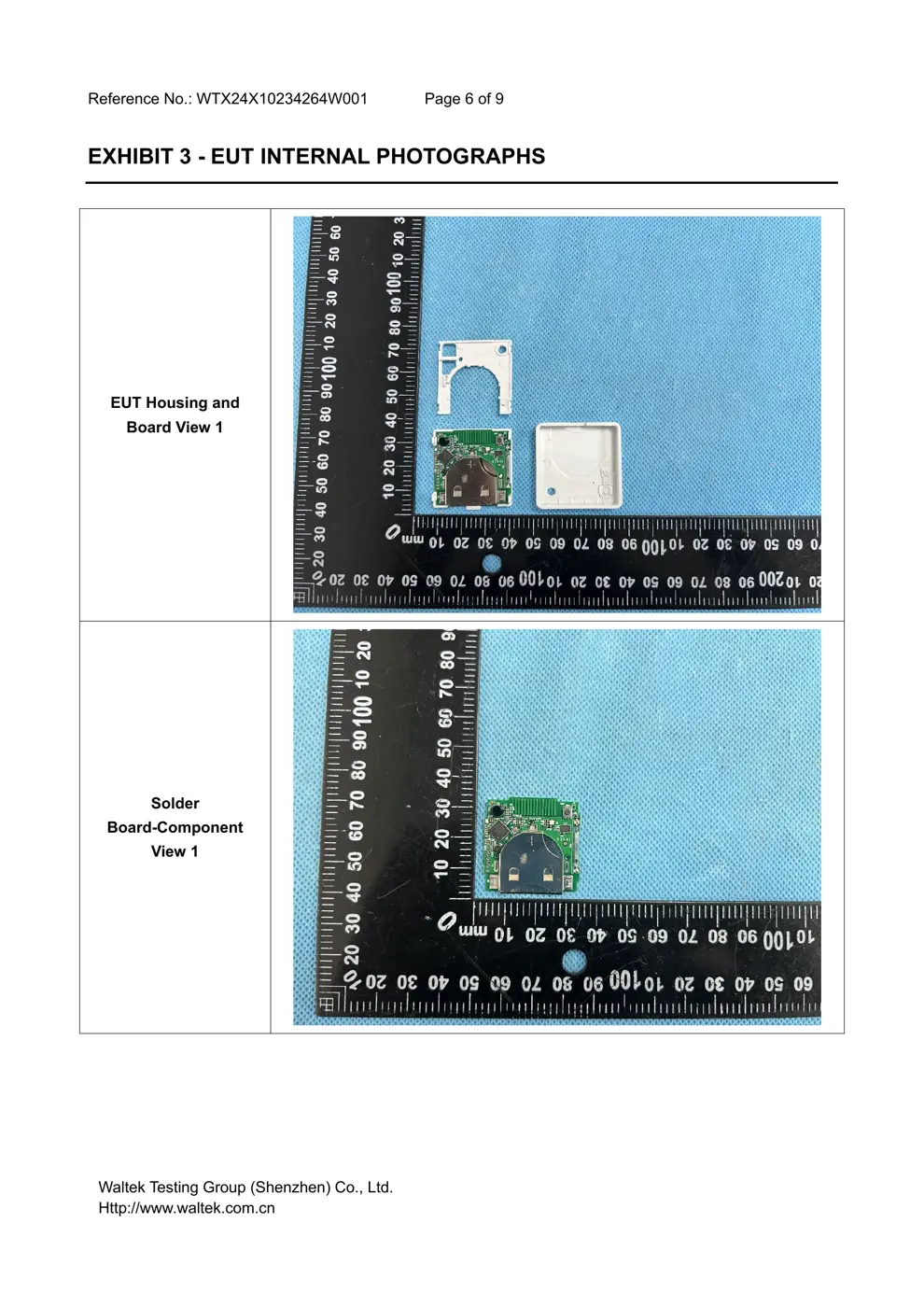

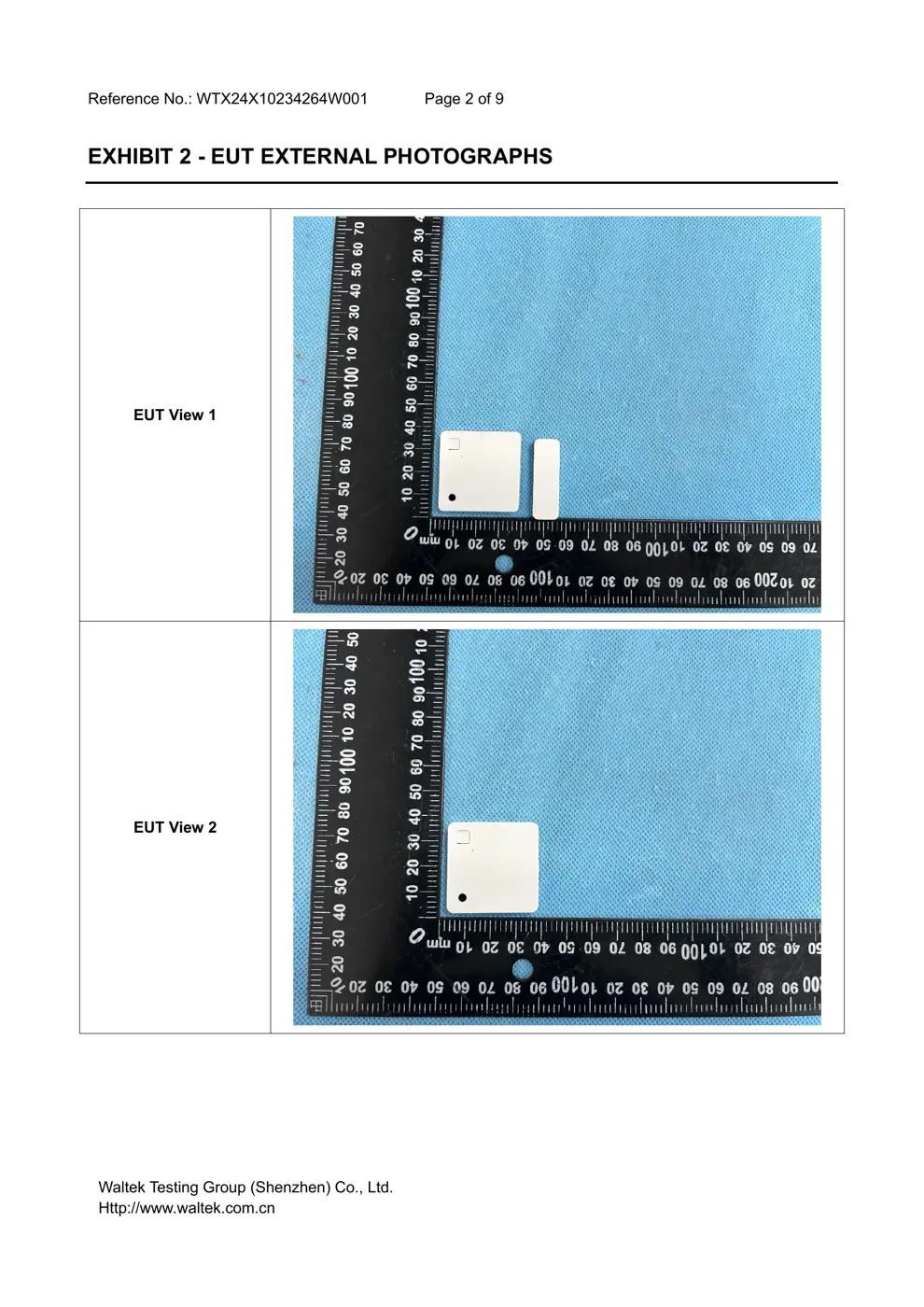

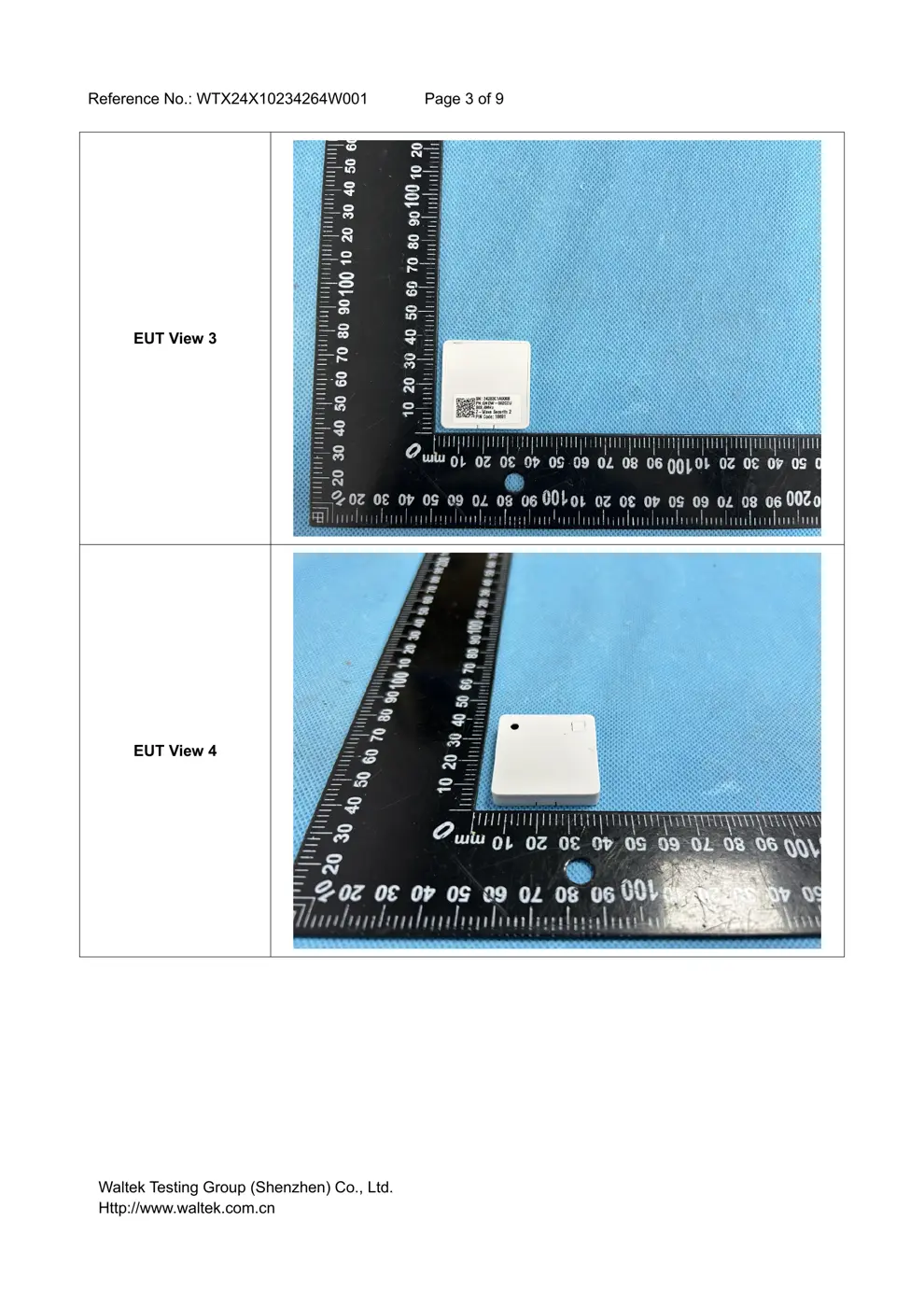

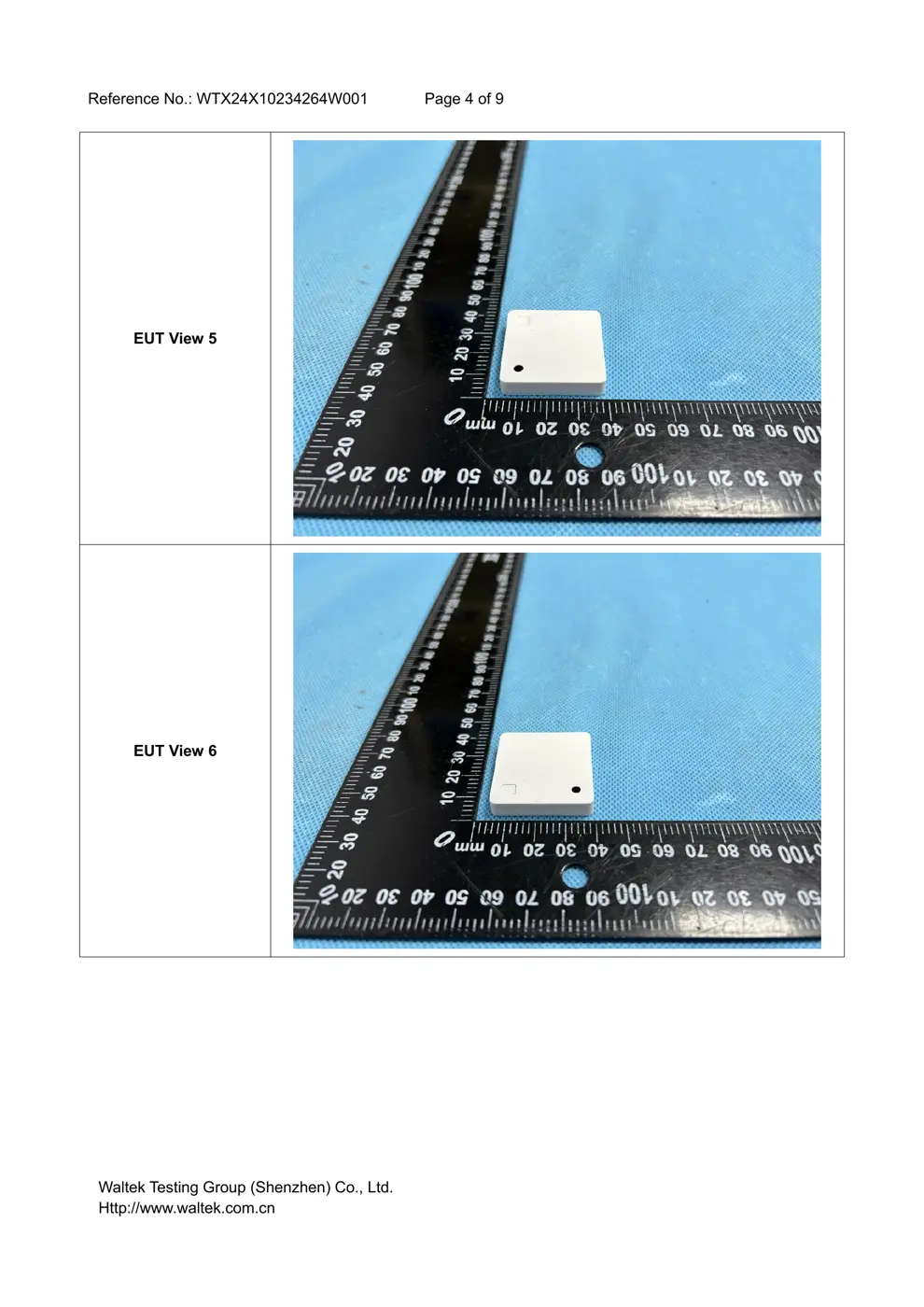

WAVEDW Reset & Teardown (FCC ID 2BDC6-WAVEDW)

A: Light sensor
B: Control button
C: Magnet
D: Sensor unit
E: LED indication
F: Battery protective foil

USER AND SAFETY GUIDE
Z-Wave® Smart sensor with angle and
illumination measurement

READ BEFORE USE
This document contains important technical and safety information
about the Device, its safe use and installation.
 CAUTION! Before beginning the installation, please read carefully
and entirely this guide and any other documents accompanying the
device. Failure to follow the installation procedures could lead to
malfunction, danger to your health and life, violation of law or refusal
of legal and/or commercial guarantee (if any). Shelly Europe Ltd. is
not responsible for any loss or damage in case of incorrect installation
or improper operation of this Device due to failure of following the
user and safety instructions in this guide.
TERMINOLOGY
Gateway – A Z-Wave® gateway, also referred to as a Z-Wave®
controller, Z-Wave® main controller, Z-Wave® primary controller, or
Z-Wave® hub, etc., is a device that serves as a central hub for a Z-
Wave® smart home network. The term “gateway” is used in this
document.
S button - The Z-Wave® Service button, which is located on Z-Wave®
devices and is used for various functions such as inclusion (adding),
exclusion (removing), and resetting the device to its factory default
settings. The term "S button" is used in this document.
Device – In this document, the term “Device” is used to refer to the
Shelly Wave device that is a subject of this guide.

ABOUT SHELLY WAVE
Shelly Wave is a line of innovative microprocessor -managed devices,
which allow remote control of electric circuits and/or environmental
sensing with a smartphone, tablet, PC, or home automation syste m.
They work on Z -Wave® wireless communication protocol, using a
gateway, which is required for a configuration of the devices. When the
gateway is connected to the internet, you can control Shelly Wave
devices remotely from anywhere. Shelly Wave devices can be operated
in any Z -Wave® network with other Z -Wave® certified devices from
other manufacturers. All mains operated nodes within the network will
act as repeaters regardless of vendor to increase reliability of the
network. Devices are designed to work with older generations of Z -
Wave® devices and gateways.

ABOUT THE DEVICE
The Shelly Wave Door/Window sensor is a Z-Wave device designed to
detect the opening and closing of doors or windows. Beyond simple
detection, it can also measure the angle of inclination for doors or
windows that tilt or turn. Additionally, the sensor is equipped with a
built-in light sensor, offering enhanced functionality for smart home
automation.
FIRST STEPS
Shelly Wave Door/Window comes ready to use with the battery
installed. Before usage of the Device, remove the protective foil from
the battery compartment to activate the battery. However, if pressing
its button does not make the Device start emitting sign...
