WR5E User Manual
TuyaSmartWi-Fi Module

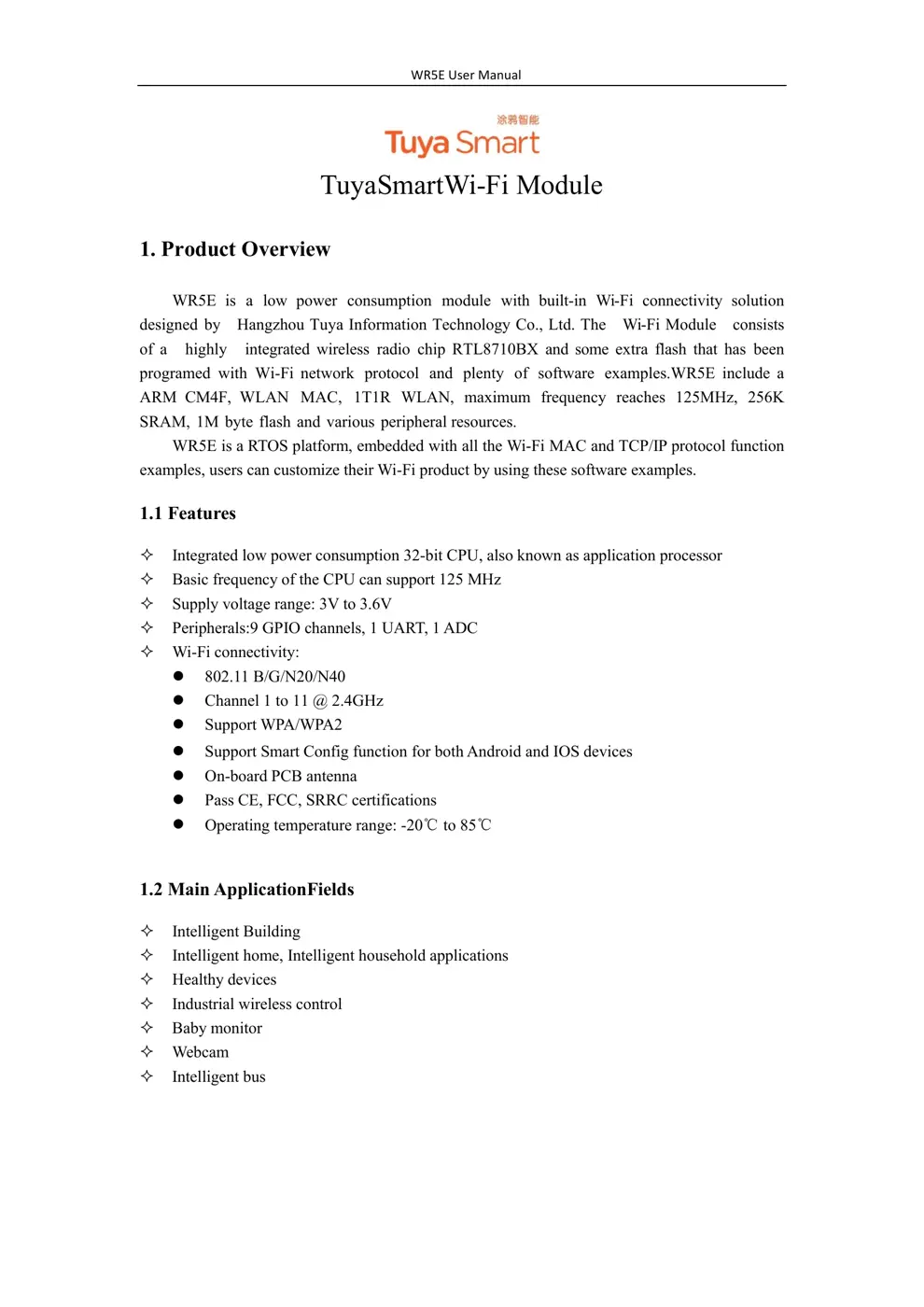

1. Product Overview
WR5E is a low power consumption module with built-in Wi-Fi connectivity solution
designed by Hangzhou Tuya Information
Technology Co., Ltd. The Wi-Fi Module consists
of a highly integrated wireless radio chip RTL8710BX and some extra flash that has been
programed with Wi-F i network protocol and plenty of software examples.WR5E include a
ARM CM4F, WLAN MAC, 1T1R WLAN, maximum frequency reaches 125MHz, 256K
SRAM, 1M byte flash and various per ipheral resources.
WR5E is a RTOS platfor
m, embedded with all the Wi-Fi MAC and TCP/IP protocol function
examples, users can customize their Wi-Fi product by using these software examples.
1.1 Features
 Integrated low power consumption 32-bit CPU, also known as application processor
 Basic frequency of the CPU can support 125 MHz
 Supply voltage range: 3V to 3.6V
 Peripherals:9 GPIO channels, 1 UART, 1 ADC
 Wi-Fi connectivity:
 802.11 B/G/N20/N40
Channel 1 to 11 @ 2.4GHz
 Support WPA/WP
A2
Support Smart Config function for both Android and IOS devices
 On-board PCB ant
enna
 Pass CE, FCC, SRRC certifications
Operating temperature range: -20℃ to 85℃
1.2 Main ApplicationFields
 Intelligent Building
 Intelligent home, Intelligent household applications
 Healthy devices
 Industrial wireless control
 Baby monitor
 Webcam
 Intelligent bus

WR5E User Manual

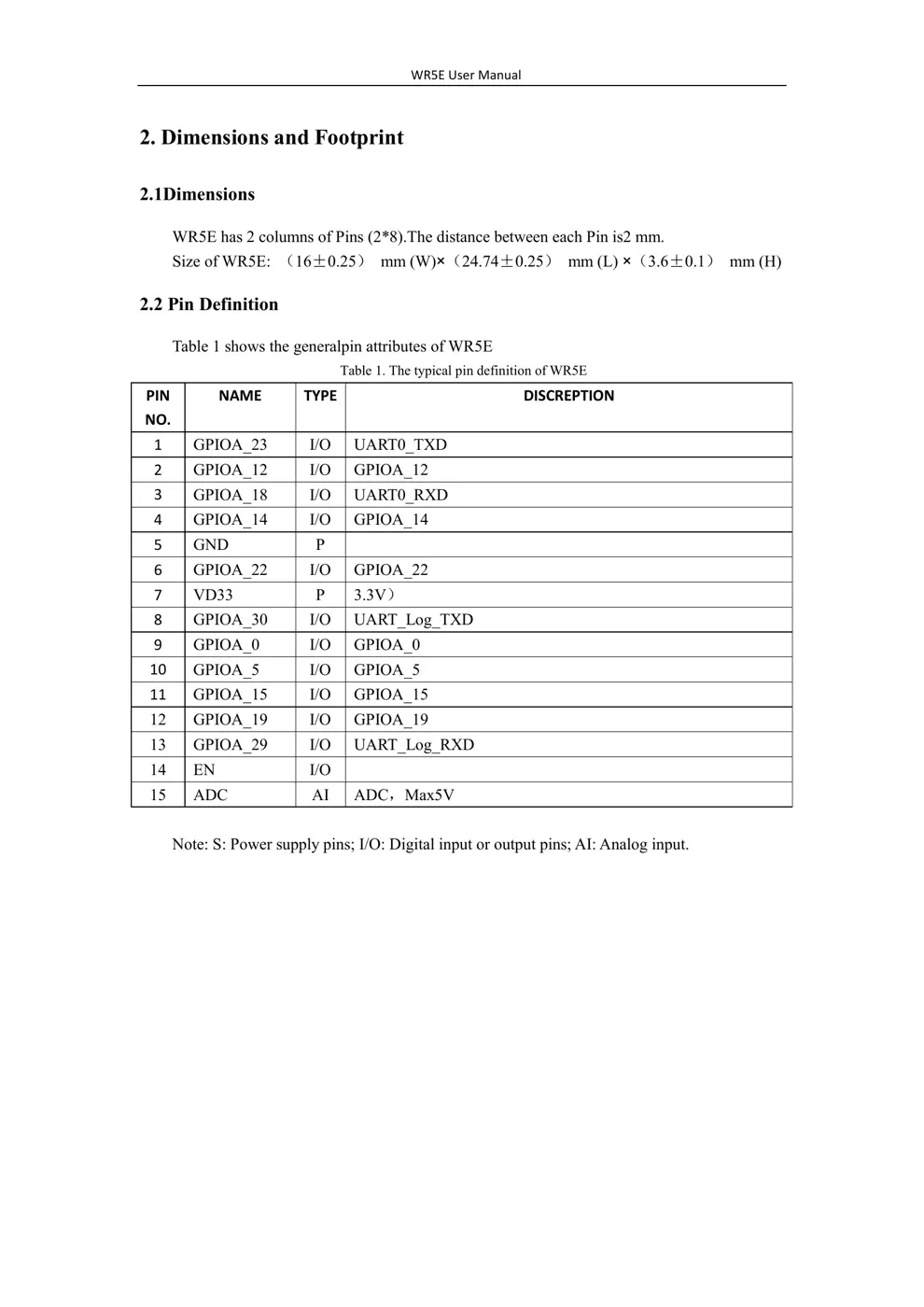

2. Dimensions and Footprint

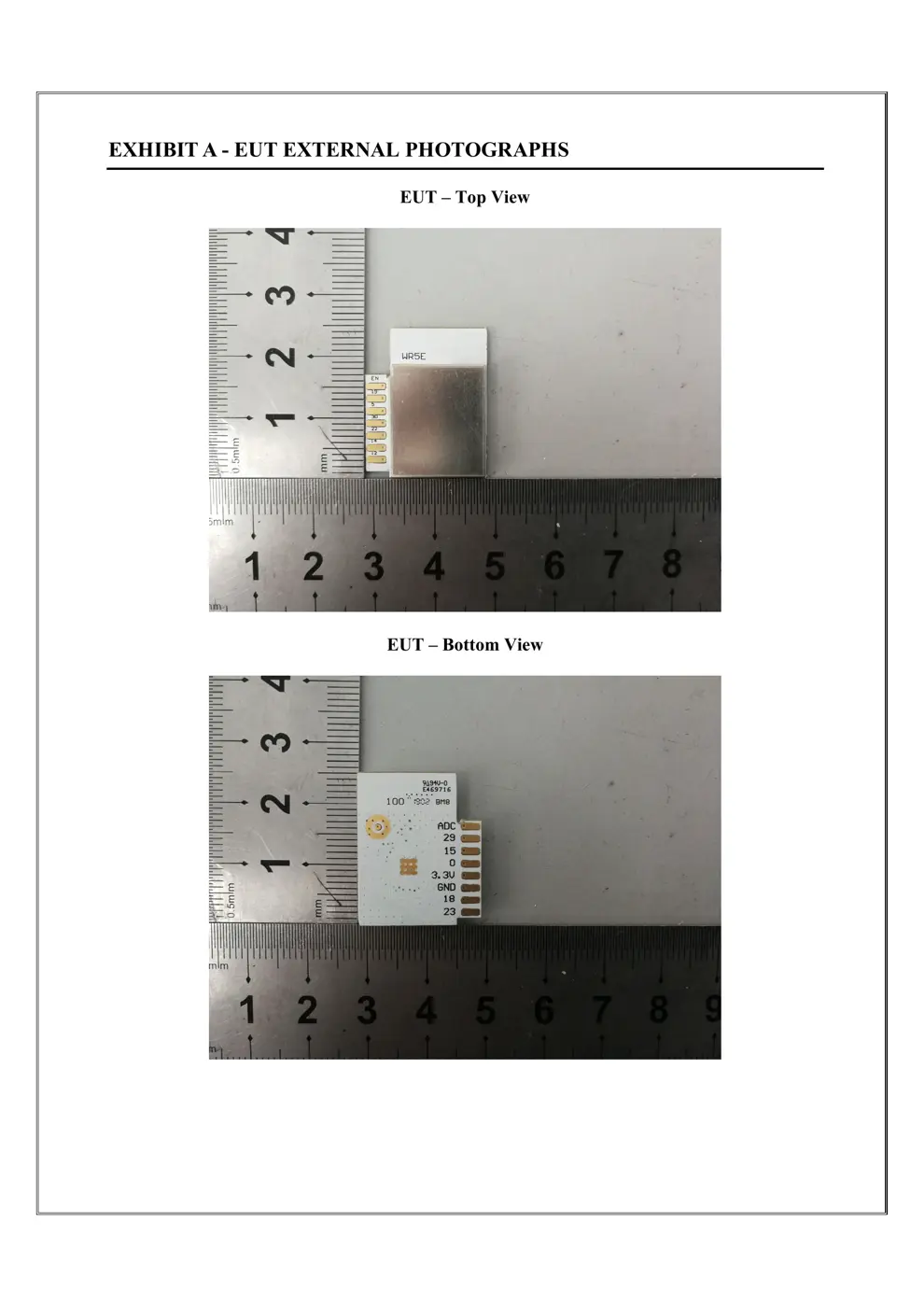

2.1Dimensions
WR5E has 2 columns of Pins (2*8).The distance between each Pin is2 mm.
Size of WR5E: （16±0.25） mm (W)×（24.74±0.25） mm (L) ×（3.6±0.1） mm (H)
2.2 Pin Definition
Table 1 shows the generalpin attributes of WR5E
Table 1. The typical pin definition of WR5E
PIN
NO.
NAME TYPE DISCREPTION
1 GPIOA_23 I/O UART0_TXD
2 GPIOA_12 I/O GPIOA_12
3 GPIOA_18 I/O UART0_RXD
4 GPIOA_14 I/O GPIOA_14
5 GND P
6 GPIOA_22 I/O GPIOA_22
7 VD33 P 3.3V）
8 GPIOA_30 I/O UART_Log_TXD
9 GPIOA_0 I/O GPIOA_0
10 GPIOA_5 I/O GPIOA_5
11 GPIOA_15 I/O GPIOA_15
12 GPIOA_19 I/O GPIOA_19
13 GPIOA_29 I/O UART_Log_RXD
14 EN I/O
15 ADC AI ADC，Max5V
Note: S: Pow
er supply pins; I/O: Digital input or output pins; AI: Analog input.
WR5E User Manual

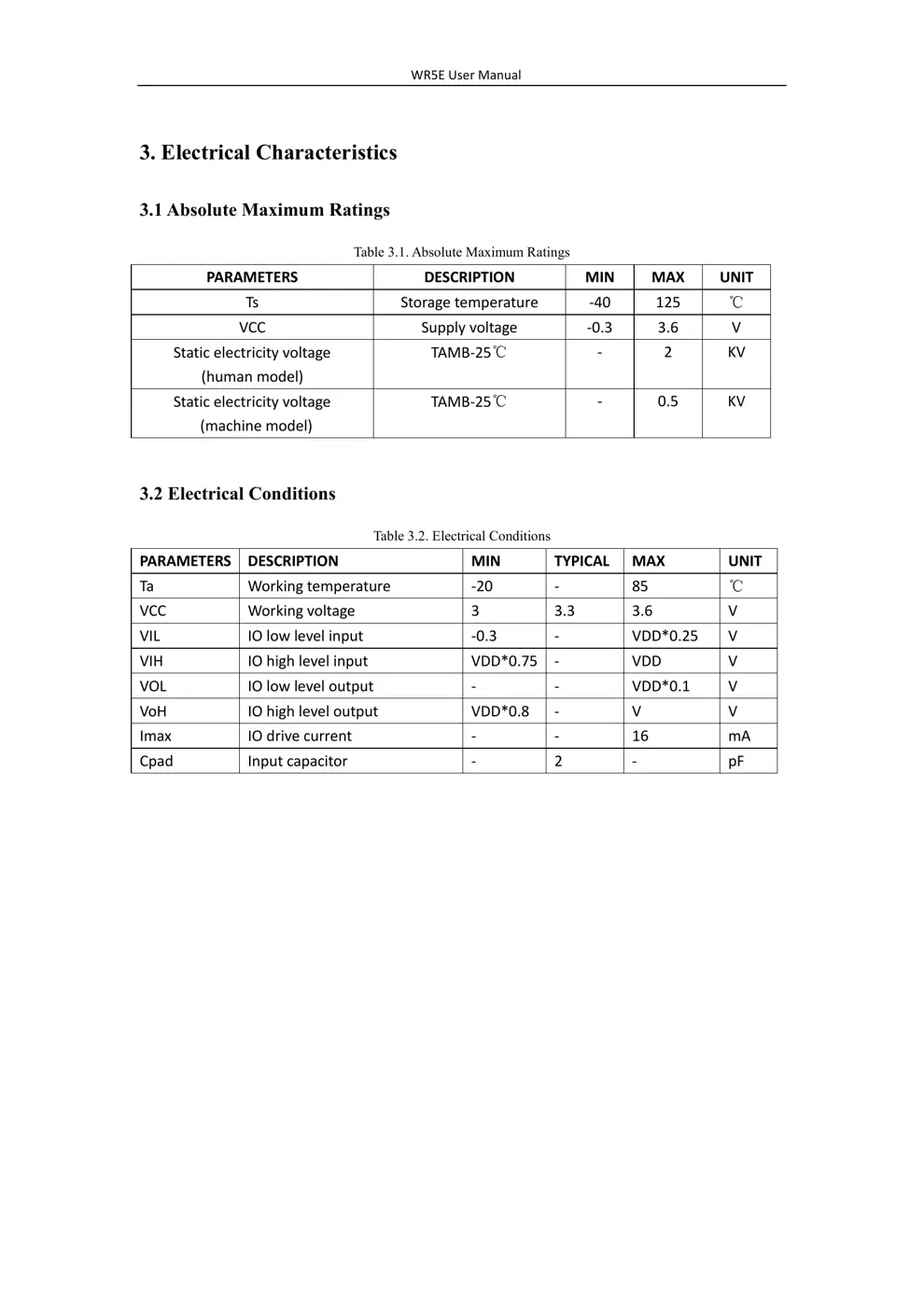

3. Electrical Characteristics
3.1 Absolute Maximum Ratings
Table 3.1. Absolute Maximum Ratings
PARAMETERS DESCRIPTION MIN MAX UNIT
Ts Storage temperature -40 125 ℃
VCC Supply voltage -0.3 3.6 V
Static electricity voltage
(human model)
TAMB-25℃ - 2 KV
Static electricity voltage
(machine model)
TAMB-25℃ - 0.5 KV
3.2 Electrical Conditions
Table 3.2. Electrical Conditions
PARAMETERS DESCRIPTION MIN TYPICAL MAX UNIT
Ta Working temperature -20 - 85 ℃
VCC Working voltage 3 3.3 3.6 V
VIL IO low level input -0.3 - VDD*0.25 V
VIH IO high level input VDD*0.75 - VDD V
VOL IO low level output - - VDD*0.1 V
VoH IO high level output VDD*0.8 - V V
Imax IO drive current - - 16 mA
Cpad Input capacitor - 2 - pF
WR5E User Manual
3.3 Wi-Fi Receiving Current Consumptions
Table 3.
3. Wi-Fi RX current consumption
PARAMETERS MODE ...
