ZPUPRO Reset & Teardown (FCC ID 2ANDL-ZPUPRO)

Before you buy the Tuya Global ZPUPRO, check what's inside.

The ZPUPRO is a Zigbee-enabled module from Tuya, based on the PHY6225 RF processor. It's designed for integration into smart home devices like smart sockets and lighting, leveraging Tuya's Smart Life ecosystem.

⚠️ NOTE: Ensure correct battery polarity when installing CR2450 batteries.

Quick Specs

Manufacturer: Tuya Global
Model: ZPUPRO
Protocol: WiFi
Chipset: Realtek/Beken
Ecosystem: Tuya / Smart Life
App: Smart Life

🔧 Geek Corner (Flashing Info)

Chipset: PHY6225
Flashable: ❌ No
Info: Typically, Tuya Zigbee modules with integrated chipsets like PHY6225 are not designed for user flashing and often have locked bootloaders.

User Manual

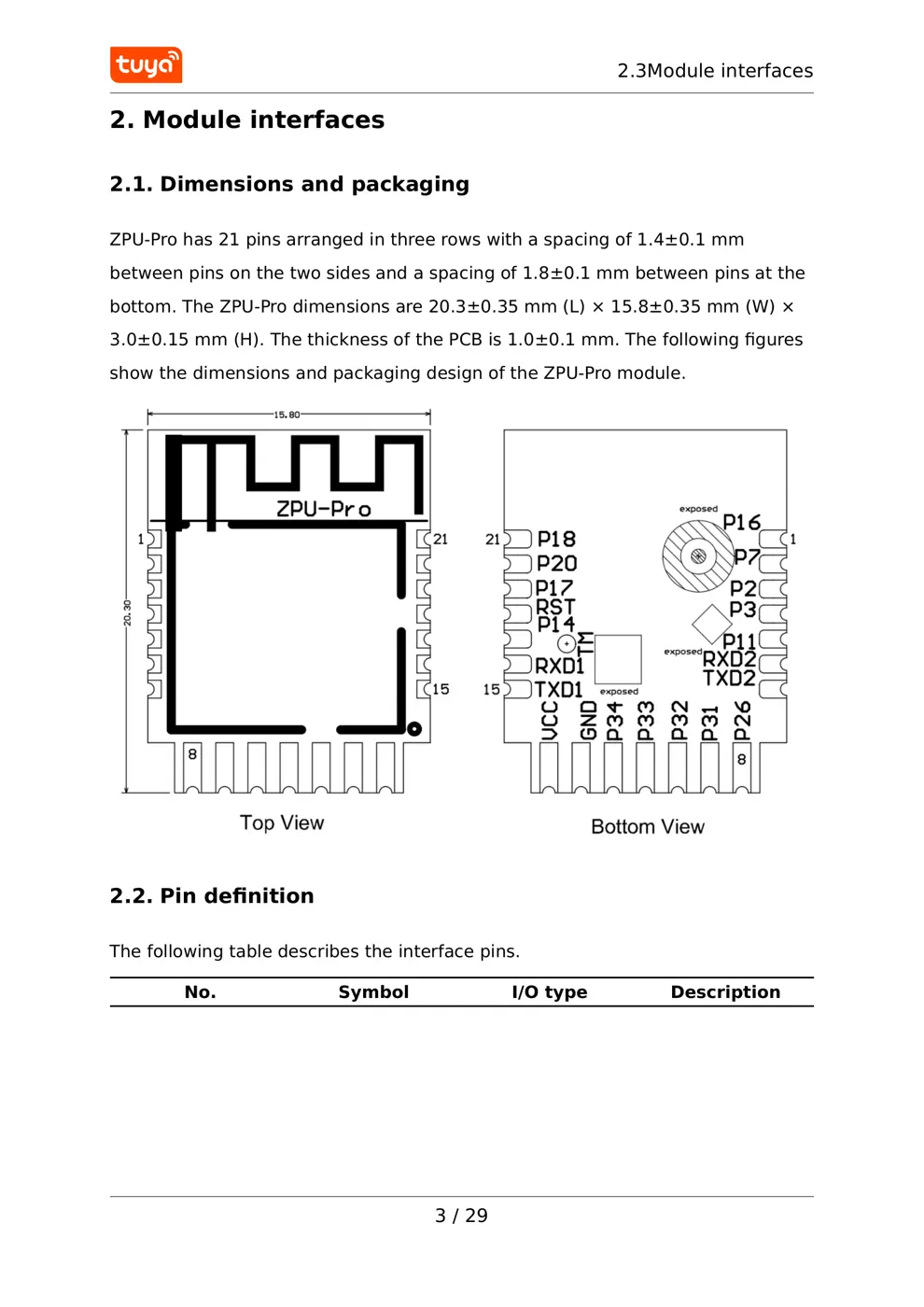

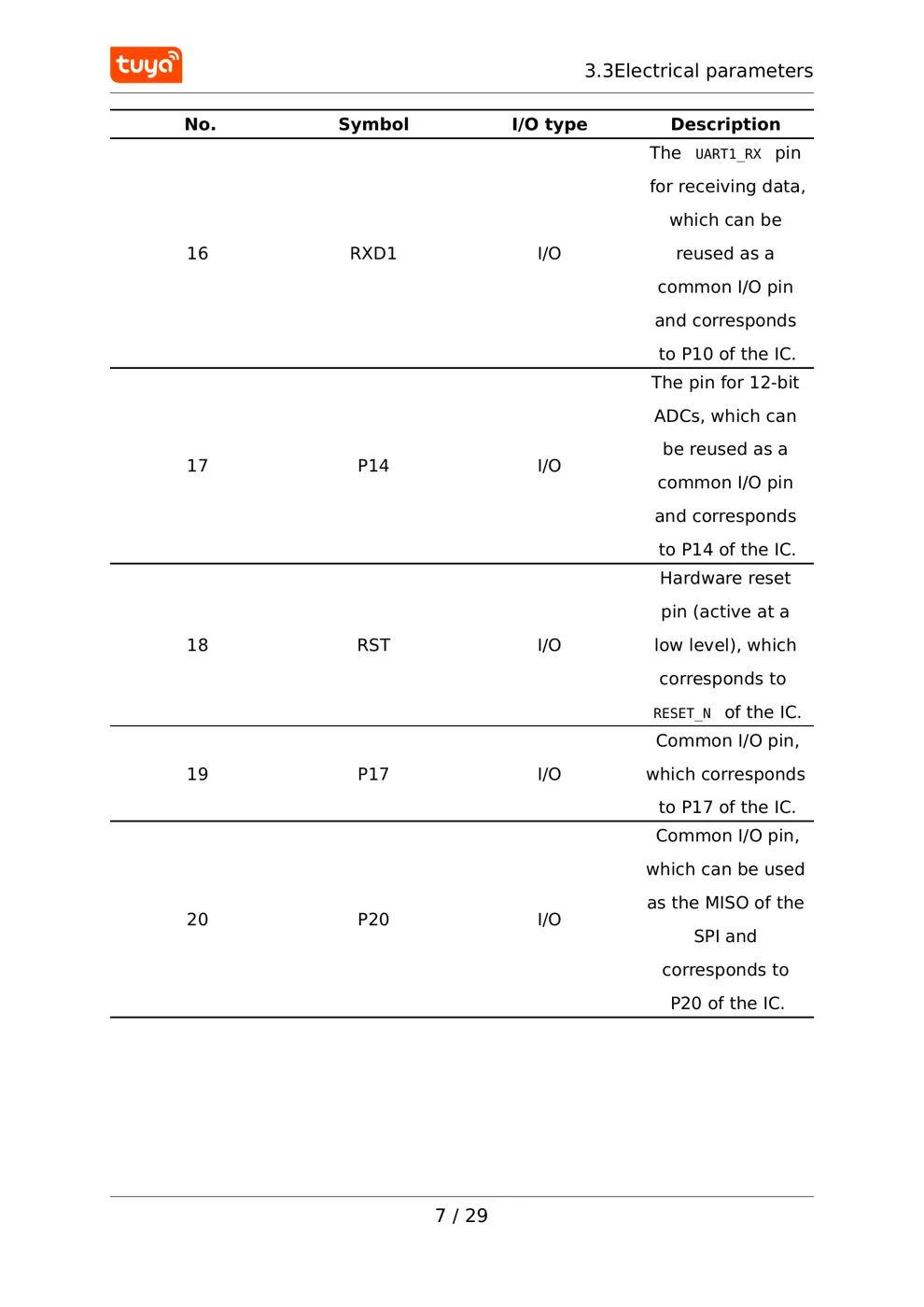

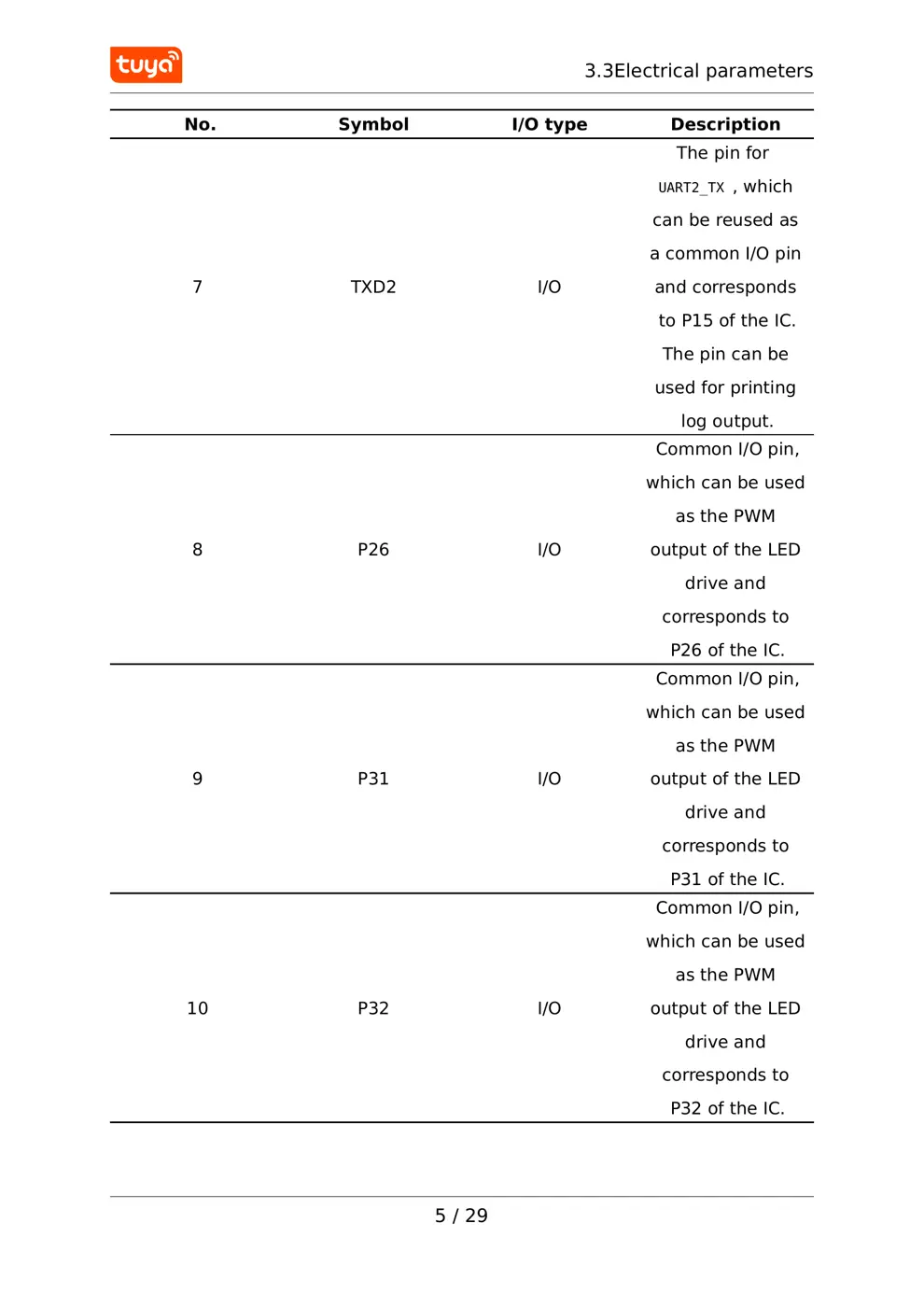

Scanned pages from the official user manual:

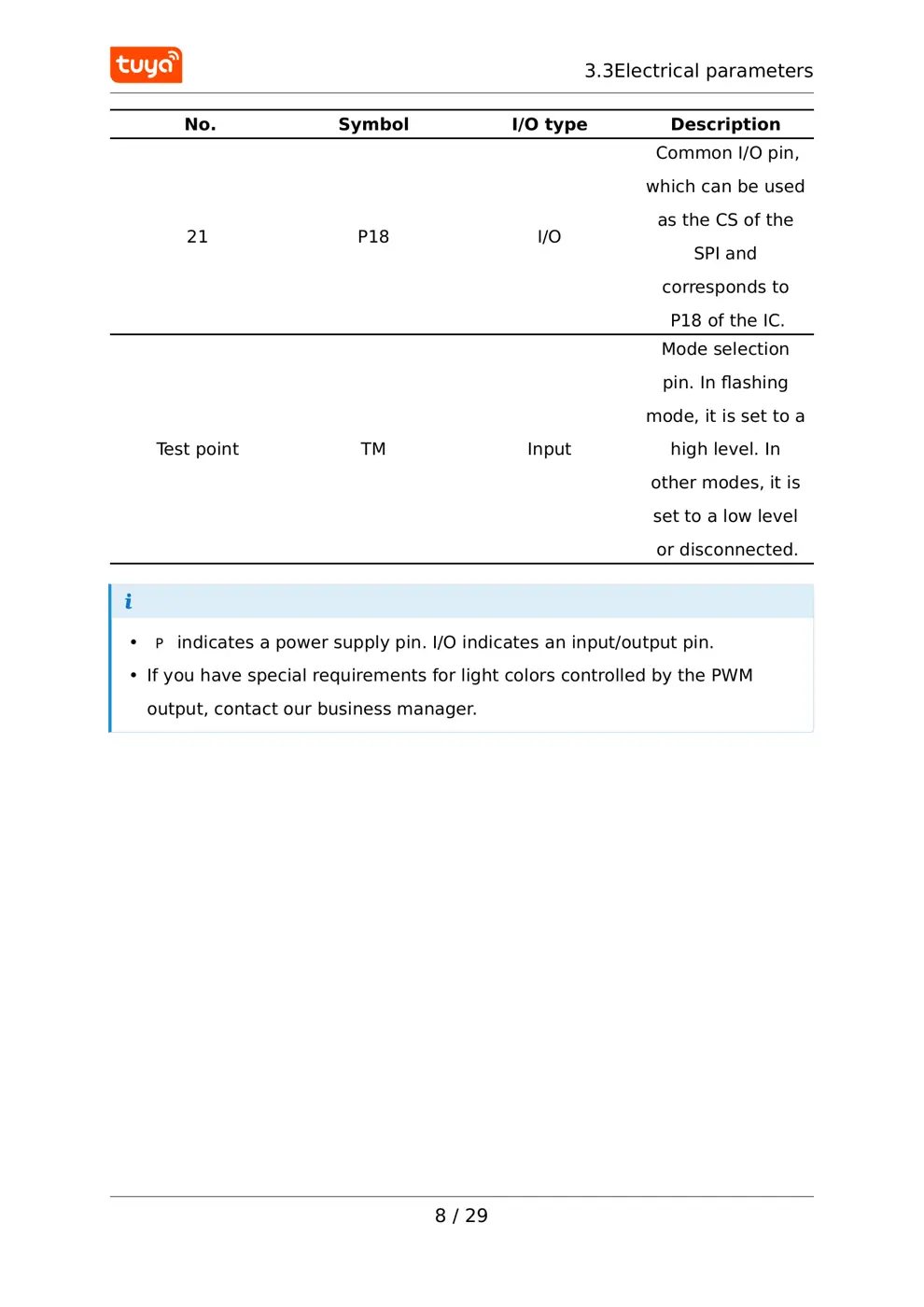

ZPUPRO Manual

External Photos

Photos of the device exterior:

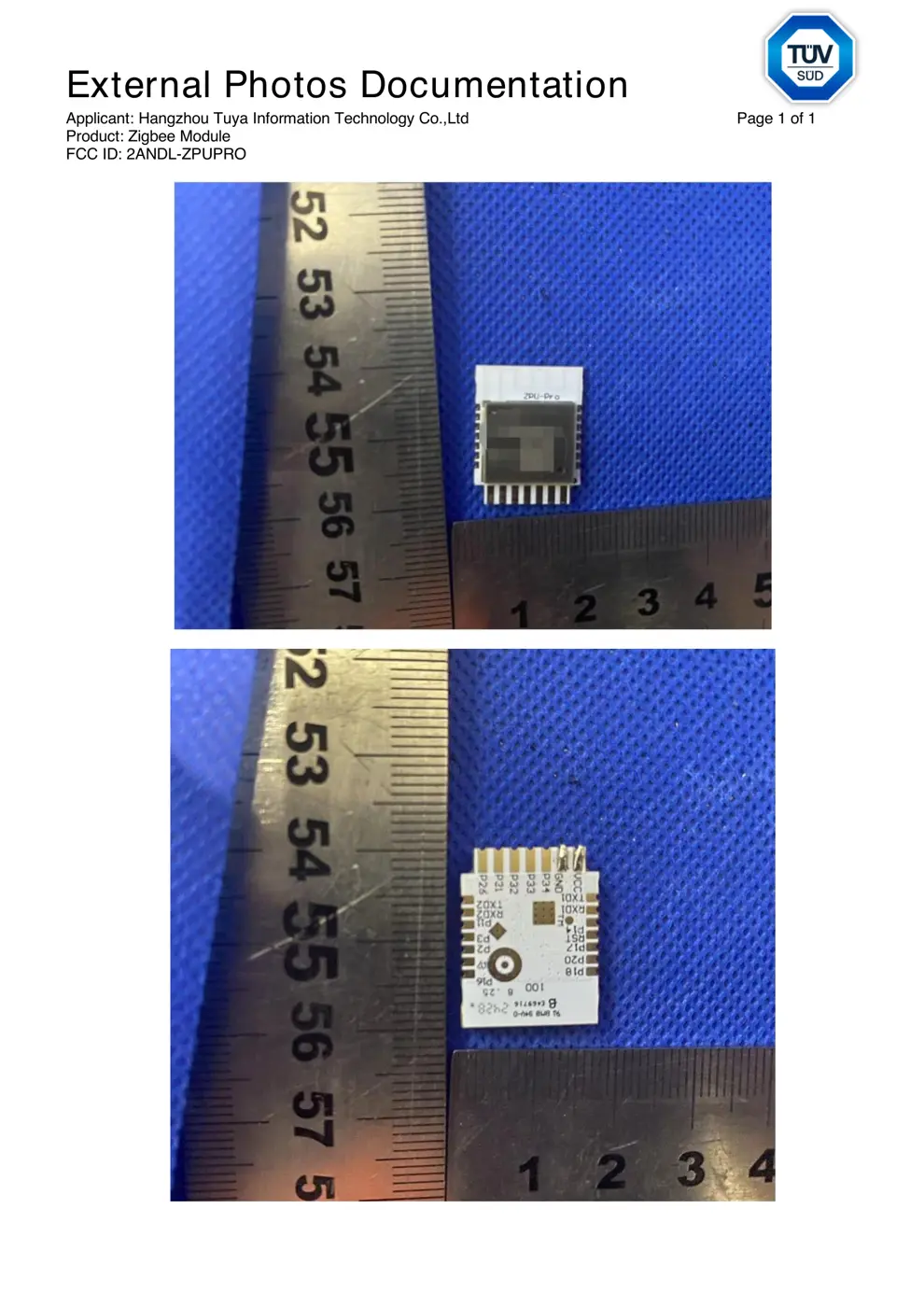

ZPUPRO Exterior

Internal Photos

Teardown photos showing the PCB and components:

ZPUPRO PCB

Verdict

The ZPUPRO is a WiFi device from the Tuya / Smart Life ecosystem.

📄 Click to view full text manual (SEO)

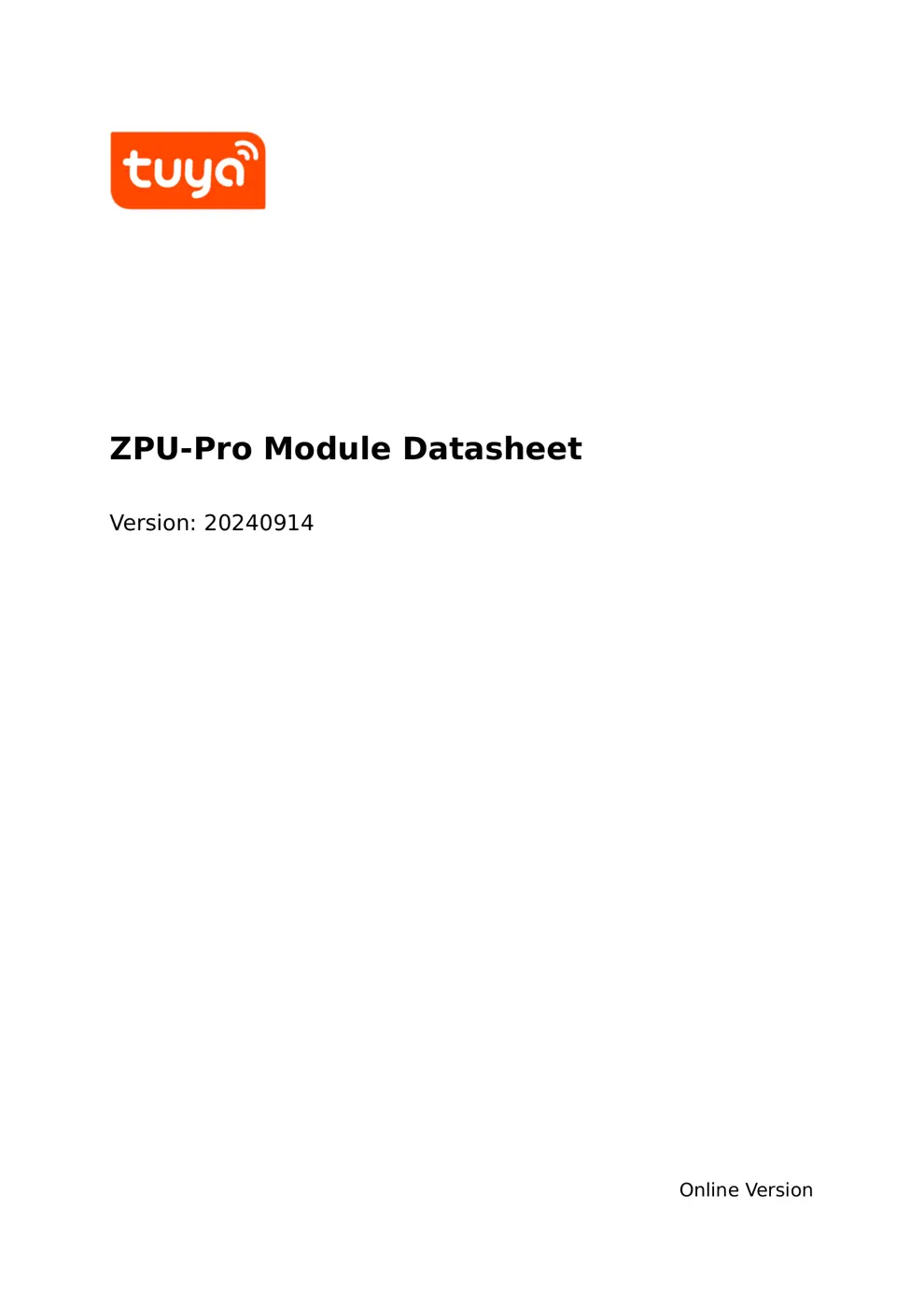

ZPU-Pro Module Datasheet
Version: 20240914
Online Version

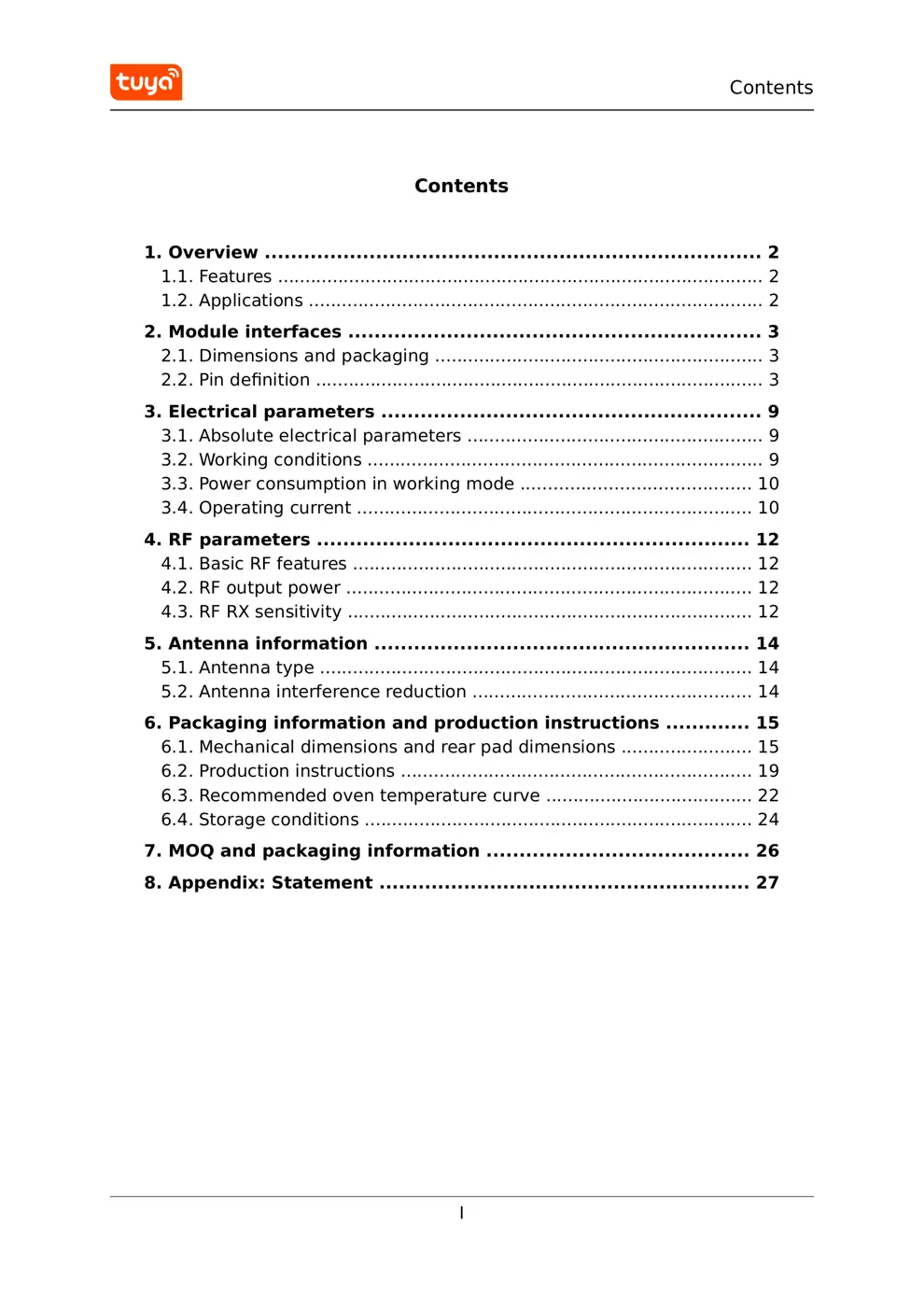

Contents
Contents
1. Overview ............................................................................ 2
1.1. Features ......................................................................................... 2
1.2. Applications ................................................................................... 2
2. Module interfaces ............................................................... 3
2.1. Dimensions and packaging ............................................................ 3
2.2. Pin deﬁnition .................................................................................. 3
3. Electrical parameters .......................................................... 9
3.1. Absolute electrical parameters ...................................................... 9
3.2. Working conditions ........................................................................ 9
3.3. Power consumption in working mode .......................................... 10
3.4. Operating current ........................................................................ 10
4. RF parameters .................................................................. 12
4.1. Basic RF features ......................................................................... 12
4.2. RF output power .......................................................................... 12
4.3. RF RX sensitivity .......................................................................... 12
5. Antenna information ......................................................... 14
5.1. Antenna type ............................................................................... 14
5.2. Antenna interference reduction ................................................... 14
6. Packaging information and production instructions ............. 15
6.1. Mechanical dimensions and rear pad dimensions ........................ 15
6.2. Production instructions ................................................................ 19
6.3. Recommended oven temperature curve ...................................... 22
6.4. Storage conditions ....................................................................... 24
7. MOQ and packaging information ........................................ 26
8. Appendix: Statement ......................................................... 27
I

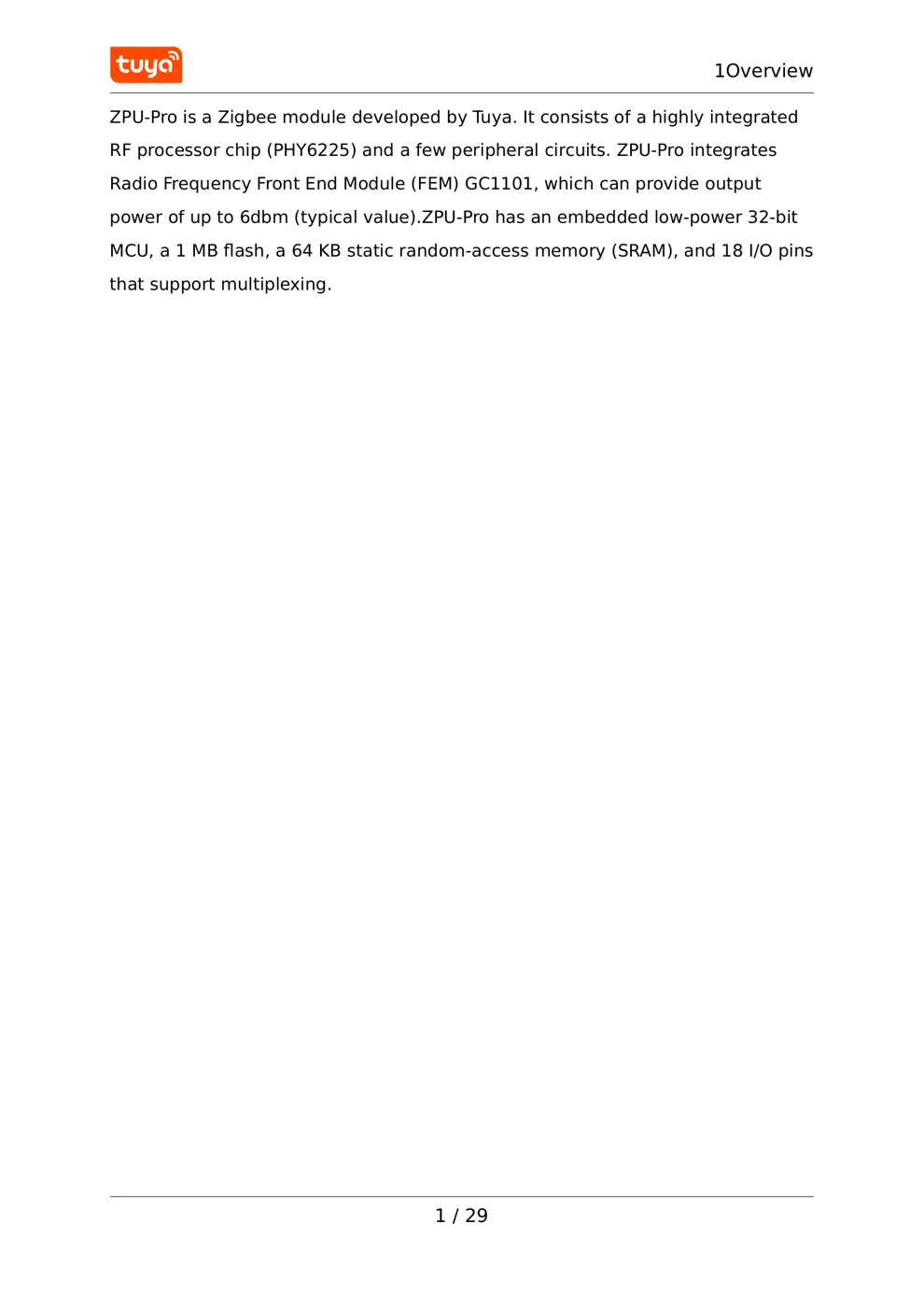

1Overview
1 / 29
that support multiplexing.
MCU, a 1 MB ﬂash, a 64 KB static random-access memory (SRAM), and 18 I/O pins

power of up to 6dbm (typical value).ZPU-Pro has an embedded low-power 32-bit

Radio Frequency Front End Module (FEM) GC1101, which can provide output

RF processor chip (PHY6225) and a few peripheral circuits. ZPU-Pro integrates

ZPU-Pro is a Zigbee module developed by T uya. It consists of a highly integrated

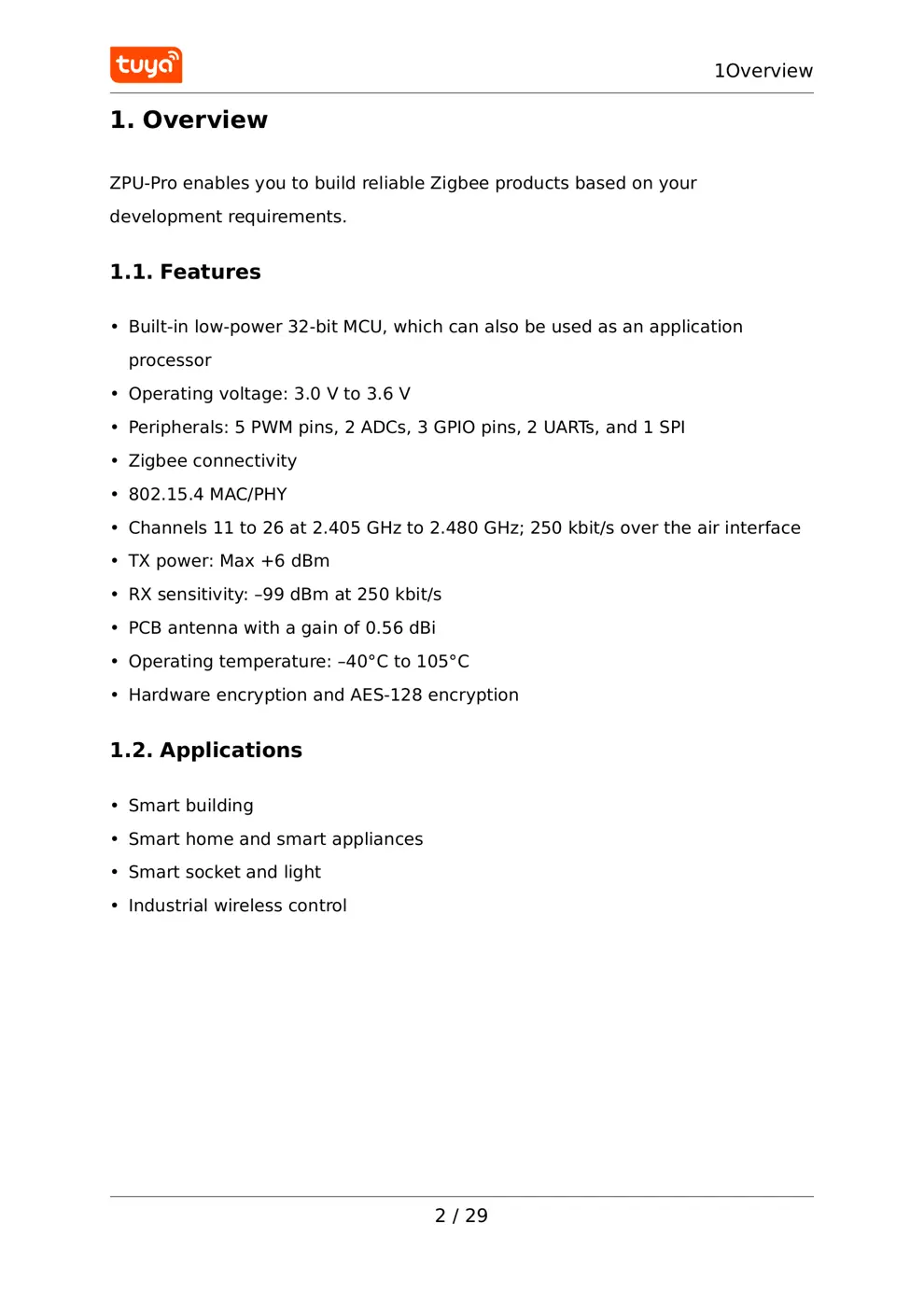

1Overview
2 / 29

Industrial wireless control

Smart socket and light

Smart home and smart appliances

Smart building
1.2.

Applications

Hardware encryption and AES-128 encryption

Opera...
