A Reset & Teardown (FCC ID 2ANDL-BT3L-A)
Factory reset and internal photos for Tuya Global A. Tuya / Smart Life smart plug.
January 15, 2026
•
1 min read
Before you buy the Tuya Global A, check what's inside.
The Tuya BT3L-A is an embedded Bluetooth Low Energy (BLE) module designed for low-power smart home applications. It integrates a highly capable chip with a BLE 5.0 radio, making it suitable for devices like smart lights and sensors.
⚠️ NOTE: Ensure correct battery polarity and voltage range (1.8V to 3.6V) during installation.
Quick Specs
- Manufacturer: Tuya Global
- Model: A
- Protocol: WiFi
- Chipset: Realtek/Beken
- Ecosystem: Tuya / Smart Life
- App: Smart Life
🔧 Geek Corner (Flashing Info)
- Chipset: TLSR8250F512AT32
- Flashable: ❌ No
- Info: This module is designed as a component and not intended for user flashing. Custom firmware would require significant development effort and may not be supported.
User Manual

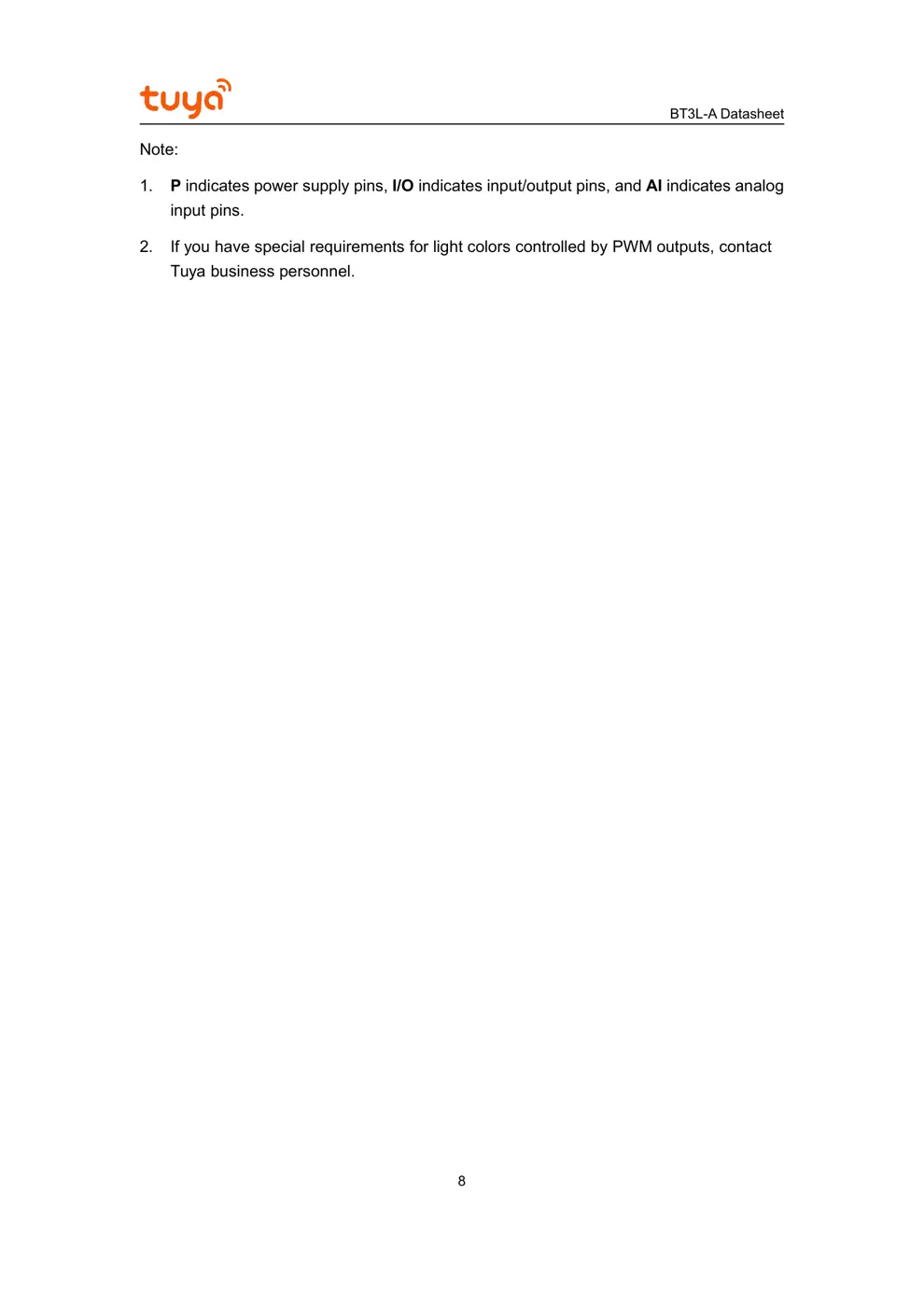

Scanned pages from the official user manual:
External Photos
Photos of the device exterior:

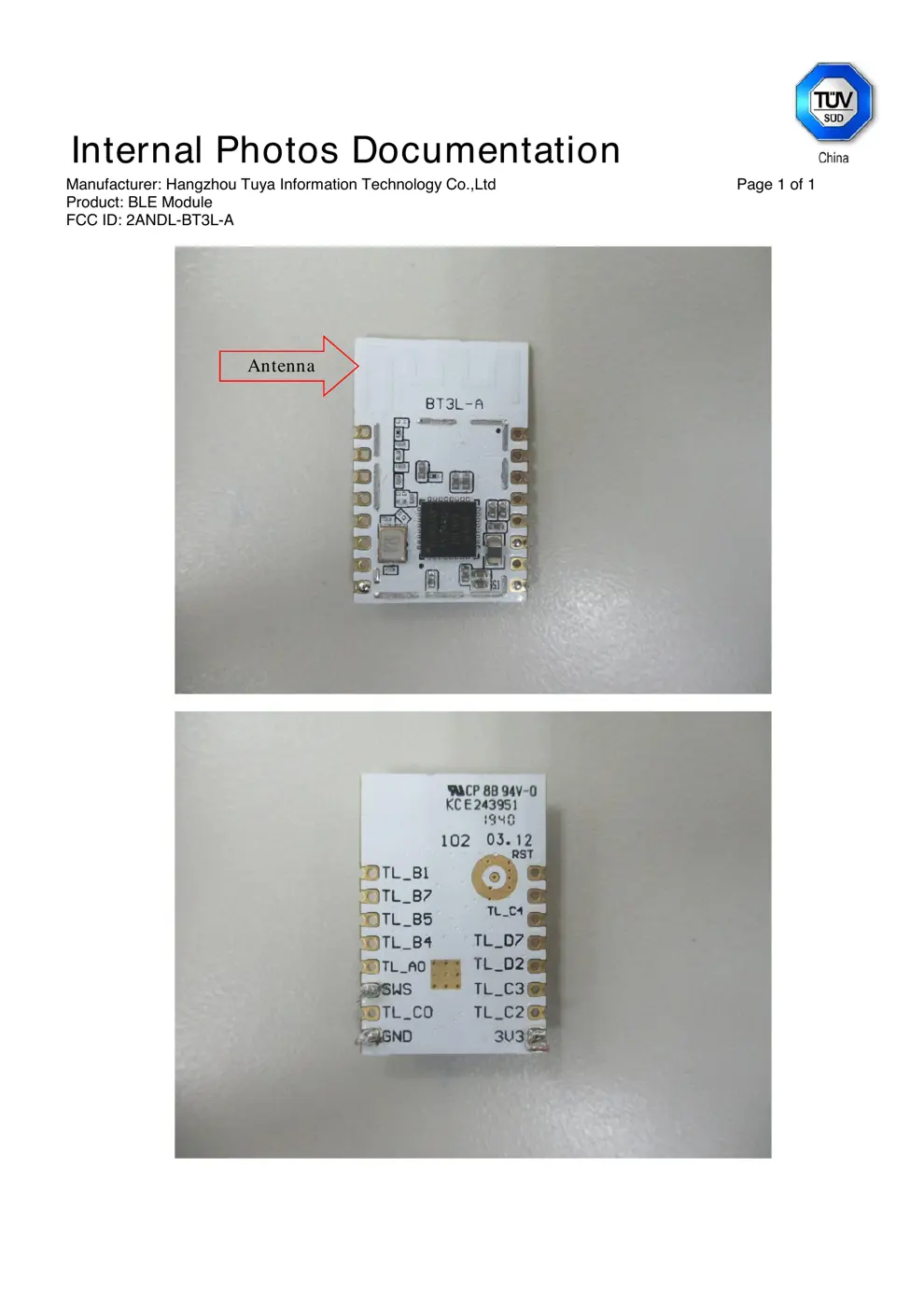

Internal Photos
Teardown photos showing the PCB and components:
Verdict
The A is a WiFi device from the Tuya / Smart Life ecosystem.
📄 Click to view full text manual (SEO)
BT3L-A Datasheet
1

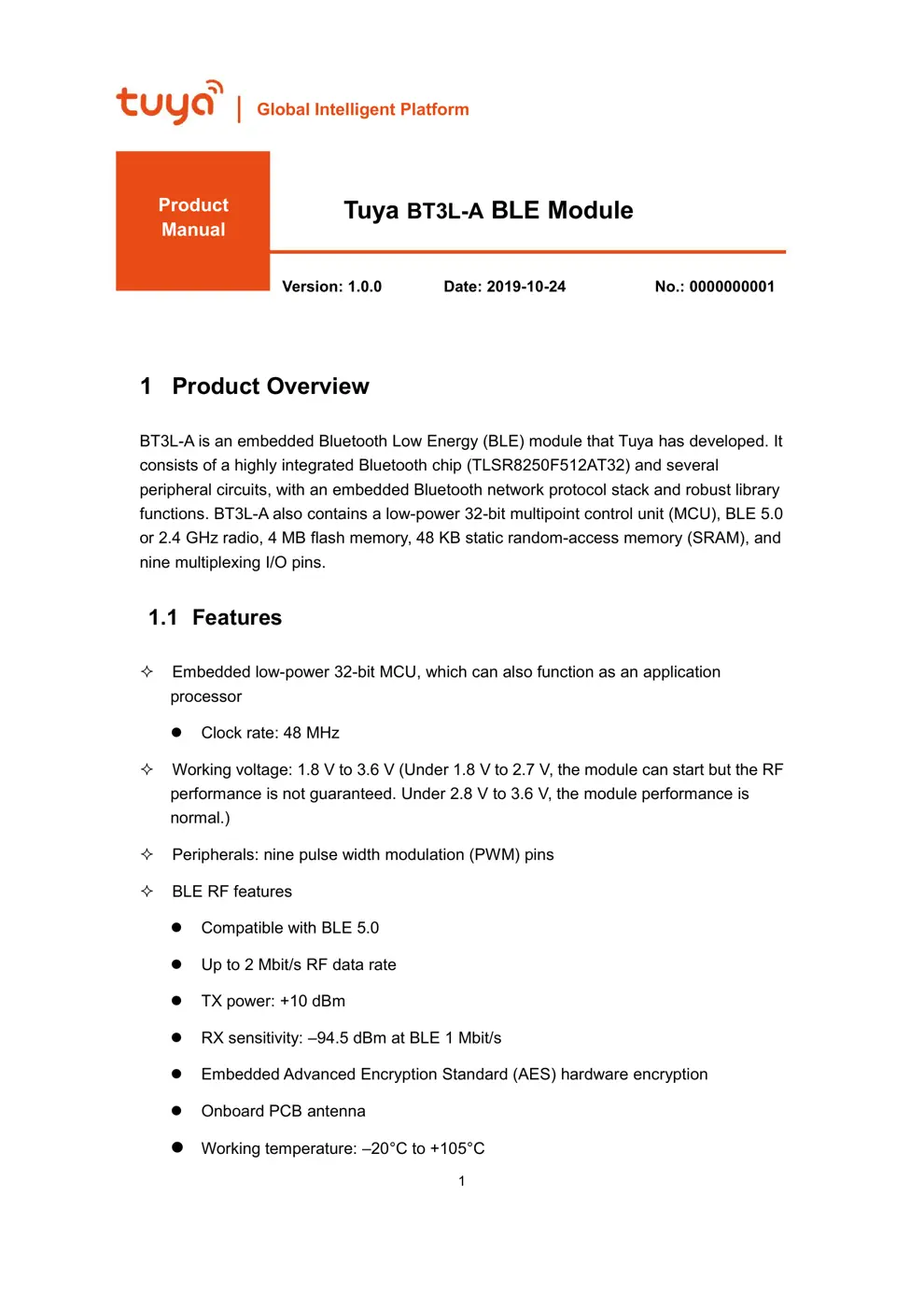

1 Product Overview
BT3L-A is an embedded Bluetooth Low Energy (BLE) module that Tuya has developed. It
consists of a highly integrated Bluetooth chip (TLSR8250F512AT32) and several
peripheral circuits, with an embedded Bluetooth network protocol stack and robust library
functions. BT3L-A also contains a low-power 32-bit multipoint control unit (MCU), BLE 5.0
or 2.4 GHz radio, 4 MB flash memory, 48 KB static random-access memory (SRAM), and
nine multiplexing I/O pins.
1.1 Features
Embedded low-power 32-bit MCU, which can also function as an application
processor
Clock rate: 48 MHz
Working voltage: 1.8 V to 3.6 V (Under 1.8 V to 2.7 V, the module can start but the RF
performance is not guaranteed. Under 2.8 V to 3.6 V, the module performance is
normal.)
Peripherals: nine pulse width modulation (PWM) pins
BLE RF features
Compatible with BLE 5.0
Up to 2 Mbit/s RF data rate
TX power: +10 dBm
RX sensitivity: –94.5 dBm at BLE 1 Mbit/s
Embedded Advanced Encryption Standard (AES) hardware encryption
Onboard PCB antenna
Working temperature: –20°C to +105°C
Tuya BT3L-A BLE Module
Version: 1.0.0 Date: 2019-10-24 No.: 0000000001
Product
Manual
Global Intelligent Platform
BT3L-A Datasheet
2
1.2 Applications
Smart LED lights
Smart households
Smart low-power sensors
BT3L-A Datasheet
3

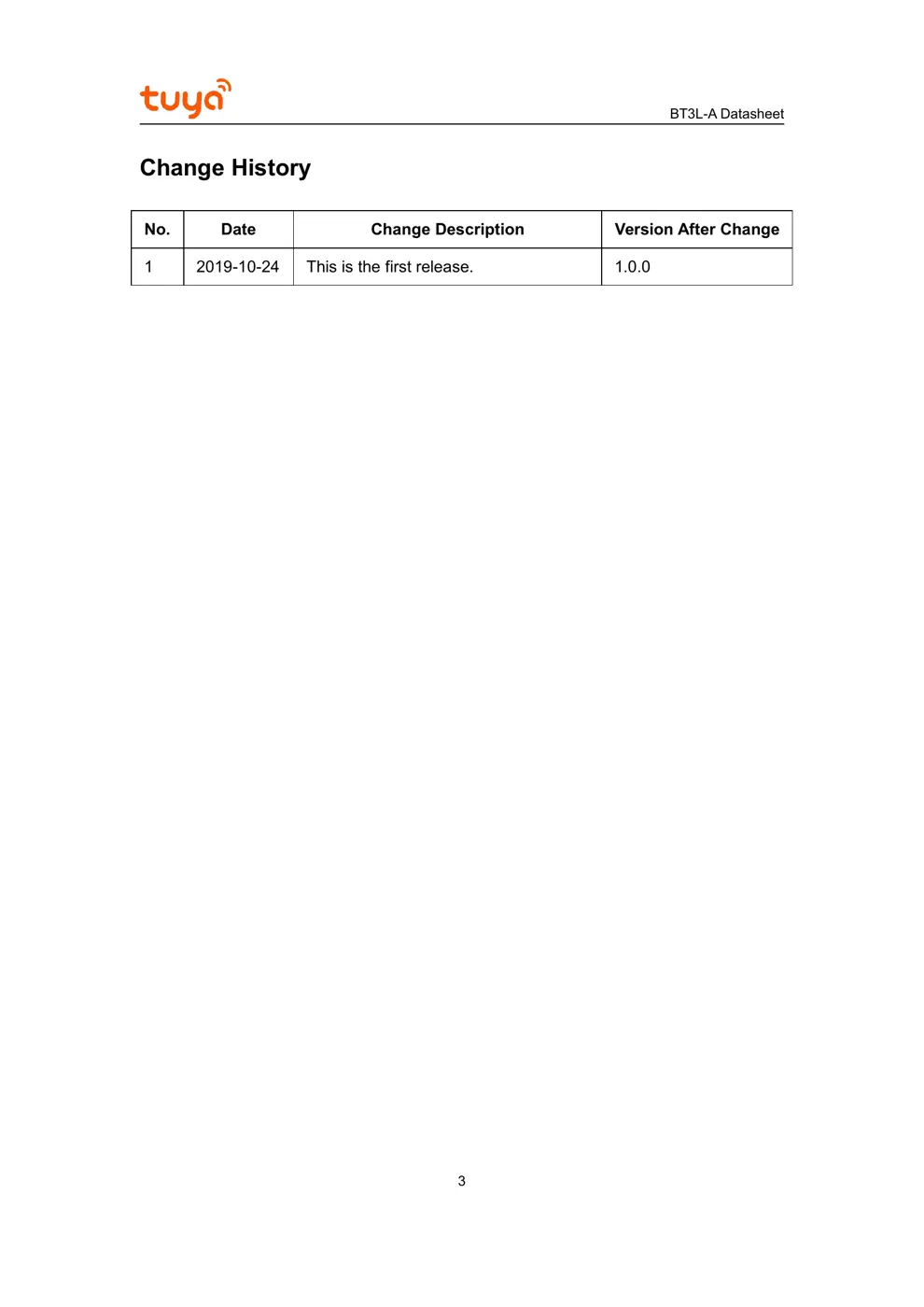

Change History
No. Date Change Description Version After Change
1 2019-10-24 This is the first release. 1.0.0
BT3L-A Datasheet
4
Contents
1 Product Overview.....................................................................................................................1
1.1 Features.........................................................................................................................1
1.2 Applications...................................................................................................................2
2 Module Interfaces.....................................................................................................................6

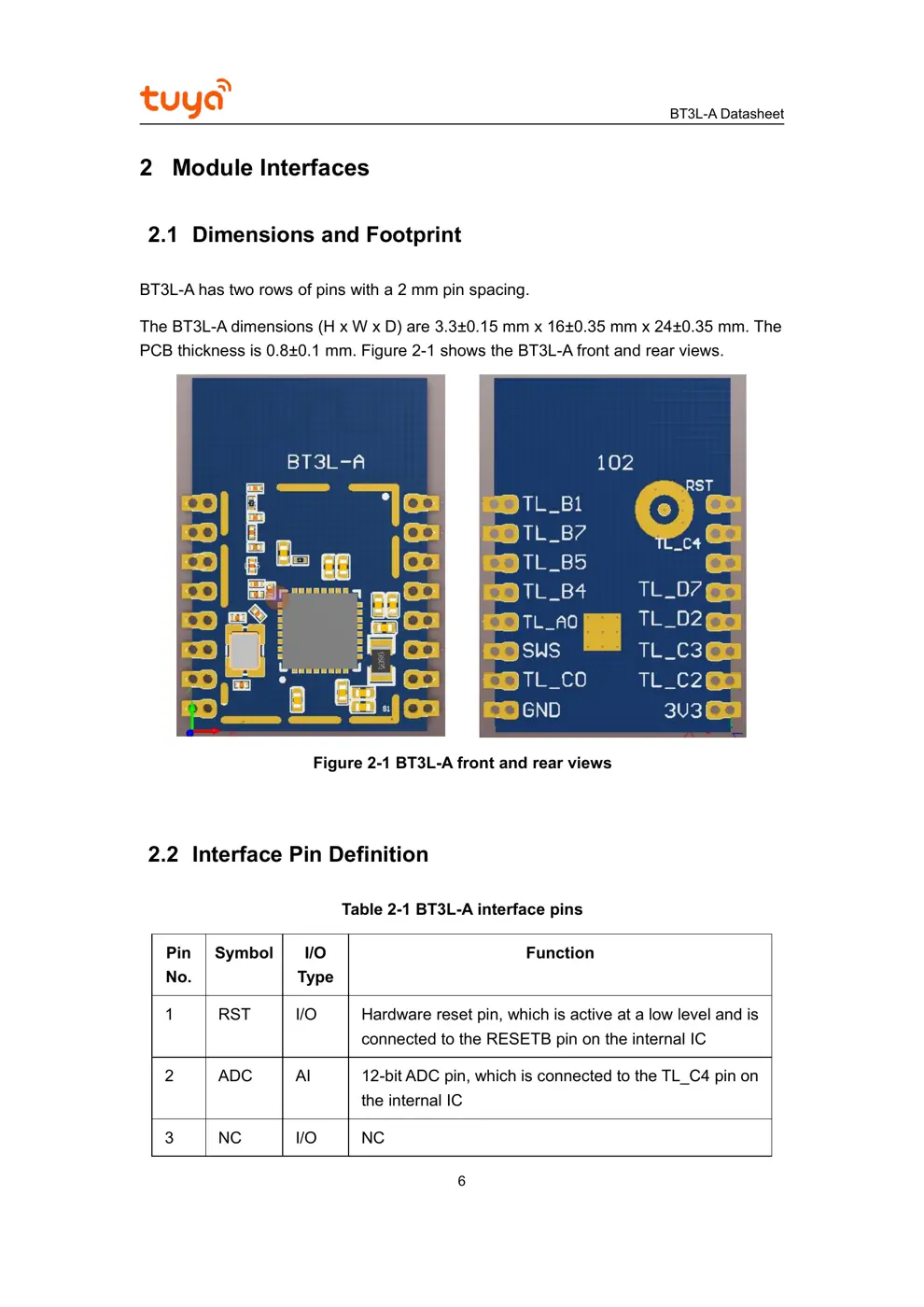

2.1 Dimensions and Footprint...........................................................................................6

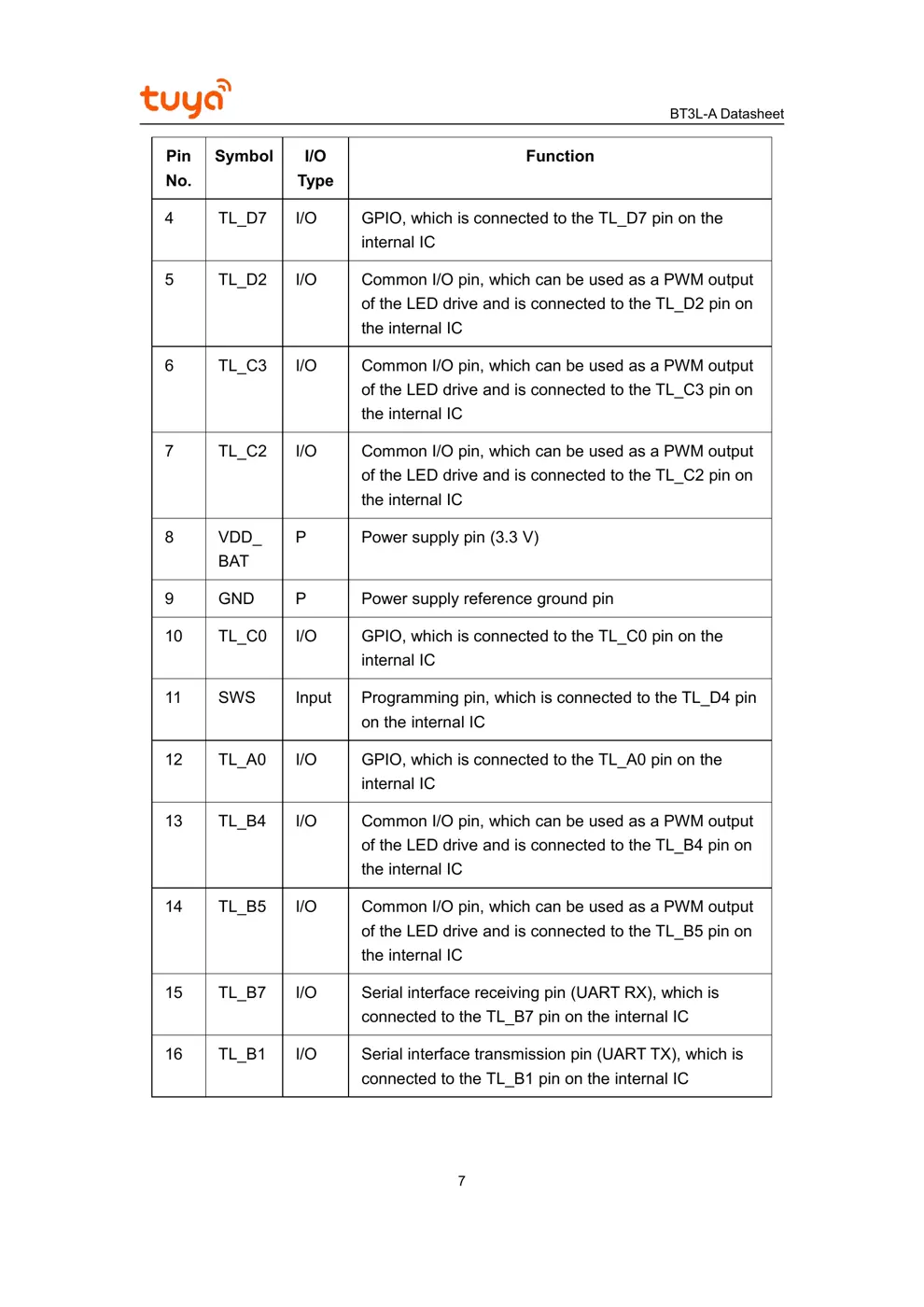

2.2 Interface Pin Definition................................................................................................ 6

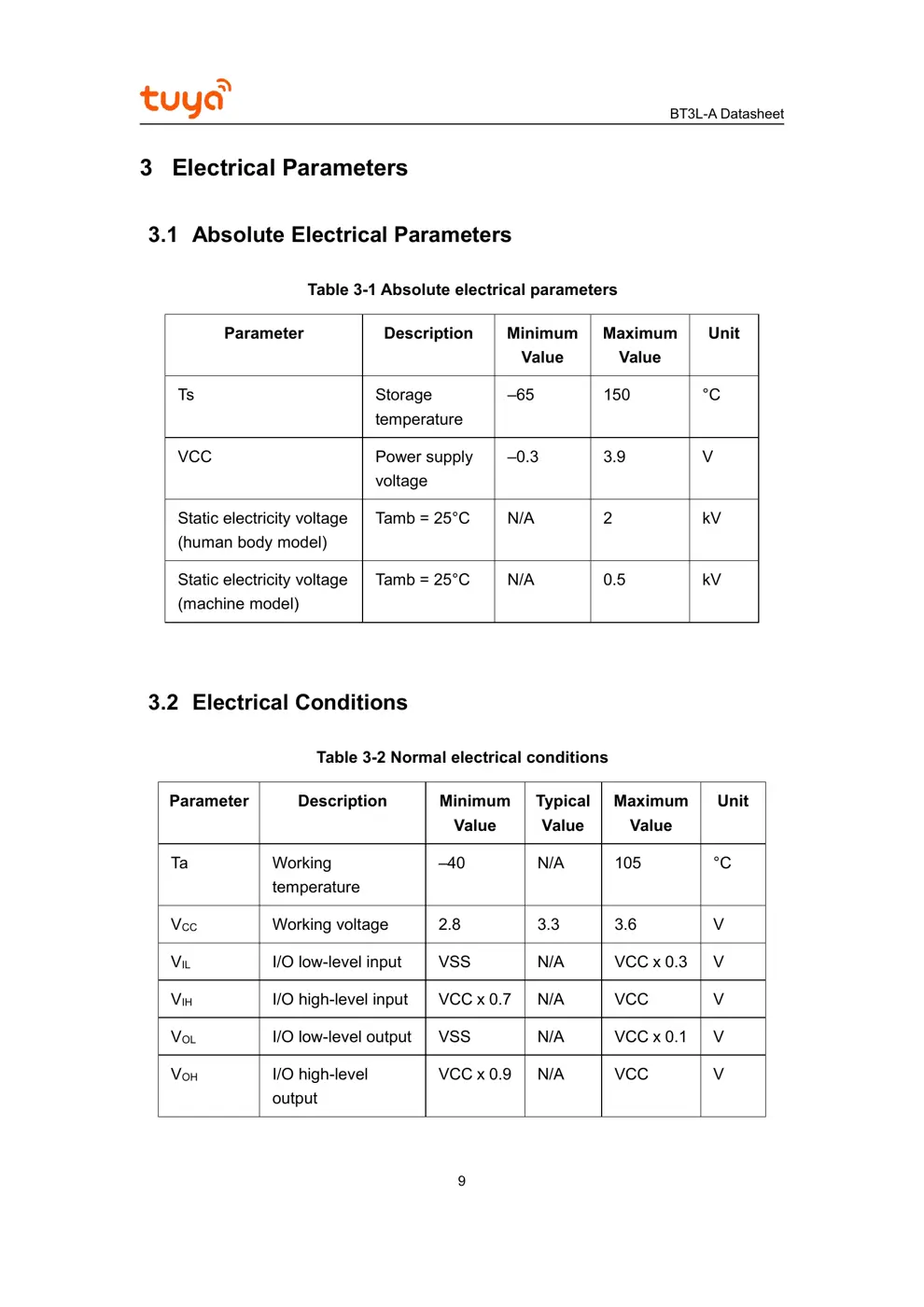

3 Electrical Parameters.............................................................................................................. 9
3.1 Absolute Electrical Parameters................................................................................. 9
3.2 Electrical Conditions.................................................................................................... 9

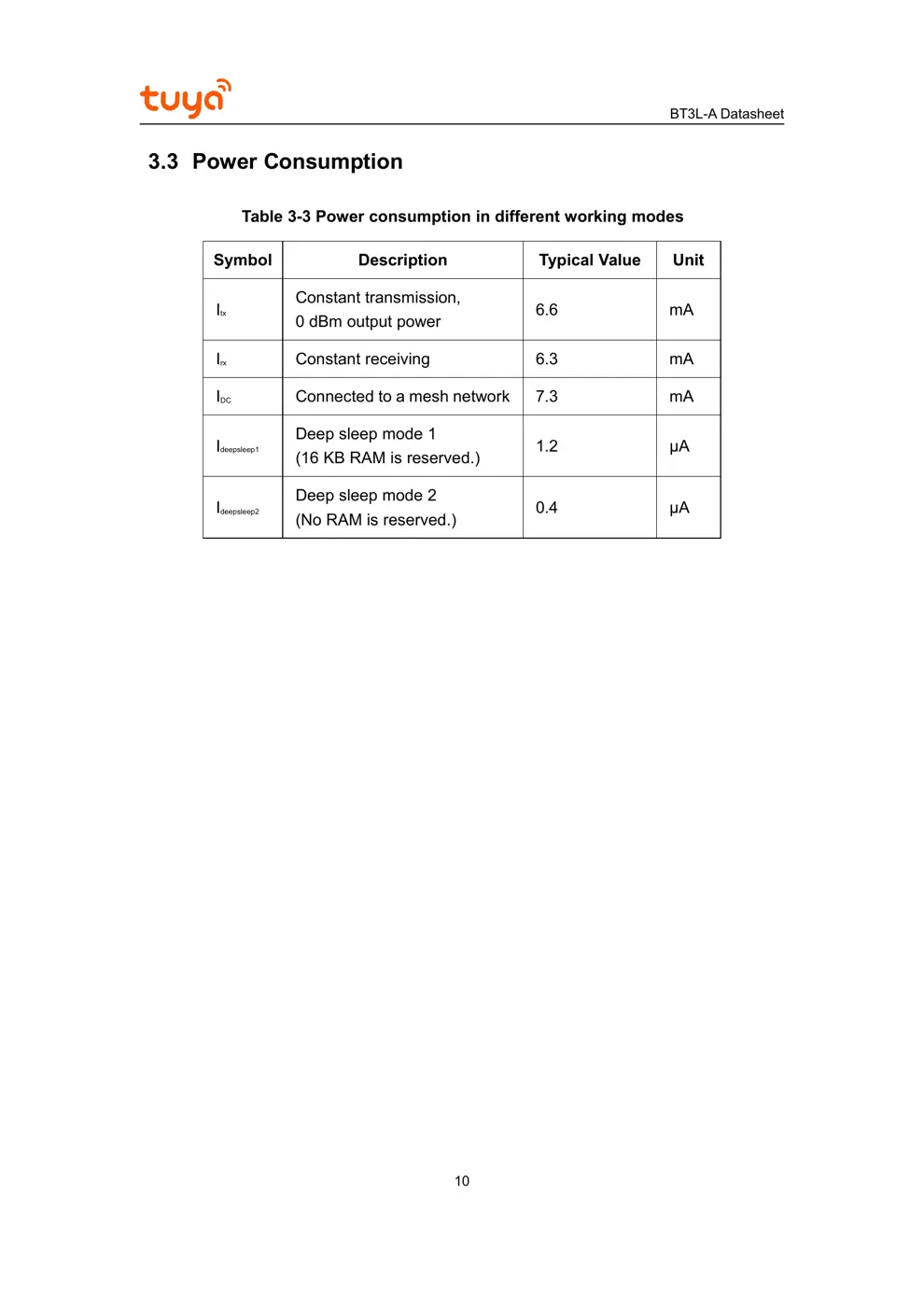

3.3 Power Consumption.................................................................................................. 10
4 RF Features............................................................................................................................ 11
4.1 Basic RF Features...................................................................................
