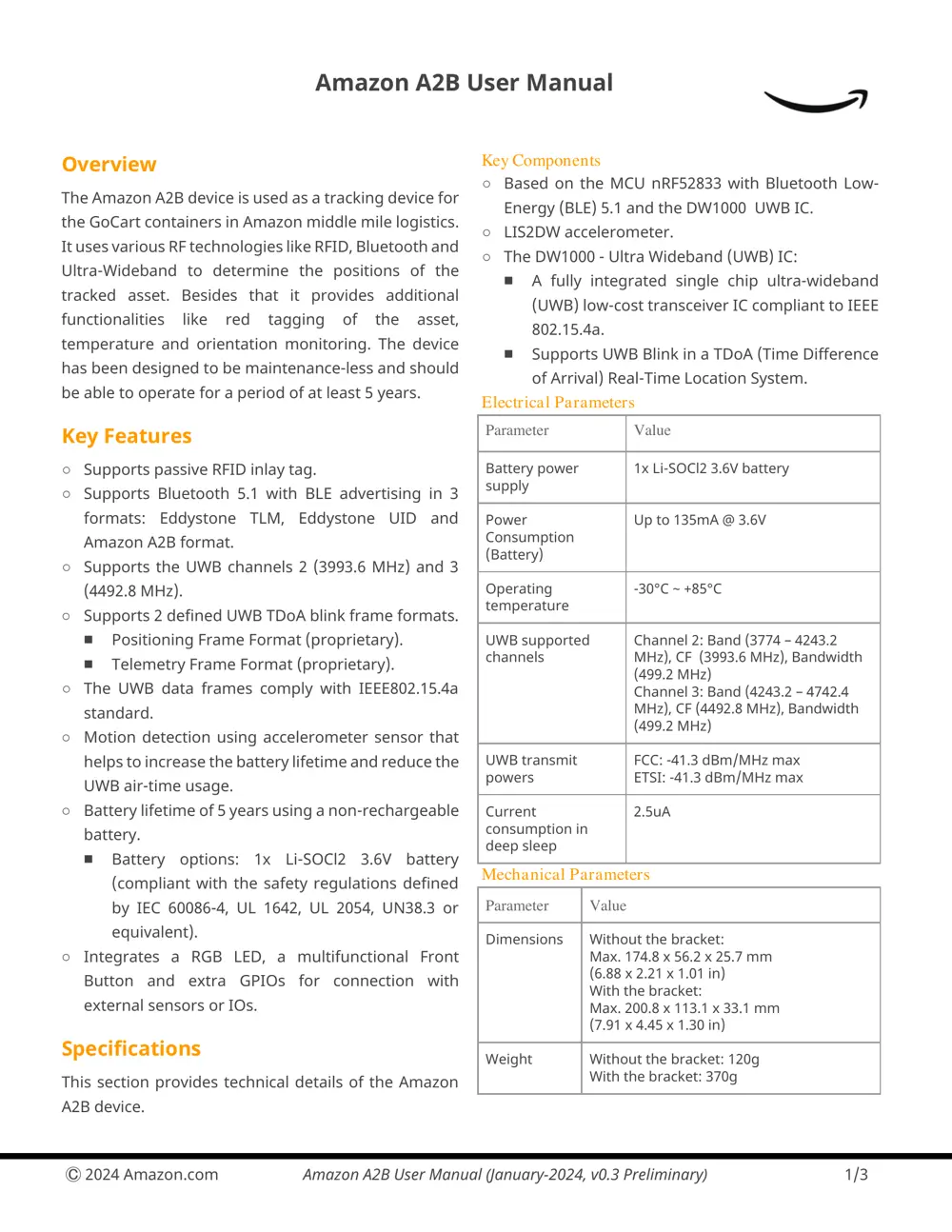

Amazon A2B User Manual
Overview
The Amazon A2B device is used as a tracking device for
the GoCart containers in Amazon middle mile logistics.
It uses various RF technologies like RFID, Bluetooth and
Ultra-Wideband to determine the positions of the
tracked asset. Besides that it provides additional
functionalities like red tagging of the asset,
temperature and orientation monitoring. The device
has been designed to be maintenance-less and should
be able to operate for a period of at least 5 years.
Key Features
○ Supports passive RFID inlay tag.
○ Supports Bluetooth 5.1 with BLE advertising in 3
formats: Eddystone TLM, Eddystone UID and
Amazon A2B format.
○ Supports the UWB channels 2 (3993.6 MHz) and 3
(4492.8 MHz).
○ Supports 2 defined UWB TDoA blink frame formats.
■ Positioning Frame Format (proprietary).
■ Telemetry Frame Format (proprietary).
○ The UWB data frames comply with IEEE802.15.4a
standard.
○ Motion detection using accelerometer sensor that
helps to increase the battery lifetime and reduce the
UWB air-time usage.
○ Battery lifetime of 5 years using a non-rechargeable
battery.
■ Battery options: 1x Li -SOCl2 3.6V battery
(compliant with the safety regulations defined
by IEC 60086 -4, UL 1642, UL 2054, UN38.3 or
equivalent).
○ Integrates a RGB LED, a multifunctional Front
Button and extra GPIOs for connection with
external sensors or IOs.
Specifications
This section provides technical details of the Amazon
A2B device.
Key Components
○ Based on the MCU nRF52833 with Bluetooth Low -
Energy (BLE) 5.1 and the DW1000 UWB IC.
○ LIS2DW accelerometer.
○ The DW1000 - Ultra Wideband (UWB) IC:
■ A fully integrated single chip ultra -wideband
(UWB) low-cost transceiver IC compliant to IEEE
802.15.4a.
■ Supports UWB Blink in a TDoA (Time Difference
of Arrival) Real-Time Location System.
Electrical Parameters
Parameter Value
Battery power
supply
1x Li-SOCl2 3.6V battery
Power
Consumption
(Battery)
Up to 135mA @ 3.6V
Operating
temperature
-30°C ~ +85°C
UWB supported
channels
Channel 2: Band (3774 – 4243.2
MHz), CF (3993.6 MHz), Bandwidth
(499.2 MHz)
Channel 3: Band (4243.2 – 4742.4
MHz), CF (4492.8 MHz), Bandwidth
(499.2 MHz)
UWB transmit
powers
FCC: -41.3 dBm/MHz max
ETSI: -41.3 dBm/MHz max
Current
consumption in
deep sleep
2.5uA
Mechanical Parameters
Parameter Value
Dimensions Without the bracket:
Max. 174.8 x 56.2 x 25.7 mm
(6.88 x 2.21 x 1.01 in)
With the bracket:
Max. 200.8 x 113.1 x 33.1 mm
(7.91 x 4.45 x 1.30 in)
Weight Without the bracket: 120g
With the bracket: 370g

 Ⓒ 2024 Amazon.com Amazon A2B User Manual (January-2024, v0.3 Preliminary) 2/3

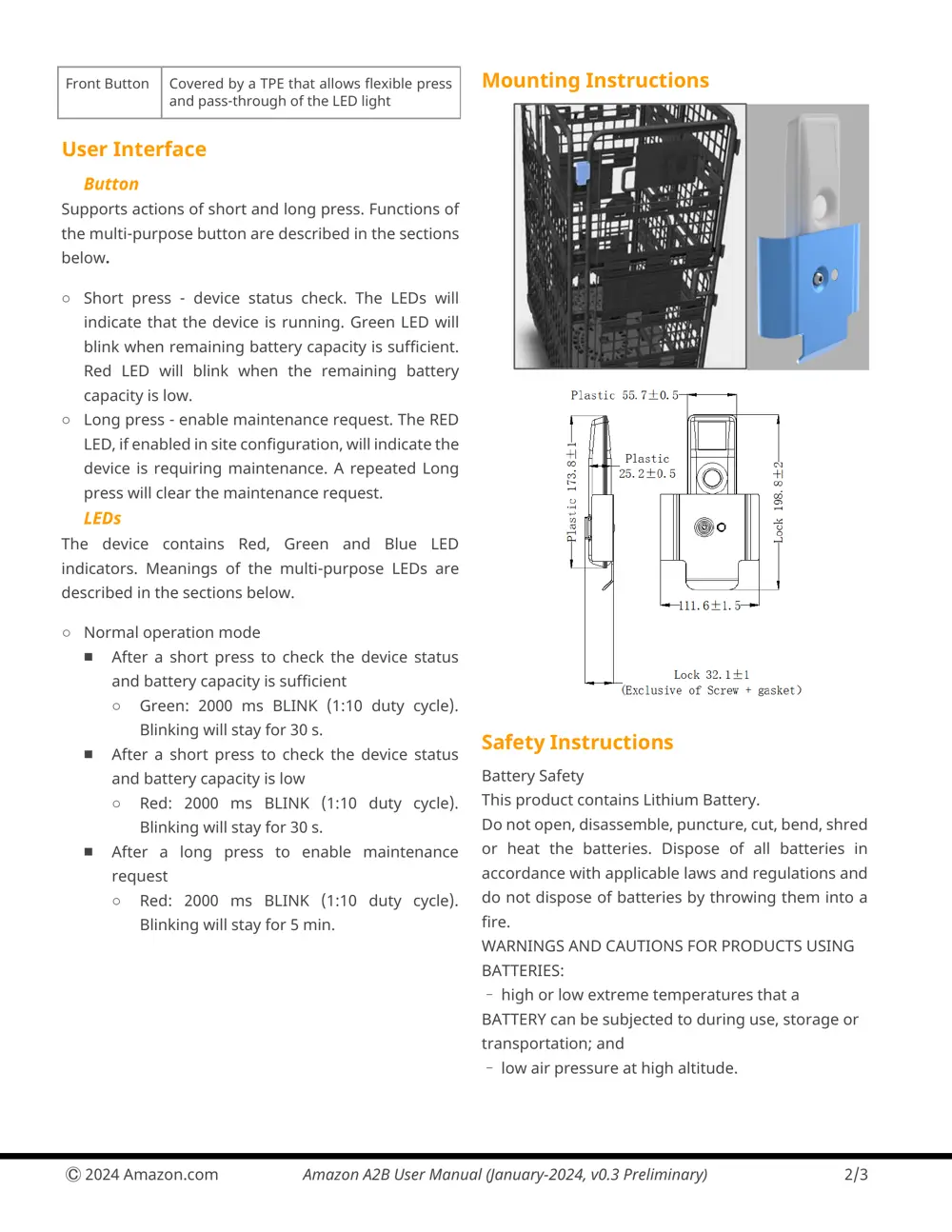

Front Button Covered by a TPE that allows flexible press
and pass-through of the LED light
User Interface
Button
Supports actions of short and long press. Functions of
the multi-purpose button are described in the sections
below.
○ S...
